FDF25CA100/120
DIODE MODULE
F.R.D.
FDF25CA is a high speed dual diode module designed for high power switching
application. FDF25CA is suitable for high frequency application requiring low loss and
high speed control.
High Speed trr200ns
ID=25A
Isolated mounting construction.
High Surge Capability
Applications
Switching Power Supply, Inverter Welding Power
Supply
Power Supply for Telecommunication
Maximum Ratings
Tj 25
Symbol Item
Ratings
FDF25CA100
1000
800
Unit
VRRM
VR DC
Repetitive Peak Reverse Voltage
D.C. Reverse Voltage
FDF25CA120
1200
960
V
V
Unit
Symbol Item
Output Current D.C.
Conditions Ratings Unit
AID
Three phase full wave. TC114
25
IFSM
Surge Forward Current
1
2
cycle, 60HZ, peak value, non-repetitive
400 A
I
2
t
I2t Value for one cycle of surge current 660 A2S
Tj
Operating Junction Temperature
40 150
Tstg Storage Temperature
40 125
V
ISO
Isolation Breakdown Voltage R.M.S.
Mounting
Torque
A.C. 1 minute 2500 V
Muonting
M6
Terminal
M5
Mass
Recommended Value 2.5 3.9 25 40
Recommended Value 1.5 2.5 15 25
4.7 48
2.7 28
N m
f B
gTypical Value 200
Electrical Characteristics
Symbol
IRRM
Item
Repetitive Peak Reverse Current
Conditions
VRV
RRM
, Tj150
Unit
mA
VFM Forward Voltage Drop
IFM25A, Inst. measurement
V
trr
Reverse Recovery Time, max.
IF25A di/dt 100A/ s
ns
Rth j-c
Thermal Impedance Junction to case
/W
Ratings
Min. Typ. Max.
2.0
1.8
200
0.4
UL;E76102 M

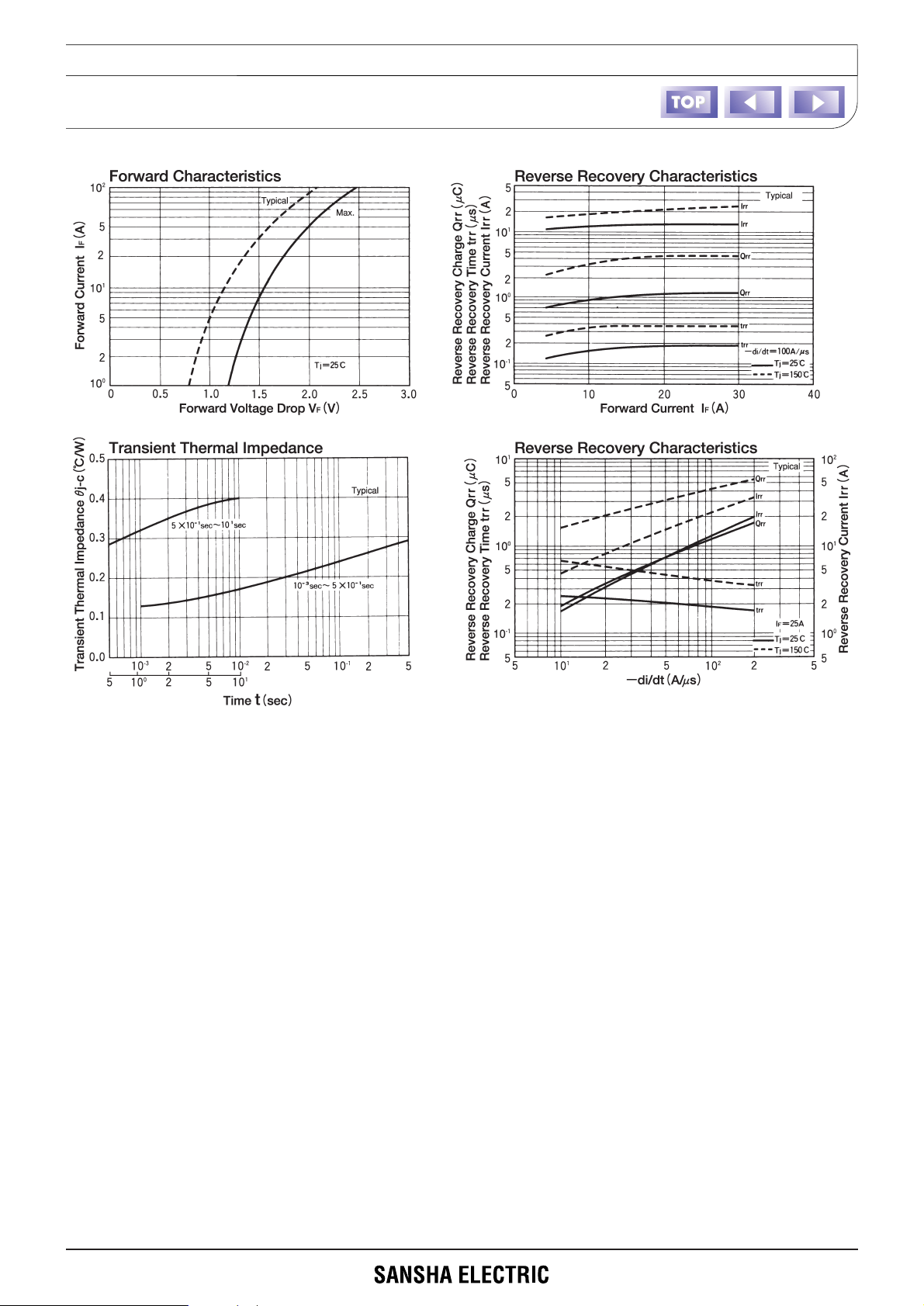

Page 2
40
FDF25CA100/120
