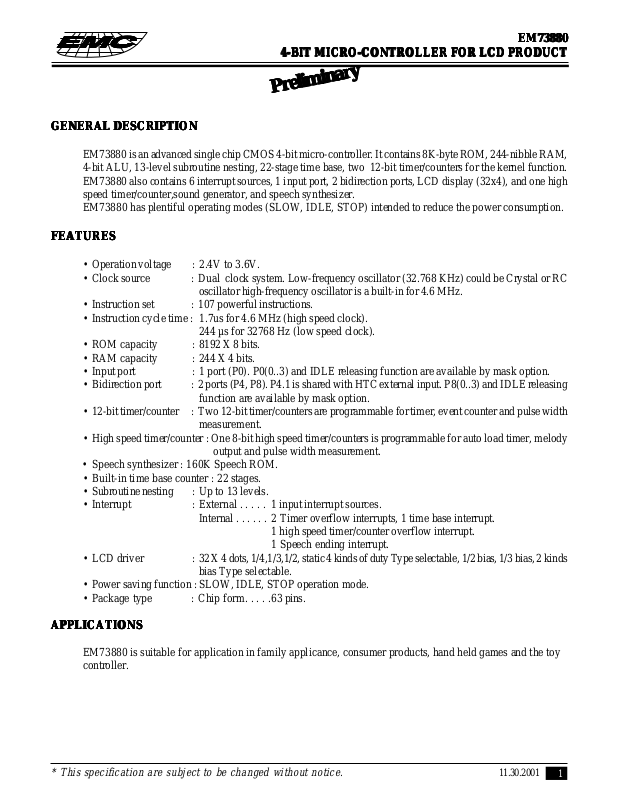

GENERAL DESCRIPTIONGENERAL DESCRIPTION

GENERAL DESCRIPTION

GENERAL DESCRIPTIONGENERAL DESCRIPTION

EM73880 is an advanced single chip CMOS 4-bit micro-controller. It contains 8K-byte ROM, 244-nibble RAM,
4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/counters for the kernel function.
EM73880 also contains 6 interrupt sources, 1 input port, 2 bidirection ports, LCD display (32x4), and one high
speed timer/counter,sound generator, and speech synthesizer.
EM73880 has plentiful operating modes (SLOW, IDLE, STOP) intended to reduce the power consumption.

FEATURESFEATURES

FEATURES

FEATURESFEATURES

• Operation voltage : 2.4V to 3.6V.

• Clock source : Dual clock system. Low-frequency oscillator (32.768 KHz) could be Crystal or RC
oscillator high-frequency oscillator is a built-in for 4.6 MHz.

• Instruction set : 107 powerful instructions.

• Instruction cycle time : 1.7us for 4.6 MHz (high speed clock).
244 µs for 32768 Hz (low speed clock).

• ROM capacity : 8192 X 8 bits.

• RAM capacity : 244 X 4 bits.

• Input port : 1 port (P0). P0(0..3) and IDLE releasing function are available by mask option.

• Bidirection port : 2 ports (P4, P8). P4.1 is shared with HTC external input. P8(0..3) and IDLE releasing
function are available by mask option.

• 12-bit timer/counter : Two 12-bit timer/counters are programmable for timer, event counter and pulse width
measurement.

• High speed timer/counter : One 8-bit high speed timer/counters is programmable for auto load timer, melody
output and pulse width measurement.

• Speech synthesizer : 160K Speech ROM.

• Built-in time base counter : 22 stages.

• Subroutine nesting : Up to 13 levels.

• Interrupt : External . . . . . 1 input interrupt sources.

Internal . . . . . . 2 Timer overflow interrupts, 1 time base interrupt.

• LCD driver : 32 X 4 dots, 1/4,1/3,1/2, static 4 kinds of duty Type selectable, 1/2 bias, 1/3 bias, 2 kinds
bias Type selectable.

• Power saving function : SLOW, IDLE, STOP operation mode.

• Package type : Chip form. . . . .63 pins.

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

1 high speed timer/counter overflow interrupt.
1 Speech ending interrupt.

APPLICATIONSAPPLICATIONS

APPLICATIONS

APPLICATIONSAPPLICATIONS

EM73880 is suitable for application in family applicance, consumer products, hand held games and the toy
controller.

* This specification are subject to be changed without notice.

11.30.2001

1

FUNCTION BLOCK DIAGRAMFUNCTION BLOCK DIAGRAM

FUNCTION BLOCK DIAGRAM

FUNCTION BLOCK DIAGRAMFUNCTION BLOCK DIAGRAM

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

RESET

Reset

Control

Interrupt

Control

Time
Base

Timer/Counter

(TA,TB)

VA
VB

V1

V2
V3

LCD

SEG0~SEG31

COM0~COM3

CLK

LXOUT

Int. Clock
Generator

Instruction Decoder
Instruction Register

ROM

PC

HTC

Clock

Generator

(slow)

LXIN

System Control

Data Bus

Speech Synthesizer

PWM

Z

BZ1

Timing

Generator

Data pointer

ACC

ALU

Flag
C

BZ2

S

I/O Control

P4.0

P4.1/TRGH

Clock Mode

Stack pointer

Stack

HR

P4.2

P4.3

P8.0/WAKEUPA

P8.1(TRGB)/WAKEUPB

Control

RAM

LR

P8.2(INT0)/WAKEUPC

P8.3(TRGA)/WAKEUPD

P0.0/WAKEUP0
P0.1/WAKEUP1
P0.2/WAKEUP2
P0.3/WAKEUP3

PIN DESCRIPTIONSPIN DESCRIPTIONS

PIN DESCRIPTIONS

PIN DESCRIPTIONSPIN DESCRIPTIONS

SymbolSymbol

Symbol

SymbolSymbol

V

DD, VDD2

V

SS

Pin-typePin-type

Pin-type

Pin-typePin-type

FunctionFunction

Function

FunctionFunction

Power supply (+) / speech synthesizer power supply(+)
Power supply (-)

RESET RESET-A System reset input signal, low active

mask option : none

pull-up
CLK OSC-G Capacitor connecting pin for internal high frequency OSC.
LXIN OSC-B/OSC-H Crstal/RC connecting pin for low speed clock source
LXOUT OSC-B Crstal/RC connecting pin for low speed clock source
P0(0..3)/WAKEUP0..3 INPUT-K 4-bit input port with IDLE releasing function

mask option : wakeup enable, negative edge release, pull-up

wakeup enable, negative edge release, none

wakeup enable, positive edge release, pull-down

wakeup enable, positive edge release, none

wakeup disable, pull-up

wakeup disable, pull-down

wakeup disable, none
P4.0 I/O-R 1-bit bidirection I/O port

* This specification are subject to be changed without notice.

11.30.2001

2

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

PIN DESCRIPTIONSPIN DESCRIPTIONS

PIN DESCRIPTIONS

PIN DESCRIPTIONSPIN DESCRIPTIONS

SymbolSymbol

Symbol

SymbolSymbol

P4.1/TRGH I/O-Q 1-bit bidirection I/O port with HTC external input

P4(2,3) I/O-Q 2-bit bidirection I/O port with high current source

P8.0/WAKEUPA, I/O-S 2-bit bidirection I/O port with external interrupt source input only
P8.2/INT0/WAKEUPC P8.2 and IDLE releasing function

P8.1(TRGB)/WAKEUPB I/O-S 2-bit bidirection I/O port with time/counter A,B external input and IDLE
P8.3(TRGA)/WAKEUPD releasing function

BZ1, BZ2 Speech output pin
VA,VB, V1, V2, V3 Connect the capacitors for LCD bias voltage
COM0~COM3 LCD common output pins
SEG0~SEG31 LCD segment output pins
TEST Tie Vss as package type, no connecting as COB type

Pin-typePin-type

Pin-type

Pin-typePin-type

FunctionFunction

Function

FunctionFunction

mask option : NMOS open-drain

PMOS open-drain
low current push-pull
normal current push-pull
high current push-pull

mask option : NMOS open-drain

PMOS open-drain
low current push-pull
normal current push-pull
high current push-pull

mask option : wakeup enable, low current push-pull

wakeup enable, normal current push-pull
wakeup disable, open-drain
wakeup disable, low current push-pull
wakeup disable, normal current push-pull

mask option : wakeup enable, low current push-pull

wakeup enable, normal current push-pull
wakeup disable, open-drain
wakeup disable, low current push-pull
wakeup disable, normal current push-pull

FUNCTION DESCRIPTIONSFUNCTION DESCRIPTIONS

FUNCTION DESCRIPTIONS

FUNCTION DESCRIPTIONSFUNCTION DESCRIPTIONS

PROGRAM ROM (8K X 8 bits)PROGRAM ROM (8K X 8 bits)

PROGRAM ROM (8K X 8 bits)

PROGRAM ROM (8K X 8 bits)PROGRAM ROM (8K X 8 bits)

8 K x 8 bits program ROM contains user's program and some fixed data.
The basic structure of program ROM can be divided into 6 parts.

1. Address 000h: Reset start address.

2. Address 002h - 00Ch : 6 kinds of interrupt service routine entry addresses.

3. Address 00Eh-086h : SCALL subroutine entry address, only available at 00Eh,016h,01Eh,026h, 02Eh,
036h, 03Eh, 046h, 04Eh, 056h, 05Eh, 066h, 06Eh, 076h, 07Eh, 086h.

4. Address 000h - 7FFh : LCALL subroutine entry address

5. Address 000h - 1FFFh :Except used as above function, the other region can be used as user's program region.

6. Address 1000h - 1FFFh : Fixed data stortage area.

* This specification are subject to be changed without notice.

11.30.2001

3

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

address 8192 x 8 bits

PreliminaryPreliminary

000h Reset start address
002h INT0; External interrupt service routine entry address
004h HTCI; High speed timer interrupt service entry address
006h TRGA; Timer/counterA interrupt service routine entry address LCALL entry
008h TRGB; Timer/counter B interrupt service routine entry address address
00Ah TBI; Time base interrupt service routine entry address
00Ch SPI
00Eh
086h
800h

.

.

.

SCALL, subroutine call entry address

1000

FFFh fixed data area

Bank1

1FFF
User's program and fixed data are stored in the program ROM. User's program is according the PC value
to send next executed instruction code . Fixed data can be read out.
The program counter is a 13-bit binary counter. The PC can defined 8K ROM.

Table -look-up instruction is depended on the Data Pointer (DP) to indicate to ROM address, then to get the
ROM code data. The fixed data only can be put in bank1.

LDAXLDAX

LDAX

LDAXLDAX
LDAXILDAXI

LDAXI

LDAXILDAXI

Acc Acc

Acc

Acc Acc

Acc Acc

Acc

Acc Acc

←←

ROM[DP] ROM[DP]

←

ROM[DP]

←←

ROM[DP] ROM[DP]

←←

ROM[DP] ROM[DP]

←

ROM[DP]

←←

ROM[DP] ROM[DP]

LL

L

LL

,DP+1,DP+1

,DP+1

,DP+1,DP+1

HH

H

HH

DP is a 12-bit data register which can store the program ROM address to be the pointer for the ROM code
data. First, user load ROM address into DP by instruction "STADPL, STADPM, STADPH", then user can
get the lower nibble of ROM code data by instruction "LDAX" and higher nibble by instruction "LDAXI"

PROGRAM EXAMPLE: Read out the ROM code of address 1777h by table-look-up instruction.

LDIA #07h;
STADPL ; DP2-0 ← 07h
STADPM ; DP5-3 ← 07h
STADPH ; DP8-6 ← 07h, Load DP=777h
:
LDL #00h;
LDH #03h;
LDAX ; ACC ← 6h
STAMI ; RAM[30] ← 6h
LDAXI ; ACC ← 5h
STAM ; RAM[31] ← 5h
;
ORG 1777H
DATA 56H;
:

DATA RAM ( 244-nibble ) DATA RAM ( 244-nibble )

DATA RAM ( 244-nibble )

DATA RAM ( 244-nibble ) DATA RAM ( 244-nibble )

There is total 244 - nibble data RAM from address 00 to F3h
Data RAM includes 3 parts: zero page region, stacks and data area.

* This specification are subject to be changed without notice.

11.30.2001

4

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

Increment

Address
00h~0Fh
10h~1Fh
20h~2Fh
30h~3Fh
40h~4Fh

:
B0h ~ BFh
C0h ~ CFh
D0h ~ DFh
E0h ~ EFh

F0h ~ F3h

level 0
level 4
level 8

level C

zero page

LCD display RAM

level 1
level 5
level 9

level 2
level 6

level A

level 3
level 7

level B

LCD display RAM:

RAM address from 20h ~ 3Fh are the LCD display RAM area, the RAM data of this region can't be operated
by instruction LDHL xx and EXHL.

ZERO- PAGE:

From 00h to 0Fh is the location of zero-page . It is used as the pointer in zero -page addressing mode for the
instruction of "STD #k,y; ADD #k,y; CLR y,b; CMP k,y".

PROGRAM EXAMPLE: To wirte immediate data "07h" to address "03h" of RAM and to clear bit 2 of RAM.

STD #07h, 03h ; RAM[03] ← 07h
CLR 0Eh,2 ; RAM[0Eh]2 ← 0

STACK:

There are 13 - level (maximum) stack for user using for subroutine (including interrupt and CALL). User
can assign any level be the starting stack by giving the level number to stack pointer (SP).
When user using any instruction of CALL or subroutine, before entry the subroutine, the previous PC address
will be saved into stack until return from those subroutines ,the PC value will be restored by the data saved
in stack.

DATA AREA:

Except the special area used by user, the whole RAM can be used as data area for storing and loading general
data.

ADDRESSING MODE

(1) Indirect addressing mode:

Indirect addressing mode indicates the RAM address by specified HL register.
For example: LDAM ; Acc ← RAM[HL]

STAM ; RAM[HL] ← Acc

(2) Direct addressing mode:

Direct addressing mode indicates the RAM address by immediate data.

* This specification are subject to be changed without notice.

11.30.2001

5

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

For example:

(3) Zero-page addressing mode

For zero-page region, user can using direct addressing to write or do any arithematic, comparsion or bit
manupulated operation directly.
For example:

PROGRAM COUNTER (8K ROM)PROGRAM COUNTER (8K ROM)

PROGRAM COUNTER (8K ROM)

PROGRAM COUNTER (8K ROM)PROGRAM COUNTER (8K ROM)

Program counter ( PC ) is composed by a 13-bit counter, which indicates the next executed address for the
instruction of program ROM.
For a 8K - byte size ROM, PC can indicate address form 0000h - 1FFFh, for BRANCH and CALL instrcutions,
PC is changed by instruction indicating.

(1) Branch instruction:(1) Branch instruction:

(1) Branch instruction:

(1) Branch instruction:(1) Branch instruction:

LDA x ; Acc← RAM[x]
STA x ; RAM[x] ← Acc

STD #k,y ; RAM[y] ← #k
ADD #k,y; RAM[y] ← RAM[y] + #k

PreliminaryPreliminary

SBR aSBR a

SBR a

SBR aSBR a

Object code: 00aa aaaa
Condition: SF=1; PC ← PC

PC Hold original PC value+1 aaaa a a

SF=0; PC← PC +1( branch condition not satisified)

PC Original PC value + 1

LBR aLBR a

LBR a

LBR aLBR a

Object code: 1100 aaaa aaaa aaaa
Condition: SF=1; PC ← a ( branch condition satisified)

PC aaaaaaaaaaa a

SF=0 ; PC ← PC + 2 ( branch condition not satisified )

PC Original PC value + 2

( branch condition satisified )

11-6.a

* This specification are subject to be changed without notice.

11.30.2001

6

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

(2) Subroutine instruction:(2) Subroutine instruction:

(2) Subroutine instruction:

(2) Subroutine instruction:(2) Subroutine instruction:

SCALL aSCALL a

SCALL a

SCALL aSCALL a

Object code: 1110 nnnn
Condition : PC ← a ; a=8n+6 ; n=1..15 ; a=86h, n=0

PC0000aaaaaaaa

LCALL aLCALL a

LCALL a

LCALL aLCALL a

Object code: 0100 0 aaa aaaa aaaa
Condition: PC ← a

PC0aaaaaaaaaaa

RETRET

RET

RETRET

Object code: 0100 1111
Condition: PC ← STACK[SP]; SP + 1

EM73880EM73880

EM73880

EM73880EM73880

PC The return address stored in stack

RT IRT I

RT I

RT IRT I

Object code: 0100 1101
Condition : FLAG. PC ← STACK[SP]; EI ← 1; SP + 1

PC The return address stored in stack

* This specification are subject to be changed without notice.

11.30.2001

7

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

(3) Interrupt acceptance operation:(3) Interrupt acceptance operation:

(3) Interrupt acceptance operation:

(3) Interrupt acceptance operation:(3) Interrupt acceptance operation:

When an interrupt is accepted, the original PC is pushed into stack and interrupt vector will be loaded into
PC,The interrupt vectors are as following:

INT0INT0

INT0 (External interrupt from P8.2)

INT0INT0

PC000000000010

HTCHTC

HTC (High speed counter)

HTCHTC

PC000000000100

TRGATRGA

TRGA (Timer A overflow interrupt)

TRGATRGA

PC000000000110

TRGBTRGB

TRGB (Time B overflow interrupt)

TRGBTRGB

PC000000001000

TBITBI

TBI (Time base interrupt)

TBITBI

PC000000001010

SPISPI

SPI (Speech Interrupt)

SPISPI

PC000000001100

(4) Reset operation:(4) Reset operation:

(4) Reset operation:

(4) Reset operation:(4) Reset operation:

PC000000000000

(5) Other operations:(5) Other operations:

(5) Other operations:

(5) Other operations:(5) Other operations:

For 1-byte instruction execution: PC + 1
For 2-byte instruction execution: PC + 2
For 3-byte instruction execution: PC + 3

ACCUMULATORACCUMULATOR

ACCUMULATOR

ACCUMULATORACCUMULATOR

Accumulator is a 4-bit data register for temporary data . For the arithematic, logic and comparative opertion
.., ACC plays a role which holds the source data and result .

* This specification are subject to be changed without notice.

11.30.2001

8

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

FLAGSFLAGS

FLAGS

FLAGSFLAGS

There are three kinds of flag, CF ( Carry flag ), ZF ( Zero flag ), SF ( Status flag ), these 3 1-bit flags are affected

by the arithematic, logic and comparative .... operation .

All flags will be put into stack when an interrupt subroutine is served, and the flags will be restored after
RTI instruction executed .

(1) Carry Flag ( CF )

The carry flag is affected by following operation:
a. Addition : CF as a carry out indicator, when the addition operation has a carry-out, CF will be "1",

in another word, if the operation has no carry-out, CF will be "0".

b. Subtraction : CF as a borrow-in indicator, when the subtraction operation must has a borrow, in the CF

will be "0", in another word, if no borrow-in, CF will be "1".

c. Comparision: CF is as a borrow-in indicator for Comparision operation as the same as subtraction

operation.

d. Rotation: CF shifts into the empty bit of accumulator for the rotation and holds the shift out data after

rotation.

e. CF test instruction : For TFCFC instruction, the content of CF sends into SF then clear itself "0".

For TTSFC instruction, the content of CF sends into SF then set itself "1".

(2) Zero Flag ( ZF )

ZF is affected by the result of ALU, if the ALU operation generate a "0" result, the ZF will be "1",
otherwise, the ZF will be "0".

(3) Status Flag ( SF )

The SF is affected by instruction operation and system status .

a. SF is initiated to "1" for reset condition .

b. Branch instruction is decided by SF, when SF=1, branch condition will be satisified, otherwise,

branch condition will not be satisified by SF = 0 .

PROGRAM EXAMPLE:

Check following arithematic operation for CF, ZF, SF

CF ZF SF
LDIA #00h; - 1 1
LDIA #03h; - 0 1
ADDA #05h; - 0 1
ADDA #0Dh; - 0 0
ADDA #0Eh; - 0 0

* This specification are subject to be changed without notice.

11.30.2001

9

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

ALUALU

ALU

ALUALU

The arithematic operation of 4 - bit data is performed in ALU unit. There are 2 flags can be affected by the
result of ALU operation, ZF and SF . The operation of ALU can be affected by CF only .

ALU STRUCTUREALU STRUCTURE

ALU STRUCTURE

ALU STRUCTUREALU STRUCTURE

ALU supported user arithematic operation function, including : addition, subtraction and rotaion.

DATA BUS

ALU

ZF CF SF

ALU FUNCTIONALU FUNCTION

ALU FUNCTION

ALU FUNCTIONALU FUNCTION

(1) Addition:

For instruction ADDAM, ADCAM, ADDM #k, ADD #k,y .... ALU supports addition function.

The addition operation can affect CF and ZF. For addition operation, if the result is "0", ZF will be "1",
otherwise, not equal "0", ZF will be "0", When the addition operation has a carry-out. CF will be "1",
otherwise, CF will be "0".

EXAMPLE:

Operation Carry Zero
3+4=7 0 0

7+F=6 1 0
0+0=0 0 1
8+8=0 1 1

(2) Subtraction:

For instruction SUBM #k, SUBA #k, SBCAM, DECM... ALU supports user subtraction function . The
subtraction operation can affect CF and ZF, For subtraction operation, if the result is negative, CF will
be "0", it means a borrow out, otherwise, if the result is positive, CF will be "1". For ZF, if the result
of subtraction operation is "0", the ZF will be "1", otherwise, ZF will be "1".

EXAMPLE:

Operation Carry Zero
8-4=4 1 0
7-F= -8(1000) 0 0
9-9=0 1 1

* This specification are subject to be changed without notice.

11.30.2001

10

EM73880EM73880

3

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

(3) Rotation:

There are two kinds of rotation operation, one is rotation left, the other is rotation right.
RLCA instruction rotates Acc value to left, shift the CF value into the LSB bit of Acc and the shift out data
will be hold in CF.

MSB LSB

ACC

CF

RRCA instruction operation rotates Acc value to right, shift the CF value into the MSB bit of Acc and the
shift out data will be hold in CF.

MSB LSB

ACC

CF

PROGRAM EXAMPLE: To rotate Acc right and shift a "1" into the MSB bit of Acc .

TTCFS; CF ← 1
RRCA; rotate Acc right and shift CF=1 into MSB.

HL REGISTERHL REGISTER

HL REGISTER

HL REGISTERHL REGISTER

HL register are two 4-bit registers, they are used as a pair of pointer for the address of RAM memory and also
2 independent temporary 4-bit data registers. For some instruction, L register can be a pointer to indicate the
pin number ( Port4 ) .

HL REGISTER STRUCTUREHL REGISTER STRUCTURE

HL REGISTER STRUCTURE

HL REGISTER STRUCTUREHL REGISTER STRUCTURE

2 1 0

H REGISTER

3 2 1 0

L REGISTER

* This specification are subject to be changed without notice.

11.30.2001

11

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

HL REGISTER FUNCTIONHL REGISTER FUNCTION

HL REGISTER FUNCTION

HL REGISTER FUNCTIONHL REGISTER FUNCTION

(1)For instruction : LDL #k, LDH #k, THA, THL, INCL, DECL, EXAL, EXAH, HL register used as a

temporary register .

PROGRAM EXAMPLE:

LDL #05h;
LDH #0Dh;

(2) For instruction LDAM, STAM, STAMI .., HL register used as a pointer for the address of RAM memory.

PROGRAM EXAMPLE: Store immediate data #Ah into RAM of address 35h.

LDL #5h;
LDH #3h;
STDMI #0Ah; RAM[35] ← Ah

(3) For instruction : SELP, CLPL, TFPL, L regieter be a pointer to indicate the bit of I/O port.

When LR = 0 indicate P4.0

PROGRAM EXAMPLE: To set bit 0 of Port4 to "1"

LDL #00h;
SEPL ; P4.0 ← 1

STACK POINTER (SP)STACK POINTER (SP)

STACK POINTER (SP)

STACK POINTER (SP)STACK POINTER (SP)

Stack pointer is a 4-bit register which stores the present stack level number.
Before using stack, user must set the SP value first, CPU will not initiate the SP value after reset condition
. When a new subroutine is accepted, the SP will be decreased one automatically, in another word, if
returning from a subroutine, the SP will be increased one .
The data transfer between ACC and SP is by instruction of "LDASP" and "STASP".

Load immediate data "5h" into L register, "Dh" into H register.

DATA POINTER (DP)DATA POINTER (DP)

DATA POINTER (DP)

DATA POINTER (DP)DATA POINTER (DP)

Data pointer is a 12-bit register which stores the address of ROM can indicate the ROM code data
specified by user (refer to data ROM).

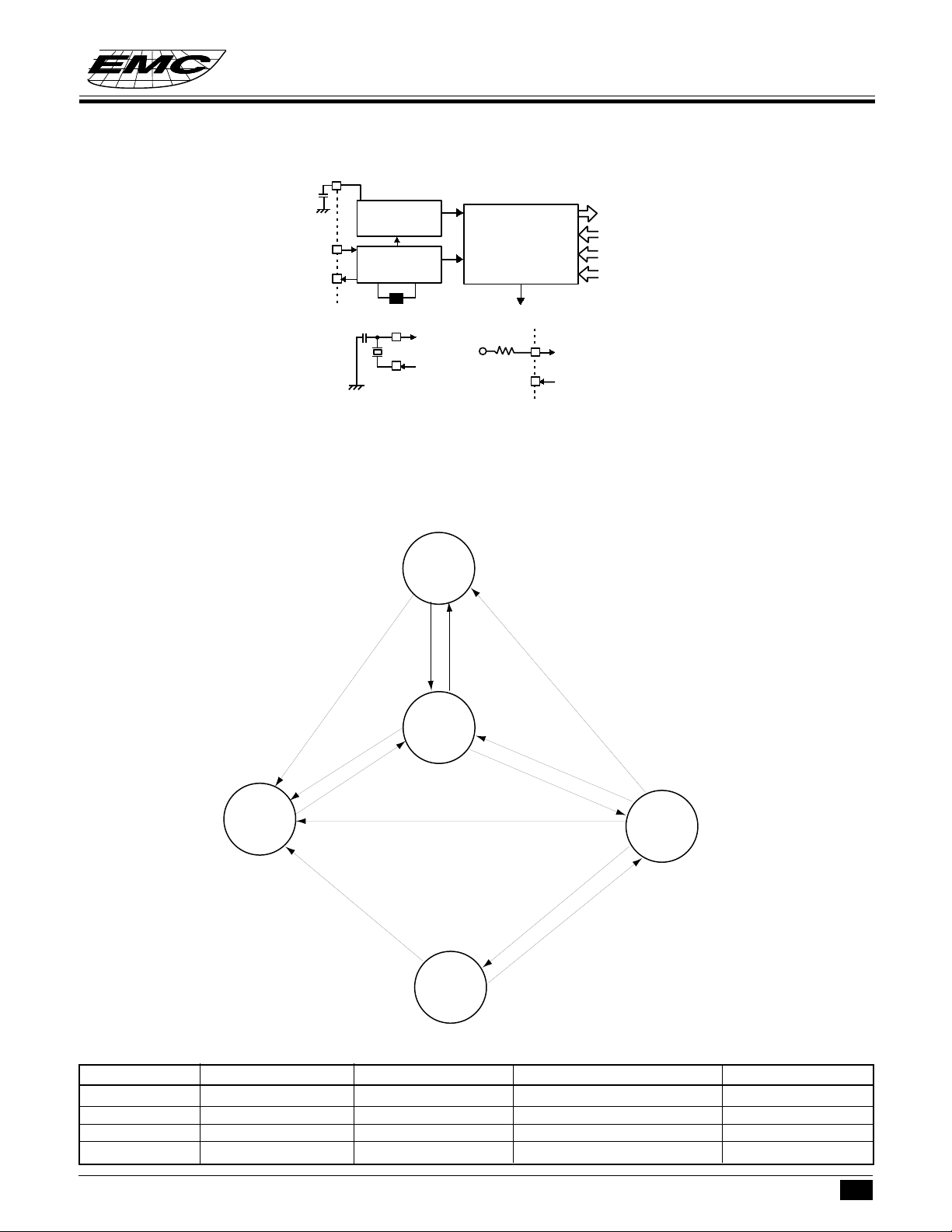

CLOCK AND TIMING GENERATORCLOCK AND TIMING GENERATOR

CLOCK AND TIMING GENERATOR

CLOCK AND TIMING GENERATORCLOCK AND TIMING GENERATOR

The clock generator is supported by a dual clock system, the slow clock source comes from crystal
(resonator) or RC oscillation is decided by mask option, and it's 32.768 KHz. The high freq OSC is built by
a internal clock source that will be 4.6 MHz.

CLOCK GENERATOR STRUCTURECLOCK GENERATOR STRUCTURE

CLOCK GENERATOR STRUCTURE

CLOCK GENERATOR STRUCTURECLOCK GENERATOR STRUCTURE

There are two clock generator for system clock control. P14 is the status register for the CPU status. P16,
P19 and P22 are the system clock mode control ports.

* This specification are subject to be changed without notice.

11.30.2001

12

0.022uF

LXOUT

LXIN

CLK

High-frequency

generator

Low-frequency

generator

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

fc

System clock

fs

mode control

P14

P16

P19

P22

Mask option for choose Crystal or RC oscillator

20PF

Crystal connection

SYSTEM CLOCK MODE CONTROLSYSTEM CLOCK MODE CONTROL

SYSTEM CLOCK MODE CONTROL

SYSTEM CLOCK MODE CONTROLSYSTEM CLOCK MODE CONTROL

LXIN

LXOUT

System control

R

VDD

open

RC oscillator connection

LXIN

LXOUT

R=1.2MΩ

The system clock mode controller can start or stop the high-frequency and low-frequency clock oscillator
and switch between the basic clocks. EM73880 has four operation modes (NORMAL, SLOW,IDLE and
STOP operation modes).

Reset

I/O wakeup

Reset

Reset release

STOP

operation

mode

NORMAL

operation

mode

High osc : stopped
Low osc : stopped

Command

(P16)

High osc : oscillating
Low osc : oscillating

Command

(P22)

Command

(P22)

Command

(P16)

RESET

operation

Reset

Operation Mode Oscillator System Clock Available function Operation Mode Oscillator System Clock Available function

Operation Mode Oscillator System Clock Available function

Operation Mode Oscillator System Clock Available function Operation Mode Oscillator System Clock Available function

Reset

IDLE
(CPU
stops)

High osc : stopped
Low osc : oscillating

Command

(P19)

I/O or internal timer wakeup

SLOW

operation

mode

High osc : stopped
Low osc : oscillating

One instruction cycle One instruction cycle

One instruction cycle

One instruction cycle One instruction cycle

NORMAL High, Low frequency High frequency clock LCD, HST, Speech sound 8 / fc

SLOW Low frequency Low frequency clock LCD, HST 8 / fs

IDLE Low frequency CPU stops LCD -

STOP None CPU stops All disable -

* This specification are subject to be changed without notice.

11.30.2001

13

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

NORMAL OPERATION MODENORMAL OPERATION MODE

NORMAL OPERATION MODE

NORMAL OPERATION MODENORMAL OPERATION MODE

The 4-bit µc is in the NORMAL operation mode when the CPU is reseted. This mode is a dual clock system
(high-frequency and low-frequency clocks oscillating). It can be changed to SLOW or STOP operation
mode by the command register (P22 or P16).
LCD display and high speed timer/counter with melody output are available for the NORMAL operation
mode.

SLOW OPERATION MODESLOW OPERATION MODE

SLOW OPERATION MODE

SLOW OPERATION MODESLOW OPERATION MODE

The SLOW operation mode is a single clock system (low-frequency clock oscillating). It can be changed to
the DUAL operation mode with the commoand register (P22), STOP operation mode with P16 and IDLE
operation mode with P19.
LCD display and high speed timer/counter with melody output are available for the SLOW operation
mode.

3210 Initial value : 0000

P22

* SOM

SOM Select operation mode
0 0 0 NORMAL operation mode
1 * * SLOW operation mode

P14 32 10 Initial value : *000

* WKS LFS CPUS

LFS Low-frequency status CPUS CPU status

0 LXIN source is not stable 0 NORMAL operation mode
1 LXIN source is stable 1 SLOW operation mode

WKS Wakeup status

0 Wakeup not by internal timer
1 Wakeup by internal timer

Port14 is the status register for CPU. P14.0 (CPU status) and P14.1 (Low-frequency status) are read-only
bits. p14.2 (wakeup status) will be set to '1' when CPU is wake-up by internal timer. P14.2 will be cleared to
'0' when user out data to P14.

IDLE OPERATION MODEIDLE OPERATION MODE

IDLE OPERATION MODE

IDLE OPERATION MODEIDLE OPERATION MODE

The IDLE operation mode suspends all SLOW operations except for the low-frequency clock and LCD
driver. It retains the internal status with low power consumption without stopping the clock function and
LCD display.

LCD display is available for the IDLE operation mode. Sound generator is disabled in this mode. The IDLE
operation mode will be wakeup and return to the SLOW operation mode by the internal timing generator or
I/O pins (P0(0..3)/WAKEUP 0..3 or P8(0..3)/WAKEUPA..D).

* This specification are subject to be changed without notice.

11.30.2001

14

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

P19 32 10 Initial value : 0000

IDME SIDR

IDME Enable IDLE mode SIDR Select IDLE releasing condition
0 1 Enable IDLE mode 0 0 P0(0..3), P8(0..3) pin input
* * Reserved 0 1 P0(0..3), P8(0..3) pin input and 1 sec signal

1 0 P0(0..3), P8(0..3) pin input and 0.5 sec signal
1 1 P0(0..3), P8(0..3) pin input and 15.625 ms signal

STOP OPERATION MODESTOP OPERATION MODE

STOP OPERATION MODE

STOP OPERATION MODESTOP OPERATION MODE

The STOP operation mode suspends system operation and holds the internal status immediately before the
suspension with low power consumption. This mode will be released by reset or I/O pins (P0(0..3)/
WAKEUP 0..3 or P8(0..3)/WAKEUP A..D).

LCD display and high speed timer/counter with melody output are disabled in the mode.

P16 32 1 0 Initial value : 0000

SPME SWWT

SPME Enable STOP mode SWWT Set wake-up warm-up time
0 1 Enable STOP mode 0 0 212/fs
* * Reserved 0 1 2

10/

fs
10 214/fs
1 1 Reserved

TIME BASE INTERRUPT (TBI )TIME BASE INTERRUPT (TBI )

TIME BASE INTERRUPT (TBI )

TIME BASE INTERRUPT (TBI )TIME BASE INTERRUPT (TBI )

The time base can be used to generate a fixed frequency interrupt. There are 8 kinds of frequencies can be
selected by setting P25

P25 3 2 1 0

initial value : 0000

P25 NORMAL operation mode SLOW operation mode

0 0 x x Interrupt disable Interrupt disable
0 1 0 0 Interrupt frequency LXIN / 2

3

Hz Reserved
0 1 0 1 Interrupt frequency LXIN / 24 Hz Reserved
0 1 1 0 Interrupt frequency LXIN / 25 Hz Reserved
0 1 1 1 Interrupt frequency LXIN / 2

14

Hz Interrupt frequency LXIN / 2

14

Hz
1 1 0 0 Interrupt frequency LXIN / 21 Hz Reserved
1 1 0 1 Interrupt frequency LXIN / 26 Hz Interrupt frequency LXIN / 26 Hz
1 1 1 0 Interrupt frequency LXIN / 28 Hz Interrupt frequency LXIN / 28 Hz
1 1 1 1 Interrupt frequency LXIN / 2

10

Hz Interrupt frequency LXIN / 2

10

Hz
1 0 x x Reserved Reserved

TIMER / COUNTER ( TIMERA, TIMERB)TIMER / COUNTER ( TIMERA, TIMERB)

TIMER / COUNTER ( TIMERA, TIMERB)

TIMER / COUNTER ( TIMERA, TIMERB)TIMER / COUNTER ( TIMERA, TIMERB)

Timer/counters can support user three special functions:

1. Even counter

2. Timer.

3. Pulse-width measurement.

* This specification are subject to be changed without notice.

11.30.2001

15

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

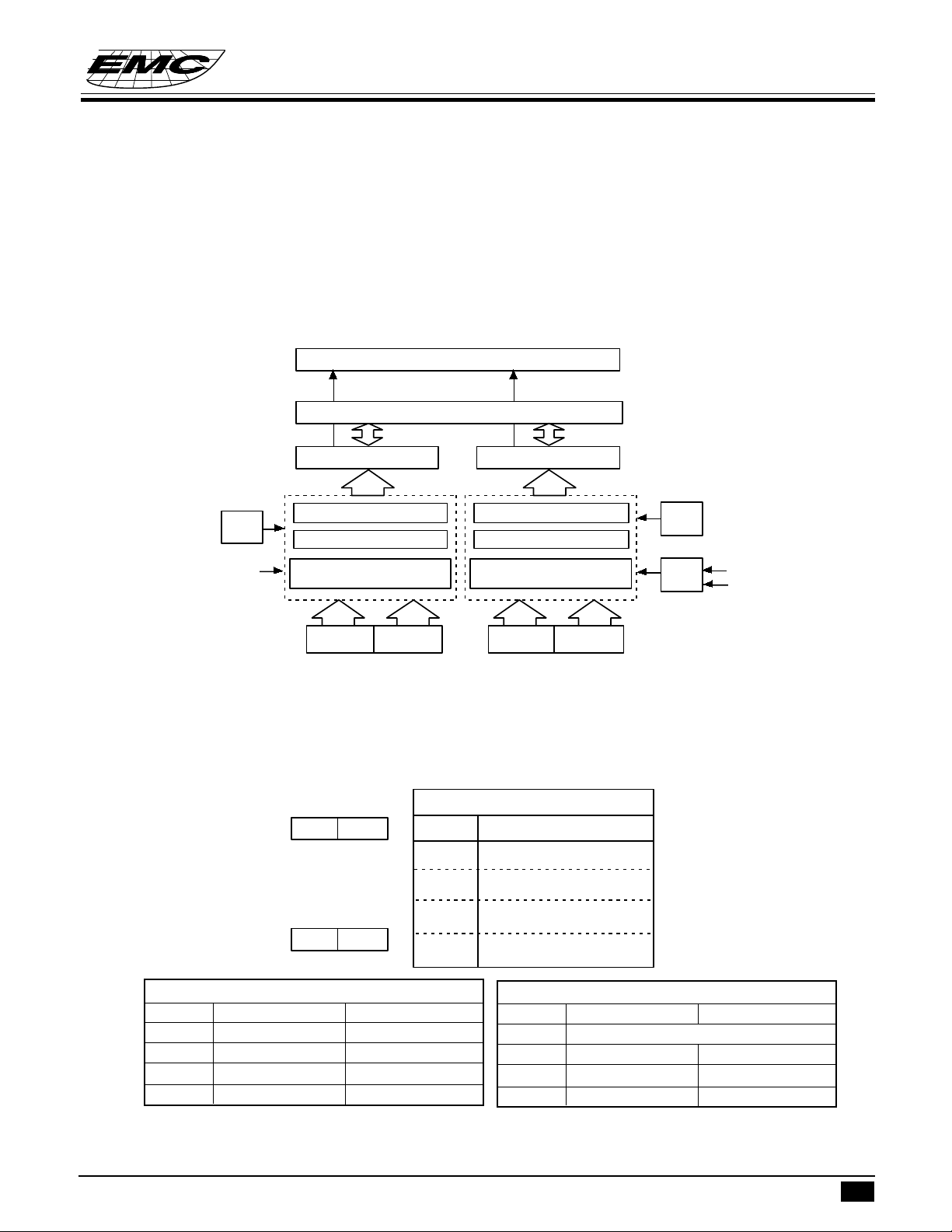

These three functions can be executed by 2 timer/counter independently.
For timerA, the counter data is saved in timer register TAH, TAM, TAL, which user can set counter initial
value and read the counter value by instruction "LDATAH(M,L), STATAH(M,L)" and timer register is
TBH, TBM, TBL and W/R instruction "LDATBH (M,L), STATBH (M,L)".

The basic structure of timer/counter is composed by two same structure counter, these two counters can be
set initial value and send counter value to timer register, P28 and P29 are the command ports for timerA
and timer B, user can choose different operation mode and different internal clock rate by setting these two
ports. When timer/counter overflow, it will generate a TRGA(B) interrupt request to interrupt control unit.

INTERRUPT CONTROL

TRGA request

12 BIT COUNTER

P8.3/

TRGA

internal clock

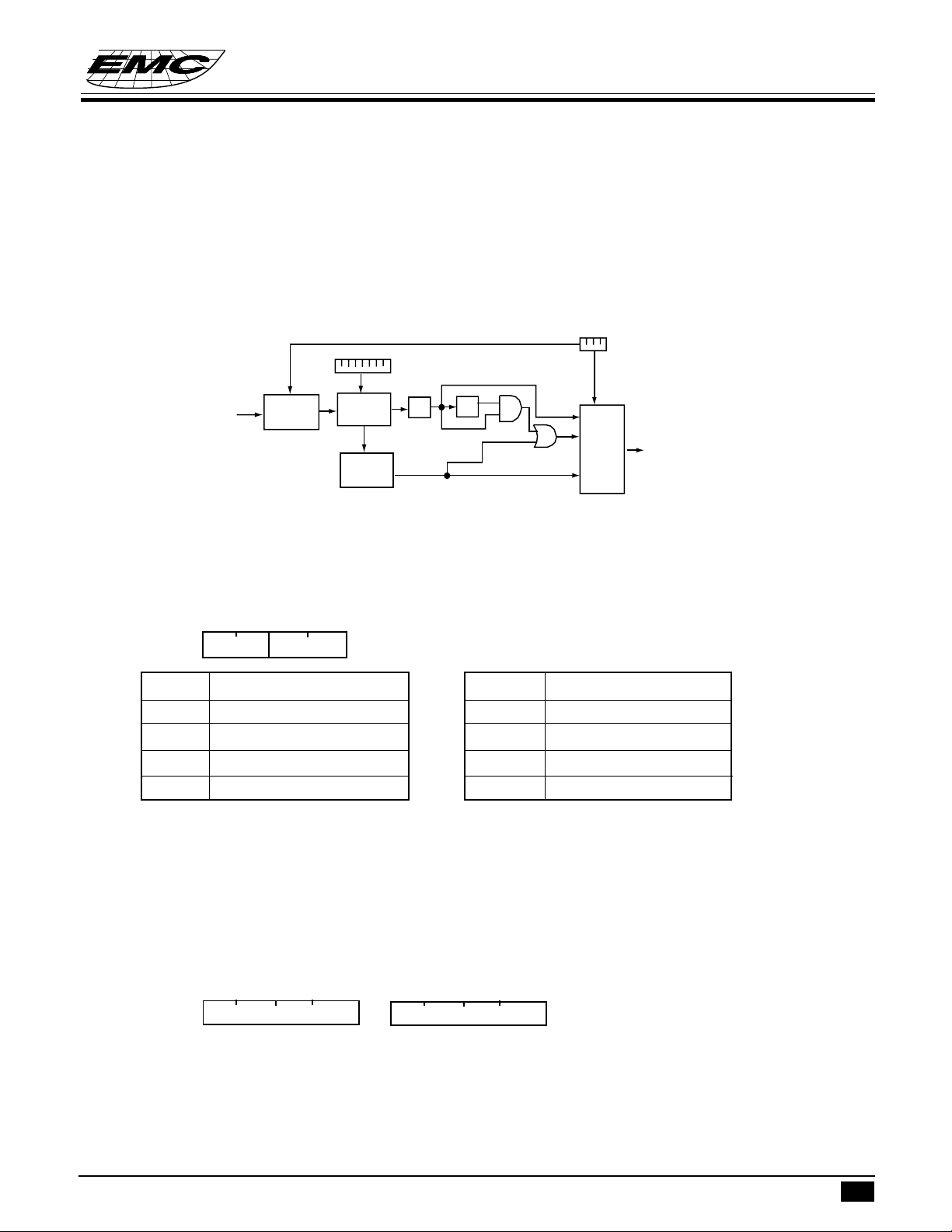

TIMER/COUNTER CONTROLTIMER/COUNTER CONTROL

TIMER/COUNTER CONTROL

TIMER/COUNTER CONTROLTIMER/COUNTER CONTROL

EVENT COUNTER CONTROL

TIMER CONTROL

PULSE-WIDTH MEASUREMENT

P28

CONTROL

TMSA

DATA BUS

IPSA

P29

TRGB request

12 BIT COUNTER

EVENT COUNTER CONTROL

TIMER CONTROL

PULSE-WIDTH MEASUREMENT

CONTROL

TMSB IPSB

P8.1/

TRGB

MUX

internal clock
high speed timer/counter

P8.1/TRGB, P8.3/TRGA are the external timer inputs for timerB and timerA, they are used in event
counter and pulse-width measurement mode.

Timer/counter command port: P28 is the command port for timer/counterA and P29 is for the timer/
counterB.

Port 28

3 2 1 0
TMSA IPSA

Initial state: 0000

TIMER/COUNTER MODE SELECTION

TMSA (B) Function description

0 0 Stop

0 1 Event counter mode

Port 29

3 2 1 0

TMSB

Initial state: 0000

IPSB

1 0 Timer mode

1 1 Pulse width measurement mode

INTERNAL PULSE-RATE SELECTION INTERNAL PULSE-RATE SELECTION

IPSA NORMAL mode SLOW mode IPSB NORMAL mode SLOW mode

3

0 0 LXIN/2

Hz Reserved 0 0 Depend on high speed timer/counter
0 1 LXIN/27 Hz LXIN/27 Hz 0 1 LXIN/25 Hz LXIN/25 Hz
1 0 LXIN/211 Hz LXIN/211 Hz 1 0 LXIN/29 Hz LXIN/29 Hz
1 1 LXIN/215 Hz LXIN/215 Hz 1 1 LXIN/213 Hz LXIN/213 Hz

* This specification are subject to be changed without notice.

11.30.2001

16

EM73880EM73880

T

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

TIMER/COUNTER FUNCTIONTIMER/COUNTER FUNCTION

TIMER/COUNTER FUNCTION

TIMER/COUNTER FUNCTIONTIMER/COUNTER FUNCTION

Timer/counterA can be programmable for timer, event counter and pulse width measurement. Each timer/
counter can execute any one of these functions independly.

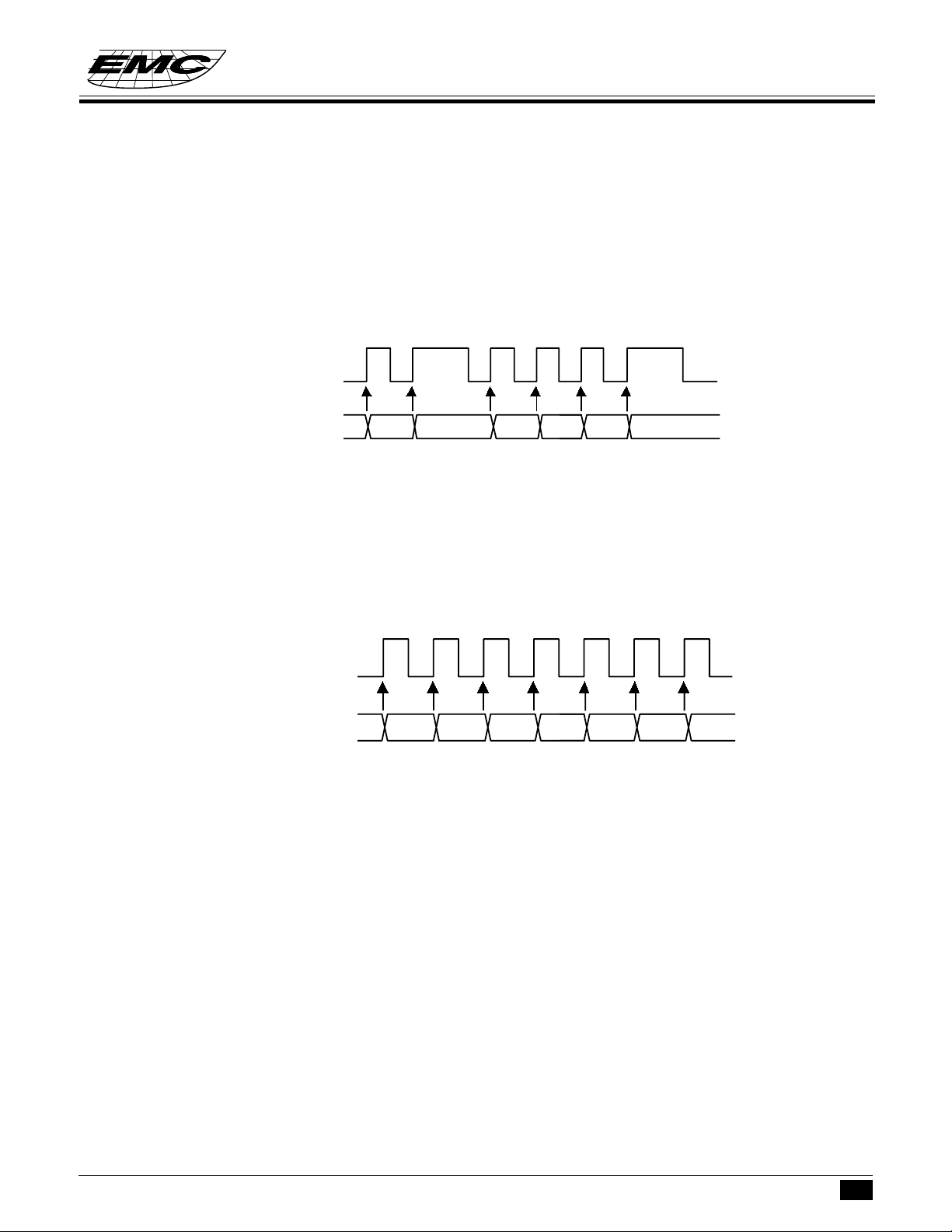

EVENT COUNTER MODE

For event counter mode, timer/counter increases one at any rising edge of P8.1/TRGB for timerB (P8.3/
TRGA for timer A). When timerB (timerA) counts overflow, it will give interrupt control an interrupt request
TRGB (TRGA).

P8.1/TRGB (P8.3/TRGA)

TimerB (TimerA) value n n+1 n+2 n+3 n+4 n+5 n+6

PROGRAM EXAMPLE: Enable timerA with P28

LDIA #0100B;
OUTA P28; Enable timerA with event counter mode

TIMER MODE

For timer mode ,timer/counter increase one at any rising edge of internal pulse . User can choose 4 kinds
of internal pulse rate by setting IPSB for timerB (IPSA for timerA).
When timer/counter counts overflow, TRGB (TRGA) will be generated to interrupt control unit.

Internal pulse

imerB (TimerA )value

n n+1 n+2 n+3 n+4 n+5 n+6

n+7

PROGRAM EXAMPLE: To generate TRGA interrupt request after 60 ms with system clock LXlN=32KHz

LDIA #0100B;
EXAE; enable mask 2
EICIL 110111B; interrupt latch ←0, enable EI
LDIA #0AH;
STATAL;
LDIA #00H;
STATAM;
LDIA #0FH;
STATAH;
LDIA #1000B;
OUTA P28; enable timerA with internal pulse rate: LXIN/23 Hz

NOTE: The preset value of timer/counter register is calculated as following procedure.

Internal pulse rate: LXIN/2

3

; LXIN = 32KHz
The time of timer counter count one = 23 /LXIN = 8/32768=0.244ms
The number of internal pulse to get timer overflow = 60 ms/ 0.244ms = 245.901= 0F6H
The preset value of timer/counter register = 1000H - 0F6H = 0F0AH

PULSE WIDTH MEASUREMENT MODE

* This specification are subject to be changed without notice.

11.30.2001

17

EM73880EM73880

P

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

For the pulse width measurement mode, the counter only incresed by the rising edge of internal pulse rate as
external timer/counter input (P8.1/TRGB, P8.3/TRGA), interrupt request will be generated as soon as
timer/counter count overflow.

8.1/TRGB(P8.3/TRGA)

Internal pulse

TimerB(TimerA) value

n n+1 n+2 n+3 n+4 n+5

PROGRAM EXAMPLE : Enable timerA by pulse width measurement mode .

LDIA #1100b;
OUTA P28; Enable timerA with pulse width measurement mode.

HIGH SPEED TIMER/COUNTERHIGH SPEED TIMER/COUNTER

HIGH SPEED TIMER/COUNTER

HIGH SPEED TIMER/COUNTERHIGH SPEED TIMER/COUNTER

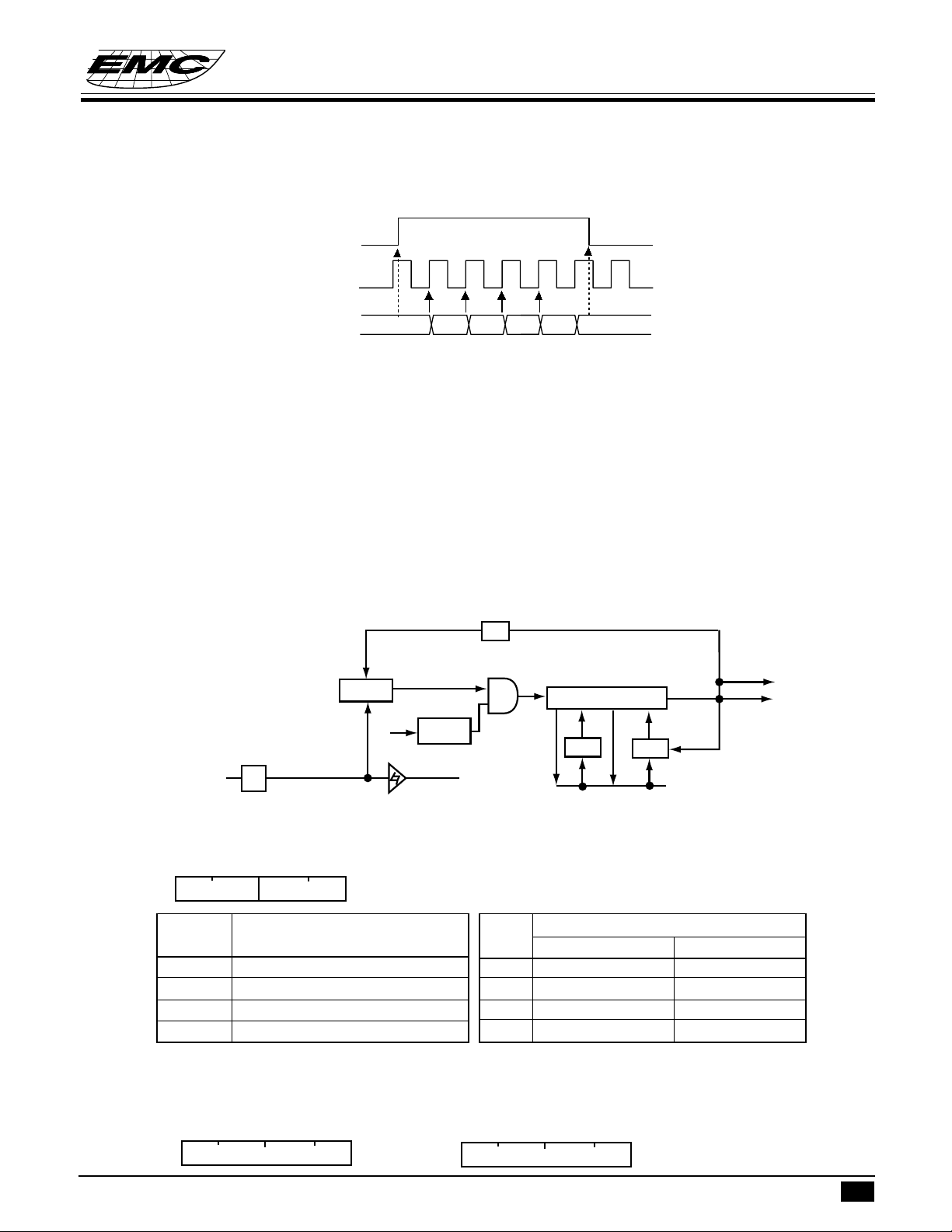

8-bit high speed timer/counter (HTC) supports three special functions : auto load timer, melody output
and pulse width measurement modes. The HTC is available for the NORMAL and SLOW operation mode.

The HTC can be set initial value and send counter value to counter registers (P11 and P10), P31 is the
command port for HTC, user can choose different operation mode and different internal clockrate by setting
the port. The timer/counter increase one at the rising edge of internal pulse. The HTC can generate an overflow
interrupt (HTCI) when it overflows.

÷2

F

HTC

HTCI interrupt

Timer/counter B

P4.1/TRGH

P31(3,2)

XIN

P31(1,0)

Input data

8-bit binary counter

P11

P10

Overflow

Reload

Data bus

P31 is the command register of the 8-bit high speed timer/counter.

P31 3210 Initial value : 0000

HTMS HIPS

HTMS Mode selection HIPS Clock rate selection

NORMAL mode SLOW mode
0 0 Stop 0 0 LXIN/20 Hz LXIN/20 Hz
0 1 Event counter mode 0 1 LXIN/22 Hz LXIN/22 Hz
1 0 Auto load timer mode 1 0 CLK/24 Hz Reserved
1 1 Pulse width measurement mode 1 1 CLK/26 Hz Reserved

* CLK=4.6MHz

P11 and P10 are the counter registers of the 8-bit high speed timer/counter. P10 is the lower nibble register
and P11 is the higher nibble register. (HT is the value of counter registers.)

* This specification are subject to be changed without notice.

3210 P10 3210Initial value : 0000 0000 (HT)

P11

Higher nibble register Lower nibble register

11.30.2001

18

EM73880EM73880

R
i

i

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

The value of 8-bit binary up counter can be presetted by P10 and P11. The value of registers can loaded into
the HTC when the counter starts counting or occurs overflow. If user write value to the registers before the
next overflow occurs, the preset value can be changed.
The preset value will be changed when users output the different data to P10. Thus, the data must be output
to P11 before P10 when users want to change the preset value.
The count value of HTC can be read from P10 and P11. The value is unstable when user read the value during
counting. Thus, user must disable the counter before reading the value.
The P4.1/RGH pin will be the input pin in the event counter and pulse width measurement mode. User must
output high to P4. 1/TRGH and then it can be the HTC external input pin. When the HTC is disabled, the P4.
1 pin is a normal I/O pin.

INTERRUPT FUNCTIONINTERRUPT FUNCTION

INTERRUPT FUNCTION

INTERRUPT FUNCTIONINTERRUPT FUNCTION

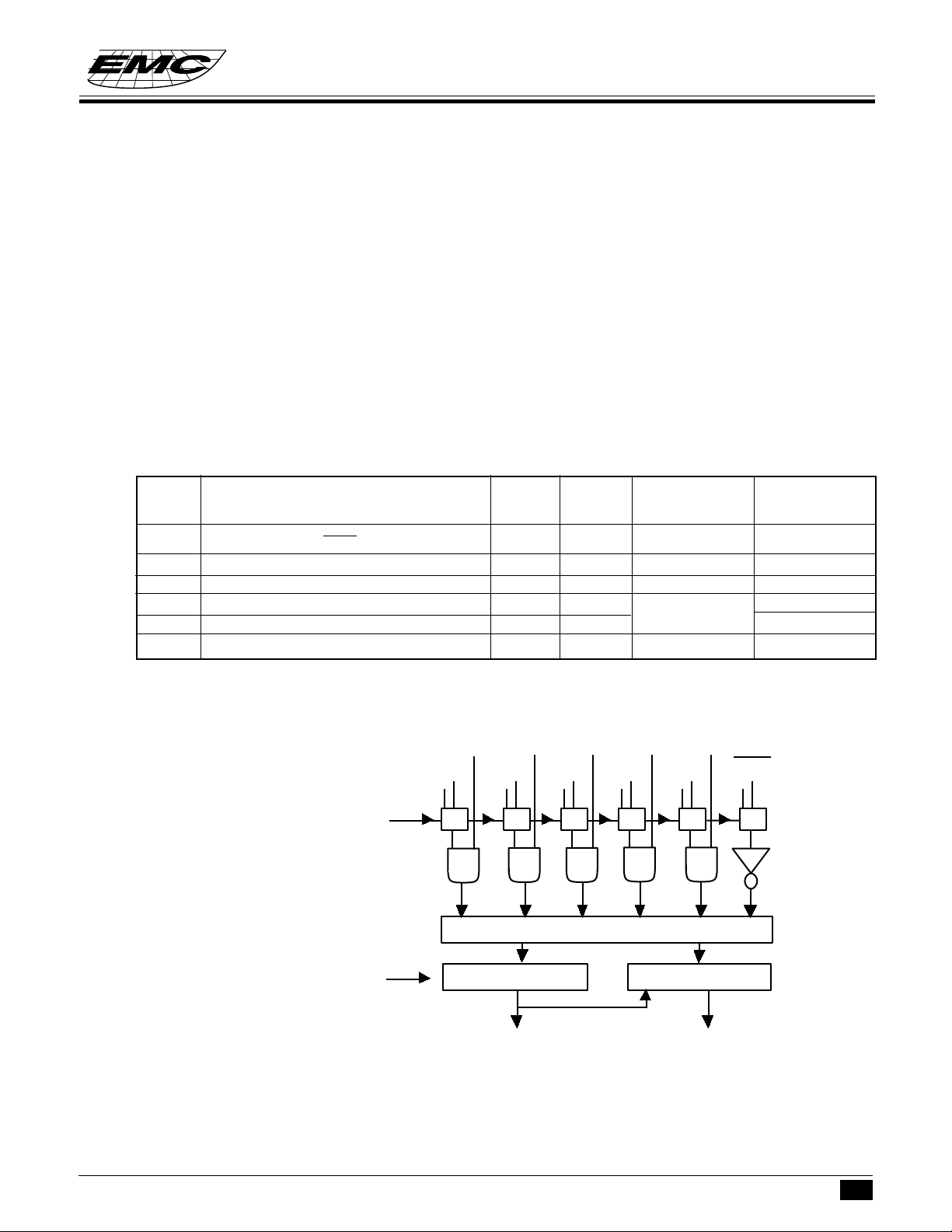

There are 6 interrupt sources, 2 external interrupt sources, 4 internal interrupt sources . Multiple
interrupts are admitted according the priority .

TypeType

Type

TypeType

Interrupt sourceInterrupt source

Interrupt source

Interrupt sourceInterrupt source

PriorityPriority

Priority

PriorityPriority

InterruptInterrupt

Interrupt

InterruptInterrupt

LatchLatch

Latch

LatchLatch

InterruptInterrupt

Interrupt

InterruptInterrupt

Enable conditionEnable condition

Enable condition

Enable conditionEnable condition

Program ROMProgram ROM

Program ROM

Program ROMProgram ROM

entry addressentry address

entry address

entry addressentry address

External External interrupt(INT0) 1 IL5 EI=1 002H
Internal High speed timer overflow interrupt (HTCI) 2 IL4 EI=1, MASK3=1 004H
Internal TimerA overflow interrupt (TRGA) 3 IL3 EI=1, MASK2=1 006H
Internal TimerB overflow interrupt (TRGB) 4 IL2 EI=1, MASK1=1 008H
Internal Time base interrupt(TBI) 5 IL1 00AH
Internal SPI (Speech interrupt) 6 IL0 EI=1,MASK0=1 00CH

INTERRUPT STRUCTUREINTERRUPT STRUCTURE

INTERRUPT STRUCTURE

INTERRUPT STRUCTUREINTERRUPT STRUCTURE

MASK0 MASK1 MASK1 MASK2 MASK3

SPI

r0

eset by system reset and program

nstruction

Reset by system reset and program

nstruction

Set by program instruction

IL0

r1

TBI

IL1

TRGB

r2

EI

TRGA
r3

IL2

Priority checker

HTCI

r4

IL3

Entry address generator

IL4

INT0

r5

IL5

Interrupt request Interrupt entry address

* This specification are subject to be changed without notice.

11.30.2001

19

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

Interrupt controller:

IL0-IL5 : Interrupt latch . Hold all interrupt requests from all interrupt sources. ILr can not be

set by program, but can be reset by program or system reset, so IL only can decide
which interrupt source can be accepted.

MASK0-MASK3 : Except INT0 ,MASK register can promit or inhibit all interrupt sources.
EI : Enable interrupt Flip-Flop can promit or inhibit all interrupt sources, when inter-

rupt happened, EI is cleared to "0" automatically, after RTI instruction happened,
EI will be set to "1" again .

Priority checker: Check interrupt priority when multiple interrupts happened.

INTERRUPT FUNCTIONINTERRUPT FUNCTION

INTERRUPT FUNCTION

INTERRUPT FUNCTIONINTERRUPT FUNCTION

The procedure of interrupt operation:

1. Push PC and all flags to stack.

2. Set interrupt entry address into PC.

3. Set SF= 1.

4. Clear EI to inhibit other interrupts happened.

5. Clear the IL for which interrupt source has already be accepted.

6. To excute interrupt subroutine from the interrupt entry address.

7. CPU accept RTI, restore PC and flags from stack . Set EI to accept other interrupt requests.

PreliminaryPreliminary

EM73880EM73880

EM73880

EM73880EM73880

PROGRAM EXAMPLE: To enable interrupt of "INT0, TRGA"

LDIA #1100B;
EXAE; set mask register "1100B"
EICIL 111111B ; enable interrupt F.F.

SPEECH SYNTHESIZER OPERATES PROCEDURESPEECH SYNTHESIZER OPERATES PROCEDURE

SPEECH SYNTHESIZER OPERATES PROCEDURE

SPEECH SYNTHESIZER OPERATES PROCEDURESPEECH SYNTHESIZER OPERATES PROCEDURE

1. Send the speech start address to the address latch by writing P6 four times.

2. Choose the sampling rate, enable the speech synthesizer by writing P5.

3. The ROM address counters send the ROM address A6 .. A18 to the speech ROM.

4. ACT is the speech acknowledge signal. When the speech synthesizer has voice output. ACT is high .
When ACT is changed from high to low, the speech synthesizer can generate the speech ending
interrupt SPI. The ACT signal can be read from P5.3.

* This specification are subject to be changed without notice.

11.30.2001

20

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

SPEECH SYNTHESIZER CONTROLSPEECH SYNTHESIZER CONTROL

SPEECH SYNTHESIZER CONTROL

SPEECH SYNTHESIZER CONTROLSPEECH SYNTHESIZER CONTROL

Speech sample rate control register (P5 write) :

3210 Initial value : *000

SINT SR

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

SRSR

SR

SRSR

000 PWM on CLK/64/1/3 24K port 5 -- initialization is "*111".
001 CLK/64/1/4 18K port 6 -- initialization is pointed to the low­010 CLK/64/2/3 12K nibble of start address latch.
011 CLK/64/2/4 9K
100 CLK/64/3/3 8K CLK=4.6 MHz
101 CLK/64/3/4 6K
111 PWM off

SINT Select interrupt source

0 Select HTC overflow interrupt
1 Select speech ending interrupt

Speech active flag (P5 read) :

3210 Initial value : 0***

ACT * * *

ACT is the speech acknowledge signal. When the speech synthesizer has voice output, ACT is high. When
ACT is high → low, the speech synthesizer can generate the speech ending interrupt SPI, or when HTC
overflow interrupt SPI.

Speech start address register (P6 write) :

Sample rate selectionSample rate selection

Sample rate selection

Sample rate selectionSample rate selection

Sample rateSample rate

Sample rate

Sample rateSample rate

3210 Initial value : 1111

Port 6

P6L1 P6L2 P6L3 P6L4

A9A8A7A6A13A12A11A10A17A16A15A14 ----

Send the speech start address to the speech synthesizer by writing P6 four times. There is a pointer counter to
point the address latch (P6L1, P6L2, P6L3, P6L4). It will increase one when write P6. So, the first time
writing P6 to P6L1, the second time is P6L2, the third time is P6L3, the fourth time is P6L4 and the fifth
time is P6L1 latch again, ... etc. The pointer counter point to P6L1 when CPU is reset or P5 is writen.
In the NORMAL operation mode, the speech synthesizer is available. In the other operation modes, it is
disable.

* This specification are subject to be changed without notice.

11.30.2001

21

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

MELODY (SOUND EFFECT) CONTROLMELODY (SOUND EFFECT) CONTROL

MELODY (SOUND EFFECT) CONTROL

MELODY (SOUND EFFECT) CONTROLMELODY (SOUND EFFECT) CONTROL

One channel melody/sound effect output, controlled by port 23, 24, 17, and 30.

There is a built-in sound effect. It includes the tone generator and random generator. The tone generator is a
binary down counter and the random generator is a 9-bit liner feedback shift register.

P30

P23,P24

CLK/8

4 kinds

of divider

f1

Tone

generator

f2x2

Random

generator

÷2

f2

÷2

Output
control

PWM ckt.

Sound effect command register (P30)

There are 4 kinds of basic frequency for sound generator which can be selected by P30. The output of sound
effect is tone and random combination.
Port30 3 2 1 0

BFREQ SMODE Initial value : 0000

BFREQ Basic frequency (f1) select SMODE Sound generator mode

0 0 CLK/4 0 0 Disable
0 1 CLK/8 0 1 Tone output
1 0 CLK/16 1 0 Random output
1 1 CLK/32 1 1 Tone+random output
(CLK=4.6MHz)

Tone frequency register (P23, P24)

The 8-bit tone frequency register is P24 and P23. The tone frequency will be changed when user output
the different data to P23. Thus, the data must be output to P24 before P23 when users want to change the
8-bit tone frequency (TF).

Port24 Port23

3 2 1 0 3 2 1 0 Initial value : 1111 1111
Higher nibble register Lower nibble register

** f1=CLK/2X, f2=f1/(TF+1)/2, TF=1~255, TF

≠≠

≠0

≠≠

** Example : CLK=4.6 MHz, BFREQ=11, TF=00110001B.

⇒ f1=143.75K Hz, f2=143.75K Hz/50/2=1430 Hz

* This specification are subject to be changed without notice.

11.30.2001

22

Random generator

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

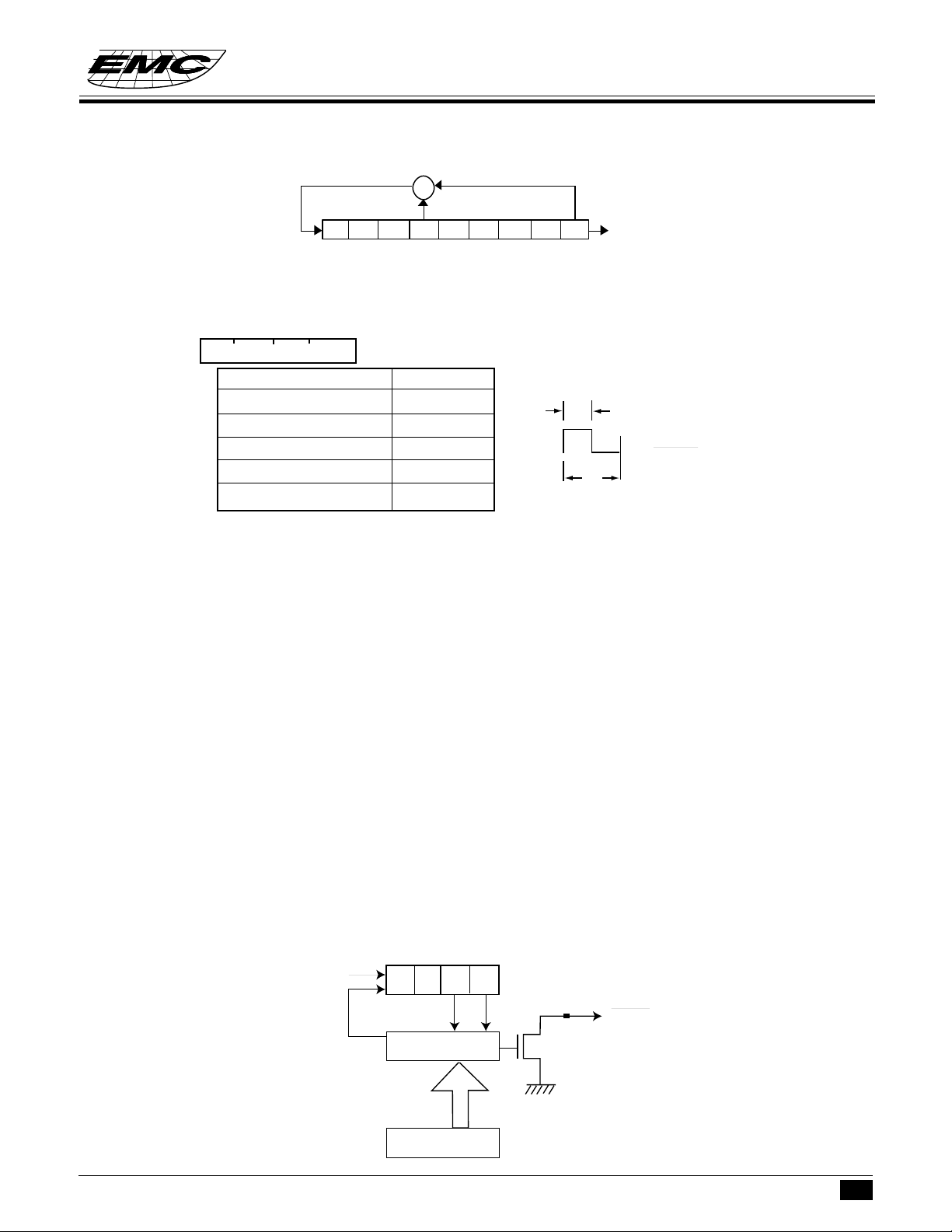

f(x)=x9+x4+1

123456789

+

Volume control register (P17)
The are 16 levels of volume for sound generator. P17 is the volume control register.

Port17

Initial value : 1111

3 2 1 0

VCR

VCR ts/tp
1 1 1 1 15/16
1 1 1 0 14/16

::

0 0 0 1 1/16

ts

1

tp=

CLK/64 (CLK=4.6MHz)

tp

0 0 0 0 0/16

PROGRAM EXAMPLE:

LDIA #1101B ; basic frequency : CLK/32, tone output
OUTA P30
LDIA #0111B ; volume control
OUTA P17
LDIA #0011B ; 1430 Hz tone output
OUTA P24
LDIA #0001B
OUTA P23

WATCH-DOG-TIMER (WDT)WATCH-DOG-TIMER (WDT)

WATCH-DOG-TIMER (WDT)

WATCH-DOG-TIMER (WDT)WATCH-DOG-TIMER (WDT)

Watch-dog-timer can help user to detect the malfunction (runaway) of CPU and give system a timeup signal every
certain time . User can use the time up signal to give system a reset signal when system is fail.
This function is available by mask option. If the mask option of WDT is enabled, it will stop counting when CPU
is reseted or in the STOP operation mode.
The basic structure of Watch-Dog-Timer control is composed by a 4-stage binary counter and a control unit .
The WDT counter counts for a certain time to check the CPU status, if there is no malfunction happened, the
counter will be cleared and continue counting . Otherwise, if there is a malfunction happened, the WDT control
will send a WDT signal ( low active ) to reset CPU. The WDT checking period is assign by P21 ( WDT command
port ).

13

LXIN/2

counter clear request

WDT counter

0

12

WDT control

P21

WDT
command port

3

RESET pin

mask option

* This specification are subject to be changed without notice.

11.30.2001

23

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

P21 is the control port of watch-dog-timer, and the WDT time up signal is connected to RESET.

Port 21 3210Initial value :0000

CWC * * WDT

CWC Clear watchdog timer counter

0 Clear counter then return to 1
1 Nothing

EM73880EM73880

EM73880

EM73880EM73880

WDT Set watch-dog-timer detect time

03 x 2
17 x 2

13

/LXIN = 3 x 213/32K Hz = 0.75 sec

13

/LXIN = 7 x 213/32K Hz = 1.75 sec

PROGRAM EXAMPLE

To enable WDT with 7 x 213/LXIN detection time.

LDIA #0001B
OUTA P21; set WDT detection time and clear WDT counter
:
:

LCD DRIVERLCD DRIVER

LCD DRIVER

LCD DRIVERLCD DRIVER

EM73880 can directly drive the liquid crystal display (LCD) and has 32 segment, 4 common output pins (1/
2 bias, 1/3 bias). There are total 32x4 dots can be display. The V1, V2, V3, VA, VB, VDD and VSS pins are
the LCD bias generator.

CONTROL OF LCD DRIVERCONTROL OF LCD DRIVER

CONTROL OF LCD DRIVER

CONTROL OF LCD DRIVERCONTROL OF LCD DRIVER

The LCD driver control command register is P27. When LDC is 0, the LCD is disabled, and user could change
Duty in this situation only the COM and SEG pins are VSS. When LDC is 1, the LCD driver enables.
When the CPU is reseted or during the STOP operation mode, the LCD driver is disabled.

Port27

LDC DUTY

3 2 1 0 Initial value : 0000

LDC LCD display control DUTY Driving method select

0 LCD display disable and change Duty 0 0 0 1/4 duty (1/3 bias)
1 LCD display enable 0 0 1 1/4 duty (1/2 bias)

0 1 0 1/3 duty (1/3 bias)
0 1 1 1/3 duty (1/2 bias)
1 0 0 1/2 duty (1/2 bias)
1 0 1 Static

1 1 * Reserved

* This specification are subject to be changed without notice.

11.30.2001

24

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

The LCD display data is stored in the display data area of the data memory (RAM).
The display data area begins with address 20H during reset. The LCD display data area ia as below :

RAM COM3 COM2 COM1 COM0

address bit3 bit2 bit1 bit0
SEG0 20H
SEG1 21H
SEG2 22H
::
::
SEG30 3EH
SEG31 3FH

The relation between LCD display data and driving method

Driving method bit3 bit2 bit1 bit0
1/4 duty COM3 COM2 COM1 COM0
1/3 duty - COM2 COM1 COM0
1/2 duty - - COM1 COM0
Static - - - COM0

LCD frame frequency : According to the drive method to set the frame frequency.

Duty Frame frequency (Hz)
1/4 duty 64 x (4/4) = 64
1/3 duty 64 x (4/3) = 85
1/2 duty 64 x (4/2) = 128
Static 64

PROGRAM EXAMPLE :

LDIA #0001B ; 1/4 duty, 1/2 bias
OUTA P27
LDIA #1001B ; enable LCD
OUTA P27

* This specification are subject to be changed without notice.

11.30.2001

25

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

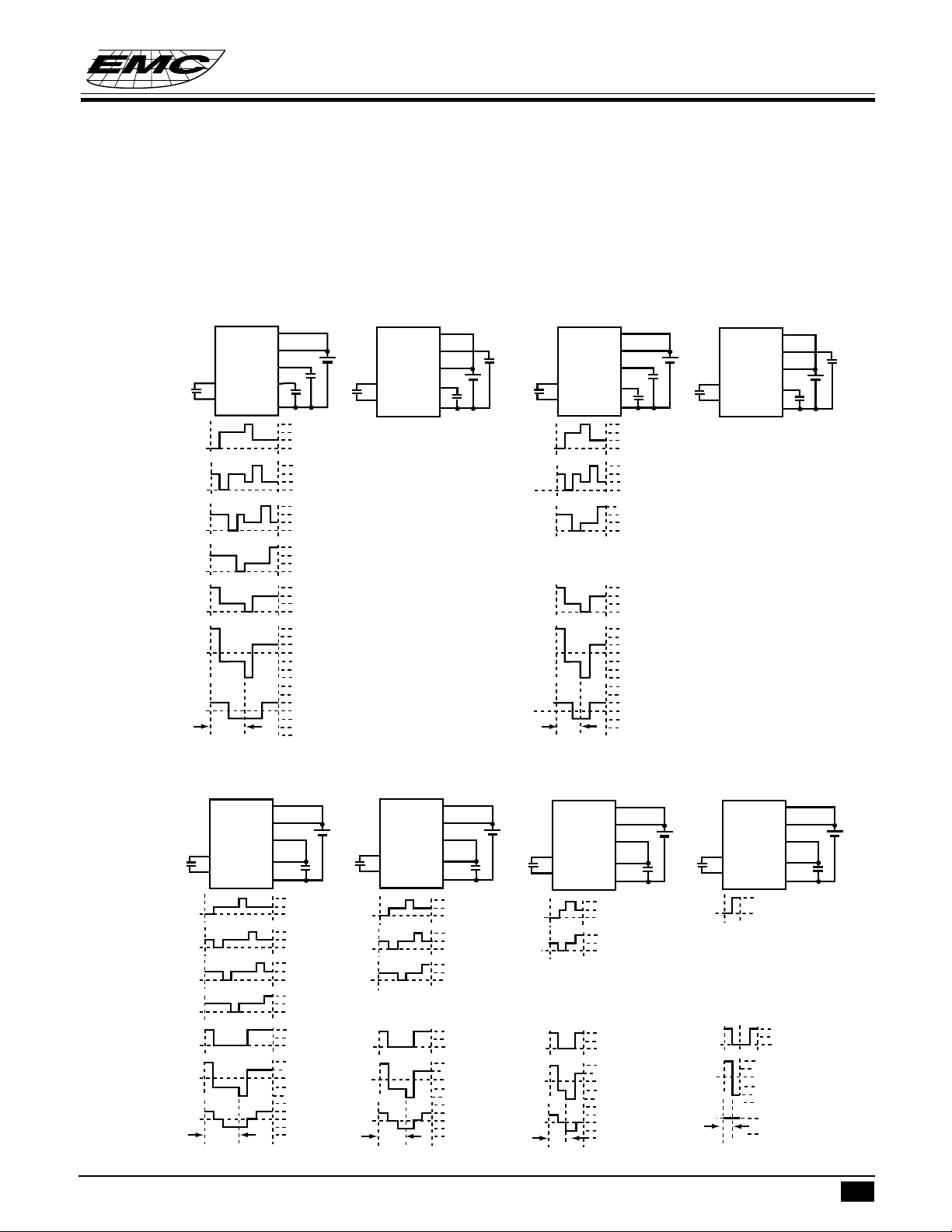

LCD DRIVING METHODSLCD DRIVING METHODS

LCD DRIVING METHODS

LCD DRIVING METHODSLCD DRIVING METHODS

There are six kinds of driving methods can be selected by DUTY (P27.0~P27.2). The drivinf waveforms of
LCD driver are as below :

• •

VDD=3VVDD=3V

•

VDD=3V

• •

VDD=3VVDD=3V

(1) 1/4 duty (1/3 bias)

V

COM0

COM1

COM2

COM3

SEG0

SEG0-COM0

ON

SEG0-COM1

OFF

LCD=VDD

V

VA
VB

Frame

(2 ) 1/3 duty (1/3 bias)

V

V

LCD

=3/2V

DD

DD

3V

V3

2V

V2

1V

V1

V

SS

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

-V1

-V2

-V3
V3

V2
V1
Vss

-V1

-V2

-V3

VA
VB

V

DD

4.5V

V3

3V

V2

1.5V

V1

V

SS

LCD=VDD

VA
VB

Frame

V

LCD

=3/2V

DD

V

DD

3V

V3

2V

V2

1V

V1

V

SS

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

-V1

-V2

-V3
V3

V2
V1
Vss

-V1

-V2

-V3

VA
VB

V

DD

4.5V

V3

3V

V2

1.5V

V1

V

SS

(3) 1/4 duty (1/2 bias)

COM0

COM1

COM2

COM3

SEG0

SEG0-COM0

ON

SEG0-COM1

OFF

V

LCD=VDD

VA
VB

Frame

V

DD

3V

V3

1.5V

V2
V1

V

SS

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

-V1

-V3
V3

V1
Vss

-V1

-V3

(4) 1/3 duty (1/2 bias)

V

LCD=VDD

V

DD

3V

V3

1.5V

V2

VA

V1

VB

V

SS

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

-V1

-V3
V3

V1
Vss

Frame

-V1

-V3

* This specification are subject to be changed without notice.

V

LCD=VDD

VA
VB

Frame

(6) static(5) 1/2 duty (1/2 bias)

V

LCD=VDD

V

VA

VB

ON

Frame

DD

V3
V2
V1

V

SS

V3

Vss

OFF

V3

Vss

-V3
V3

Vss

-V3

11.30.2001

3V

1.5V

V3
V1
Vss

26

V

DD

3V

V3

1.5V

V2
V1

V

SS

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

-V1

-V3
V3

V1
Vss

-V1

-V3

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

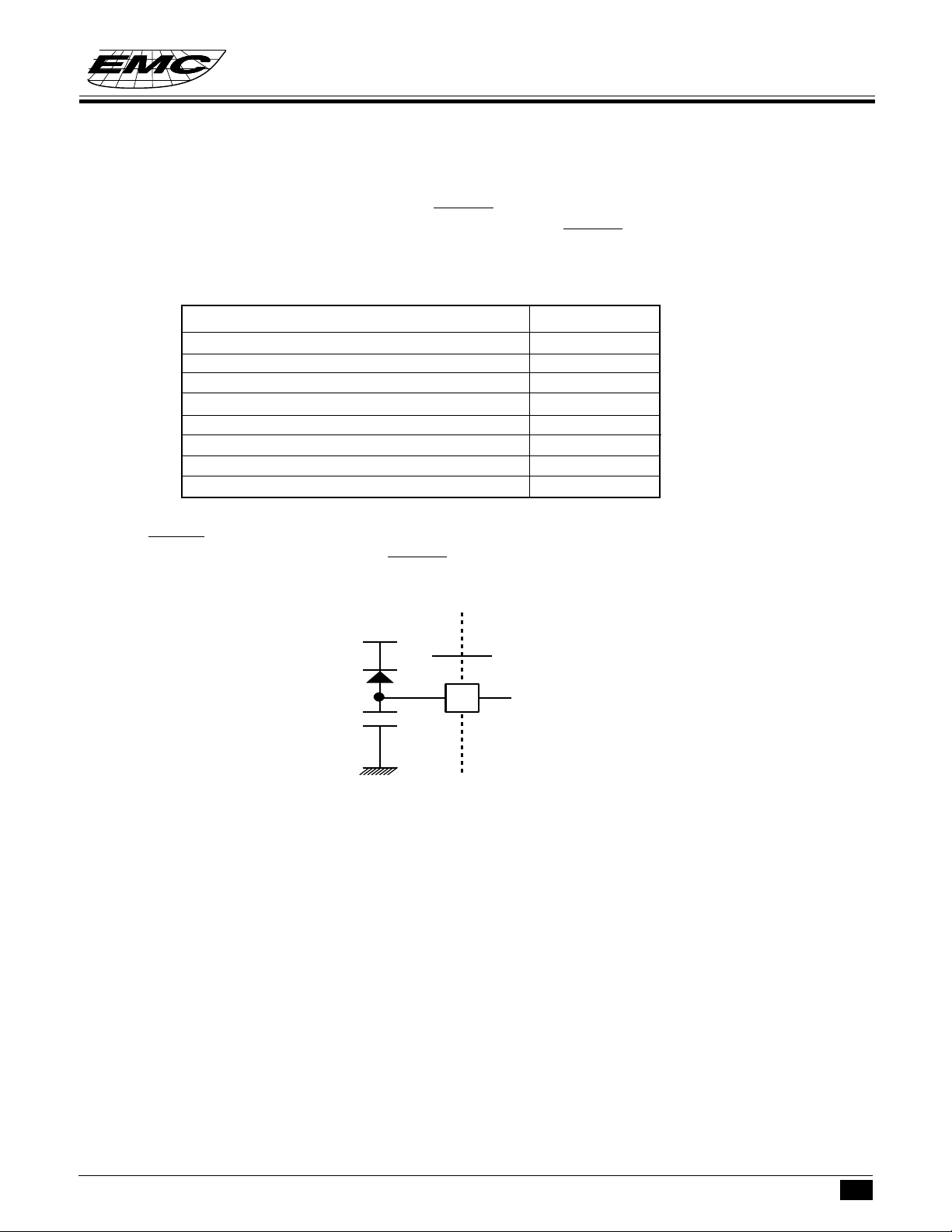

RESETTING FUNCTIONRESETTING FUNCTION

RESETTING FUNCTION

RESETTING FUNCTIONRESETTING FUNCTION

When CPU in normal working condition and RESET pin holds in low level for three instruction cycles at least,
then CPU begins to initialize the whole internal states, and when RESET pin changes to high level, CPU begins
to work in normal condition.
The CPU internal state during reset condition is as following table :

Hardware condition in RESET state Initial value

Program counter 0000h
Status flag 01h
Interrupt enable flip-flop ( EI ) 00h
MASK0 ,1, 2, 3 00h
Interrupt latch ( IL ) 00h
P4, P5, P10, 11,14, 16, 19, 25, 27, 28, 29, 31 00h
P4, 8, 17, 23, 24 0Fh
Both oscillator Start oscillation

The RESET pin is a hysteresis input pin and it has a pull-up resistor available by mask option.
The simplest RESET circuit is connect RESET pin with a capacitor to V

RESET

and a diode to VDD.

SS

* This specification are subject to be changed without notice.

11.30.2001

27

EM73880 I/O PORT DESCRIPTION :EM73880 I/O PORT DESCRIPTION :

EM73880 I/O PORT DESCRIPTION :

EM73880 I/O PORT DESCRIPTION :EM73880 I/O PORT DESCRIPTION :

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

PortPort

Port

PortPort

0 E Input port , wakeup function
1-- -­2-- -­3-- -­4 E Input port E Output port, P4.1/HST
5 I Speech active signal I Speech sample rate control register -­6 -- I Speech address address
7-- -­8 E Input port, wakeup function, E Output port

9-- -­10 -- I High speed timer/counter low nibble
11 -- I High speed timer/counter high nibble
12 -- -­13 -- -­14 I CPU status I Clear P14.0 to 0
15 -- -­16 I STOP mode control register
17 Volumn control register
18 -­19 I IDLE mode control register
20 -­21 WDT counter
22 I Slow mode control register
23 -­24 -­25 I Timebase control register
26 -­27 I LCD control register
28 I Timer/counter A control register
29 I Timer/counter B control register
30 -­31 I HTC control register

Input functionInput function

Input function

Input functionInput function

Output functionOutput function

Output function

Output functionOutput function

NoteNote

Note

NoteNote

* This specification are subject to be changed without notice.

11.30.2001

28

ABSOLUTE MAXIMUM RATINGSABSOLUTE MAXIMUM RATINGS

ABSOLUTE MAXIMUM RATINGS

ABSOLUTE MAXIMUM RATINGSABSOLUTE MAXIMUM RATINGS

ItemsItems

Items

ItemsItems

Sym.Sym.

Sym.

Sym.Sym.

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

RatingsRatings

Ratings

RatingsRatings

ConditionsConditions

Conditions

ConditionsConditions

Supply Voltage V
Input Voltage V
Output Voltage V
Power Dissipation P
Operating Temperature T
Storage Temperature T

RECOMMANDED OPERATING CONDITIONSRECOMMANDED OPERATING CONDITIONS

RECOMMANDED OPERATING CONDITIONS

RECOMMANDED OPERATING CONDITIONSRECOMMANDED OPERATING CONDITIONS

ItemsItems

Items

ItemsItems

Supply Voltage V
Input Voltage V

Operating Frequency F

Sym.Sym.

Sym.

Sym.Sym.

DD

IH

V

IL

C

DD
IN

O
D
OPR
STG

RatingsRatings

Ratings

RatingsRatings

2.2V to 3.6V

0.90xVDD to V
0V to 0.10xV

4.6MHz CLK

-0.5V to 6V

-0.5V to VDD+0.5V

-0.5V to VDD+0.5V
300mW T
0oC to 50oC

-55oC to 125oC

DD

DD

Fs 32KHz LXIN, LXOUT

DC ELECTRICAL CHARACTERISTICSDC ELECTRICAL CHARACTERISTICS

DC ELECTRICAL CHARACTERISTICS (VDD=3±0.3V, VSS=0V, T

DC ELECTRICAL CHARACTERISTICSDC ELECTRICAL CHARACTERISTICS

Parameters Sym. Parameters Sym.

Parameters Sym.

Parameters Sym. Parameters Sym.

Supply current I

DD

Min.Min.

Min.

Min.Min.

Typ.Typ.

Typ.

Typ.Typ.

Max.Max.

Max.

Max.Max.

UnitUnit

Unit

UnitUnit

- 700 1200 µA VDD=3.3V,no load,NORMAL mode,

Fc=4.6MHz, Fs=32KHz

-1220µAV

=3.3V,no load,SLOW mode,RC osc.

DD

(R=1.2MΩ)

-715µAV

=3.3V,no load,SLOW mode,Crystal osc.

DD

(Fs=32KHz)

=3.3V,IDLE mode,RC osc.(R=1.2MΩ)

DD

=3.3V,IDLE mode,Crystal osc.

DD

=3.3V, STOP mode

DD

Hysteresis voltage V

Input current I

V

HYS+
HYS-

IH

-1015µAV

-510 µAV

- 0.1 1 µA V

0.50V

0.20V

DD

DD

- 0.75V

- 0.40V

V RESET, P0, P8

DD

V

DD

- 20 30 µA P0, Pull-down, VIH=V

-30 -2 0 - µA P0, Pull-up, VIH=V

- - 1 µA P0, None

- - ±1 µA RESET, Open-drain, V

Output voltage V

I

IL

OH

- -40 -70 µA Low current Push-pull, VDD=3.3V,VIL=0.4V

2.4 2.6 - V High current push-pull, SOUND,
V

=2.7V, IOH=-1mA

DD

2.0 2.4 - V Normal current push-pull,
V

=2.7V, IOH=-60µA

DD

Leakage current I
Input resistor R

V

OL

LO

IN

- 0.1 0.3 V VDD=2.7V,IOL=1mA

- - 1 µA Open-drain, VDD=3.3V, VO=3.3V

50 100 300 KΩ RESET

OPR

=50oC

OPR

ConditionCondition

Condition

ConditionCondition

=25oC)

ConditionsConditions

Conditions

ConditionsConditions

DD

SS

=3.3V,VIH=3.3/0V

DD

* This specification are subject to be changed without notice.

11.30.2001

29

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

DC ELECTRICAL CHARACTERISTICSDC ELECTRICAL CHARACTERISTICS

DC ELECTRICAL CHARACTERISTICS (VDD=3±0.3V, VSS=0V, T

DC ELECTRICAL CHARACTERISTICSDC ELECTRICAL CHARACTERISTICS

Parameters Sym. Parameters Sym.

Parameters Sym.

Parameters Sym. Parameters Sym.

LCD bias voltage V1

1

(

/2 bias) V2

V3 -

LCD bias voltage V1

1

(

/3 bias) V2

V3 ­Output current of I
BZ1, BZ2 I

OH
OL

Min.Min.

Min.

Min.Min.

1

/2VDD-0.11/2V

1

/2VDD-0.11/2V

1

/3VDD-0.11/3V

2

/3VDD-0.12/3V

Typ.Typ.

Typ.

Typ.Typ.

V

DD

V

DD

Max.Max.

Max.

Max.Max.

1

/2VDD+0.1 V I1=5µA

DD

1

/2VDD+0.1 V I2=5µA

DD

VDD+0.1 V I3=5µA

DD

DD

- V I1=5µA

2

/3VDD+0.1 V I2=5µA

VDD+0.1 V I3=5µA

UnitUnit

Unit

UnitUnit

30 - - mA VDD=3V, VBZ=1.5V
30 - - mA

OPR

=25oC)

ConditionsConditions

Conditions

ConditionsConditions

EM73880EM73880

EM73880

EM73880EM73880

* This specification are subject to be changed without notice.

11.30.2001

30

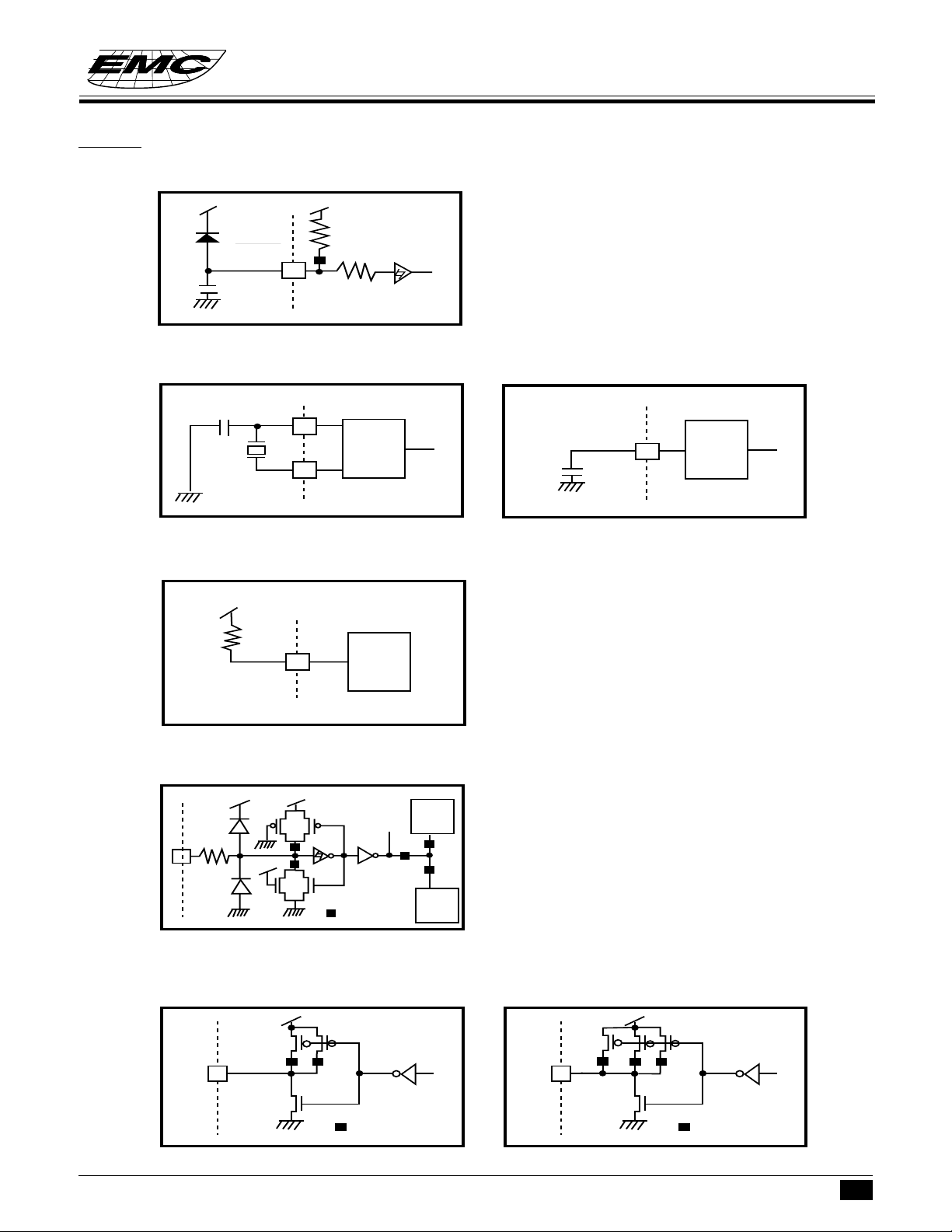

RESET PIN TYPERESET PIN TYPE

RESET PIN TYPE

RESET PIN TYPERESET PIN TYPE

TYPE RESET-A

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

RESET

OSCILLATION PIN TYPEOSCILLATION PIN TYPE

OSCILLATION PIN TYPE

OSCILLATION PIN TYPEOSCILLATION PIN TYPE

TYPE OSC-B TYPE OSC-D

LXIN

LXOUT

TYPE OSC-H

VDD

LXIN

mask option

Crystal
Osc.

RC Osc.

CLK

Internal

OSC.

INPUT PIN TYPEINPUT PIN TYPE

INPUT PIN TYPE

INPUT PIN TYPEINPUT PIN TYPE

TYPE INPUT-K

positive

edge

detector

negative

edge

detector

I/O PIN TYPEI/O PIN TYPE

I/O PIN TYPE

I/O PIN TYPEI/O PIN TYPE

input data

WAKEUP
mask option

: mask option

TYPE I/O-N TYPE I/O-Q

: mask option : mask option

* This specification are subject to be changed without notice.

11.30.2001

31

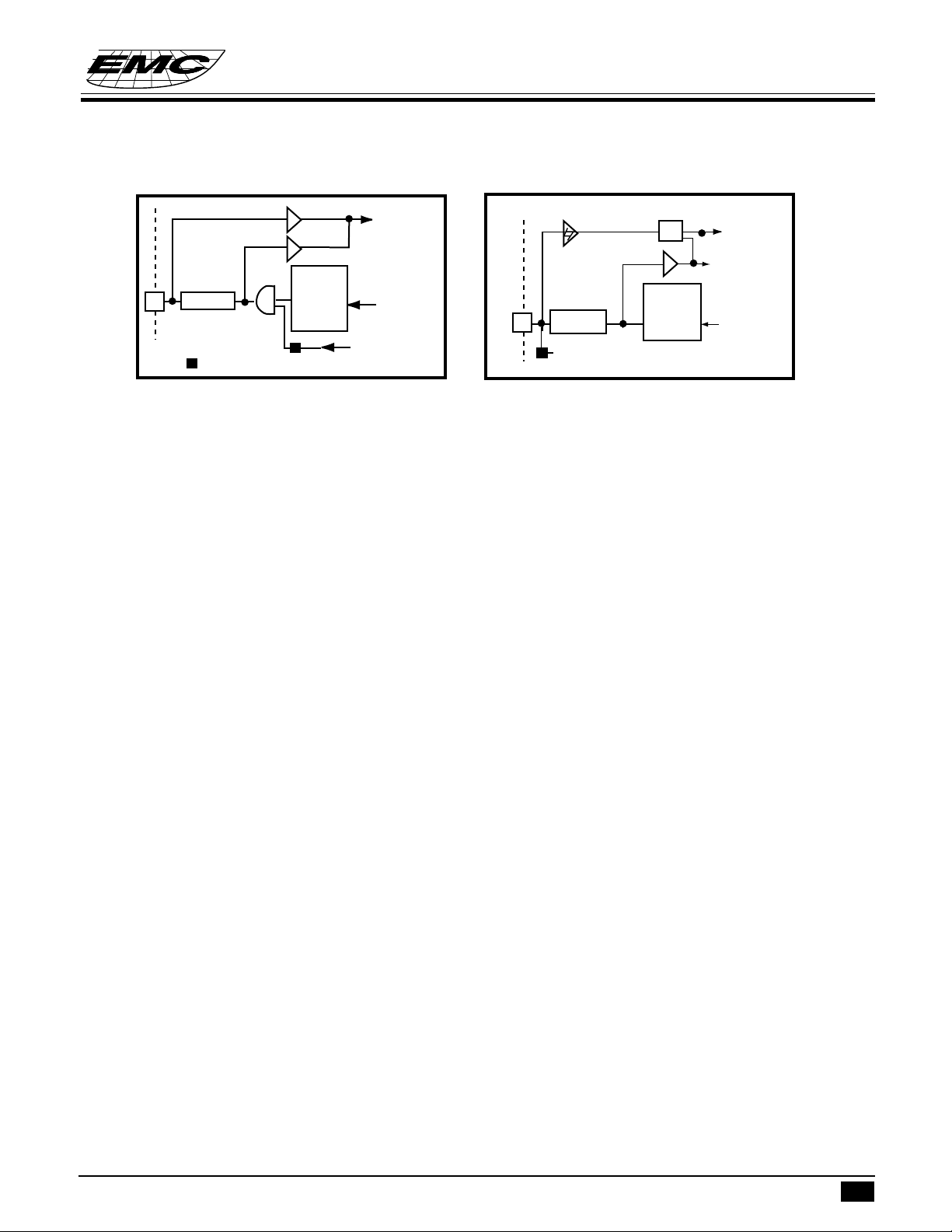

TYPE I/O-RTYPE I/O-R

TYPE I/O-R

TYPE I/O-RTYPE I/O-R

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

TYPE I/O-STYPE I/O-S

TYPE I/O-S

TYPE I/O-STYPE I/O-S

Special function
control input

Input
data

Output
data

TYPE I/O-Q

: mask option

path B

path A

Output
data
latch

Input
data

Output
data

Special function
output

path B

path A

TYPE I/O-N

WAKEUP function
mask option

SEL

Output
data
latch

Path A : For set and clear bit of port instructions, data goes through path A from output data latch to CPU.
Path B : For input and test instructions, data from output pin go through path B to CPU and the output data latch

will be set to high.

* This specification are subject to be changed without notice.

11.30.2001

32

PAD DIAGRAMPAD DIAGRAM

PAD DIAGRAM

PAD DIAGRAMPAD DIAGRAM

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

LXOUT

LXIN

VDD

P4.3

P4.2

P4.1
P4.0

BZ1

19

12

13

15

16

17
18

14

VSS

911

V1

8

V2

V3

VA

7

VB

COM0

COM1

(0,0)

EM73880

COM3

COM2

SEG0

68123456

SEG1

6667

SEG2

65

SEG3

64

63

62
60

59

58
57

56
55

54

53

52

51

50

SEG4
SEG5
SEG6
SEG7

SEG8
SEG9
SEG10

SEG11
SEG12

SEG13
SEG14
SEG15
SEG16
SEG17

BZ2

VDD2

P8.3
P8.2

P8.1

P8.0

20

21

22

23
24

25

28

RESET

29

CLK

30 31

TEST

P0.3

32

P0.2

34 35 36

33

P0.1

P0.0

Unit : µm
Chip Size : 2490 x 2960 µm
Note : For PCB layout, IC substrate must be floated or connected to VSS.

SEG31

SEG30

37

SEG29

38 39

SEG28

49

48

47
46
45

43
42

41

40

SEG27

SEG18
SEG19
SEG20

SEG21
SEG22

SEG23
SEG24
SEG25

SEG26

* This specification are subject to be changed without notice.

11.30.2001

33

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

Pad No.Pad No.

Pad No.

Pad No.Pad No.

1 COM3 357.5 1322.4
2 COM2 237.0 1322.4
3 COM1 82.4 1322.4
4 COM0 -38.2 1322.4
5 VB -192.8 1322.4
6 VA -313.4 1322.4
7 V3 -468.0 1322.4
8 V2 -588.5 1322.4

9 V1 -743.2 1322.4
10
11 VSS -934.0 1294.8
12 LXOUT -1079.9 1019.3
13 LXIN -1079.9 898.8
14 VDD -1055.5 745.5
15 P4.3 -1078.5 526.5
16 P4.2 -1078.5 404.4
17 P4.1 -1078.5 282.2
18 P4.0 -1078.5 160.1
19 BZ1 -1091.5 -67.4
20 BZ2 -1091.5 -424.5
21 VDD2 -1094.9 -666.2
22 P8.3 -1074.7 -902.5
23 P8.2 -1074.7 -1024.7
24 P8.1 -1074.7 -1146.8
25 P8.0 -1074.7 -1267.3
26
27
28 /RESET -812.3 -1327.4
29 CLK -654.9 -1327.4
30 TEST -487.7 -1327.4
31 P0.3 -322.5 -1327.4
32 P0.2 -154.2 -1327.4
33 P0.1 15.9 -1327.4
34 P0.0 184.3 -1327.4
35 SEG31 346.6 -1327.4
36 SEG30 467.2 -1327.4
37 SEG29 621.8 -1327.4
38 SEG28 742.4 -1327.4
39 SEG27 897.0 -1327.4
40 SEG26 1085.0 -1329.4

SymbolSymbol

Symbol

SymbolSymbol

XX

X

XX

YY

Y

YY

* This specification are subject to be changed without notice.

11.30.2001

34

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

Pad No.Pad No.

Pad No.

Pad No.Pad No.

41 SEG25 1085.0 -1028.8
42 SEG24 1085.0 -1088.3
43 SEG23 1085.0 -967.8
44
45 SEG22 1085.0 -847.2
46 SEG21 1085.0 -726.7
47 SEG20 1085.0 -606.1
48 SEG19 1085.0 -485.6
49 SEG18 1085.0 -365.1
50 SEG17 1085.0 -244.5
51 SEG16 1085.0 -124.0
52 SEG15 1085.0 -3.4
53 SEG14 1085.0 117.1
54 SEG13 1085.0 237.6
55 SEG12 1085.0 358.2
56 SEG11 1085.0 478.7
57 SEG10 1085.0 599.3
58 SEG9 1085.0 719.8
59 SEG8 1085.0 840.3
60 SEG7 1085.0 960.9
61
62 SEG6 1085.0 1081.4
63 SEG5 1085.0 1202.0
64 SEG4 1085.0 1322.5
65 SEG3 907.9 1322.4
66 SEG2 787.4 1322.4
67 SEG1 632.7 1322.4
68 SEG0 512.2 1322.4

SymbolSymbol

Symbol

SymbolSymbol

XX

X

XX

YY

Y

YY

* This specification are subject to be changed without notice.

11.30.2001

35

INSTRUCTION TABLEINSTRUCTION TABLE

INSTRUCTION TABLE

INSTRUCTION TABLEINSTRUCTION TABLE

(1) Data Transfer(1) Data Transfer

(1) Data Transfer

(1) Data Transfer(1) Data Transfer

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

LDA x 0110 1010 xxxx xxxx Acc←RAM[x] 2 2 - Z 1
LDAM 0101 1010 Acc ←RAM[HL] 1 1 - Z 1
LDAX 0110 0101 Acc←ROM[DP]
LDAXI 0110 0111 Acc←ROM[DP]
LDH #k 1001 kkkk HR←k11--1
LDHL x 0100 1110 xxxx xx00 LR←RAM[x],HR←RAM[x+1] 2 2 - - 1
LDIA #k 1101 kkkk Acc←k11-Z1
LDL #k 1000 kkkk LR←k11--1
STA x 0110 1001 xxxx xxxx RAM[x]←Acc 2 2 - - 1
STAM 0101 1001 RAM[HL]←Acc 1 1 - - 1
STAMD 0111 1101 RAM[HL]←Acc, LR-1 1 1 - Z C
STAMI 0111 1111 RAM[HL]←Acc, LR+1 1 1 - Z C'
STD #k,y 0100 1000 kkkk yyyy RAM[y]←k22--1
STDMI #k 1010 kkkk RAM[HL]←k, LR+1 1 1 - Z C'
THA 0111 0110 Acc←HR 1 1 - Z 1
TLA 0111 0100 Acc←LR 1 1 - Z 1

(2) Rotate(2) Rotate

(2) Rotate

(2) Rotate(2) Rotate

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

L

,DP+1 1 2 - Z 1

H

ByteByte

Byte

ByteByte

12-Z1

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag

CC

C

CC

ZZ

S S

Z

S

ZZ

S S

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

RLCA 0101 0000 ←CF←Acc← 11CZC'
RRCA 0101 0001 →CF→Acc→ 11CZC'

3) Arithmetic operation3) Arithmetic operation

(

3) Arithmetic operation

3) Arithmetic operation3) Arithmetic operation

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

ADCAM 0111 0000 Acc←Acc + RAM[HL] + CF 1 1 C Z C '
ADD #k,y 0100 1001 kkkk yyyy RAM[y]←RAM[y] +k 2 2 - Z C'
ADDA #k 0110 1110 0101 kkkk Acc←Acc+k 2 2 - Z C'
ADDAM 0111 0001 Acc←Acc + RAM[HL] 1 1 - Z C'
ADDH #k 0110 1110 1001 kkkk HR←HR+k 2 2 - Z C'
ADDL #k 0110 1110 0001 kkkk LR←LR+k 2 2 - Z C'
ADDM #k 0110 1110 1101 kkkk RAM[HL]←RAM[HL] +k 2 2 - Z C '
DECA 0101 1100 Acc←Acc-1 1 1 - Z C
DECL 0111 1100 LR←LR-1 1 1 - Z C
DECM 0101 1101 RAM[HL]←RAM[HL] -1 1 1 - Z C
INCA 0101 1110 Acc←Acc + 1 1 1 - Z C '

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

ByteByte

Byte

ByteByte

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag

CC

C

CC

Flag Flag

Flag

Flag Flag

CC

C

CC

Z Z

Z

Z Z

ZZ

SS

Z

S

ZZ

SS

SS

S

SS

* This specification are subject to be changed without notice.

11.30.2001

36

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

INCL 0111 1110 LR←LR + 1 1 1 - Z C'
INCM 0101 1111 RAM[HL]←RAM[HL]+1 1 1 - Z C'
SUBA #k 0110 1110 0111 kkkk Acc←k-Acc 2 2 - Z C
SBCAM 0111 0010 Acc←RAM[HLl - Acc - CF' 1 1 C Z C
SUBM #k 0110 1110 1111 kkkk RAM[HL]←k - RAM[HL] 2 2 - Z C

((

4) Logical operation4) Logical operation

(

4) Logical operation

4) Logical operation4) Logical operation

((

EM73880EM73880

EM73880

EM73880EM73880

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

ANDA #k 0110 1110 0110 kkkk Acc←Acc&k 2 2 - Z Z'
ANDAM 0111 1011 Acc←Acc & RAM[HL] 1 1 - Z Z'
ANDM #k 0110 1110 1110 kkkk RAM[HL]←RAM[HL]&k 2 2 - Z Z'
ORA #k 0110 1110 0100 kkkk Acc←Acc k 2 2 - Z Z'
ORAM 0111 1000 Acc ←Acc RAM[HL] 1 1 - Z Z'
ORM #k 0110 1110 1100 kkkk RAM[HL]←RAM[HL] k 2 2 - Z Z'
XORAM 0111 1001 Acc←Acc^RAM[HL] 1 1 - Z Z'

(5) Exchange(5) Exchange

(5) Exchange

(5) Exchange(5) Exchange

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

- -

- -

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

- -

ByteByte

Byte

ByteByte

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag
CC

C

CC

Flag Flag

Flag

Flag Flag

CC

C

CC

EXA x 0110 1000 xxxx xxxx Acc↔RAM[x] 2 2 - Z 1
EXAH 0110 0110 Acc↔HR 1 2 - Z 1
EXAL 0110 0100 Acc↔LR 1 2 - Z 1
EXAM 0101 1000 Acc↔RAM[HL] 1 1 - Z 1
EXHL x 0100 1100 xxxx xx00 LR↔RAM[x],

HR↔RAM[x+1] 2 2 - - 1

(6) Branch(6) Branch

(6) Branch

(6) Branch(6) Branch

ZZ

SS

Z

S

ZZ

SS

ZZ

SS

Z

S

ZZ

SS

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

SBR a 00aa aaaa If SF=1 then PC←PC

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

11-6.a5-0

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag

CC

C

CC

11--1

else null

LBR a 1100 aaaa aaaa aaaa If SF= 1 then PC←a else null 2 2 - - 1

(7) Compare(7) Compare

(7) Compare

(7) Compare(7) Compare

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag

CC

C

CC

CMP #k,y 0100 1011 kkkk yyyy k-RAM[y] 2 2 C Z Z'
CMPA x 0110 1011 xxxx xxxx RAM[x]-Acc 2 2 C Z Z'
CMPAM 0111 0011 RAM[HL] - Acc 1 1 C Z Z'
CMPH #k 0110 1110 1011 kkkk k - HR 2 2 - Z C
CMPIA #k 1011 kkkk k - Acc 1 1 C Z Z'
CMPL #k 0110 1110 0011 kkkk k-LR 2 2 - Z C

* This specification are subject to be changed without notice.

11.30.2001

ZZ

SS

Z

S

ZZ

SS

ZZ

SS

Z

S

ZZ

SS

37

(8) Bit manipulation(8) Bit manipulation

(8) Bit manipulation

(8) Bit manipulation(8) Bit manipulation

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag

CC

C

CC

ZZ

SS

Z

S

ZZ

SS

CLM b 1111 00bb RAM[HL]b←011--1
CLP p, b 0110 1101 11bb pppp PORT[p]
CLPL 0110 0000 PORT[LR
CLR y,b 0110 1100 11bb yyyy RAM[y]

←022--1

b

+4]LR

3-2

←022--1

b

←012--1

1-0

SEM b 1111 01bb RAM[HL]b←111--1
SEP p,b 0110 1101 01bb pppp PORT[p]
SEPL 0110 0010 PORT[LR
SET y,b 0110 1100 01bb yyyy RAM[y]
TF y,b 0110 1100 00bb yyyy SF←RAM[y]
TFA b 1111 10bb SF←Acc
TFM b 1111 11bb SF←RAM[HL]
TFP p,b 0110 1101 00bb pppp SF←PORT[p]
TFPL 0110 0001 SF←PORT[LR
TT y,b 0110 1100 10bb yyyy SF←RAM[y]
TTP p,b 0110 1101 10bb pppp SF←PORT[p]

(9) Subroutine(9) Subroutine

(9) Subroutine

(9) Subroutine(9) Subroutine

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

←122--1

b

+4]LR

3-2

←122--1

b

b

'11--*

b

b

←112 --1

l-0

'22--*

'11--*

b

'22--*

b

+4]LR

3-2

'12--*

1-0

22--*

b

22--*

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag

CC

C

CC

ZZ

SS

Z

S

ZZ

SS

LCALL a 0100 0aaa aaaa aaaa STACK[SP]←PC, 2 2 - - -

SP←SP -1, PC←a

SCALL a 1110 nnnn STACK[SP]←PC, 1 2 - - -

SP←SP - 1, PC←a,

a = 8n +6 (n=1~15),0086h (n =0)

RET 0100 1111 SP←SP + 1, PC←STACK[SP] 1 2 - - -

(10) Input/output(10) Input/output

(10) Input/output

(10) Input/output(10) Input/output

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag

CC

C

CC

ZZ

SS

Z

S

ZZ

SS

INA p 0110 1111 0100 pppp Acc←PORT[p] 2 2 - Z Z'
INM p 0110 1111 1100 pppp RAM[HL]←PORT[p] 2 2 - - Z'
OUT #k,p 0100 1010 kkkk pppp PORT[p]←k22--1
OUTA p 0110 1111 000p pppp PORT[p]←Acc 2 2 - - 1
OUTM p 0110 1111 100p pppp PORT[p]←RAM[HL] 2 2 - - 1

(11) Flag manipulation(11) Flag manipulation

(11) Flag manipulation

(11) Flag manipulation(11) Flag manipulation

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag

CC

C

CC

ZZ

SS

Z

S

ZZ

SS

TFCFC 0101 0011 SF←CF', CF←0110-*

* This specification are subject to be changed without notice.

11.30.2001

38

EM73880EM73880

EM73880

EM73880EM73880

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

TGS 0101 0100 SF←GF 1 1 - - *
TTCFS 0101 0010 SF←CF, CF←1111-*
TZS 0101 1011 SF←ZF 1 1 - - *

(12) Interrupt control(12) Interrupt control

(12) Interrupt control

(12) Interrupt control(12) Interrupt control

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag

CC

C

CC

CIL r 0110 0011 11rr rrrr IL←IL & r 2 2 - - 1
DICIL r 0110 0011 10rr rrrr EIF←0,IL←IL&r 2 2 - - 1
EICIL r 0110 0011 01rr rrrr EIF←1,IL←IL&r 2 2 - - 1
EXAE 0111 0101 MASK↔Acc 1 1 - - 1
RTI 0100 1101 SP←SP+1,FLAG.PC 1 2 * * *

←STACK[SP],EIF ←1

(13) CPU control(13) CPU control

(13) CPU control

(13) CPU control(13) CPU control

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag
CC

C

CC

NOP 0101 0110 no operation 1 1 - - -

(14) Timer/Counter & Data pointer & Stack pointer control(14) Timer/Counter & Data pointer & Stack pointer control

(14) Timer/Counter & Data pointer & Stack pointer control

(14) Timer/Counter & Data pointer & Stack pointer control(14) Timer/Counter & Data pointer & Stack pointer control

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

Mnemonic Object code ( binary )

Mnemonic Object code ( binary )Mnemonic Object code ( binary )

LDADPL 0110 1010 1111 1100 Acc←[DP]
LDADPM 0101 0110 1111 1101 Acc←[DP]
LDADPH 0101 0110 1111 1110 Acc←[DP]

Operation descriptionOperation description

Operation description

Operation descriptionOperation description

L

M

H

ByteByte

Byte

ByteByte

CycleCycle

Cycle

CycleCycle

Flag Flag

Flag

Flag Flag

CC

C

CC

22-Z1
22-Z1
22-Z1

LDASP 0101 0110 1111 1111 Acc←SP 2 2 - Z 1
LDATAL 0110 1010 1111 0100 Acc←[TA]
LDATAM 0101 0110 1111 0101 Acc←[TA]
LDATAH 0101 0110 1111 0110 Acc←[TA]
LDATBL 0110 1010 1111 1000 Acc←[TB]
LDATBM 0101 0110 1111 1001 Acc←[TB]
LDATBH 0101 0110 1111 1010 Acc←[TB]
STADPL 0110 1001 1111 1100 [DP]
STADPM 0110 1001 1111 1101 [DP]
STADPH 0110 1001 1111 1110 [DP]

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

L

M

H

L

M

H

22-Z1
22-Z1
22 -Z1
22-Z1
22-Z1
22-Z1

STASP 0110 1001 1111 1111 SP←Acc 2 2 - - 1
STATAL 0110 1001 1111 0100 [TA]
STATAM 0110 1001 1111 0101 [TA]
STATAH 0110 1001 1111 0110 [TA]
STATBL 0110 1001 1111 1000 [ TB]
STATBM 0110 1001 1111 1001 [TB]
STATBH 0110 1001 1111 1010 [TB]

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

ZZ

SS

Z

S

ZZ

SS

ZZ

SS

Z

S

ZZ

SS

ZZ

SS

Z

S

ZZ

SS

* This specification are subject to be changed without notice.

11.30.2001

39

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

PreliminaryPreliminary

Preliminary

PreliminaryPreliminary

**** SYMBOL DESCRIPTION**** SYMBOL DESCRIPTION

**** SYMBOL DESCRIPTION

**** SYMBOL DESCRIPTION**** SYMBOL DESCRIPTION

SymbolSymbol

Symbol

SymbolSymbol

DescriptionDescription

Description

DescriptionDescription

SymbolSymbol

Symbol

SymbolSymbol

DescriptionDescription

Description

DescriptionDescription

HR H register LR L register
PC Program counter DP Data pointer
SP Stack pointer STACK[SP] Stack specified by SP
A

CC

Accumulator FLAG All flags
CF Carry flag ZF Zero flag
SF Status flag
EI Enable interrupt register IL Interrupt latch
MASK Interrupt mask PORT[p] Port ( address : p )
ΤΑ Timer/counter A ΤΒ Timer/counter B
RAM[HL] Data memory (address : HL ) RAM[x] Data memory (address : x )
ROM[DP]
[DP]

L

[DP]

H

L

Low 4-bit of program memory ROM[DP]

Low 4-bit of data pointer register [DP]

M

H

High 4-bit of program memory
Middle 4-bit of data pointer register

High 4-bit of data pointer register [TA]L([TB]L) Low 4-bit of timer/counter A

(timer/counter B) register

[TA]M([TB]M) Middle 4-bit of timer/counter A [TA]H([TB]H) High 4-bit of timer/counter A

(timer/counter B) register (timer/counter B) register
← Transfer ↔ Exchange
+ Addition - Substraction
& Logic AND Logic OR

- -

^ Logic XOR ' Inverse operation
. Concatenation #k 4-bit immediate data
x 8-bit RAM address y 4-bit zero-page address
p 4-bit or 5-bit port address b Bit address
r 6-bit interrupt latch PC

LR

1-0

Contents of bit assigned by bit a

5-0

11-6

Bit 11 to 6 of program counter
Bit 5 to 0 of destination address for

1 to 0 of LR branch instruction

LR

3-2

Bit 3 to 2 of LR

EM73880EM73880

EM73880

EM73880EM73880

* This specification are subject to be changed without notice.

11.30.2001

40
