Datasheet EM73469A Datasheet (ELAN)

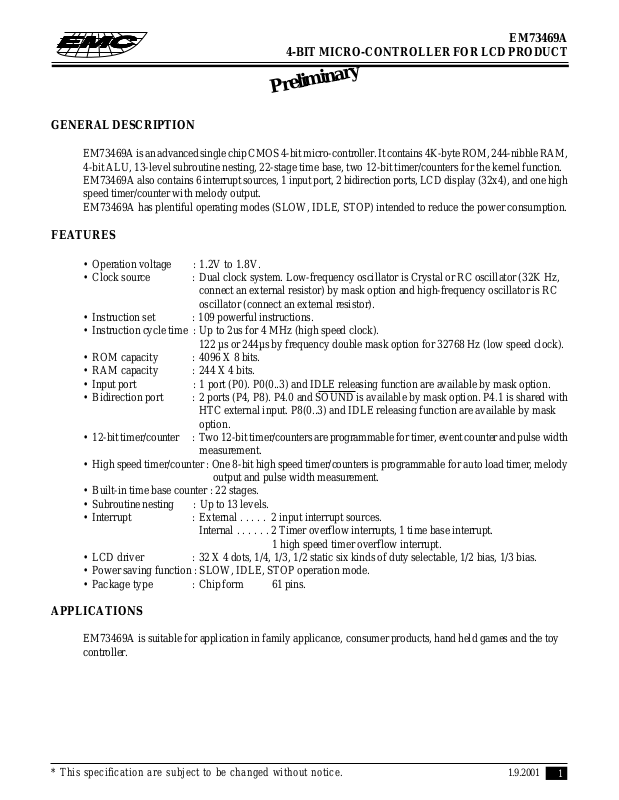

GENERAL DESCRIPTION

EM73469A is an advanced single chip CMOS 4-bit micro-controller. It contains 4K-byte ROM, 244-nibble RAM,
4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/counters for the kernel function.
EM73469A also contains 6 interrupt sources, 1 input port, 2 bidirection ports, LCD display (32x4), and one high
speed timer/counter with melody output.
EM73469A has plentiful operating modes (SLOW, IDLE, STOP) intended to reduce the power consumption.

FEATURES

• Operation voltage : 1.2V to 1.8V.

• Clock source : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32K Hz,

• Instruction set : 109 powerful instructions.

• Instruction cycle time : Up to 2us for 4 MHz (high speed clock).

• ROM capacity : 4096 X 8 bits.

• RAM capacity : 244 X 4 bits.

• Input port : 1 port (P0). P0(0..3) and IDLE releasing function are available by mask option.

• Bidirection port : 2 ports (P4, P8). P4.0 and SOUND is available by mask option. P4.1 is shared with

• 12-bit timer/counter : Two 12-bit timer/counters are programmable for timer, event counter and pulse width

• High speed timer/counter : One 8-bit high speed timer/counters is programmable for auto load timer, melody

• Built-in time base counter : 22 stages.

• Subroutine nesting : Up to 13 levels.

• Interrupt : External . . . . . 2 input interrupt sources.

• LCD driver : 32 X 4 dots, 1/4, 1/3, 1/2 static six kinds of duty selectable, 1/2 bias, 1/3 bias.

• Power saving function : SLOW, IDLE, STOP operation mode.

• Package type : Chip form 61 pins.

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

connect an external resistor) by mask option and high-frequency oscillator is RC
oscillator (connect an external resistor).

122 µs or 244µs by frequency double mask option for 32768 Hz (low speed clock).

HTC external input. P8(0..3) and IDLE releasing function are available by mask
option.

measurement.

output and pulse width measurement.

Internal . . . . . . 2 Timer overflow interrupts, 1 time base interrupt.

1 high speed timer overflow interrupt.

APPLICATIONS

EM73469A is suitable for application in family applicance, consumer products, hand held games and the toy
controller.

* This specification are subject to be changed without notice.

1.9.2001

1

FUNCTION BLOCK DIAGRAM

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

VA
VB

V1
V2
V3

RESET

Reset

Control

Interrupt

Control

Time
Base

LCD

COM0~COM3

Generator

Instruction Decoder
Instruction Register

Timer/Counter

(TA,TB)

SEG0~SEG31

CLK

Clock

LXOUT

Generator

ROM

PC
DP
SP

HTC

SOUND

LXIN

Clock
(slow)

System Control

Data Bus

ZCS G

Timing

Generator

Data pointer

ACC

ALU

Flag

P4.0/SOUND

I/O Control

P4.2

P4.3

P4.1TRGH

Sleep Mode

Control

Stack pointer

Stack

ROM

HR

LR

P0.0/WAKEUP0
P0.1/WAKEUP1
P0.2/WAKEUP2
P0.3/WAKEUP3

P8.2(INT0)/WAKEUPC

P8.0(INT1)/WAKEUPA

P8.1(TRGB)/WAKEUPB

P8.3(TRGA)/WAKEUPD

PIN DESCRIPTIONS

Symbol Pin-type Function

V

DD

V

SS

RESET RESET-A System reset input signal, low active

CLK OSC-I RC clock source connecting pin
LXIN OSC-B/OSC-H1Crystal/RC connecting pin for low speed clock source
LXOUT OSC-B Crystal connecting pin for low speed clock source
P0(0..3)/WAKEUP0..3 INPUT-K 4-bit input port with IDLE releasing function

P4.0/SOUND I/O-R 1-bit bidirection I/O port or inverse sound effect output

Power supply (+)
Power supply (-)

mask option : none

pull-up

mask option : wakeup enable, negative edge release, pull-up

wakeup enable, negative edge release, none
wakeup enable, positive edge release, pull-down
wakeup enable, positive edge release, none
wakeup disable, pull-up
wakeup disable, pull-down
wakeup disable, none

mask option : SOUND enable, high current push-pull

SOUND disable, open-drain

* This specification are subject to be changed without notice.

1.9.2001

2

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

PIN DESCRIPTIONS

Symbol Pin-type Function

SOUND disable, low current push-pull
SOUND disable, normal current push-pull
SOUND disable, high current push-pull

P4.1/TRGH I/O-Q 1-bit bidirection I/O port with HTC external input

mask option : NMOS open-drain

PMOS open-drain
low current push-pull
normal current push-pull
high current push-pull

P4(2,3) I/O-Q 2-bit bidirection I/O port with high current source

mask option : NMOS open-drain

PMOS open-drain
low current push-pull
normal current push-pull

high current push-pull
P8.0(INT1)/WAKEUPA, I/O-S 2-bit bidirection I/O port with external interrupt source input and IDLE
P8.2(INT0)/WAKEUPC releasing function

mask option : wakeup enable, low current push-pull

wakeup enable, normal current push-pull

wakeup disable, open-drain

wakeup disable, low current push-pull

wakeup disable, normal current push-pull
P8.1(TRGB)/WAKEUPB I/O-S 2-bit bidirection I/O port with time/counter A,B external input and IDLE
P8.3(TRGA)/WAKEUPD releasing function

mask option : wakeup enable, low current push-pull

wakeup enable, normal current push-pull

wakeup disable, open-drain

wakeup disable, low current push-pull

wakeup disable, normal current push-pull
SOUND Melody output
VA,VB, V1, V2, V3 Connect the capacitors for LCD bias voltage
COM0~COM3 LCD common output pins
SEG0~SEG31 LCD segment output pins
TEST Tie Vss as package type, no connecting as COB type.

FUNCTION DESCRIPTIONS

PROGRAM ROM (4K X 8 bits)

4 K x 8 bits program ROM contains user's program and some fixed data.
The basic structure of program ROM can be divided into 5 parts.

1. Address 000h: Reset start address.

2. Address 002h - 00Ch : 6 kinds of interrupt service routine entry addresses.

3. Address 00Eh-086h : SCALL subroutine entry address, only available at 00Eh,016h,01Eh,026h, 02Eh,
036h, 03Eh, 046h, 04Eh, 056h, 05Eh, 066h, 06Eh, 076h, 07Eh, 086h.

4. Address 000h - 7FFh : LCALL subroutine entry address.

5. Address 000h - FFFh : Except used as above function, the other region can be used as user's program region.

* This specification are subject to be changed without notice.

1.9.2001

3

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

address 4096 x 8 bits

Preliminary

000h Reset start address
002h INT0; External interrupt service routine entry address
004h HTCI; High speed timer interrupt service entry address
006h TRGA; Timer/counterA interrupt service routine entry address
008h TRGB; Timer/counter B interrupt service routine entry address
00Ah TBI; Time base interrupt service routine entry address
00Ch INT1; External interrupt service routine entry address
00Eh
086h

.

.

.

FFFh

User's program and fixed data are stored in the program ROM. User's program is according the PC value
to send next executed instruction code. Fixed data can be read out by two ways.

(1) Table-look-up instruction :

Table -look-up instruction is depended on the Data Pointer (DP) to indicate to ROM address, then to get the
ROM code data.

LDAX Acc
LDAXI Acc

SCALL, subroutine call entry address

.

.

.

←←

← ROM[DP]

←←
←←

← ROM[DP]H,DP+1

←←

L

DP is a 12-bit data register which can store the program ROM address to be the pointer for the ROM code
data. First, user load ROM address into DP by instruction "STADPL, STADPM, STADPH", then user can

get the lower nibble of ROM code data by instruction "LDAX" and higher nibble by instruction "LDAXI".

PROGRAM EXAMPLE: Read out the ROM code of address 777h by table-look-up instruction.

LDIA #07h;
STADPL ; DP3-0 ← 07h
STADPM ; DP5-4 ← 07h
STADPH ; DP8-6 ← 07h, Load DP=777h
:
LDL #00h;
LDH #03h;
LDAX ; ACC ← 6h
STAMI ; RAM[30] ← 6h
LDAXI ; ACC ← 5h
STAM ; RAM[31] ← 5h
;
ORG 777h
DATA 56h;
:

DATA RAM ( 244-nibble )

There is total 244 - nibble data RAM from address 00 to F3h
Data RAM includes 3 parts: zero page region, stacks and data area.

* This specification are subject to be changed without notice.

1.9.2001

4

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

Increment

Address
00h~0Fh
10h~1Fh
20h~2Fh
30h~3Fh
40h~4Fh

:
B0h ~ BFh
C0h ~ CFh

D0h ~ DFh

E0h ~ EFh

F0h ~ F3h

level 0
level 4
level 8

level C

LCD display RAM:

RAM address from 20h ~ 3Fh are the LCD display RAM area, the RAM data of this region can't be operated
by instruction LDHL xx and EXHL.

zero page

LCD display RAM

level 1
level 5
level 9

level 2
level 6

level A

level 3
level17
level B

ZERO-PAGE:

From 00h to 0Fh is the location of zero-page. It is used as the pointer in zero-page addressing mode for the
instruction of "STD #k,y; ADD #k,y; CLR y,b; CMP k,y".

PROGRAM EXAMPLE: To wirte immediate data "07h" to address "03h" of RAM and to clear bit 2 of RAM.

STD #07h, 03h ; RAM[03] ← 07h
CLR 0Eh,2 ; RAM[0Eh]2 ← 0

STACK:

There are 13-level (maximum) stack for user using for subroutine (including interrupt and CALL). User can
assign any level be the starting stack by giving the level number to stack pointer (SP).
When user using any instruction of CALL or subroutine, before entry the subroutine, the previous PC address
will be saved into stack until return from those subroutines, the PC value will be restored by the data saved
in stack.

DATA AREA:

Except the special area used by user, the whole RAM can be used as data area for storing and loading general
data.

ADDRESSING MODE

(1) Indirect addressing mode:

Indirect addressing mode indicates the RAM address by specified HL register.
For example: LDAM ; Acc ← RAM[HL]

STAM ; RAM[HL] ← Acc

(2) Direct addressing mode:

Direct addressing mode indicates the RAM address by immediate data.

* This specification are subject to be changed without notice.

1.9.2001

5

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

For example:

(3) Zero-page addressing mode

For zero-page region, user can using direct addressing to write or do any arithematic, comparsion or bit
manupulated operation directly.
For example:

PROGRAM COUNTER (4K ROM)

Program counter ( PC ) is composed by a 12-bit counter, which indicates the next executed address for the
instruction of program ROM.
For a 4K - byte size ROM, PC can indicate address form 000h - FFFh, for BRANCH and CALL instrcutions,
PC is changed by instruction indicating.

(1) Branch instruction:

LDA x ; Acc← RAM[x]
STA x ; RAM[x] ← Acc

STD #k,y ; RAM[y] ← #k
ADD #k,y; RAM[y] ← RAM[y] + #k

SBR a

Object code: 00aa aaaa
Condition: SF=1; PC ← PC

( branch condition satisified )

11-6.a

PC Hold original PC value+1 aaaaaa

SF=0; PC← PC +1( branch condition not satisified )

PC Original PC value + 1

LBR a

Object code: 1100 aaaa aaaa aaaa
Condition: SF=1; PC ← a ( branch condition satisified )

PCaaaaaaaaaaaa

SF=0 ; PC ← PC + 2 ( branch condition not satisified )

PC Original PC value + 2

(2) Subroutine instruction:

SCALL a

Object code: 1110 nnnn
Condition : PC ← a ; a=8n+6 ; n=1..15 ; a=86h, n=0

PC0000aaaaaaaa

LCALL a

Object code: 0100 0 aaa aaaa aaaa
Condition: PC ← a

PC0aaaaaaaaaaa

* This specification are subject to be changed without notice.

1.9.2001

6

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

RET

Object code: 0100 1111
Condition: PC ← STACK[SP]; SP + 1

PC The return address stored in stack

RT I

Object code: 0100 1101
Condition : FLAG. PC ← STACK[SP]; EI ← 1; SP + 1

PC The return address stored in stack

(3) Interrupt acceptance operation:

When an interrupt is accepted, the original PC is pushed into stack and interrupt vector will be loaded into
PC,The interrupt vectors are as following:

INT0 (External interrupt from P8.2)

PC000000000010

TRGA (Timer A overflow interrupt)

PC000000000110

TRGB (Time B overflow interrupt)

PC000000001000

TBI (Time base interrupt)

PC000000001010

INT1 (External interrupt from P8.0)

PC000000001100

(4) Reset operation:

PC000000000000

(5) Other operations:

For 1-byte instruction execution: PC + 1
For 2-byte instruction execution: PC + 2

ACCUMULATOR

* This specification are subject to be changed without notice.

1.9.2001

7

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

Accumulator is a 4-bit data register for temporary data. For the arithematic, logic and comparative opertion
.., ACC plays a role which holds the source data and result.

FLAGS

There are four kinds of flag, CF ( Carry flag ), ZF ( Zero flag ), SF ( Status flag ) and GF ( General flag ),

these 4 1-bit flags are affected by the arithematic, logic and comparative .... operation.

All flags will be put into stack when an interrupt subroutine is served, and the flags will be restored after
RTI instruction executed.

(1) Carry Flag ( CF )

The carry flag is affected by following operation:
a. Addition : CF as a carry out indicator, when the addition operation has a carry-out, CF will be "1",

in another word, if the operation has no carry-out, CF will be "0".

b. Subtraction : CF as a borrow-in indicator, when the subtraction operation must has a borrow, in the CF

will be "0", in another word, if no borrow-in, CF will be "1".

c. Comparision: CF is as a borrow-in indicator for Comparision operation as the same as subtraction

operation.

d. Rotation: CF shifts into the empty bit of accumulator for the rotation and holds the shift out data after

rotation.

e. CF test instruction : For TFCFC instruction, the content of CF sends into SF then clear itself "0".

For TTSFC instruction, the content of CF sends into SF then set itself "1".

(2) Zero Flag ( ZF )

ZF is affected by the result of ALU, if the ALU operation generate a "0" result, the ZF will be "1",
otherwise, the ZF will be "0".

(3) Status Flag ( SF )

The SF is affected by instruction operation and system status.

a. SF is initiated to "1" for reset condition.

b. Branch instruction is decided by SF, when SF=1, branch condition will be satisified, otherwise,

branch condition will not be satisified by SF = 0.

(4) General Flag ( GF )

GF is a one bit general purpose register which can be set, clear, test by instruction SGF, CGF and TGS.

PROGRAM EXAMPLE:

Check following arithematic operation for CF, ZF, SF

* This specification are subject to be changed without notice.

1.9.2001

8

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

CF ZF SF
LDIA #00h; - 1 1
LDIA #03h; - 0 1
ADDA #05h; - 0 1
ADDA #0Dh; - 0 0
ADDA #0Eh; - 0 0

ALU

The arithematic operation of 4 - bit data is performed in ALU unit. There are 2 flags can be affected by the
result of ALU operation, ZF and SF. The operation of ALU can be affected by CF only.

ALU STRUCTURE

ALU supported user arithematic operation function, including : addition, subtraction and rotaion.

DATA BUS

ALU

ZF CF SF GF

ALU FUNCTION

(1) Addition:

For instruction ADDAM, ADCAM, ADDM #k, ADD #k,y .... ALU supports addition function.

The addition operation can affect CF and ZF. For addition operation, if the result is "0", ZF will be "1",
otherwise, not equal "0", ZF will be "0". When the addition operation has a carry-out, CF will be "1",
otherwise, CF will be "0".

EXAMPLE:

Operation Carry Zero
3+4=7 0 0

7+F=6 1 0
0+0=0 0 1
8+8=0 1 1

(2) Subtraction:

For instruction SUBM #k, SUBA #k, SBCAM, DECM... ALU supports user subtraction function. The
subtraction operation can affect CF and ZF, For subtraction operation, if the result is negative, CF will
be "0", it means a borrow out, otherwise, if the result is positive, CF will be "1". For ZF, if the result of
subtraction operation is "0", the ZF will be "1", otherwise, ZF will be "1".

* This specification are subject to be changed without notice.

1.9.2001

9

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

EXAMPLE:

Operation Carry Zero
8-4=4 1 0
7-F= -8(1000) 0 0
9-9=0 1 1

(3) Rotation:

There are two kinds of rotation operation, one is rotation left, the other is rotation right.
RLCA instruction rotates Acc value to left, shift the CF value into the LSB bit of Acc and the shift out data
will be hold in CF.

MSB LSB

ACC

CF

RRCA instruction operation rotates Acc value to right, shift the CF value into the MSB bit of Acc and the
shift out data will be hold in CF.

MSB LSB

ACC

CF

PROGRAM EXAMPLE: To rotate Acc right and shift a "1" into the MSB bit of Acc.

TTCFS; CF ← 1
RRCA; rotate Acc right and shift CF=1 into MSB.

HL REGISTER

HL register are two 4-bit registers, they are used as a pair of pointer for the address of RAM memory and also
2 independent temporary 4-bit data registers. For some instruction, L register can be a pointer to indicate the
pin number ( Port4 ).

HL REGISTER STRUCTURE

3 2 1 0

3 2 1 0

H REGISTER

HL REGISTER FUNCTION

* This specification are subject to be changed without notice.

L REGISTER

1.9.2001

10

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

(1)For instruction : LDL #k, LDH #k, THA, THL, INCL, DECL, EXAL, EXAH, HL register used as a

temporary register.

PROGRAM EXAMPLE: Load immediate data "5h" into L register, "Dh" into H register.

LDL #05h;
LDH #0Dh;

(2) For instruction LDAM, STAM, STAMI .., HL register used as a pointer for the address of RAM memory.

PROGRAM EXAMPLE: Store immediate data #Ah into RAM of address 35h.

LDL #5h;
LDH #3h;
STDMI #0Ah; RAM[35] ← Ah

(3) For instruction : SELP, CLPL, TFPL, L regieter be a pointer to indicate the bit of I/O port.

When LR = 0 indicate P4.0

PROGRAM EXAMPLE: To set bit 0 of Port4 to "1"

LDL #00h;
SEPL ; P4.0 ← 1

STACK POINTER (SP)

Stack pointer is a 4-bit register which stores the present stack level number.
Before using stack, user must set the SP value first, CPU will not initiate the SP value after reset condition
. When a new subroutine is accepted, the SP will be decreased one automatically, in another word, if
returning from a subroutine, the SP will be increased one.
The data transfer between ACC and SP is by instruction of "LDASP" and "STASP".

DATA POINTER (DP)

Data pointer is a 12-bit register which stores the address of ROM can indicate the ROM code data
specified by user (refer to data ROM).

CLOCK AND TIMING GENERATOR

The clock generator is supported by a single clock system, the clock source comes from crystal (resonator)
or RC oscillation is decided by mask option, the working frequency range is 480 K Hz to 4 MHz depending
on the working voltage.

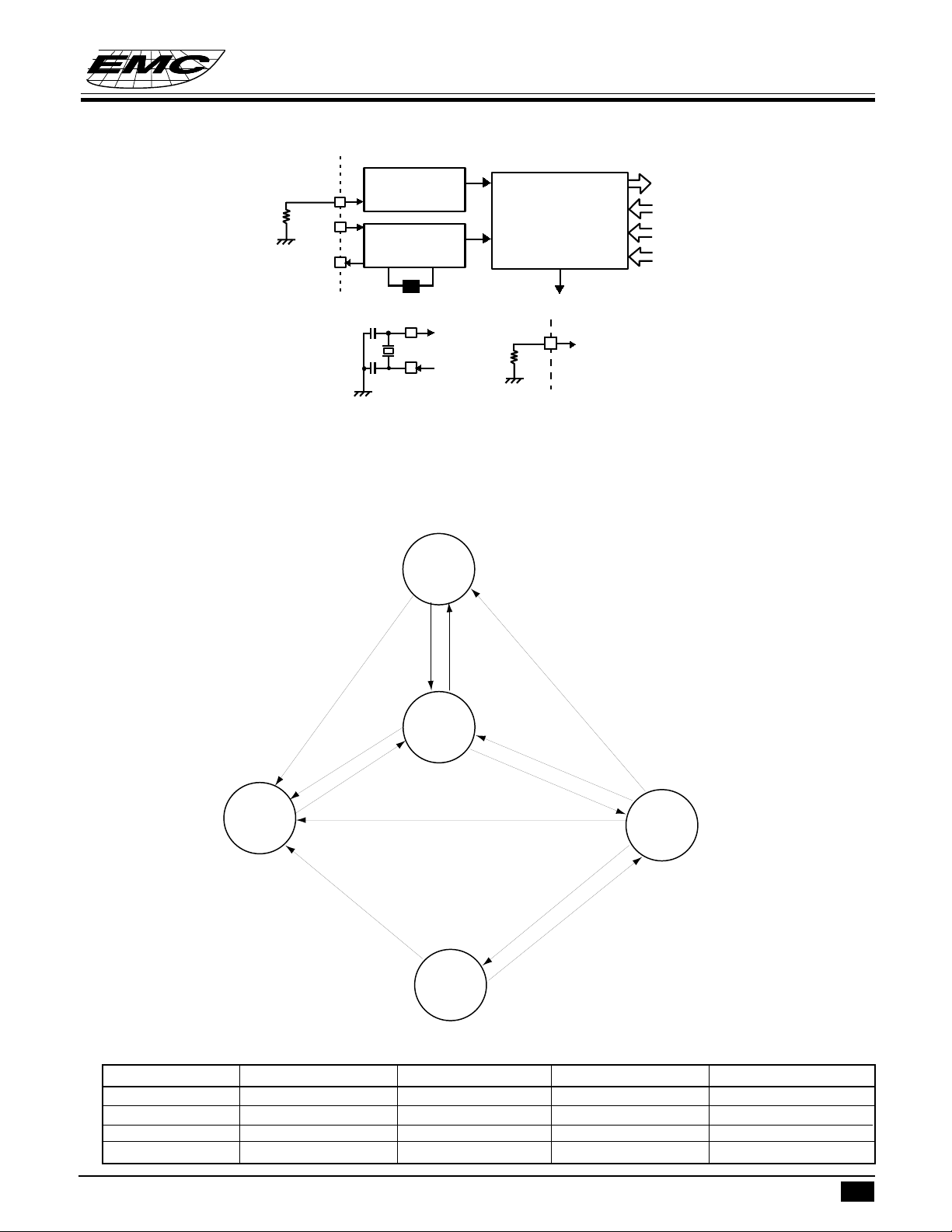

CLOCK GENERATOR STRUCTURE

There are two clock generator for system clock control. P14 is the status register for the CPU status. P16,
P19 and P22 are the system clock mode control ports.

* This specification are subject to be changed without notice.

1.9.2001

11

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

LXIN

LXOUT

fc

System clock

fs

mode control

System control

LXIN

P14

P16

P19

P22

RC connection

High-frequency

generator

CLK

LXIN

LXOUT

Mask option for choose Crystal or RC oscillator

Low-frequency

generator

Crystal connection

SYSTEM CLOCK MODE CONTROL

The system clock mode controller can start or stop the high-frequency and low-frequency clock oscillator
and switch between the basic clocks. EM73469A has four operation modes (NORMAL, SLOW,IDLE and
STOP operation modes).

STOP

operation

mode

High osc : stopped
Low osc : stopped

Command

NORMAL

operation

mode

Reset

IDLE
(CPU
stops)

(P16)

High osc : oscillating
Low osc : oscillating

Command

Command

(P22)

High osc : stopped
Low osc : oscillating

(P22)

Command

(P16)

Command

(P19)

I/O or internal timer wakeup

SLOW

operation

mode

High osc : stopped
Low osc : oscillating

RESET

operation

I/O wakeup

Reset

Reset

Reset release

Reset

Operation Mode Oscillator System Clock Available function One instruction cycle

NORMAL High, Low frequency High frequency clock LCD, High speed timer 8/fc
SLOW Low frequency Low frequency clock LCD, High speed timer 4/fs or 8/fs by mask option
IDLE Low frequency CPU stops L CD ­STOP None CPU stops All disable -

* This specification are subject to be changed without notice.

1.9.2001

12

NORMAL OPERATION MODE

The 4-bit µc is in the NORMAL operation mode when the CPU is reseted. This mode is a dual clock system
(high-frequency(fc) and low-frequency(fs) clocks oscillating). It can be changed to SLOW or STOP
operation mode by the command register (P22 or P16).
The instruction cycle is 8/fc in NORMAL operation mode.
LCD display and high speed timer/counter with melody output are available for the NORMAL operation
mode.

SLOW OPERATION MODE

The SLOW operation mode is a single clock system (low-frequency(fs) clock oscillating). It can be changed
to the DUAL operation mode with the commoand register (P22), STOP operation mode with P16 and IDLE
operation mode with P19.
The instruction cycle is 4/fs or 8/fs by frequency double mask option in SLOW operation mode.
LCD display and high speed timer/counter with melody output are available for the SLOW operation mode.

32 1 0 Initial value : 0000

P22

* SOM * *

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

SOM Select operation mode

0 NORMAL operation mode
1 SLOW operation mode

P14 32 10 Initial value : *000

* WKS LFS CPUS

LFS Low-frequency status CPUS CPU status

0 LXIN source is not stable 0 NORMAL operation mode
1 LXIN source is stable 1 SLOW operation mode

WKS Wakeup status

0 Wakeup not by internal timer
1 Wakeup by internal timer

Port14 is the status register for CPU. P14.0 (CPU status) and P14.1 (Low-frequency status) are read-only
bits. p14.2 (wakeup status) will be set to "1" when CPU is wake-up by internal timer. P14.2 will be cleared
to "0" when user out data to P14.

IDLE OPERATION MODE

The IDLE operation mode suspends all SLOW operations except for the low-frequency clock and LCD
driver. It retains the internal status with low power consumption without stopping the clock function and
LCD display.

LCD display is available for the IDLE operation mode. Sound generator is disabled in this mode. The IDLE
operation mode will be wakeup and return to the SLOW operation mode by the internal timing generator or
I/O pins (P0(0..3)/WAKEUP 0..3 or P8(0..3)/WAKEUPA..D).

* This specification are subject to be changed without notice.

1.9.2001

13

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

P19 32 10 Initial value : 0000

IDME SIDR

IDME Enable IDLE mode SIDR Select IDLE releasing condition
0 1 Enable IDLE mode 0 0 P0(0..3), P8(0..3) pin input
* * Reserved 0 1 P0(0..3), P8(0..3) pin input and 1 sec signal

1 0 P0(0..3), P8(0..3) pin input and 0.5 sec signal
1 1 P0(0..3), P8(0..3) pin input and 15.625 ms signal

STOP OPERATION MODE

The STOP operation mode suspends system operation and holds the internal status immediately before the
suspension with low power consumption. This mode will be released by reset or I/O pins (P0(0..3)/
WAKEUP 0..3 or P8(0..3)/WAKEUP A..D).

LCD display and high speed timer/counter with melody output are disabled in the mode.

P16 3210 Initial value : 0000

SPME SWWT

SPME Enable STOP mode SWWT Set wake-up warm-up time
0 1 Enable STOP mode 0 0 wait normal frequency ready (26/fc)
* * Reserved 0 1 wait slow frequency ready (2

14/

fs)
1 0 Reserved
1 1 Reserved

TIME BASE INTERRUPT ( TBI )

The time base can be used to generate a fixed frequency interrupt. There are 8 kinds of frequencies can be
selected by setting P25.

P25 3 2 1 0

initial value : 0000

P25 NORMAL operation mode SLOW operation mode

0 0 x x Interrupt disable Interrupt disable
0 1 0 0 Interrupt frequency LXIN / 2

3

Hz Reserved
0 1 0 1 Interrupt frequency LXIN / 24 Hz Reserved
0 1 1 0 Interrupt frequency LXIN / 25 Hz Reserved
0 1 1 1 Interrupt frequency LXIN / 2

14

Hz Interrupt frequency LXIN / 2

14

Hz
1 1 0 0 Interrupt frequency LXIN / 21 Hz Reserved
1 1 0 1 Interrupt frequency LXIN / 26 Hz Interrupt frequency LXIN / 26 Hz
1 1 1 0 Interrupt frequency LXIN / 28 Hz Interrupt frequency LXIN / 28 Hz
1 1 1 1 Interrupt frequency LXIN / 2

10

Hz Interrupt frequency LXIN / 2

10

Hz
1 0 x x Reserved Reserved

TIMER / COUNTER ( TIMERA, TIMERB )

Timer/counters can support user three special functions:

1. Even counter

2. Timer.

3. Pulse-width measurement.

* This specification are subject to be changed without notice.

1.9.2001

14

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

These three functions can be executed by 2 timer/counter independently.
For timerA, the counter data is saved in timer register TAH, TAM, TAL, which user can set counter initial
value and read the counter value by instruction "LDATAH(M,L), STATAH(M,L)" and timer register is
TBH, TBM, TBL and W/R instruction "LDATBH (M,L), STATBH (M,L)".

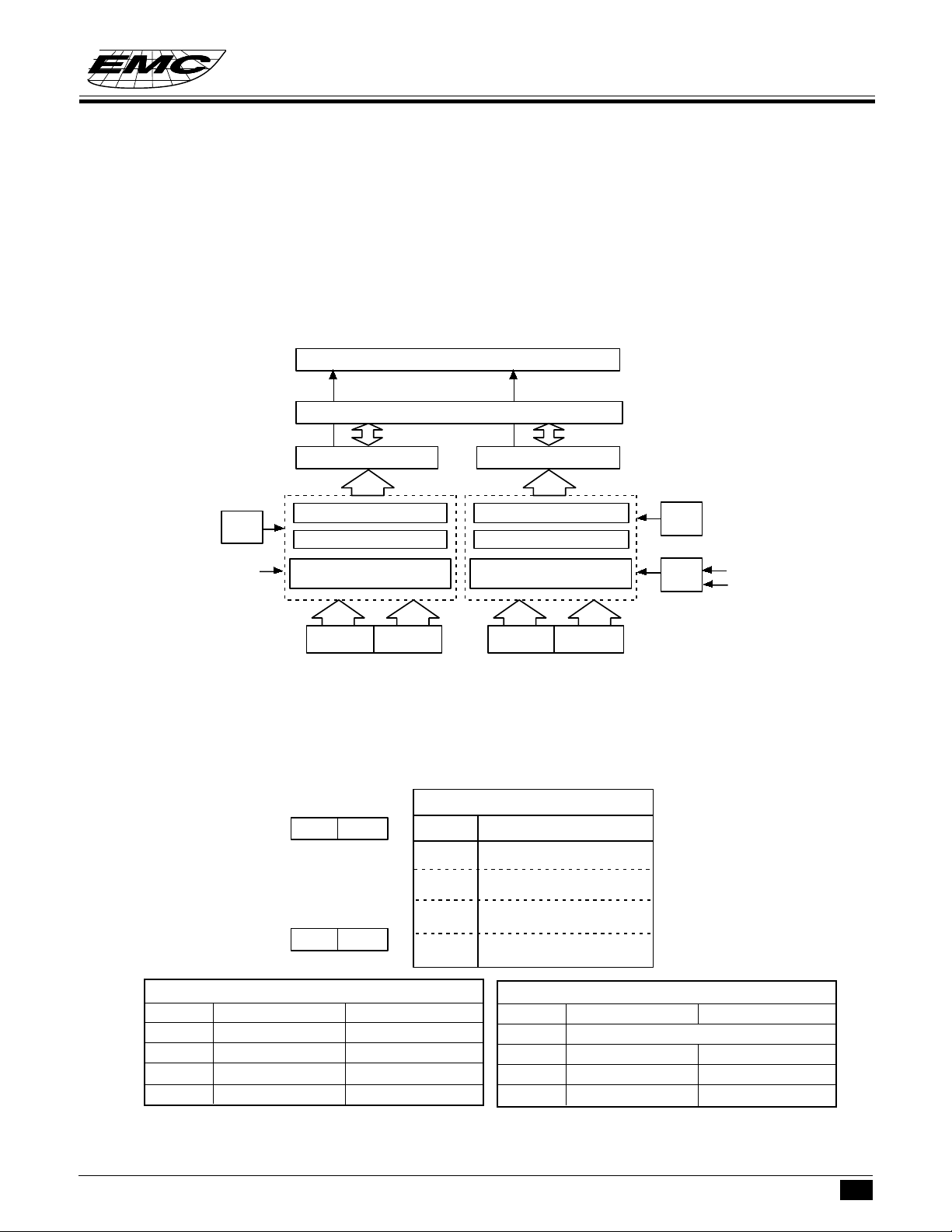

The basic structure of timer/counter is composed by two same structure counter, these two counters can be
set initial value and send counter value to timer register, P28 and P29 are the command ports for timerA
and timer B, user can choose different operation mode and different internal clock rate by setting these two
ports. When timer/counter overflow, it will generate a TRGA(B) interrupt request to interrupt control unit.

INTERRUPT CONTROL

TRGB request

12 BIT COUNTER

EVENT COUNTER CONTROL

TIMER CONTROL

PULSE-WIDTH MEASUREMENT

CONTROL

TMSB IPSB

P8.1/

TRGB

MUX

internal clock
high speed timer/counter

P8.3/

TRGA

internal clock

TRGA request

12 BIT COUNTER

EVENT COUNTER CONTROL

TIMER CONTROL

PULSE-WIDTH MEASUREMENT

P28

CONTROL

TMSA

DATA BUS

IPSA

P29

TIMER/COUNTER CONTROL

P8.1/TRGB, P8.3/TRGA are the external timer inputs for timerB and timerA, they are used in event
counter and pulse-width measurement mode.

Timer/counter command port: P28 is the command port for timer/counterA and P29 is for the timer/
counterB.

Port 28

3 2 1 0
TMSA IPSA

Initial state: 0000

TIMER/COUNTER MODE SELECTION

TMSA (B) Function description

0 0 Stop

0 1 Event counter mode

Port 29

3 2 1 0

TMSB

Initial state: 0000

IPSB

1 0 Timer mode

1 1 Pulse width measurement mode

INTERNAL PULSE-RATE SELECTION INTERNAL PULSE-RATE SELECTION

IPSA NORMAL mode SLOW mode IPSB NORMAL mode SLOW mode

3

0 0 LXIN/2

Hz Reserved 0 0 Depend on high speed timer/counter
0 1 LXIN/27 Hz LXIN/27 Hz 0 1 LXIN/25 Hz LXIN/25 Hz
1 0 LXIN/211 Hz LXIN/211 Hz 1 0 LXIN/29 Hz LXIN/29 Hz
1 1 LXIN/215 Hz LXIN/215 Hz 1 1 LXIN/213 Hz LXIN/213 Hz

* This specification are subject to be changed without notice.

1.9.2001

15

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

TIMER/COUNTER FUNCTION

Timer/counterA can be programmable for timer, event counter and pulse width measurement. Each timer/
counter can execute any one of these functions independly.

EVENT COUNTER MODE

For event counter mode, timer/counter increases one at any rising edge of P8.1/TRGB for timerB (P8.3/
TRGA for timer A). When timerB (timerA) counts overflow, it will give interrupt control an interrupt request
TRGB (TRGA).

P8.1/TRGB (P8.3/TRGA)

TimerB (TimerA) value n n+1 n+2 n+3 n+4 n+5 n+6

PROGRAM EXAMPLE: Enable timerA with P28

LDIA #0100B;
OUTA P28; Enable timerA with event counter mode

TIMER MODE

For timer mode, timer/counter increase one at any rising edge of internal pulse. User can choose 4 kinds
of internal pulse rate by setting IPSB for timerB (IPSA for timerA).
When timer/counter counts overflow, TRGB (TRGA) will be generated to interrupt control unit.

Internal pulse

TimerB (TimerA )value

n n+1 n+2 n+3 n+4 n+5 n+6

n+7

PROGRAM EXAMPLE:To generate TRGA interrupt request after 60 ms with system clock LXlN=32KHz

LDIA #0100B;
EXAE; enable mask 2
EICIL 110111B; interrupt latch ←0, enable EI
LDIA #0AH;
STATAL;
LDIA #00H;
STATAM;
LDIA #0FH;
STATAH;
LDIA #1000B;
OUTA P28; enable timerA with internal pulse rate: LXIN/23 Hz

NOTE: The preset value of timer/counter register is calculated as following procedure.

Internal pulse rate: LXIN/2

3

; LXIN = 32KHz
The time of timer counter count one = 23 /LXIN = 8/32768=0.244ms
The number of internal pulse to get timer overflow = 60 ms/ 0.244ms = 245.901= 0F6H
The preset value of timer/counter register = 1000H - 0F6H = 0F0AH

PULSE WIDTH MEASUREMENT MODE

* This specification are subject to be changed without notice.

1.9.2001

16

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

For the pulse width measurement mode, the counter only incresed by the rising edge of internal pulse rate as
external timer/counter input (P8.1/TRGB, P8.3/TRGA ), interrupt request will be generated as soon as
timer/counter count overflow.

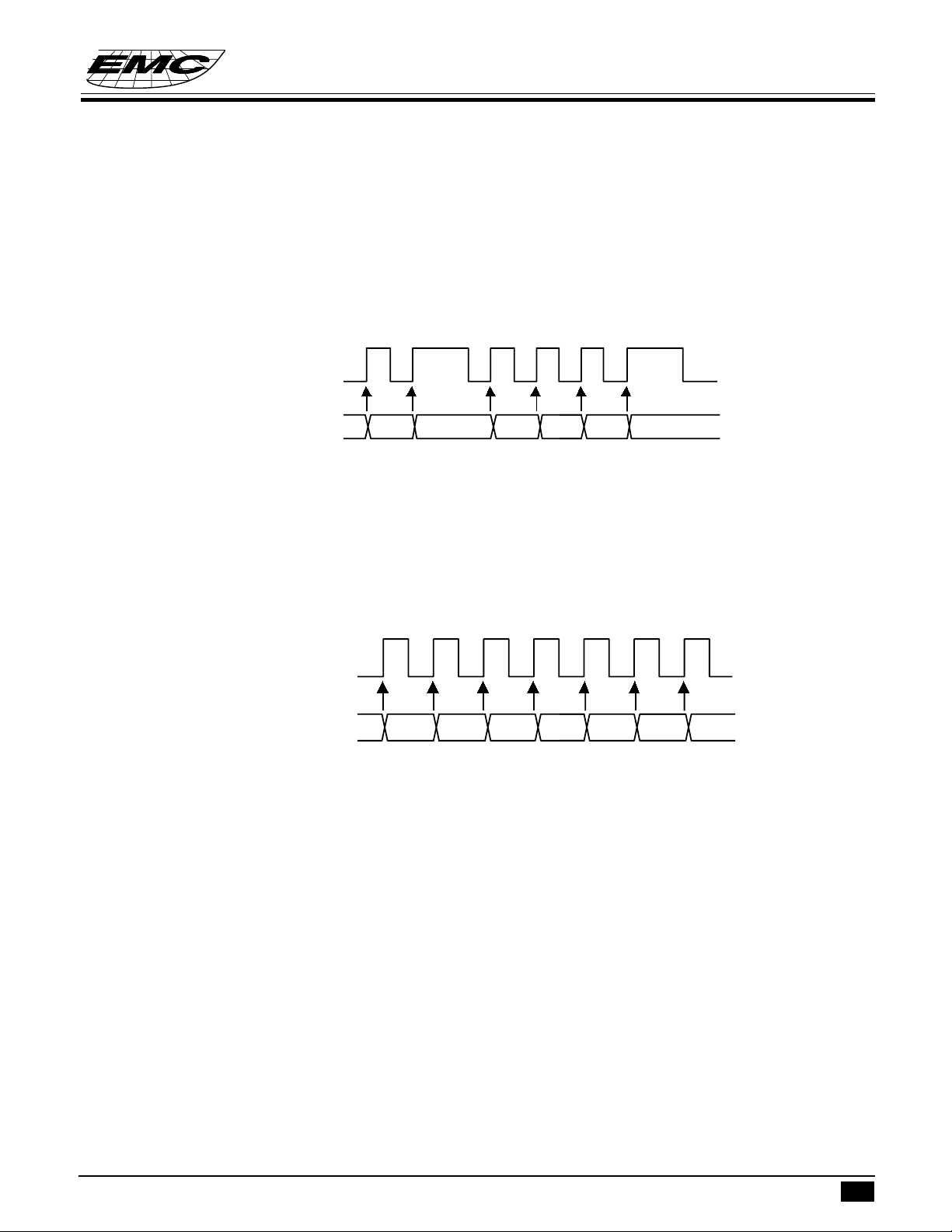

P8.1/TRGB(P8.3/TRGA)

Internal pulse

TimerB(TimerA) value

n n+1 n+2 n+3 n+4 n+5

PROGRAM EXAMPLE: Enable timerA by pulse width measurement mode.

LDIA #1100b;
OUTA P28; Enable timerA with pulse width measurement mode.

HIGH SPEED TIMER/COUNTER

EM73469A has one 8-bit high speed timer/counter (HTC). It supports three special functions : auto load timer,
melody output and pulse width measurement modes. The HTC is available for the NORMAL and SLOW
operation mode.

The HTC can be set initial value and send counter value to counter registers (P11 and P10), P31 is the
command port for HTC, user can choose different operation mode and different internal clockrate by setting
the port. The timer/counter increase one at the rising edge of internal pulse. The HTC can generate an overflow
interrupt (HTCI) when it overflows. The HTCI cannot be generated when the HTC is in the melody mode
or disabled.

P4.0/SOUND

SOUND

P4.1/TRGH

Output data

mask option

F

HTC

P31(3,2)

XIN

P31(1,0)

Input data

÷2

8-bit binary counter

P11

P10

Overflow

Reload

Data bus

HTCI interrupt

Timer/counter B

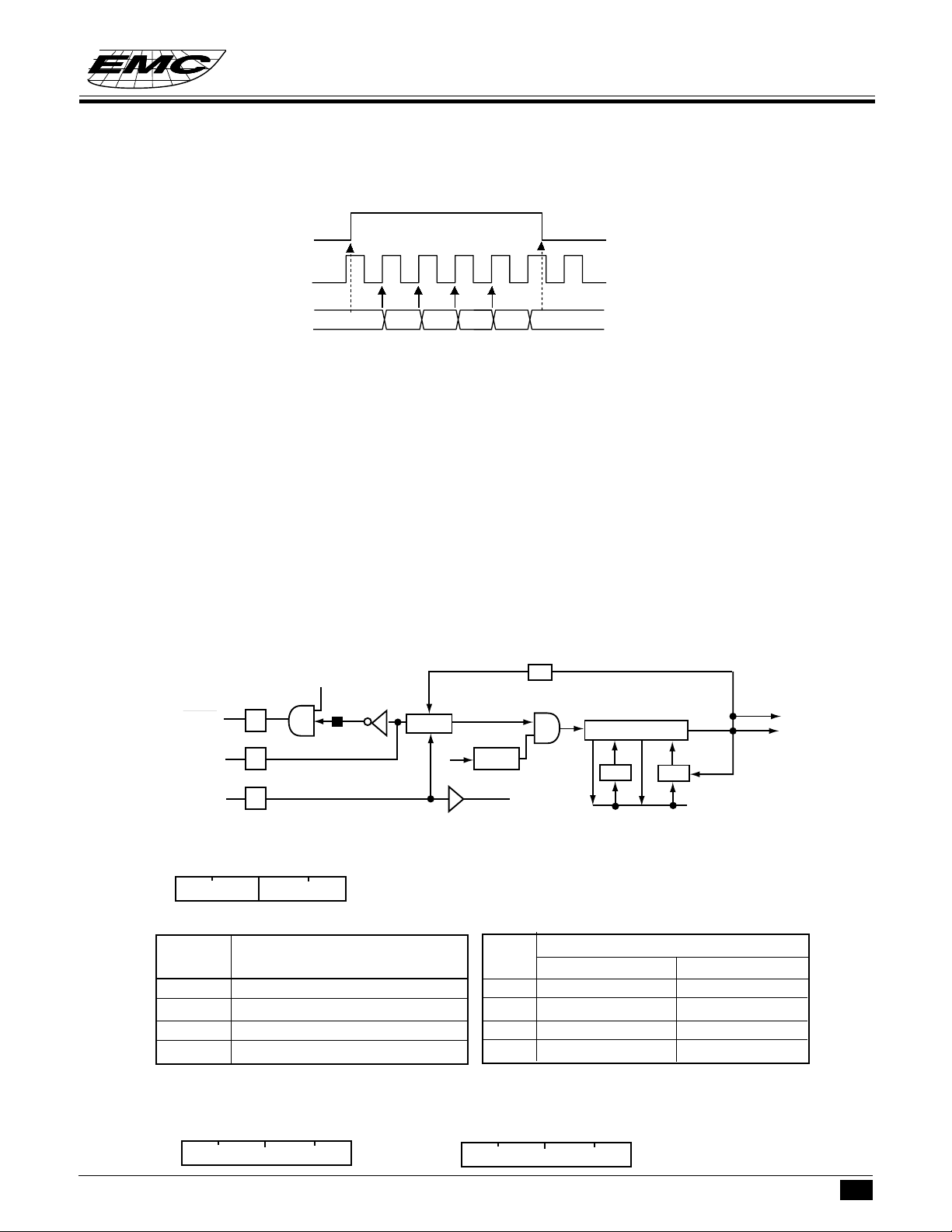

P31 is the command register of the 8-bit high speed timer/counter.

P31 32 1 0 Initial value : 0000

HTMS HIPS

HTMS Mode selection HIPS Clock rate selection

0 0 Stop 0 0 LXIN/20 Hz LXIN/20 Hz
0 1 Auto load timer mode 0 1 LXIN/22 Hz LXIN/22 Hz
1 0 Melody mode 1 0 CLK/24 Hz Reserved
1 1 Pulse width measurement mode 1 1 CLK/26 Hz Reserved

P11 and P10 are the counter registers of the 8-bit high speed timer/counter. P10 is the lower nibble register
and P11 is the higher nibble register. (HT is the value of counter registers.)

32 1 0 P10 3210Initial value : 0000 0000 (HT)

P11

Higher nibble register Lower nibble register

* This specification are subject to be changed without notice.

NORMAL mode SLOW mode

1.9.2001

17

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

** F
** Example : LXIN=32K Hz, HIPS=01, HT=11110000B=0F0H.

LDIA #1111B
OUTA P11
LDIA #0000B
OUTA P10
LDIA #1001B
OUTA P31

The value of 8-bit binary up counter can be presetted by P10 and P11. The value of registers can loaded into
the HTC when the counter starts counting or occurs overflow. If user write value to the registers before the
next overflow occurs, the preset value can be changed.
The preset value will be changed when users output the different data to P10 and P11.
The count value of HTC can be read from P10 and P11. The value is unstable when user read the value during
counting. Thus, user must disable the counter before reading the value.
The P4.0/SOUND and SOUND pins will output the squre wave in the melody mode. When the CPU is not
in the melody mode, the P4.0/SOUND is high and SOUND is low.
The P4.1/RGH pin will be the input pin in the pulse width measurement mode. User must output high to P4.1/
TRGH and then it can be the HTC external input pin. When the HTC is disabled, the P4.1 pin is a normal I/
O pin.

=[(XIN/2X)/(100H-HT)]/2, HT=0~255

HTC

=[(32K Hz/22)/(100H-0f0H)]/2=256 Hz.

⇒F

HTC

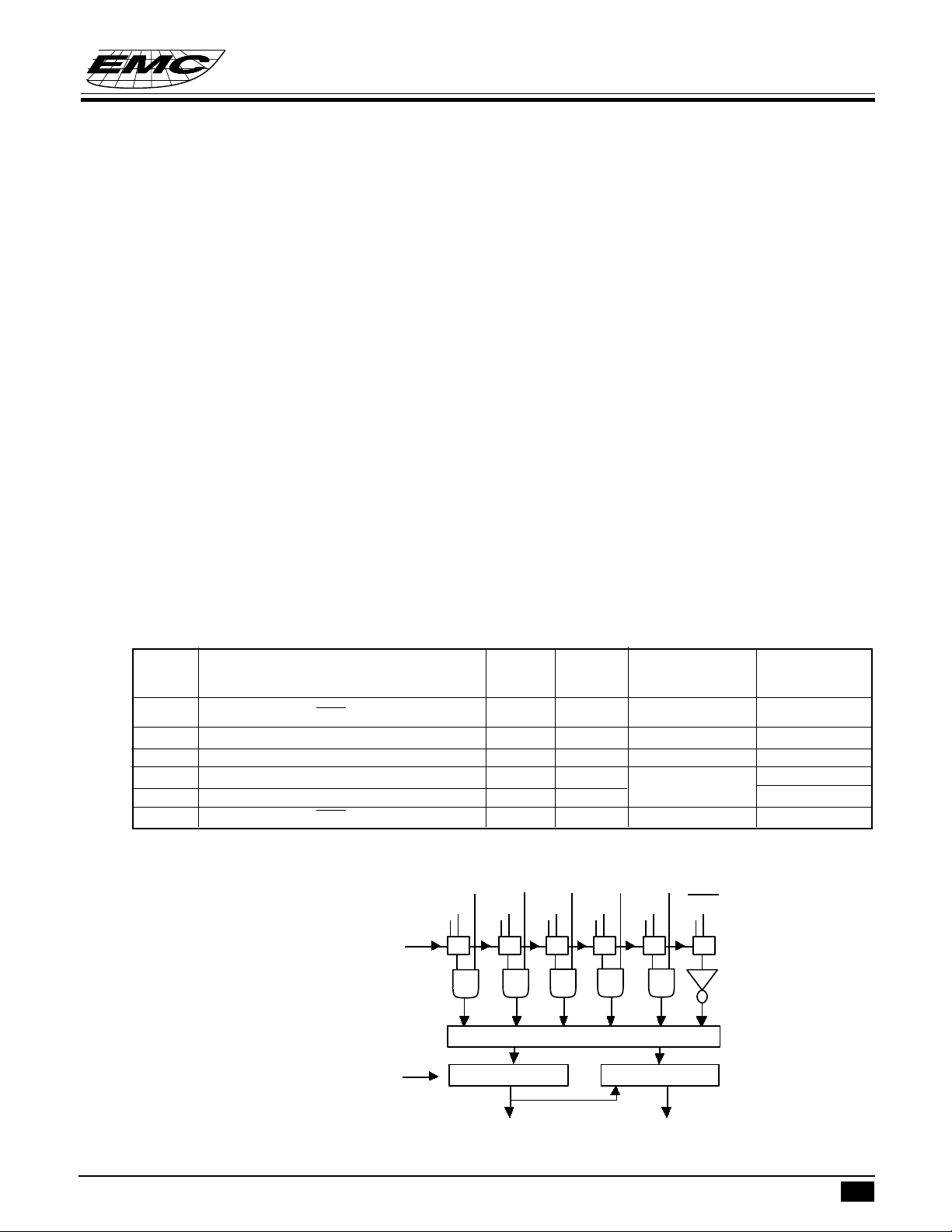

INTERRUPT FUNCTION

There are 6 interrupt sources, 2 external interrupt sources, 4 internal interrupt sources. Multiple
interrupts are admitted according the priority.

Type Interrupt source Priority Interrupt Interrupt Program ROM

Latch Enable condition entry address

External External interrupt(INT0) 1 IL5 EI=1 002H
Internal High speed timer overflow interrupt (HTCI) 2 IL4 EI=1, MASK3=1 004H
Internal TimerA overflow interrupt (TRGA) 3 IL 3 EI=1, MASK2=1 006H
Internal TimerB overflow interrupt (TRGB) 4 IL2 EI=1, MASK1=1 008H
Internal Time base interrupt(TBI) 5 IL1 00AH
External External interrupt(INT1) 6 IL0 EI=1,MASK0=1 00CH

INTERRUPT STRUCTURE

MASK0 MASK1 MASK1 MASK2 MASK3

HTCI

r4

IL4

INT0

r5

IL5

Reset by system reset and program
instruction

r0

INT1

IL0

r1

TBI

IL1

TRGB

IL2r2IL3

TRGA
r3

Reset by system reset and program

instruction

Set by program instruction

EI

Interrupt request Interrupt entry address

* This specification are subject to be changed without notice.

Priority checker

Entry address generator

1.9.2001

18

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Interrupt controller:

IL0-IL5 : Interrupt latch. Hold all interrupt requests from all interrupt sources. ILr can not be

set by program, but can be reset by program or system reset, so IL only can decide
which interrupt source can be accepted.

MASK0-MASK3 : Except INT0, MASK register can promit or inhibit all interrupt sources.
EI : Enable interrupt Flip-Flop can promit or inhibit all interrupt sources, when inter-

rupt happened, EI is cleared to "0" automatically, after RTI instruction happened,
EI will be set to "1" again.

Priority checker : Check interrupt priority when multiple interrupts happened.

INTERRUPT FUNCTION

The procedure of interrupt operation:

1. Push PC and all flags to stack.

2. Set interrupt entry address into PC.

3. Set SF= 1.

4. Clear EI to inhibit other interrupts happened.

5. Clear the IL for which interrupt source has already be accepted.

6. To excute interrupt subroutine from the interrupt entry address.

7. CPU accept RTI, restore PC and flags from stack. Set EI to accept other interrupt requests.

Preliminary

PROGRAM EXAMPLE: To enable interrupt of "INT0, TRGA"

LDIA #1100B;
EXAE; set mask register "1100B"
EICIL 111111B ; enable interrupt F.F.

LCD DRIVER

EM73469A can directly drive the liquid crystal display (LCD) and has 32 segment, 4 common output pins (1/
2 bias, 1/3 bias). There are total 32x4 dots can be display. The V1, V2, V3, VA, VB, VDD and VSS pins are
the LCD bias generator.

CONTROL OF LCD DRIVER

The LCD driver control command register is P27. When LDC is 0, the LCD is disabled, the COM and SEG
pins are VSS. When LDC is 1, the LCD driver enables.
When the CPU is reseted or during the STOP operation mode, the LCD driver is disabled.

Port27

The LCD display data is stored in the display data area of the data memory (RAM).
The display data area begins with address 20H during reset. The LCD display data area ia as below :

2 1 0 Initial value : 0000

LDC DUTY

LDC LCD display control DUTY Driving method select

0 LCD display disable 0 0 0 1/4 duty (1/3 bias)
1 LCD display enable 0 0 1 1/4 duty (1/2 bias)

0 1 0 1/3 duty (1/3 bias)
0 1 1 1/3 duty (1/2 bias)
1 0 0 1/2 duty (1/2 bias)
1 0 1 Static

1 1 * Reserved

* This specification are subject to be changed without notice.

1.9.2001

19

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

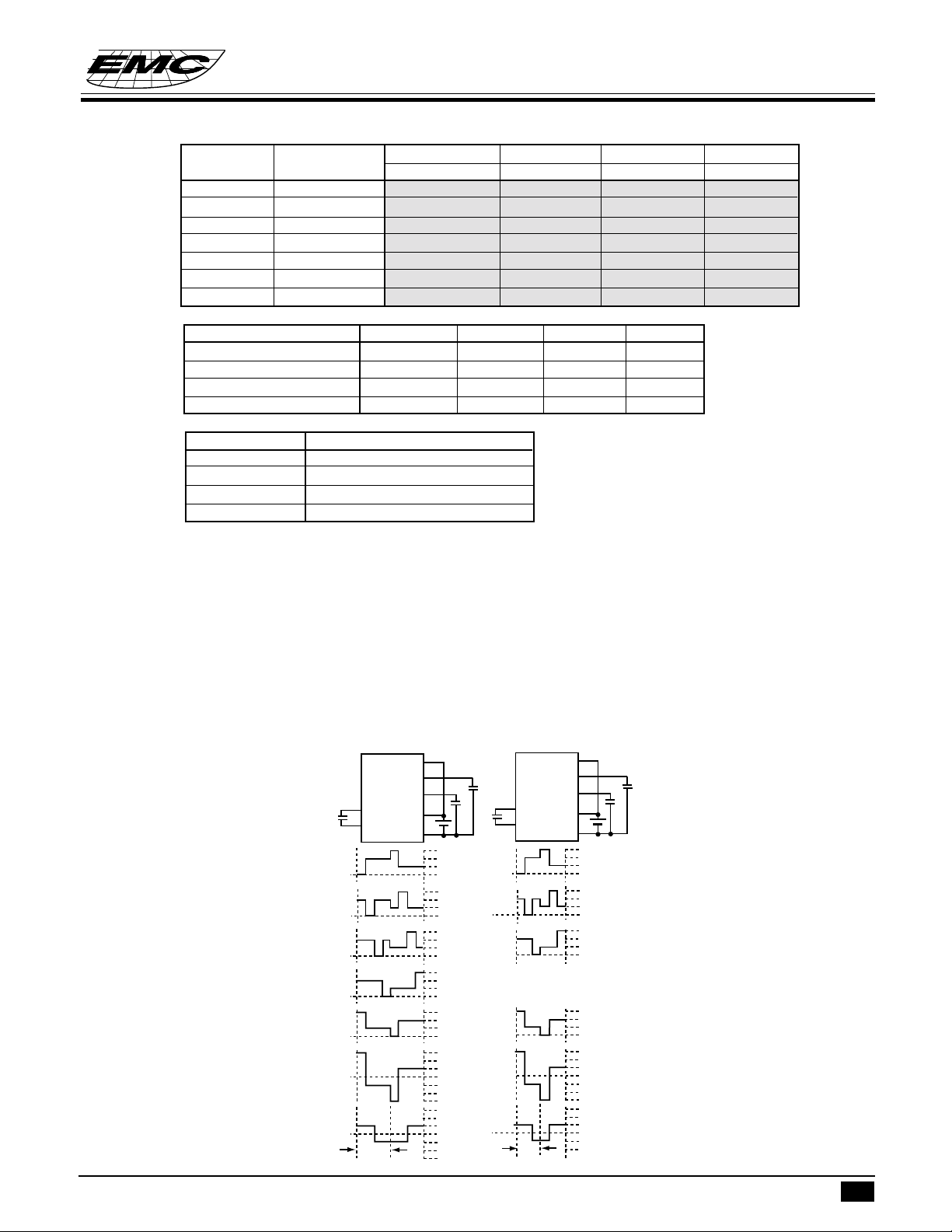

RAM COM3 COM2 COM1 COM0

address bit3 bit2 bit1 bit0
SEG0 20H
SEG1 21H
SEG2 22H
::
::
SEG30 3EH
SEG31 3FH

The relation between LCD display data and driving method

Driving method bit3 bit2 bit1 bit0
1/4 duty COM3 COM2 COM1 COM0
1/3 duty - COM2 COM1 COM0
1/2 duty - - COM1 COM0
Static - - - COM0

LCD frame frequency : According to the drive method to set the frame frequency.

Duty Frame frequency (Hz)
1/4 duty 64 x (4/4) = 64
1/3 duty 64 x (4/3) = 85
1/2 duty 64 x (4/2) = 128
Static 64

EM73469A

PROGRAM EXAMPLE :

LDIA #0001B ; 1/4 duty, 1/2 bias
OUTA P27
LDIA #1001B ; enable LCD
OUTA P27

LCD DRIVING METHODS

There are six kinds of driving methods can be selected by DUTY (P27.0~P27.2). The drivinf waveforms of
LCD driver are as below :

• VDD=1.5V

(1) 1/4 duty (1/3 bias)

VA
VB

COM0

COM1

COM2

COM3

SEG0

SEG0-COM0

ON

SEG0-COM1

OFF

Frame

(2 ) 1/3 duty (1/3 bias)

V

VA
VB

Frame

DD

V3
V2

1.5V

V1

V

SS

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

-V1

-V2

-V3
V3

V2
V1
Vss

-V1

-V2

-V3

4.5V

3V

V

DD

V3
V2

1.5V

V1

V

SS

4.5V

3V

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

V3
V2
V1
Vss

-V1

-V2

-V3

V3
V2
V1
Vss

-V1

-V2

-V3

* This specification are subject to be changed without notice.

1.9.2001

20

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

(3) 1/4 duty (1/2 bias)

V

DD

3V

V3
V2

VA
VB

COM0

COM1

COM2

COM3

SEG0

SEG0-COM0

ON

SEG0-COM1

OFF

Frame

1.5V

V1

V

SS

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

-V1

-V3
V3

V1
Vss

-V1

-V3

RESETTING FUNCTION

(4) 1/3 duty (1/2 bias)

V

DD

3V

V3
V2

VA
VB

Frame

1.5V

V1

V

SS

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

-V1

-V3
V3

V1
Vss

-V1

-V3

VA
VB

Frame

(6) static(5) 1/2 duty (1/2 bias)

V

VA
VB

ON

OFF

DD

3V

V3
V2

1.5V

V1

V

SS

V3

Vss

V3
V1
Vss

V3

Vss

-V3
V3

Vss

-V3

V

DD

3V

V3
V2

1.5V

V1

V

SS

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

V3
V1
Vss

-V1

-V3
V3

V1
Vss

-V1

-V3
Frame

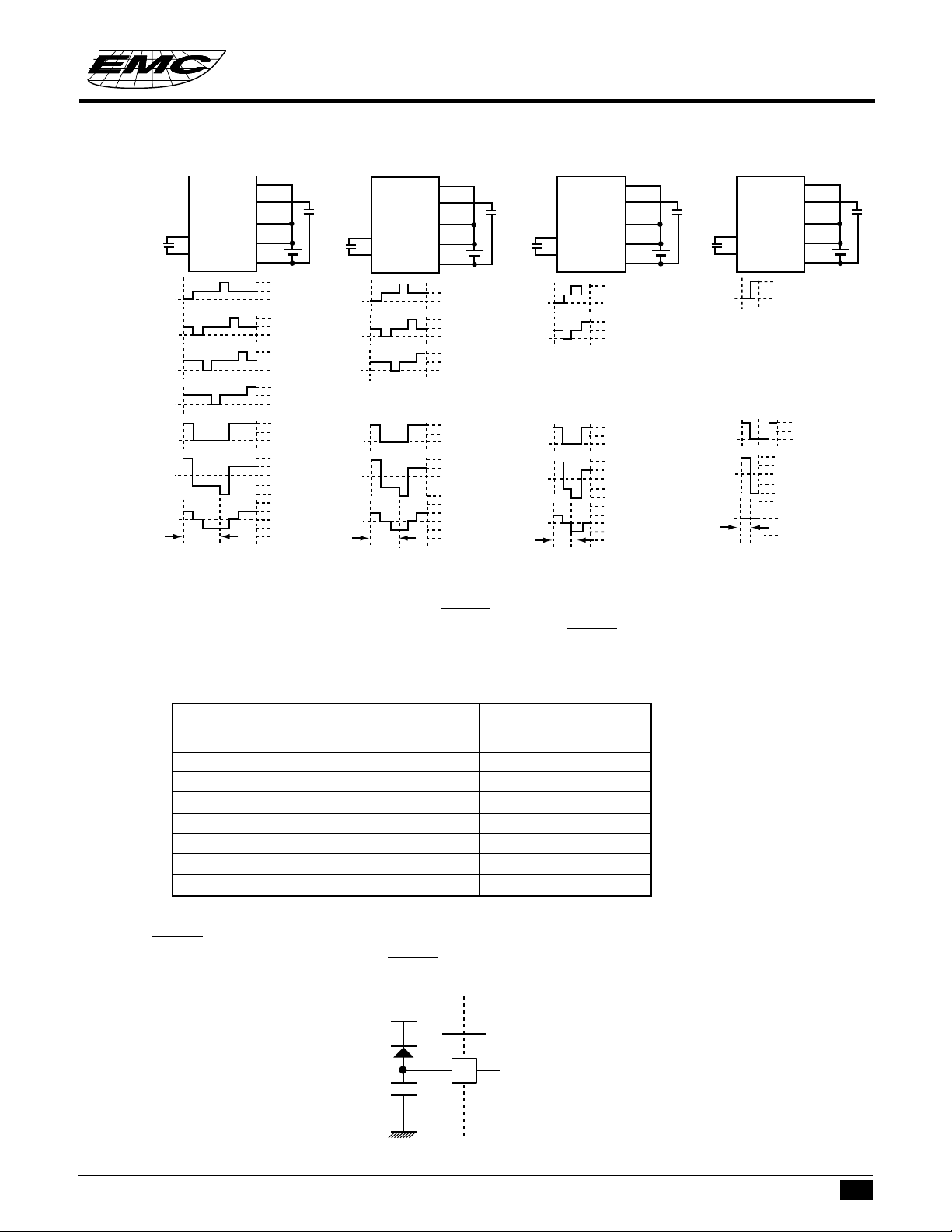

When CPU in normal working condition and RESET pin holds in low level for three instruction cycles at least,
then CPU begins to initialize the whole internal states, and when RESET pin changes to high level, CPU begins
to work in normal condition.
The CPU internal state during reset condition is as following table :

Hardware condition in RESET state Initial value

Program counter 0000h
Status flag 01h
Interrupt enable flip-flop ( EI ) 00h
MASK0 ,1, 2, 3 00h
Interrupt latch ( IL ) 00h
P10, 11,14, 16, 19, 25, 27, 28, 29, 31 00h
P4, 8, 23, 24 0Fh
Both oscillator Start oscillation

The RESET pin is a hysteresis input pin and it has a pull-up resistor available by mask option.
The simplest RESET circuit is connect RESET pin with a capacitor to V

RESET

and a diode to VDD.

SS

* This specification are subject to be changed without notice.

1.9.2001

21

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

EM73469A I/O PORT DESCRIPTION :

Port Input function Output function Note

0 E Input port , wakeup function
1-- -­2-- -­3-- -­4 E Input port E Output port, P4.0/SOUND
5-- -­6-- -­7-- -­8 E Input port, wakeup function, E Output port

9-- -­10 -- I High speed timer/counter low nibble
11 -- I High speed timer/counter high nibble
12 -- -­13 -- -­14 I CPU status I Clear P14.0 to 0
15 -- -­16 I STOP mode control register
17 -­18 -­19 I IDLE mode control register
20 -­21 -­22 I Slow mode control register
23 -­24 -­25 I Timebase control register
26 -­27 I LCD control register
28 I Timer/counter A control register
29 I Timer/counter B control register
30 -­31 I HTC control register

* This specification are subject to be changed without notice.

1.9.2001

22

ABSOLUTE MAXIMUM RATINGS

Items Sym. Ratings Conditions

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

Supply Voltage V
Input Voltage V
Output Voltage V
Power Dissipation P
Operating Temperature T
Storage Temperature T

DD
IN
O

D
OPR

STG

-0.5V to 6V

-0.5V to VDD+0.5V

-0.5V to VDD+0.5V
300mW T
0oC to 50oC

-55oC to 125oC

OPR

=50oC

RECOMMANDED OPERATING CONDITIONS

Items Sym. Ratings Condition

Supply Voltage V

Input Voltage V

Operating Frequency F

DD

IH

V

IL

C

Fs 32KHz LXIN, LXOUT (crystal osc)

DC ELECTRICAL CHARACTERISTICS (VDD=1.5±0.2V, VSS=0V, T

1.2V to 1.8V 500KHz<Fc<4MHz by RC osc

1.2V to 1.8V Fs=32KHz by crystal osc

0.90xVDD to V
0V to 0.10xV

DD

DD

4MHz CLK, VSS (RC osc), R=330KΩ

=25oC)

OPR

Parameters Sym. Min. Typ. Max. Unit Conditions

Supply current I

Hysteresis voltage V

Input current I

Output voltage V

Leakage current I
Input resistor R

V

I

V

DD

HYS+

HYS-

IH

IL

OH

OL

LO

IN

- 200 300 µA VDD=1.7V,no load,NORMAL mode,

Fc=4MHz (RC osc : R=330KΩ), Fs=32KHz

-4 8µAV

-3 7µAV

- 0.1 1 µA V

0.50V

0.20V

DD

DD

- 0.75V

- 0.40V

V RESET, P0, P8

DD

V

DD

- 4 6 µA P0, Pull-down, VIH=V

-6 -4 - µA P0, Pull-up, VIH=V

=1.7V,no load,SLOW mode, Fs=32KHz

DD

=1.7V,IDLE mode

DD

=1.7V, STOP mode

DD

DD

SS

- - 1 µA P0, None

- - ±1 µA RESET, V

=1.7V, VO=1.7/0V

DD

- -30 -90 µA Normal current Push-pull, VDD=1.7V,VIL=0.2V

- -3 -10 µA Low current Push-pull, V

1.1 - - V High current push-pull, SOUND
VDD=1.7V, IOH=-100µA

1.0 - - V Normal current push-pull,
V

=1.3V, IOH=-10µA

DD

- - 0.2 V VDD=1.3V,IOL=100µA

- - 1 µA Open-drain, VDD=1.7V, VO=1.7V

300K 400K 560K Ω RESET

=1.7V,VIL=0.2V

DD

* This specification are subject to be changed without notice.

1.9.2001

23

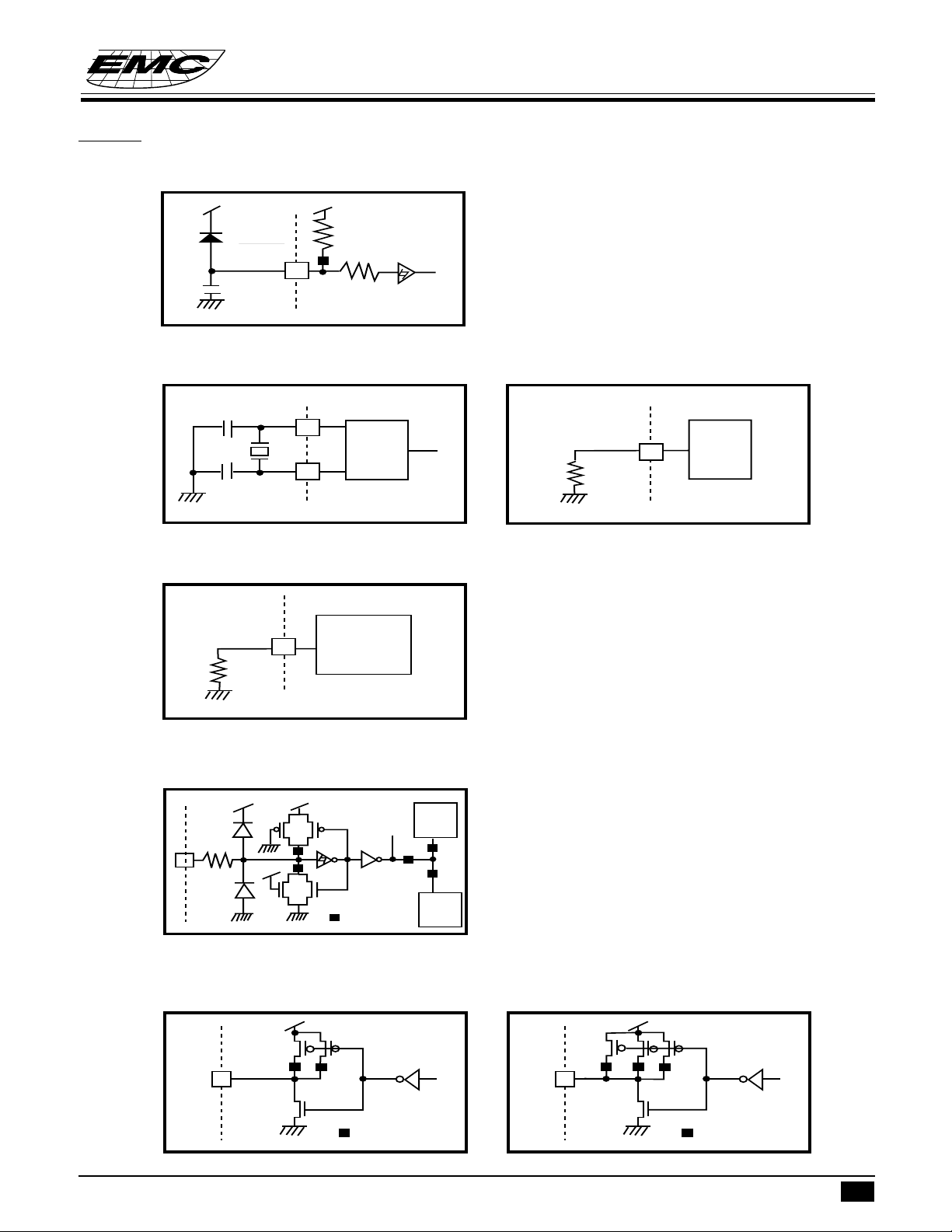

RESET PIN TYPE

TYPE RESET-A

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

RESET

OSCILLATION PIN TYPE

TYPE OSC-B TYPE OSC-H1

LXIN

LXOUT

TYPE OSC-I

CLK

330KΩ

mask option

Crystal
Osc.

RC Osc.

1.2MΩ

LXIN

RC Osc.

INPUT PIN TYPE

TYPE INPUT-K

positive

input data

WAKEUP
mask option

: mask option

edge

detector

negative

edge

detector

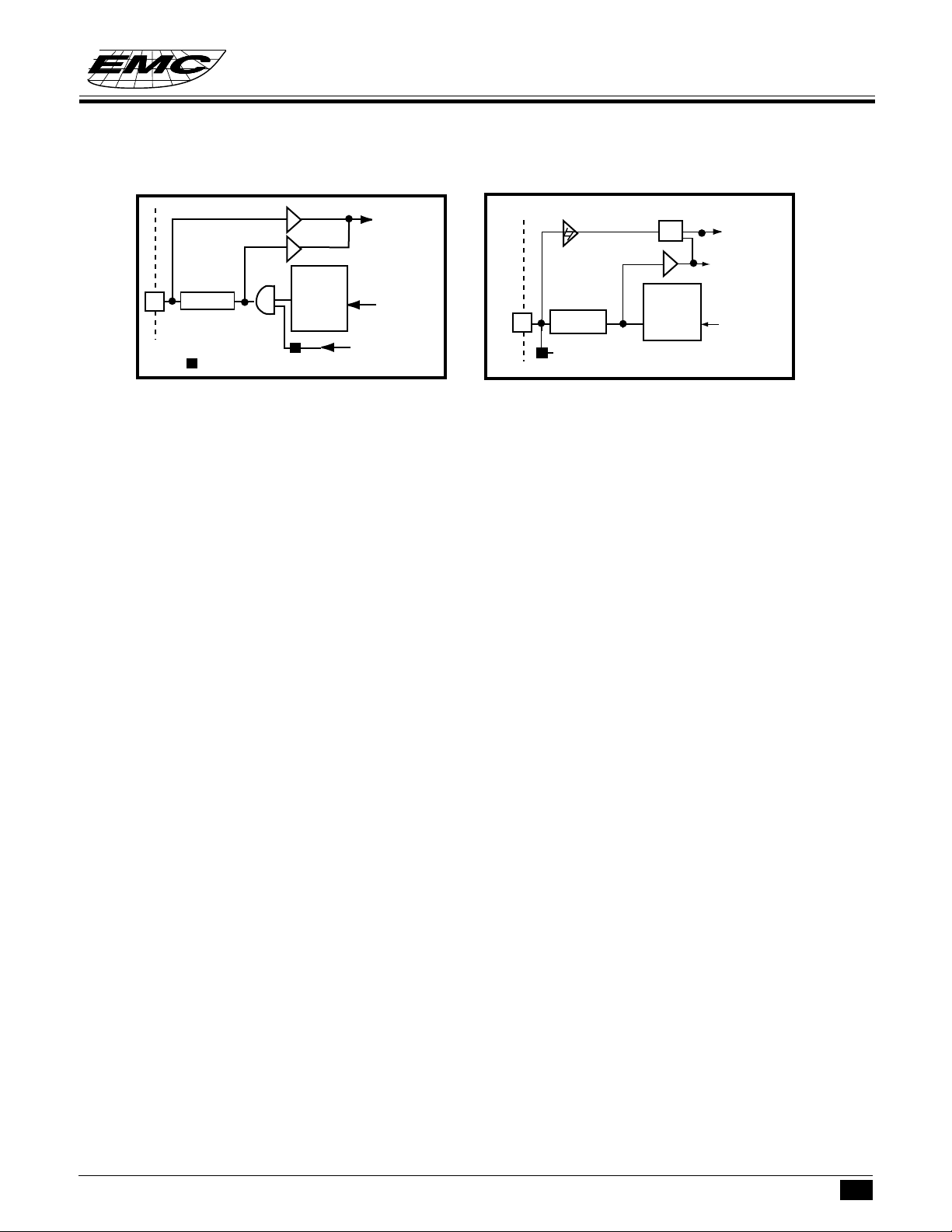

I/O PIN TYPE

TYPE I/O-N TYPE I/O-Q

: mask option : mask option

* This specification are subject to be changed without notice.

1.9.2001

24

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

TYPE I/O-R TYPE I/O-S

EM73469A

Special function
control input

Input
data

Output
data

TYPE I/O-Q

: mask option

path B

path A

Output
data
latch

Input
data

Output
data

Special function
output

path B

path A

TYPE I/O-N

WAKEUP function
mask option

SEL

Output
data
latch

Path A : For set and clear bit of port instructions, data goes through path A from output data latch to CPU.
Path B : For input and test instructions, data from output pin go through path B to CPU and the output data latch

will be set to high.

* This specification are subject to be changed without notice.

1.9.2001

25

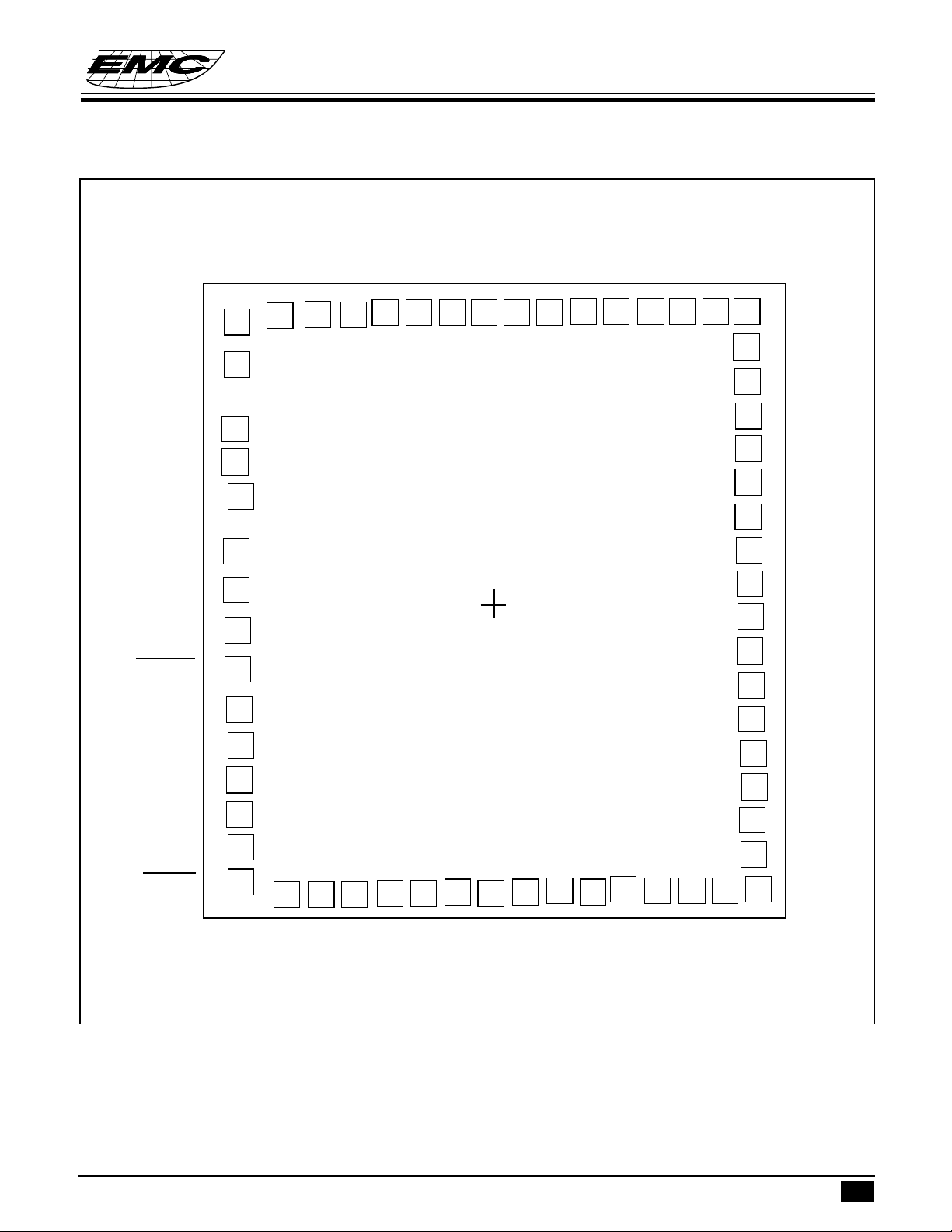

PAD DIAGRAM

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

VSS

CLK

LXOUT

LXIN

VDD

P4.3

P4.2

P4.1/TRGH

P4.0/SOUND

SOUND

P8.3
P8.2

P8.1
P8.0

1

2

3
4

6

7

8

9

10

11
12
13

14

V1

V2

V3

VA

VB

57

59

58

60

61

5

COM0

56

COM1

55

COM2

54

(0,0)

53

EM73469A

SEG0

COM3

SEG1

5152

SEG2

50

SEG3

49

SEG4

48

SEG5

47
46

45
44

43
42

41

40
39

38
37
36

35
34

33

32

31

SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
SEG19
SEG20
SEG21

RESET

Unit : µm
Chip Size : 2160 x 2390 µm
Note : For PCB layout, IC substrate must be floated or connected to VSS.

* This specification are subject to be changed without notice.

15

16 17 18

P0.3

TEST

P0.2

19

P0.1

20

P0.0

21 22

SEG31

23

SEG30

SEG29

24

25

SEG28

SEG27

26

SEG26

27

SEG25

28

SEG24

29 30

SEG23

SEG22

1.9.2001

26

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

Pad No. Symbol X Y

1 VSS -906.4 1009.1
2 CLK -921.4 877.3
3 LXOUT -921.4 637.5
4 LXIN -921.4 517.6
5 VDD -904.7 397.1
6 P4.3 -921.4 205.3
7 P4.2 -921.4 65.7
8 P4.1/TRGH -921.4 -71.6

9 P4.0/SOUND -921.4 -211.2
10 SOUND -920.5 -347.4
11 P8.3 -921.4 -474.9
12 P8.2 -921.4 -594.8
13 P8.1 -921.4 -717.8
14 P8.0 -921.4 -837.7
15 RESET -921.4 -979.7
16 TEST -762.7 -1036.4
17 P0.3 -638.1 -1036.4
18 P0.2 -518.2 -1036.4
19 P0.1 -389.9 -1036.4

20 P0.0 -270.0 -1036.4
21 SEG31 -145.9 -1036.4
22 SEG30 -26.0 -1036.4
23 SEG29 93.9 -1036.4
24 SEG28 213.8 -1036.4
25 SEG27 333.7 -1036.4
26 SEG26 453.6 -1036.4
27 SEG25 573.5 -1036.4
28 SEG24 693.4 -1036.4
29 SEG23 813.3 -1036.4
30 SEG22 933.2 -1036.4
31 SEG21 921.4 -888.8
32 SEG20 921.4 -768.9
33 SEG19 921.4 -649.0
34 SEG18 921.4 -529.1
35 SEG17 921.4 -409.2
36 SEG16 921.4 -289.3
37 SEG15 921.4 -169.4
38 SEG14 921.4 -49.5
39 SEG13 921.4 70.4
40 SEG12 921.4 190.3

EM73469A

* This specification are subject to be changed without notice.

1.9.2001

27

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

Pad No. Symbol X Y

41 SEG11 921.4 310.2
42 SEG10 921.4 430.1
43 SEG9 921.4 550.0
44 SEG8 921.4 669.9
45 SEG7 921.4 789.8
46 SEG6 921.4 909.7
47 SEG5 933.2 1037.3
48 SEG4 813.3 1037.3
49 SEG3 693.4 1037.3
50 SEG2 573.5 1037.3
51 SEG1 453.6 1037.3
52 SEG0 333.7 1037.3
53 COM3 213.8 1037.3
54 COM2 93.9 1037.3
55 COM1 -26.0 1037.3
56 COM0 -145.9 1037.3
57 VB -265.8 1037.3
58 VA -385.7 1037.3
59 V3 -505.6 1037.3
60 V2 -625.5 1037.3
61 V1 -745.4 1037.3

EM73469A

* This specification are subject to be changed without notice.

1.9.2001

28

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

INSTRUCTION TABLE

Preliminary

(1) Data Transfer

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZ S

LDA x 0110 1010 xxxx xxxx Acc←RAM[x] 2 2 - Z 1
LDAM 0101 1010 Acc ←RAM[HL] 1 1 - Z 1
LDAX 0110 0101 Acc←ROM[DP]
LDAXI 0110 0111 Acc←ROM[DP]

L

,DP+1 1 2 - Z 1

H

LDH #k 1001 kkkk HR←k11--1
LDHL x 0100 1110 xxxx xx00 LR←RAM[x],HR←RAM[x+1] 2 2 - - 1
LDIA #k 1101 kkkk Acc←k11-Z1
LDL #k 1000 kkkk LR←k11--1
STA x 0110 1001 xxxx xxxx RAM[x]←Acc 2 2 - - 1
STAM 0101 1001 RAM[HL] ←Acc 1 1 - - 1
STAMD 0111 1101 RAM[HL]←Acc, LR-1 1 1 - Z C
STAMI 0111 1111 RAM[HL]←Acc, LR+1 1 1 - Z C'
STD #k,y 0100 1000 kkkk yyyy RAM[y]←k22--1
STDMI #k 1010 kkkk RAM[HL]←k, LR+1 1 1 - Z C '
THA 0111 0110 Acc←HR 1 1 - Z 1
TLA 0111 0100 Acc←LR 1 1 - Z 1

12-Z1

(2) Rotate

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

RLCA 0101 0000 ←CF←Acc← 11CZC'
RRCA 0101 0001 →CF→Acc→ 11CZC'

(3) Arithmetic operation

Mnemonic Object code (binary) Operation description Byte Cycle Flag

C ZS

ADCAM 0111 0000 Acc←Acc + RAM[HL] + CF 1 1 C Z C'
ADD #k,y 0100 1001 kkkk yyyy RAM[y]←RAM[y] +k 2 2 - Z C'
ADDA #k 0110 1110 0101 kkkk Acc←Acc+k 2 2 - Z C'
ADDAM 0111 0001 Acc←Acc + RAM[HL] 1 1 - Z C '
ADDH #k 0110 1110 1001 kkkk HR←HR+k 2 2 - Z C'
ADDL #k 0110 1110 0001 kkkk LR←LR+k 2 2 - Z C'
ADDM #k 0110 1110 1101 kkkk RAM[HL]←RAM[HL] +k 2 2 - Z C '
DECA 0101 1100 Acc←Acc-1 1 1 - Z C
DECL 0111 1100 LR←LR-1 1 1 - Z C
DECM 0101 1101 RAM[HL]←RAM[HL] -1 1 1 - Z C
INCA 0101 1110 Acc←Acc + 1 1 1 - Z C'

* This specification are subject to be changed without notice.

1.9.2001

29

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

INCL 0111 1110 LR←LR + 1 1 1 - Z C '
INCM 0101 1111 RAM[HL]←RAM[HL]+1 1 1 - Z C'
SUBA #k 0110 1110 0111 kkkk Acc←k-Acc 2 2 - Z C
SBCAM 0111 0010 Acc←RAM[HLl - Acc - CF' 1 1 C Z C
SUBM #k 0110 1110 1111 kkkk RAM[HL]←k - RAM[HL] 2 2 - Z C

(4) Logical operation

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

ANDA #k 0110 1110 0110 kkkk Acc←Acc&k 2 2 - Z Z'
ANDAM 0111 1011 Acc←Acc & RAM[HL] 1 1 - Z Z'
ANDM #k 0110 1110 1110 kkkk RAM[HL]←RAM[HL]&k 2 2 - Z Z '
ORA #k 0110 1110 0100 kkkk Acc←Acc k 2 2 - Z Z'
ORAM 0111 1000 Acc ←Acc RAM[HL] 1 1 - Z Z '
ORM #k 0110 1110 1100 kkkk RAM[HL]←RAM[HL] k 2 2 - Z Z'
XORAM 0111 1001 Acc←Acc^RAM[HL] 1 1 - Z Z'

- -

- -

- -

(5) Exchange

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

EX A x 0110 1000 xxxx xxxx Acc↔RAM[x] 2 2 - Z 1
EXAH 0110 0110 Acc↔HR 1 2 - Z 1
EXAL 0110 0100 Acc↔LR 1 2 - Z 1
EXAM 0101 1000 Acc↔RAM[HL] 1 1 - Z 1
EXHL x 0100 1100 xxxx xx00 LR↔RAM[x],

HR↔RAM[x+1] 2 2 - - 1

(6) Branch

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

SBR a 00aa aaaa If SF=1 then PC←PC

11-6.a5-0

11--1

else null

LBR a 1100 aaaa aaaa aaaa If SF= 1 then PC←a else null 2 2 - - 1

(7) Compare

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

CMP #k,y 0100 1011 kkkk yyyy k-RAM[y] 2 2 C Z Z'
CMPA x 0110 1011 xxxx xxxx RAM[x]-Acc 2 2 C Z Z'
CMPAM 0111 0011 RAM[HL] - Acc 1 1 C Z Z'
CMPH #k 0110 1110 1011 kkkk k - HR 2 2 - Z C
CMPIA #k 1011 kkkk k - Acc 1 1 C Z Z'
CMPL #k 0110 1110 0011 kkkk k-LR 2 2 - Z C

* This specification are subject to be changed without notice.

1.9.2001

30

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

(8) Bit manipulation

Preliminary

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

CLM b 1111 00bb RAM[HL]b←011--1
CLP p,b 0110 1101 11bb pppp PORT[p]
CLPL 0110 0000 PORT[LR
CLR y,b 0110 1100 11bb yyyy RAM[y]
SEM b 1111 01bb RAM[HL]b←111--1
SEP p,b 0110 1101 01bb pppp PORT[p]
SEPL 0110 0010 PORT[LR
SET y, b 0110 1100 01bb yyyy RAM[y]
TF y,b 0110 1100 00bb yyyy SF←RAM[y]
TFA b 1111 10bb SF←Acc
TFM b 1111 11bb SF←RAM[HL]
TFP p,b 0110 1101 00bb pppp SF←PORT[p]
TFPL 0110 0001 SF←PORT[LR
TT y ,b 0110 1100 10bb yyyy SF←RAM[y]
TTP p, b 0110 1101 10bb pppp SF←PORT[p]

←022--1

b

+4]LR

3-2

←022--1

b

←122--1

b

+4]LR

3-2

←122--1

b

b

'11--*

b

b

←012--1

1-0

←112 --1

l-0

'22--*

'11--*

b

'22--*

b

+4]LR

3-2

'12--*

1-0

22--*

b

22--*

(9) Subroutine

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

LCALL a 0100 0aaa aaaa aaaa STACK[SP]←PC, 2 2 - - -

SP←SP -1, PC←a

SCALL a 1110 nnnn STACK[SP]←PC, 1 2 - - -

SP←SP - 1, PC←a,

a = 8n +6 (n=1~15),0086h (n =0)

RET 0100 1111 SP←SP + 1, PC←STACK[SP] 1 2 - - -

(10) Input/output

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

INA p 0110 1111 0100 pppp Acc←PORT[p] 2 2 - Z Z'
INM p 0110 1111 1100 pppp RAM[HL] ←PORT[p] 2 2 - - Z'
OUT #k,p 0100 1010 kkkk pppp PORT[p]←k22--1
OUTA p 0110 1111 000p pppp PORT[p]←Acc 2 2 - - 1
OUTM p 0110 1111 100p pppp PORT[p]←RAM[HL] 2 2 - - 1

(11) Flag manipulation

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

CGF 0101 0111 GF←011--1
SGF 0101 0101 GF←111--1
TFCFC 0101 0011 SF←CF', CF←0110-*

* This specification are subject to be changed without notice.

1.9.2001

31

EM73469A

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

TGS 0101 0100 SF←GF 1 1 - - *
TTCFS 0101 0010 SF←CF, CF←1111-*
TZS 0101 1011 SF←ZF 1 1 - - *

(12) Interrupt control

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

CIL r 0110 0011 11rr rrrr IL←IL & r 2 2 - - 1
DICIL r 0110 0011 10rr rrrr EIF←0,IL←IL&r 2 2 - - 1
EICIL r 0110 0011 01rr rrrr EIF←1,IL←IL&r 2 2 - - 1
EXAE 0111 0101 MASK↔Acc 1 1 - - 1
RTI 0100 1101 SP←SP+1,FLAG.PC 1 2 * * *

←STACK[SP],EIF ←1

(13) CPU control

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

NOP 0101 0110 no operation 1 1 - - -

(14) Timer/Counter & Data pointer & Stack pointer control

Mnemonic Object code (binary) Operation description Byte Cycle Flag

CZS

LDADPL 0110 1010 1111 1100 Acc←[DP]
LDADPM 0101 0110 1111 1101 Acc←[DP]
LDADPH 0101 0110 1111 1110 Acc←[DP]

L

M

H

22-Z1
22-Z1
22-Z1

LDASP 0101 0110 1111 1111 Acc←SP 2 2 - Z 1
LDATAL 0110 1010 1111 0100 Acc←[TA]
LDATAM 0101 0110 1111 0101 Acc←[TA]
LDATAH 0101 0110 1111 0110 Acc←[TA]
LDATBL 0110 1010 1111 1000 Acc←[TB]
LDATBM 0101 0110 1111 1001 Acc←[TB]
LDATBH 0101 0110 1111 1010 Acc←[TB]
STADPL 0110 1001 1111 1100 [DP]
STADPM 0110 1001 1111 1101 [DP]
STADPH 0110 1001 1111 1110 [DP]

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

L

M

H

L

M

H

22-Z1
22-Z1
22 -Z1
22-Z1
22-Z1
22-Z1

STASP 0110 1001 1111 1111 SP←Acc 2 2 - - 1
STATAL 0110 1001 1111 0100 [TA]
STATAM 0110 1001 1111 0101 [TA]
STATAH 0110 1001 1111 0110 [TA]
STATBL 0110 1001 1111 1000 [ TB]
STATBM 0110 1001 1111 1001 [TB]
STATBH 0110 1001 1111 1010 [TB]

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

* This specification are subject to be changed without notice.

1.9.2001

32

4-BIT MICRO-CONTROLLER FOR LCD PRODUCT

Preliminary

**** SYMBOL DESCRIPTION

Symbol Description Symbol Description

HR H register LR L register
P C Program counter DP Data pointer
SP Stack pointer STACK[SP] Stack specified by SP
A

CC

CF Carry flag ZF Zero flag
SF Status flag GF General flag
EI Enable interrupt register IL Interrupt latch
MASK Interrupt mask PORT[p] Port ( address : p )
ΤΑ Timer/counter A ΤΒ Timer/counter B
RAM[HL] Data memory (address : HL ) RAM[x] Data memory (address : x )
ROM[DP]
[DP]
[DP]

L
L
H

[TA]M([TB]M) Middle 4-bit of timer/counter A [TA]H([TB]H) High 4-bit of timer/counter A
← Transfer ↔ Exchange

+ Addition - Substraction
& Logic AND Logic OR
^ Logic XOR ' Inverse operation
. Concatenation #k 4-bit immediate data
x 8-bit RAM address y 4-bit zero-page address
p 4-bit or 5-bit port address b Bit address
r 6-bit interrupt latch PC

LR

1-0

LR

3-2

Accumulator FLAG All flags

Low 4-bit of program memory ROM[DP]
Low 4-bit of data pointer register [DP]

M

H

High 4-bit of program memory
Middle 4-bit of data pointer register

High 4-bit of data pointer register [TA]L([TB]L) Low 4-bit of timer/counter A

(timer/counter B) register

(timer/counter B) register (timer/counter B) register

- -

Bit 11 to 6 of program counter
Bit 5 to 0 of destination address for

Contents of bit assigned by bit a

11-6

5-0

1 to 0 of LR branch instruction
Bit 3 to 2 of LR

EM73469A

* This specification are subject to be changed without notice.

1.9.2001

33
