Datasheet EM73201CP, EM73201BK, EM73201AP Datasheet (ELAN)

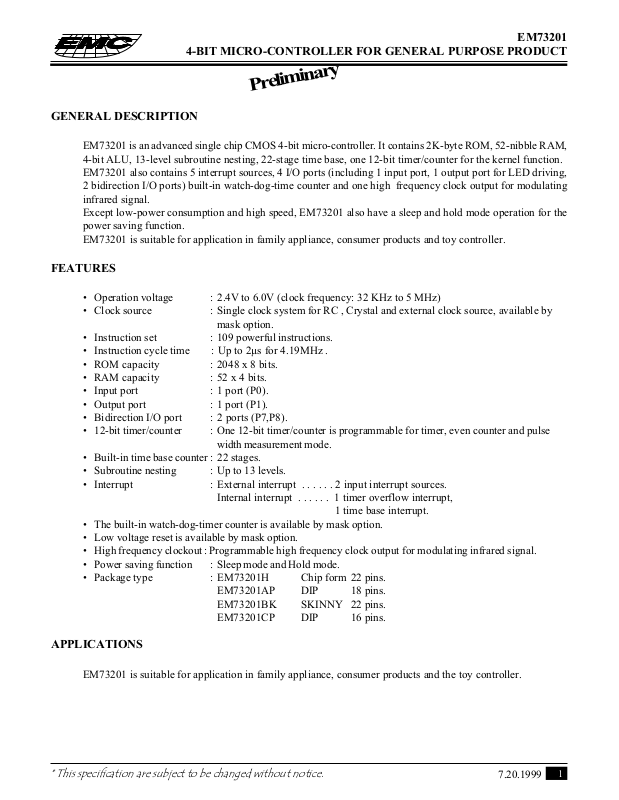

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

GENERAL DESCRIPTION

EM73201 is an advanced single chip CMOS 4-bit micro-controller. It contains 2K-byte ROM, 52-nibble RAM,
4-bit ALU, 13-level subroutine nesting, 22-stage time base, one 12-bit timer/counter for the kernel function.
EM73201 also contains 5 interrupt sources, 4 I/O ports (including 1 input port, 1 output port for LED driving,
2 bidirection I/O ports) built-in watch-dog-time counter and one high frequency clock output for modulating
infrared signal.
Except low-power consumption and high speed, EM73201 also have a sleep and hold mode operation for the
power saving function.
EM73201 is suitable for application in family appliance, consumer products and toy controller.

FEATURES

 Operation voltage : 2.4V to 6.0V (clock frequency: 32 KHz to 5 MHz)
 Clock source : Single clock system for RC , Crystal and external clock source, available by

 Instruction set : 109 powerful instructions.
 Instruction cycle time : Up to 2µs for 4.19MHz .
 ROM capacity : 2048 x 8 bits.
 RAM capacity : 52 x 4 bits.
 Input port : 1 port (P0).
 Output port : 1 port (P1).
 Bidirection I/O port : 2 ports (P7,P8).
 12-bit timer/counter : One 12-bit timer/counter is programmable for timer, even counter and pulse

 Built-in time base counter : 22 stages.
 Subroutine nesting : Up to 13 levels.

 Interrupt : External interrupt . . . . . . 2 input interrupt sources.

 The built-in watch-dog-timer counter is available by mask option.
 Low voltage reset is available by mask option.
 High frequency clockout: Programmable high frequency clock output for modulating infrared signal.
 Power saving function : Sleep mode and Hold mode.
 Package type : EM73201H Chip form 22 pins.

EM73201

Preliminary

mask option.

width measurement mode.

Internal interrupt . . . . . . 1 timer overflow interrupt,

1 time base interrupt.

EM73201AP DIP 18 pins.
EM73201BK SKINNY 22 pins.
EM73201CP DIP 16 pins.

APPLICATIONS

EM73201 is suitable for application in family appliance, consumer products and the toy controller.

7.20.1999

1* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

PIN CONFIGURATIONS

EM73201AP

P8.3
P7.0
P7.1
P7.2
P7.3
P1.0
P1.1
P1.2

V

EM73201AP must enable low voltage reset

1
2
3
4
5
6
7
8

SS

9

18
17
16
15
14
13
12
11
10

V

DD

P8.2
XOUT
XIN
TEST
P0.3
P0.2
P0.1
P0.0

FUNCTIONAL BLOCK DIAGRAM

Preliminary

EM73201BK

P8.0
P8.3
P7.0
P7.1
P7.2
P7.3
P1.0
P1.1
P1.2
P1.3

V

1
2
3
4
5
6
7
8
9

10

SS

11

22
21
20
19
18
17
16
15
14
13
12

V

DD

P8.2
RESET
P8.1
XOUT
XIN
TEST
P0.3
P0.2
P0.1
P0.0

EM73201CP

V

DD

P7.0
P7.2
P7.3
P1.0
P1.1
P1.2

V

SS

1
2
3
4
5
6
7
8

16
15
14
13
12
11
10

RESET
XOUT
XIN
TEST
P0.3
P0.2
P0.1
P0.0

9

RESET

Reset

Control

Interrupt

Control

Time
Base

Infrared Control

WDT

12 bits

timer

counter

XIN/CLK

Instruction Decoder
Instruction Register

XOUT/NC

Clock

Generator

ROM

PC

System Control

Data Bus

Timing

Generator

Data pointer

ACC

ALU

Flag

ZCS G

I/O Control

P1.1

P1.2

P1.3

P1.0/CLKOUT

Stack pointer

HR

P7.0

P7.1

Sleep Mode

Control

Stack

ROM

LR

P7.2

P7.3

P8.0/INT1

P8.1

P8.2/INT0

P0.0/WAKEUP0
P0.1/WAKEUP1
P0.2/WAKEUP2
P0.3/WAKEUP3

P8.3/TRGA

* This specification are subject to be changed without notice.

7.20.1999

2

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

PIN DESCRIPTIONS

Symbol Pin- Type Function

V

DD Power supply (+)

Vss Power supply (-)
RESET RESET-A System reset input signal, low active

XIN/CLK OSC-A/OSC-C Crystal/RC or external clock source connecting pin
XOUT/NC OSC-A Crystal connecting pin or NC for RC osc. type
P(0..3)/WAKEUP0..3 INPUT-C 4-bit input port with Sleep/Hold releaseing func tion

P1.0/CLKOUT

P1(1..3)

P7(0..3) I/O-U 4-bit bidirection I/O port

P8.0/INT1,P8.2/INT0 I/O-W 2-bit bidirection I/O pins with external interrupt sources input

P8.3/TRGA I/O-V 1-bit bidirection I/O pin with timer/counter A external input

P8.1 I/O-W 1-bit bidirection I/O pin

OUTPUT-B 1-bit high current output pin for LED driving or clock output for

OUTPUT-A 3-bit high current output pin for LED driving

Preliminary

mask option: none

pull-up

mask option : none

pull-up
pull-down

infrared signal
mask option : open-drain, normal sink

open-drain, high sink
normal source, normal sink
normal source, high sink

mask option : open-drain, normal sink

open-drain, high sink
normal source, normal sink
normal source, high sink

mask option : open-drain, normal sink

low source, normal sink
normal source, normal sink
normal source, high sink
high source, high sink

mask option : open-drain, normal sink

low source, normal sink
normal source, normal sink
normal source, high sink
high source, high sink

mask option : open-drain, normal sink

low source, normal sink
normal source, normal sink
normal source, high sink
high source, high sink

mask option : open-drain, normal sink

low source, normal sink
normal source, normal sink
normal source, high sink
high source, high sink

7.20.1999

3* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

FUNCTION DESCRIPTIONS

Preliminary

PROGRAM ROM ( 2K X 8 bits )

2 K x 8 bits program ROM contains user's program and some fixed data .

The basic structure of program ROM can be divided into 5 parts.

1. Address 000h: Reset start address.

2. Address 002h - 00Ch: 4 kinds of interrupt service rountine entry addresses .

3. Address 00Eh-086h : SCALL subroutine entry address, only available at 00Eh,016h,01Eh,026h, 02Eh,
036h, 03Eh, 046h, 04Eh, 056h, 05Eh, 066h, 06Eh, 076h ,07Eh, 086h .

4. Address 000h - 7FFh : LCALL subroutine entry address

5. Address 7E0h - 7FFh : The data region for 5-to-8 bits data conversion table .

6. Address 000h - 7FFh : Except used as above function, the other region can be used as user's program region.

address 2048 x 8 bits
000h Reset start address
002h INT0; External interrupt service routine entry address
004h
006h TRGA, Timer/counterA interrupt service routine entry address
008h
00Ah TBI; Time base interrupt service routine entry address
00Ch INT1; External interrupt service routine entry address
00Eh
086h

.
.
.

7FFh
User's program and fixed data are stored in the program ROM. User's program is according the PC value
to send next executed instruction code. Fixed data can be read out by two ways.

SCALL, subroutine call entry address

.
.
.

(1) Table-look-up instruction:

Table-look-up instruction is depended on the Data Pointer ( DP ) to indicate to ROM address, then to get
the ROM code data.

LDAX Acc
LDAXI Acc

←←

← ROM[DP]

←←
←←

← ROM[DP]

←←

L

,DP+1

H

DP is a 12-bit data register which can store the program ROM address to be the pointer for the ROM
code data. First, user load ROM address into DP by instruction "STADPL, STADPM, STADPH",
then user can get the lower nibble of ROM code data by instruction "LDAX" and higher nibble by
instruction "LDAXI".

PROGRAM EXAMPLE: Read out the ROM code of address 777h by table-look-up instruction.

LDIA #07h;
STADPL ; [DP]
STADPM ; [DP]
STADPH ; [DP]
:
LDL #00h;
LDH #03h;

LDAX ; ACC ← 6h

← 07h

L

← 07h

M

← 07h, Load DP=777h

H

* This specification are subject to be changed without notice.

7.20.1999

4

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

STAMI ; RAM[30] ← 6h

Preliminary

LDAXI ; ACC ← 5h
STAM ; RAM[31] ← 5h

:

ORG 777h
DATA 56h;
:

DATA RAM ( 52-nibble )

There is total 52 - nibble data RAM from address 00 to 33h
Data RAM includes 3 parts: zero page region, stacks and data area.

Increment

Address
00h - 0Fh
10h - 1Fh
20h - 2Fh
30h - 33h

Level 0
Level 4
Level 8
Level 12

Level 1
Level 5
Level 9

Stack Zero-page

Level 2
Level 6
Level 10

Level 3

Increment

Level 7
Level 11

ZERO- PAGE:

From 00h to 0Fh is the location of zero-page. It is used as the pointer in zero-page addressing mode for the

instruction of "STD #k,y; ADD #k,y; CLR y,b; CMP k,y".

PROGRAM EXAMPLE:

To wirte immediate data "07h" to address "03h" of RAM and to clear bit 2 of RAM.

STD #07h, 03h ; RAM[03] ← 07h

CLR 0Eh,2 ; RAM[0Eh]

← 0

2

STACK:

There are 13 - level (maximum) stack for user using for subroutine (including interrupt and CALL). User

can assign any level be the starting stack by giving the level number to stack pointer (SP).

When user using any instruction of CALL or subroutine, before entry the subroutine, the previous PC address

will be saved into stack until return from those subroutines, the PC value will be restored by the data saved

in stack.

DATA AREA:

Except the special area used by user, the whole RAM can be used as data area for storing and loading general

data.

ADDRESSING MODE

(1) Indirect addressing mode:

Indirect addressing mode indicates the RAM address by specified HL register.
For example:

LDAM ; Acc ← RAM[HL]
STAM ; RAM[HL] ← Acc

(2) Direct addressing mode:

Direct addressing mode indicates the RAM address by immediate data.

7.20.1999

5* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

For example: LDA x ; Acc← RAM[x]

STA x ; RAM[x] ← Acc

(3) Zero-page addressing mode

For zero-page region, user can using direct addressing to write or do any arithematic, comparsion
or bit manupulated operation directly.
For example:

PROGRAM COUNTER (2K ROM)

Program counter ( PC ) is composed by a 12-bit counter, which indicates the next executed address for the
instruction of program ROM.
For a 2 K - byte size ROM, PC can indicate address form 000h - 7FFh, for BRANCH and CALL instrcutions,
PC is changed by instruction indicating.

(1) Branch instruction:

STD #k,y ; RAM[y] ← #k
ADD #k,y; RAM[y] ← RAM[y] + #k

SBR a

Object code: 00aa aaaa

Condition: SF=1; PC ← PC

PC Hold original PC value+1 a aaaa a

SF=0; PC← PC +1( branch condition not satisified)

PC Original PC value + 1

LBR a

Object code: 1100 aaaa aaaa aaaa
Condition: SF=1; PC ← a ( branch condition satisified)

PC 0 a a a a a a a a a a a

SF=0 ; PC ← PC + 2 ( branch condition not satisified )

PC Original PC value + 2

(2) Subroutine instruction:

( branch condition satisified )

11-6.a

SCALL a

Object code: 1110 nnnn

Condition : PC ← a ; a=8n+6 ; n=1..15 ; a=86h, n=0

PC 0 0 0 0 a a a a a a a a

LCALL a

Object code: 0100 0 aaa aaaa aaaa

Condition: PC ← a

* This specification are subject to be changed without notice.

7.20.1999

6

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

PC0aaaaaaaaaaa

RET

Object code: 01 00 1 1 1 1

Condition: PC ← STACK[SP]; SP + 1

PC The return address stored in stack

RT I

Object code: 0100 1101

Condition : FLAG. PC ← STACK[SP]; EI ← 1; SP + 1

PC The return address stored in stack

(3) Interrupt acceptance operation:

When an interrupt is accepted, the original PC is pushed into stack and interrupt vector will be loaded into
PC,The interrupt vectors are as following:

INT0 (External interrupt from P8.2)

PC000000000010

TRGA (Timer A overflow interrupt)

PC000000000110

TBI (Time base interrupt)

PC000000001010

INT1 (External interrupt from P8.0)

PC000000001100

(4) Reset operation:

PC000000000000

(5) Other operations:

For 1-byte instruction execution: PC + 1
For 2-byte instruction execution: PC + 2

ACCUMULATOR

Accumulator is a 4-bit data register for temporary data . For the arithematic, logic and comparative opertion
.., ACC plays a role which holds the source data and result .

FLAGS

7.20.1999

7* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

There are four kinds of flag, CF ( Carry flag ), ZF ( Zero flag ), SF ( Status flag ) and GF ( General flag ),

these 4 1-bit flags are affected by the arithematic, logic and comparative .... operation .

All flags will be put into stack when an interrupt subroutine is served, and the flags will be restored after
RTI instruction executed .

(1) Carry Flag ( CF )

The carry flag is affected by following operation:
a. Addition : CF as a carry out indicator, when the addition operation has a carry-out, CF will be "1",

in another word, if the operation has no carry-out, CF will be "0".

b. Subtraction : CF as a borrow-in indicator, when the subtraction operation must has a borrow, in the CF

will be "0", in another word, if no borrow-in, CF will be "1".

c. Comparision: CF is as a borrow-in indicator for Comparision operation as the same as subtraction

operation.

d. Rotation: CF shifts into the empty bit of accumulator for the rotation and holds the shift out data after

rotation.

e. CF test instruction : For TFCFC instruction, the content of CF sends into SF then clear itself "0".

For TTSFC instruction, the content of CF sends into SF then set itself "1".

(2) Zero Flag ( ZF )

ZF is affected by the result of ALU, if the ALU operation generate a "0" result, the ZF will be "1",
otherwise, the ZF will be "0".

(3) Status Flag ( SF )

The SF is affected by instruction operation and system status .

a. SF is initiated to "1" for reset condition .

b. Branch instruction is decided by SF, when SF=1, branch condition will be satisified, otherwise,

branch condition will not be satisified by SF = 0 .

(4) General Flag ( GF )

GF is a one bit general purpose register which can be set, clear, test by instruction SGF, CGF and TGS.

PROGRAM EXAMPLE:

Check following arithematic operation for CF, ZF, SF

CF ZF SF
LDIA #00h; - 1 1
LDIA #03h; - 0 1
ADDA #05h; - 0 1
ADDA #0Dh; - 0 0
ADDA #0Eh; - 0 0

* This specification are subject to be changed without notice.

7.20.1999

8

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

ALU

Preliminary

The arithematic operation of 4 - bit data is performed in ALU unit . There are 2 flags can be affected by
the result of ALU operation, ZF and SF . The operation of ALU can be affected by GF only .

ALU STRUCTURE

ALU supported user arithematic operation function, including : addition, subtraction and rotaion.

DATA BUS

ALU

ZF CF SF GF

ALU FUNCTION

(1) Addition:

For instruction ADDAM, ADCAM, ADDM #k, ADD #k,y .... ALU supports addition function.

The addition operation can affect CF and ZF. For addition operation, if the result is "0", ZF will be "1",
otherwise, not equal "0", ZF will be "0", When the addition operation has a carry-out. CF will be "1",
otherwise, CF will be "0".

EXAMPLE:

Operation Carry Zero
3+4=7 0 0
7+F=6 1 0
0+0=0 0 1
8+8=0 1 1

(2) Subtraction:

For instruction SUBM #k, SUBA #k, SBCAM, DECM... ALU supports user subtraction function . The
subtraction operation can affect CF and ZF, For subtraction operation, if the result is negative, CF will
be "0", it means a borrow out, otherwise, if the result is positive, CF will be "1". For ZF, if the result
of subtraction operation is "0", the ZF will be "1", otherwise, ZF will be "0".

EXAMPLE:

Operation Carry Zero
8-4=4 1 0
7-F= -8(1000) 0 0
9-9=0 1 1

7.20.1999

9* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

(3) Rotation:

There are two kinds of rotation operation, one is rotation left, the other is rotation right.
RLCA instruction rotates Acc value to left, shift the CF value into the LSB bit of Acc and the shift out data
will be hold in CF.

Preliminary

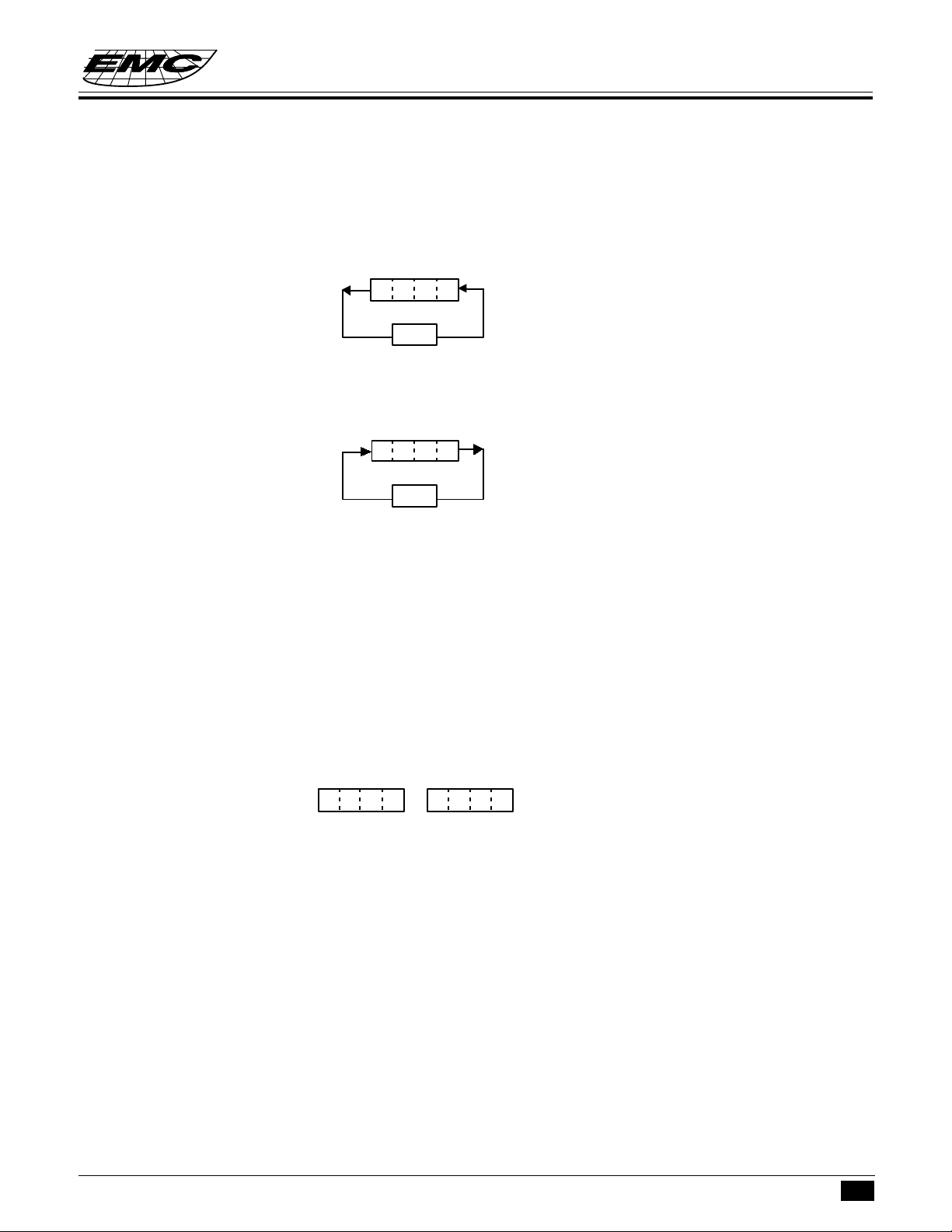

MSB LSB

ACC

CF

RRCA instruction operation rotates Acc value to right, shift the CF value into the MSB bit of Acc and the
shift out data will be hold in CF.

MSB LSB

ACC

CF

PROGRAM EXAMPLE: To rotate Acc right and shift a "1" into the MSB bit of Acc .

TTCFS; CF ← 1

RRCA; rotate Acc right and shift CF=1 into MSB.

HL REGISTER

HL register are two 4-bit registers, they are used as a pair of pointer for the address of RAM memory and also
2 independent temporary 4-bit data registers. For some instruction, L register can be a pointer to indicate the
pin number ( Port7 ) .

HL REGISTER STRUCTURE

3 2 1 0

H REGISTER

HL REGISTER FUNCTION

(1) For instruction : LDL #k, LDH #k, THA, THL, INCL, DECL, EXAL, EXAH, HL register used as a

temporary register .

PROGRAM EXAMPLE: Load immediate data "5h" into L register, "Dh" into H register.

LDL #05h;
LDH #0Dh;

(2) For instruction LDAM, STAM, STAMI .., HL register used as a pointer for the address of RAM memory.

3 2 1 0

L REGISTER

PROGRAM EXAMPLE: Store immediate data #Ah into RAM of address 35h.

* This specification are subject to be changed without notice.

7.20.1999

10

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

LDL #5h;
LDH #3h;

STDMI #0Ah; RAM[35] ← Ah

(3) For instruction : SELP, CLPL, TFPL, L regieter be a pointer to indicate the bit of I/O port.

When LR = C - F, indicate P7.0 - P7.3

PROGRAM EXAMPLE: To set bit 2 of Port7 to "1"

LDL #0Eh;

SEPL ; P7.2 ← 1

STACK POINTER (SP)

Stack pointer is a 4-bit register which stores the present stack level number.
Before using stack, user must set the SP value first, CPU will not initiate the SP value after reset condition
. When a new subroutine is accepted, the SP will be decreased one automatically, in another word, if
returning from a subroutine, the SP will be increased one .
The data transfer between ACC and SP is by instruction of "LDASP" and "STASP".

DATA POINTER (DP)

Data pointer is a 12-bit register which stores the address of ROM can indicate the ROM code data
specified by user (refer to data ROM).

CLOCK AND TIMING GENERATOR

The clock generator is supported by a single clock system, the clock source comes from crystal (resonator
or RC oscillation is decided by mask option . the working frequency range is 32 K Hz to 5 MHz depending
on the working voltage.

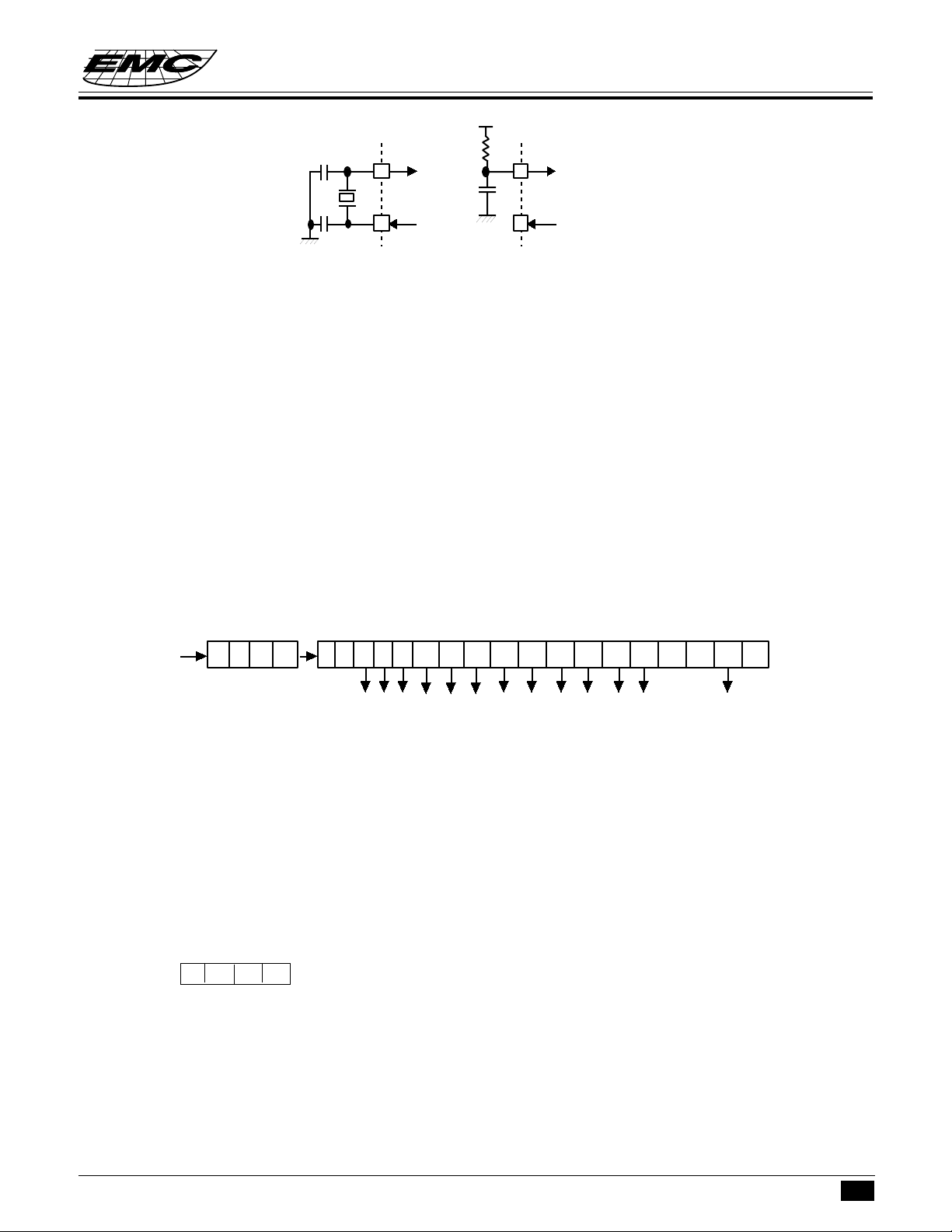

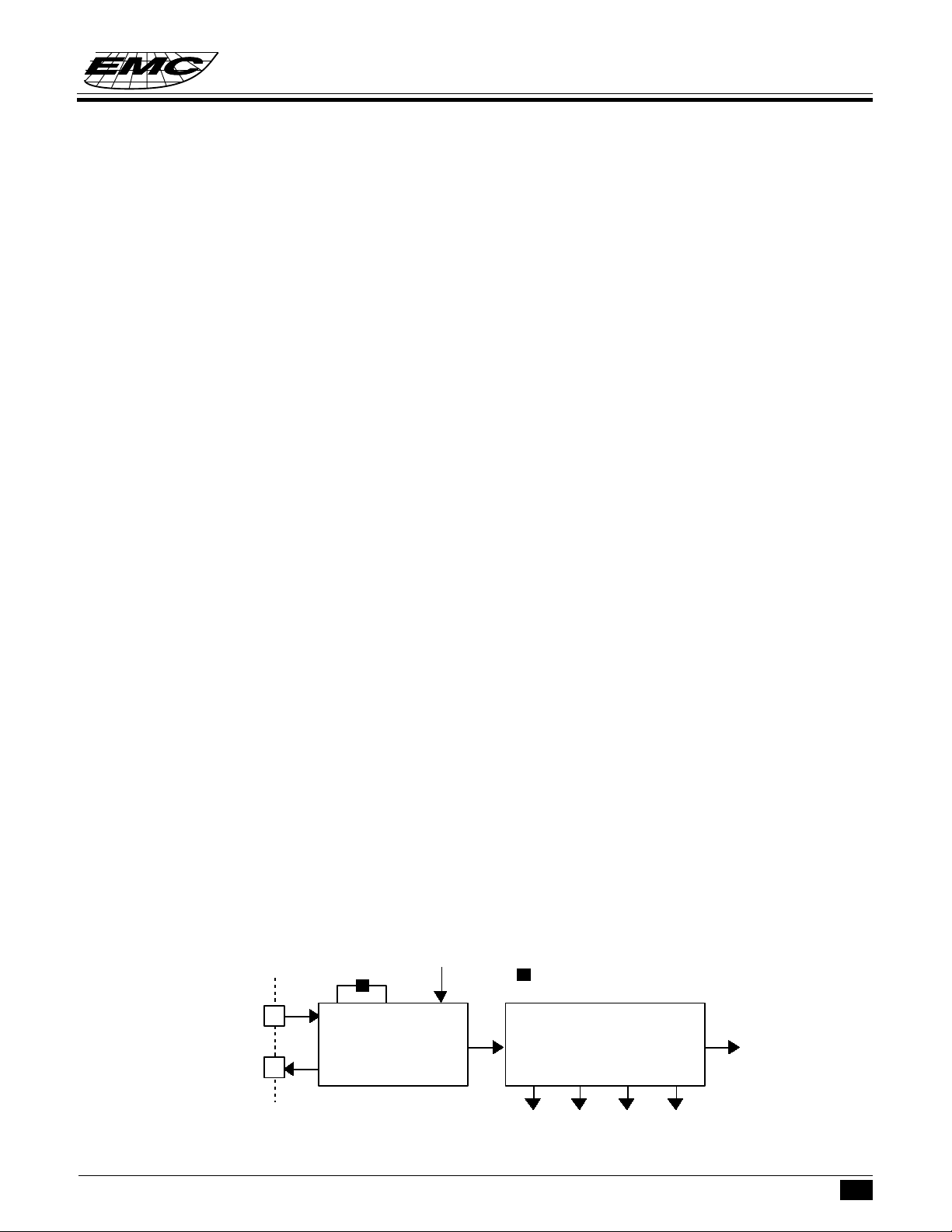

CLOCK AND TIMING GENERATOR STRUCTURE

The clock generator connects outside compoments ( crystal or resonator by XIN and XOUT pin for crystal
osc type, Resistor and capacitor by CLK pin for RC osc type, these two type is decided by mask option ).
the clock generator generates a basic system clock "fc".
When CPU sleeping, the clock generator will be stoped until the sleep condition released.
The system clock control generates 4 basic phase signals ( S1, S2, S3, S4 ) and system clock .

Mask option

sleep

Mask option for choose Crystal or RC oscillation

XIN/CLK

XOUT

clock generator System clock control

fc

S1 S2 S3 S4

System clock

7.20.1999

11* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

XIN/CLK

XIN/CLK

XOUT

Crystal connection

RC connection

XOUT

CLOCK AND TIMING GENERATOR FUNCTION

The frequency of fc is the oscillation frequency for XIN, XOUT by crystal ( resonator) or for CLK by RC
osc.
When CPU sleeps, the XOUT pin will be in "high" state .
When user chooses RC osc, XOUT pin is no used .
The instruction cycle equal 8 basic clock fc.

1 instructure cycle = 8 / fc

TIMING GENERATOR AND TIME BASE

The timing generator produces the system clock from basic clock pulse which can be normal mode or slow
mode clock.

1 instruction cycle = 8 basic clock pulses

There are 22 stages time base .

Prescaler Binary counter

fc

1 23 4 5678910111213 22212019 181716 15 14

When working in the single clock mode, the timebase clock source is come from fc that is RC oscillation.

Time base provides basic frequency for following function:

1. TBI (time base interrupt) .

2. Timer/counter, internal clock source.

3. Warm-up time for sleep - mode releasing.

TIME BASE INTERRUPT (TBI )

The time base can be used to generate a fixed frequency interrupt . There are 8 kinds of frequencies can be
selected by setting "25"

Single clock mode
P25 3 2 1 0

( initial value 0000 )
0 0 x x: Interrupt disable
0 1 0 0: Interrupt frequency XIN / 2
0 1 0 1: Interrupt frequency XIN / 2
0 1 1 0: Interrupt frequency XIN / 2
0 1 1 1: Interrupt frequency XIN / 2
1 1 0 0: Interrupt frequency XIN / 29 Hz
1 1 0 1: Interrupt frequency XIN / 28 Hz
1 1 1 0: Interrupt frequency XIN / 2
1 1 1 1: Interrupt frequency XIN / 2
1 0 x x: Reserved

10

Hz

11

Hz

12

Hz

13

Hz

15

Hz

17

Hz

* This specification are subject to be changed without notice.

7.20.1999

12

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

TIMER / COUNTER ( TIMERA)

Timer/counters can support user three special functions:

1. Even counter

2. Timer.

3. Pulse-width measurement.

These three functions can be executed by timer/counter.
For timerA, the counter data is saved in timer register TAH, TAM, TAL, which user can set counter
initial value and read the counter value by W/B instruction "LDATAH (B,L), STATAH (B,L)".

The counter can be set initial value and send counter value to timer register. P28 is the command port
for timerA , user can choose different operation mode and different internal clock rate by setting the
port. When timer/counter overflow, it will generate a TRGA interrupt request to interrupt control unit.

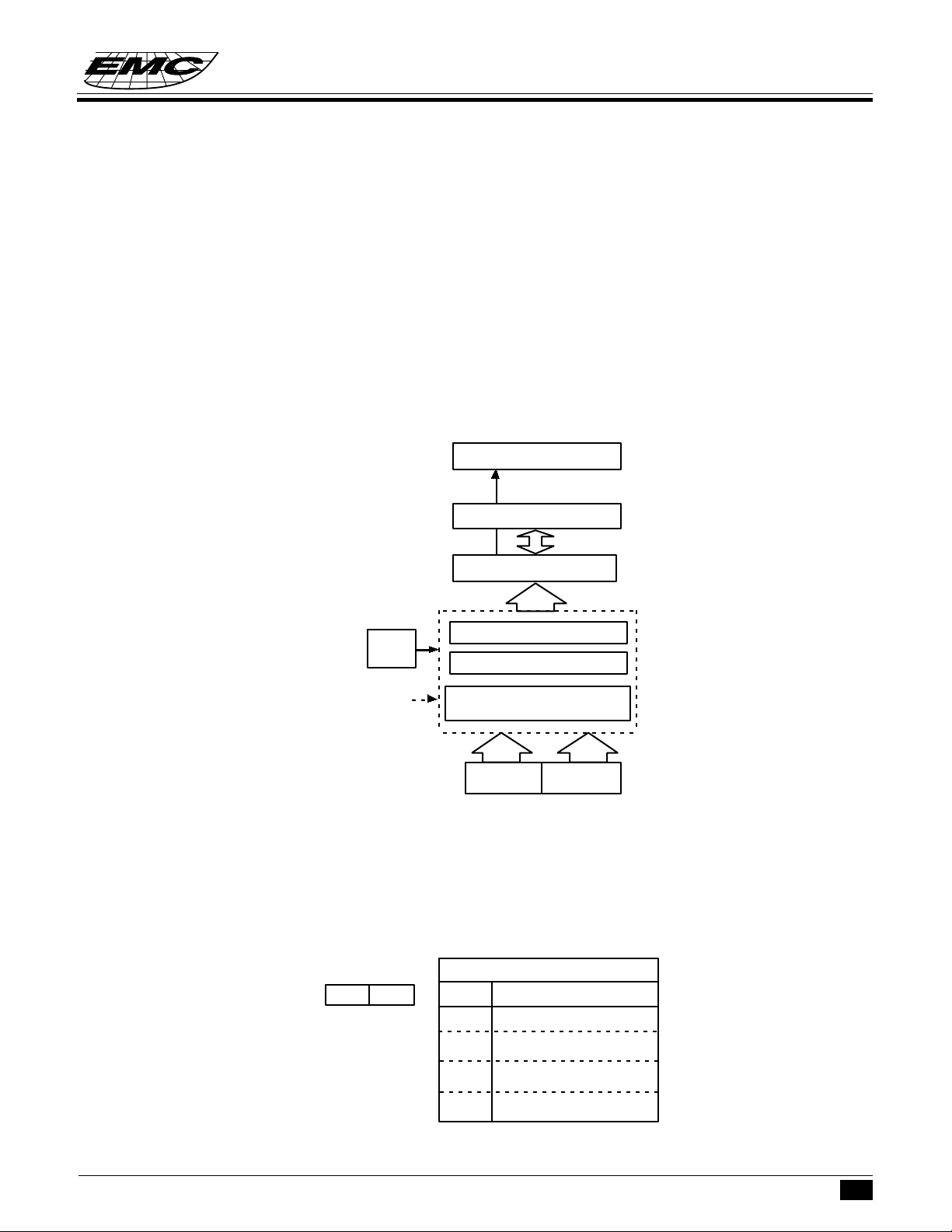

INTERRUPT CONTROL

TRGA request

DATA BUS

12 BIT COUNTER

P8.3/
TRGA

internal clock

EVENT COUNTER CONTROL

TIMER CONTROL

PULSE-WIDTH MEASUREMENT

P28

CONTROL

TMSA IPSA

TIMER/COUNTER CONTROL

P8.3/TRGA is the external timer inputs for timerA, it used in event counter and pulse-width
measurement mode.

Timer/counter command port: P28 is the command port for timer/counterA.

Port 28

3 2 1 0

TMSA IPSA

Initial state: 0000

TIMER/COUNTER MODE SELECTION

TMSA Function description

0 0 Stop
0 1 Event counter mode
1 0 Timer mode

1 1

Pulse width measurement mode

7.20.1999

13* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

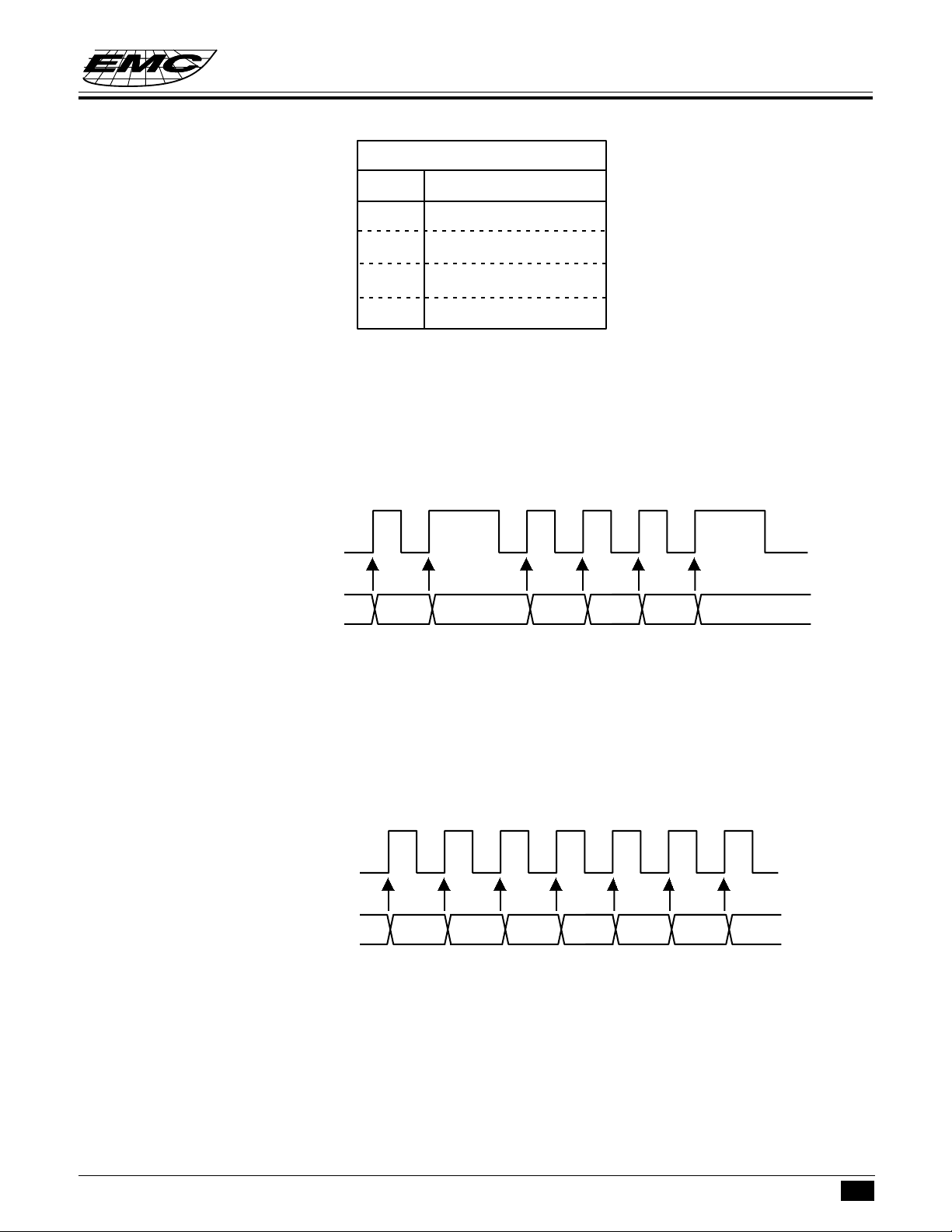

INTERNAL PULSE-RATE SELECTION

IPSA Function description

0 0 XIN/2 Hz
0 1 XIN/2 Hz
1 0 XIN/2 Hz
1 1 XIN/2 Hz

TIMER/COUNTER FUNCTION

EVENT COUNTER MODE

For event counter mode, timer/counter increases one at any rising edge of P8.3/TRGA for timerA. When
timerA counts overflow, it will give interrupt control an interrupt request TOFIA.

10
14

18

22

P8.3/TRGA

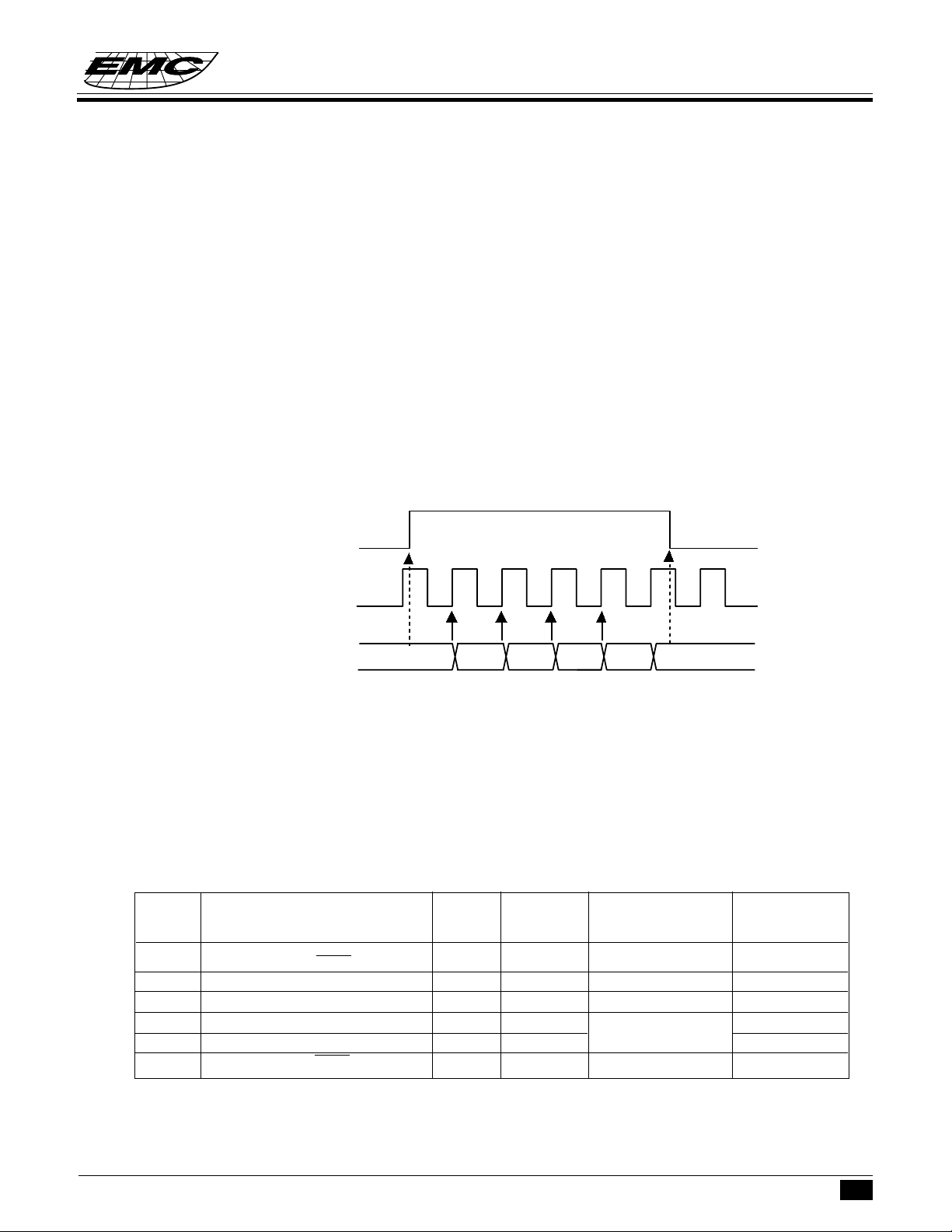

TimerA value n n+1 n+2 n+3 n+4 n+5 n+6

PROGRAM EXAMPLE: Enable timerA with P28.

LDIA #0100B;
OUTA P28; Enable timerA with event counter mode

TIMER MODE

For timer mode ,timer/counter increase one at any rising edge of internal pulse . User can choose 4 kinds
of internal pulse rate by setting IPSA for timerA.
When timer/counter counts overflow, TRGA will be generated to interrupt control unit.

Internal pulse

TimerA value

n n+1 n+2 n+3 n+4 n+5 n+6

n+7

PROGRAM EXAMPLE: To generate TRGA interrupt request after 60 ms with system clock XlN=4MHz

LDIA #0100B;
EXAE; enable mask 2

EICIL 110111B; interrupt latch ←0, enable EI

LDIA #06H;
STATAL;

* This specification are subject to be changed without notice.

7.20.1999

14

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

LDIA #01H;
STATAM;
LDIA #0FH;
STATAH;
LDIA #1000B;
OUTA P28; enable timerA with internal pulse rate: XIN/2

10

EM73201

Hz

NOTE: The preset value of timer/counter register is calculated as following procedure.

Internal pulse rate: XIN/2
The time of timer counter count one = 2

10

; XIN = 4MHz

10

/XIN = 1024/4000=0.256ms
The number of internal pulse to get timer overflow = 60 ms/ 0.256ms = 234.375 = 0EAH
The preset value of timer/counter register = 1000H - 0EAH = 0F16H

PULSE WIDTH MEASUREMENT MODE

For the pulse width measurement mode, the counter only incresed by the rising edge of internal pulse rate as
external timer/counter input (P8.3/TRGA ), interrupt request will be generated as soon as timer/counter
overflow.

P8.3/TRGA

Internal pulse

TimerA value

n n+1 n+2 n+3 n+4 n+5

PROGRAM EXAMPLE: Enable timerA by pulse width measurement mode .

LDIA #1100B;
OUTA P28; Enable timerA with pulse width measurement mode.

INTERRUPT FUNCTION

There are 4 interrupt sources, 2 external interrupt sources, 2 internal interrupt sources . Multiple
interrupts are admitted according the priority .

Type Interrupt source Priority Interrupt Interrupt Program ROM

Latch Enable condition entry address

External External interrupt(INT0) 1 IL5 EI=1 002h
Internal Reserved 2 IL4 EI=1, MASK3=1 004h
Internal TimerA overflow interrupt (TRGA) 3 IL3 EI=1, MASK2=1 006h
Internal Reserved 4 IL2 EI=1, MASK1=1 008h
Internal Time base interrupt(TBI) 5 IL1 00Ah
External External interrupt(INT1) 6 IL0 EI=1,MASK0=1 00Ch

7.20.1999

15* This specification are subject to be changed without notice.

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

INTERRUPT STRUCTURE

Reset by system reset and program
instruction

Reset by system reset and program
instruction
Set by program instruction

Preliminary

MASK0 MASK1 MASK1 MASK2 MASK3

INT1

r0

IL0

TBI

r1

IL1

EI Entry address generator

r2

IL2

TRGA

r3

IL3

Priority checker

r4

IL4

EM73201

INT0

r5

IL5

Interrupt request

Interrupt entry address

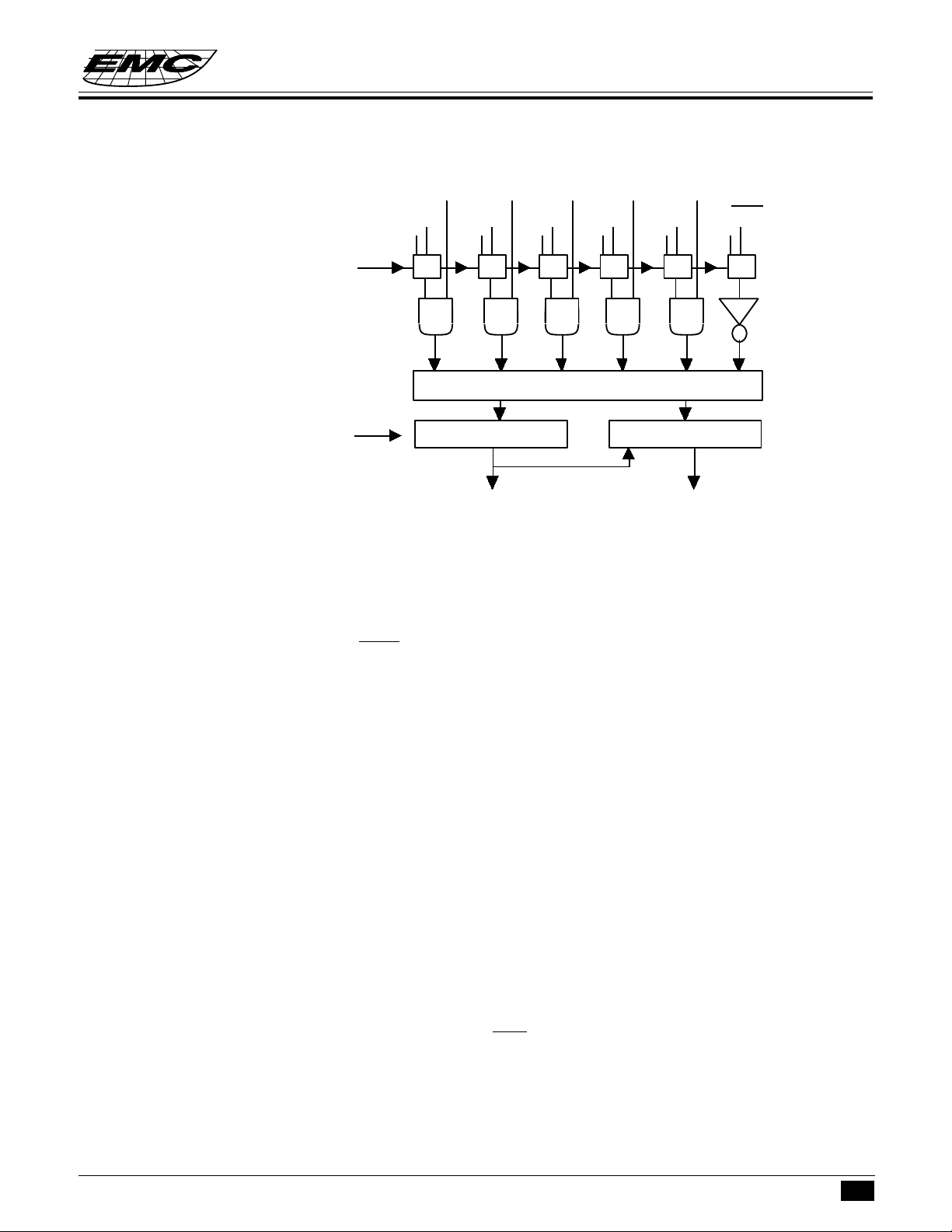

Interrupt controller:

IL0-IL5 : Interrupt latch . Hold all interrupt requests from all interrupt sources. ILr can not be

set by program, but can be reset by program or system reset, so IL only can decide
which interrupt source can be accepted.

MASK0-MASK3 : Except INT0 ,MASK register can promit or inhibit all interrupt sources.

EI : Enable interrupt Flip-Flop can promit or inhibit all interrupt sources, when inter-

rupt happened, EI is cleared to "0" automatically, after RTI instruction happened,
EI will be set to "1" again .

Priority checker: Check interrupt priority when multiple interrupts happened.

INTERRUPT FUNCTION

The procedure of interrupt operation:

1. Push PC and all flags to stack.

2. Set interrupt entry address into PC.

3. Set SF= 1.

4. Clear EI to inhibit other interrupts happened.

5. Clear the IL for which interrupt source has already be accepted.

6. To excute interrupt subroutine from the interrupt entry address.

7. CPU accept RTI, restore PC and flags from stack . Set EI to accept other interrupt requests.

PROGRAM EXAMPLE: To enable interrupt of "INT0, TRGA"

LDIA #1100B;
EXAE; set mask register "1100B"
EICIL 111111B ; enable interrupt F.F.

POWER SAVING FUNCTION ( Sleep / Hold functlon )

* This specification are subject to be changed without notice.

7.20.1999

16

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

During sleep and hold condition, CPU holds the system's internal status with a low power consumption, for
the sleep mode, the system clock will be stoped in the sleep condition and system need a warm up time for
the stability of system clock running after wakeup . In the other way, for the hold mode, the system clock
does not stop at all and it does not need a warm-up time any way.
The sleep and hold mode is controlled by Port 16 and released by P0(0..3)/WAKEUP0-3.

P16 3 2 1 0

WM SE SWWT

SWWT Set wake-up warm-up time

18

0 0
0 1
1 0
1 1

2 /XIN

14

2 /XIN

16

2 /XIN
Hold mode

Sleep and hold condition:

1. Osc stop ( sleep only ) and CPU internal status held .

2. Internal time base clear to"0"

3. CPU internal memory ,flags, register, I/O held original states.

4. Program counter hold the executed address after sleep release.

initial value :0000

WM Set wake-up release mode

01Wake-up in edge release mode

Reserved

SE Enable sleep/hold

0 Reserved

1 Enable sleep / hold rnode

Release condition:

1. Osc start to oscillating.(sleep only)

2. Warm-up time passing ( sleep only ).

3. According PC to execute the following program.

There is one kind of sleep/hold release mode .

1.Edge release mode:
Release sleep/hold condition by the falling edge of any one of P0(0..3)/WAKEUP0-3.

Note : There is only one mask option for weakeup function in EM73201. So,the weakeup function of

P0(0..3)/WAKEUP0..3 are enabled or disabled together.

INFRARED SIGNAL

The infrared signal generator supports user different frequencies and duties clock signal by P1.0/CLKOUT
pin.
The basic structure of infrared signal generator is composed by a frequency divider and a duty controller,
these two parts generate differen frequencies and dutyies according to the command port, Port4 and Port5,
assigned . When the CPU is reseted, the CPU is reseted, the P1.0/CLKOUT pin will keep high.

PORT5 PORT4

E

32 10 32 10

initial state : 0 x x x initial state : 0 0 0 0

ABCD

7.20.1999

17* This specification are subject to be changed without notice.

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

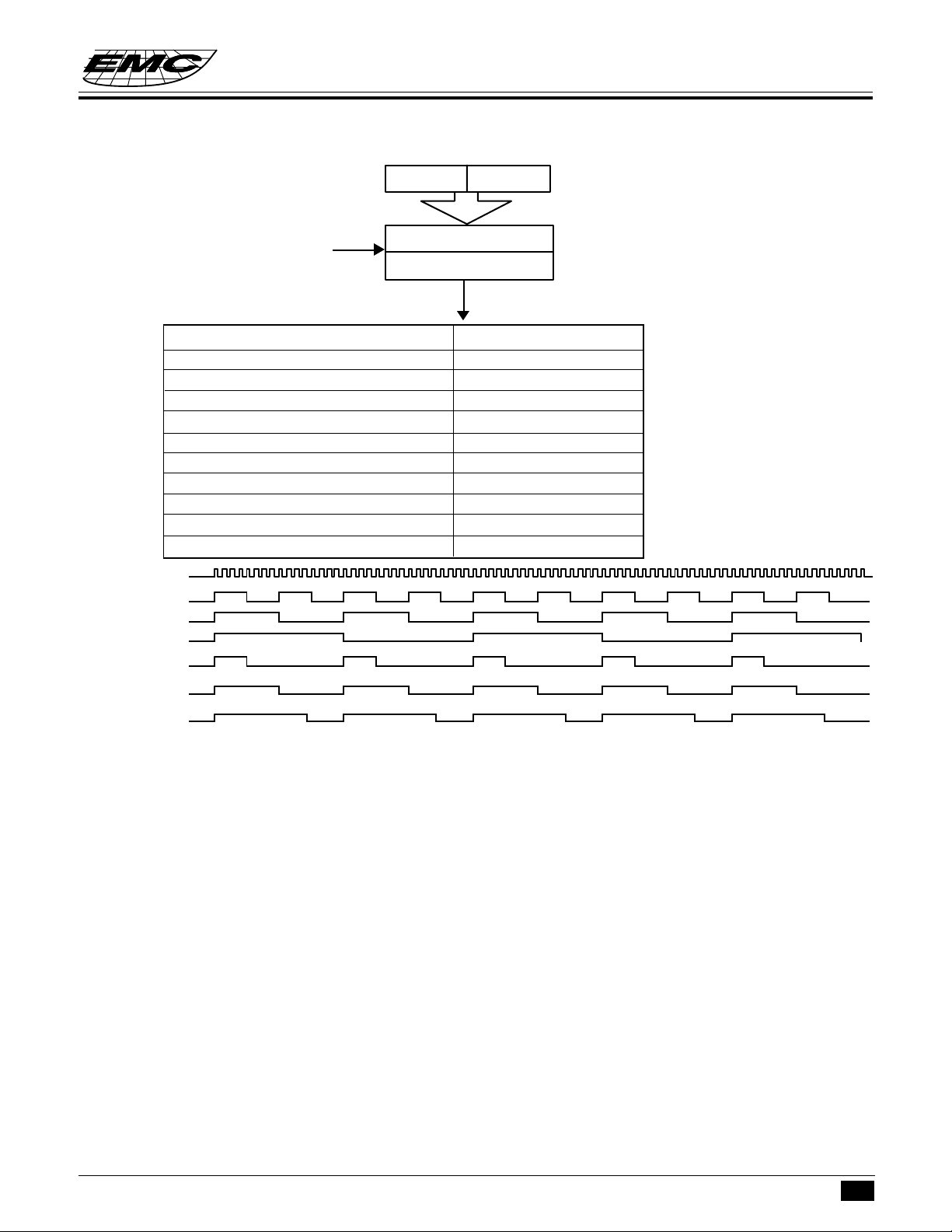

Infrared signal command port

PORT4 PORT5

Frequecy divider

Duty controller

fc

P1.0/CLKOUT

fc

fc/8
fc/16
fc/64

fc/16 , 1/4 duty
fc/16 , 1/2 duty
fc/16 , 3/4 duty

Preliminary

E A B C D CLK OUT

X0 X XX HIGH

1 1 X X X fc/12
0 1 0 0 0 fc/8
0 1 0 0 1 fc/16
0 1 0 1 0 fc/32
0 1 0 1 1 fc/64
0 1 1 0 0 LOW
0 1 1 0 1 fc/16 ; 1/4 duty
0 1 1 1 0 fc/16 ; 1/2 duty
0 1 1 1 1 fc/16 ; 3/4 duty

EM73201

Program example:

To disable CLKOUT before sleep. To enable a CLKOUT signal with frequency

LDIA #0000B; fc/16, 3/4 duty .
OUTA P5; LDIA #0000B;
OUTA P4; set clkout pin in high state OUTA P5;
LDIA #0100B; LDIA #1111B;
OUTA P16; Sleep OUTA P4;
::

WATCH-DOG-TIMER

Watch-dog-timer (WDT) can help user to detect the malfunction (runaway) of CPU and give system a time
up signal every certain time. User can use the time up signal to give system a reset signal when system is fail.
The watch-dog-timer is enabled or disabed by mask option. If the mask option of WDT is enabled and the
CPU is reseted or waked up, the WDT will be cleared and counting. When the CPU is sleeping, the WDT
will be disabled.
The basic structure of watch-dog-timer control is composed by a 4-stage binary counter and a control unit.
The WDT counter counts for a certain time to check the CPU status, if there is no malfunction happened, the
counter will be cleared and counting. Otherwise, if there is a malfunction happened, the WDT control will
send a signal (low active) to reset CPU. The WDT checking period is assign by P21 (WDT command port).

* This specification are subject to be changed without notice.

7.20.1999

18

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

17

fc/2

counter clear request

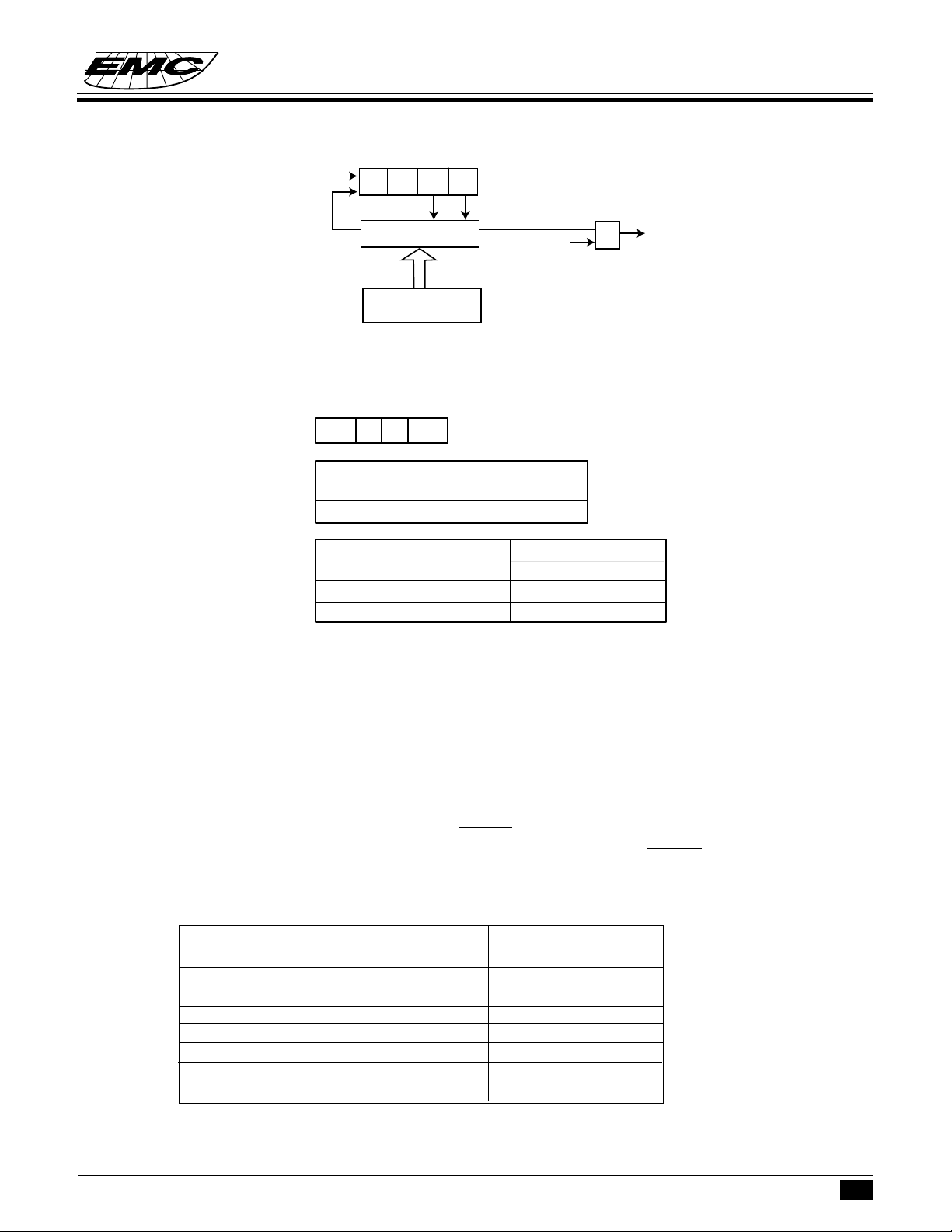

P21 is the control port of watch-dog-timer, and the WDT time up signal is connected to reset pin, user can
use this time up signal (active low) to reset CPU and initialize system.

WDT counter

0123

WDT control

P21

WDT

command port

system reset

R
S

F/F

Q

RESET pin

P21 3 2 1 0

CWC * * WDT

CWC Clear watch-dog-timer counter

Clear counter then return to 1

0
1

Nothing

WDT Set watch-dog-timer

detect time

0
1

17

3 x 2

7 x 217 /fc

/fc

initial value :0000

System clock frequency

4MHz 32KHz

98ms

229ms

12sec
28sec

Program example:

To clear WDT with 7 x 217/fc detection time.

LDIA #0001B;
OUTA P21 ; set WDT detection time and clear WDT counter
::

RESETTING FUNCTION

When CPU in normal working condition and RESET pin holds in low level for three instruction cycles
at least, then CPU begins to initialize the whole internal states, and when RESET pin changes to high
level, CPU begins to work in normal condition.
The CPU internal state during reset condition is as following table :

Hardware condition in RESET state Initial value

Program counter 000h
Status flag 01h
Interrupt enable flip-flop ( EI ) 00h
MASK0 ,1, 2, 3 00h
Interrupt latch(IL) 00h
P4, P5, P16, P25, P28 00h
P1, P7, P8 0Fh
XIN Start oscillation

7.20.1999

19* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

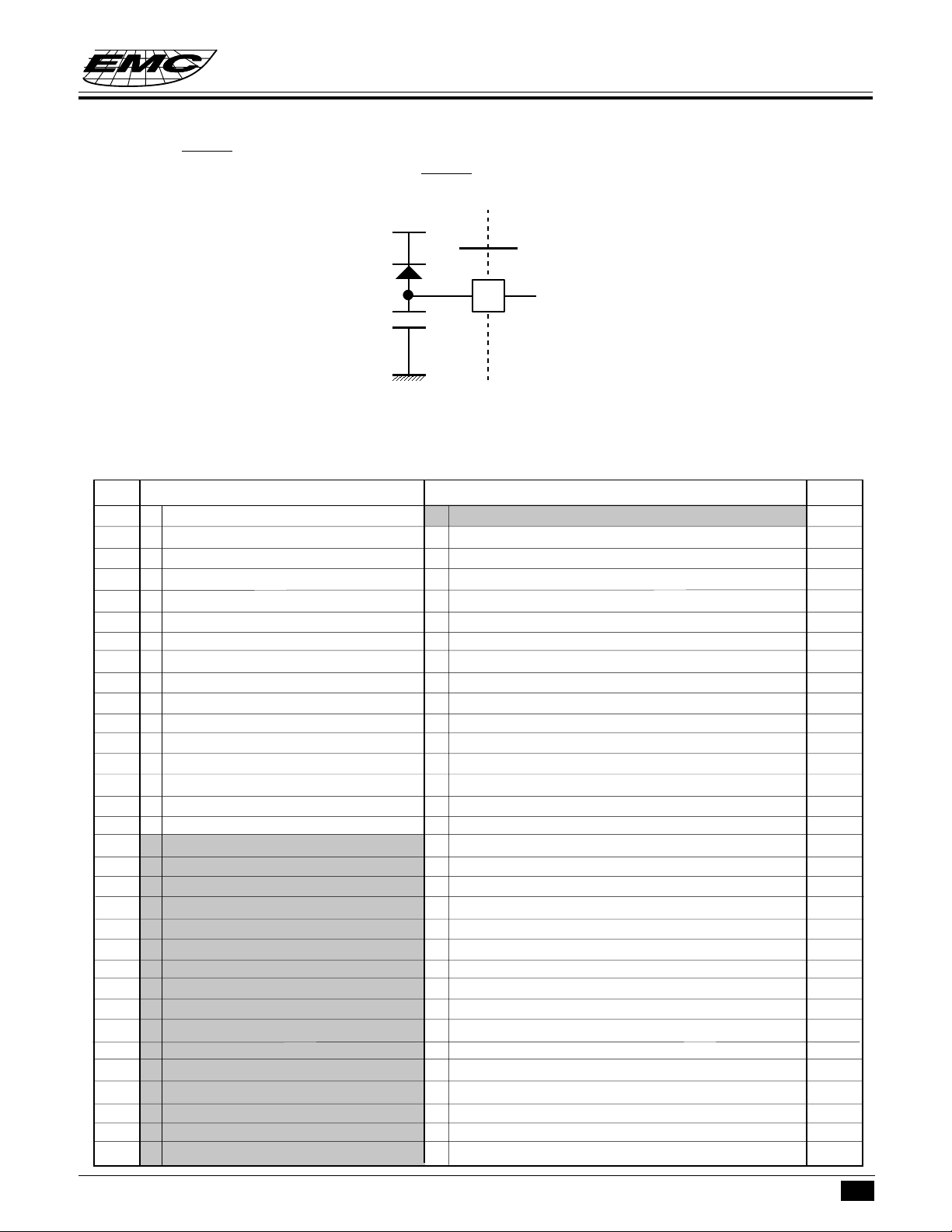

The RESET pin is a hysteresis input pin and has a pull-up resistor avavailable by mask option.
The simplest RESET circuit is connect RESET pin with a capacitor to V

RESET

EM73201 I/O PORT DESCRIPTION :

Port Input function Output function Note

0 E Input port , wakeup function
1 -- E with LED driving, P1.0 is shared with CLKOUT
2-- -­3-- -­4 -- I Infrared signal control register
5 -- I Infrared signal control register
6-- -­7 E Input port E Output port
8 E Input port, external interrupt input E Output port

9-- -­10 -- -­11 -- -­12 -- -­13 -- -­14 -- -­15 -- -­16 I Sleep/Hold mode control register
17 -­18 -­19 -­20 -­21 I WDT control register
22 -­23 -­24 -­25 I Timebase control register
26 -­27 -­28 I Timer/counter A control register
29 -­30 -­31 --

and a diode to VDD.

SS

* This specification are subject to be changed without notice.

7.20.1999

20

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

ABSOLUTE MAXIMUM RATINGS

Preliminary

Items Sym. Ratings Conditions

Supply Voltage V
Input Voltage V
Output Voltage V
Power Dissipation P
Operating Temperature T
Storage Temperature T

DD

IN

O

D

OPR

STG

-0.5V to 6V

-0.5V to VDD+0.5V

-0.5V to VDD+0.5V
300mW T
0oC to 50oC

-55oC to 125oC

OPR

=50oC

RECOMMANDED OPERATING CONDITIONS

Items Sym. Ratings Condition

Supply Voltage V
Input Voltage V

Operating Frequency F

DD

IH

V

IL

C

DC ELECTRICAL CHARACTERISTICS (VDD=5±0.5V, VSS=0V, T

2.4V to 6.0V

0.90xVDD to V
0V to 0.10xV

DD

DD

32K to 4MHz CLK (RC osc)
32K to 5MHz XIN,XOUT (crystal osc)

=25oC)

OPR

Parameters Sym. Min. Typ. Max. Unit Conditions

Supply current I

DD

- 0.7 2 mA VDD=5.5V,no load Fc=4.19MHz (crystal osc)

- 60 110 µA V

=5.5V,no load

DD

sleep mode, low voltage reset enable

- 0.1 1 µA V

Hysteresis voltage V

Input current I

V

HYS+

HYS-

IH

0.50V

0.20V

DD

DD

- 0.75V

- 0.40V

V RESET, P0, P8

DD

V

DD

- - ±1 µA RESET , P0, VDD=5.5V,VIH=5.5/0V

- - ±1 µA Open-drain:V
Output current I
(Port 1) I

OH

OL

5 - - mA P1 normal source, VDD=4.5V ,VOH=3.5V
5 - - mA P1 normal sink, VDD=4.5V ,VOL=1.0V

20 - - mA P1 high sink, V

Output voltage V

OH

2.4 - - V P7,P8 low source,VDD=4.5V, IOH=-250µA

(Port 7 Port8) 3.5 - - V P7,P8 normal source,V

3.0 - - V P7,P8 high source,V

V

OL

- - 1 V P7,P8 normal sink,VDD=4.5V,IOL=5mA

- - 1.5 V P7,P8 high sink,V
Leakage current I
Input resistor R

OL

IN

- - 1 µA Open drain,VDD=5.5V,VO =5.5V

30 90 150 KΩ P0

=5.5V, sleep mode, low voltage reset disable

DD

=5.5V,VIH=5.5/0V

DD

=4.5V ,VOL=1.0V

DD

=4.5V,IOH=-5mA

DD

=4.5V,IOH=-20mA

DD

=4.5V,IOL=20mA

DD

100 300 450 KΩ RESET

Frequency stability - 10 - % Fc=4MHz, RC osc (R=7.5kΩ, C=20pF)

[Fc=(4.5V)-F(3.6V)]/F(4.5V)

Frequency variation - 20 - % Fc=4MHz, V

=4.5V, RC osc

OL

[F(typical)-F(worse case)]/F(typical)

Low voltage reset level 3. 3 - 4.0 V

7.20.1999

21* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

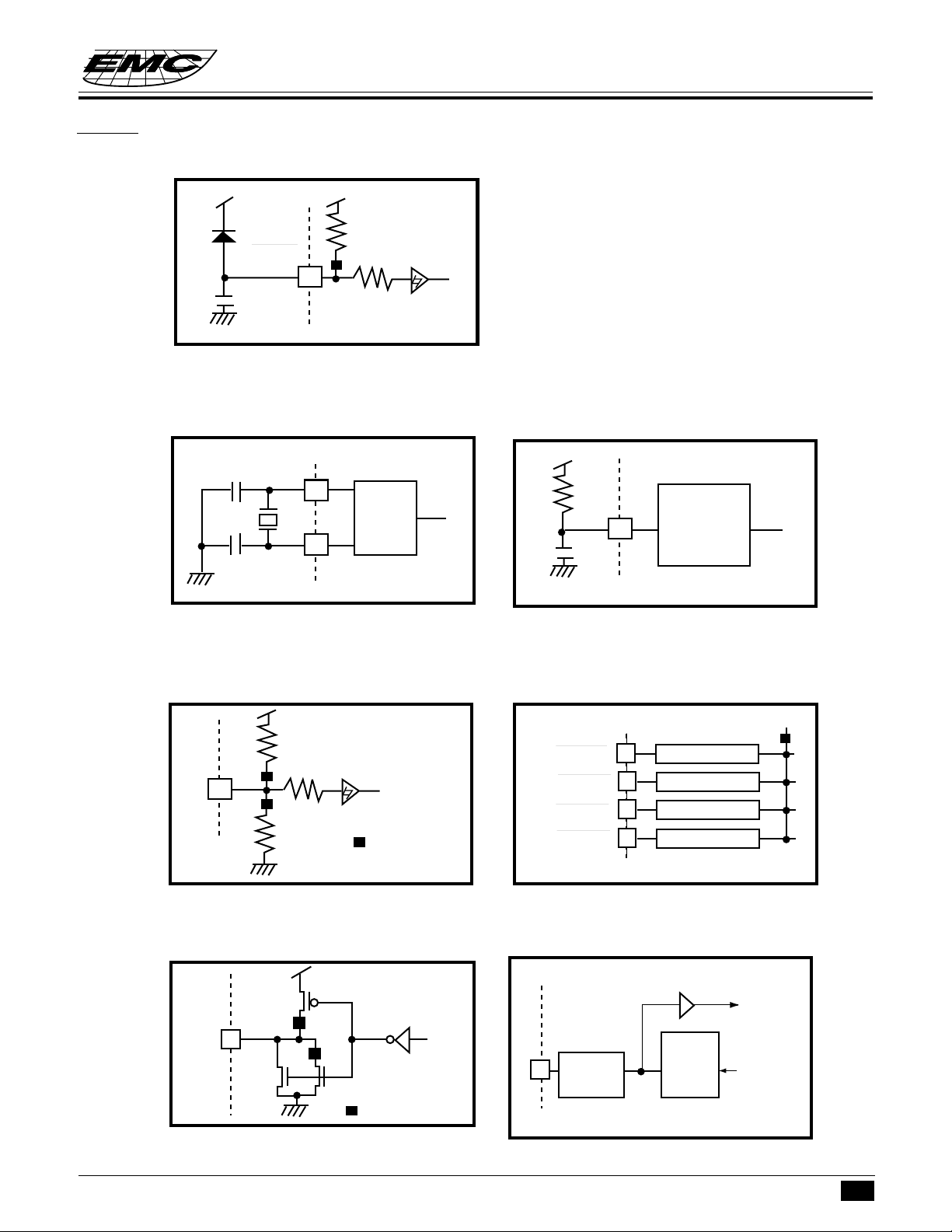

RESET PIN TYPE

TYPE RESET-A

RESET

OSCILLATION PIN TYPE

TYPE OSC-A TYPE OSC-C

XIN

XOUT

Preliminary

mask option

Crystal
Osc.

CLK

RC Osc.
(comparator)

INPUT PIN TYPE

TYPE INPUT-A TYPE INPUT-C

OUTPUT PIN TYPE

TYPE OUTPUT TYPE OUTPUT-C

: mask option

P0.0/WAKEUP0

P0.1/WAKEUP1

P0.2/WAKEUP2

P0.3/WAKEUP3

TYPE
OUTPUT

WAKEUP function mask option

TYPE INPUT-A

TYPE INPUT-A

TYPE INPUT-A

TYPE INPUT-A

Input
data

Output
data
latch

Output
data

: mask option

: mask option

* This specification are subject to be changed without notice.

7.20.1999

22

TYPE OUTPUT-B

I/O PIN TYPE

TYPE I/O_T TYPE I/O-U

TYPE
OUTPUT

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

Input
data

Output

MUX

data
latch

Special function
control output

Output
data

: mask option

TYPE I/O_T

path B

path A

Output
data
latch

Input
data

Output
data

TYPE I/O-V TYPE I/O-W

TYPE I/O_T

path B

path A

Output
data
latch

Input
data

Output
data

TYPE I/O_T

path B

path A

SEL

Output
data
latch

Special function
control input

Input data

Output
data

Path A : For set and clear bit of port instructions, data goes through path A from output data latch to CPU.
Path B : For input and test instructions, data from output pin go through path B to CPU and the output data latch

will be set to high.

7.20.1999

23* This specification are subject to be changed without notice.

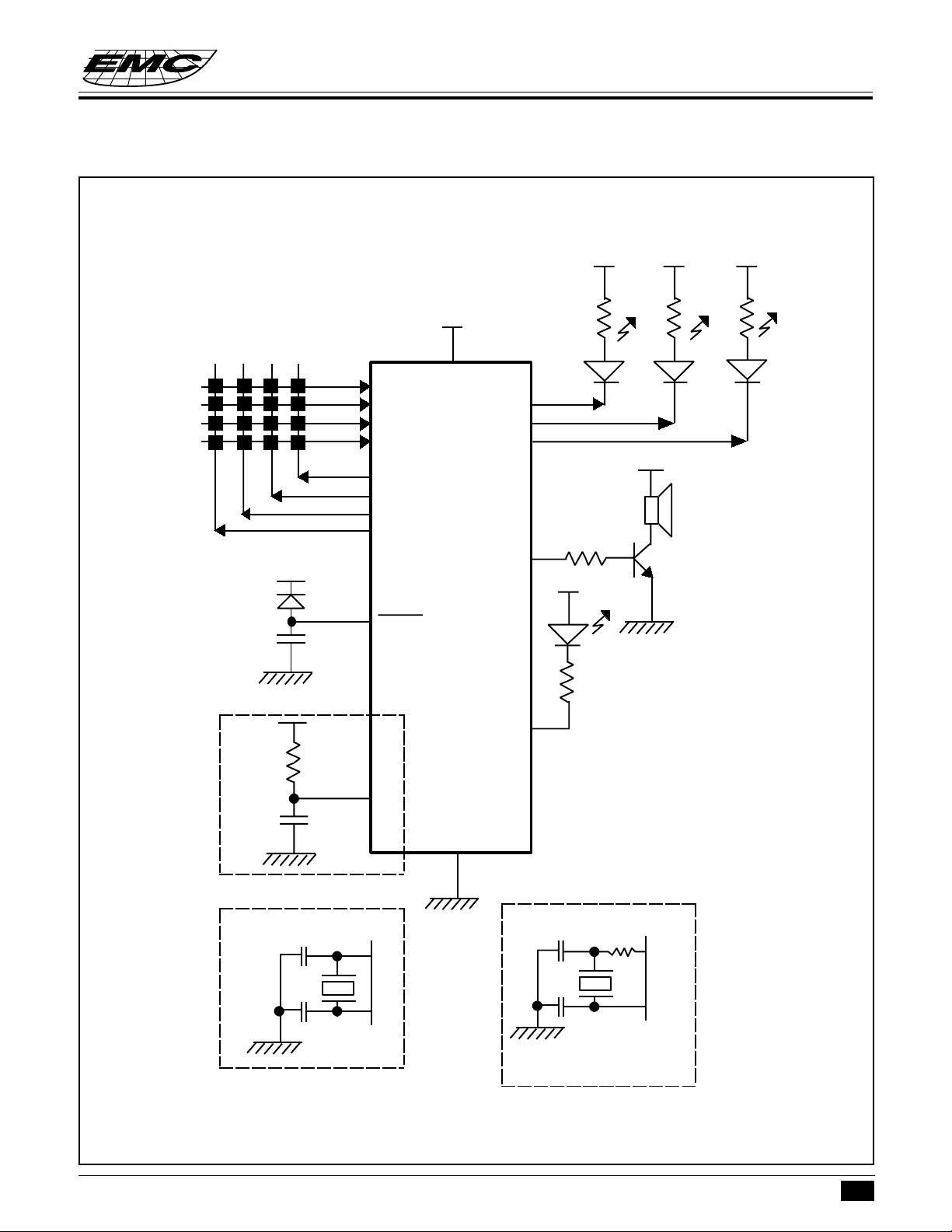

APPLICATION CIRCUIT

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

V
P0.3
P0.2
P0.1
P0.0

P7.3
P7.2
P7.1

P7.0

RESET

DD

EM73201

P1.1
P1.2
P1.3

P8.0
P8.1
P8.2
P8.3

RC OSC

CRYSTAL OSC

C

C

(4MHz)

C=20pF

NC/XOUT

CLK/XIN

XOUT/NC

XIN/CLK

INFRARED SIGNAL

P1.0

V

SS

CRYSTAL OSC

C

C

Recommended values :
C = 100~150pF
R = 10KΩ

(32KHz)

R

XOUT

XIN

* This specification are subject to be changed without notice.

7.20.1999

24

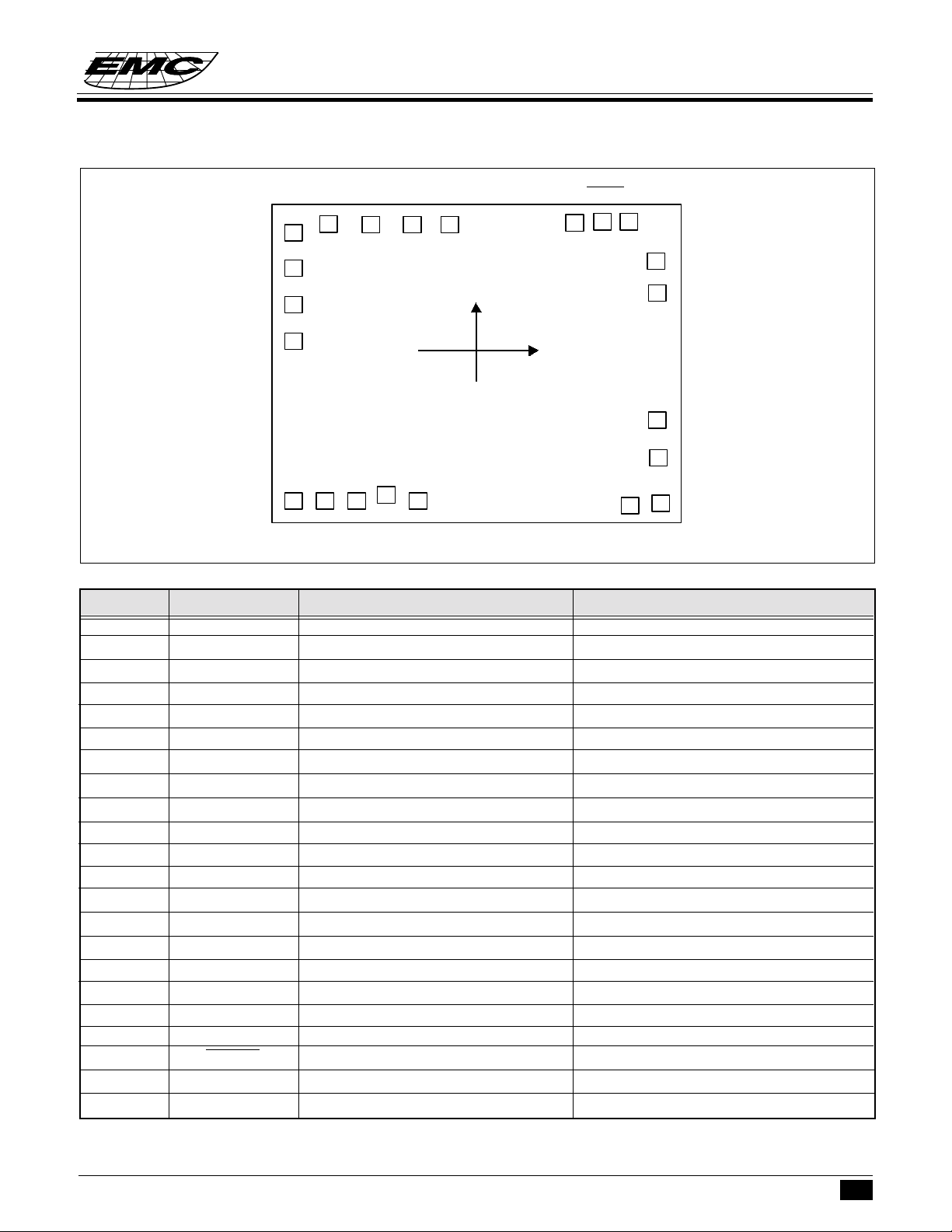

PAD DIAGRAM

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

V

P8.0

DD RESET

12

22

Y

(0,0)

P8.2

21

X

1920

P7.1

P7.2

P7.3

P1.0

P7.0

P8.3

3

4

5

6

7

EM73201

P1.1

8 9 10

P1.2 P1.3

11

12

V

SS

P0.0

13

P0.1

Chip Size : 1820 µm x 1510 µm

PadNo. Symbol X Y

1 P8.0 -301.5 661.2
2 P8.3 -465.9 661.2
3 P7.0 -661.2 661.2
4 P7.1 -818.2 603.1
5 P7.2 -818.2 405.1
6 P7.3 -818.2 240.7
7 P1.0 -818.2 59.8
8 P1.1 -829.2 -650.5

9 P1.2 -706.2 -650.5
10 P1.3 -583.0 -650.5
11 V

SS

-457.4 -636.4
12 P0.0 -298.0 -651.4
13 P0.1 705.5 -651.4
14 P0.2 828.4 -651.4
15 P0.3 814.7 -454.3
16 TEST 814.7 -303.0
17 XIN 790.1 194.6
18 XOUT 790.1 374.5
19 P8.1 692.1 643.1
20 RESET 564.5 643.1
21 P8.2 433.8 643.1
22 V

DD

-123.2 661.2

P8.1

XOUT

18

XIN

17

TEST

16

P0.3

15

14

P0.2

Unit : µm
Note : For PCB layout, IC substrate must be floated, or connect to

V

.

SS

7.20.1999

25* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

INSTRUCTION TABLE

(1) Data Transfer

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZ S

LDA x 0110 1010 xxxx xxxx Acc←RAM[x] 2 2 - Z 1
LDAM 0101 1010 Acc ←RAM[HL] 1 1 - Z 1
LDAX 0110 0101 Acc←ROM[DP]
LDAXI 0110 0111 Acc←ROM[DP]

L

,DP+1 1 2 - Z 1

H

LDH #k 1001 kkkk HR←k11--1
LDHL x 0100 1110 xxxx xx00 LR←RAM[x],HR←RAM[x+1] 2 2 - - 1
LDIA #k 1101 kkkk Acc←k11-Z1
LDL #k 1000 kkkk LR←k11--1
STA x 0110 1001 xxxx xxxx RAM[x]←Acc 2 2 - - 1
STAM 0101 1001 RAM[HL]←Acc 1 1 - - 1
STAMD 0111 1101 RAM[HL]←Acc, LR-1 1 1 - Z C
STAMI 0111 1111 RAM[HL]←Acc, LR+1 1 1 - Z C'
STD #k,y 0100 1000 kkkk yyyy RAM[y]←k22--1
STDMI #k 1010 kkkk RAM[HL]←k, LR+1 1 1 - Z C'
THA 0111 0110 Acc←HR 1 1 - Z 1
TLA 0111 0100 Acc←LR 1 1 - Z 1

12-Z1

(2) Rotate

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

RLCA 0101 0000 ←CF←Acc← 11CZC'
RRCA 0101 0001 →CF→Acc→ 11CZC'

(3) Arithmetic operation

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

C ZS

ADCAM 0111 0000 Acc←Acc + RAM[HL] + CF 1 1 C Z C'
ADD #k,y 0100 1001 kkkk yyyy RAM[y]←RAM[y] +k 2 2 - Z C'
ADDA #k 0110 1110 0101 kkkk Acc←Acc+k 2 2 - Z C'
ADDAM 0111 0001 Acc←Acc + RAM[HL] 1 1 - Z C'
ADDH #k 0110 1110 1001 kkkk HR←HR+k 2 2 - Z C'
ADDL #k 0110 1110 0001 kkkk LR←LR+k 2 2 - Z C'
ADDM #k 0110 1110 1101 kkkk RAM[HL]←RAM[HL] +k 2 2 - Z C'
DECA 0101 1100 Acc←Acc-1 1 1 - Z C
DECL 0111 1100 LR←LR-1 1 1 - Z C
DECM 0101 1101 RAM[HL]←RAM[HL] -1 1 1 - Z C
INCA 0101 1110 Acc←Acc + 1 1 1 - Z C'

* This specification are subject to be changed without notice.

7.20.1999

26

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

INCL 0111 1110 LR←LR + 1 1 1 - Z C'
INCM 0101 1111 RAM[HL]←RAM[HL]+1 1 1 - Z C'
SUBA #k 0110 1110 0111 kkkk Acc←k-Acc 2 2 - Z C
SBCAM 0111 0010 Acc←RAM[HLl - Acc - CF' 1 1 C Z C
SUBM #k 0110 1110 1111 kkkk RAM[HL]←k - RAM[HL] 2 2 - Z C

(4) Logical operation

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

ANDA #k 0110 1110 0110 kkkk Acc←Acc&k 2 2 - Z Z'
ANDAM 0111 1011 Acc←Acc & RAM[HL] 1 1 - Z Z'
ANDM #k 0110 1110 1110 kkkk RAM[HL]←RAM[HL]&k 2 2 - Z Z'
ORA #k 0110 1110 0100 kkkk Acc←Acc k 2 2 - Z Z'
ORAM 0111 1000 Acc ←Acc RAM[HL] 1 1 - Z Z'
ORM #k 0110 1110 1100 kkkk RAM[HL]←RAM[HL] k 2 2 - Z Z'
XORAM 0111 1001 Acc←Acc^RAM[HL] 1 1 - Z Z'

- -

- -

- -

(5) Exchange

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

EXA x 0110 1000 xxxx xxxx Acc↔RAM[x] 2 2 - Z 1
EXAH 0110 0110 Acc↔HR 1 2 - Z 1
EXAL 0110 0100 Acc↔LR 1 2 - Z 1
EXAM 0101 1000 Acc↔RAM[HL] 1 1 - Z 1
EXHL x 0100 1100 xxxx xx00 LR↔RAM[x],

HR↔RAM[x+1] 2 2 - - 1

(6) Branch

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

SBR a 00aa aaaa If SF=1 then PC←PC

11-6.a5-0

11--1

else null

LBR a 1100 aaaa aaaa aaaa If SF= 1 then PC←a else null 2 2 - - 1

(7) Compare

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CMP #k,y 0100 1011 kkkk yyyy k-RAM[y] 2 2 C Z Z'
CMPA x 0110 1011 xxxx xxxx RAM[x]-Acc 2 2 C Z Z'
CMPAM 0111 0011 RAM[HL] - Acc 1 1 C Z Z'
CMPH #k 0110 1110 1011 kkkk k - HR 2 2 - Z C
CMPIA #k 1011 kkkk k - Acc 1 1 C Z Z'
CMPL #k 0110 1110 0011 kkkk k-LR 2 2 - Z C

7.20.1999

27* This specification are subject to be changed without notice.

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

(8) Bit manipulation

Preliminary

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CLM b 1111 00bb RAM[HL]
CLP p,b 0110 1101 11bb pppp PORT[p]
CLPL 0110 0000 PORT[LR
CLR y,b 0110 1100 11bb yyyy RAM[y]
SEM b 1111 01bb RAM[HL]
SEP p,b 0110 1101 01bb pppp PORT[p]
SEPL 0110 0010 PORT[LR
SET y,b 0110 1100 01bb yyyy RAM[y]

TF y,b 0110 1100 00bb yyyy SF←RAM[y]
TFA b 1111 10bb SF←Acc
TFM b 1111 11bb SF←RAM[HL]
TFP p,b 0110 1101 00bb pppp SF←PORT[p]
TFPL 0110 0001 SF←PORT[LR
TT y,b 0110 1100 10bb yyyy SF←RAM[y]
TTP p,b 0110 1101 10bb pppp SF←PORT[p]

←011--1

b

←022--1

b

+4]LR

3-2

←022--1

b

←111--1

b

←122--1

b

+4]LR

3-2

←122--1

b

'11--*

b

←012--1

1-0

←112 --1

l-0

'22--*

b

'11--*

b

'22--*

b

b

3-2

b

+4]LR

'12--*

1-0

22--*
22--*

CZS

(9) Subroutine

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

LCALL a 0100 0aaa aaaa aaaa STACK[SP]←PC, 2 2 - - -

SP←SP -1, PC←a

SCALL a 1110 nnnn STACK[SP]←PC, 1 2 - - -

SP←SP - 1, PC←a,

a = 8n +6 (n=1~15),0086h (n =0)

RET 0100 1111 SP←SP + 1, PC←STACK[SP] 1 2 - - -

(10) Input/output

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

INA p 0110 1111 0100 pppp Acc←PORT[p] 2 2 - Z Z'
INM p 0110 1111 1100 pppp RAM[HL]←PORT[p] 2 2 - - Z'
OUT #k,p 0100 1010 kkkk pppp PORT[p]←k22--1
OUTA p 0110 1111 000p pppp PORT[p]←Acc 2 2 - - 1
OUTM p 0110 1111 100p pppp PORT[p]←RAM[HL] 2 2 - - 1

(11) Flag manipulation

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CGF 0101 0111 GF←011--1
SGF 0101 0101 GF←111--1
TFCFC 0101 0011 SF←CF', CF←0110-*

* This specification are subject to be changed without notice.

7.20.1999

28

EM73201

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

TGS 0101 0100 SF←GF 1 1 - - *
TTCFS 0101 0010 SF←CF, CF←1111-*
TZS 0101 1011 SF←ZF 1 1 - - *

(12) Interrupt control

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

CIL r 0110 0011 11rr rrrr IL←IL & r 2 2 - - 1
DICIL r 0110 0011 10rr rrrr EIF←0,IL←IL&r 2 2 - - 1
EICIL r 0110 0011 01rr rrrr EIF←1,IL←IL&r 2 2 - - 1
EXAE 0111 0101 MASK↔Acc 1 1 - - 1
RTI 0100 1101 SP←SP+1,FLAG.PC 1 2 * * *

←STACK[SP],EIF ←1

(13) CPU control

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

NOP 0101 0110 no operation 1 1 - - -

(14) Timer/Counter & Data pointer & Stack pointer control

Mnemonic Object code ( binary ) Operation description Byte Cycle Flag

CZS

LDADPL 0110 1010 1111 1100 Acc←[DP]
LDADPM 0110 1010 1111 1101 Acc←[DP]
LDADPH 0110 1010 1111 1110 Acc←[DP]

L

M

H

22-Z1
22-Z1
22-Z1

LDASP 0110 1010 1111 1111 Acc←SP 2 2 - Z 1
LDATAL 0110 1010 1111 0100 Acc←[TA]
LDATAM 0110 1010 1111 0101 Acc←[TA]
LDATAH 0110 1010 1111 0110 Acc←[TA]
LDATBL 0110 1010 1111 1000 Acc←[TB]
LDATBM 0110 1010 1111 1001 Acc←[TB]
LDATBH 0110 1010 1111 1010 Acc←[TB]

STADPL 0110 1001 1111 1100 [DP]
STADPM 0110 1001 1111 1101 [DP]
STADPH 0110 1001 1111 1110 [DP]

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

L

M

H

L

M

H

22-Z1
22-Z1
22 -Z1
22-Z1
22-Z1
22-Z1

STASP 0110 1001 1111 1111 SP←Acc 2 2 - - 1

STATAL 0110 1001 1111 0100 [TA]
STATAM 0110 1001 1111 0101 [TA]
STATAH 0110 1001 1111 0110 [TA]
STATBL 0110 1001 1111 1000 [ TB]
STATBM 0110 1001 1111 1001 [TB]
STATBH 0110 1001 1111 1010 [TB]

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

←Acc 2 2 - - 1

L

←Acc 2 2 - - 1

M

←Acc 2 2 - - 1

H

7.20.1999

29* This specification are subject to be changed without notice.

4-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT

Preliminary

**** SYMBOL DESCRIPTION

Symbol Description Symbol Description

HR H register LR L register
PC Program counter DP Data pointer
SP Stack pointer STACK[SP] Stack specified by SP
A

CC

CF Carry flag ZF Zero flag
SF Status flag GF General flag
EI Enable interrupt register IL Interrupt latch
MASK Interrupt mask PORT[p] Port ( address : p )

ΤΑ Timer/counter A ΤΒ Timer/counter B

RAM[HL] Data memory (address : HL ) RAM[x] Data memory (address : x )
ROM[DP]
[DP]
[DP]

L

L

H

[TA]M([TB]M) Middle 4-bit of timer/counter A [TA]H([TB]H) High 4-bit of timer/counter A

← Transfer ↔ Exchange

+ Addition - Substraction
& Logic AND Logic OR
^ Logic XOR ' Inverse operation
. Concatenation #k 4-bit immediate data
x 8-bit RAM address y 4-bit zero-page address
p 4-bit or 5-bit port address b Bit address
r 6-bit interrupt latch PC

LR

1-0

LR

3-2

Accumulator FLAG All flags

Low 4-bit of program memory ROM[DP]
Low 4-bit of data pointer register [DP]

M

H

High 4-bit of program memory
Middle 4-bit of data pointer register

High 4-bit of data pointer register [TA]L([TB]L) Low 4-bit of timer/counter A

(timer/counter B) register

(timer/counter B) register (timer/counter B) register

- -

Bit 11 to 6 of program counter
Bit 5 to 0 of destination address for

Contents of bit assigned by bit a

11-6

5-0

1 to 0 of LR branch instruction
Bit 3 to 2 of LR

EM73201

* This specification are subject to be changed without notice.

7.20.1999

30
