54150/DM54150/DM74150,
54151A/DM54151A/DM74151A
Data Selectors/Multiplexers
General Description
These data selectors/multiplexers contain full on-chip decoding to select the desired data source. The 150 selects
one-of-sixteen data sources; the 151A selects one-of-eight
data sources. The 150 and 151A have a strobe input which
must be at a low logic level to enable these devices. A high
level at the strobe forces the W output high and the Y output
(as applicable) low.
The 151A features complementary W and Y outputs, whereas the 150 has an inverted (W) output only.
The 151A incorporates address buffers which have symmetrical propagation delay times through the complementary paths. This reduces the possibility of transients occurring
at the output(s) due to changes made at the select inputs,
even when the 151A outputs are enabled (i.e., strobe low).
Features
Y
150 selects one-of-sixteen data lines
Y
151A selects one-of-eight data lines
Y
Performs parallel-to-serial conversion
Y
Permits multiplexing from N lines to one line
Y
Also for use as Boolean function generator
Y
Typical average propagation delay time, data input to W
output
150 11 ns
151A 9 ns
Y
Typical power dissipation
150 200 mW
151A 135 mW
Y
Alternate Military/Aerospace device (54150, 54151A) is
available. Contact a National Semiconductor Sales Office/Distributor for specifications.
Connection Diagrams
Dual-In-Line Package
TL/F/6546– 1
Order Number 54150DQMB, 54150FMQB,
DM54150J or DM74150N
See NS Package Number J24A, N24A or W24C
Dual-In-Line Package
TL/F/6546– 2
Order Number 54151ADMQB, 54151AFMQB,
DM54151AJ, DM54151AW or DM74151AN
See NS Package Number J16A, N16E or W16A
C
1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.
Absolute Maximum Ratings (Note)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage 7V
Input Voltage 5.5V
Operating Free Air Temperature Range
DM54 and 54
b
55§Ctoa125§C
DM74 0
§
Ctoa70§C
Storage Temperature Range
b
65§Ctoa150§C
Note:
The ‘‘Absolute Maximum Ratings’’ are those values
beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The
parametric values defined in the ‘‘Electrical Characteristics’’
table are not guaranteed at the absolute maximum ratings.
The ‘‘Recommended Operating Conditions’’ table will define
the conditions for actual device operation.
Recommended Operating Conditions
Symbol Parameter
DM54150 DM74150
Units
Min Nom Max Min Nom Max
V
CC
Supply Voltage 4.5 5 5.5 4.75 5 5.25 V
V
IH
High Level Input Voltage 2 2 V
V
IL
Low Level Input Voltage 0.8 0.8 V
I
OH
High Level Output Current
b
0.8
b
0.8 mA
I
OL
Low Level Output Current 16 16 mA
T
A
Free Air Operating Temperature
b
55 125 0 70
§
C
’150 Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol Parameter Conditions Min
Typ
Max Units
(Note 1)
V
I
Input Clamp Voltage V
CC
e
Min, I
I
eb
12 mA
b
1.5 V
V
OH
High Level Output V
CC
e
Min, I
OH
e
Max
2.4 V
Voltage V
IL
e
Max, V
IH
e
Min
V
OL
Low Level Output V
CC
e
Min, I
OL
e
Max
0.4 V
Voltage V
IH
e
Min, V
IL
e
Max
I
I
Input Current@Max V
CC
e
Max, V
I
e
5.5V
1mA
Input Voltage
I
IH
High Level Input Current V
CC
e
Max, V
I
e
2.4V 40 mA
I
IL
Low Level Input Current V
CC
e
Max, V
I
e
0.4V
b
1.6 mA
I
OS
Short Circuit V
CC
e
Max DM54
b
20
b
55
mA
Output Current (Note 2)
DM74
b
18
b
55
I
CC
Supply Current V
CC
e
Max, (Note 3) 40 68 mA
Note 1: All typicals are at V
CC
e
5V, T
A
e
25§C.
Note 2: Not more than one output should be shorted at a time.
Note 3: I
CC
is measured with the strobe and data select inputs at 4.5V, all other inputs and outputs open.
2
’150 Switching Characteristics
at V
CC
e
5V and T
A
e
25§C (See Section 1 for Test Waveforms and Output Load)
Symbol Parameter
From (Input)
R
L
e
400X,C
L
e
15 pF
Units
To (Output)
Min Max
t
PLH
Propagation Delay Time Select
35 ns
Low to High Level Output to W
t
PHL
Propagation Delay Time Select
33 ns
High to Low Level Output to W
t
PLH
Propagation Delay Time Strobe
24 ns
Low to High Level Output to W
t
PHL
Propagation Delay Time Strobe
30 ns
High to Low Level Output to W
t
PLH
Propagation Delay Time E0-E15
20 ns
Low to High Level Output to W
t
PHL
Propagation Delay Time E0-E15
14 ns
High to Low Level Output to W
Recommended Operating Conditions
Symbol Parameter
DM54151A DM74151A
Units
Min Nom Max Min Nom Max
V
CC
Supply Voltage 4.5 5 5.5 4.75 5 5.25 V
V
IH
High Level Input Voltage 2 2 V
V
IL
Low Level Input Voltage 0.8 0.8 V
I
OH
High Level Output Current
b
0.8
b
0.8 mA
I
OL
Low Level Output Current 16 16 mA
T
A
Free Air Operating Temperature
b
55 125 0 70
§
C
3
’151A Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol Parameter Conditions Min
Typ
Max Units
(Note 1)
V
I
Input Clamp Voltage V
CC
e
Min, I
I
eb
12 mA
b
1.5 V
V
OH
High Level Output V
CC
e
Min, I
OH
e
Max
2.4 V
Voltage V
IL
e
Max, V
IH
e
Min
V
OL
Low Level Output V
CC
e
Min, I
OL
e
Max
0.4 V
Voltage V
IH
e
Min, V
IL
e
Max
I
I
Input Current@Max V
CC
e
Max, V
I
e
5.5V
1mA
Input Voltage
I
IH
High Level Input Current V
CC
e
Max, V
I
e
2.4V 40 mA
I
IL
Low Level Input Current V
CC
e
Max, V
I
e
0.4V
b
1.6 mA
I
OS
Short Circuit V
CC
e
Max DM54
b
20
b
55
mA
Output Current (Note 2)
DM74
b
18
b
55
I
CC
Supply Current V
CC
e
Max, (Note 3) 27 48 mA
Note 1: All typicals are at V
CC
e
5V, T
A
e
25§C.
Note 2: Not more than one output should be shorted at a time.
Note 3: I
CC
is measured with the strobe and data select inputs at 4.5V, all other inputs and outputs open.
’151A Switching Characteristics
at V
CC
e
5V and T
A
e
25§C (See Section 1 for Test Waveforms and Output Load)
Symbol Parameter
From (Input)
R
L
e
400X,C
L
e
15 pF
Units
To (Output)
Min Max
t
PLH
Propagation Delay Time Select
38 ns
Low to High Level Output (4 Levels) to Y
t
PHL
Propagation Delay Time Select
30 ns
High to Low Level Output (4 Levels) to Y
t
PLH
Propagation Delay Time Select
26 ns
Low to High Level Output (3 Levels) to W
t
PHL
Propagation Delay Time Select
30 ns
High to Low Level Output (3 Levels) to W
t
PLH
Propagation Delay Time Strobe
33 ns
Low to High Level Output to Y
t
PHL
Propagation Delay Time Strobe
30 ns
High to Low Level Output to Y
t
PLH
Propagation Delay Time Strobe
21 ns
Low to High Level Output to W
t
PHL
Propagation Delay Time Strobe
25 ns
High to Low Level Output to W
t
PLH
Propagation Delay Time D0-D7
24 ns
Low to High Level Output to Y
t
PHL
Propagation Delay Time D0-D7
24 ns
High to Low Level Output to Y
t
PLH
Propagation Delay Time D0-D7
14 ns
Low to High Level Output to W
t
PHL
Propagation Delay Time D0-D7
14 ns
High to Low Level Output to W
4
Logic Diagrams
150
TL/F/6546– 3
5
Logic Diagrams
151A
TL/F/6546– 4
See Address Buffers Below
Address Buffers for
54151A/74151A
TL/F/6546– 5
Function Tables
54150/74150
Inputs
Outputs
Select Strobe
W
DCBA
S
XXXX H H
LLLL L E0
LLLH L E1
LLHL L E2
LLHH L E3
LHLL L E4
LHLH L E5
LHHL L E6
LHHH L E7
HLL L L E8
HLLH L E9
HLHL L E10
HLHH L E11
H H L L L E12
H H L H L E13
HHHL L E14
HHHH L E15
HeHigh Level, LeLow Level, XeDon’t Care
E0
,E1...E15ethe complement of the level of the respective E input
54151A/75151A
Inputs Outputs
Select
Strobe
YW
CBA
S
XXX H L H
LLL L D0D0
L L H L D1 D1
LHL L D2 D2
L H H L D3 D3
H L L L D4 D4
HLH L D5 D5
H H L L D6 D6
HHH L D7 D7
H
e
High Level, LeLow Level, XeDon’t Care
D0, D1 . . . D7
e
the level of the respective D input
6

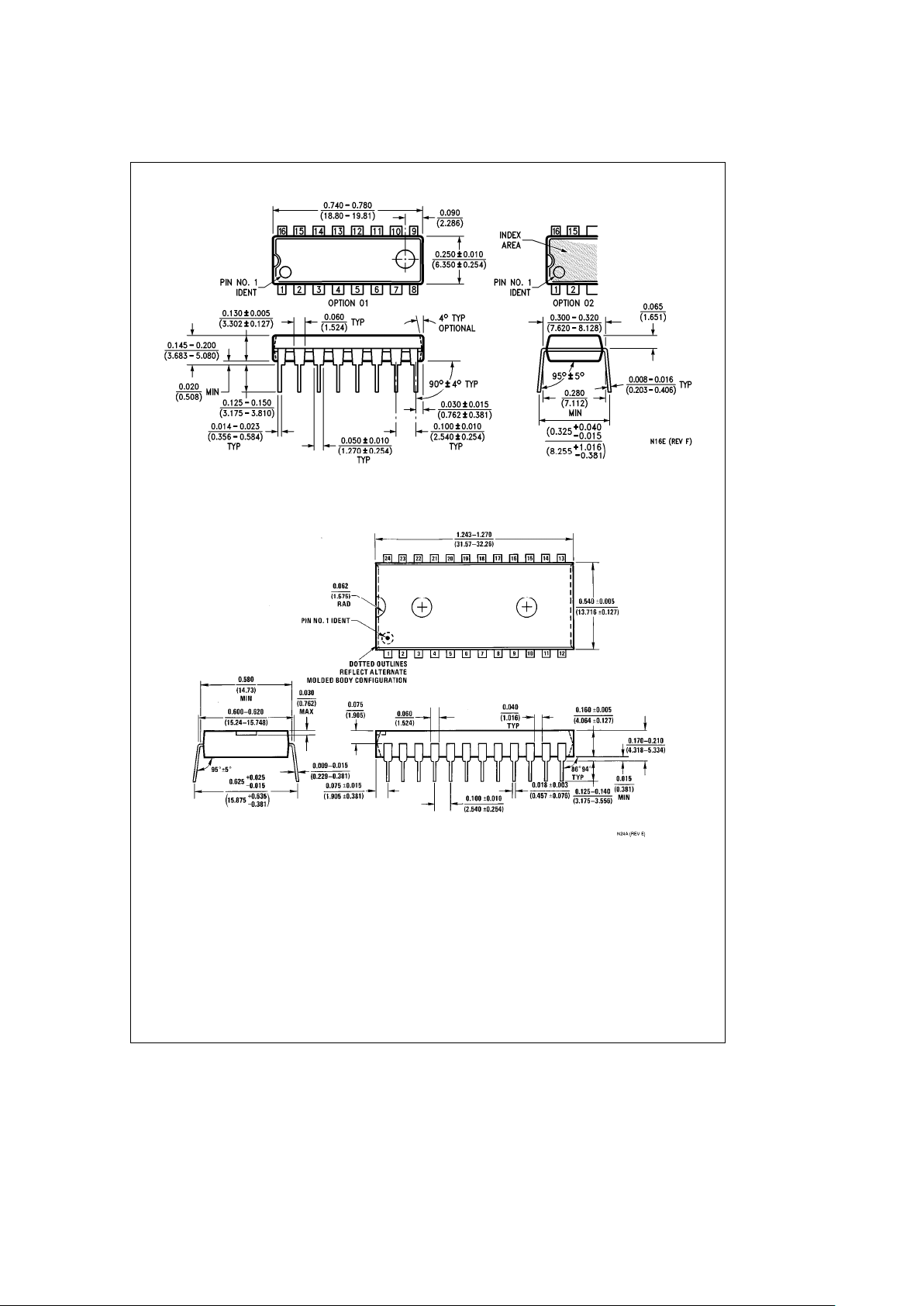

Physical Dimensions inches (millimeters)
16-Lead Ceramic Dual-In-Line Package (J)
Order Number 54151ADMQB or DM54151AJ
NS Package Number J16A
24-Lead Ceramic Dual-In-Line Package (J)
Order Number 54150DMQB or DM54150J
NS Package Number J24A
7
Physical Dimensions inches (millimeters) (Continued)
16-Lead Molded Dual-In-Line Package (N)
Order Number DM74151AN
NS Package Number N16E
24-Lead Molded Dual-In-Line Package (N)
Order Number DM74150N
NS Package Number N24A
8
Physical Dimensions inches (millimeters) (Continued)
16-Lead Ceramic Flat Package (W)
Order Number 54151AFMQB or DM54151AW
NS Package Number W16A
9
54150/DM54150/DM74150, 54151A/DM54151A/DM74151A Data Selectors/Multiplexers
Physical Dimensions inches (millimeters) (Continued)
24-Lead Ceramic Flat Package (W)
Order Number 54150FMQB
NS Package Number W24C
