Description
The CXP750096/750010, CXP750097/750011 are the
CMOS 8-bit single chip microcomputer integrating on a
single chip an A/D converter, serial interface, timer/
counter, time-base timer, on-screen display function, I
2
C
bus interface, PWM output, remote control reception
circuit, HSYNC counter, watchdog timer, 32kHz timer/
counter besides the basic configurations of 8-bit CPU,
ROM, RAM, I/O ports.
The CXP750096/750010, CXP750097/750011 also
provide a sleep function that enables to lower the power
consumption.
Features
• A wide instruction set (213 instructions) which covers
various types of data
– 16-bit operation/multiplication and division/
Boolean bit operation instructions
• Minimum instruction cycle 167ns at 24MHz operation
122µs at 32kHz operation
• Incorporated ROM 96K bytes (CXP750096/750097)
120K bytes (CXP750010/750011)
• Incorporated RAM 2496 bytes
(Excludes VRAM for on-screen display)
• Peripheral functions
– A/D converter 8-bit 6-channel successive approximation method
(Conversion time of 3.25µs at 16MHz)
– Serial interface 8-bit clock sync type, 1 channel
– Timer 8-bit timer
8-bit timer/counter
19-bit time-base timer
32 kHz timer/counter
– On-screen display (OSD) function 24
× 32 dots, 512 character types,
15 character colors, 2 lines × 32 characters,
frame background 8 colors/ half blanking,
background on full screen 15 colors/ half blanking
edging/ shadowing/ rounding for every line,
background with shadow for every character, double scanning,
sprite OSD,
24 × 32 dots, 1 screen, 8 colors for every dot
– I
2
C bus interface
– PWM output 8 bits, 8 channels
14 bits, 1 channel
– Remote control reception circuit 8-bit pulse measurement counter, 6-stage FIFO
– HSYNC counter 2 channels
– Watchdog timer
• Interruption 13 factors, 13 vectors, multi-interruption possible
• Standby mode Sleep
• Package 64-pin plastic SDIP/QFP, 52-pin plastic SDIP
• Piggyback/evaluator CXP750000 64-pin ceramic PQFP/PSDIP (Supports custom font)
Perchase of Sony's I2C components conveys a licence under the Philips I2C Patent Rights to use these components
in an I2C system, provided that the system conforms to the I2C Standard Specifications as defined by Philips.
CXP750096/750010
CXP750097/750011
CMOS 8-bit Single Chip Microcomputer
– 1 –
E98767-PS
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.

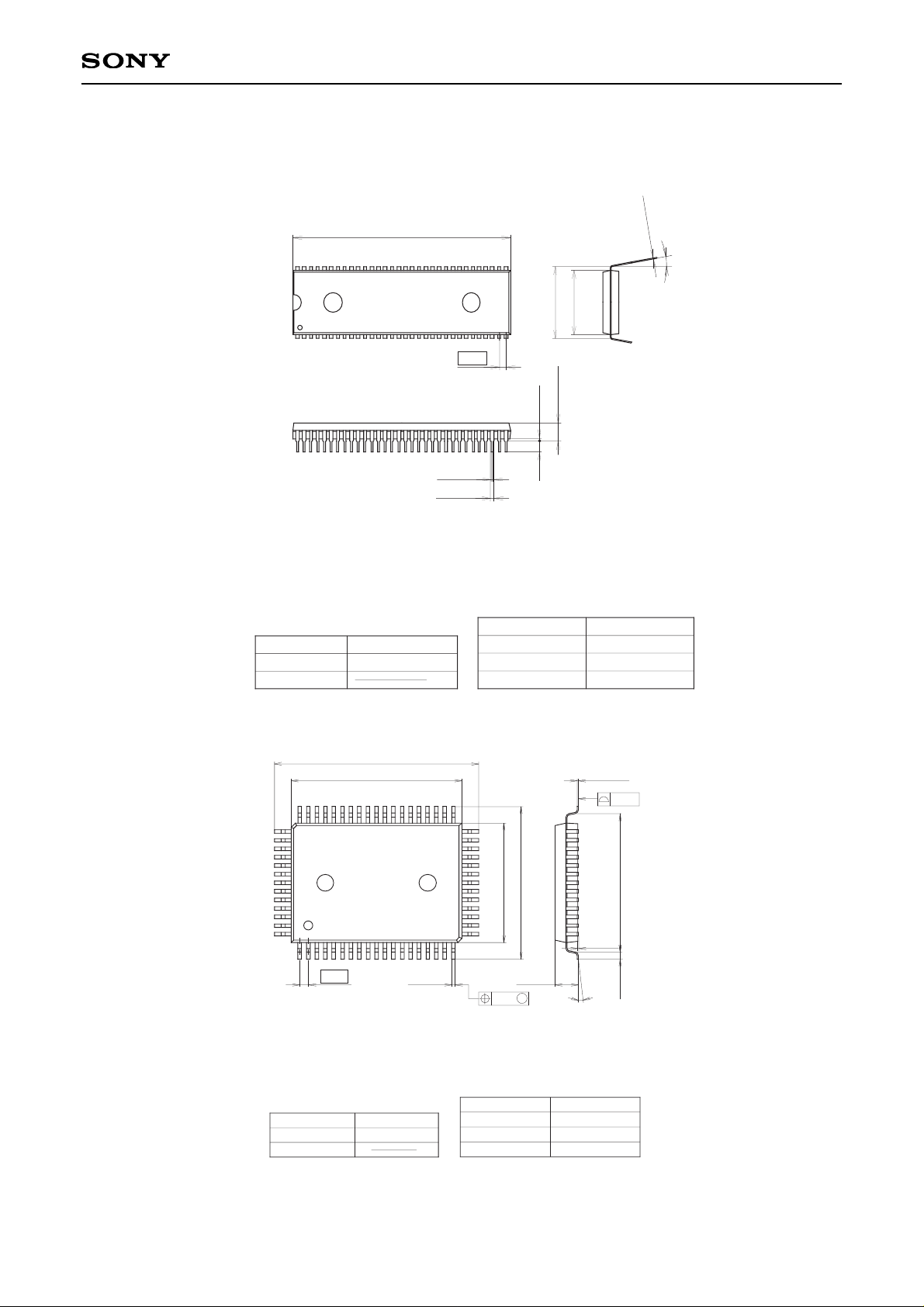

64 pin SDIP (Plastic) 64 pin QFP (Plastic)

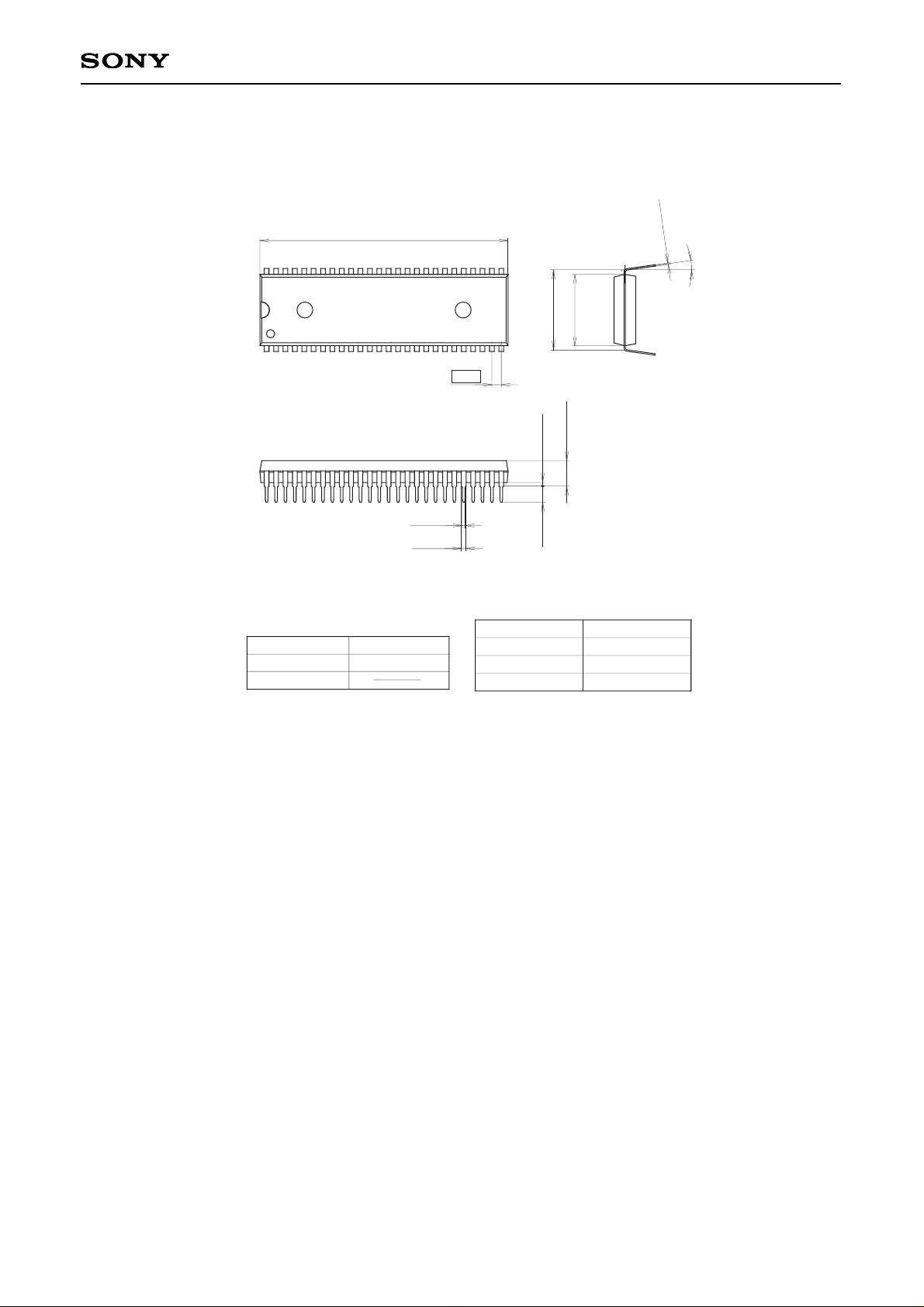

52 pin SDIP (Plastic)
Structure
Silicon gate CMOS IC
– 2 –
CXP750096/750010, CXP750097/750011
A/D CONVERTER
6CH
FIFOREMOCON
SERIAL INTERFACE
UNIT
8-BIT TIMER 1
8-BIT TIMER/
COUNTER 0
ON SCREEN
DISPLAY
HSYNC COUNTER 0
HSYNC COUNTER 1
I
2
C BUS
INTERFACE UNIT
8 BITS PWM 8CH (6CH) 14 BITS PWM 1CH
PRESCALER/
TIME-BASE TIMER
WATCHDOG TIMER
32kHz
TIMER/COUNTER
ROM
96K/120K BYTES
RAM
2496 BYTES
SPC700 CPU CORE
CLOCK GENERATOR
/SYSTEM CONTROL
INTERRUPT CONTROLLER
PORT APORT BPORT CPORT DPORT EPORT FPORT G
PG3 to PG6
∗
, PG7
PWM
5
PF0 to PF7
8
PE4 to PE63PE2, PE3
2
PE0, PE1
2
PD0 to PD7
8
PC6, PC7
∗
2
PC0 to PC5
∗
6
PB0 to PB7
8
PA0 to PA7
8
PWM0 to PWM7
ADJ
SCL1
SCL0
SDA1
SDA0
HS1
HS0
VSYNC
HSYNC
YM
YS
I
B
G
R
EXLC
XLC
TO
EC
SCK
SO
SI
RMC
AN0 to AN5
6
2
2
2
INT0
INT1
INT2
TEX
TX
EXTAL
XTAL
V
DD
V
SS
RST
8 (6)
Block Diagram
Asterisks indicate pins missing from 52-pin
models.Parentheses indicate configurations
for 52-pin models.
– 3 –
CXP750096/750010, CXP750097/750011
40
39
38
37
36
35
34
33
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
63
64
61
62
31
32
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
V
SS
VDD
NC
EXLC
XLC
PE4/YM
PE5/YS
PE6/I
B
G
R
PB0
PB1
PB2
PG3
PG4
PC4
PC5
PC6/PWM6
PC7/PWM7
PF0/PWM0
PF1/PWM1
PF2/PWM2
PF3/PWM3
PF4/SCL0
PF5/SCL1/PWM4
PF6/SDA0
PF7/SDA1/PWM5
PE0/TO/ADJ
PE1/PWM
PE2/TEX/INT0
PE3/TX
HS0/PD4
PC3
PC2
PC1
PC0
EC/PD7
RMC/PD6
HS1/PD5
SI/PD3
SO/PD2
SCK/PD1
INT2/PD0
HSYNC/PA7
VSYNC/PA6
RST
V
SS
PA0/AN0
XTAL
EXTAL
PA5/AN5
PA4/AN4
PA3/AN3
PA2/AN2
PA1/AN1
PB7
PB6
PB5
PB4
PB3
INT1/PG7
PG6
PG5
Pin Assignment (Top View) 64-pin SDIP
Note)
1. NC (Pin 46) is left open.
2. Vss (Pins 16 and 48) are both connected to GND.
– 4 –
CXP750096/750010, CXP750097/750011
VSS
VDD
NC
EXLC
XLC
PE4/YM
PE5/YS
PE6/I
B
G
PE1/PWM
PE2/TEX/INT0
PE3/TX
PF3/PWM3
PF4/SCL0
PF5/SCL1/PWM4
PF6/SDA0
PF7/SDA1/PWM5
PE0/TO/ADJ
40
39
38
37
36
35
34
33
41
42
43
44
45
46
47
48
49
50
51
PF2/PWM2
PF1/PWM1
PF0/PWM0
PC7/PWM7
PC6/PWM6
PC5
PC4
PC3
PC2
PC1
PC0
PD7/EC
PD6/RMC
52
53
54
55
56
57
58
59
60
63
64
61
62
R
PB0
PB1
PB2
PG3
PG4
PG5
PG6
INT1/PG7
PB3
PB4
PB5
PB6
31
32
20
21
22
23
24
25
26
27 28
29
30
HS0/PD4
HS1/PD5
SI/PD3
SO/PD2
SCK/PD1
INT2/PD0
HSYNC/PA7
VSYNC/PA6
RST
V
SS
PA0/AN0
XTAL
EXTAL
PA5/AN5
PA4/AN4
PA3/AN3
PA2/AN2
PA1/AN1
PB7
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Pin Assignment (Top View) 64-pin QFP
Note)
1. NC (Pin 40) is left open.
2. Vss (Pins 10 and 42) are both connected to GND.
– 5 –
CXP750096/750010, CXP750097/750011
40
39
38
37
36
35
34
33
41
42
43
44
45
46
47
48
49
50
51
52
31
32
27
28
29
30
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
HS0/PD4
EC/PD7
RMC/PD6
HS1/PD5
SI/PD3
SO/PD2
SCK/PD1
INT2/PD0
HSYNC/PA7
VSYNC/PA6
RST
V
SS
PA0/AN0
XTAL
EXTAL
PA5/AN5
PA4/AN4
PA3/AN3
PA2/AN2
PA1/AN1
PB7
PB6
PB5
PB4
PB3
INT1/PG7
VSS
VDD
NC
EXLC
XLC
PE4/YM
PE5/YS
PE6/I
B
G
R
PB0
PB1
PB2
PF0/PWM0
PF1/PWM1
PF2/PWM2
PF3/PWM3
PF4/SCL0
PF5/SCL1/PWM4
PF6/SDA0
PF7/SDA1/PWM5
PE0/TO/ADJ
PE1/PWM
PE2/TEX/INT0
PE3/TX
Pin Assignment (Top View) 52-pin SDIP
Note)
1. NC (Pin 38) is left open.
2. Vss (Pins 12 and 40) are both connected to GND.
– 6 –
CXP750096/750010, CXP750097/750011
(Port A)
8-bit I/O port.
I/O can be set in a
unit of single bits.
(8 pins)
(Port B)
8-bit I/O port. I/O can be set in a unit of single bits.
(8 pins)
(Port C)
Lower 6 bits are I/O ports; I/O can be set in a unit of single bits. Upper
2 bits are output port and large current (12mA) N-channel open drain
output. Upper 2 bits are medium drive voltage (12V); lower 6 bits are
5V drive.
(8 pins)
(Port D)
8-bit I/O port. I/O
can be set in a
unit of single bits.
Can drive 12mA
synk current.
(8 pins)
(Port E)
Bits 0 and 1 are I/O
port; I/O can be set
in a unit of single.
Bits 2 and 3 are
input port. Bits 4, 5
and 6 are output
port.
(7 pins)
Pin Description
Symbol
PA0/AN0
to
PA5/AN5
PA6/VSYNC
PA7/HSYNC
PB0 to PB7
PC0 to PC5
∗
PC6/PWM6∗ to
PC7/PWM7
∗
PD0/INT2
PD1/SCK
PD2/SO
PD3/SI
PD4/HS0
PD5/HS1
PD6/RMC
PD7/EC
PE0/TO/ADJ
PE1/PWM
PE2/TEX/INT0
PE3/TX
PE4/YM
PE5/YS
PE6/I
B
G
R
I/O/
Analog input
I/O/Input
I/O/Input
I/O
I/O
Output/Output
I/O/Input
I/O/I/O
I/O/Output
I/O/Input
I/O/Input
I/O/Input
I/O/Input
I/O/Input
I/O/Output/
Output
I/O/Output
Input/Input/
Input
Input/Output
Output/Output
Output/Output
Output/Output
Output
Output
Output
I/O
Description
Analog inputs to A/D converter.
(6 pins)
OSD display vertical sync signal input.
OSD display horizontal sync signal input.
8-bit PWM output.
(2 pins)
External interruption request input. Active at the
falling edge.
Serial clock I/O.
Serial data output.
Serial data input.
HSYNC counter (CH0) input.
HSYNC counter (CH1) input.
Remote control reception circuit input.
External event input for timer/counter.
Rectangular wave output
for 8-bit timer/counter.
14-bit PWM output.
Connects a crystal for
32kHz timer/counter
clock oscillation. When
used as an event
counter, input to TEX pin and leave TX pin open.
TEX oscillation
frequency dividing output.
External interruption
request input. Active at
the falling edge.
OSD display 6-bit output.
(6 pins)
∗
Not incorporated for Pin 52 package.
– 7 –
CXP750096/750010, CXP750097/750011
(Port F)
8-bit output port
and large current
(12mA) N-channel
open drain output.
Lower 4 bits are
medium drive
voltage (12V); upper
4 bits are 5V drive.
(8 pins)
(Port G)
5-bit I/O port. I/O can be set in a unit of single bits.
(5 pins)
Connects a crystal for system clock oscillation. When a clock is
supplied externally, input to EXTAL pin and input a reversed phase
clock to XTAL pin.
System reset; active at Low level.
OSD display clock oscillation I/O. Oscillation frequency is determined
by the external L and C.
No connected.
Positive power supply.
GND. Connect two Vss pins to GND.
8-bit PWM output.
(4 pins)
I2C bus interface transfer clock I/O.
(2 pins)
I2C bus interface transfer data I/O.
(2 pins)
Symbol
PF0/PWM0 to
PF3/PWM3
PF4/SCL0
PF5/SCL1/
PWM4
PF6/SDA0
PF7/SDA1/
PWM5
PG3 to PG6
∗
PG7/INT1
EXTAL
XTAL
RST
EXLC
XLC
NC
VDD
Vss
Output/Output
Output/I/O
Output/I/O/
Output
Output/I/O
Output/I/O/
Output
I/O
I/O/Input
Input
Output
Input
Input
Output
I/O Description
8-bit PWM output.
8-bit PWM output.
External interruption request input.
Active at the falling edge.
∗
Not incorporated for Pin 52 package.
– 8 –
CXP750096/750010, CXP750097/750011

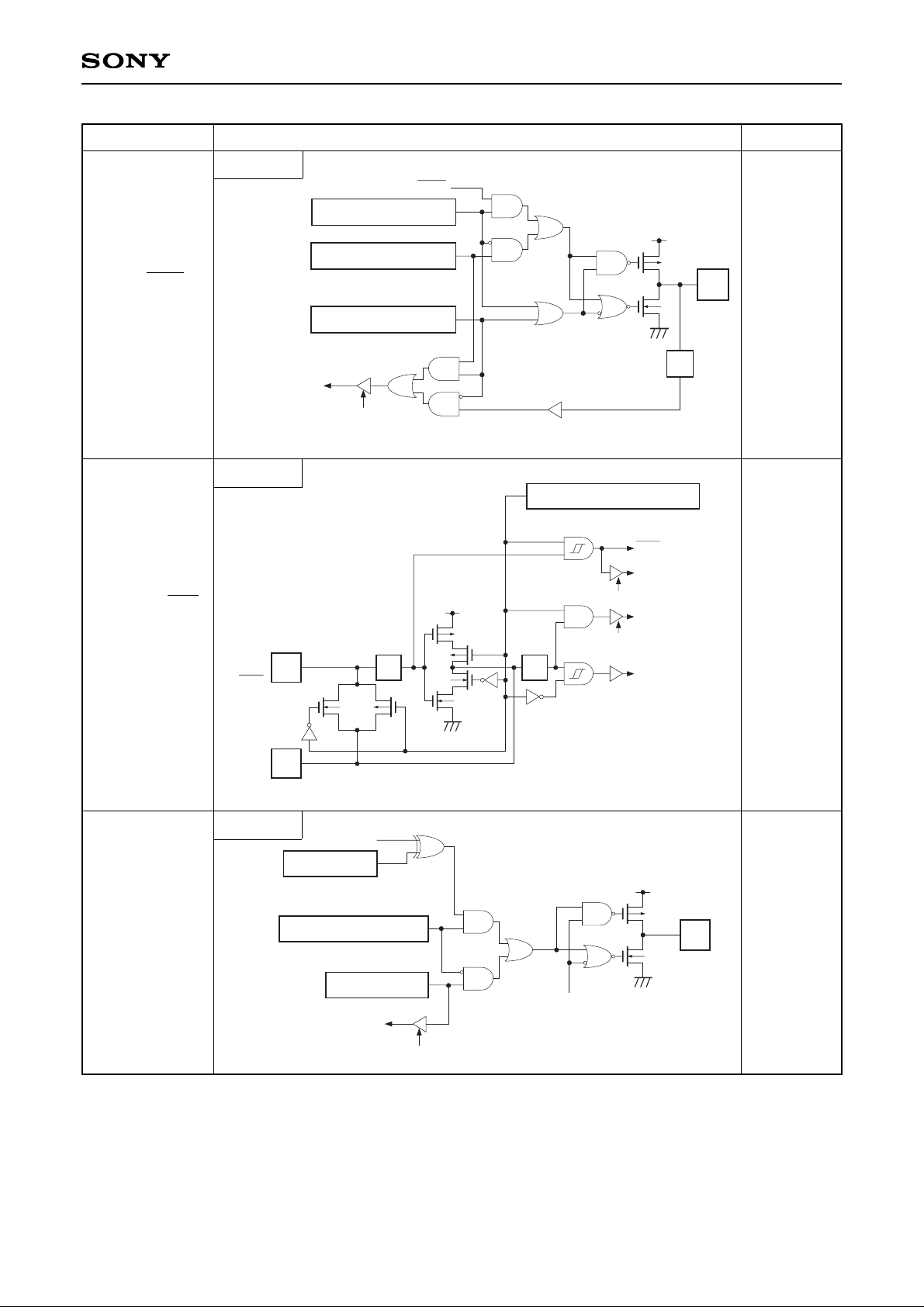

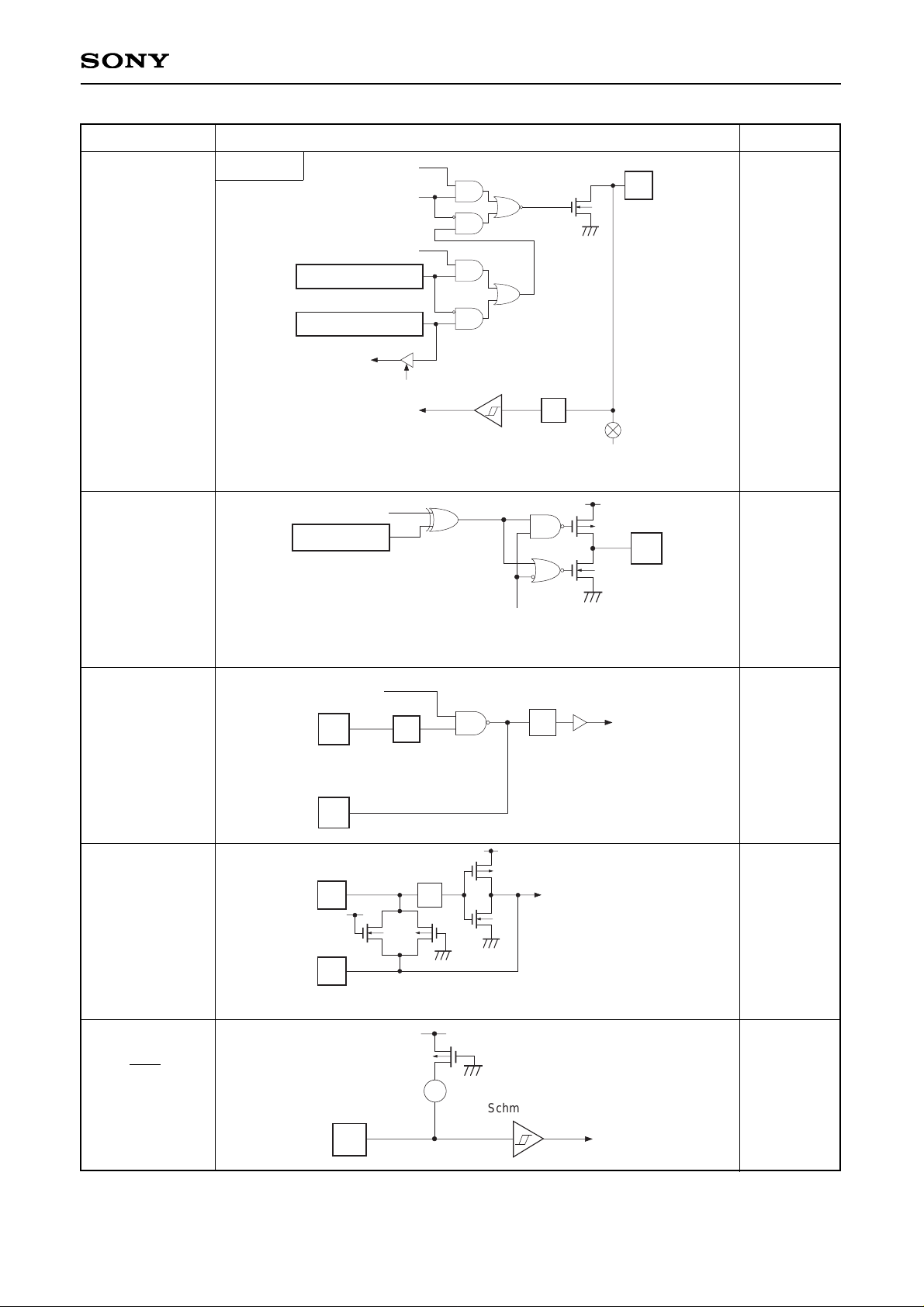

Input/Output Circuit Formats for Pins
Port A
Port A
Port B
Port C
6 pins
2 pins
19 pins
Hi-Z
Hi-Z
Hi-Z
Pin After a resetCircuit format
PA6/VSYNC
PA7/HSYNC
PB0 to PB7
PC0 to PC5
∗2
PG3 to PG6
∗2
PG7/INT1
PA0/AN0
to
PA5/AN5
Port G
Ports C and F data
Ports C and F
function selection
“0” after a reset
“1” after a reset
PWM0 to PWM3
PWM6, PWM7
∗
1
12V drive voltage
Large current 12mA
∗1
RD (Ports C, F)
Internal data bus
Port C
6 pins
PC6/PWM6
∗2
PC7/PWM7
∗2
PF0/PWM0
to
PF3/PWM3
Hi-Z
Port F
∗2
Not incorporated for Pin 52 package.
Port A direction
“0” after a reset
Internal data bus
RD (Port A)
Port A function selection
“0” after a reset
A/D converter
Input multiplexer
Port A direction
“0” after a reset
Internal data bus
RD (Port A)
HSYNC, VSYNC
Port A data
Port A data
Schmitt input
IP
Input
protection
circuit
IP
Input polarity
“0” after a reset
Internal data bus
RD (Ports B, C, G)
INT1
Ports B, C, G data
Ports B, C, G direction
“0” after a reset
PB0 to PB2
Schmitt input only
for PG7
IP
– 9 –
CXP750096/750010, CXP750097/750011
Port D
Port D
Port E
6 pins
2 pins
1 pin
Hi-Z
Hi-Z
High level
H level at ON
resistance of
pull-up
transistor
during a reset
Pin After a resetCircuit format
PD1/SCK
PD2/SO
PE0/TO/ADJ
PD0/INT2
PD3/SI
PD4/HS0
PD5/HS1
PD6/RMC
PD7/EC
( )
Internal data bus
Internal data bus
INT2, SI, HS0,
HS1, RMC, EC
SCK, SO
SIO output enable
Port D data
Port D direction
“0” after a reset
RD (Port D)
Port D data
Port D direction
“0” after a reset
Schmitt input
Schmitt input
only for PD1
∗
IP
∗
Large current 12mA
∗
IP
SCK only
Port E data
“1” after a reset
ADJ16K
ADJ2K
Port E function selection (Upper)
Port E function selection (Lower)
“00” after a reset
Port E direction
“1” after a reset
Internal data bus
RD (Port E)
RD (Port D)
Internal reset signal
TO
∗
1
∗
1
00
01
10
11
MPX
∗
1
ADJ signals are frequency
dividing outputs for 32kHz
oscillation frequency
adjustment. ADJ2K provides
usage as buzzer output.
∗
2
Pull-up resistors approx. 150kΩ
∗
Large current 12mA
∗2
IP
– 10 –
CXP750096/750010, CXP750097/750011
Port E
Port E
1 pin
2 pins
3 pins
Pin After a resetCircuit format
PE2/TEX/INT0
PE3/TX
High level
Oscillation
halted
Port input
Hi-Z
PE1/PWM
PE4/YM
PE5/YS
PE6/I
YM, YS, I
Output polarity
“0” after a reset
Port E function selection
“1” after a reset
Port E data
Internal data bus
RD (Port E)
Writing data to output polarity
register and port data register
brings output to active.
Port E
Port E function selection
“0” after a reset
Port E data
“1” after a reset
PWM
Internal data bus
PE2/
TEX/
INT0
PE3/
TX
Port E direction
“1” after a reset
RD (Port E)
TEX oscillation circuit control
“1” after a reset
Schmitt input
INT0
Intrenal data bus
RD (Port E)
Internal data bus
RD (Port E)
Schmitt input
IPIP
Clock input
IP
– 11 –
CXP750096/750010, CXP750097/750011
4 pins
3 pins
Pin
After a resetCircuit format
R
G
B
Hi-Z
Hi-Z
I2C bus enable
Port F data
Port F function selection
“0” after a reset
“1” after a reset
PWM4, PWM5
SCL, SDA
SCL, SDA
(I2C bus circuit)
IP
Schmitt input
∗
Large current 12mA
To internal I
2
C pins
(SCL1 for SCL0)
BUS SW
∗
RD (Port F)
Internal data bus
R, G, B
Output polarity
“0” after a reset
Writing data to output
polarity register brings
output to active.
Port F
PF4/SCL0
PF5/SCL1/PWM4
PF6/SDA0
PF7/SDA1/PWM5
EXLC
XLC
IP
Oscillation control
IP
OSD display clock
IP
EXTAL
XTAL
• Diagram shows the
circuit composition
during oscillation.
• Feedback resistor is
removed and XTAL is driven
at "H" level driving stop.
(This device does not enter the
stop mode.)
Schmitt input
Pull-up resistor
OP
Mask option
2 pins
EXLC
XLC
2 pins
EXTAL
XTAL
1 pin
RST
Oscillation
halted
Oscillation
Low level
(during a
reset)
– 12 –
CXP750096/750010, CXP750097/750011
∗1
VIN and VOUT should not exceed VDD + 0.3V.
∗2
The large current output port is Port C (PC6, PC7), Port D (PD) and Port F (PF).
Note) Usage exceeding absolute maximum ratings may permanently impair the LSI. Normal operation should
be conducted under the recommended operating conditions. Exceeding those conditions may
adversely affect the reliability of the LSI.
VDD
VIN
VOUT
VOUTP
IOH
∑IOH
IOL
IOLC
∑IOL
Topr
Tstg
PD
–0.3 to +7.0
–0.3 to +7.0
∗1
–0.3 to +7.0
∗1
–0.3 to +15.0
–5
–50
15
20
130
–20 to +75
–55 to +150
1000
600
V
V
V
V
mA
mA
mA
mA
mA
°C
°C
mW
mW
Total of all output pins
Ports excluding large current output
(value per pin)
Large current output ports
(value per pin∗2)
Total of all output pins
SDIP-64P-01
QFP-64P-L01
Item Symbol Ratings Unit Remarks
Absolute Maximum Ratings (Vss = 0V reference)
Supply voltage
Input voltage
Output voltage
Medium drive output voltage
High level output current
High level total output current
Low level output current
Low level total output current
Operating temperature
Storage temperature
Allowable power dissipation
– 13 –
CXP750096/750010, CXP750097/750011
Supply voltage
High level input
voltage
Low level input
voltage
Operating temperature
5.5
5.5
5.5
—
VDD
VDD
VDD + 0.3
0.3VDD
0.2VDD
0.4
+75
V
V
V
V
V
V
V
V
V
V
°C
Item Symbol Min. Max. Unit Remarks
4.5
3.5
2.7
—
0.7VDD
0.8VDD
VDD – 0.4
0
0
–0.3
–20
VIH
VIHS
VIHEX
VIL
VILS
VILEX
Topr
Guaranteed operation range for 1/2 and 1/4
frequency dividing modes
Guaranteed operation range for 1/16 frequency
dividing mode or sleep
Guaranteed operation range for TEX mode
Guaranteed data hold range for stop
∗5
∗1
∗2
EXTAL pin∗3, TEX pin
∗4
∗1
∗2
EXTAL pin∗3, TEX pin
∗4
VDD
∗1
This device does not enter the stop mode.
∗2
PA0 to PA5, PB3 to PB7, PC0 to PC5, PD2, PE0, PE1, PE3, PG3 to PG6, SCL0, SCL1, SDA0, SDA1 pins
∗3
VSYNC, HSYNC, INT2, SCK, SI, HS0, HS1, RMC, EC, INT0, INT1, RST pins
∗4
Specifies only during external clock input.
∗5
Specifies only during external event count input.
Recommended Operating Conditions (Vss = 0V reference)
– 14 –
CXP750096/750010, CXP750097/750011
VDD = 4.5V, IOH = –0.5mA
VDD = 4.5V, IOH = –1.2mA
VDD = 4.5V, IOL = 1.8mA
VDD = 4.5V, IOL = 3.6mA
VDD = 4.5V, IOL = 3.0mA
VDD = 4.5V, IOL = 4.0mA
VDD = 5.5V, VIH = 5.5V
VDD = 5.5V, VIL = 0.4V
VDD = 5.5V, VIH = 5.5V
VDD = 4.5V, IOL = 12.0mA
High level output
voltage
Low level output
voltage
Input current
I/O leakage current
Open drain I/O
leakage current
(in N-ch Tr off state)
Supply current
∗2
4.0
3.5
20
33
2.2
12
——
µA
mA
µA
µA
50
10
120
30
29
45
82
3.8
35
—
mA
µA
µA
Ω
0.4
0.6
1.5
0.4
0.6
40
–40
10
–10
–400
±10
V
V
V
V
V
µA
µA
µA
µA
µA
µA
0.5
–0.5
0.1
–0.1
–1.5
V
V
PA, PB, PC0 to PC5,
PD, PE0 to PE1,
PE4 to PE6, PG, R,
G, B
PA to PD, PE0 to PE1,
PE4 to PE6, PF0 to
PF3, PG, R, G, B
PC6, PC7, PD, PF
PF4 to PF7
(SCL0, SCL1,
SDA0, SDA1)
EXTAL
RST
∗1
PA, PB, PC0 to PC5,PD,
PE, PG, R, G, B, RST
∗1
PC6, PC7, PF0 to PF3
PF4 to PF7
SCL0: SCL1
SDA0: SDA1
VDD = 5.5V, VIL = 0.4V
VDD = 5.5V,
VI = 0, 5.5V
VDD = 5.5V, VOH = 12.0V
VDD = 5.5V, VOH = 5.5V
VDD = 4.5V
VSCL0 = VSCL1 = 2.25V
VSDA0 = VSDA1 = 2.25V
VDD
VDD = 3.3V,
32kHz crystal oscillation
(C1 = C2 = 47pF)
Item Symbol Pins
Conditions Min. Typ. Max. Unit
VOH
VOL
IIZ
ILOH
RBS
IDD1
IDD2
IDDS1
IDDS2
IDDS3
IIHE
IILE
IIHT
IILT
IILR
Electrical Characteristics
DC characteristics (Ta = –20 to +75°C, Vss = 0V reference)
1/2 frequency dividing mode
TEX
VDD = 5.5V,
16MHz crystal oscillation
(C1 = C2 = 15pF)
VDD = 5.5V,
24MHz crystal oscillation
VDD = 3.3V,
32kHz crystal oscillation
(C1 = C2 = 47pF)
Sleep mode
VDD = 5.5V,
24MHz crystal oscillation
(C1 = C2 = 15pF)
Stop mode
∗3
VDD = 5.5V,
termination of 24MHz
and 32kHz oscillation
I2C bus switch
connection impedance
(in output Tr off state)
– 15 –
CXP750096/750010, CXP750097/750011
∗1
For RST pin, specifies the input current when pull-up resistance is selected, and specifies the leakage
current when non-resistor is selected.
∗2
When all output pins are left open. Specifies only when the OSD oscillation is halted.
∗3
This device does not enter the stop mode.
Input capacitance
10
20
pF
PA, PB,PC0 to PC5,
PD,PE0 to PE3,
PF4 to PF7, PG,
EXTAL, EXLC, RST
Clock 1 MHz
0V other than the
measured pins
Item Symbol Pins
Conditions Min. Typ. Max. Unit
CIN
– 16 –
CXP750096/750010, CXP750097/750011
∗1
Indicates three values according to the contents of the clock control register (CLC: 000FEh) upper 2 bits
(CPU clock selection).
tsys [ns] = 2000/fc (Upper 2 bits = “00”), 4000/fc (Upper 2 bits = “01”), 16000/fc (Upper 2 bits = “11”)
EXTAL
t
XH tXLtCF tCR
0.4V
V
DD – 0.4V
1/fc
A
A
Crystal oscillation
Ceramic oscillation
EXTAL
XTAL
External clock
EXTAL
XTAL
74HC04
C
1 C2
A
32kHz clock applied condition
Crystal oscillation
TEX
TX
C
1 C2
TEX
EC
t
EH tELtEF tER
0.2VDD
0.8VDD
tTH tTLtTF tTR

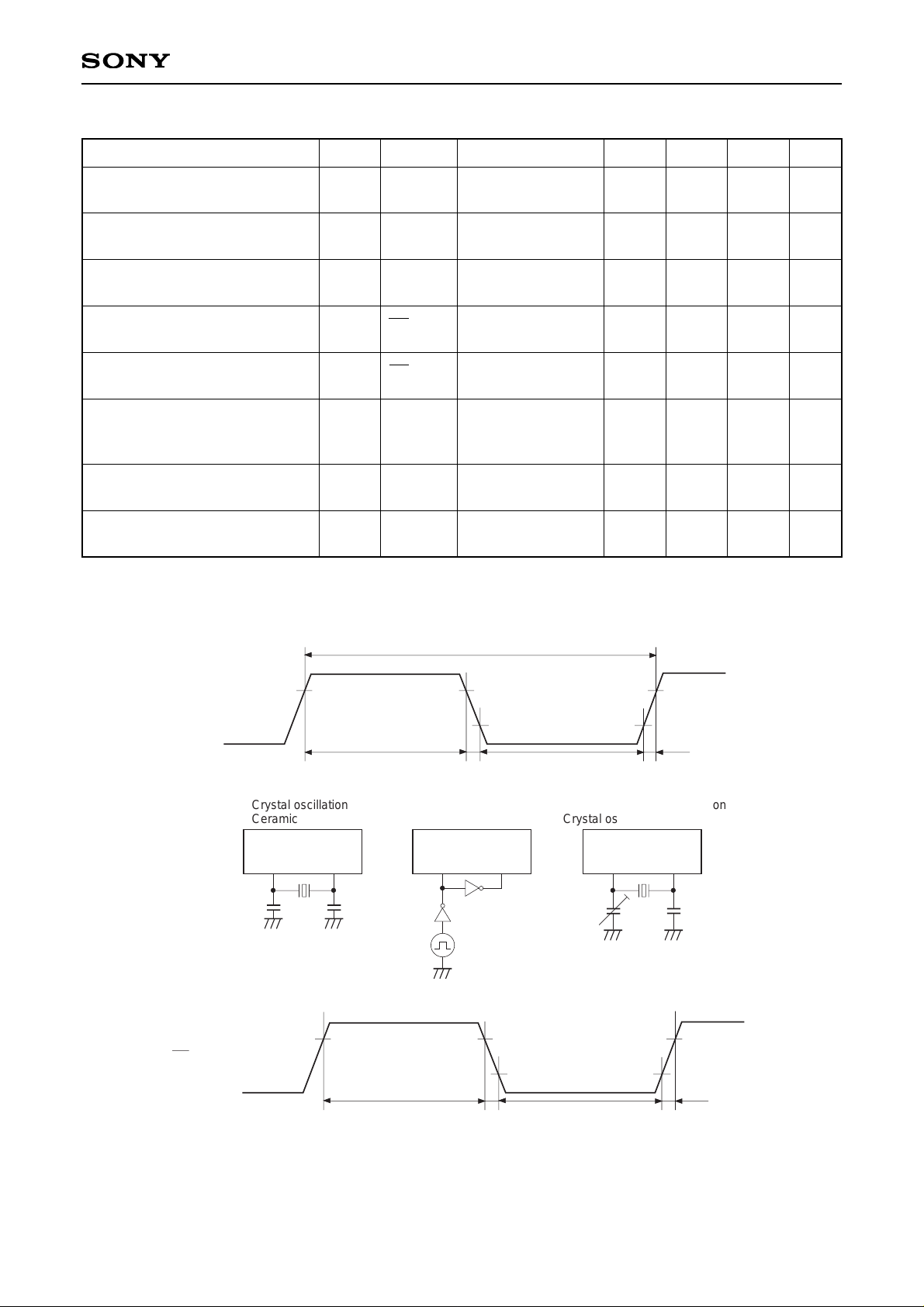

AC Characteristics
(1) Clock timing
System clock frequency
System clock input pulse width
System clock input rise and fall
times
Event count input clock pulse
width
Event count input clock rise
and fall times
System clock frequency
Event count input clock input
pulse width
Event count input clock rise
and fall times
fC
tXL,
tXH
tCR,
tCF
tEH,
tEL
tER,
tEF
fC
tTL,
tTH
tTR,
tTF
XTAL
EXTAL
EXTAL
EXTAL
EC
EC
TEX
TX
TEX
TEX
MHz
ns
ns
ns
ms
kHz
µs
ms
Item Symbol Pins Conditions Min. Unit
Fig. 1, Fig.2
Fig. 1, Fig.2
External clock drive
Fig. 1, Fig.2
External clock drive
Fig. 3
Fig. 3
VDD = 2.7 to 5.5 V
Fig. 2 (32kHz clock
applied conditions)
Fig. 3
Fig. 3
8
17
4tsys
∗1
10
Typ.
32.768
Max
24
200
20
20
(Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V reference)
Fig.2. Clock applied conditions
Fig. 1. Clock timing
Fig. 3. Event count clock timing
AAA
AA
AA
0.2VDD
0.8VDD
tKL tKH
SO
tKCY
tSIK
tKSI
0.2VDD
0.8VDD
tKSO
0.2VDD
0.8VDD
Output data
Input data
SI
SCK
– 17 –
CXP750096/750010, CXP750097/750011
(2) Serial transfer (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V reference)
Item
SCK cycle time
tKCY
SCK
Input mode
Output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
1000
8000/fc
400
4000/fc – 50
100
200
200
100
200
100
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
SCK
SI
SI
SO
tKH
tKL
tSIK
tKSI
tKSO
SCK High and Low level
width
SI input setup time
(for SCK ↑)
SI hold time
(for SCK ↑)
SCK ↓ → SO delay time
Symbol Pins Conditions Min. Max. Unit
Note) The load of SCK output mode and SO output delay time is 50pF + 1TTL.

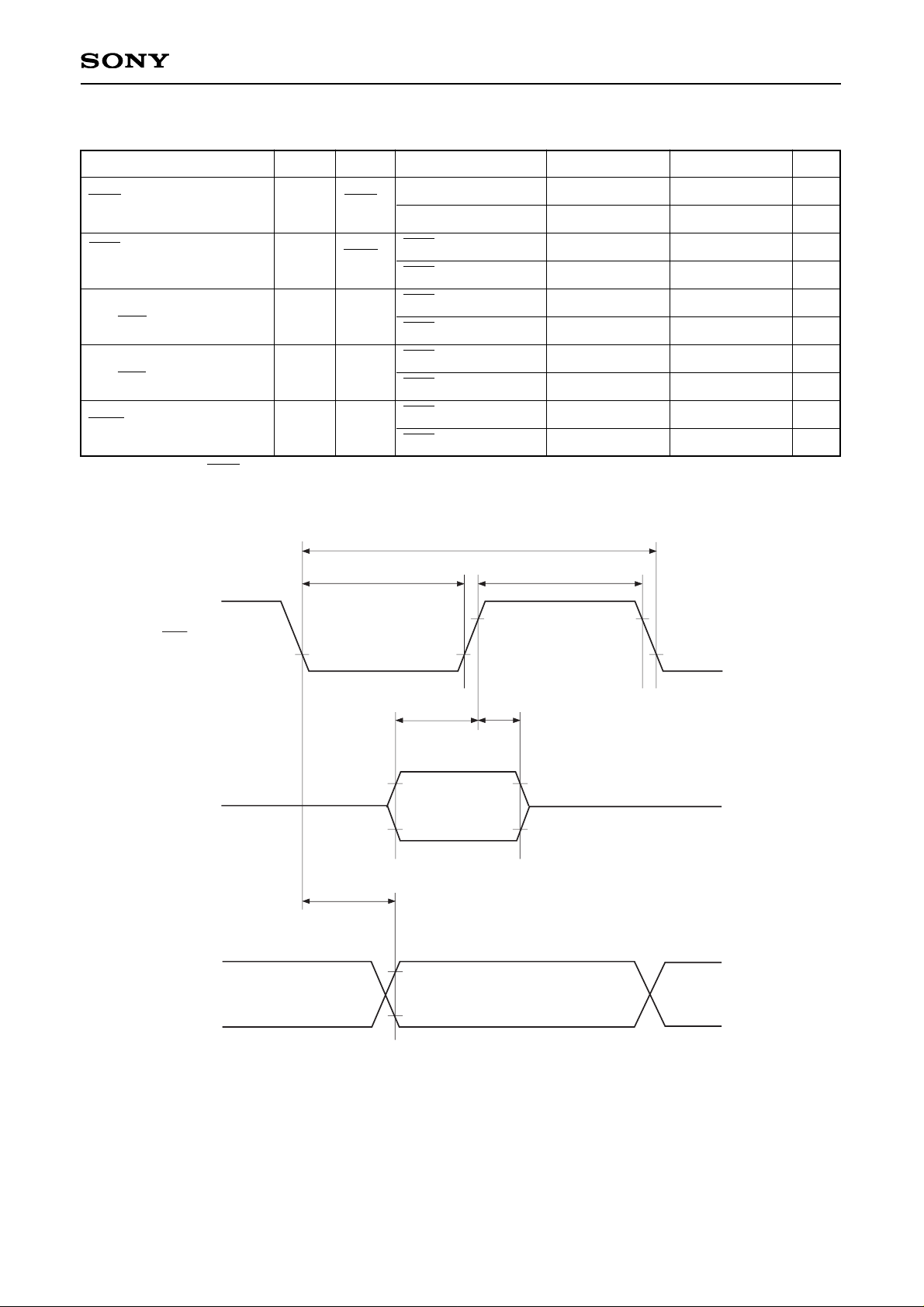

Fig. 4. Serial transfer timing
– 18 –
CXP750096/750010, CXP750097/750011
Resolution
Linearity error
Zero transition
voltage
Full-scale transition
voltage
Conversion time
Sampling time
Analog input voltage
VZT
∗1
VFT
∗2
tCONV
tSAMP
VIAN
AN0 to AN5
Ta = 25°C
VDD = 5.0V
Vss = 0V
–10
4910
26/fADC
∗3
6/fADC
∗3
0
10
4970
8
±3
70
5030
VDD
Bits
LSB
mV
mV
µs
µs
V
Item Symbol Pins Conditions Min. Typ. Max. Unit

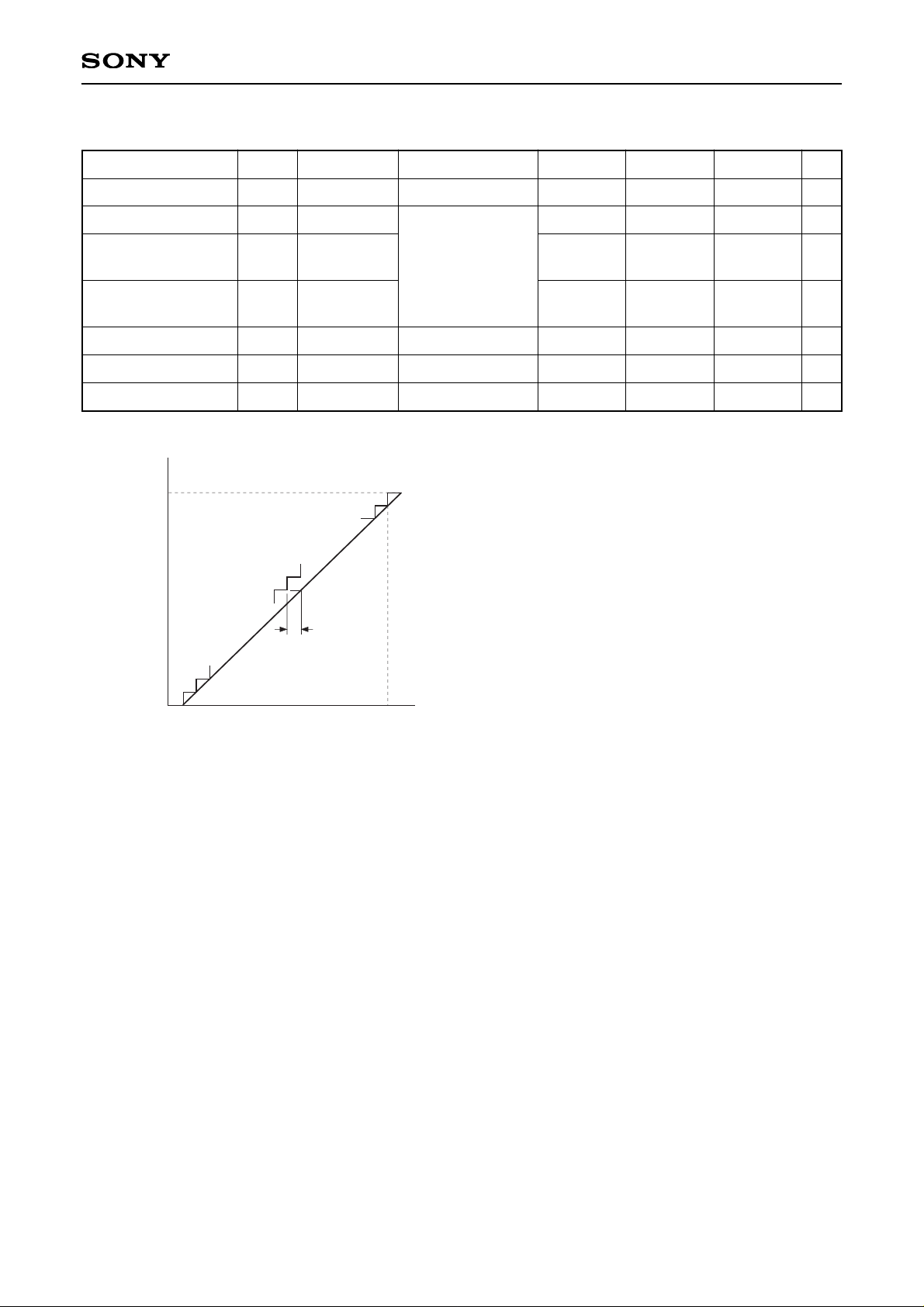

(3) A/D converter (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V reference)
Linearity error
VZT VFT
Analog input
FFh
FEh
01h
00h
Digital conversion value
Fig. 5. Definitions for A/D converter terms
∗1
VZT: Value at which the digital conversion value changes
from 00h to 01h and vice versa.
∗2
VFT: Value at which the digital conversion value changes
from FEh to FFh and vice versa.
∗3
fADC indicates the below values due to the contents of bit
6 (CKS) of the A/D control register (ADC: 000F6h):
fADC = fc (CKS = “0”), fc/2 (CKS = “1”)
– 19 –
CXP750096/750010, CXP750097/750011
External interruption High,
Low level width
Reset input Low level width
INT0
INT1
INT2
RST
1
32/fc
µs
µs
Item Symbol Pins Conditions Min. Max. Unit
tIH
tIL
tRSL

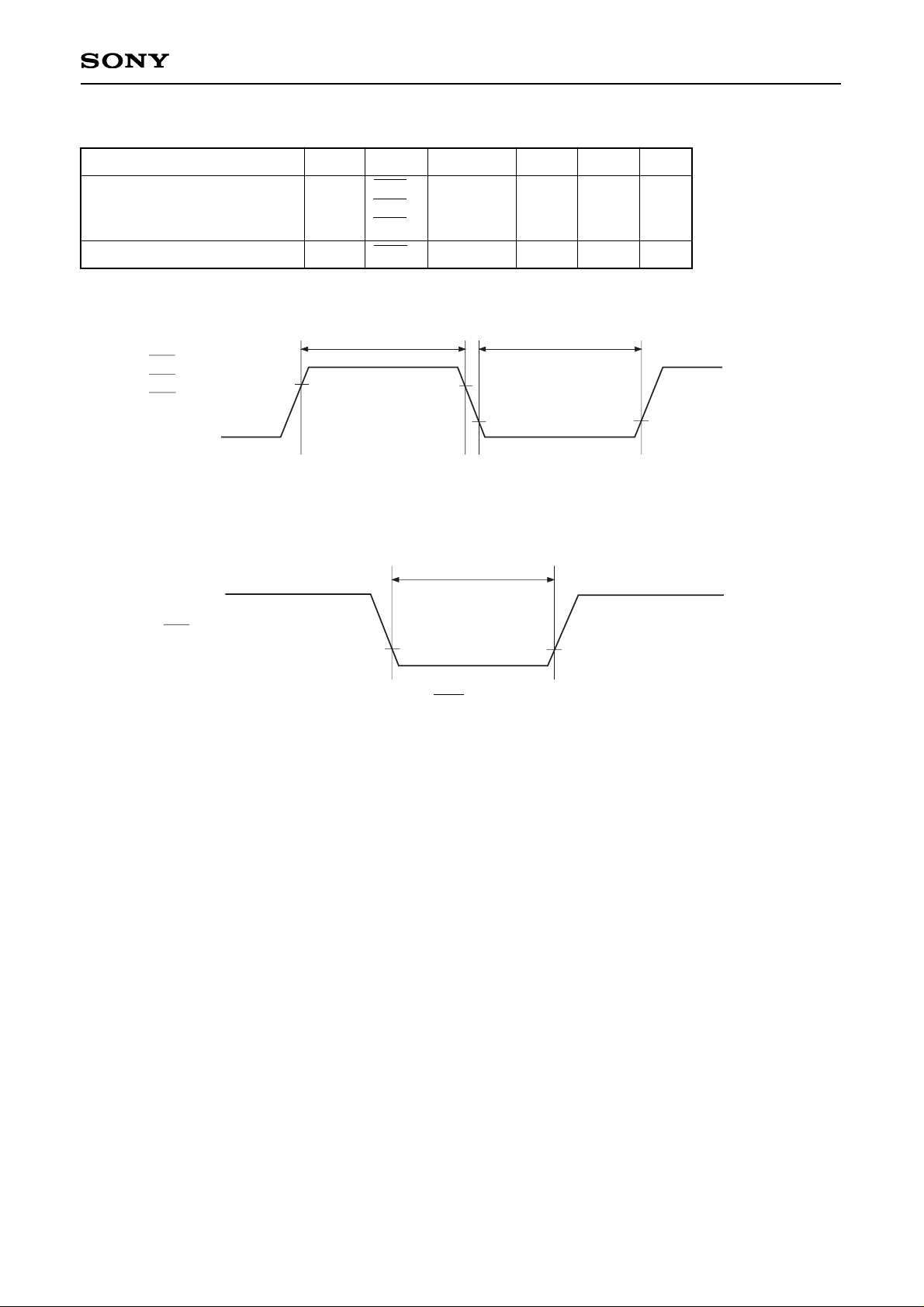

(4) Interruption, reset input (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V reference)
0.2VDD
0.8VDD
tIH tIL
INT0
INT1
INT2
(falling edge)
Fig. 6. Interruption input timing
tRSL
0.2VDD
RST
Fig. 7. RST input timing
– 20 –
CXP750096/750010, CXP750097/750011

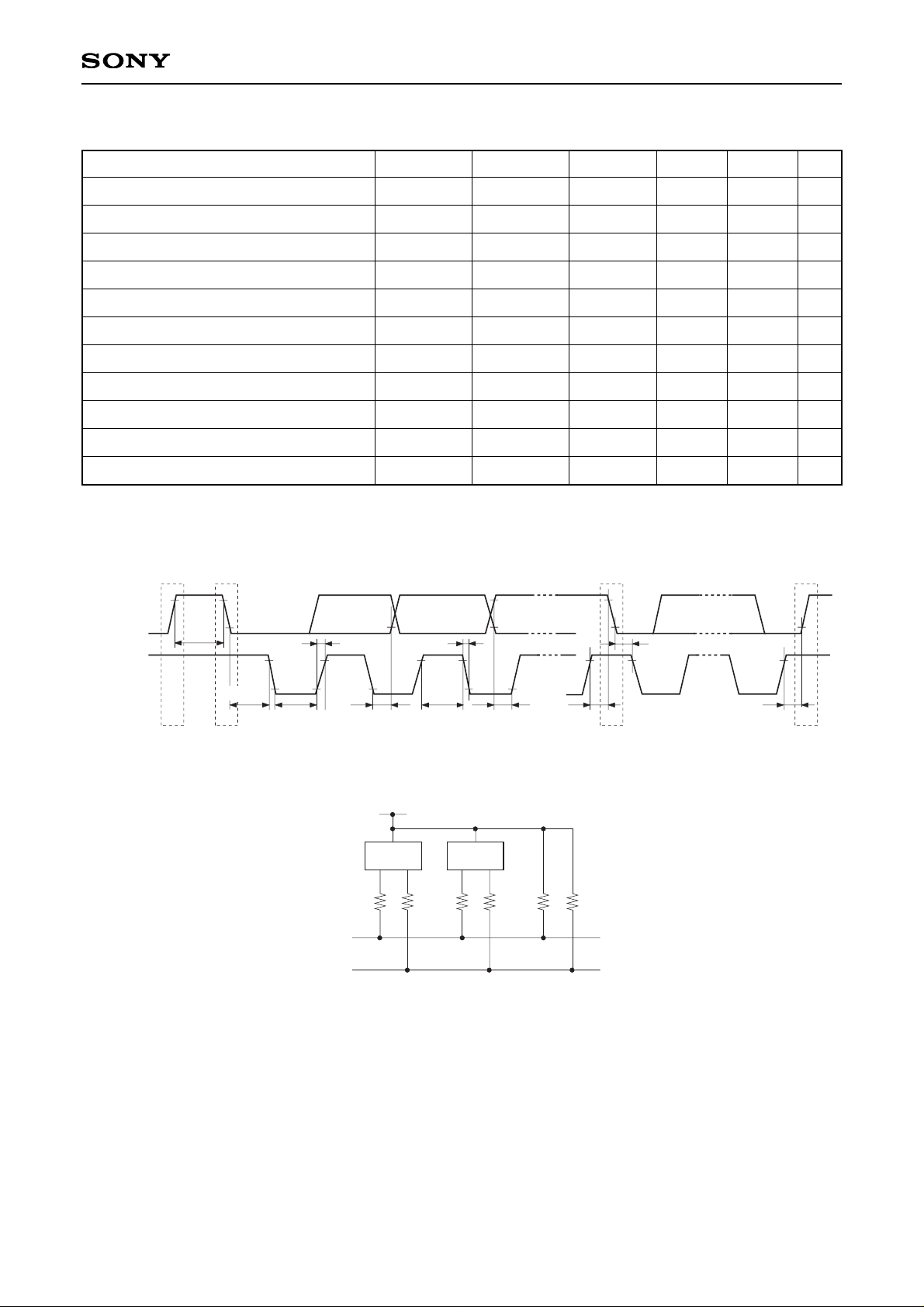

(5) I2C bus timing (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V reference)
Item
SCL clock frequency
Bus-free time before starting transfer
Hold time for starting transfer
Clock Low level width
Clock High level width
Setup time for repeated transfers
Data hold time
Data setup time
SDA, SCL rise time
SDA, SCL fall time
Setup time for transfer completion
fSLC
tBUF
tHD; STA
tLOW
tHIGH
tSU; STA
tHD; DAT
tSU; DAT
tR
tF
tSU; STO
SCL
SDA, SCL
SDA, SCL
SCL
SCL
SDA, SCL
SDA, SCL
SDA, SCL
SDA, SCL
SDA, SCL
SDA, SCL
0
4.7
4.0
4.7
4.0
4.7
0
∗1
250
4.7
100
1
300
kHz
µs
µs
µs
µs
µs
µs
ns
µs
ns
µs
Symbol Pins Conditions Min. Max. Unit
∗1
The data hold time should be 300ns or more because the SCL rise time (300ns Max.) is not included in it.
Fig. 8. I2C bus transfer timing
PSt
t
SU; STO
tSU; STA
tHD; STA
tSU; DATtHIGHtHD; DAT
tFtR
tLOW
tHD; STA
SP
t
BUF
SDA
SCL
Fig. 9. I2C bus device recommended circuit
I2C bus
device
I2C bus
device
RS RS RS RS RP RP
SDA0
(or SDA1)
SCL0
(or SCL1)
• A pull-up resistor (Rp) must be connected to SDA0 (or SDA1) and SCL0 (or SCL1).
• The SDA0 (or SDA1) and SCL0 (or SCL1) series resistance (Rs = 300Ω or less) can be used to reduce the
spike noise caused by CRT flashover.
L
C
2C1
EXLC XLC
R
∗
3
– 21 –
CXP750096/750010, CXP750097/750011

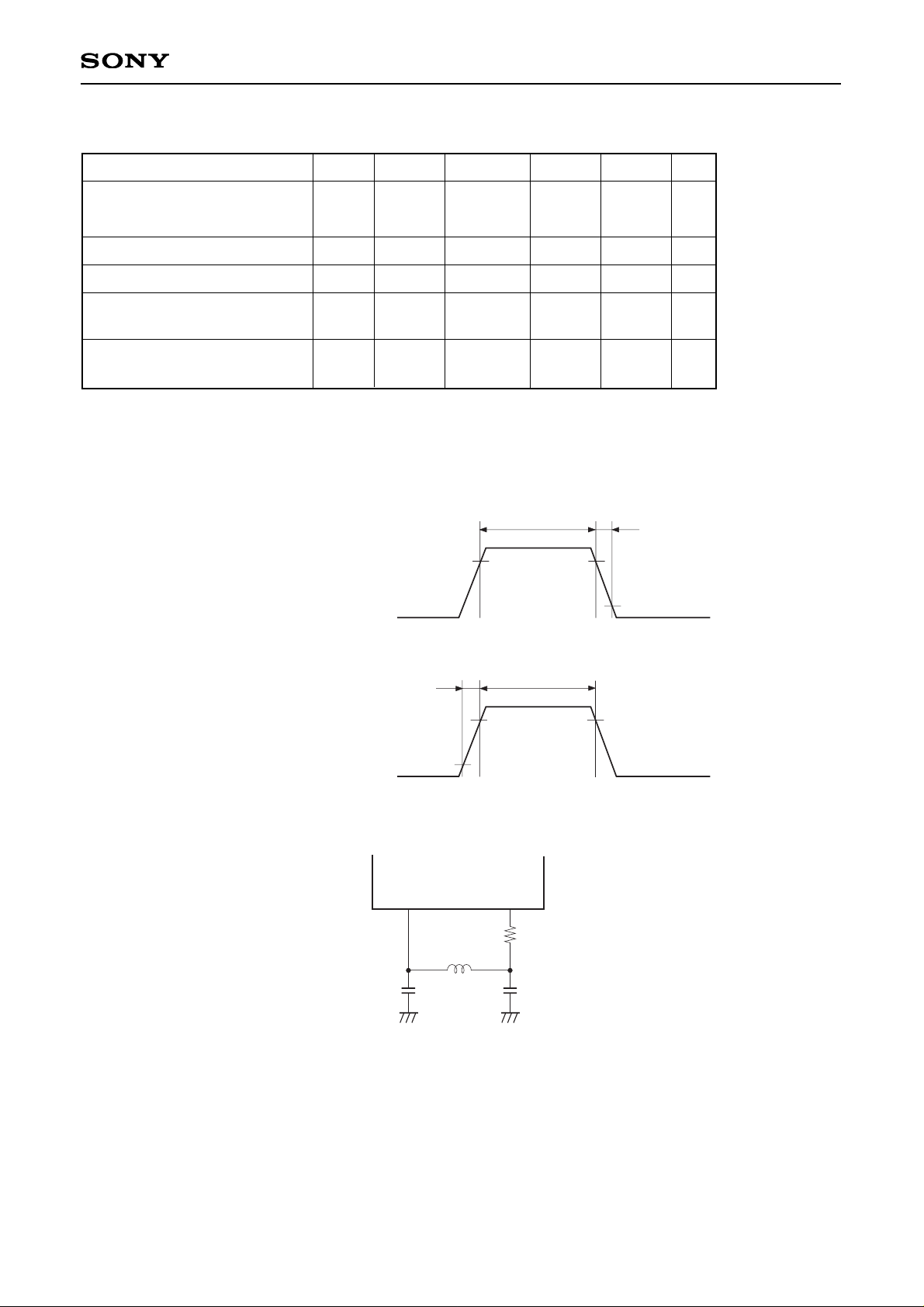

(6) OSD timing (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V reference)
Item
OSD clock frequency
HSYNC pulse width
VSYNC pulse width
HSYNC afterwrite rise and fall
times
VSYNC beforewrite rise and fall
times
fOSC
tHWD
tVWD
tHCG
tVCG
EXLC
XLC
HSYNC
VSYNC
HSYNC
VSYNC
Fig. 11
Fig. 10
Fig. 10
Fig. 10
Fig. 10
4
30/fc
1
40.8
200
1.0
MHz
µs
H
∗2
ns
µs
Symbol Pins
Conditions
Unit
Min. Max
Fig. 10. OSD timing
0.8VDD
0.2VDD
tHCG
tHWD
HSYNC
For OSD I/O polarity register
(OPOL: 001FEh)
bit 7 at “0”
0.8VDD
0.2VDD
tVCG
VSYNC
For OSD I/O polarity register
(OPOL: 001FEh)
bit 6 at “0”
tVWD
Fig. 11. LC oscillation circuit connection
∗3
The series resistor for XLC (R = 1kΩ or less) can reduce the frequency of occurrence of the undesired
radiation.
∗1
The maximum value of fosc is specified with the following equation.
fosc [max] ≤ fc × 1.7
∗2
H indicates 1HSYNC period.
– 22 –
CXP750096/750010, CXP750097/750011
Appendix
C2
Rd
A
A
AAAA
EXTAL
XTAL
C
1
(i) Main clock
A
TEX
TX
C
1
C2
Rd
(iii) Sub clock
Rd
A
EXTAL
XTAL
C
1
C2
(ii) Main clock
Reset pin pull-up resistor
Non-existent
Existent
Item Content
Mask Option Table
∗
Models with an astarisk (∗) have the built-in ground capacitance (C1, C2).
∗1
The series resistor for XTAL (Rd = 500Ω or less) can reduce the effect of the noise caused by the
electrostatic discharge.
Manufacture
RIVER ELETEC
CO., LTD.
MURATA MFG
CO., LTD.
CSA10.0MTZ
CSA12.0MTZ
CSA16.00MXZ040
CSA24.00MXZ040
CST10.0MTW
∗
CST12.0MTW
∗
CST16.00MXW0C1
∗
KINSEKI LTD.
SEIKO
Instruments Inc.
Model
HC-49/U03
HC-49/U (-S)
P3
fc (MHz)
10.0
12.0
16.0
24.0
10.0
12.0
16.0
8.0
12.0
16.0
8.0
12.0
16.0
24.0
30
5
OPEN
30
5
18
12
10
10
5
OPEN
3
30
18
30
5
OPEN
30
5
18
12
10
10
5
OPEN
3
33
18
0
∗1
330
∗1
0
∗1
120k
32.768kHz
(iii)
VTC-200
SP-T
330k
32.768kHz
(iii)
C1 (pF) C2 (pF) Rd (Ω)
Circuit example
Remarks
(i)
(i)
(ii)
CL = 12.5pF

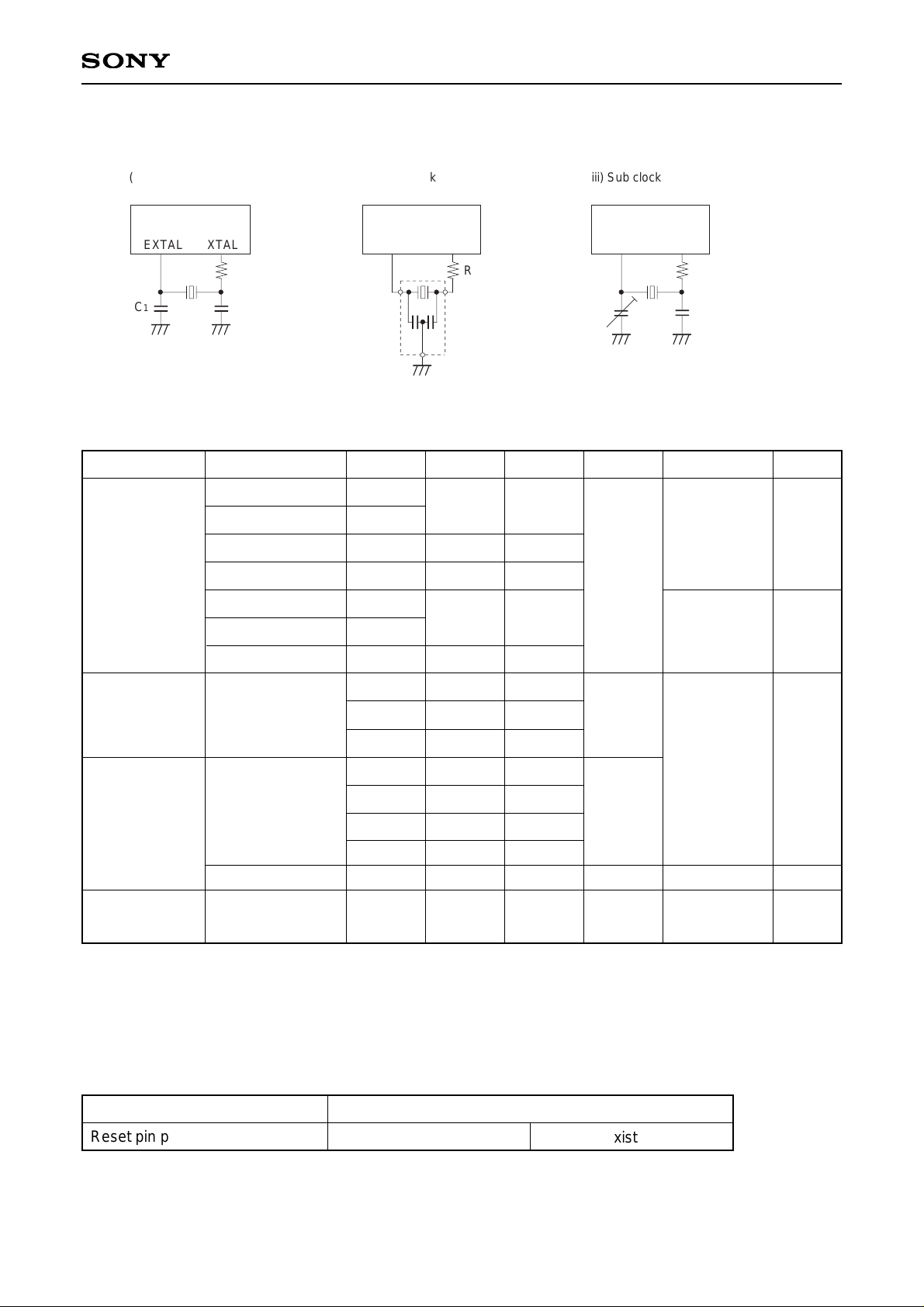

Fig. 12. Recommended oscillation circuit
AA
AA
AAA
– 23 –
CXP750096/750010, CXP750097/750011

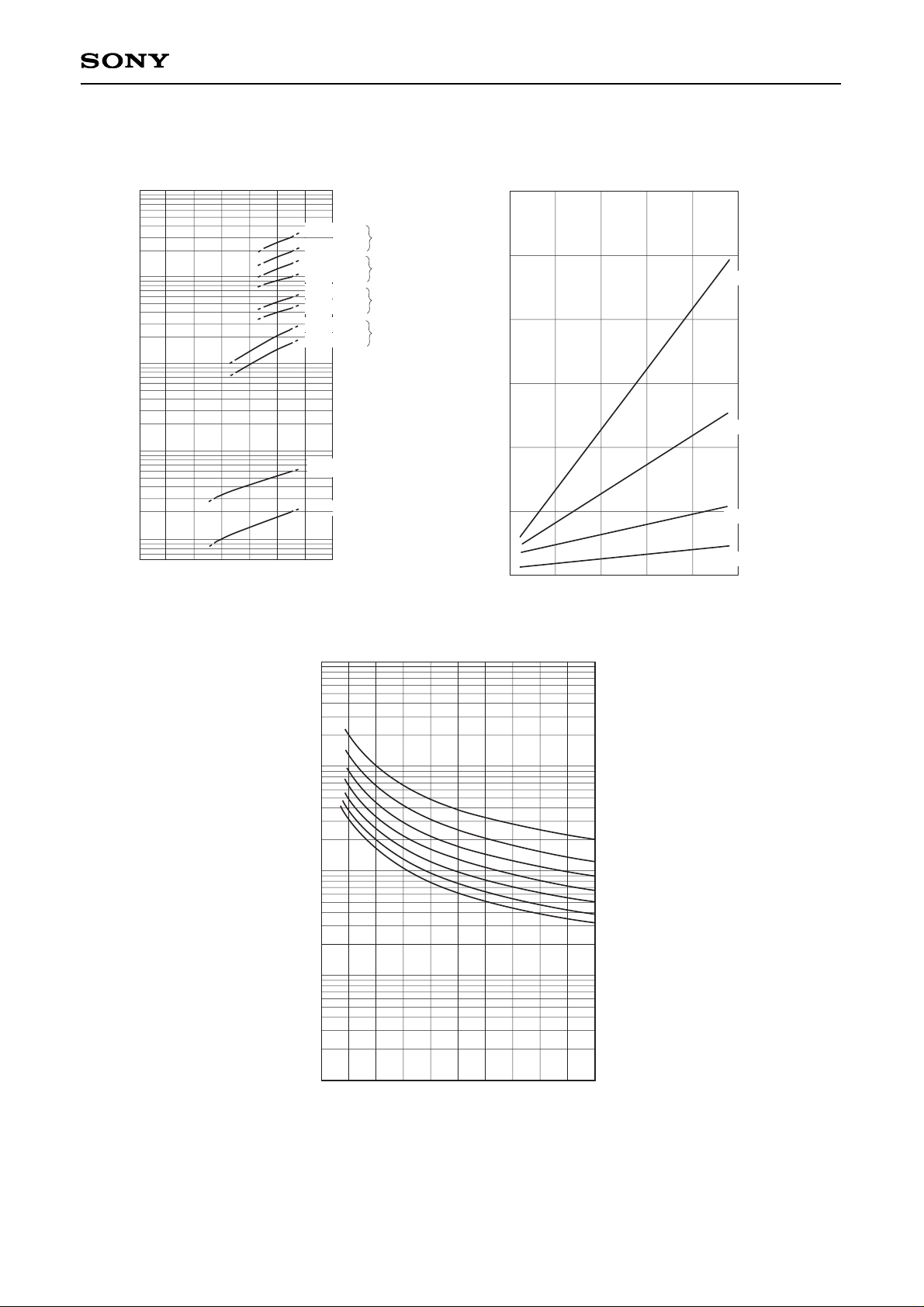

Fig. 13. Characteristic curves
3
4 5
6
0.1
1
72
0.01
10
100
100
10
20MHz
24MHz
32MHz
50
100
90807060403020100
1
0.1
0.01
28MHz
16MHz
10
fc = 24MHz
fc = 16MHz
fc = 24MHz
fc = 16MHz
fc = 24MHz
fc = 16MHz
fc = 24MHz
fc = 16MHz
30
15
10
150 5 20
0
25
20
5
2510
36MHz
40MHz
IDD vs. VDD
(Ta = 25°C, Typical)
I
DD
– Supply current [mA]
VDD – Supply voltage [V]
Sleep mode
1/2 dividing mode
1/4 dividing mode
IDD vs. fc
(VDD = 5V, Ta = 25°C, Typical)
1/16 dividing mode
1/2 dividing mode
1/4 dividing mode
1/16 dividing mode
Sleep mode
Parameter curve for OSD oscillator L vs. C
(Analytically calculated value)
L – Inductance [µH]
C1, C2 – Capacitance [pF]
Frequency [MHz]
I
DD
– Supply current [mA]
32kHz operation mode
32kHz sleep mode
– 24 –
CXP750096/750010, CXP750097/750011
Package Outline Unit: mm
PACKAGE STRUCTURE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS
SONY CODE
EIAJ CODE
JEDEC CODE
SDIP-64P-01
42 ALLOY
SOLDER PLATING
EPOXY RESIN
64PIN SDIP (PLASTIC)
SDIP064-P-0750
57.6 – 0.1
+ 0.4
64
33
1 32
1.778
19.05
17.1 – 0.1
+ 0.3
0° to 15°
0.25 – 0.05
+ 0.1
0.5 MIN
4.75 – 0.1
+ 0.4
3.0 MIN
0.5 ± 0.1
0.9 ± 0.15
8.6g
SONY CODE
EIAJ CODE
JEDEC CODE
23.9 ± 0.4
20.0 – 0.1
0.4 – 0.1
+ 0.15
14.0 – 0.1
1
19
20
32
33
51
52
64
0.15 – 0.05
+ 0.1
2.75 – 0.15
16.3
0.1 – 0.05
+ 0.2
0.8 ± 0.2
M
0.2
0.15
+ 0.4
17.9 ± 0.4
+ 0.4
+ 0.35
64PIN QFP(PLASTIC)
QFP-64P-L01
QFP064-P-1420
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS
EPOXY RESIN
SOLDER/PALLADIUM
42/COPPER ALLOY
PACKAGE STRUCTURE
PLATING
1.5g
1.0
0° to10°
– 25 –
CXP750096/750010, CXP750097/750011
PACKAGE STRUCTURE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS
EPOXY RESIN
COPPER ALLOY
47.0 – 0.1
+ 0.4
1.778
15.24
13.5 – 0.1
+ 0.3
0° to 15°
0.25 – 0.05
+ 0.1
0.5 ± 0.1
0.9 – 0.05
+ 0.1
2.8 MIN
0.51 MIN
5.0 MIN
SDIP-52P-01
SDIP052-P-0600
52PIN SDIP (PLASTIC)
52
1
26
27
SONY CODE
EIAJ CODE
JEDEC CODE
PLATING
SOLDER/PALLADIUM
5.6g
Loading...
