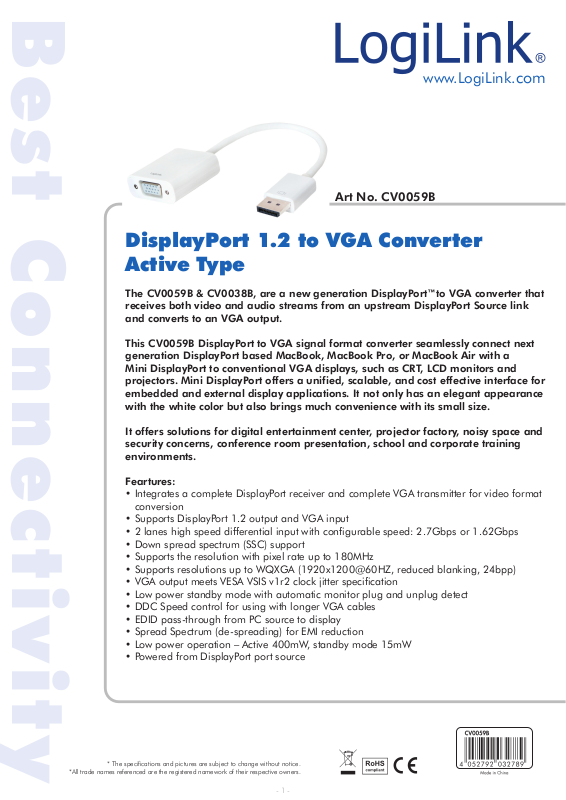

Page 1
Best Connectivity
www.LogiLink.
Art No. CV0059B
com
DisplayPort 1.2 to VGA Converter
Active Type
The CV0059B & CV0038B, are a new generation DisplayPort™to VGA converter that
receives both video and audio streams from an upstream DisplayPort Source link
and converts to an VGA output.
This CV0059B DisplayPort to VGA signal format converter seamlessly connect next
generation DisplayPort based MacBook, MacBook Pro, or MacBook Air with a
Mini DisplayPort to conventional VGA displays, such as CRT, LCD monitors and
projectors. Mini DisplayPort offers a unified, scalable, and cost effective interface for
embedded and external display applications. It not only has an elegant appearance
with the white color but also brings much convenience with its small size.
It offers solutions for digital entertainment center, projector factory, noisy space and
security concerns, conference room presentation, school and corporate training
environments.
Feartures:
• Integrates a complete DisplayPort receiver and complete VGA transmitter for video format
conversion
• Supports DisplayPort 1.2 output and VGA input
• 2 lanes high speed differential input with configurable speed: 2.7Gbps or 1.62Gbps
• Down spread spectrum (SSC) support
• Supports the resolution with pixel rate up to 180MHz
• Supports resolutions up to WQXGA (1920x1200@60HZ, reduced blanking, 24bpp)
• VGA output meets VESA VSIS v1r2 clock jitter specification
• Low power standby mode with automatic monitor plug and unplug detect
• DDC Speed control for using with longer VGA cables
• EDID pass-through from PC source to display
• Spread Spectrum (de-spreading) for EMI reduction
• Low power operation – Active 400mW, standby mode 15mW
• Powered from DisplayPort port source
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 1 -
Page 2
Best Connectivity
www.LogiLink.
Art No. CV0059B
DisplayPort 1.2 to VGA Converter
Active Type
Specification:
Signal Input/Output
Input Video Signal DisplayPort
Maximum Single Link Range 1920x1200
Output Video (VGA) 1920x1200, 1920x1080, 1600x1200,
1600x960, 1360x1024, 1360x768,
1280x1024, 1280x720
Input Connector DisplayPort Male 20pin
Output Connector HDB15 pin female
Operating Frequency
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 180MHz
Mechanical
Weight (Net) 28g
Product dimension 243 x 33 x 15mm
Cable length 15cm
Environmental
Operating Temperature 0 °C to +70 °C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10 °C to +80 °C
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement
External Power Supply No external power needed
Power consumption (Max) 485mW
com
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 2 -
Page 3
Best Connectivity
www.LogiLink.
Art No. CV0059B
DisplayPort 1.2 to VGA Converter
Active Type
com
DisplayPort
Package Contents:
• 1x DisplayPort 1.2 to VGA adapter
• 1x User manual
Packaging Information:
• Packing Dimension: 162 x 230 x 2mm
• Packing Weight: 0.05kg
• Carton Dimension: 570 x 480 x 260mm
• Carton Q'ty: 90pcs
• Carton Weight: 6.3kg
VGA
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 3 -
