Datasheet C6003ALNAC Specification

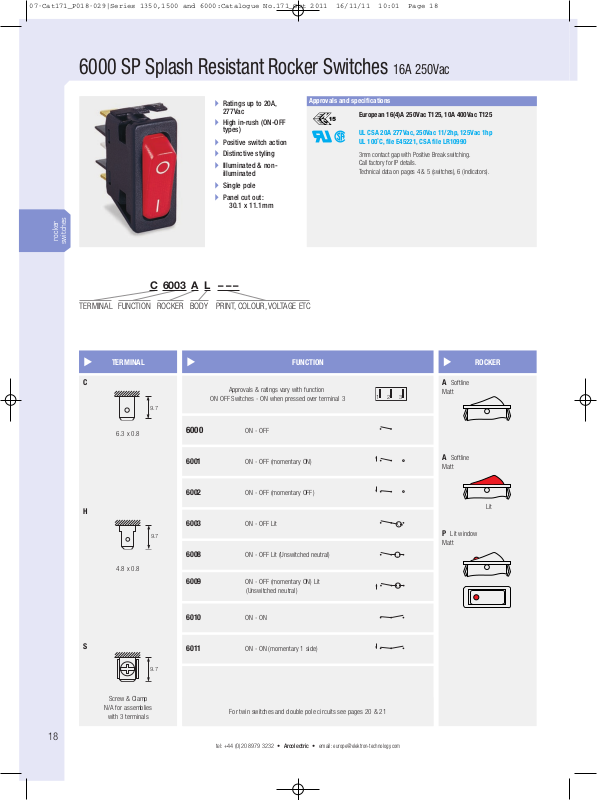

6000 SP Splash Resistant Rocker Switches 16A 250Vac

9.7

9.7

9.7

12 3

៉ Ratings up to 20A,

277Vac

៉ High in-rush (ON-OFF

types)

៉ Positive switch action
៉ Distinctive styling
៉ Illuminated & non-

illuminated

៉ Single pole
៉ Panel cut out:

30.1 x 11.1mm

rocker

switches

C 6003 A L

---

TERMINAL FUNCTION ROCKER BODY PRINT, COLOUR,VOLTAGE ETC

Approvals and specifications

European 16(4)A 250Vac T125, 10A 400Vac T125

UL CSA 20A 277Vac, 250Vac 11/2hp, 125Vac 1hp
UL 100˚C, file E45221, CSA file LR10990

3mm contact gap with Positive Break switching.
Call factory for IP details.
Technical data on pages 4 & 5 (switches), 6 (indicators).

TERMINAL

C

6.3 x 0.8

6000 ON - OFF

Approvals & ratings vary with function

ON OFF Switches - ON when pressed over terminal 3

6001 ON - OFF (momentary ON)

A Softline

Matt

A Softline

Matt

ROCKERFUNCTION

6002 ON - OFF (momentary OFF)

H

Lit

6003 ON - OFF Lit

P Lit window

Matt

6008 ON - OFF Lit (Unswitched neutral)

4.8 x 0.8

6009 ON - OFF (momentary ON) Lit

(Unswitched neutral)

6010 ON - ON

18

S

Screw & Clamp

N/A for assemblies

with 3 terminals

6011 ON - ON (momentary 1 side)

For twin switches and double pole circuits see pages 20 & 21

tel: [phone] • Arcolectric • email:

[e-mail]

2.0

30.0

10.0

8.0

2A

1A

11.0/11.1

30.0/

30.1

14.0

31.5

R2.0

Integral Splash Resistance

Current carrying parts are protected from moisture.
Droplets which may enter the switch are channelled out
through ports in the switch body.

For IP65 see options below

C6000AL - -- C6000AL - --

C6003AL - --

C6003PL - --

C6010AL - --

C6030AL - --

switches

rocker

BODY

L

Panel cut-out ** Bezel

OPTIONS

Finish Matt is standard.

Colour Call sales for custom colours.

A full range is available for large orders.

Legend printing Select from the examples or

call sales for custom legends.

Lamp voltage Call sales for details.

Protective cover

A snap on cover is available (add G after body
code), this reduces panel thickness by 1.0mm.

Panel sealing washer W46 is available, this
reduces panel thickness by 0.5mm. Covers are
not suitable for momentary types.

DIMENSIONS (mm)

Panel thickness
L 0.75 to 2.5mm

** For cut-out details
on momentary switches
call sales

Cut-outs must be punched in the direction of insertion

For all options call the factory

tel: [phone] • Arcolectric • email:

Examples of printing

EN1224 EN1223

19
