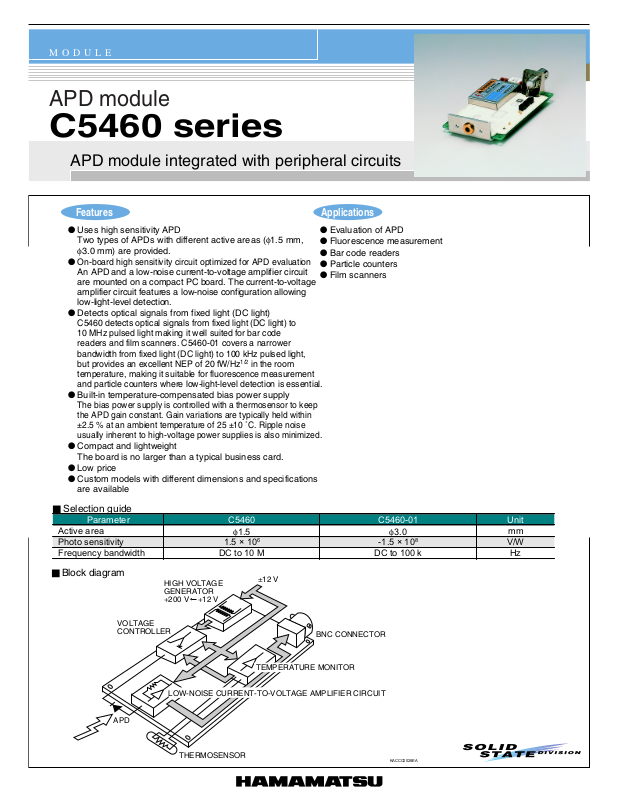

Page 1
MODULE
APD module
C5460 series
APD module integrated with peripheral circuits
Features
l
Uses high sensitivity APD
Two types of APDs with different active areas (φ1.5 mm,
φ3.0 mm) are provided.
l
On-board high sensitivity circuit optimized for APD evaluation
An APD and a low-noise current-to-voltage amplifier circuit
are mounted on a compact PC board. The current-to-voltage
amplifier circuit features a low-noise configuration allowing
low-light-level detection.
l
Detects optical signals from fixed light (DC light)
C5460 detects optical signals from fixed light (DC light) to
10 MHz pulsed light making it well suited for bar code
readers and film scanners. C5460-01 covers a narrower
bandwidth from fixed light (DC light) to 100 kHz pulsed light,
but provides an excellent NEP of 20 fW/Hz
temperature, making it suitable for fluorescence measurement
and particle counters where low-light-level detection is essential.
l
Built-in temperature-compensated bias power supply
The bias power supply is controlled with a thermosensor to keep
the APD gain constant. Gain variations are typically held within
±2.5 % at an ambient temperature of 25 ±10 ˚C. Ripple noise
usually inherent to high-voltage power supplies is also minimized.
l
Compact and lightweight
The board is no larger than a typical business card.
l
Low price
l
Custom models with different dimensions and specifications
are available
1/2
in the room
Applications
l
Evaluation of APD
l
Fluorescence measurement
l
Bar code readers
l
Particle counters
l
Film scanners
Selection guide
■
Parameter C5460 C5460-01 Unit
Active area
Photo sensitivity 1.5 × 10
Frequency bandwidth DC to 10 M DC to 100 k Hz
■ Block diagram
HIGH VOLTAGE
GENERATOR
+200 V +12 V
VOLTAGE
CONTROLLER
LOW-NOISE CURRENT-TO-VOLTAGE AMPLIFIER CIRCUIT
APD
THERMOSENSOR
1.5
φ
6
±12 V
TEMPERATURE MONITOR
BNC CONNECTOR
3.0
φ
-1.5 × 10
KACCC0028EA
8
mm
V/W
Page 2
APD module
C5460 series
■ General ratings
Parameter Symbol Condition
Power supply Vs
Current dissipation -
+12 V +11.4 +12 +12.6 +11.4 +12 +12.6 V
-12 V -11.4 -12 -12.6 -11.4 -12 -12.6 V
+12 V - +30 +45 - +35 +45 mA
-12 V - -11 -16 - -11 -16 mA
Min. Typ. Max. Min. Typ. Max.
Board dimensions - 80 × 50 × 23 80 × 50 × 23 mm
Weight - 52 52 g
C5460 C5460-01
Unit
■ Absolute maximum ratings (Ta=25 °C)
Parameter Symbol Value Unit
Positive supply voltage Vp +16 V
Negative supply voltage Vn -16 V
Operating temperature Topr 0 to +60 °C
Storage temperature Tstg -30 to +70 °C
■ Specification (Typ. Ta=25 °C, Vcc=±12 V, unless otherwise noted)
Photoelectric section (Si APD)
Parameter Symbol Condition C5460 C5460-01 Unit
Active area A
Spectral response range
Peak sensitivity wavelength
λ
Photo sensitivity S
Temperature stability
of gain *
λ
p 800 nm
=800 nm,
λ
Gain=1
25 ± 10 °C,
Gain=30
φ
1.5
3.0 mm
φ
400 to 1000 nm
0.5 A/W
±2.5 Typ., ±5 Max. %
High-speed amplifier section (C5460)
Parameter Symbol Condition Min. Typ. Max. Unit
Cut-off frequency fc
Noise equivalent power NEP
Feedback resistance - - 10 - k
Photoelectric sensitivity * -
High band, -3 dB 9 10 - MHz
Low band, -3 dB - DC - -
f=10 MHz
=800 nm
λ
- 0.2 0.4 pW/Hz
Ω
APD include,
=800 nm
λ
1.4 × 10
6
1.5 × 10
6
1.6 × 10
6
V/W
Gain=30
Maximum input light level - 5.0 6.0 - µW
Minimum detection limit - - 0.8 1.6 nWr.m.s.
High-speed amplifier section (C5460-01)
Parameter Symbol Condition Min. Typ. Max. Unit
Cut-off frequency fc
Noise equivalent power NEP
Feedback resistance - - 10 - M
Photoelectric sensitivity * -
Maximum input light level - 0.05 0.06 - µW
Minimum detection limit - - 0.005 0.01 nWr.m.s.
* Gain is set to 30 at the factory prior to shipping.
High band, -3 dB 80 100 - kHz
Low band, -3 dB - DC - -
f=100 kHz
=800 nm
λ
APD include,
=800 nm
λ
- 0.02 0.04 pW/Hz
-1.4 × 10
8
-1.5 × 10
8
-1.6 × 10
8
V/W
Gain =30
Ω
1/2
1/2
Page 3
APD module
0
-30
10 20 30 40 50 60
AMBIENT TEMPERATURE (˚C)
GAIN VARIATION (%)
-20
-10
0
10
20
30
(M=30)
Typ.
C5460 series

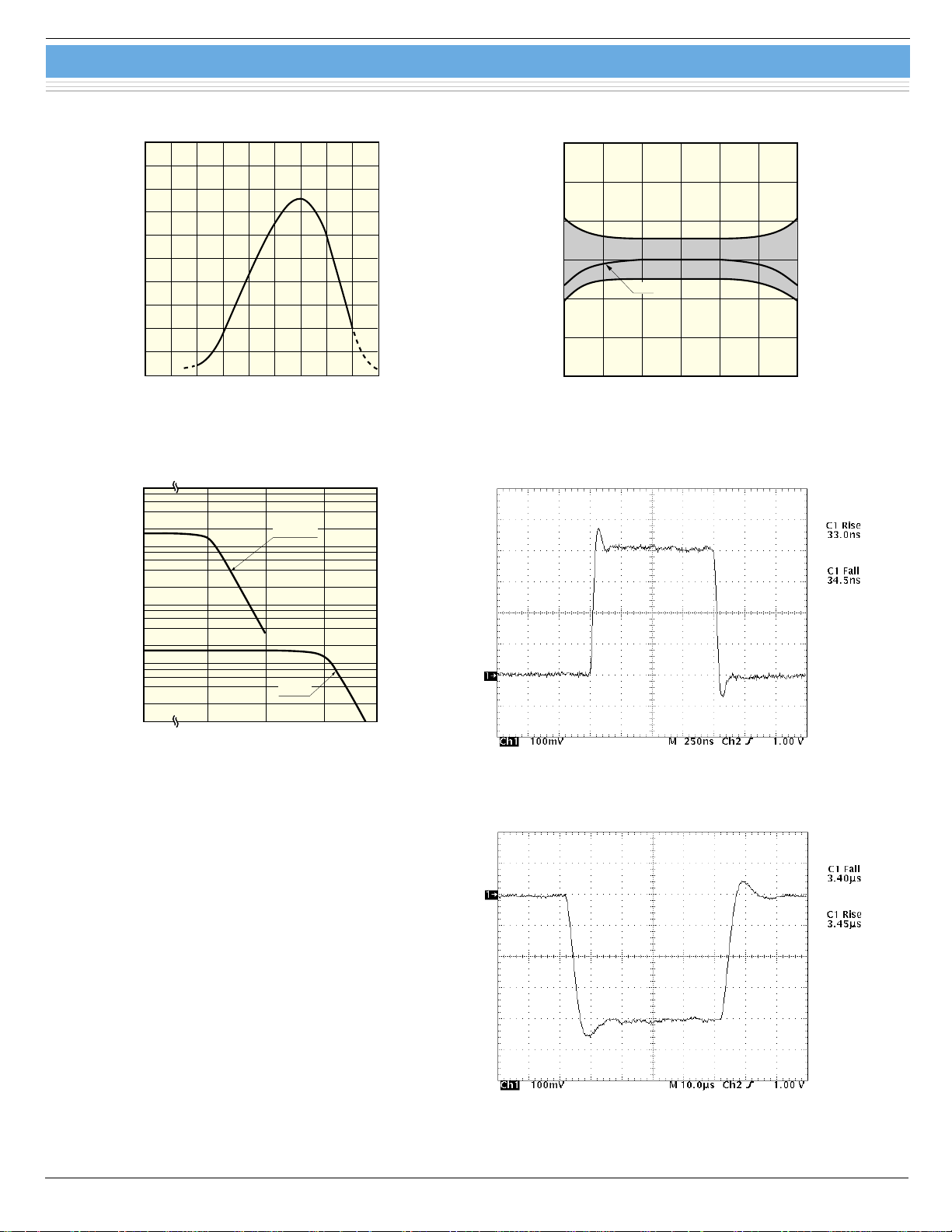

■ Spectral response
20
10
(Typ. Ta=25 ˚C, λ=800 nm, M=30)
■ Gain temperature characteristic
PHOTO SENSITIVITY (A/W)
0
200 400 600 800
WAVELENGTH (nm)
1000
KACCB0013EA
■ Frequency response ■ Response to stepped light (C5460)
9
10
8
10
C5460-01
(Ta=25 ˚C)
KACCB0020EB
7
10
6
10
PHOTO SENSITIVITY (V/W)
C5460
5
10
DC
100 k 1 M 10 M 100 M
FREQUENCY (Hz)
KACCB0030EB
Ta=25 °C, gain M=30, input pulse width=1 µs
X-axis: 250 ns/div., Y-axis: 100 mV/div.
KACCC0128EA
■ Response to stepped light (C5460-01)
Ta=25 °C, gain M=30, input pulse width=50 µs
X-axis: 10 µs/div., Y-axis: 100 mV/div.
KACCC0129EA
Page 4

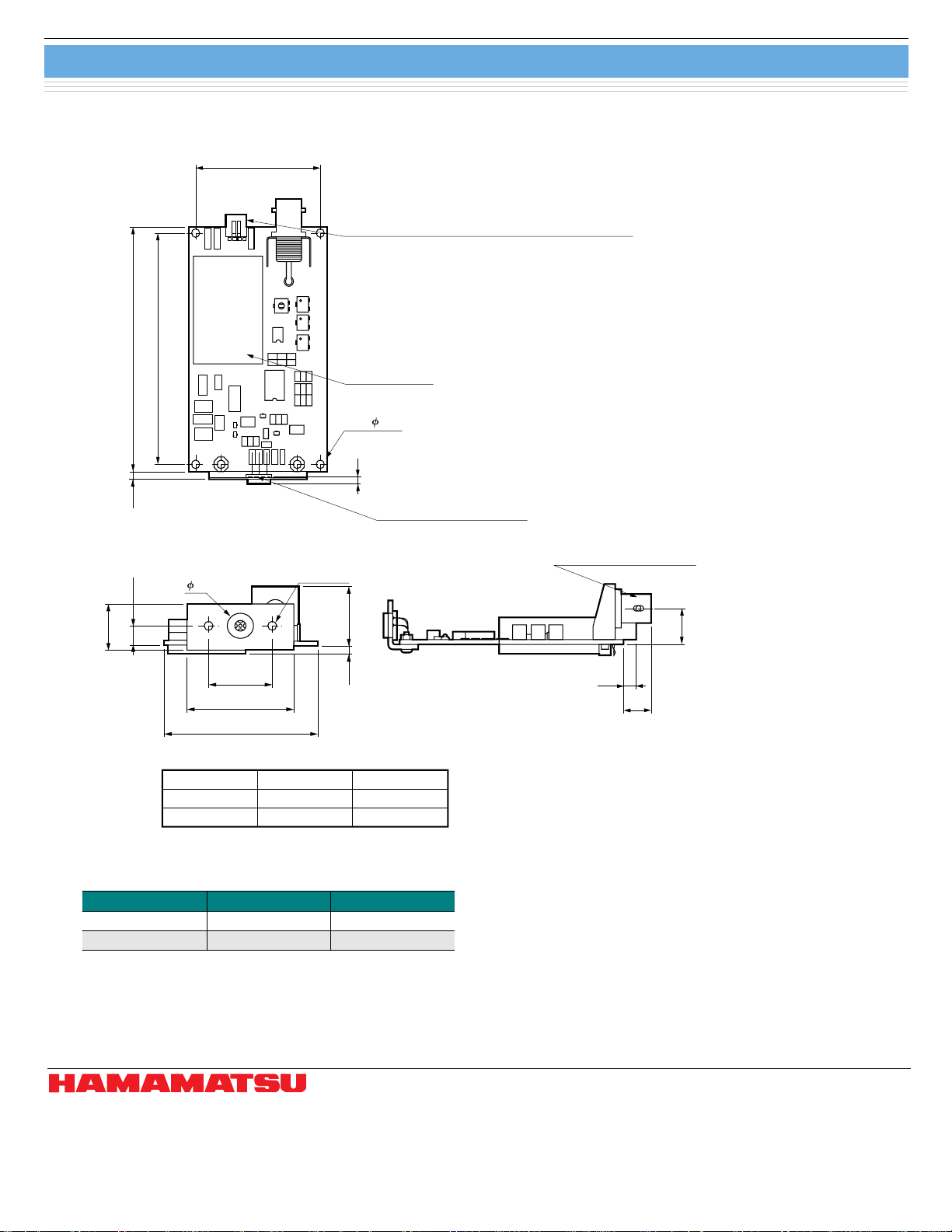

■ Dimensional outline (unit: mm)
APD module
C5460 series
80
2.5
6.2
75
45.0
POWER SUPPLY CONNECTOR
(SUPPLIED WITH CABLE) (MOLEX 5484-03AX)
1 ....+12 V
2 ... GND
3 ... -12 V
123
SHIELD CASE
(4 ×) 3.2
B
APD PHOTOSENSITIVE
SURFACE
BNC CONNECTOR FOR
SIGNAL OUTPUT
A
(2 ×) M3
16.0
20
35
50
19.6
4.0
Tolerance unless otherwise note: ±0.2 mm
3.7
9.0
11.6
TYPE No. A B
C5460
C5460-01
8.2 ± 0.2 2.0 ± 0.2
8.1 ± 0.1
1.4 ± 0.2
KACCA0019EB
■ Attachment adapters for FC and SMA connectors
APD module FC adapter SMA adapter
C5460 A8407-05 A8424-05
C5460-01 A8407-05A A8424-05A
(1) This product incorporates a high-voltage power supply. To prevent electrical hazards, do not remove the mold material.
(2) Do not terminate the output with a 50 Ω load, because this will cause oscillations.
Information furnished by HAMAMATSU is believed to be reliable. However, no responsibility is assumed for possible inaccuracies or omissions.
HAMAMATSU PHOTONICS K.K., Solid State Division
1126-1 Ichino-cho, Hamamatsu City, 435-8558 Japan, Telephone: (81) 053-434-3311, Fax: (81) 053-434-5184, http://www.hamamatsu.com
U.S.A.: Hamamatsu Corporation: 360 Foothill Road, P.O.Box 6910, Bridgewater, N.J. 08807-0910, U.S.A., Telephone: (1) 908-231-0960, Fax: (1) 908-231-1218
Germany: Hamamatsu Photonics Deutschland GmbH: Arzbergerstr. 10, D-82211 Herrsching am Ammersee, Germany, Telephone: (49) 08152-3750, Fax: (49) 08152-2658
France: Hamamatsu Photonics France S.A.R.L.: 8, Rue du Saule Trapu, Parc du Moulin de Massy, 91882 Massy Cedex, France, Telephone: 33-(1) 69 53 71 00, Fax: 33-(1) 69 53 71 10
United Kingdom: Hamamatsu Photonics UK Limited: 2 Howard Court, 10 Tewin Road, Welwyn Garden City, Hertfordshire AL7 1BW, United Kingdom, Telephone: (44) 1707-294888, Fax: (44) 1707-325777
North Europe: Hamamatsu Photonics Norden AB: Smidesvägen 12, SE-171 41 Solna, Sweden, Telephone: (46) 8-509-031-00, Fax: (46) 8-509-031-01
Italy: Hamamatsu Photonics Italia S.R.L.: Strada della Moia, 1/E, 20020 Arese, (Milano), Italy, Telephone: (39) 02-935-81-733, Fax: (39) 02-935-81-741
Specifications are subject to change without notice. No patent rights are granted to any of the circuits described herein. ©2001 Hamamatsu Photonics K.K.
Cat. No. KACC1010E04
Jun. 2001 DN
