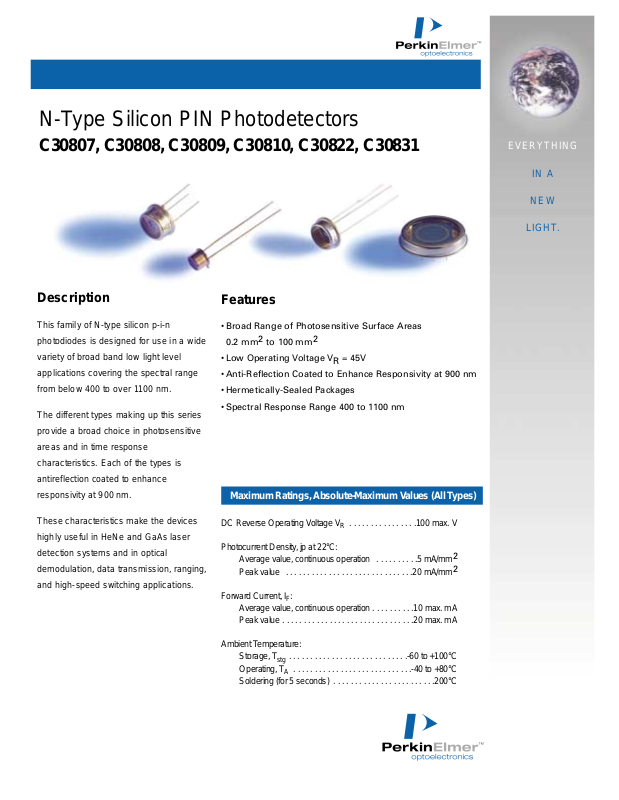

Page 1
EVERYTHING
IN A
NEW
LIGHT.
Description
This family of N-type silicon p-i-n
photodiodes is designed for use in a wide
variety of broad band low light level
applications covering the spectral range
from below 400 to over 1100 nm.
The different types making up this series
provide a broad choice in photosensitive
areas and in time response
characteristics. Each of the types is
antireflection coated to enhance
responsivity at 900 nm.
These characteristics make the devices
highly useful in HeNe and GaAs laser
detection systems and in optical
demodulation, data transmission, ranging,
and high-speed switching applications.
N-Type Silicon PIN Photodetectors
C30807, C30808, C30809, C30810, C30822, C30831
Features
• Broad Range of Photosensitive Surface Areas
0.2 mm2to 100 mm
2
• Low Operating Voltage VR= 45V
• Anti-Reflection Coated to Enhance Responsivity at 900 nm
• Hermetically-Sealed Packages
• Spectral Response Range 400 to 1100 nm
Maximum Ratings, Absolute-Maximum V alues (All Types)
DC Reverse Operating Voltage VR . . . . . . . . . . . . . . . .100 max. V
Photocurrent Density, jp at 22°C:
Average value, continuous operation . . . . . . . . . .5 mA/mm
2
Peak value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 mA/mm
2
Forward Current, IF:
Average value, continuous operation . . . . . . . . . .10 max. mA
Peak value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 max. mA
Ambient T emperature:
Storage, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . .-60 to +100°C
Operating, T
A
. . . . . . . . . . . . . . . . . . . . . . . . . . . .-40 to +80°C
Soldering (for 5 seconds) . . . . . . . . . . . . . . . . . . . . . . . .200°C
Page 2
Mechanical Characteristics
Photosensitive Surface:
Shape -
All types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Circular
Area -
Type C30831 . . . . . . . . . . . . . . . . . . . . . . . . .0.2 mm
2
Type C30807 . . . . . . . . . . . . . . . . . . . . . . . . .0.8 mm
2
Type C30808 . . . . . . . . . . . . . . . . . . . . . . . . . .5 mm
2
Type C30822 . . . . . . . . . . . . . . . . . . . . . . . . .20 mm
2
Type C30809 . . . . . . . . . . . . . . . . . . . . . . . . .50 mm
2
Type C30810 . . . . . . . . . . . . . . . . . . . . . . . .100 mm
2
Optical Characteristics
Field of View:
1
See Figure 5
Approx. Complete Partial
Full Angle For - Illuminatation Illuminatation
Photosensitive Photosensitive
Surface Surface
Type C30831 70 84 deg
Type C30807 62 90 deg
Type C30808 72 120 deg
Type C30822 104 144 deg
Type C30809 74 148 deg
Type C30810 74 140 deg
Note 1. The values specified for field of view are approximate and are critically
dependent on the dimensional tolerances of the package components parts.
Type C30807 Type C30808 Type C30839 Units
Min Typ Max Min T yp Max Min Typ Max
Breakdown Voltage, V
BR
100 - - 100 - - 100 - - V
Responsivity:
At 900 nm 0.5 0.6 - 0.5 0.6 - 0.5 0.6 - A/W
At 1060 nm 0.1 0.15 - 0.1 0.15 - 0.1 0.15 - A/W
Quantum Efficiency:
At 900 nm 70 85 - 70 83 - 70 83 - %
At 1060 nm 12 15 - 12 17 - 12 17 - %
Dark Current, id: See Figure 2
At VR= 10 V
- 2x10-91x10
-8
- 5x10-92.5x10
-8
- 2.5x10-81.3x10
-7
A
At VR= 45V
- 1x10-85x10
-8
- 3x10-81.5x10
-7
- 7x10-83.5x10
-7
A
Noise Current, In: See Figure 3
f = 1000 Hz, ∆f = 1.0 Hz
- 6x10
-14
4.2x10-
13
- 1x10
-13
7x10
-13
- 1.5x10
-13
1.1x10
-12
A/Hz
1/2
Noise Equivalent Power (NEP):
f = 1000 Hz, ∆f = 1.0 Hz
At 900 nm
- 1x10
-13
8x10
-13
- 1.5x10
-13
1.2x10
-12
- 2x10
-13
1.6x10
-12
W/Hz
1/2
At 1060 nm
- 4x10
-13
3.2x10
-12
- 6.5x10
-13
5.2x10
-12
- 1x10
-12
8x10
-12
W/Hz
1/2
Capacitance, Cd:See Figure 4 - 2.5 3 - 6 10 - 35 45 pF
Rise Time, tr:
RL= 50 Ω, λ = 900 nm,
10% to 90% points - 3 5 - 5 8 - 10 15 ns
Fall Time:
RL= 50 Ω, λ = 900 nm,
10% to 90% points - 6 10 - 8 13 - 15 20 ns
Note 2. The recommended range of reverse operating voltage VRat TA= 22°C is 0 to 50 volts. However, when the devices are operated in the photovoltaic mode, i.e., at VR= 0
volts, some of the electrical characteristics will differ from those shown.
C30807, C30808, C30809, C30810, C30822, C30831
Electrical Characteristics at TA= 22°C At a DC Reverse Operating Voltage (VR) = 45 Volts2,
unless otherwise specified
Page 3
Specifications (at VR= 45 Volts (typical), 22°C)
2
Type C30810 Type C30822 Type C30831 Units
Min Typ Max Min Typ Max Min Typ Max
Breakdown Voltage, V
BR
100 - - 100 - - 100 - - V
Responsivity:
At 900 nm 0.5 0.6 - 0.5 0.6 - 0.5 0.6 - A/W
At 1060 nm 0.1 0.15 - 0.1 0.15 - 0.1 0.15 - A/W
Quantum Efficiency:
At 900 nm 70 83 - - 83 - - 83 - %
At 1060 nm 12 17 - - 17 - - 17 - %
Dark Current, id: See Figure 2
At VR= 10V
- 8x10-84x10
-7
- 1x10-85x10
-8
- 1x10-95x10
-9
A
At VR= 45V
- 3x10-71.5x10
-6
- 5x10-82.5x10
-7
- 1x10-85x10
-8
A
Noise Current, In: See Figure 3
f = 1000 Hz, ∆f = 1.0 Hz -
3x10
-13
2.1x10
-12
- 1.3x10
-13
9x10
-13
- 6x10
-14
4.2x10
-13
A/Hz
1/2
Noise Equivalent Power (NEP):
f = 1000 Hz, ∆f = 1.0 Hz
At 900 nm - 4.5x10
-13
3.6x10
-12
- 2x10
-13
1.5x10
-12
- 1x10
-13
8x10
-13
W/Hz
1/2
At 1060 nm - 2x10
-12
1.6x10
-11
- 8x10
-13
7x10
-12
1 4x10
-13
3.2x10
-12
W/Hz
1/2
Capacitance, Cd: See Figure 4 - 70 90 - 17 20 - 2 2.5 pF
Rise Time, tr:
RL = 50 Ω, λ = 900 nm,
10% to 90% points - 12 17 - 7 12 - 3 5 ns
Fall Time:
RL = 50 Ω, λ = 900 nm,
10% to 90% points - 20 30 - 10 15 - 6 10 ns
Note 2. The recommended range of reverse operating voltage VRat TA= 22°C is 0 to 50 volts. However, when the devices are operated in the photovoltaic mode, i.e., at VR= 0
volts, some of the electrical characteristics will differ from those shown.
Figure 2. Typical Dark Current vs. Ambient Temperature
Figure 1. Typical Spectral Responsivity Characteristic
C30807, C30808, C30809, C30810, C30822, C30831
Electrical Characteristics at TA= 22°C At a DC Reverse Operating Voltage (VR) = 45 Volts2,
unless otherwise specified
Page 4
Figure 3. Typical Noise Current vs. Frequency
Figure 4. Typical Photodiode Capacitance vs. Operating Voltage
Figure 5. Definition of Half-Angle Approx. Field-of-View. (Scale is exaggerated
for clarity)
Figure 6. Dimensional Outline for C30807 and C30831
Figure 7. Dimensional Outline for C30809
Figure 8. Dimensional Outline for C30808
C30807, C30808, C30809, C30810, C30822, C30831
Dimensions in millimeters. Dimensions in parentheses are in inches.
Page 5
C30807, C30808, C30809, C30810, C30822, C30831
For more information e-mail us at opto@perkinelmer.com or visit our web site at www.perkinelmer.com/opto
All values are nominal; specifications subject to change without notice.
is a registered trademark of PerkinElmer, Inc.
PerkinElmer Optoelectronics
22001 Dumberry Road,
Vaudreuil, Québec
Canada J7V 8P7
Phone: (450) 424-3300
Fax: (450) 424-3411
©2000 PerkinElmer, Inc.
All rights reserved.
0700
Figure 9. Dimensional Outline for C30810
Figure 10. Dimensional Outline for C30822
