Product information
87 01 125
KNIPEX Cobra®
Hightech Water Pump Pliers
DIN ISO 8976
● Push the button for adjustment on the workpiece
● Fine adjustment for optimum adaptation to different sizes of
workpieces and a comfortable handle width

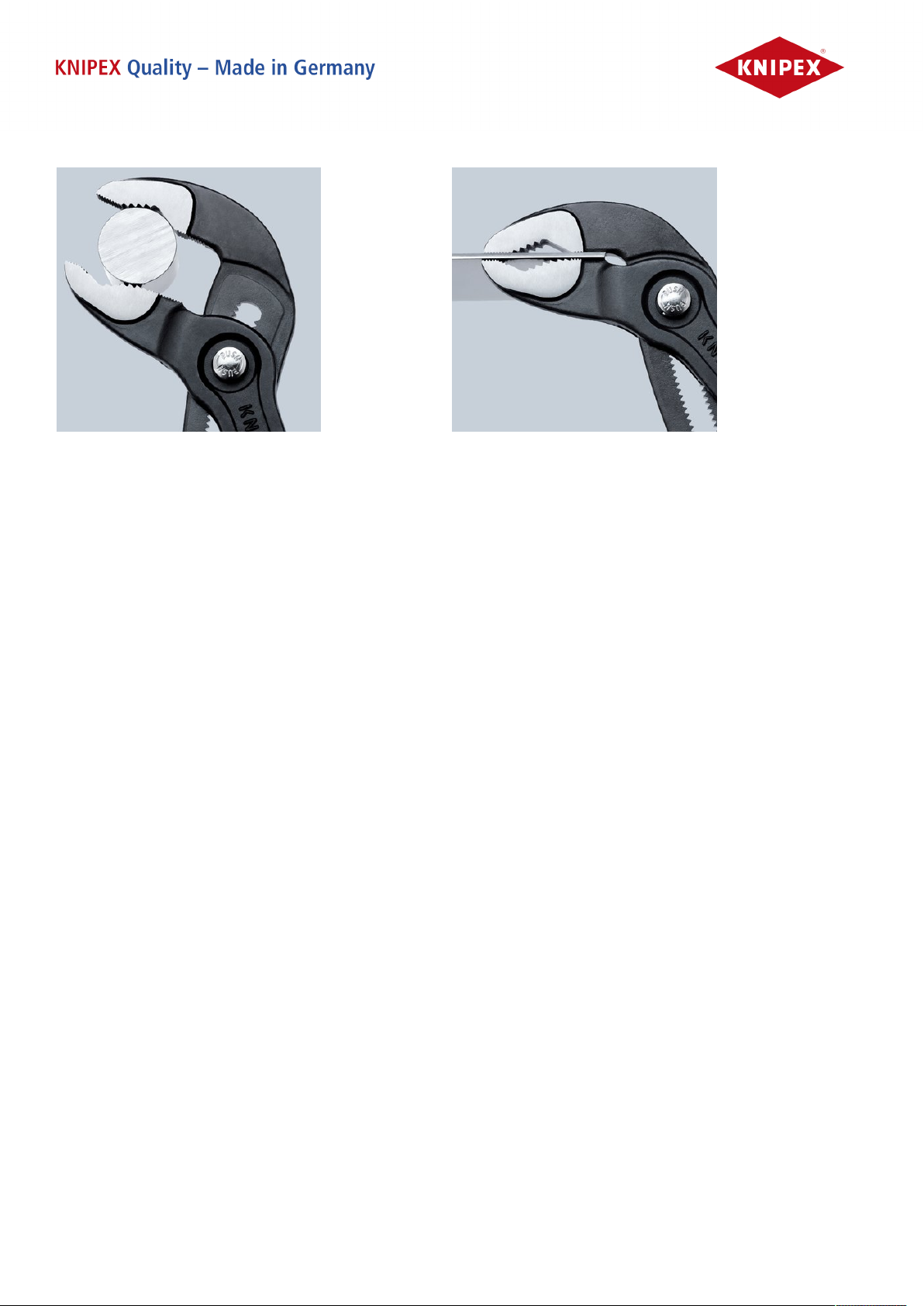

● Self-locking on pipes and nuts: no slipping on the workpiece and low
handforce required
● Gripping surfaces with special hardened teeth, teeth hardness approx.
61 HRC: high wear resistance and stable gripping
● Box-joint design for high stability due to double guide
● Reliable catching of the hinge bolt: no unintentional shifting
● Pinch guard prevents operators' fingers being pinched
● Chrome vanadium electric steel, forged, multi stage oil-hardened
General
Article No. 87 01 125
EAN 4003773069935
Pliers grey atramentized
Head polished
Handles with non-slip plastic coating
weight 90 g
Dimensions 125 x 78 x 14 mm
Standard DIN ISO 8976
Technische Attribute
Adjustment positions 13
Capacities for nuts Ø 1 Inch
Capacities for nuts 27 mm
Capacities for pipes (diameter) Ø 29 mm
Classification
eCl@ss 5.1.4 21040301
ETIM 5.0 EC000164
ETIM 6.0 EC000164
proficl@ss 6.0 AAA936c004
UNSPSC 13.1 27112112
technical change and errors excepted
