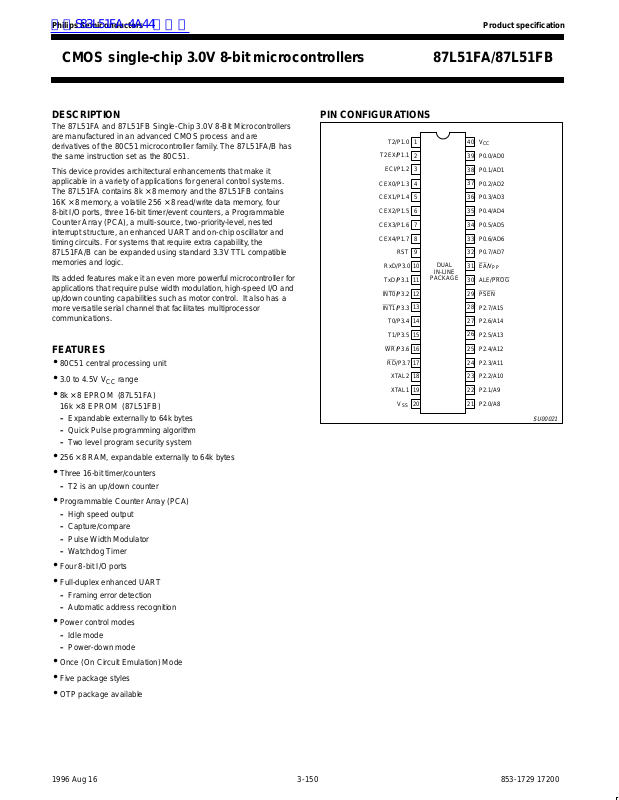

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

DESCRIPTION

The 87L51FA and 87L51FB Single-Chip 3.0V 8-Bit Microcontrollers are manufactured in an advanced CMOS process and are derivatives of the 80C51 microcontroller family. The 87L51FA/B has the same instruction set as the 80C51.

This device provides architectural enhancements that make it applicable in a variety of applications for general control systems. The 87L51FA contains 8k × 8 memory and the 87L51FB contains 16K × 8 memory, a volatile 256 × 8 read/write data memory, four 8-bit I/O ports, three 16-bit timer/event counters, a Programmable Counter Array (PCA), a multi-source, two-priority-level, nested interrupt structure, an enhanced UART and on-chip oscillator and timing circuits. For systems that require extra capability, the 87L51FA/B can be expanded using standard 3.3V TTL compatible memories and logic.

Its added features make it an even more powerful microcontroller for applications that require pulse width modulation, high-speed I/O and up/down counting capabilities such as motor control. It also has a more versatile serial channel that facilitates multiprocessor communications.

FEA TURES

•80C51 central processing unit

•3.0 to 4.5V V

range

•8k × 8 EPROM (87L51FA)

16k × 8 EPROM (87L51FB)

– Expandable externally to 64k bytes – Quick Pulse programming algorithm – Two level program security system

•256 × 8 RAM, expandable externally to 64k bytes

•Three 16-bit timer/counters

– T2 is an up/down counter

•Programmable Counter Array (PCA)

– High speed output – Capture/compare – Pulse Width Modulator – Watchdog Timer

•Four 8-bit I/O ports

•Full-duplex enhanced UART

– Framing error detection – Automatic address recognition

•Power control modes

– Idle mode – Power-down mode

•Once (On Circuit Emulation) Mode

•Five package styles

•OTP package available

PIN CONFIGURATIONS

T2/P1.0

T2EX/P1.1

CEX0/P1.3 CEX1/P1.4 CEX2/P1.5 CEX3/P1.6 CEX4/P1.7

INT0 INT1

ECI/P1.2

RST RxD/P3.0 TxD/P3.1

/P3.2

/P3.3 T0/P3.4 T1/P3.5

/P3.6

/P3.7

XTAL2 XTAL1

2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20

DUAL

IN-LINE

PACKAGE

V P0.0/AD0

39 38

P0.1/AD1

P0.2/AD2

P0.3/AD3

P0.4/AD4

P0.5/AD5

P0.6/AD6

P0.7/AD7 EA/V

31 30

ALE/PROG

PSEN

P2.7/A15

P2.6/A14

P2.5/A13

P2.4/A12

P2.3/A11

P2.2/A10

P2.1/A9

P2.0/A8

SU00021

1996 Aug 16 853-1729 17200

3-150

Page 2

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

ORDERING INFORMATION

8k × 8

ROM

S83L51FA–4N40 S83L51FB–4N40 S87L51FA–4N40 S87L51FB–4N40 OTP

S83L51FA–4A44 S83L51FB–4A44 S87L51FA–4A44 S87L51FB–4A44 OTP

S83L51FA–4B44 S83L51FB–4B44 S87L51FA–4B44 S87L51FB–4B44 OTP

S83L51FA–5N40 S83L51FB–5N40 S87L51FA–5N40 S87L51FB–5N40 OTP

S87L51FA–5A44 S87L51FB–5A44 S87L51FA–5A44 S87L51FB–5A44 OTP

S83L51FA–5B44 S83L51FB–5B44 S87L51FA–5B44 S87L51FB–5B44 OTP

S83L51FA–7N40 S83L51FB–7N40 S87L51FA–7N40 S87L51FB–7N40 OTP

S83L51FA–7A44 S83L51FB–7A44 S87L51FA–7A44 S87L51FB–7A44 OTP

S83L51FA–8N40 S83L51FB–8N40 S87L51FA–8N40 S87L51FB–8N40 OTP

S83L51FA–8A44 S83L51FB–8A44 S87L51FA–8A44 S87L51FB–8A44 OTP

NOTES:

1. Contact Philips for information on low voltage Mask-ROM versions. The 83C51FA and 83C51FB are specified for 2.7V–5.5V operation @ 16MHz.

2. OTP = One Time Programmable EPROM. UV = Erasable EPROM.

6k × 8 ROM

8k × 8

EPROM

S87L51FA–4F40 S87L51FB–4F40 UV

S87L51FA–4K44 S87L51FB–4K44 UV

S87L51FA–5F40 S87L51FB–5F40 UV

S87L51FA–7F40 S87L51FB–7F40 UV

S87L51FA–7K44 S87L51FB–7K44 UV

S87L51FA–8F40 S87L51FB–8F40 UV

16k × 8

EPROM

TEMPERA TURE RANGE °C

AND PACKAGE

0 to +70,

40-Pin Plastic Dual In-line Package

0 to +70,

40-Pin Ceramic Dual In-line Package

w/Window

0 to +70,

44-Pin Plastic Leaded Chip Carrier

0 to +70,

44-Pin Ceramic Leaded Chip Carrier

w/Window

0 to +70,

44-Pin Plastic Quad Flat Pack

–40 to +85,

40-Pin Plastic Dual In-line Package

–40 to +85,

40-Pin Ceramic Dual In-line Package

w/Window

–40 to +85,

44-Pin Plastic Leaded Chip Carrier

–40 to +85,

44-Pin Plastic Quad Flat Pack

0 to +70,

40-Pin Plastic Dual In-line Package

0 to +70,

40-Pin Ceramic Dual In-line Package

w/Window

0 to +70,

44-Pin Plastic Leaded Chip Carrier

0 to +70,

44-Pin Ceramic Leaded Chip Carrier

w/Window

–40 to +85,

40-Pin Plastic Dual In-line Package

–40 to +85,

40-Pin Ceramic Dual In-line Package

w/Window

–40 to +85,

44-Pin Plastic Leaded Chip Carrier

FREQ.

(MHz)

3.5 to

DWG.

SOT129-1

0590B

SOT187-2

1472A

SOT307-2

SOT129-1

0590B

SOT187-2

SOT307-2

SOT129-1

0590B

SOT187-2

1472A

SOT129-1

0590B

SOT187-2

1996 Aug 16

3-151

Page 3

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

BLOCK DIAGRAM

P0.0–P0.7 P2.0–P2.7

PSEN

ALE/PROG

EA/V

RST

PORT 0

DRIVERS

PSW

PORT 1

LATCH

PORT 0

LATCH

ALU

TMP1

RAM ADDR REGISTER

TIMING

AND

CONTROL

INSTRUCTION

RAM

ACC

TMP2

PORT 2

DRIVERS

PORT 2

LATCH

SFRs

TIMERS

P.C.A

STACK

POINTER

PORT 3

LATCH

ROM/EPROM

PROGRAM

ADDRESS

BUFFER

INCRE-

MENTER

PROGRAM COUNTER

DPTR

1996 Aug 16

OSCILLATOR

XTAL1 XTAL2

PORT 1

DRIVERS

P1.0–P1.7

3-152

PORT 3

DRIVERS

P3.0–P3.7

SU00022

Page 4

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

CERAMIC AND PLASTIC LEADED CHIP CARRIER PIN FUNCTIONS

6140

Pin Function

1 NC* 2 P1.0/T2 3 P1.1/T2EX 4 P1.2/ECI 5 P1.3/CEX0 6 P1.4/CEX1 7 P1.5/CEX2 8 P1.6/CEX3

9 P1.7/CEX4 10 RST 11 P3.0/RxD 12 NC* 13 P3.1/TxD 14 P3.2/INT0 15 P3.3/INT1

* DO NOT CONNECT

18 28

Pin Function

16 P3.4/T0 17 P3.5/T1 18 P3.6/WR 19 P3.7/RD 20 XTAL2 21 XTAL1 22 V 23 NC* 24 P2.0/A8 25 P2.1/A9 26 P2.2/A10 27 P2.3/A11 28 P2.4/A12 29 P2.5/A13 30 P2.6/A14

LCC

Pin Function

31 P2.7/A15 32 PSEN 33 ALE/PROG 34 NC* 35 EA

/V 36 P0.7/AD7 37 P0.6/AD6 38 P0.5/AD5 39 P0.4/AD4 40 P0.3/AD3 41 P0.2/AD2 42 P0.1/AD1 43 P0.0/AD0 44 V

SU00023

PLASTIC QUAD FLAT PACK PIN FUNCTIONS

44 34

PQFP

12 22

Pin Function

1 P1.5/CEX2 2 P1.6/CEX3 3 P1.7/CEX4 4 RST 5 P3.0/RxD 6 NC* 7 P3.1/TxD 8 P3.2/INT0

9 P3.3/INT1 10 P3.4/T0 11 P3.5/T1 12 P3.6/WR 13 P3.7/RD 14 XTAL2 15 XTAL1

* DO NOT CONNECT

Pin Function

16 V

17 NC* 18 P2.0/A8 19 P2.1/A9 20 P2.2/A10 21 P2.3/A11 22 P2.4/A12 23 P2.5/A13 24 P2.6/A14 25 P2.7/A15 26 PSEN 27 ALE/PROG 28 NC* 29 EA

30 P0.7/AD7

Pin Function

31 P0.6/AD6 32 P0.5/AD5 33 P0.4/AD4 34 P0.3/AD3 35 P0.2/AD2 36 P0.1/AD1 37 P0.0/AD0 38 V

39 NC* 40 P1.0/T2 41 P1.1/T2EX 42 P1.2/ECI 43 P1.3/CEX0 44 P1.4/CEX1

SU00024

PIN DESCRIPTIONS

PIN NUMBER

MNEMONIC DIP LCC QFP TYPE NAME AND FUNCTION

P0.0–0.7 39–32 43–36 37–30 I/O Port 0: Port 0 is an open-drain, bidirectional I/O port. Port 0 pins that have 1s written to

P1.0–P1.7 1–8 2–9 40–44,

P2.0–P2.7 21–28 24–31 18–25 I/O Port 2: Port 2 is an 8-bit bidirectional I/O port with internal pull-ups. Port 2 pins that have 1s

20 22 16 I Ground: 0V reference. 40 44 38 I Power Supply: This is the power supply voltage for normal, idle, and power-down operation.

them float and can be used as high-impedance inputs. Port 0 is also the multiplexed low-order address and data bus during accesses to external program and data memory. In this application, it uses strong internal pull-ups when emitting 1s. Port 0 also outputs the code bytes during program verification and receives code bytes during EPROM programming. External pull-ups are required during program verification.

I/O Port 1: Port 1 is an 8-bit bidirectional I/O port with internal pull-ups. Port 1 pins that have 1s

1–3

written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 1 pins that are externally pulled low will source current because of the internal pull-ups. (See DC Electrical Characteristics: I during program memory verification. Alternate functions include:

). Port 1 also receives the low-order address byte

1 2 40 I T2 (P1.0): Timer/Counter 2 external count input/Clockout 2 3 41 I T2EX (P1.1): Timer/Counter 2 Reload/Capture/Direction Control 3 4 42 I ECI (P1.2): External Clock Input to the PCA 4 5 43 I/O CEX0 (P1.3): Capture/Compare External I/O for PCA module 0 5 6 44 I/O CEX1 (P1.4): Capture/Compare External I/O for PCA module 1 6 7 1 I/O CEX2 (P1.5): Capture/Compare External I/O for PCA module 2 7 8 2 I/O CEX3 (P1.6): Capture/Compare External I/O for PCA module 3 8 9 3 I/O CEX4 (P1.7): Capture/Compare External I/O for PCA module 4

written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 2 pins that are externally being pulled low will source current because of the internal pull-ups. (See DC Electrical Characteristics: I during fetches from external program memory and during accesses to external data memory

). Port 2 emits the high-order address byte

that use 16-bit addresses (MOVX @DPTR). In this application, it uses strong internal pull-ups when emitting 1s. During a c c esses to exter n al data memor y that use 8-bit addresses (MOV @Ri), port 2 emits the contents of the P2 special function register. Some Port 2 pins receive the high order address bits during EPROM programming and verification.

1996 Aug 16

3-153

Page 5

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

PIN DESCRIPTIONS (Continued)

PIN NUMBER

MNEMONIC DIP LCC QFP TYPE NAME AND FUNCTION

P3.0–P3.7 10–17 11,

RST 9 10 4 I Reset: A high on this pin for two machine cycles while the oscillator is running, resets the

ALE/PROG 30 33 27 I/O Address Latch Enable/Program Pulse: Output pulse for latching the low byte of the

PSEN 29 32 26 O Program Store Enable: The read strobe to external program memory. When the

EA/V

XTAL1 19 21 15 I Crystal 1: Input to the inverting oscillator amplifier and input to the internal clock generator

XTAL2 18 20 14 O Crystal 2: Output from the inverting oscillator amplifier.

NOTE:

To avoid “latch-up” effect at power-on, the voltage on any pin at any time must not be higher than V

13–195,7–13

10 11 5 I RxD (P3.0): Serial input port 11 13 7 O TxD (P3.1): Serial output port 12 14 8 I INT0 (P3.2): External interrupt 13 15 9 I INT1 (P3.3): External interrupt 14 16 10 I T0 (P3.4): Timer 0 external input 15 17 11 I T1 (P3.5): Timer 1 external input 16 18 12 O WR (P3.6): External data memory write strobe 17 19 13 O RD (P3.7): External data memory read strobe

31 35 29 I External Access Enable/Programming Supply Voltage: EA must be externally held low

I/O Port 3: Port 3 is an 8-bit bidirectional I/O port with internal pull-ups. Port 3 pins that have 1s

written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs, port 3 pins that are externally being pulled low will source current because of the pull-ups. (See DC Electrical Characteristics: I family, as listed below:

device. An internal diffused resistor to V capacitor to V

address during an access to external memory. In normal operation, ALE is emitted at a constant rate of 1/6 the oscillator frequency, and can be used for external timing or clocking. Note that one ALE pulse is skipped during each access to external data memory. This pin is also the program pulse input (PROG

87L51FA/FB is executing code from the external program memory, PSEN each machine cycle, except that two PSEN external data memory. PSEN

to enable the device to fetch code from external program memory locations 0000H and 1FFFH. If EA program counter contains an address greater than 1FFFH. This pin also receives the

12.75V programming supply voltage (V programmed, EA

circuits.

is held high, the device executes from internal program memory unless the

will be internally latched on Reset.

). Port 3 also serves the special features of the 80C51

permits a power-on reset using only an external

) during EPROM programming.

is not activated during fetches from internal program memory.

activations are skipped during each access to

) during EPROM programming. If security bit 1 is

+ 0.5V or VSS – 0.5V , respectively.

is activated twice

TIMER 2

This is a 16-bit up or down counter, which can be operated as either a timer or event counter. It can be operated in one of three different modes (autoreload, capture or as the baud rate generator for the UART).

In the autoreload mode the Timer can be set to count up or down by setting or clearing the bit DCEN in the T2CON Special Function Register. The SFR’ s RCAP2H and RCAP2L are used to reload the Timer upon overflow or a 1-to-0 transition on the T2EX input (P1.1).

In the Capture mode Timer 2 can either set TF2 and generate an interrupt or capture its value. To capture Timer 2 in response to a 1-to-0 transition on the T2EX input, the EXEN2 bit in the T2CON must be set. Timer 2 is then captured in SFR’s RCAP2H and RCAP2L.

As the baud rate generator, Timer 2 is selected by setting TCLK and/or RCLK in T2CON. As the baud rate generator Timer 2 is incremented at

1996 Aug 16

/2 the oscillator frequency.

ENHANCED UART

The 87L51FA/FB UART has all of the capabilities of the standard 80C51 UART plus Framing Error Detection and Automatic Address Recognition. As in the 80C51, all four modes of operation are supported as well as the 9th bit in modes 2 and 3 that can be used to facilitate multiprocessor communication.

The Framing Error Detection allows the UART to look for missing stop bits. If a Stop bit is missing, the FE bit in the SCON SFR is set. The FE bit can be checked after each transmission to detect communication errors. The FE bit can only be cleared by software and is not affected by a valid stop bit.

Automatic Address Recognition is used to reduce the CPU service time for the serial port. The CPU only needs to service the UART when it is addressed and, with this done by the on-chip circuitry, the need for software overhead is greatly reduced. This mode works similar to the 9-bit communication mode, except that it uses only 8 bits and the Stop bit is used to cause the RI bit to be set. There are two SFRs associated with this mode. They are SADDR, which holds the slave address and SADEN, which contains a mask that allows selective masking of the slave address so that broadcast addresses can be used.

3-154

Page 6

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

PROGRAMMABLE COUNTER ARRAY

The PCA is a sophisticated free-running 16 bit Timer/Counter that drives 5 modules that can be individually configured as Capture inputs, software timers, high speed outputs, or pulse width modulated outputs. In addition, module 4 can be configured as a software controlled watchdog timer.

The Timer portion of the PCA can be configured to run in one of four different modes. The modes are: oscillator frequency , Timer 0 overflows, or from the ECI input.

For the Capture/Compare mode each of the modules has a pair of registers associated with it called CCAPnH and CCAPnL (where n = 0, 1, 2, 3, 4 depending on the module). Both positive and negative transitions can be captured. This means that the PCA has the flexibility to measure phase differences, duty cycles, pulse widths and a wide variety of other digital pulse characteristics.

In the 16-bit software timer mode each of the modules can generate an interrupt upon a compare.

For applications that require accurate pulse widths and edges the PCA modules can be used as High Speed Outputs (HSO). The PCA toggles the appropriate CEXn pin when there is a match between the PCA timer and the modules compare registers.

The pulse width modulator mode for the PCA allows the conversion of digital information into analog signals. Each of the 5 modules can be used in this mode. The frequency of the PWM depends on the clock source for the PCA. The 8-bit PWM output is generated by comparing the low byte of the PCA (CL) with the module’s CCAPnL SFR. When CL < CCAPnL, the output is high. When CL > CCAPnL, the output is low.

/2 the oscillator frequency, 1/4 the

POWER OFF FLAG

The Power Off Flag (POF) is set by on-chip circuitry when the V level on the 87L51FA/FB rises from 0 to 3.3V. The POF bit can be set or cleared by software allowing a user to determine if the reset is the result of a power-on or a warm start after powerdown. The V level must remain above 2.0V for the POF to remain unaffected by the V

level.

OSCILLA T OR CHARACTERISTICS

XTAL1 and XTAL2 are the input and output, respectively , of an inverting amplifier . The pins can be configured for use as an on-chip oscillator.

To drive the device from an external clock source, XTAL1 should be driven while XTAL2 is left unconnected. There are no requirements on the duty cycle of the external clock signal, because the input to the internal clock circuitry is through a divide-by-two flip-flop. However, minimum and maximum high and low times specified in the data sheet must be observed.

Reset

A reset is accomplished by holding the RST pin high for at least two machine cycles (24 oscillator periods), while the oscillator is running. To insure a good power-on reset, the RST pin must be high long enough to allow the oscillator time to start up (normally a few milliseconds) plus two machine cycles. At power-on, the voltage on

and RST must come up at the same time for a proper start-up.

Idle Mode

In the idle mode, the CPU puts itself to sleep while all of the on-chip peripherals stay active. The instruction to invoke the idle mode is the last instruction executed in the normal operating mode before the idle mode is activated. The CPU contents, the on-chip RAM, and all of the special function registers remain intact during this mode. The idle mode can be terminated either by any enabled interrupt (at which time the process is picked up at the interrupt service routine and continued), or by a hardware reset which starts the processor in the same manner as a power-on reset.

Power-Down Mode

To save even more power, a Power Down mode can be invoked by software. In this mode, the oscillator is stopped and the instruction that invoked Power Down is the last instruction executed. The on-chip RAM and Special Function Registers retain their values until the Power Down mode is terminated.

On the 87L51FA/FB either a hardware reset or external interrupt can use an exit from Power Down. Reset redefines all the SFRs but does not change the on-chip RAM. An external interrupt allows both the SFRs and the on-chip RAM to retain their values.

To properly terminate Power Down the reset or external interrupt should not be executed before V operating level and must be held active long enough for the oscillator to restart and stabilize (normally less than 10ms).

With an external interrupt, INT0 and INT1 must be enabled and configured as level-sensitive. Holding the pin low restarts the oscillator but bringing the pin back high completes the exit. Once the interrupt is serviced, the next instruction to be executed after RETI will be the one following the instruction that put the device into Power Down.

is restored to its normal

Design Consideration

•When the idle mode is terminated by a hardware reset, the device

normally resumes program execution, from where it left off, up to two machine cycles before the internal rest algorithm takes control. On-chip hardware inhibits access to internal RAM in this event, but access to the port pins is not inhibited. To eliminate the possibility of an unexpected write when Idle is terminated by reset, the instruction following the one that invokes Idle should not be one that writes to a port pin or to external memory.

ONCE Mode

The ONCE (“On-Circuit Emulation”) Mode facilitates testing and debugging of systems using the 87L51FA/FB without the 87L51FA/FB having to be removed from the circuit. The ONCE Mode is invoked by:

1. Pull ALE low while the device is in reset and PSEN

2. Hold ALE low as RST is deactivated. While the device is in ONCE Mode, the Port 0 pins go into a float

state, and the other port pins and ALE and PSEN high. The oscillator circuit remains active. While the 87L51FA/FB is in this mode, an emulator or test CPU can be used to drive the circuit. Normal operation is restored when a normal reset is applied.

is high;

are weakly pulled

1996 Aug 16

3-155

Page 7

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

Table 1. External Pin Status During Idle and Power-Down Mode

MODE

Idle Internal 1 1 Data Data Data Data Idle External 1 1 Float Data Address Data Power-down Internal 0 0 Data Data Data Data Power-down External 0 0 Float Data Data Data

PROGRAM

MEMORY

ALE PSEN PORT 0 PORT 1 PORT 2 PORT 3

ABSOLUTE MAXIMUM RATINGS

PARAMETER

Operating temperature under bias 0 to +70 or –40 to +85 °C Storage temperature range –65 to +150 °C Voltage on EA/VPP pin to V Voltage on any other pin to V Maximum IOL per I/O pin 15 mA Power dissipation (based on package heat transfer limitations, not

device power consumption)

NOTES:

1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section of this specification is not implied.

2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maxima.

3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to V noted.

Electrical Deviations from Commercial Specifications for Extended Temperature Range

DC and AC parameters not included here are the same as in the commercial temperature range table.

1, 2, 3

RATING UNIT

0 to +13.0 V

–0.5 to +6.5 V

1.5 W

unless otherwise

1996 Aug 16

3-156

Page 8

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

DC ELECTRICAL CHARACTERISTICS

= 0°C to +70°C, –40 to +85°C, VCC = 3.0V to 4.5V, VSS = 0V

amb

TEST LIMITS

MAX UNIT

VCC+0.5 V

0.45 V

9 2

22 75

µA

SYMBOL PARAMETER CONDITIONS MIN TYP

2,3

–0.5 0.8 V

0 0.8 V

2,4

IOL = 1.6mA IOL = 3.2mA

IOH = –20µA VCC – 0.5 V

6 6

2.0 VCC+0.5 V

0.7V

IOH = –3.2mA VCC – 0.7 V

VIN = 0.4V –50 µA See note 9 –650 µA

See note 11

V V V V V V V V

I I I I

IL TL LI CC

IL IL1 IH IH1 OL OL1 OH OH1

Input low voltage, except EA Input low voltage to EA Input high voltage, except XTAL1, RST Input high voltage, XTAL1, RST Output low voltage, ports 1, 2, 3 Output low voltage, port 0, ALE, PSEN Output high voltage, ports 1, 2, 3, ALE, PSEN Output high voltage (port 0 in external bus mode),

, PSEN

ALE Logical 0 input current, ports 1, 2, 3 Logical 1-to-0 transition current, ports 1, 2, 3 Input leakage current, port 0 0.45 VIN < VCC – 0.3 ±10 µA Power supply current:2

Active mode @ 20MHz Idle mode @ 20MHz Power-down mode

RST

Internal reset pull-down resistor 40 225 kΩ Pin capacitance12 (except EA) 15 pF

NOTES:

1. Typical ratings are not guaranteed. The values listed are at room temperature, 3.3V.

2. These values apply only to T

3. For V

4. For V

5. Under steady state (non-transient) conditions, I

voltages above 3.6V and less than 5.5V , VIL = 0.3VCC – 0.1

voltages above 3.6V and less than 5.5V , VIH = 0.3VCC + 0.92

Maximum I Maximum I Maximum total I

exceeds the test condition, VOL may exceed the related specification. Pins are not guaranteed to sink current greater than the listed

If I

test conditions.

per port pin: 15mA (*NOTE: This is 85°C specification.)

per 8-bit port: 26mA

for all outputs: 71mA

6. Capacitive loading on ports 0 and 2 may cause spurious noise to be superimposed on the V to external bus capacitance discharging into the port 0 and port 2 pins when these pins make 1-to-0 transitions during bus operations. In the

= 0°C to +70°C.

amb

must be externally limited as follows:

s of ALE and ports 1 and 3. The noise is due

worst cases (capacitive loading > 100pF), the noise pulse on the ALE pin may exceed 0.8V . In such cases, it may be desirable to qualify ALE with a Schmitt Trigger, or use an address latch with a Schmitt Trigger STROBE input. I single output sinks more than 5mA and no more than two outputs exceed the test conditions.

7. Capacitive loading on ports 0 and 2 may cause the V address bits are stabilizing.

8. ALE is tested to V

9. Pins of ports 1, 2 and 3 source a transition current when they are being externally driven from 1 to 0. The transition current reaches its maximum value when V

10.I

at other frequencies is given by: Active mode: I

CCMAX

where FREQ is the external oscillator frequency in MHz. I

11.See Figures 9 through 12 for I

12.Pin capacitance is less than 25pF. Pin capacitance of ceramic package is less than 15pF (except EA

, except when ALE is off then VOH is the voltage specification.

OH1

is approximately 1.5V .

test conditions.

on ALE and PSEN to momentarily fall below the 0.9VCC specification when the

= 0.8 × FREQ + 6: Idle mode: I

CCMAX

is given in mA. See Figure 8.

CCMAX

can exceed these conditions provided that no

= 0.19 × FREQ +2.50,

CCMAX

is 25pF). These values are

guaranteed by design and are not tested.

1996 Aug 16

3-157

Page 9

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

AC ELECTRICAL CHARACTERISTICS

= 0°C to +70°C, –40 to +85°C, VCC = 3.0V to 4.5V, VSS = 0V

amb

1, 2, 3

16MHz CLOCK VARIABLE CLOCK

SYMBOL FIGURE PARAMETER MIN MAX MIN MAX UNIT

1/t

CLCL

1 Oscillator frequency –4, –5 3.5 16 MHz

–7, –8 3.5 20 MHz

LHLL

AVLL

LLAX

LLIV

LLPL

PLPH

PLIV

PXIX

PXIZ

AVIV

PLAZ

1 ALE pulse width 85 2t 1 Address valid to ALE low 22 t 1 Address hold after ALE low 32 t 1 ALE low to valid instruction in 150 4t 1 ALE low to PSEN low 32 t 1 PSEN pulse width 142 3t 1 PSEN low to valid instruction in 82 3t

–40 ns

CLCL

–40 ns

CLCL

–30 ns

CLCL

–100 ns

CLCL

–30 ns

CLCL

–45 ns

CLCL

–105 ns

CLCL

1 Input instruction hold after PSEN 0 0 ns 1 Input instruction float after PSEN 37 t 1 Address to valid instruction in 207 5t

–25 ns

CLCL

–105 ns

CLCL

1 PSEN low to address float 10 10 ns

Data Memory

RLRH

WLWH

RLDV

RHDX

RHDZ

LLDV

AVDV

LLWL

AVWL

QVWX

WHQX

QVWH

RLAZ

WHLH

2, 3 RD pulse width 275 6t 2, 3 WR pulse width 275 6t 2, 3 RD low to valid data in 147 5t

–100 ns

CLCL

–100 ns

CLCL

–165 ns

CLCL

2, 3 Data hold after RD 0 0 ns 2, 3 Data float after RD 65 2t 2, 3 ALE low to valid data in 350 8t 2, 3 Address to valid data in 397 9t 2, 3 ALE low to RD or WR low 137 237 3t 2, 3 Address valid to WR low or RD low 122 4t 2, 3 Data valid to WR transition 13 t 2, 3 Data hold after WR 13 t

3 Data valid to WR high 287 7t

–50 3t

CLCL

–130 ns

CLCL

–50 ns

CLCL

–50 ns

CLCL

–150 ns

CLCL

–60 ns

CLCL

–150 ns

CLCL

–165 ns

CLCL

+50 ns

CLCL

2, 3 RD low to address float 0 0 ns 2, 3 RD or WR high to ALE high 23 103 t

–40 t

CLCL

+40 ns

CLCL

External Clock

CHCX

CLCX

CLCH

CHCL

5 High time 12 20 ns 5 Low time 12 20 ns 5 Rise time 20 20 ns 5 Fall time 20 20 ns

Shift Register

XLXL

QVXH

XHQX

XHDX

XHDV

4 Serial port clock cycle time 1 12t 4 Output data setup to clock rising edge 492 10t 4 Output data hold after clock rising edge 8 2t

CLCL

–133 ns

–117 ns

µs

4 Input data hold after clock rising edge 0 0 ns 4 Clock rising edge to input data valid 492 10t

–133 ns

CLCL

NOTES:

1. Parameters are valid over operating temperature range unless otherwise specified.

2. Load capacitance for port 0, ALE, and PSEN

= 100pF, load capacitance for all other outputs = 80pF.

3. Interfacing the 87L51F A/FB to devices with float times up to 45ns is permitted. This limited bus contention will not cause damage to Port 0 drivers.

1996 Aug 16

3-158

Page 10

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

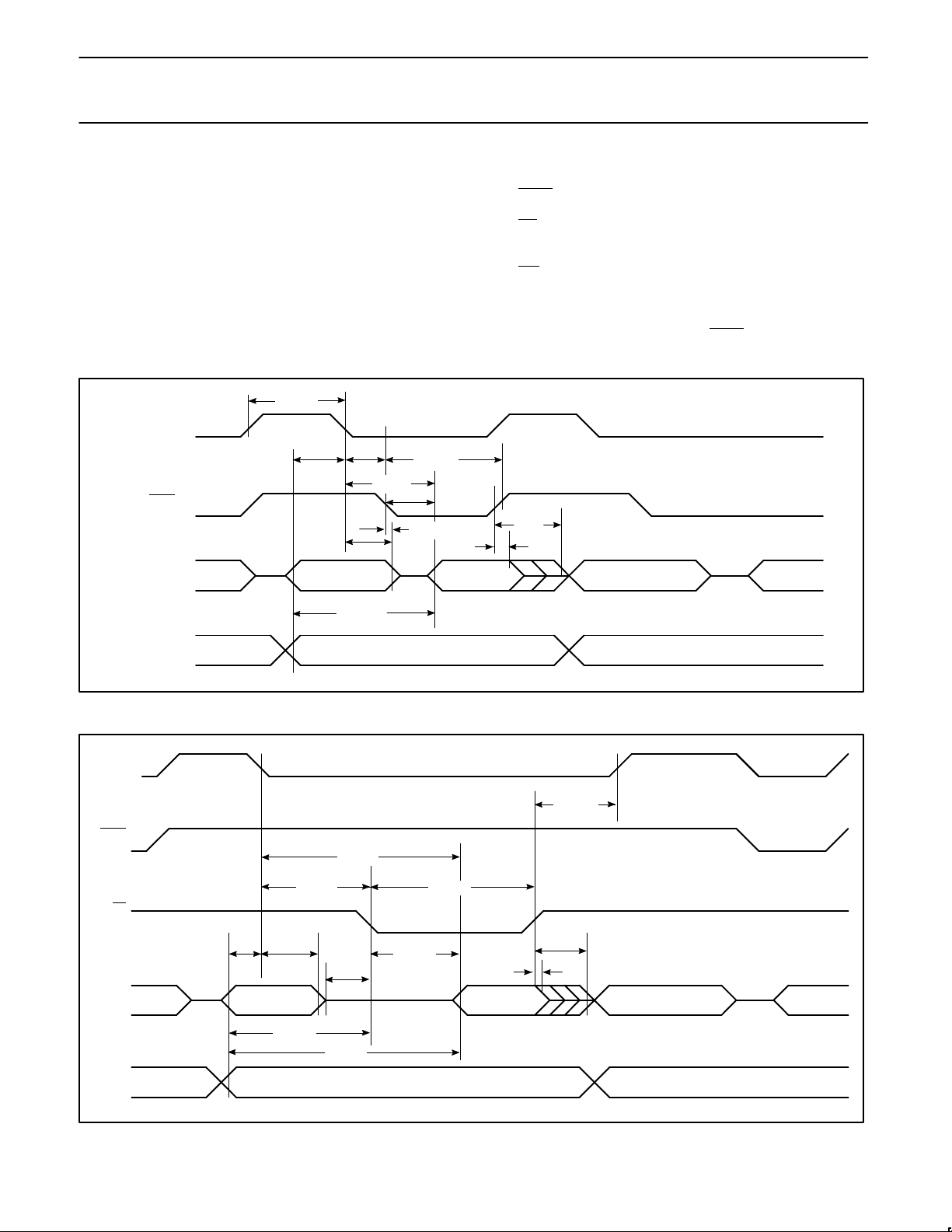

EXPLANATION OF THE AC SYMBOLS

Each timing symbol has five characters. The first character is always ‘t’ (= time). The other characters, depending on their positions, indicate the name of a signal or the logical status of that signal. The designations are: A – Address C – Clock D – Input data H – Logic level high I – Instruction (program memory contents) L – Logic level low, or ALE

ALE

LHLL

P – PSEN Q – Output data R–RD

signal t – Time V – Valid W– WR

signal X – No longer a valid logic level Z – Float Examples: t

= Time for address valid to ALE low.

AVLL

= Time for ALE low to PSEN low.

LLPL

ALE

PSEN

PORT 0

PORT 2

AVLL

LLPL

LLAX

A0–A7 A0–A7

AVIV

PLPH

LLIV

PLIV

PLAZ

PXIXt

INSTR IN

A0–A15 A8–A15

PXIZ

Figure 1. External Program Memory Read Cycle

WHLH

LLDV

LLWL

RLRH

SU00056

PORT 0

PORT 2

1996 Aug 16

AVLL

LLAX

A0–A7

FROM RI OR DPL

AVWL

RLAZ

AVDV

P2.0–P2.7 OR A8–A15 FROM DPF A0–A15 FROM PCH

RLDV

RHDX

DATA IN A0–A7 FROM PCL INSTR IN

RHDZ

Figure 2. External Data Memory Read Cycle

3-159

SU00025

Page 11

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

ALE

WHLH

PSEN

PORT 0

PORT 2

INSTRUCTION

ALE

CLOCK

OUTPUT DATA

WRITE TO SBUF

INPUT DATA

CLEAR RI

WLWH

WHQX

QVWH

DATA OUT A0–A7 FROM PCL INSTR IN

SU00026

AVLL

LLAX

A0–A7

FROM RI OR DPL

AVWL

LLWL

QVWX

P2.0–P2.7 OR A8–A15 FROM DPF A0–A15 FROM PCH

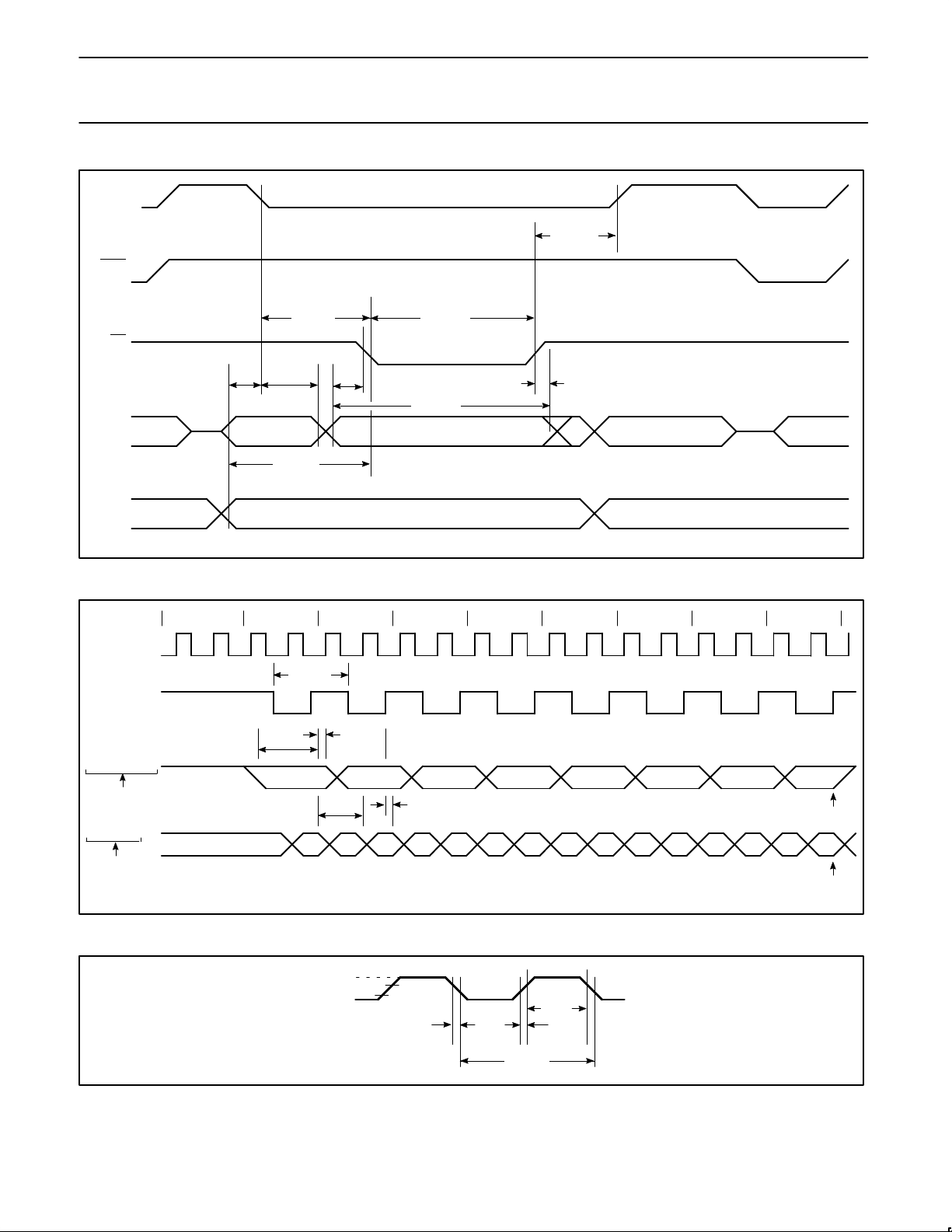

Figure 3. External Data Memory Write Cycle

012345678

XLXL

QVXH

XHDV

VALID VALID VALID VALID VALID VALID VALID VALID

XHQX

1230 4567

XHDX

SET TI

SET RI

SU00027

Figure 4. Shift Register Mode Timing

1996 Aug 16

VCC–0.5

0.45V

0.7V

0.2VCC–0.1

CHCL

CLCX

CLCL

CHCX

Figure 5. External Clock Drive

3-160

CLCH

SU00009

Page 12

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

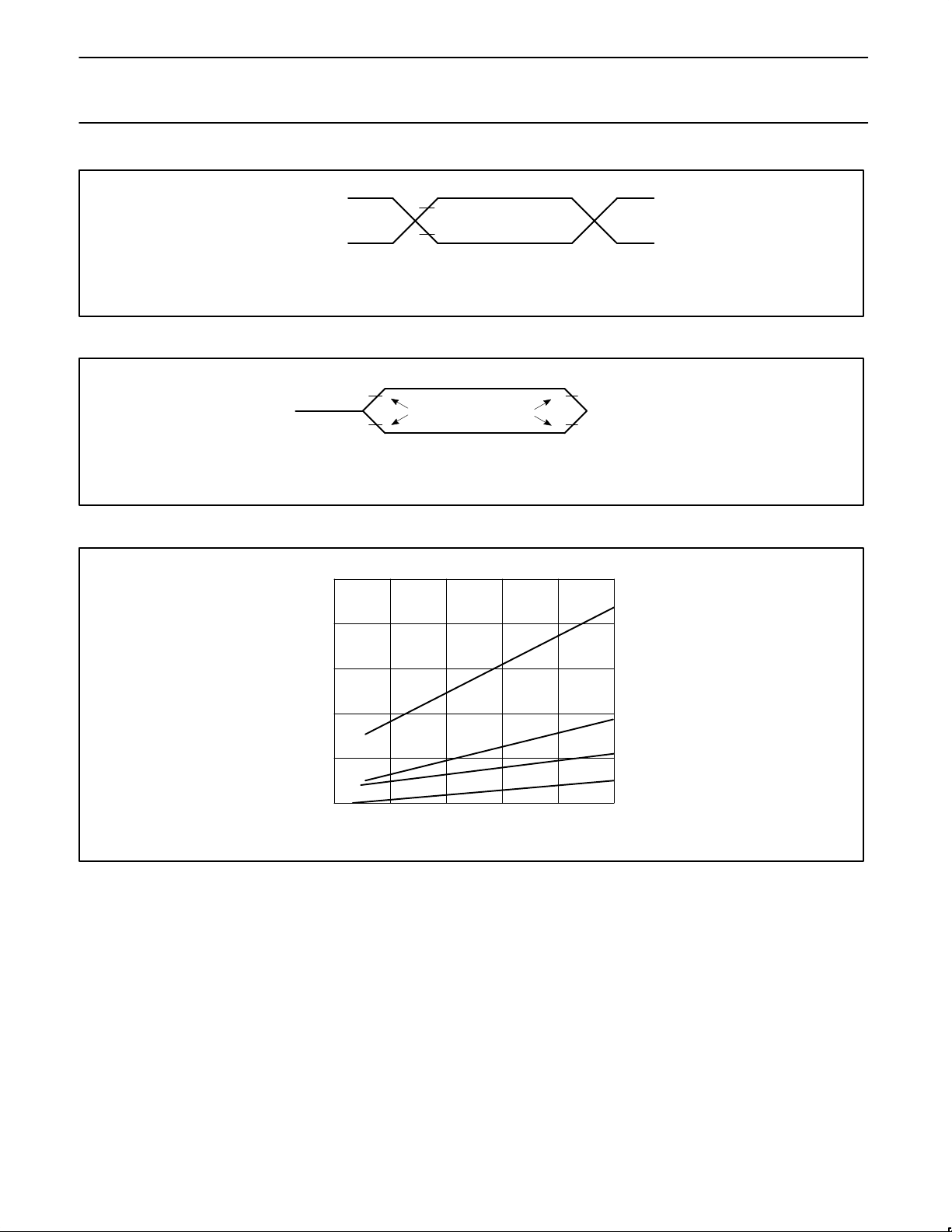

Note: 3.3V operation will reduce I vs. XTAL frequency. This curve will change as characterization data becomes available.

VCC–0.3

0.3V

NOTE: AC inputs during testing are driven at VCC –0.3 for a logic ‘1’ and 0.3V for a logic ‘0’. Timing measurements are made at VIH min for a logic ‘1’ and VIL for a logic ‘0’.

0.3V

CC CC

+0.92

–0.1

Figure 6. AC Testing Input/Output

+0.1V

LOAD

NOTE: For timing purposes, a port is no longer floating when a 100mV change from load voltage occurs, and begins to float when a 100mV change from the loaded V

LOAD

–0.1V

TIMING

REFERENCE

POINTS

level occurs. IOH/IOL ≥ ±20mA.

OH/VOL

–0.1V

+0.1V

Figure 7. Float Waveform

MAX ACTIVE MODE I

DDMAX

SU00051

SU00011

= 0.8 X FREQ. + 6.0

4MHz 8MHz 12MHz 16MHz

FREQ AT XTAL1

TYP ACTIVE MODE

MAX IDLE MODE I

DDIDLE

TYP IDLE MODE

20MHz

= 0.19 X FREQ. + 2.5

Figure 8. ICC vs. FREQ Valid only within frequency specifications of the device under test

SU00052

1996 Aug 16

3-161

Page 13

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

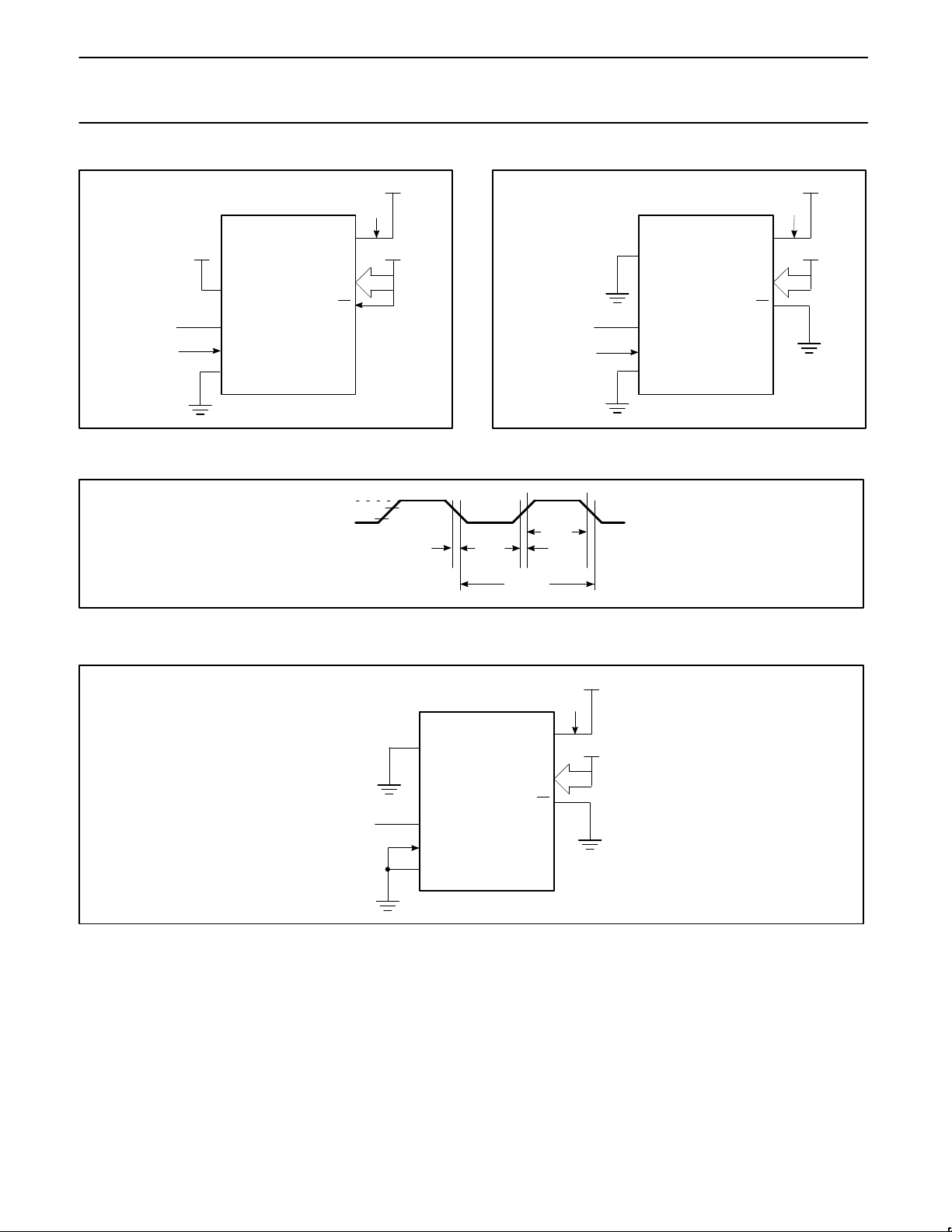

RST

(NC)

CLOCK SIGNAL

XTAL2

XTAL1

Figure 9. ICC Test Condition, Active Mode

All other pins are disconnected

Figure 11. Clock Signal Waveform for ICC Tests in Active and Idle Modes

VCC–0.5

0.45V

P0 EA

SU00719

(NC)

CLOCK SIGNAL

RST

XTAL2

XTAL1 V

P0 EA

SU00720

Figure 10. ICC Test Condition, Idle Mode

All other pins are disconnected

0.7V

0.2VCC–0.1

CHCL

CLCH

= t

CLCX

CHCL

= 5ns

CLCL

CHCX

CLCH

SU00009

(NC)

RST

XTAL2

XTAL1

Figure 12. ICC Test Condition, Power Down Mode

All other pins are disconnected. V

= 2V to 4.5V

SU00016

1996 Aug 16

3-162

Page 14

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

EPROM CHARACTERISTICS

The 87L51FA/FB is programmed by using a modified Quick-Pulse Programming algorithm. It differs from older methods in the value used for V number of the ALE/PROG

(programming supply voltage) and in the width and

pulses.

The 87L51FA/FB contains two signature bytes that can be read and used by an EPROM programming system to identify the device. The signature bytes identify the device as an 87L51FA/FB manufactured by Philips.

Table 2 shows the logic levels for reading the signature byte, and for programming the program memory, the encryption table, and the security bits. The circuit configuration and waveforms for quick-pulse programming are shown in Figures 13 and 14. Figure 15 shows the circuit configuration for normal program memory verification.

Quick-Pulse Programming

The setup for microcontroller quick-pulse programming is shown in Figure 13. Note that the 87L51FA/FB is running with a 4 to 6MHz oscillator. The reason the oscillator needs to be running is that the device is executing internal address and program data transfers.

The address of the EPROM location to be programmed is applied to ports 1 and 2, as shown in Figure 13. The code byte to be programmed into that location is applied to port 0. RST, PSEN pins of ports 2 and 3 specified in Table 2 are held at the ‘Program Code Data’ levels indicated in Table 2. The ALE/PROG low from 5 to 25 times as shown in Figure 14.

To program the encryption table, repeat the 5 to 25 pulse programming sequence for addresses 0 through 1FH, using the ‘Pgm Encryption Table’ levels. Do not forget that after the encryption table is programmed, verification cycles will produce only encrypted data.

To program the security bits, repeat the 5 to 25 pulse programming sequence using the ‘Pgm Security Bit’ levels. After one security bit is programmed, further programming of the code memory and encryption table is disabled. However, the other security bit can still be programmed.

Note that the EA maximum specified V

/VPP pin must not be allowed to go above the

level for any amount of time. Even a narrow

glitch above that voltage can cause permanent damage to the device. The V

source should be well regulated and free of glitches

and overshoot.

and

is pulsed

Program Verification

If security bit 2 has not been programmed, the on-chip program memory can be read out for program verification. The address of the program memory locations to be read is applied to ports 1 and 2 as shown in Figure 15. The other pins are held at the ‘Verify Code Data’ levels indicated in Table 2. The contents of the address location will be emitted on port 0. External pull-ups are required on port 0 for this operation.

If the encryption table has been programmed, the data presented at port 0 will be the exclusive NOR of the program byte with one of the encryption bytes. The user will have to know the encryption table contents in order to correctly decode the verification data. The encryption table itself cannot be read out.

Reading the Signature Bytes

The signature bytes are read by the same procedure as a normal verification of locations 030H and 031H, except that P3.6 and P3.7 need to be pulled to a logic low. The values are: (030H) = 15H indicates manufactured by Philips (031H)= B1H indicates 87L51FA

= B2H indicates 87L51FB

Program/Verify Algorithms

Any algorithm in agreement with the conditions listed in Table 2, and which satisfies the timing specifications, is suitable.

Erasure Characteristics

Erasure of the EPROM begins to occur when the chip is exposed to light with wavelengths shorter than approximately 4,000 angstroms. Since sunlight and fluorescent lighting have wavelengths in this range, exposure to these light sources over an extended time (about 1 week in sunlight, or 3 years in room level fluorescent lighting) could cause inadvertent erasure. For this and secondary effects,

it is recommended that an opaque label be placed over the window. For elevated temperature or environments where solvents

are being used, apply Kapton tape Fluorglas part number 2345–5, or equivalent.

The recommended erasure procedure is exposure to ultraviolet light (at 2537 angstroms) to an integrated dose of at least 15W-s/cm Exposing the EPROM to an ultraviolet lamp of 12,000µW/cm for 20 to 39 minutes, at a distance of about 1 inch, should be sufficient.

Erasure leaves the array in an all 1s state.

rating

Table 2. EPROM Programming Modes

MODE RST PSEN ALE/PROG EA/V

1,2,3

P2.7 P2.6 P3.7 P3.6

Read signature 1 0 1 1 0 0 0 0 Program code data 1 0 0

1 0 1 1 Verify code data 1 0 1 1 0 0 1 1 Pgm encryption table 1 0 0 Pgm security bit 1 1 0 0 Pgm security bit 2 1 0 0

4 4 4

1 0 1 0

1 1 1 1

1 1 0 0

NOTES:

1. ‘0’ = Valid low for that pin, ‘1’ = valid high for that pin. = 12.75V ±0.25V.

2. V

= 5V±10% during programming and verification.

3. V

4. ALE/PROG

receives 5 to 25 programming pulses while VPP is held at 12.75V . Each programming pulse is low for 100µs (±10µs) and high for

a minimum of 10µs.

Trademark phrase of Intel Corporation.

1996 Aug 16

3-163

Page 15

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

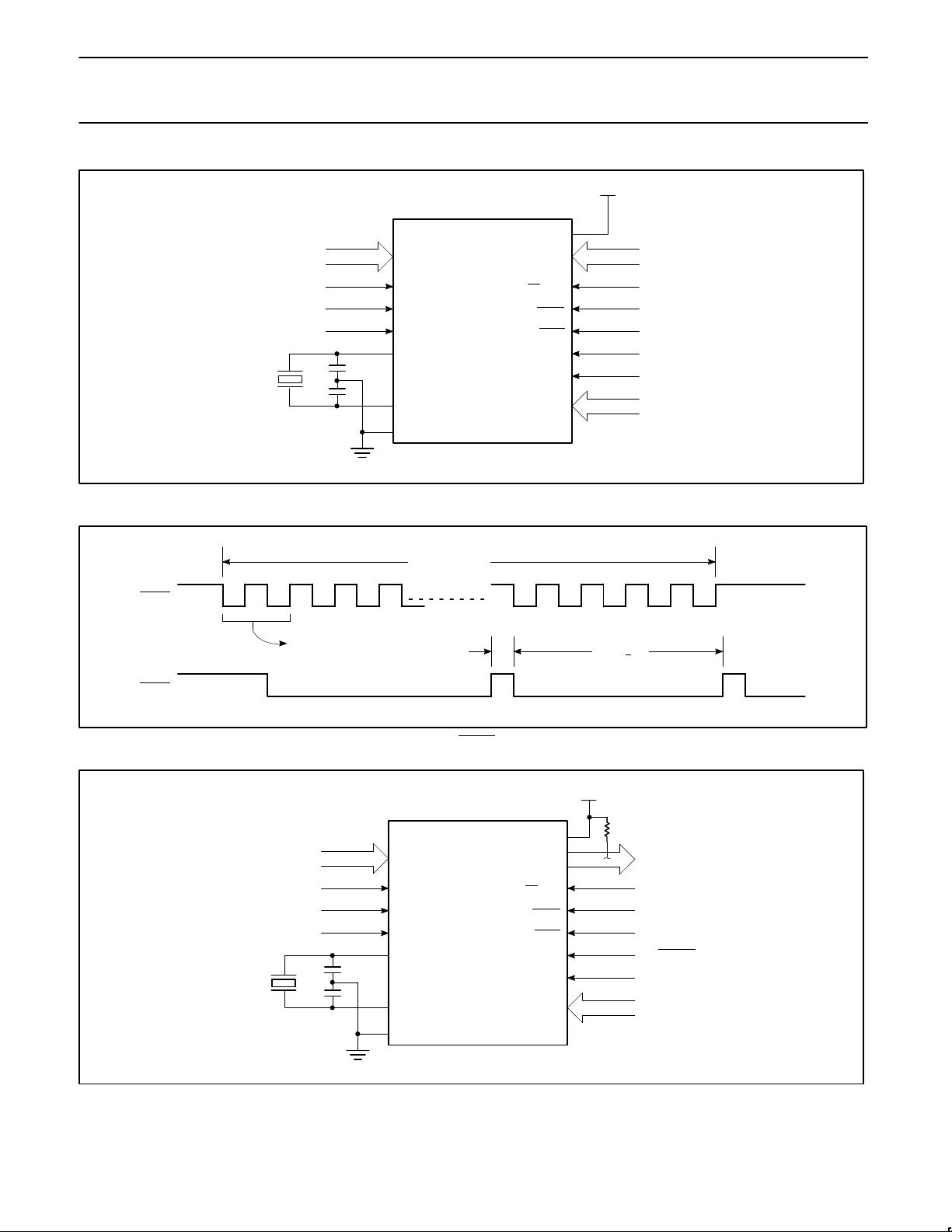

+5V

A0–A7

PGM DATA

ALE/PROG:

4–6MHz

1 1 1

RST P3.6

P3.7 XTAL2

XTAL1

87L51FA 87L51FB

ALE/PROG

PSEN

P2.7

P2.6

P2.0–P2.5

+12.75V 25 100µs PULSES TO GROUND 0 1

A8–A13

SU00053A

Figure 13. Programming Configuration

1 0

5 to 25 PULSES

100µs+1010µs MIN

SU00054

Figure 14. PROG Waveform

1996 Aug 16

4–6MHz

A0–A7

+5V

ALE/PROG

PSEN

P2.7

P2.6

P2.0–P2.4

1 1 1

RST P3.6

P3.7 XTAL2

XTAL1

87L51FA 87L51FB

PGM DATA

1 1 0

0 ENABLE

A8–A12

SU00055A

Figure 15. Program Verification

3-164

Page 16

Philips Semiconductors Product specification

87L51F A/87L51FBCMOS single-chip 3.0V 8-bit microcontrollers

EPROM PROGRAMMING AND VERIFICATION CHARACTERISTICS

= 21°C to +27°C, VCC = 5V±10%, VSS = 0V (See Figure 16)

amb

SYMBOL

1/t

CLCL

AVGL

GHAX

DVGL

GHDX

EHSH

SHGL

GHSL

GLGH

AVQV

ELQZ

EHQZ

GHGL

Programming supply voltage 12.5 13.0 V Programming supply current 50 mA Oscillator frequency 4 6 MHz Address setup to PROG low 48t Address hold after PROG 48t Data setup to PROG low 48t Data hold after PROG 48t P2.7 (ENABLE) high to V VPP setup to PROG low 10 µs VPP hold after PROG 10 µs PROG width 90 110 µs Address to data valid 48t ENABLE low to data valid 48t Data float after ENABLE 0 48t PROG high to PROG low 10 µs

PARAMETER MIN MAX UNIT

CLCL CLCL CLCL CLCL

48t

CLCL

CLCL CLCL CLCL

P1.0–P1.7 P2.0–P2.4

PORT 0

DVGL

ALE/PROG

EA/V

P2.7 ENABLE

AVGL

EHSH

GLGH

SHGL

NOTE:

FOR PROGRAMMING VERIFICATION SEE FIGURE 13.

FOR VERIFICATION CONDITIONS SEE FIGURE 15.

PROGRAMMING* VERIFICATION*

ADDRESS ADDRESS

AVQV

DATA IN DATA OUT

GHDX

GHAX

GHGL

LOGIC 0

GHSL

LOGIC 1 LOGIC 1

ELQV

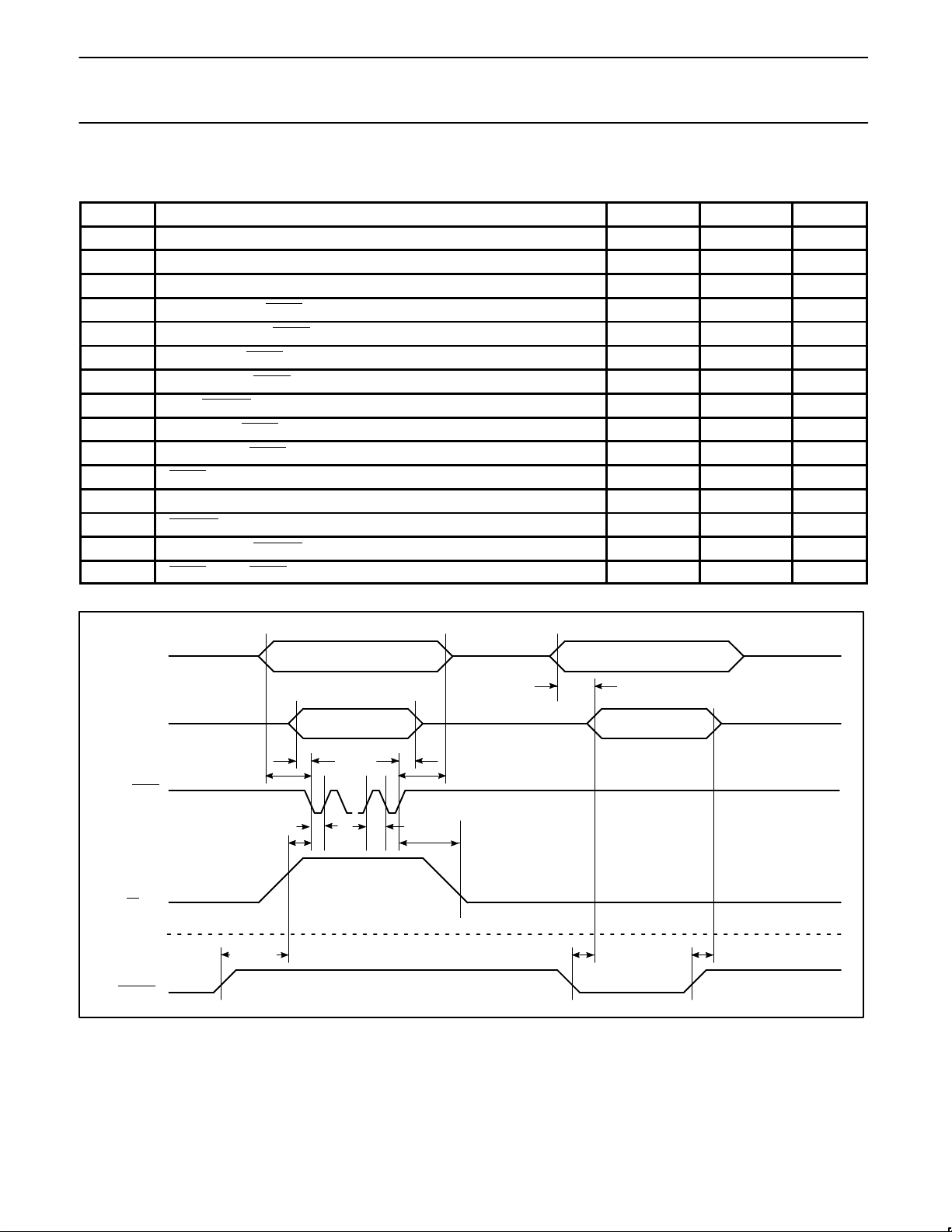

Figure 16. EPROM Programming and Verification

EHQZ

SU00020

1996 Aug 16

3-165

Page 17

All Datasheets cannot be modified without permission.

This datasheet has been download from :

www.AllDataSheet.com

100% Free DataSheet Search Site.

Free Download.

No Register.

Fast Search System.

www.AllDataSheet.com
