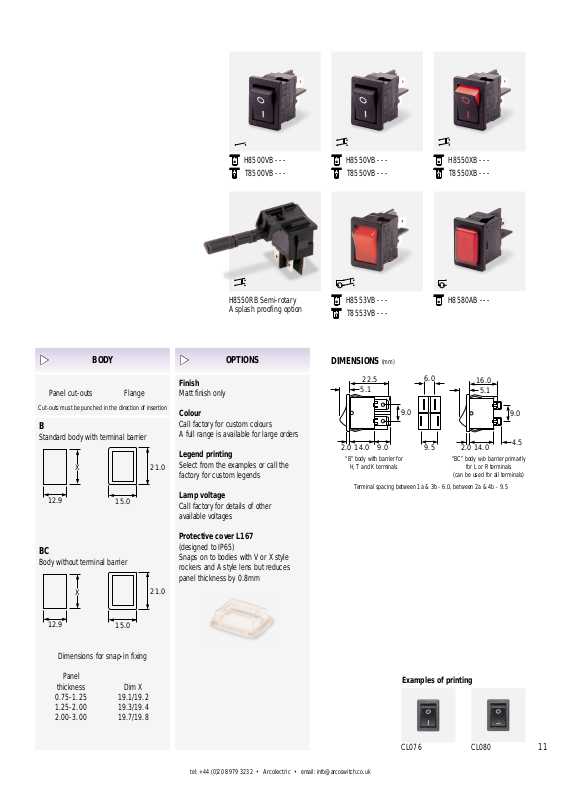

Page 1
tel: +44 (0)20 8979 3232 • Arcolectric • email: [email protected]
11
Finish
Matt finish only
Colour
Call factory for custom colours
A full range is available for large orders
Legend printing
Select from the examples or call the
factory for custom legends
Lamp voltage
Call factory for details of other
available voltages
Protective cover L167
(designed to IP65)
Snaps on to bodies with V or X style
rockers and A style lens but reduces
panel thickness by 0.8mm
Examples of printing
CL076 CL080
H8500VB - -T8500VB - --
H8550VB - -T8550VB - --
H8553VB - --
T8553VB - --
H8550XB - -T8550XB - --
H8580AB - --
H8550RB Semi-rotary
A splash proofing option
BODY
B
Standard body with terminal barrier
BC
Body without terminal barrier
Dimensions for snap-in fixing
Panel
thickness Dim X
0.75-1.25 19.1/19.2
1.25-2.00 19.3/19.4
2.00-3.00 19.7/19.8
DIMENSIONS (mm)
Panel cut-outs Flange
5.1
22.5
9.0
2.0
9.0
14.0
6.0
9.5
OPTIONS
“B” body with barrier for
H,T and K terminals
5.1
16.0
4.5
2.0
9.0
14.0
“BC” body w/o barrier primarily
for L or R terminals
(can be used for all terminals)
Terminal spacing between 1a & 3b - 6.0,between 2a & 4b - 9.5
Cut-outs must be punched in the direction of insertion
21.0
12.9
X
15.0
X
21.0
12.9
15.0
Page 2
13
Finish
Matt finish only
Colour
Call factory for custom colours
A full range is available for large orders
Legend printing
Select from the examples or call the
factory for custom legends
Lamp voltage
Call factory for details of other
available voltages
Blanking plate A8634FB
Dummy unit to fill unused panel holes
Single pole size only
Protective covers
L167 for SP
L180 for DP
(designed to IP65)
Snap on to bodies with V rocker or F lens
but reduce panel thickness by 0.8mm.
Not for use with momentary types
Single Pole options
Most switches shown can have single
pole switching in double pole bodies
tel: +44 (0)20 8979 3232 • Arcolectric • email: [email protected]
Examples of printing
CL142 CL059 CL058
CL076 CL080 CL141
H8600VB - -T8600VB - --
H8600VB - --
T8600VB - --
H8660VB - --
T8660VB - --
T8653VB - --
H8630FB - --
T8630FB - --
H8653VB - --H8650VB - --
T8650VB - --
BODY
B Single pole
Single Pole dimensions for snap-in fixing
Panel thickness Dimension X
0.75-1.24 19.1/19.2
1.25-1.99 19.3/19.4
2.00-3.00 19.7/19.8
B (Double Pole) with terminal barrier
BC (Double Pole) w/o terminal barrier
Double Pole dimensions for snap-in fixing
Panel thickness Dimension X
0.75-1.24 19.1/19.2
1.25-1.99 19.3/19.4
2.00-3.00 19.7/19.8
DIMENSIONS(mm)
Single pole Double pole
Panel cut-outs Flange
5.8
12.5
2.0
7.4
7.0
7.0
OPTIONS
Terminals shown
are “H”4.8 push on type
For 8620 and 8670 see page 14
5.8
19.8
to barrier
2.0
12.5
7.0
7.0
Terminal spacing
10.2 between pole centres
Cut-outs must be punched in the direction of insertion
X
12.9
21.0
15.0
X
21.9
24.0
21.0
Page 3
14
TERMINAL FUNCTION ROCKER BODY PRINT, COLOUR,ETC
H 8620 V B - - -
CL141 CL142
Examples of printing
tel: +44 (0)20 8979 3232 • Arcolectric • email: [email protected]
H8620VB - - - H8670VB - - -
T8620VB - - - T8670VB - - -
Finish
Matt finish only
Colour
Call factory
for custom colours.
A full range is available
for large orders
Legend printing
Select from the
examples or call factory
for custom legends
Protective covers IP65
L167 for SP
L180 for DP
(designed to IP65)
Snaps on to body but
reduces panel thickness
by 0.8mm
8620 & 8670 Rocker Switches - 3 Positions 10A 250Vac
OPTIONSFUNCTION
V Curved
B Single pole
Panel thickness Dim X
0.75-1.24 19.1/19.2
1.25-1.99 19.3/19.4
2.00-3.00 19.7/19.8
B Double pole
Panel thickness Dim X
0.75-1.24 19.1/19.2
1.25-1.99 19.3/19.4
2.00-3.00 19.7/19.8
8620
ON - OFF - ON
Single pole
ROCKER BODYTERMINAL
H
4.8 x 0.8
T
Solder
X
PCB 0.8sq
Switches with X terminals are
supplied without terminal barriers
8.5
10(4)A 250Vac T90
UL CSA 15A 277Vac (Single pole)
UL CSA 250Vac 1/2hp (Single pole)
UL CSA 125Vac 1/4hp (Single pole)
UL CSA 10A 277Vac (Double pole)
UL CSA 125/250Vac 1/2hp (Double pole)
UL CSA 277Vac 1/2hp (Single & Double pole)
UL 90˚C,file E45221, CSA file LR10990
10A 28Vdc
µ contact gap
Technical data on pages 4 & 5
6.4
O/ 2.15
8.0
4.0
Dimensions (mm)
8620VB (H terminals shown) 8670VB (H terminals shown) 8670VB (X terminals shown)
8670
ON - OFF - ON
Double pole
213
Cut-outs must be punched in the direction of insertion
In house test
2a1a 3 a
6b
5b
4b
X
12.9
21.0
15.0
X
21.9
24.0
21.0
14.0
7.0
Ctrs
2.0
15.0
8.5
10.2
Ctrs
14.0
7.0
Ctrs
2.0
15.0
8.9
10.2
Ctrs
14.0
7.0
Ctrs
2.0
15.0
8.0
Page 4
35
Finish
Matt finish standard except on J and D
actuators which are gloss
Colour
Call factory for custom colours
A full range is available for large orders
Legend printing
Select from the examples or call
factory for custom legends
Special buttons
Some of the many options are shown
Call the factory for the full range
L167 Protective cover
(designed to IP65)
Snaps on to switch bodies fitted with
“A”or “J”style actuators but reduces
panel thickness by 0.8mm
EN1153 EN1152
tel: +44 (0)20 8979 3232 • Arcolectric • email: [email protected]
Examples of printing
C8350AB - -- H8353JE - --
H8350DB - --
H8353EB - --
T8350AB - -- T8353JE - -- T8353EB - --
H8350HB - --
H8353CB - --
T8350DB - --
Example of actuator
T8353CB - --
B Standard body
D As B body but with PCB support peg
E Softline style body with radiused bezel
F As E body but with PCB support peg
Dimensions for snap-in fixing
Panel
thickness Dimension X
0.75-1.24 19.1/19.2
1.25-1.99 19.3/19.4
2.00-3.00 19.7/19.8
BODY
DIMENSIONS (mm)
Panel cut-out Flange
OPTIONS
Spacing between centre of terminals 1 & 3 or 2 & 4 is 10.0mm
Cut-outs must be punched in the direction of insertion
Actuator A
Body B
Actuator J
Body E
X
12.9
15.0
21.0
2.0
17.0
8.5
R0.5
11.0
1.7
"OFF"
"ON"
PCB support peg
(on D body only)
4.5
R12.0
R1.8
2.0
17.0
8.5
R0.5
R29.6
11.0
1.7
"OFF"
"ON"
PCB support peg
(on F body only)
4.3
