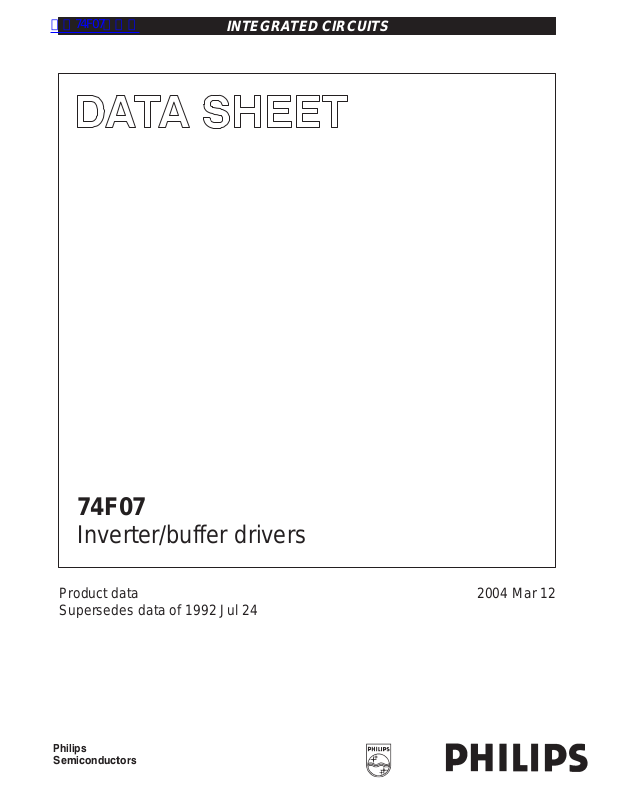

INTEGRATED CIRCUITS

74F07

Inverter/buffer drivers

Product data
Supersedes data of 1992 Jul 24




2004 Mar 12

Philips Semiconductors Product data

74F07Hex inverter/buffer drivers (open-collector)

FEATURES

•Open Collector output drive 64mA

•High speed

TYPE

74F07 4.5ns 32mA

TYPICAL

PROPAGATION

DELA Y

TYPICAL SUPPL Y

CURRENT

(TOTAL)

•12V output termination voltage

ORDERING INFORMATION

DESCRIPTION TYPE NUMBER PKG DWG #

14-pin plastic small outline package N74F07D SOT108–1
14-pin plastic dual in-line package N74F07N SOT27–1

PIN CONFIGURATIONS

74F07

GND

A0

1

Y0

2

A1

3

Y1

4

A2

5

Y2

6

14
13
12
11
10

9
87

SF00017

V

CC

A5
Y5
A4
Y4
A3
Y3

LOGIC SYMBOLS

V

= Pin 14

CC

GND = Pin 7

74F07

135 91113

A0 A1 A2 A3 A4 A5

Y0 Y1 Y2 Y3 Y4 Y5

46810

2

12

SF00019

2004 Mar 12

2

Philips Semiconductors Product data

Hex inverter/buffer drivers (open-collector)

IEC/IEEE SYMBOLS

74F07

1

3

5

9

11

13

LOGIC DIAGRAMS

A0

A1

A2

A3

A4

VCC = Pin 14
GND = Pin 7

A5

74F07

1

3

5

9

11

13

2

4

6

8

10

12

2

4

6

8

10

12

SF00021

Y0

Y1

Y2

Y3

Y4

Y5

SF00023

74F07

INPUT AND OUTPUT LOADING AND FAN OUT TABLE

PINS DESCRIPTION

An Data inputs 1.0/1.0 20µA/0.6mA
Yn Data outputs OC/106.7 OC/64mA

NOTES:

1. One (1.0) FAST unit load is defined as: 20µA in the High state and 0.6mA in the Low state.

2. OC = Open Collector

FUNCTION TABLE

INPUTS OUTPUTS

An Yn

L L

H H

NOTES:

1. H = High voltage level

2. L = Low voltage level

74F (U.L.)

HIGH/LOW

LOAD VALUE

HIGH/LOW

2004 Mar 12

3

Philips Semiconductors Product data

Hex inverter/buffer drivers (open-collector)

ABSOLUTE MAXIMUM RATINGS

(Operation beyond the limit set forth in this table may impair the useful life of the device.
Unless otherwise noted these limits are over the operating free air temperature range.)

SYMBOL

V

I
T

V

V

I

OUT

OUT

amb

T

CC

IN

IN

stg

Supply voltage –0.5 to +7.0 V
Input voltage –0.5 to +7.0 V
Input current –30 to +5 mA
Voltage applied to output in High output state –0.5 to 12 V
Current applied to output in Low output state 128 mA
Operating free air temperature range 0 to +70 °C
Storage temperature range –65 to +150 °C

RECOMMENDED OPERATING CONDITIONS

SYMBOL

T

V

V
V

V

I

CC

IH
IL

I

Ik

OH

OL

amb

Supply voltage 4.5 5.0 5.5 V
High-level input voltage 2.0 V
Low-level input voltage 0.8 V
Input clamp current –18 mA
High-level output voltage 12 V
Low-level output current 64 mA
Operating free air temperature range 0 +70 °C

PARAMETER RATING UNIT

PARAMETER

74F07

LIMITS UNIT

MIN NOM MAX

2004 Mar 12

4

Philips Semiconductors Product data

Hex inverter/buffer drivers (open-collector)

74F07

DC ELECTRICAL CHARACTERISTICS

(Over recommended operating free-air temperature range unless otherwise noted.)

SYMBOL

I

OH

V

OL

High-level output current VCC = MIN, VIL = MAX,

Low-level output voltage VCC = MIN,

PARAMETER TEST CONDITIONS

VOH = MAX, VIH = MIN

IOL = MAX ±10% V

VIL = MAX,
VIH = MIN ±5% V

V

IK

I

I

IH

I

IL

I

CC

Input clamp voltage VCC = MIN, II = I
Input current at maximum input

I

voltage

VCC = MAX, VI = 7.0V 100 µA

IK

High-level input current VCC = MAX, VI = 2.7V 20 µA
Low-level input current VCC = MAX, VI = 0.5V –0.6 mA
Supply current (total) I

CCHVCC

I

CCL

= MAX 10 14 mA

NOTES:

1. For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.

2. All typical values are at V

3. Not more than one output should be shorted at a time. For testing I

= 5V, T

CC

techniques are preferable in order to minimize internal heating and more accurately reflect operational values. Otherwise, prolonged shorting

amb

= 25°C.

, the use of high-speed test apparatus and/or sample-and-hold

OS

of a High output may raise the chip temperature well above normal and thereby cause invalid readings in other parameter tests. In any
sequence of parameter tests, I

tests should be performed last.

OS

1

MIN TYP

LIMITS UNIT

2

MAX

250 µA

CC

CC

0.30 0.50 V

0.30 0.50 V

–0.73 –1.2 V

32 45 mA

AC ELECTRICAL CHARACTERISTICS

SYMBOL PARAMETER TEST CONDITION

t

PLH

t

PHL

Propagation delay
An to Yn

Waveform 1

LIMITS

VCC = +5.0V

T

= +25°C

amb

C

= 50pF, RL = 100Ω

L

VCC = +5.0V ± 10%

T

= 0°C to +70°C

amb

C

= 50pF, RL = 100Ω

L

Min Typ Max Min Max

2.0

3.0

4.0

5.0

6.0

7.0

2.0

2.5

6.5

7.5

UNIT

ns

2004 Mar 12

5

Philips Semiconductors Product data

Hex inverter/buffer drivers (open-collector)

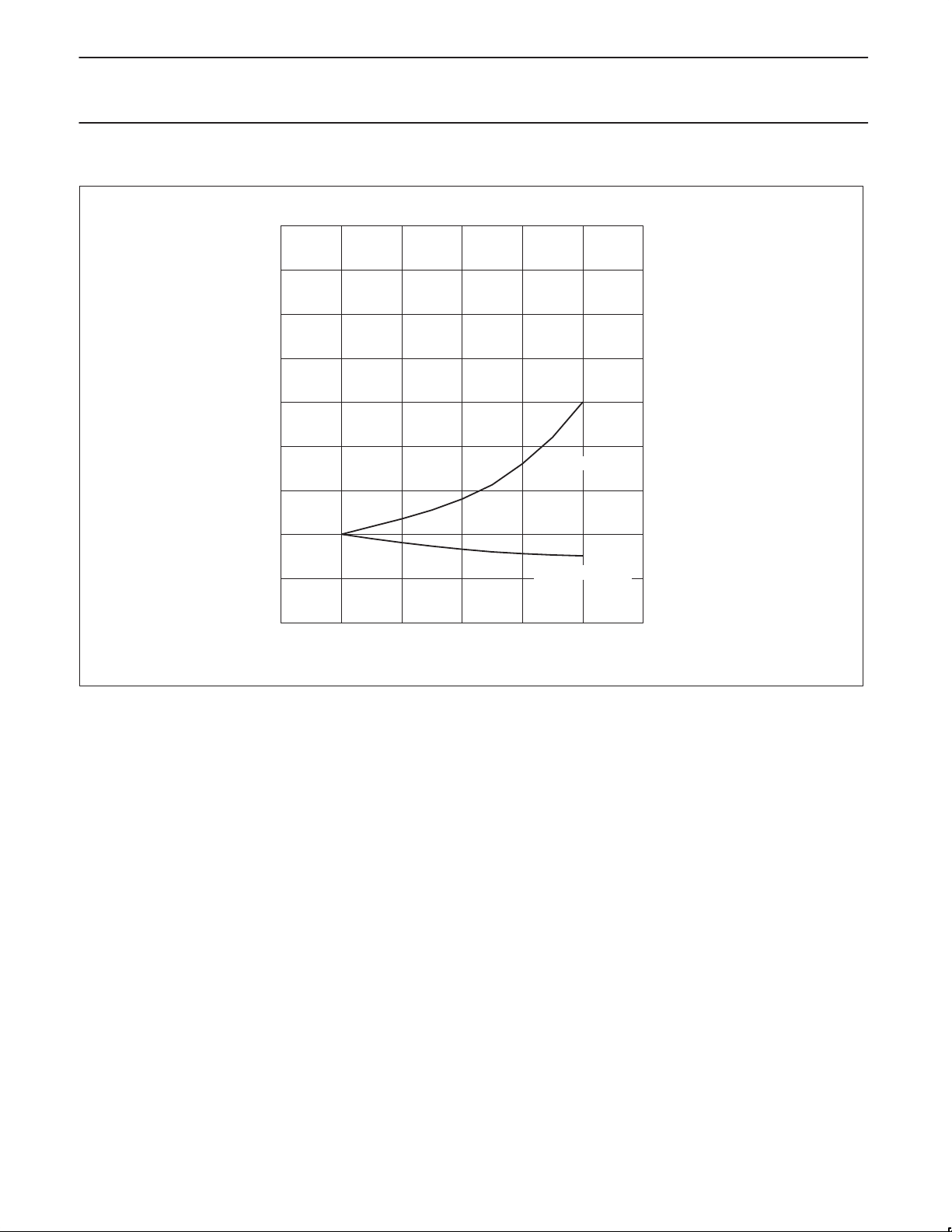

TYPICAL PROPAGATION DELAYS VERSUS LOAD FOR OPEN COLLECTOR OUTPUTS

18

16

14

12

10

8

Propagation delay (ns)

6

4

t

PLH

74F07

t

2

0

0 100 200 300 400 500 600

Load resistor (Ω)

PHL

NOTE:

When using Open-Collector parts, the value of the pull-up resistor greatly affects the value of the t
pull-up resistor value from 500Ω to 100Ω will improve the t
pull-up resistor is changed, the user must make certain that the total I
exceed the I

maximum specification.

OL

up to 50% with only a slight increase in the t

PLH

current through the resistor and the total IIL’s of the receivers does not

OL

SF00024

. For example, changing the specified

PLH

. However, if the value of the

PHL

2004 Mar 12

6

Philips Semiconductors Product data

Hex inverter/buffer drivers (open-collector)

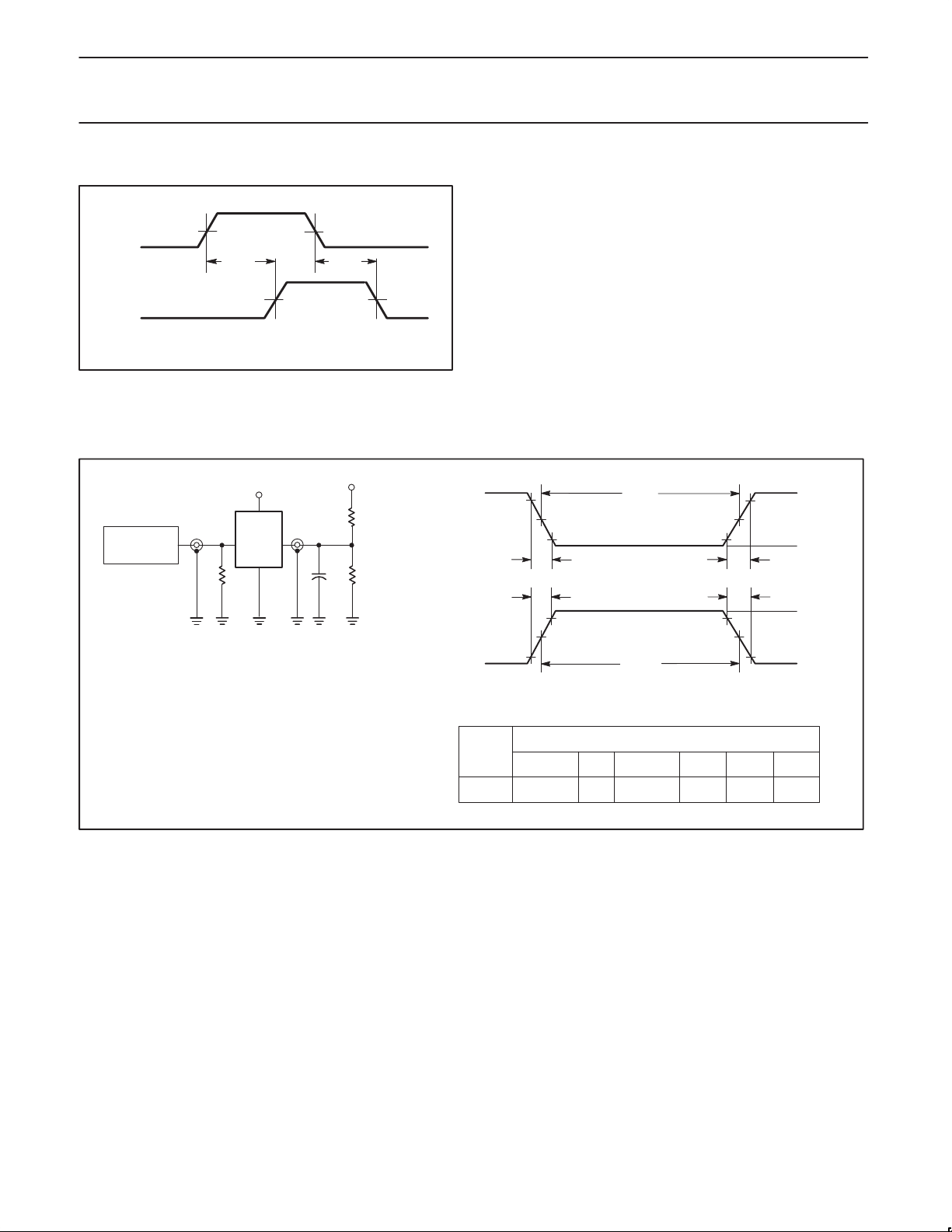

AC WAVEFORMS

An

Yn

Waveform 1. Propagation delay for non-inverting outputs

NOTE:

For all waveforms, V

TEST CIRCUIT AND WAVEFORMS

PULSE

GENERATOR

Test Circuit for Open Collector Outputs

DEFINITIONS:

= Load resistor;

R

L

see AC electrical characteristics for value.

C

= Load capacitance includes jig and probe capacitance;

L

see AC electrical characteristics for value.

R

= Termination resistance should be equal to Z

T

pulse generators.

= 1.5V.

M

V

IN

V

M

t

PLH

R

T

V

M

V

D.U.T.

CC

V

V

M

OUT

C

t

PHL

L

V

M

7.0V

SF00026

of

NEGATIVE
PULSE

POSITIVE
PULSE

R

L

R

L

OUT

family

74F

90%

10%

amplitude

t

w

V

M

10%

)

V

90%

M

t

THL (tf

t

TLH (tr

)

t

TLH (tr

t

THL (tf

t

w

Input Pulse Definition

INPUT PULSE REQUIREMENTS

V

rep. rate

M

3.0V 1.5V

1MHz 500ns

10%

)

)

90%

t

w

V

M

V

M

74F07

90%

10%

t

TLHtTHL

2.5ns 2.5ns

AMP (V)

0V

AMP (V)

0V

2004 Mar 12

SF00027

7

Philips Semiconductors Product data

Hex inverter/buffer drivers (open-collector)

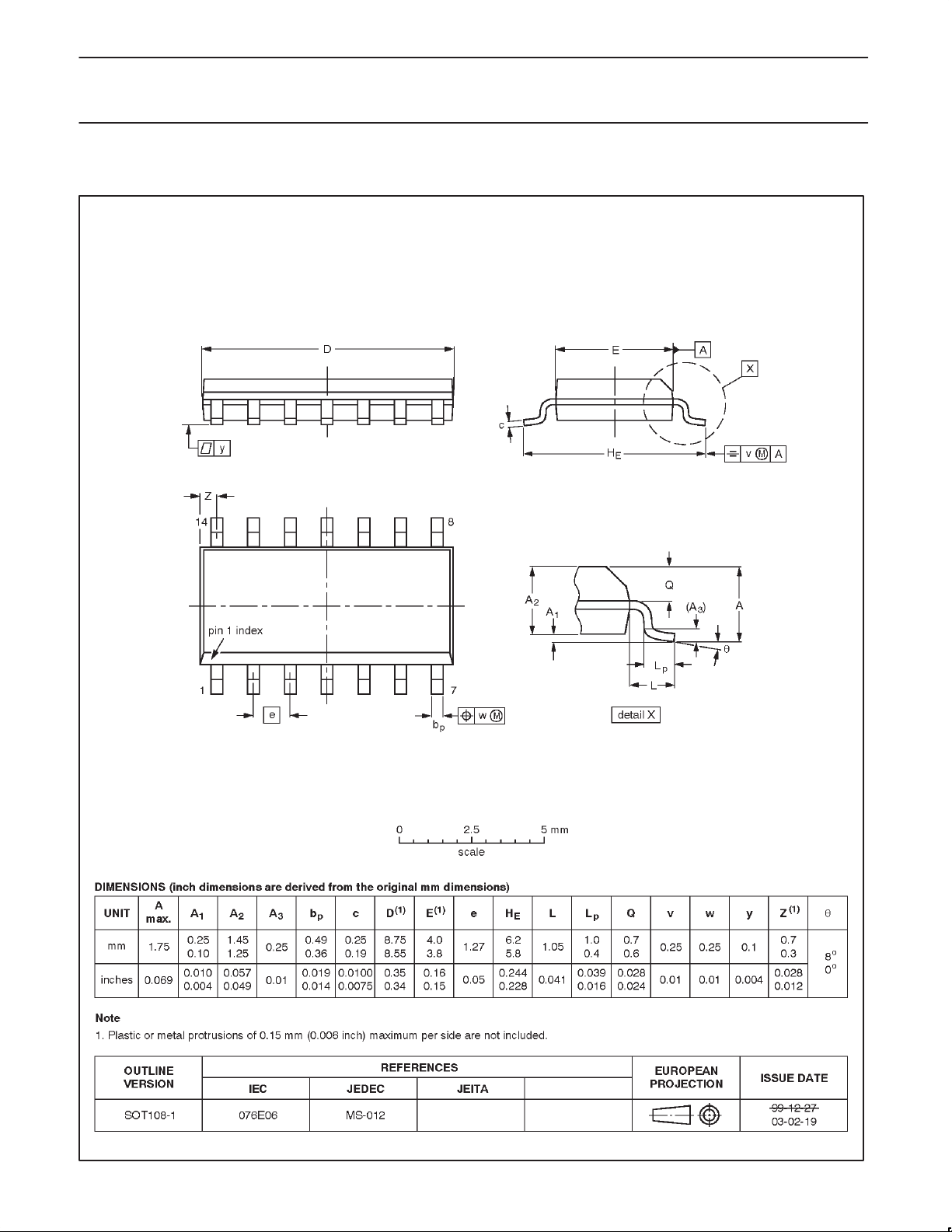

SO14: plastic small outline package; 14 leads; body width 3.9 mm SOT108-1

74F07

2004 Mar 12

8

Philips Semiconductors Product data

Hex inverter/buffer drivers (open-collector)

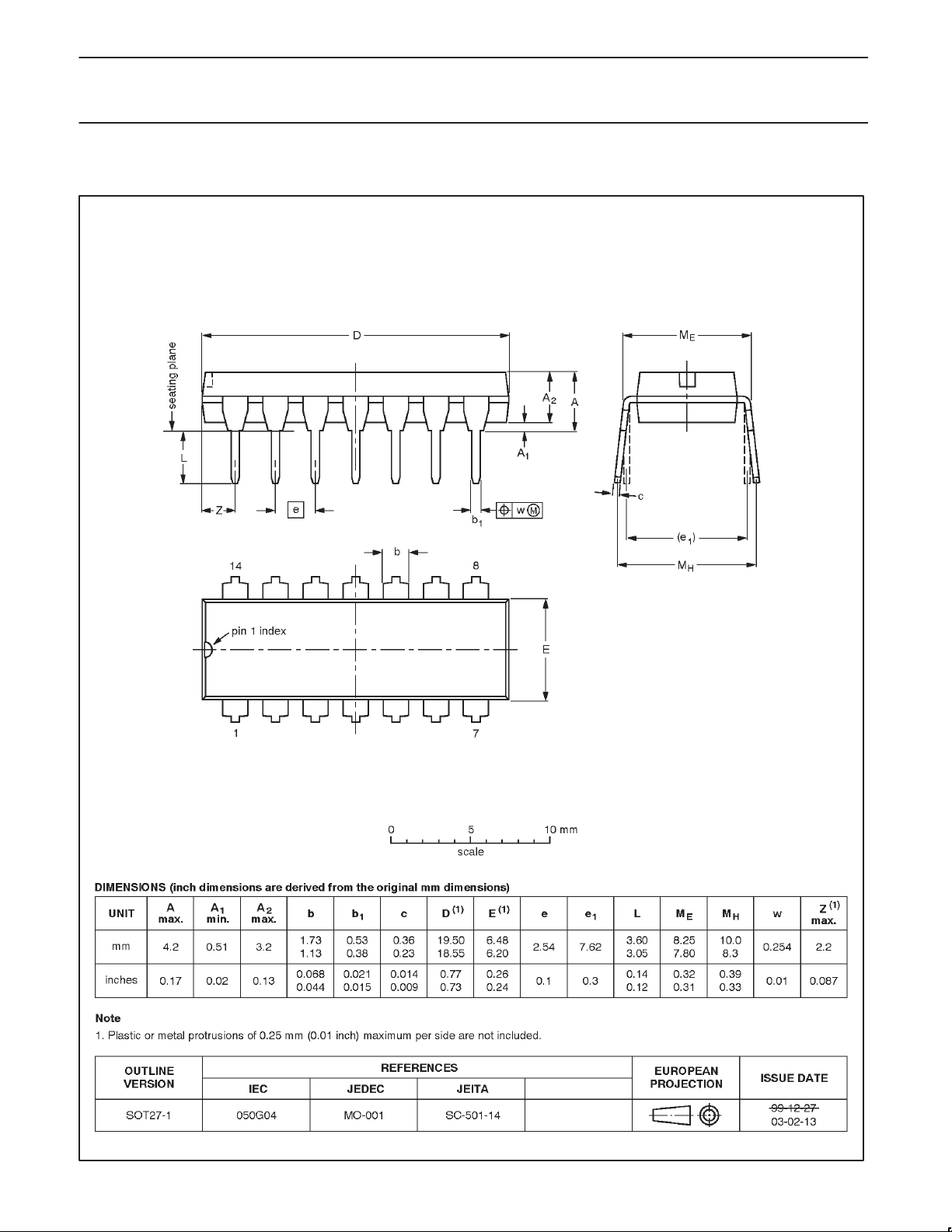

DIP14: plastic dual in-line package; 14 leads (300 mil) SOT27-1

74F07

2004 Mar 12

9

Philips Semiconductors Product data

Hex inverter/buffer drivers (open-collector)

74F07

REVISION HISTORY

Rev Date Description

_3 20040312 Product data (9397 750 13033); supersedes data sheet 74F06_A_7_A_2 of 1992 Jul 24 (9397 750 05054).

Modifications:

•Delete all references to 74F06A and 74F07A (product discontinued).

•Separate 74F06 and 74F07 into standalone data sheets.

_2 19920724 Product data (9397 750 05054); supersedes previous version.

2004 Mar 12

10

Philips Semiconductors Product data

Hex inverter/buffer drivers (open-collector)

74F07

Data sheet status

Product

Level

I

II

III

[1] Please consult the most recently issued data sheet before initiating or completing a design.
[2] The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at URL

[3] For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.

Data sheet status

Objective data

Preliminary data

Product data

http://www.semiconductors.philips.com.

[1]

[2] [3]

status

Development

Qualification

Production

Definitions

This data sheet contains data from the objective specification for product development.
Philips Semiconductors reserves the right to change the specification in any manner without notice.

This data sheet contains data from the preliminary specification. Supplementary data will be published
at a later date. Philips Semiconductors reserves the right to change the specification without notice, in

order to improve the design and supply the best possible product.

This data sheet contains data from the product specification. Philips Semiconductors reserves the

right to make changes at any time in order to improve the design, manufacturing and supply. Relevant

changes will be communicated via a Customer Product/Process Change Notification (CPCN).

Definitions

Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For detailed information see

the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 60134). Stress above one or more of the limiting

values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given
in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no
representation or warranty that such applications will be suitable for the specified use without further testing or modification.

Disclaimers

Life support — These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be

expected to result in personal injury . Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree
to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes in the products—including circuits, standard cells, and/or software—described
or contained herein in order to improve design and/or performance. When the product is in full production (status ‘Production’), relevant changes will be communicated
via a Customer Product/Process Change Notification (CPCN). Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys
no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent,
copyright, or mask work right infringement, unless otherwise specified.

Contact information

For additional information please visit
http://www.semiconductors.philips.com . Fax: [phone]

For sales offices addresses send e-mail to:
[e-mail].

Document order number: 9397 750 13033

 Koninklijke Philips Electronics N.V. 2004

All rights reserved. Printed in U.S.A.

Date of release: 03-04



