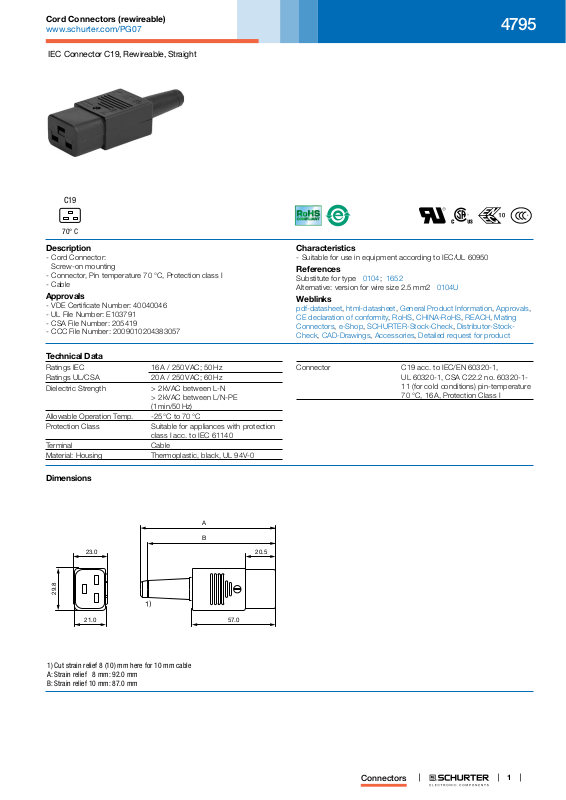

Page 1
Cord Connectors (rewireable)
www.schurter.com/PG07
IEC Connector C19, Rewireable, Straight
C19
70° C
4795
Description
- Cord Connector:
Screw-on mounting
- Connector, Pin temperature 70 °C, Protection class I
- Cable
Approvals
- VDE Certificate Number: 40040046
- UL File Number: E103791
- CSA File Number: 205419
- CCC File Number: 2009010204383057
Technical Data
Ratings IEC 16 A / 250 VAC; 50 Hz
Ratings UL/CSA 20 A / 250 VAC; 60 Hz
Dielectric Strength > 2 kVAC between L-N
Allowable Operation Temp. -25 °C to 70 °C
Protection Class Suitable for appliances with protection
Terminal Cable
Material: Housing Thermoplastic, black, UL 94V-0
> 2 kVAC between L/N-PE
(1 min/50 Hz)
class I acc. to IEC 61140
Dimensions
A
B
23.0
20.5
Characteristics
- Suitable for use in equipment according to IEC/UL 60950
References
Substitute for type 0104; 1652
Alternative: version for wire size 2.5 mm2 0104U
Weblinks
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, REACH, Mating
Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-StockCheck, CAD-Drawings, Accessories, Detailed request for product
Connector C19 acc. to IEC/EN 60320-1,
UL 60320-1, CSA C22.2 no. 60320-111 (for cold conditions) pin-temperature
70 °C, 16 A, Protection Class I
29.8
21.0
1) Cut strain relief 8 (10) mm here for 10 mm cable
A: Strain relief 8 mm: 92.0 mm
B: Strain relief 10 mm: 87.0 mm
57.0
Connectors
1
Page 2
4795
All Variants
Color Max. cable diameter Max. wire size Order Number
Cord Connectors (rewireable)
www.schurter.com/PG07
black 8 (10) mm 3 x 1.5 mm² / 3 x 14 AWG 4795.0000
█ Most Popular.
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/
Stock-Check-SCHURTER
Max. torque for screws: Terminals: 0.8 Nm, Cable clamps: 0.4 Nm, Cover: 0.5 Nm
Packaging unit
50 Pcs
Accessories
Description
Cord retaining kits
Cord retaining strain relief
Mating Inlets/Plugs
Category / Description
█
Appliance Inlet Overview complete
IEC Appliance Inlet C20, Screw-on Mounting, Rear Side, PCB Terminal 1601
IEC Appliance Inlet C20, Screw-on Mounting, Front Side, Solder, Quick-connect or Screw Terminal 1621
IEC Appliance Inlet C20, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal 4793
IEC Appliance Inlet C24, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal 4794
IEC Appliance Inlet C20, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal 4798
Appliance Inlet further types to 4795
Appliance inlets/-outlets Overview complete
Plug Coupler IEC C20 / IEC J, Screw-on Mounting 4730
Appliance inlets/-outlets further types to 4795
Plug Overview complete
IEC Plug I, Cord Connector (Rewireable), Angled 4789
IEC Plug I, Cord Connector (Rewireable), Straight 4796
Plug further types to 4795
2
Connectors
Page 3
Cord Connectors (rewireable)
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
www.schurter.com/PG07
Category / Description
Power Entry Module Overview complete
IEC Appliance Inlet C20 with Line Switch, 2-pole EC11
IEC Appliance Inlet C20 with Circuit Breaker TA45 EF11
Power Entry Module further types to 4795
Power Entry Module with line filter Overview complete
IEC Appliance Inlet C20 with Filter, ECO design, front or rear side Mounting 5130
IEC Appliance Inlet C20 with Filter, Front or Rear Side Mounting C20F
IEC Appliance Inlet C22 for Hot Conditions, with Filter for High Temperatures, Front Side Mounting C22F
IEC Appliance Inlet C20 with Filter, Line Switch 2-pole EC12
IEC Appliance Inlet C20 with Filter, Circuit Breaker TA45 (recessed) EF12
Power Entry Module with line filter further types to 4795 ...
4795
EG11
Connectors
01.10.2014
3
