Page 1
4477333
28.7
20.8 47.0
70.0
44.5
3

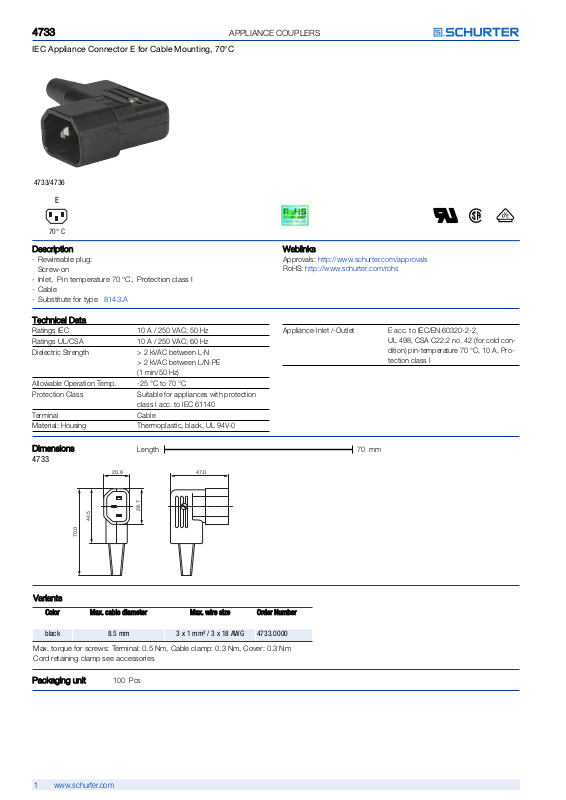

IEC Appliance Connector E for Cable Mounting, 70°C
4733/4736
E
70° C
APPLIANCE COUPLERS
DDeessccrriippttiioon
- Rewireable plug:
Screw-on
- Inlet, Pin temperature 70 °C, Protection class I
- Cable
- Substitute for type 8143.A
TTeecchhnniiccaall DDaatta
Ratings IEC 10 A / 250 VAC; 50 Hz
Ratings UL/CSA 10 A / 250 VAC; 60 Hz
Dielectric Strength > 2 kVAC between L-N
Allowable Operation Temp. -25 °C to 70 °C
Protection Class Suitable for appliances with protection
Terminal Cable
Material: Housing Thermoplastic, black, UL 94V-0
DDiimmeennssiioonns
n
a
> 2 kVAC between L/N-PE
(1 min/50 Hz)
class I acc. to IEC 61140
s
Length 70 mm
4733
WWeebblliinnkks
Approvals: http://www.schurter.com/approvals
RoHS: http://www.schurter.com/rohs
Appliance-Inlet /-Outlet E acc. to IEC/EN 60320-2-2,
s
UL 498, CSA C22.2 no. 42 (for cold condition) pin-temperature 70 °C, 10 A, Protection class I
VVaarriiaanntts
s
CCoolloorr MMaaxx.. ccaabbllee ddiiaammeetteerr MMaaxx.. wwiirree ssiizzee OOrrddeerr NNuummbbeerr
black 8.5 mm 3 x 1 mm² / 3 x 18 AWG 4733.0000
Max. torque for screws: Terminal: 0.5 Nm, Cable clamp: 0.3 Nm, Cover: 0.3 Nm
Cord retaining clamp see accessories
PPaacckkaaggiinngg uunniitt
1
www.schurter.com
100 Pcs
