Page 1
4477221
24.8
min.32.5
40.0
max.R4.0
3.50
30.0
40.0
49.0
6.3 x 90˚
3.5
R6.0
2.50
E
A
1

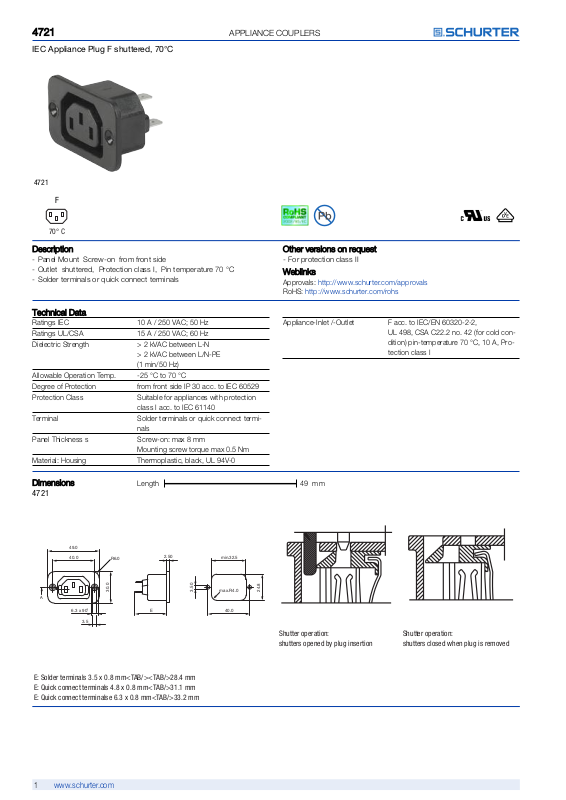

IEC Appliance Plug F shuttered, 70°C
4721
F
70° C
APPLIANCE COUPLERS
DDeessccrriippttiioon
n
- Panel Mount Screw-on from front side
- Outlet shuttered, Protection class I, Pin temperature 70 °C
- Solder terminals or quick connect terminals
TTeecchhnniiccaall DDaatta
a
Ratings IEC 10 A / 250 VAC; 50 Hz
Ratings UL/CSA 15 A / 250 VAC; 60 Hz
Dielectric Strength > 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
Allowable Operation Temp. -25 °C to 70 °C
Degree of Protection from front side IP 30 acc. to IEC 60529
Protection Class Suitable for appliances with protection
class I acc. to IEC 61140
Terminal Solder terminals or quick connect termi-
nals
Panel Thickness s Screw-on: max 8 mm
Mounting screw torque max 0.5 Nm
Material: Housing Thermoplastic, black, UL 94V-0
DDiimmeennssiioonns
s
Length 49 mm
4721
OOtthheerr vveerrssiioonnss oonn rreeqquueesst
t
- For protection class II
WWeebblliinnkks
s
Approvals: http://www.schurter.com/approvals
RoHS: http://www.schurter.com/rohs
Appliance-Inlet /-Outlet F acc. to IEC/EN 60320-2-2,
UL 498, CSA C22.2 no. 42 (for cold condition) pin-temperature 70 °C, 10 A, Protection class I
E: Solder terminals 3.5 x 0.8 mm<TAB/><TAB/>28.4 mm
E: Quick connect terminals 4.8 x 0.8 mm<TAB/>31.1 mm
E: Quick connect terminalse 6.3 x 0.8 mm<TAB/>33.2 mm
1
www.schurter.com

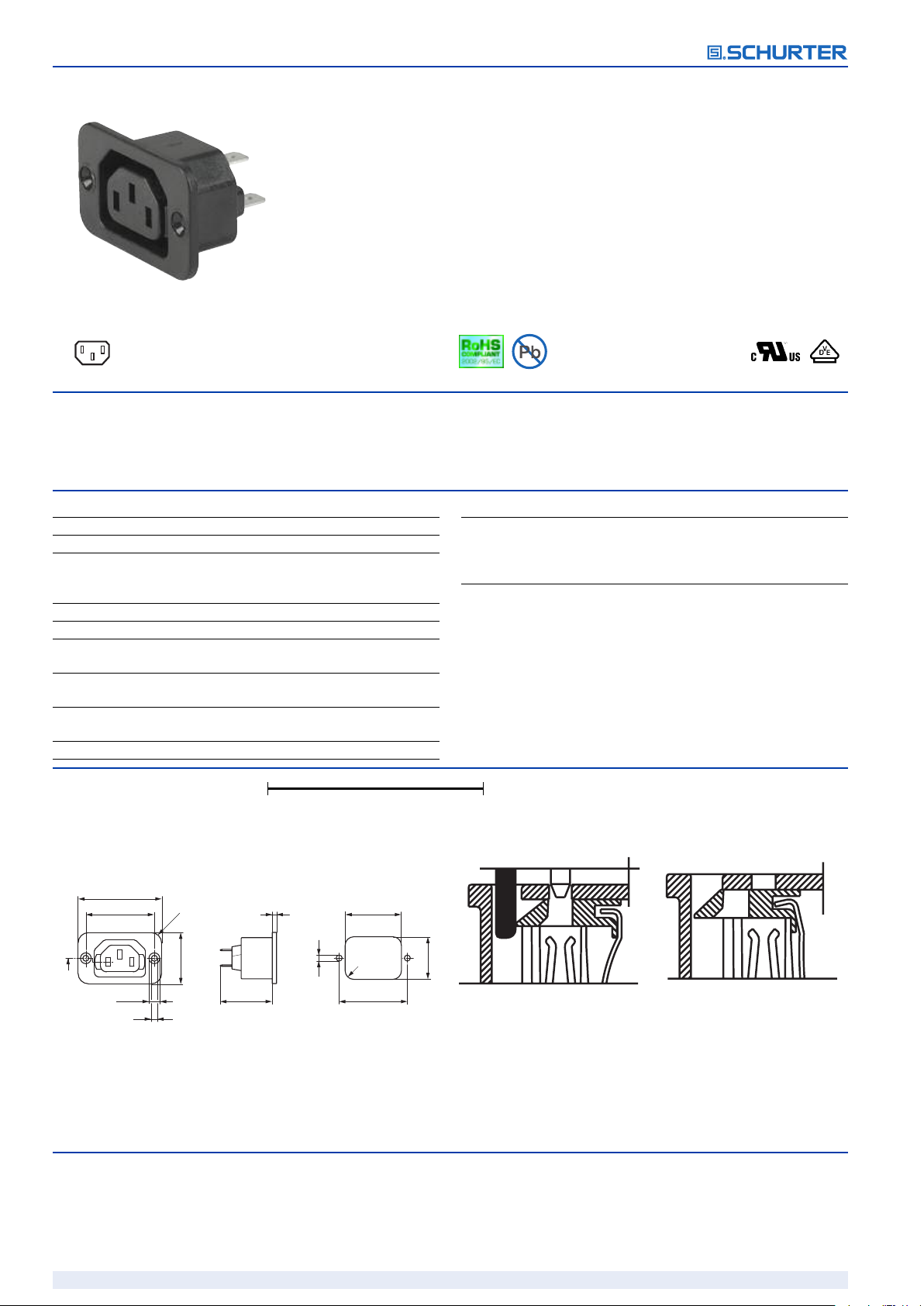

Shutter operation:
shutters opened by plug insertion
Shutter operation:
shutters closed when plug is removed
Page 2
4477221
1
VVaarriiaanntts
s
TTyyppee PPaanneell mmoouunnttiinngg PPaanneell TThhiicckknneessss ss
[[mmmm]]
4721 Screw-on - Quick connect terminals 4.8 x 0.8 mm 4721.0100
4721 Screw-on - Quick connect terminals 6.3 x 0.8 mm 4721.0000
4721 Screw-on - Solder terminals 3.8 x 0.8 mm 4721.0300
Class II product also available on request
Cord retaining clamps and insulation covers see accessories
APPLIANCE COUPLERS
TTeerrmmiinnaall OOrrddeerr NNuummbbeerr
PPaacckkaaggiinngg uunniitt

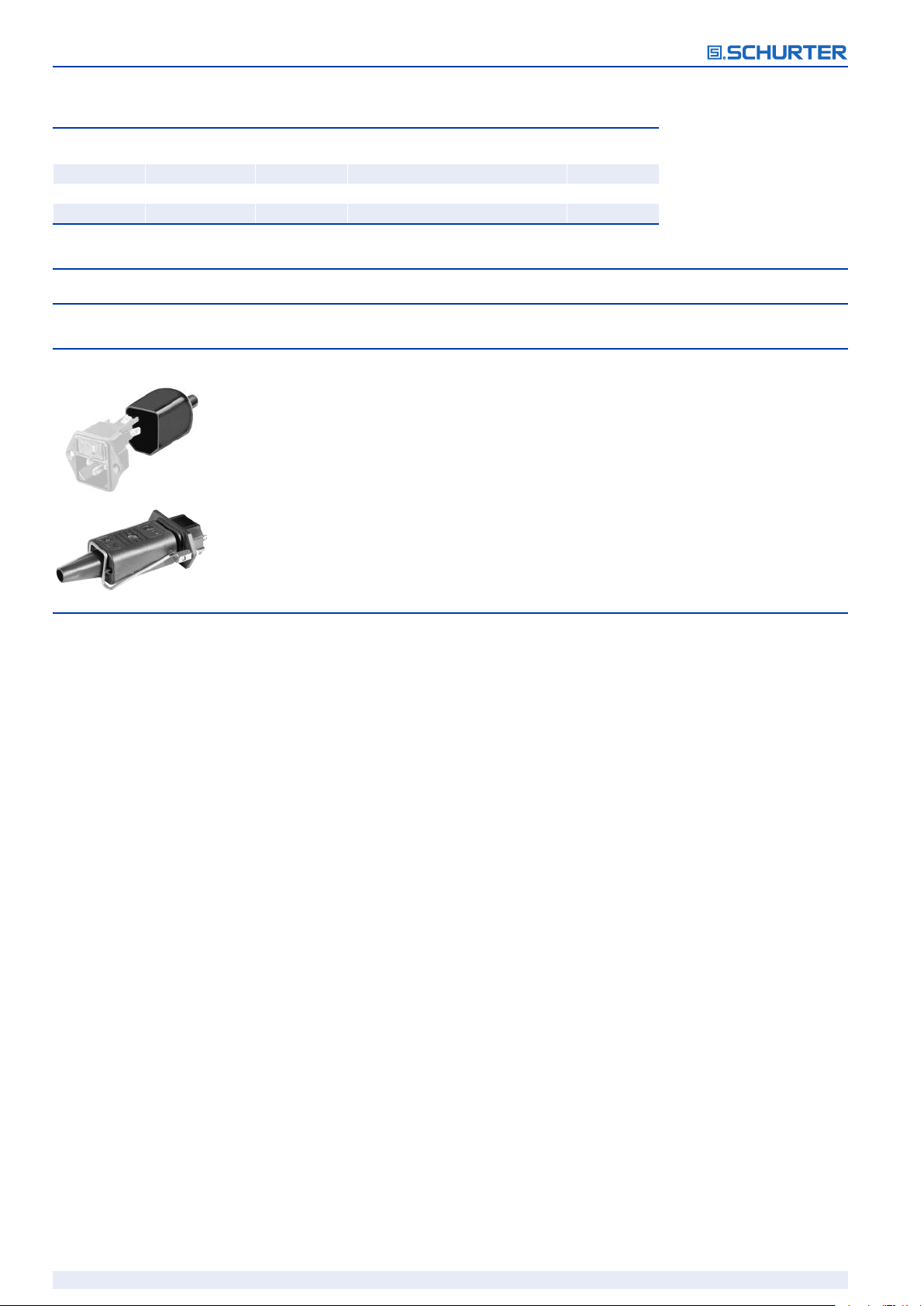

AAcccceessssoorry
y
100 Pcs
DDeessccrriippttiioonn
Assorted Covers
Cord retaining kits
2
www.schurter.com
