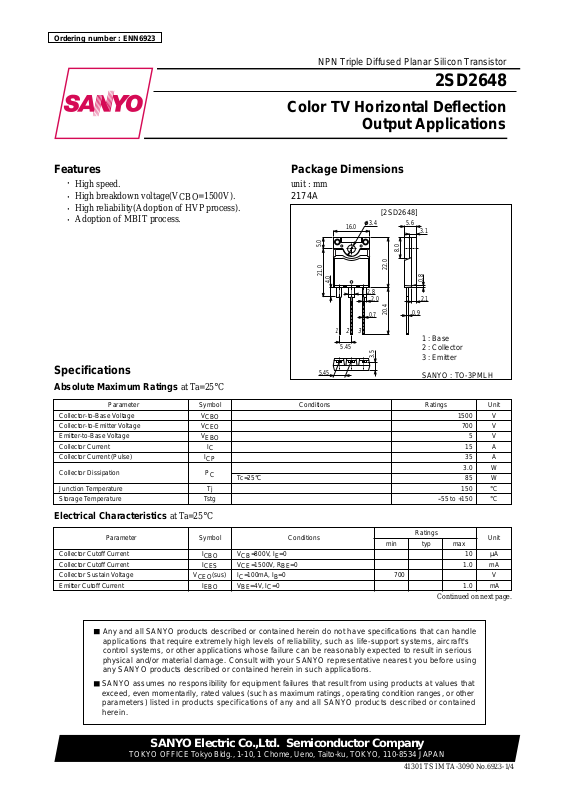

Ordering number : ENN6923

2SD2648

NPN Triple Diffused Planar Silicon Transistor

2SD2648

Color TV Horizontal Deflection

Output Applications

Features

•

High speed.

• High breakdown voltage(V

• High reliability(Adoption of HVP process).

• Adoption of MBIT process.

CBO

=1500V).

Specifications

Package Dimensions

unit : mm

2174A

[2SD2648]

3.4

16.0

5.0

2.8

0.7

22.0

2.0

20.4

3.5

21.0

5.45

4.0

123

5.45

5.6

3.1

8.0

0.8

2.1

0.9

1 : Base
2 : Collector
3 : Emitter

SANYO : TO-3PMLH

Absolute Maximum Ratings at T a=25°C

Parameter Symbol Conditions Ratings Unit
Collector-to-Base Voltage V
Collector-to-Emitter Voltage V
Emitter-to-Base Voltage V
Collector Current I
Collector Current (Pulse) I

Collector Dissipation P
Junction T emperature Tj 150 ° C

Storage T emperature T stg --55 to +150 °C

CBO
CEO
EBO

C

CP

C

Tc=25°C85W

1500 V

700 V

5V
15 A
35 A

3.0 W

Electrical Characteristics at Ta=25°C

Parameter Symbol Conditions

Collector Cutoff Current I
Collector Cutoff Current I
Collector Sustain Voltage V
Emitter Cutoff Current I

CBO
CES

CEO

EBO
