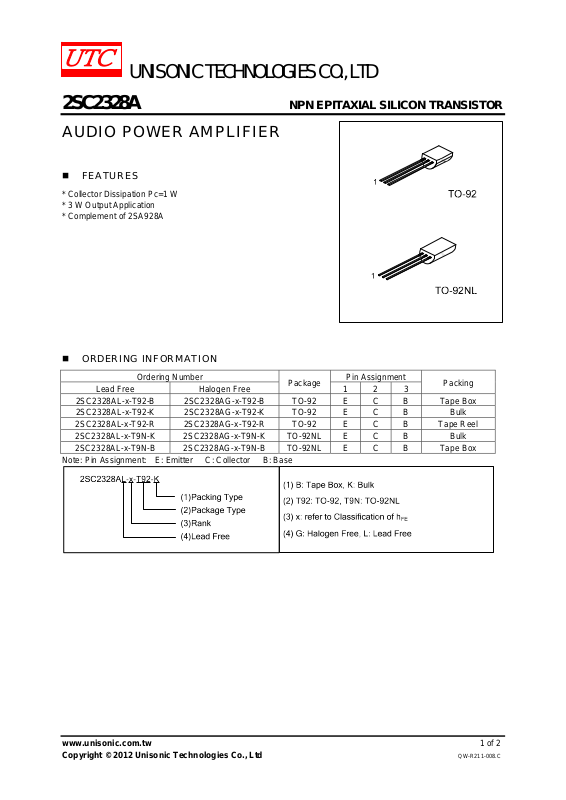

UNISONIC TECHNOLOGIES CO., LTD
2SC2328A
NPN EPITAXIAL SILICON TRANSISTOR
AUDIO POWER AMPLIFIER
FEATURES
* Collector Dissipation Pc=1 W * 3 W Output Application * Complement of 2SA928A
ORDERING INFORMATION
Ordering Number
Lead Free Halogen Free 1 2 3 2SC2328AL-x-T92-B 2SC2328AG-x-T92-B TO-92 E C B Tape Box 2SC2328AL-x-T92-K 2SC2328AG-x-T92-K TO-92 E C B Bulk 2SC2328AL-x-T92-R 2SC2328AG-x-T92-R TO-92 E C B Tape Reel
2SC2328AL-x-T9N-K 2SC2328AG-x-T9N-K TO-92NL E C B Bulk 2SC2328AL-x-T9N-B 2SC2328AG-x-T9N-B TO-92NL E C B Tape Box
Note: Pin Assignment: E: Emitter C: Collector B: Base
Package
Pin Assignment
Packing
www.unisonic.com.tw 1 of 2
Copyright © 2012 Unisonic Technologies Co., Ltd QW-R211-008.C
Page 2
2SC232A NPN EPITAXIAL SILICON TRANSISTOR
)
)
ABSOLUTE MAXIMUM RATING (T
=25, unless otherwise specified)
A
PARAMETER SYMBOL RATINGS UNIT Collector-Base Voltage V Collector-Emitter Voltage V Emitter-Base Voltage V
Collector Dissipation
TO-92 TO-92NL 625
30 V
CBO
30 V
CEO
5 V
EBO
PC
500
mW
Collector Current IC 2 A Junction Temperature TJ 150 Storage Temperature T
-55 ~ +150
STG
Note: Absolute maximum ratings are those values beyond which the device could be pe rmanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS (T
=25, unless otherwise specified)
A
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT Collector-Base Breakdown Voltage BV Collector-Emitter Breakdown Voltage BV Emitter-Base Breakdown Voltage BV Collector Cut-Off Current I Emitter Cut-Off Current I
IC=100μA, IE=0 30 V
CBO
IC=10mA, IB=0 30 V
CEO
IE=1mA,IC=0 5 V
EBO
VCB=30V, IE=0 100 nA
CBO
VBE=5V, IC=0 100 nA
EBO
DC Current Gain (Note) hFE VCE=2V, IC=500mA 100 320 Base-Emitter On Voltage V Collector-Emitter Saturation Voltage V
VCE=2V, IC=500mA 1 V
BE(ON
IC=1.5A, IB=0.03A 2 V
CE(SAT
Output Capacitace COB VCB =10V, IE =0, f=1MHz 30 pF Current Gain Bandwidth Product fT VCE=2V, IC=500mA 120 MHz
CLASSIFICATION OF h
FE
RANK O Y
RANGE 100-200 160-320
UTC assumes no responsibility for equipm ent failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specif ications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, dev ices or system s where malf unction of these products can be reasonably ex pected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD 2 of 2
www.unisonic.com.tw QW-R211-008,C
