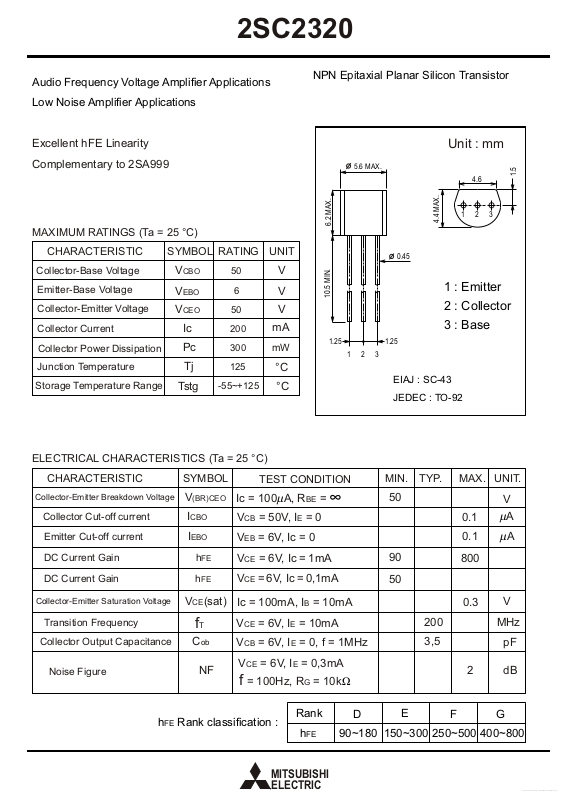

Datasheet 2SC2320 Specification

2SC2320

Free Datasheet http://www.datasheet4u.com/

Audio Frequency Voltage Amplifier Applications

Low Noise Amplifier Applications

Excellent hFE Linearity

Complementary to 2SA999

MAXIMUM RATINGS (Ta = 25 °C)

CHARACTERISTIC

Collector-Base Voltage

Emitter-Base Voltage

Collector-Emitter Voltage

Collector Current

Collector Power Dissipation

Junction Temperature

Storage Temperature Range

SYMBOL

VCBO

VEBO

VCEO

Ic

Pc

Tj

Tstg

RATING

50

6

50

200

300

125

-55~+125

UNIT

V

V

V

mA

mW

°C

°C

NPN Epitaxial Planar Silicon Transistor

Unit : mm

5.6 MAX.

4.6

1 2 3

6.2 MAX.

0.45

10.5 MIN.

4.4 MAX.

1 : Emitter

2 : Collector

3 : Base

1.25

1 2 3

1.25

EIAJ : SC-43

JEDEC : TO-92

1.5

ELECTRICAL CHARACTERISTICS (Ta = 25 °C)

CHARACTERISTIC

Collector-Emitter Breakdown Voltage

Collector Cut-off current

Emitter Cut-off current

DC Current Gain

DC Current Gain

Collector-Emitter Saturation Voltage

Transition Frequency

Collector Output Capacitance

Noise Figure

SYMBOL

V(BR)CEO

ICBO

IEBO

hFE

hFE

VCE(sat)

fT

Cob

NF

TEST CONDITION

Ic = 100 A, RBE = μ ∞

VCB = 50V, IE = 0

VEB = 6V, Ic = 0

VCE = 6V, Ic = 1mA

VCE = 6V, Ic = 0,1mA

Ic = 100mA, IB = 10mA

VCE = 6V, IE = 10mA

VCB = 6V, IE = 0, f = 1MHz

VCE = 6V, IE = 0,3mA

f = 100Hz, RG = 10kΩ

hFE Rank classification :

Rank

hFE

D

90~180

MIN.

TYP.

50

90

50

E

150~300

200

3,5

F

250~500

MAX. UNIT.

V

0.1

0.1

μA

μA

800

0.3

V

MHz

pF

2

dB

G

400~800

MITSUBISHI
ELECTRIC

2SC2320
