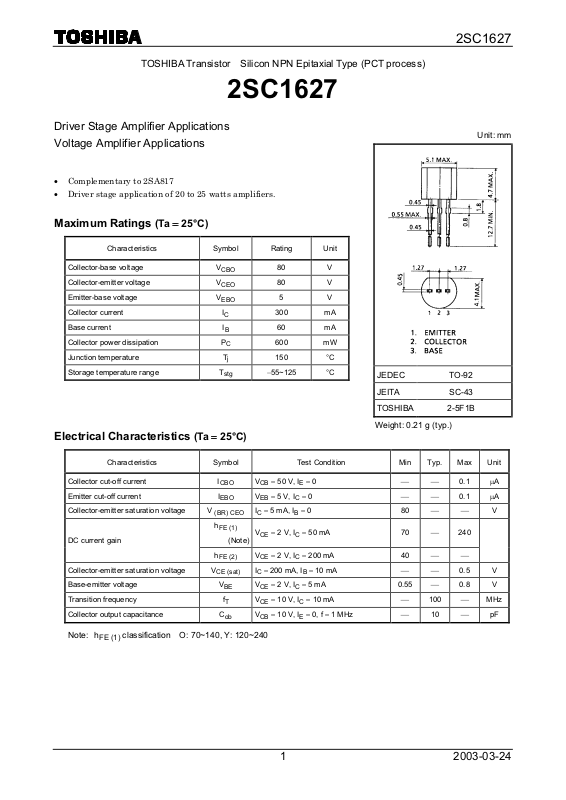

Page 1
2SC1627
2003-03-24
1
TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process)
2SC1627
Driver Stage Amplifier Applications
Voltage Amplifier Applications
!" Complementary to 2SA817
!" Driver stage application of 20 to 25 watts amplifiers.
Maximum Ratings
(Ta !!!! 25°C)
Characteristics Symbol Rating Unit
Collector-base voltage V
CBO
80 V
Collector-emitter voltage V
CEO
80 V
Emitter-base voltage V
EBO
5 V
Collector current IC 300 mA
Base current IB 60 mA
Collector power dissipation PC 600 mW
Junction temperature T
j
150 °C
Storage temperature range T
stg
!55~125 °C
Electrical Characteristics
(Ta !!!! 25°C)
Characteristics Symbol Test Condition Min Typ. Max Unit
Collector cut-off current I
CBO
VCB" 50 V, IE" 0 #$ # 0.1 %A
Emitter cut-off current I
EBO
VEB" 5 V, IC" 0 # # 0.1 %A
Collector-emitter saturation voltage V
(BR) CEOIC
" 5 mA, IB" 0 80 # # V
h
FE (1)
(Note)
V
CE
" 2 V, IC" 50 mA 70 # 240
DC current gain
h
FE (2)
VCE" 2 V, IC" 200 mA 40 # #
Collector-emitter saturation voltage V
CE (sat)
IC" 200 mA, IB" 10 mA # # 0.5 V
Base-emitter voltage VBE VCE" 2 V, IC" 5 mA 0.55 # 0.8 V
Transition frequency fT VCE" 10 V, IC" 10 mA # 100 # MHz
Collector output capacitance Cob VCB" 10 V, IE" 0, f " 1 MHz # 10 # pF
Note: h
FE (1)
classification O: 70~140, Y: 120~240

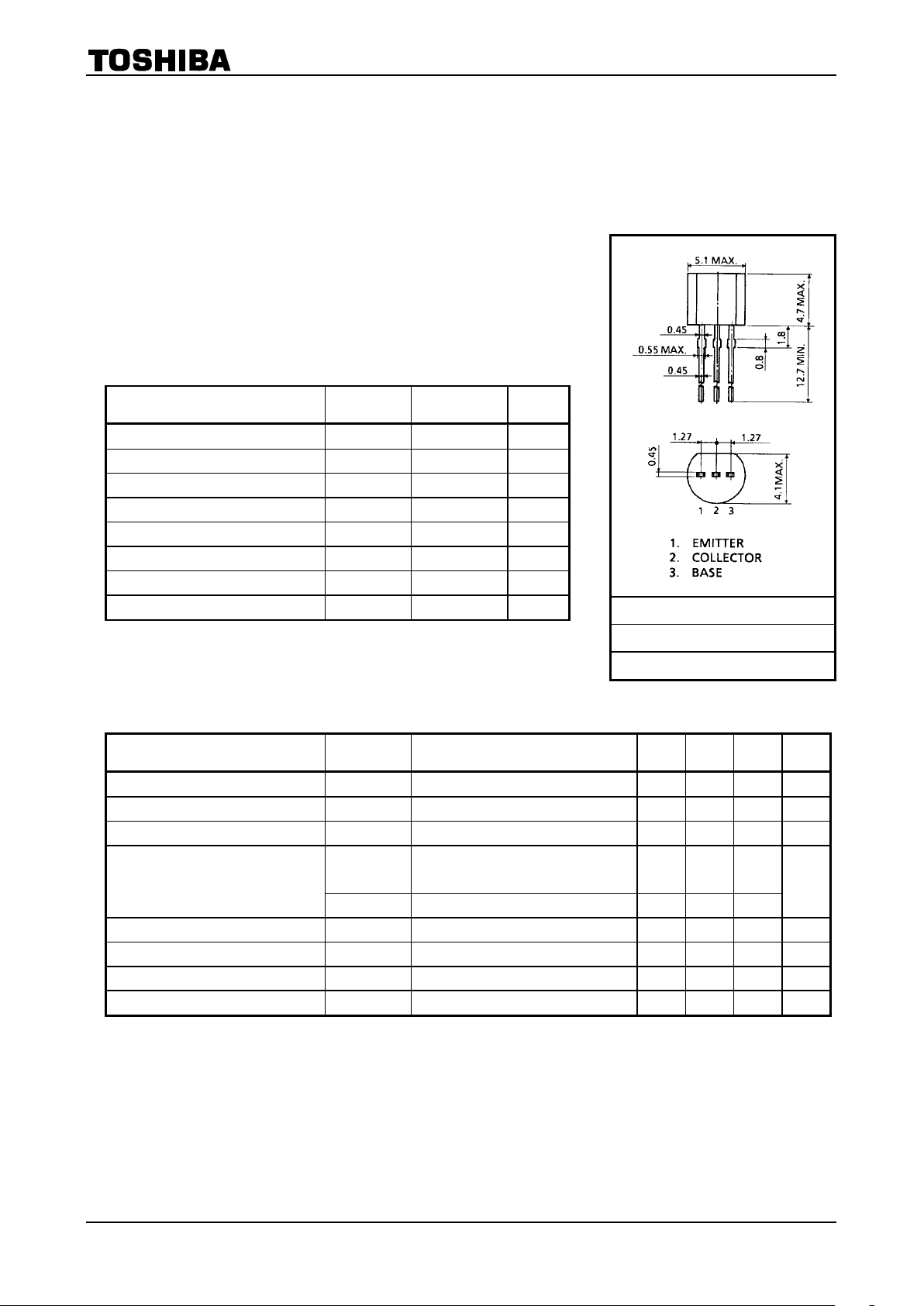

Unit: mm
JEDEC TO-92
JEITA SC-43
TOSHIBA 2-5F1B
Weight: 0.21 g (typ.)

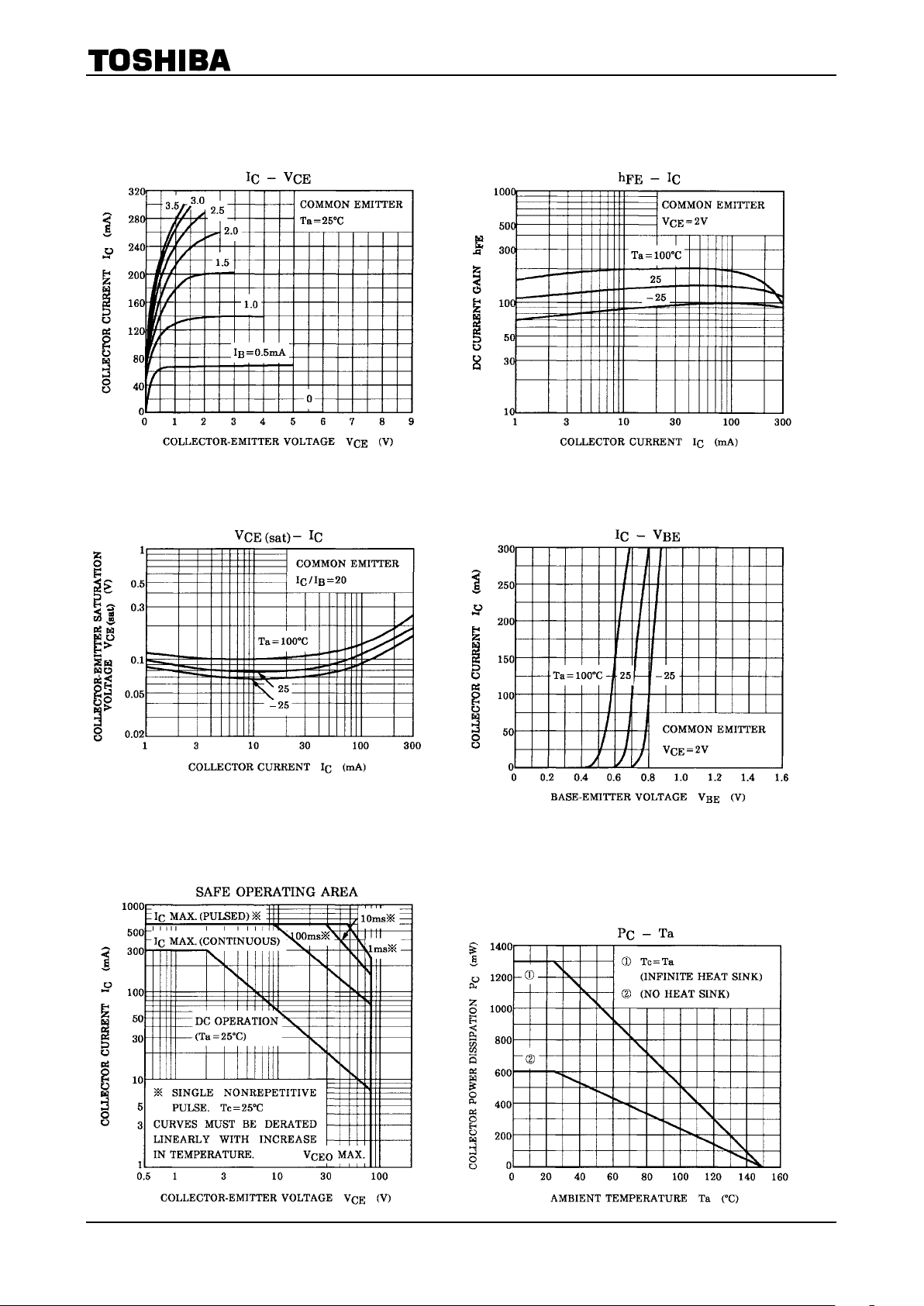

Page 2
2SC1627
2003-03-24
2
Page 3
2SC1627
2003-03-24
3
!" TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor
devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical
stress. It is the responsibility of the buyer, when utilizing TOSHIBA products, to comply with the standards of
safety in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of
such TOSHIBA products could cause loss of human life, bodily injury or damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as
set forth in the most recent TOSHIBA products specifications. Also, please keep in mind the precautions and
conditions set forth in the “Handling Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability
Handbook” etc..
!" The TOSHIBA products listed in this document are intended for usage in general electronics applications
(computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances,
etc.). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires
extraordinarily high quality and/or reliability or a malfunction or failure of which may cause loss of human life or
bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or
spaceship instruments, transportation instruments, traffic signal instruments, combustion control instruments,
medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in this
document shall be made at the customer’s own risk.
!" The information contained herein is presented only as a guide for the applications of our products. No
responsibility is assumed by TOSHIBA CORPORATION for any infringements of intellectual property or other
rights of the third parties which may result from its use. No license is granted by implication or otherwise under
any intellectual property or other rights of TOSHIBA CORPORATION or others.
!" The information contained herein is subject to change without notice.
000707EA
A
RESTRICTIONS ON PRODUCT USE
