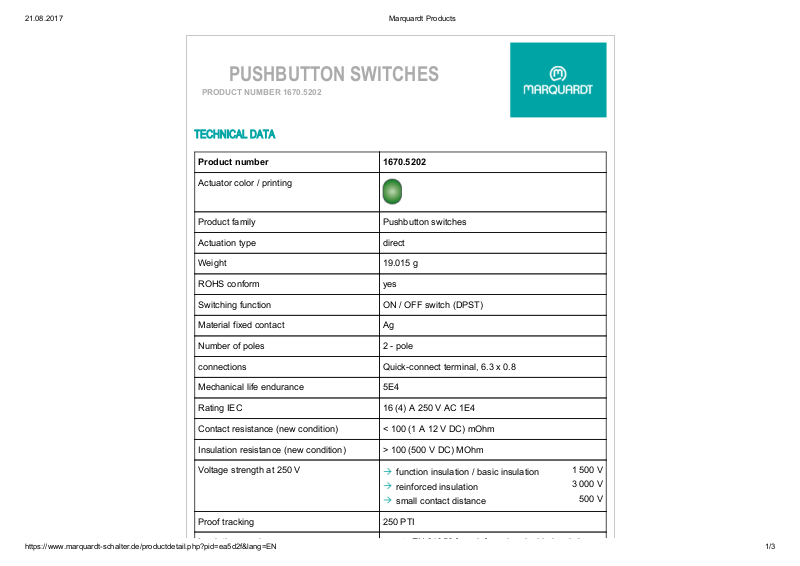

Page 1
21.08.2017 Marquardt Products
TECHNICAL DATA
Product number 1670.5202
Actuator color / printing
Product family Pushbutton switches
Actuation type direct
Weight 19.015 g
ROHS conform yes
Switching function ON / OFF switch (DPST)
Material fixed contact Ag
Number of poles 2 - pole
connections Quick-connect terminal, 6.3 x 0.8
Mechanical life endurance 5E4
Rating IEC 16 (4) A 250 V AC 1E4
Contact resistance (new condition) < 100 (1 A 12 V DC) mOhm
Insulation resistance (new condition) > 100 (500 V DC) MOhm
Voltage strength at 250 V
function insulation / basic insulation
1 500 V
reinforced insulation
3 000 V
small contact distance
500 V
Proof tracking 250 PTI
PUSHBUTTON SWITCHES
PRODUCT NUMBER 1670.5202
https://www.marquardt-schalter.de/productdetail.php?pid=ea5d2f&lang=EN 1/3
Page 2
21.08.2017 Marquardt Products
Insulation spacing acc. to EN 61058 for reinforced or double insulation
Protection type
Connection
IP 54
Actuator
IP 54
Ambient temperature -20 °C ... +85 °C
Ambient temperature -20 °C ... +55 °C
Storage temperature -40 °C ... +80 °C
Flammability UL 94 V-2
Glow wire test temperature 850 °C
Actuators and additional actuators actuator: PC, green
Housing description housing: PA, black
cover: PA, black
Connection surface
bearing connection
Cu
external connection
Cu
Contact material Ag
Contact distance ≥ 3 mm
Lighting function illumination: glow lamp, 230 V, green
Contact type jump contact
Plug force of the terminals ≤ 80 N
Operating force approx. 8 N
Approval marks ENEC 05
Suitable for appliances of protection class II
Additional labeling year/week of manuf. acc. to DIN EN 60062
Type of fastening Snap fastening
Degree of pollution 3
Stock version
https://www.marquardt-schalter.de/productdetail.php?pid=ea5d2f&lang=EN 2/3
Page 3
21.08.2017 Marquardt Products
X Y Z
0.8 ... 5.0 30 +0.15 22.2 +0.15
X = wall thickness
PRODUCT IMAGE
DRAWINGS
Technical changes reserved. Dimensions are not binding.
Detailed specifications available on request.
