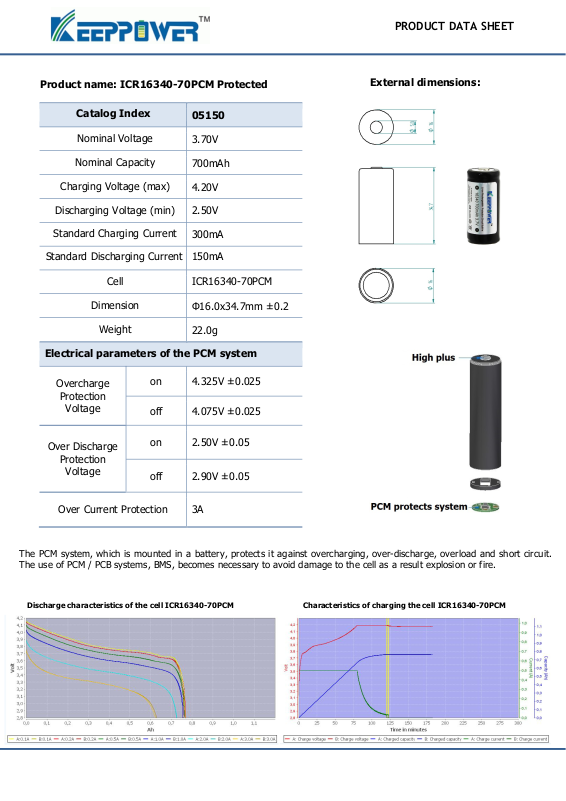

Page 1
PRODUCT DATA SHEET
4.20V
2.50V
4.325V ±0.025
4.075V ±0.025
2.50V ±0.05
2.90V ±0.05
Product name: ICR16340-70PCM Protected
Catalog Index
Nominal Voltage
Nominal Capacity
05150
3.70V
700mAh
Charging Voltage (max)
Discharging Voltage (min)
Standard Charging Current
Standard Discharging Current
Cell
Dimension
Weight
300mA
150mA
ICR16340-70PCM
Փ16.0x34.7mm ±0.2
22.0g
Electrical parameters of the PCM system
External dimensions:
Overcharge
on
Protection
Voltage
Over Discharge
off
on
Protection
Voltage
Over Current Protection
The PCM system, which is mounted in a battery, protects it against overcharging, over-discharge, overload and short circuit.
The use of PCM / PCB systems, BMS, becomes necessary to avoid damage to the cell as a result explosion or fire.
Discharge characteristics of the cell ICR16340-70PCM
off
3A
Characteristics of charging the cell ICR16340-70PCM
