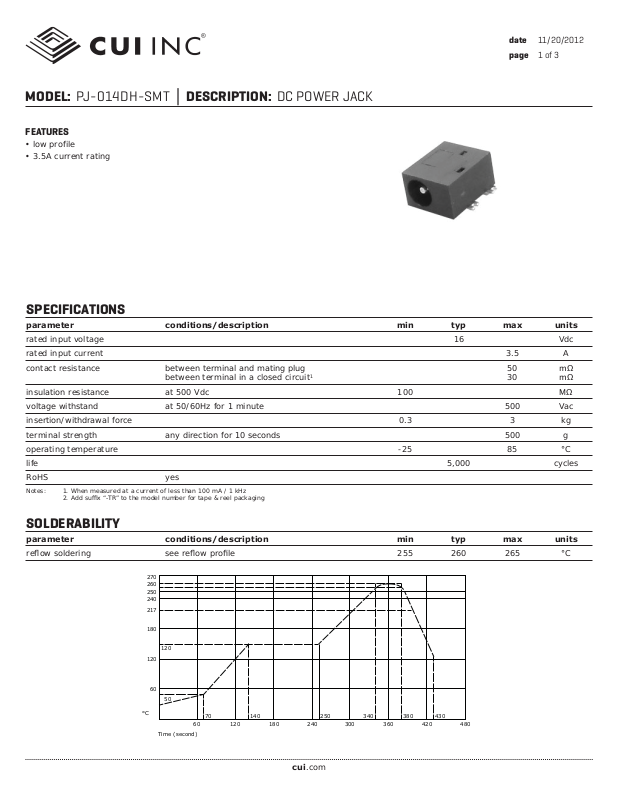

Page 1
date 11/20/2012
page 1 of 3
MODEL: PJ-014DH-SMT │ DESCRIPTION: DC POWER JACK
FEATURES
• low profile
• 3.5A current rating
SPECIFICATIONS
parameter conditions/description min typ max units
rated input voltage 16 Vdc
rated input current 3.5 A
contact resistance between terminal and mating plug
between terminal in a closed circuit
1
insulation resistance at 500 Vdc 100
voltage withstand at 50/60Hz for 1 minute 500 Vac
insertion/withdrawal force 0.3 3 kg
terminal strength any direction for 10 seconds 500 g
operating temperature -25 85 °C
life 5,000 cycles
RoHS yes
Notes: 1. When measured at a current of less than 100 mA / 1 kHz
2. Add suffi x “-TR” to the model number for tape & reel packaging
50
30
mΩ
mΩ
MΩ
SOLDERABILITY
parameter conditions/description min typ max units
refl ow soldering see refl ow profi le 255 260 265 °C
270
260
250
240
217
180
120
120
60
50
°C
Time (second)
70 140 250 340 380 430
60 120 180 240 300 360 420 480
cui.com
Page 2
CUI Inc │ MODEL: PJ-014DH-SMT │ DESCRIPTION: DC POWER JACK date 11/20/2012 │ page 2 of 3
MECHANICAL DRAWING
units: mm[inches]
tolerance: x.x = ±0.2 mm
x.xx = ±0.1 mm
x.xxx = ±0.05 mm
8.0
2.70
5.20
2.70
1.3
3.90
2.50
9.3
1.50
5.00
MATERIAL PLATING
cernter pin copper nickel
terminal 1 brass silver
terminal 2 copper alloy silver
terminal 3 brass silver
plastic PA6T
0.8
(4 PLCS)
0.8
(2 PLCS)
0.80
(2 PLCS)
4.5 3.5
1
3
1.6
(4 PLCS)
1
4.00
2
2.8
(4 PLCS)
2.8
3.7
4.5
3.5
3
1
2
5.0
1
PCB LAYOUT
TOP VIEW
8.0
1.5
10.8
MATING PLUG
Jack Insertion Depth: 6.2 mm
SCHEMATIC
Model
PJ-014DH-SMT ø1.3 mm
Center Pin
1
3
2
cui.com
Page 3
CUI Inc │ MODEL: PJ-014DH-SMT │ DESCRIPTION: DC POWER JACK date 11/20/2012 │ page 3 of 3
REVISION HISTORY
rev. description date
1.0 initial release 10/13/2005
1.01 updated template 06/24/2011
1.02 added TR package option 11/20/2012
The revision history provided is for informational purposes only and is believed to be accurate.
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is
assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical
component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to
affect its safety or effectiveness.
