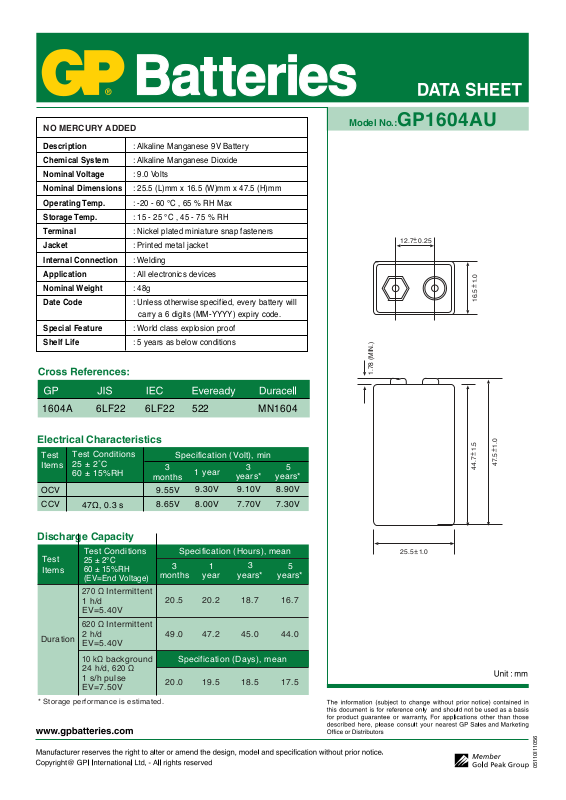

Page 1
NO MERCURY ADDED
Description : Alkaline Manganese 9V Battery
Chemical System : Alkaline Manganese Dioxide
Nominal Voltage : 9.0 Volts
Nominal Dimensions : 25.5 (L)mm x 16.5 (W)mm x 47.5 (H)mm
Operating Temp. : -20 - 60 °C , 65 % RH Max
Storage Temp. : 15 - 25 °C , 45 - 75 % RH
Terminal : Nickel plated miniature snap fasteners
Jacket : Printed metal jacket
Internal Connection : Welding
Application : All electronics devices
Nominal Weight : 48g
Date Code : Unless otherwise specified, every battery will
carry a 6 digits (MM-YYYY) expiry code.
Special Feature : World class explosion proof
Shelf Life : 5 years as below conditions
Model No.:GP1604AU
+
12.7 0.25
+
16.5 1.0
1.78 (MIN.)
1604A 6LF22 6LF22 522 MN1604
Electrical Characteristics
Test
Items
OCV
CCV
Test Conditions
25 ± 2˚C
60 ± 15%RH
47Ω, 0.3 s
Specification (Volt), min
3
months
9.55V
8.65V
1 year
9.30V
8.00V
3
years*
9.10V
7.70V
years*
8.90V
7.30V
Discharge Capacity
Test
Items
25 ± 2°C
60 ± 15%RH
(EV=End Voltage)
Test Conditions
270 Ω
Intermittent
1 h/d
EV=5.40V
620 Ω
Intermittent
Duration
2 h/d
EV=5.40V
10 kΩ
background
24 h/d,
620 Ω
1 s/h pulse
EV=7.50V
* Storage performance is estimated.
Specification (Hours), mean
3
months
1
year
years*
20.5 20.2 18.7
49.0 47.2 45.0
Specification (Days), mean
20.0 19.5 18.5
3
years*
16.7
44.0
17.5
5
5
+
25.5 1.0
+
44.7 1.5
+
47.5 1.0
05110I11056
