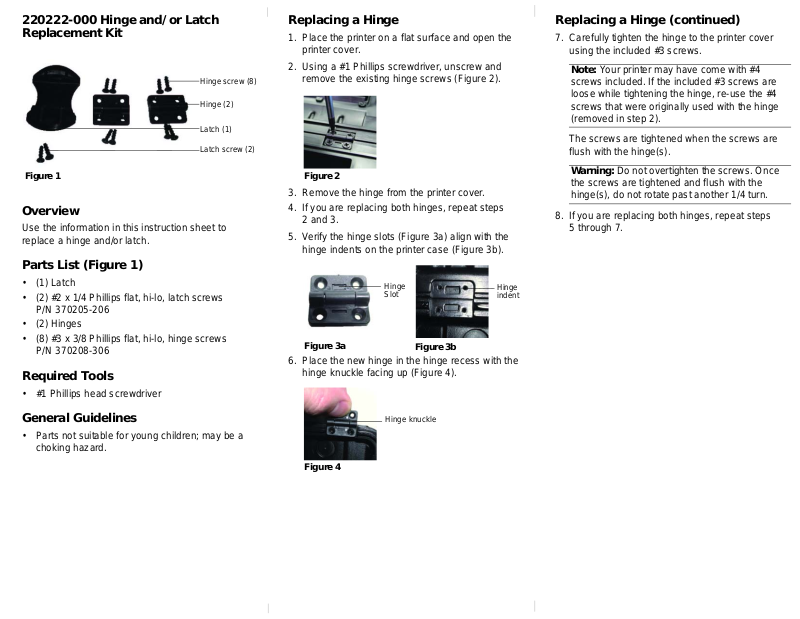

Datamax-O'Neil Hinge and_or Latch Replacement Kit User Manual

Figure 2

Figure 3a

Figure 3b

Hinge
Slot

Hinge
indent

Figure 4

Hinge knuckle

220222-000 Hinge and/or Latch

Latch screw (2)

Latch (1)

Hinge (2)

Hinge screw (8)

Figure 1

Replacement Kit

Overview

Use the information in this instruction sheet to
replace a hinge and/or latch.

Parts List (Figure 1)

•(1) Latch

• (2) #2 x 1/4 Phillips flat, hi-lo, latch screws
P/N 370205-206

• (2) Hinges

• (8) #3 x 3/8 Phillips flat, hi-lo, hinge screws
P/N 370208-306

Required Tools

• #1 Phillips head screwdriver

Replacing a Hinge

1. Place the printer on a flat surface and open the
printer cover.

2. Using a #1 Phillips screwdriver, unscrew and
remove the existing hinge screws (Figure 2).

3. Remove the hinge from the printer cover.

4. If you are replacing both hinges, repeat steps
2 and 3.

5. Verify th e hinge slots (Figure 3a) align with the
hinge indents on the printer case (Figure 3b).

6. Place the new hinge in the hinge recess with the
hinge knuckle facing up (Figure 4).

Replacing a Hinge (continued)

7. Carefully tighten the hinge to the printer cover
using the included #3 screws.

Note: Your printer may have come with #4
screws included. If the included #3 screws are
loose while tightening the hinge, re-use the #4
screws that were originally used with the hinge
(removed in step 2).

The screws are tightened when the screws are
flush with the hinge(s).

Warning: Do not overtighten the screws. Once
the screws are tightened and flush with the
hinge(s), do not rotate past another 1/4 turn.

8. If you are replacing both hinges, repeat steps
5 through 7.

General Guidelines

• Parts not suitable for young children; may be a
choking hazard.

Replacing a Latch

Figure 5

Figure 6

Figure 7

Hinge and/or Latch Replacement Kit

110136-003

Instruction Sheet

1. Place the printer on a flat surface and open the
printer cover.

2. Using a #1 Phillips screwdriver, unscrew and
remove the existing latch screws (Figure 5).

3. Remove the existing latch.

4. Place the new latch in the latch recess. Use
Figure 6 as a guide to verify the latch is aligned
correctly.

Warranty

The Company warrants that Datamax-O’Neil products are free
from defects in manufacturing materials and workmanship for one
(1) year from date of original purchase to Buyer/Distributor (OEMs
90 days from the date of purchase). Batteries, cables, power
supplies, and other accessories will be warranted for ninety (90)
days. Datamax-O’Neil makes no other warranties, expressed or
implied, including implied warranties of merchantability and fitness
of purpose.

If you try to repair, disassemble, or change the product in any way,
or use parts not provided by Datamax-O’Neil without prior, written
authorization, all warranties are void.

For complete warranty and service information, see the Warranty
Card included in your printer's original packaging.

No Liability for Negligent Use

In no event shall Datamax-O’Neil be held liable for any damages
whatsoever (including, without limitations, damages for loss of
profits, business interruption, loss of information, or other
pecuniary loss) arising out of negligence in use and care of the
product.

5. Carefully tighten the latch to the printer cover
using the included #2 screws (Figure 7).The
screws are tightened when the screws are flush

with the latch.

Warning: Do not overtighten the screws. Once
the screws are tightened and flush with the
latch case, do not rotate past another 1/4 turn.

COPYRIGHT © 2010, DATAMAX-O’NEIL
