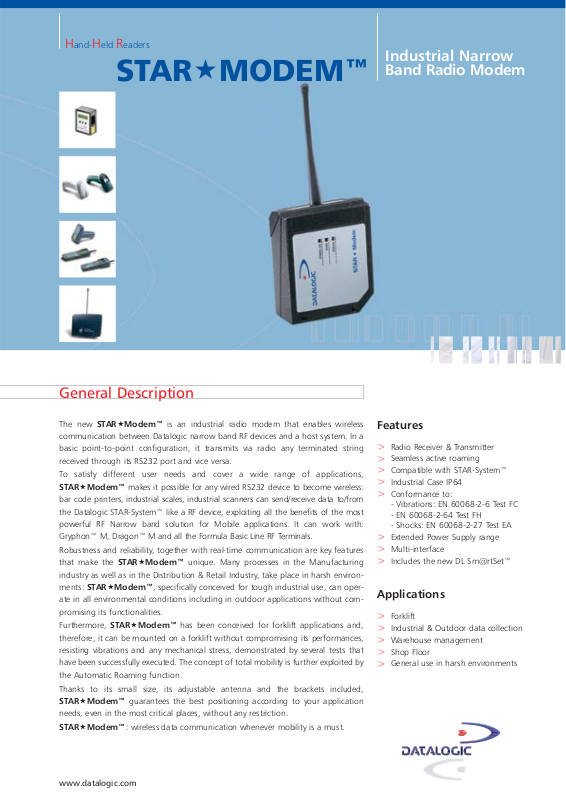

STARMODEM™
Applications
Features
Hand-Held Readers
The new STARModem™ is an industrial radio modem that enables wireless
communication between Datalogic narrow band RF devices and a host system. In a
basic point-to-point configuration, it transmits via radio any terminated string
received through its RS232 port and vice versa.
To satisfy different user needs and cover a wide range of applications,
STARModem™ makes it possible for any wired RS232 device to become wireless:
bar code printers, industrial scales, industrial scanners can send/receive data to/from
the Datalogic STAR-System™ like a RF device, exploiting all the benefits of the most
powerful RF Narrow band solution for Mobile applications. It can work with:
Gryphon™ M, Dragon™ M and all the Formula Basic Line RF Terminals.
Robustness and reliability, together with real-time communication are key features
that make the STARModem™ unique. Many processes in the Manufacturing
industry as well as in the Distribution & Retail Industry, take place in harsh environments: STARModem™, specifically conceived for tough industrial use, can operate in all environmental conditions including in outdoor applications without compromising its functionalities.
Furthermore, STARModem™ has been conceived for forklift applications and,
therefore, it can be mounted on a forklift without compromising its performances,
resisting vibrations and any mechanical stress, demonstrated by several tests that
have been successfully executed. The concept of total mobility is further exploited by
the Automatic Roaming function.
Thanks to its small size, its adjustable antenna and the brackets included,
STARModem™ guarantees the best positioning according to your application
needs, even in the most critical places, without any restriction.
STARModem™: wireless data communication whenever mobility is a must.
>
Radio Receiver & Transmitter
>
Seamless active roaming
>
Compatible with STAR-System™
>
Industrial Case IP64
>
Conformance to:
- Vibrations: EN 60068-2-6 Test FC
- EN 60068-2-64 Test FH
- Shocks: EN 60068-2-27 Test EA
>
Extended Power Supply range
>
Multi-interface
>
Includes the new DL Sm@rtSet™
>
Forklift
>
Industrial & Outdoor data collection
>
Warehouse management
>
Shop Floor
>
General use in harsh environments
Industrial Narrow
Band Radio Modem
General Description
www.datalogic.com
STARMODEM™
Industrial Narrow
Band Radio Modem
Hand-Held Readers
ELECTRICAL CHARACTERISTICS
POWER SUPPLY 10 to 30 Vdc; 5 Vdc (depending on model)
POWER CONSUMPTION 2 W
RADIO
RADIO FREQUENCY 433.92 MHz
DATA TRANSFER RATE up to 19200 baud
RADIO POWER OUTPUT <10 mW
RADIO RANGE 50 m / 164 ft
ROAMING Seamless Active Roaming
ACCESS PROTOCOL CSMA/CA
CONFORMITY ETSI standard EN300 220-3
SYSTEM CONFIGURATION Maximum 32 devices per STAR-Modem™
MECHANICAL CHARACTERISTICS
DIMENSIONS 68 x 84 x 34 mm / 2.68 x 3.3 x 1.3 in (without antenna)
WEIGHT 370 g / 13.1 oz
LED INDICATOR Power On (green); TX/RX (yellow); Status (red)
ENVIRONMENT
OPERATING TEMPERATURE -10° to +50 °C / +14° to +122 °F
STORAGE TEMPERATURE -20° to +70 °C / -4° to +158 °F
HUMIDITY 90% non condensing
ENVIRONMENTAL PROTECTION IP64
Adjustable antenna for easy installation
Wedge emulation interface for
PDC basic line RF terminals
Fork-lift truck terminals with Datalogic RF readers
Wireless USS Scanners
Wireless printing
Wireless USS scanners on
forklifts with full mobility
Specifications
Application Examples
