Datalogic Scanning PD7100 User Manual

PowerScan® PD7100 Corded

Linear Imaging Barcode Reader

Product Reference Guide

Datalogic Scanning, Inc.

959 Terry Street
Eugene, Oregon 97402
Telephone: [phone]
Fax: [phone]

An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein
may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic Scanning, Inc. or
its subsidiaries or affiliates ("Datalogic" or “Datalogic Scanning”). Owners of Datalogic products are hereby granted a non­exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes.
Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this documentation and
shall ensure that all notices appear on any reproductions of the documentation.

Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic representa­tive. Electronic versions may either be downloadable from the Datalogic website (www.scanning.datalogic.com) or provided
on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic
publications, please let us know via the "Contact Datalogic" page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however, Data­logic reserves the right to change any specification at any time without prior notice.

Datalogic is a registered trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a trademark of Datalogic
S.p.A. All other brand and product names referred to herein may be trademarks of their respective owners.

This product may be covered by one or more of the following patents: 4603262 • 4639606 • 4652750 • 4672215 • 4699447 • 4709369 • 4749879 • 4786798 • 4792666 • 4794240 •
4798943 • 4799164 • 4820911 • 4845349 • 4861972 • 4861973 • 4866257 • 4868836 • 4879456 • 4939355 • 4939356 • 4943127 • 4963719 • 4971176 • 4971177 • 4991692 •
5001406 • 5015831 • 5019697 • 5019698 • 5086879 • 5115120 • 5144118 • 5146463 • 5179270 • 5198649 • 5200597 • 5202784 • 5208449 • 5210397 • 5212371 • 5212372 •
5214270 • 5229590 • 5231293 • 5232185 • 5233169 • 5235168 • 5237161 • 5237162 • 5239165 • 5247161 • 5256864 • 5258604 • 5258699 • 5260554 • 5274219 • 5296689 •
5298728 • 5311000 • 5327451 • 5329103 • 5330370 • 5347113 • 5347121 • 5371361 • 5382783 • 5386105 • 5389917 • 5410108 • 5420410 • 5422472 • 5426507 • 5438187 •
5440110 • 5440111 • 5446271 • 5446749 • 5448050 • 5463211 • 5475206 • 5475207 • 5479011 • 5481098 • 5491328 • 5493108 • 5504350 • 5508505 • 5512740 • 5541397 •
5552593 • 5557095 • 5563402 • 5565668 • 5576531 • 5581707 • 5594231 • 5594441 • 5598070 • 5602376 • 5608201 • 5608399 • 5612529 • 5629510 • 5635699 • 5641958 •
5646391 • 5661435 • 5664231 • 5666045 • 5671374 • 5675138 • 5682028 • 5686716 • 5696370 • 5703347 • 5705802 • 5714750 • 5717194 • 5723852 • 5750976 • 5767502 •
5770847 • 5786581 • 5786585 • 5787103 • 5789732 • 5796222 • 5804809 • 5814803 • 5814804 • 5821721 • 5822343 • 5825009 • 5834708 • 5834750 • 5837983 • 5837988 •
5852286 • 5864129 • 5869827 • 5874722 • 5883370 • 5905249 • 5907147 • 5923023 • 5925868 • 5929421 • 5945670 • 5959284 • 5962838 • 5979769 • 6000619 • 6006991 •
6012639 • 6016135 • 6024284 • 6041374 • 6042012 • 6045044 • 6047889 • 6047894 • 6056198 • 6065676 • 6069696 • 6073849 • 6073851 • 6094288 • 6112993 • 6129279 •
6129282 • 6134039 • 6142376 • 6152368 • 6152372 • 6155488 • 6166375 • 6169614 • 6173894 • 6176429 • 6188500 • 6189784 • 6213397 • 6223986 • 6230975 • 6230976 •
6244510 • 6259545 • 6260763 • 6266175 • 6273336 • 6276605 • 6279829 • 6290134 • 6290135 • 6293467 • 6303927 • 6311895 • 6318634 • 6328216 • 6332576 • 6332577 •
6343741 • 6454168 • 6478224 • 6568598 • 6578765 • 6705527 • 6857567 • 6974084 • 6991169 • 7051940 • 7170414 • 7172123 • 7201322 • 7204422 • 7215493 • 7224540 •
7234641 • 7243850 • 7374092 • 7407096 • 601 26 118.6 • AU703547 • D312631 • D313590 • D320011 • D320012 • D323492 • D330707 • D330708 • D349109 • D350127 • D350735

• D351149 • D351150 • D352936 • D352937 • D352938 • D352939 • D358588 • D361565 • D372234 • D374630 • D374869 • D375493 • D376357 • D377345 • D377346 • D377347 •
D377348 • D388075 • D446524 • EP0256296 • EP0260155 • EP0260156 • EP0295936 • EP0325469 • EP0349770 • EP0368254 • EP0442215 • EP0498366 • EP0531645 •
EP0663643 • EP0698251 • EP01330772 • GB2252333 • GB2284086 • GB2301691 • GB2304954 • GB2307093 • GB2308267 • GB2308678 • GB2319103 • GB2333163 •
GB2343079 • GB2344486 • GB2345568 • GB2354340 • ISR107546 • ISR118507 • ISR118508 • JP1962823 • JP1971216 • JP2513442 • JP2732459 • JP2829331 • JP2953593 •
JP2964278 • MEX185552 • MEX187245 • RE37166 • RE40.071 • Other Patents Pending

Table of Contents

Chapter 1. Introduction.............................................................................................................. 1

About this Guide .................................................................................................................... 1

Manual Overview ................................................................................................................... 1

Manual Conventions ............................................................................................................... 2

References ............................................................................................................................ 2

Technical Support .................................................................................................................. 3

Datalogic Website Support ................................................................................................. 3

Reseller Technical Support ................................................................................................. 3

Telephone Technical Support .............................................................................................. 3

Chapter 2. Getting Started ......................................................................................................... 5

About the Reader ................................................................................................................... 5

Unpacking ............................................................................................................................. 5

Setting Up the Reader ............................................................................................................ 6

Install the Interface Cable ................................................................................................. 6

Programming ................................................................................................................... 7

Using the Programming Barcodes ....................................................................................... 8

Select the Interface Type ................................................................................................... 8

Configure Interface Settings .............................................................................................. 8

Configure Other Features ................................................................................................... 8

Resetting the Standard Product Defaults ................................................................................... 9

Chapter 3. Interfaces ............................................................................................................... 11

Interface Selection ................................................................................................................11

Configuring the Interface .......................................................................................................11

Global Interface Features .......................................................................................................15

Host Commands — Obey/Ignore ........................................................................................15

USB Suspend Mode ..........................................................................................................16

Chapter 4. General Features..................................................................................................... 17

Double Read Timeout ............................................................................................................17

Label Gone Timeout ..............................................................................................................19

Sleep Mode Timeout ..............................................................................................................21

LED and Beeper Indicators .....................................................................................................23

Power On Alert ................................................................................................................23

Good Read: When to Indicate ............................................................................................24

Good Read Beep Type ......................................................................................................25

Good Read Beep Frequency ..............................................................................................26

Good Read Beep Length ...................................................................................................26

Good Read Beep Volume ..................................................................................................28

Good Read LED Duration ..................................................................................................29

Scanning Features ................................................................................................................31

Scan Mode ......................................................................................................................31

Stand Mode Triggered Timeout ..........................................................................................33

Scanning Active Time .......................................................................................................35

Flash On Time ......................................................................................................................37

Flash Off Time ......................................................................................................................39

Stand Mode Sensitivity ..........................................................................................................41

Laser Pointer Control .............................................................................................................42

Laser Pointer Period ..............................................................................................................43

Green Spot Duration ..............................................................................................................45

Product Reference Guide

1

Chapter 5. RS-232 ONLY Interface........................................................................................... 47

Introduction ......................................................................................................................... 47

RS-232 Standard Factory Settings .......................................................................................... 47

Baud Rate ........................................................................................................................... 47

Data Bits ............................................................................................................................. 49

Stop Bits ............................................................................................................................. 50

Parity .................................................................................................................................. 51

Handshaking Control ............................................................................................................. 52

Chapter 6. RS-232/USB-Com Interfaces .................................................................................. 53

Introduction ......................................................................................................................... 53

Standard Factory Settings .....................................................................................................53

Intercharacter Delay ............................................................................................................. 54

Beep On ASCII BEL ............................................................................................................... 56

Beep On Not on File .............................................................................................................. 56

ACK NAK Options .................................................................................................................. 57

ACK Character ................................................................................................................ 58

NAK Character ................................................................................................................ 60

ACK NAK Timeout Value ................................................................................................... 62

ACK NAK Retry Count ...................................................................................................... 64

ACK NAK Error Handling ................................................................................................... 66

Indicate Transmission Failure ................................................................................................. 67

Disable Character ................................................................................................................. 68

Enable Character .................................................................................................................. 70

Chapter 7. Keyboard Interface................................................................................................. 73

Introduction ......................................................................................................................... 73

Standard Factory Settings .....................................................................................................73

Scancode Tables ................................................................................................................... 73

Country Mode ...................................................................................................................... 74

Caps Lock State ................................................................................................................... 77

Numlock .............................................................................................................................. 77

Send Control Characters ........................................................................................................78

Wedge Quiet Interval ............................................................................................................ 79

Intercharacter Delay ............................................................................................................. 81

Intercode Delay .................................................................................................................... 83

USB Keyboard Speed ............................................................................................................85

Chapter 8. USB-OEM Interface ................................................................................................. 87

Introduction ......................................................................................................................... 87

Standard Factory Settings .....................................................................................................87

USB-OEM Device Usage ......................................................................................................... 88

Chapter 9. IBM 46XX Interface ................................................................................................ 89

Introduction ......................................................................................................................... 89

IBM Standard Factory Settings ............................................................................................... 89

46xx Number of Host Resets .................................................................................................. 90

Transmit Labels in Code 39 Format ......................................................................................... 93

Chapter 10. Data Editing.......................................................................................................... 95

Data Editing Overview ........................................................................................................... 95

Please Keep In Mind... ........................................................................................................... 96

Global Prefix/Suffix ............................................................................................................... 96

Example: Setting a Prefix ................................................................................................. 96

Global AIM ID ...................................................................................................................... 98

GS1-128 AIM ID .................................................................................................................100

Label ID ............................................................................................................................ 101

Label ID: Pre-loaded Sets .............................................................................................. 101

Label ID: Set Individually Per Symbology ......................................................................... 103

2PowerScan

®

PD7100 Corded

Label ID Control ............................................................................................................105

Label ID Symbology Selection .........................................................................................106

Case Conversion .................................................................................................................112

Character Conversion ..........................................................................................................112

Chapter 11. Symbologies ....................................................................................................... 115

Introduction .......................................................................................................................115

1D Symbologies ............................................................................................................115

Standard Factory Settings for Symbologies .............................................................................115

UPC-A ...............................................................................................................................116

UPC-A Enable/Disable ....................................................................................................116

UPC-A Check Character Transmission ...............................................................................116

Expand UPC-A to EAN-13 ................................................................................................117

UPC-A Number System Character Transmission .................................................................117

In-Store Minimum Reads ................................................................................................118

UPC-E ...............................................................................................................................119

UPC-E Enable/Disable ....................................................................................................119

UPC-E Check Character Transmission ...............................................................................119

Expand UPC-E to EAN-13 ................................................................................................120

Expand UPC-E to UPC-A .................................................................................................120

UPC-E Number System Character Transmission .................................................................121

UPC-E Minimum Reads ...................................................................................................122

GTIN Formatting .................................................................................................................123

EAN 13 ..............................................................................................................................124

EAN 13 Enable/Disable ...................................................................................................124

EAN 13 Check Character Transmission ..............................................................................124

EAN-13 Flag 1 Character ................................................................................................125

EAN-13 ISBN Conversion ................................................................................................126

EAN 13 Minimum Reads .................................................................................................127

EAN 8 ................................................................................................................................128

EAN 8 Enable/Disable .....................................................................................................128

EAN 8 Check Character Transmission ...............................................................................128

Expand EAN 8 to EAN 13 ................................................................................................129

EAN 8 Minimum Reads ...................................................................................................130

UPC/EAN Global Settings ......................................................................................................131

UPC/EAN Decoding Level ................................................................................................131

UPC/EAN Correlation ......................................................................................................133

UPC/EAN Reconstruction .................................................................................................133

UPC/EAN Price Weight Check ..........................................................................................134

UPC-A Minimum Reads ...................................................................................................135

Add-Ons ............................................................................................................................136

Optional Add-ons ...........................................................................................................136

Optional Add-On Timer ...................................................................................................138

Optional GS1-128 Add-On Timer .....................................................................................141

P2 Add-Ons Minimum Reads ...........................................................................................144

P5 Add-Ons Minimum Reads ...........................................................................................145

GS1-128 Add-Ons Minimum Reads ...................................................................................146

GS1 DataBar Omnidirectional ...............................................................................................147

GS1 DataBar Omnidirectional Enable/Disable ....................................................................147

GS1 DataBar Omnidirectional GS1-128 Emulation ..............................................................147

GS1 DataBar Omnidirectional Minimum Reads ...................................................................148

GS1 DataBar Expanded ........................................................................................................149

GS1 DataBar Expanded Enable/Disable .............................................................................149

GS1 DataBar Expanded GS1-128 Emulation ...................................................................... 149

GS1 DataBar Expanded Minimum Reads ...........................................................................150

GS1 DataBar Expanded Length Control .............................................................................151

GS1 DataBar Expanded Set Length 1 ...............................................................................152

GS1 DataBar Expanded Set Length 2 ...............................................................................154

GS1 DataBar Limited ...........................................................................................................156

Product Reference Guide

3

GS1 DataBar Limited Enable/Disable ............................................................................... 156

GS1 DataBar Limited GS1-128 Emulation ......................................................................... 156

GS1 DataBar Limited Minimum Reads .............................................................................. 157

Code 39 ............................................................................................................................ 158

Code 39 Enable/Disable ................................................................................................. 158

Code 39 Check Character Calculation ............................................................................... 159

Code 39 Check Character Transmission ............................................................................ 160

Code 39 Start/Stop Character Transmission ...................................................................... 160

Code 39 Full ASCII ........................................................................................................ 161

Code 39 Quiet Zones ..................................................................................................... 162

Code 39 Minimum Reads ................................................................................................ 163

Code 39 Decoding Level ................................................................................................. 164

Code 39 Length Control ................................................................................................. 166

Code 39 Set Length 1 .................................................................................................... 167

Code 39 Set Length 2 .................................................................................................... 169

Code 39 Interdigit Ratio ................................................................................................. 171

Code 39 Character Correlation ........................................................................................ 173

Code 39 Stitching ......................................................................................................... 174

Code 32 ............................................................................................................................ 175

Code 32 Enable/Disable ................................................................................................. 175

Code 32 Feature Setting Exceptions ................................................................................. 175

Code 32 Check Character Transmission ............................................................................ 176

Code 32 Start/Stop Character Transmission ...................................................................... 176

Code 128 .......................................................................................................................... 177

Code 128 Enable/Disable ............................................................................................... 177

Expand Code 128 to Code 39 ......................................................................................... 177

Code 128 Check Character Transmission .......................................................................... 178

Code 128 Function Character Transmission ....................................................................... 178

Code 128 Sub-Code Change Transmission ........................................................................ 179

Code 128 Quiet Zones ................................................................................................... 180

Code 128 Minimum Reads .............................................................................................. 181

Code 128 Decoding Level ............................................................................................... 182

Code 128 Length Control ................................................................................................ 184

Code 128 Set Length 1 .................................................................................................. 185

Code 128 Set Length 2 .................................................................................................. 187

Code 128 Character Correlation ...................................................................................... 189

Code 128 Stitching ........................................................................................................ 190

GS1-128 ........................................................................................................................... 191

GS1-128 Enable ............................................................................................................ 191

Interleaved 2 of 5 (I 2 of 5) ................................................................................................. 192

I 2 of 5 Enable/Disable .................................................................................................. 192

I 2 of 5 Check Character Calculation ................................................................................ 193

I 2 of 5 Check Character Transmission ............................................................................. 194

I 2 of 5 Minimum Reads ................................................................................................. 195

2 of 5 Decoding Level .................................................................................................... 196

I 2 of 5 Length Control .................................................................................................. 198

I 2 of 5 Set Length 1 ..................................................................................................... 199

I 2 of 5 Set Length 2 ..................................................................................................... 201

I 2 of 5 Character Correlation ......................................................................................... 203

I 2 of 5 Stitching ........................................................................................................... 204

Datalogic 2 of 5 .................................................................................................................. 205

Datalogic 2 of 5 Enable/Disable ....................................................................................... 205

Datalogic 2 of 5 Check Character Calculation .................................................................... 206

Datalogic 2 of 5 Minimum Reads ..................................................................................... 207

Datalogic 2 of 5 Decoding Level ...................................................................................... 207

Datalogic 2 of 5 Length Control ....................................................................................... 208

Datalogic 2 of 5 Set Length 1 ......................................................................................... 209

Datalogic 2 of 5 Set Length 2 ......................................................................................... 211

Datalogic 2 of 5 Interdigit Maximum Ratio ........................................................................ 213

Datalogic 2 of 5 Character Correlation .............................................................................. 215

4PowerScan

®

PD7100 Corded

Datalogic 2 of 5 Stitching ................................................................................................216

Codabar .............................................................................................................................217

Codabar Enable/Disable ..................................................................................................217

Codabar Check Character Calculation ...............................................................................218

Codabar Check Character Transmission ............................................................................219

Codabar Start/Stop Character Transmission ...................................................................... 219

Codabar Start/Stop Character Set ....................................................................................220

Codabar Start/Stop Character Match ................................................................................221

Codabar Quiet Zones .....................................................................................................222

Codabar Minimum Reads ................................................................................................223

Codabar Decoding Level .................................................................................................224

Codabar Length Control ..................................................................................................226

Codabar Set Length 1 ....................................................................................................227

Codabar Set Length 2 ....................................................................................................229

Codabar Interdigit Ratio .................................................................................................231

Codabar Character Correlation ........................................................................................233

Codabar Stitching ..........................................................................................................234

Code 11 .............................................................................................................................235

Code 11 Enable/Disable ..................................................................................................235

Code 11 Check Character Calculation ...............................................................................236

Code 11 Check Character Transmission ............................................................................237

Code 11 Minimum Reads ................................................................................................238

Code 11 Length Control ..................................................................................................239

Code 11 Set Length 1 ....................................................................................................240

Code 11 Set Length 2 ....................................................................................................242

Code 11 Interdigit Ratio .................................................................................................244

Code 11 Decoding Level .................................................................................................246

Code 11 Character Correlation .........................................................................................248

Code 11 Stitching ..........................................................................................................249

Standard 2 of 5 ..................................................................................................................250

Standard 2 of 5 Enable/Disable .......................................................................................250

Standard 2 of 5 Check Character Calculation .....................................................................251

Standard 2 of 5 Check Character Transmission ..................................................................251

Standard 2 of 5 Minimum Reads ......................................................................................252

Standard 2 of 5 Decoding Level .......................................................................................252

Standard 2 of 5 Length Control ........................................................................................253

Standard 2 of 5 Set Length 1 ..........................................................................................254

Standard 2 of 5 Set Length 2 ..........................................................................................256

Standard 2 of 5 Character Correlation ..............................................................................258

Standard 2 of 5 Stitching ................................................................................................259

ISBT 128 ...........................................................................................................................260

ISBT 128 Enable/Disable ................................................................................................260

ISBT 128 Concatenation .................................................................................................260

ISBT 128 Force Concatenation .........................................................................................261

ISBT 128 Advanced Concatenation Options .......................................................................261

Code 4 ..............................................................................................................................262

Code 4 Enable/Disable ...................................................................................................262

Code 4 Check Character Transmission ..............................................................................263

Code 4 Hex to Decimal Conversion ...................................................................................263

Code 5 ..............................................................................................................................264

Code 5 Enable/Disable ...................................................................................................264

Code 5 Check Character Transmission ..............................................................................265

Code 5 Hex to Decimal Conversion ...................................................................................265

Code 4 and Code 5 Common Configuration Items ....................................................................266

Code 4 and 5 Decoding Level ..........................................................................................266

Code 4 and Code 5 Minimum Reads .................................................................................268

Follett 2 of 5 ......................................................................................................................269

Follett 2 of 5 Enable/Disable ...........................................................................................269

Product Reference Guide

5

Appendix A. Technical Specifications ..................................................................................... 271

Standard Cable Pinouts ....................................................................................................... 273

Appendix B. Standard Defaults .............................................................................................. 275

Default Exceptions .............................................................................................................. 284

Appendix C. LED and Beeper Indications ............................................................................... 287

LED and Beeper Indications ................................................................................................. 288

Error Codes ....................................................................................................................... 289

Appendix D. Sample Barcodes ............................................................................................... 291

UPC-A .................................................................................................................... 291

Interleaved 2 of 5 ........................................................................................................... 291

Codabar ....................................................................................................................... 292

Code 11 ....................................................................................................................... 292

GS1 DataBar (RSS) ............................................................................................................ 293

GS1 DataBar-14 ........................................................................................................... 293

Appendix E. Keypad ............................................................................................................... 295

Appendix F. Scancode Tables ................................................................................................. 299

Control Character Emulation ................................................................................................ 299

Interface Type PC AT PS/2 or USB-Keyboard .......................................................................... 300

Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode ................................................. 302

Digital Interface ................................................................................................................. 304

IBM31xx 102-key .............................................................................................................. 306

IBM XT .............................................................................................................................. 308

Microsoft Windows Codepage 1252 ....................................................................................... 310

Index ..................................................................................................................... 313

6PowerScan

®

PD7100 Corded

About this Guide

This Product Reference Guide (PRG) is provided for users seeking advanced technical
information, including connection, programming, maintenance and specifications. The
Quick Reference Guide (QRG) and other publications associated with this product are
downloadable free of charge from the website listed on the back cover of this manual.

Typically, units are factory-programmed for the most common terminal and communi­cations settings. If you need to modify any programmable settings, custom configuration
can be accomplished by scanning the programming barcodes within this guide.

Programming can alternatively be performed using the Datalogic Aladdin™ Configura­tion application which is downloadable from the Datalogic website listed on the back
cover of this manual. This multi-platform utility program allows device configuration us­ing a PC. It communicates to the device using a serial or USB cable and can also create
configuration barcodes to print.

Chapter 1

Introduction

Manual Overview

Chapter 1, Introduction provides a product overview, unpacking instructions, and cable

connection information.

Chapter 2, Getting Started presents information about unpacking and setting up the

reader.

Chapter 3, Interfaces consists of interface configuration barcodes and details.
Chapter 4, General Features includes programming barcodes for selecting common

features for the reader and general use barcodes to customize how the data is transmitted
to the host device.

Chapter 5, RS-232 ONLY Interface supplies information about setting up the reader for

RS-232 operation.

Chapter 6, RS-232/USB-Com Interfaces features information about options involving

both the RS-232 and USB-Com interfaces.

Chapter 7, Keyboard Interface discusses how to set up the reader for Keyboard Wedge

operation.

Chapter 8, USB-OEM Interface explains how to set the reader up for USB operation.
Chapter 9, IBM 46XX Interface is a resource for setting up an IBM interface.
Chapter 10, Data Editing offers advanced configuration options for customization of

scanned data output.

Product Reference Guide 1

Introduction

Chapter 11, Symbologies defines options for all symbologies and provides the program-

ming barcodes necessary for configuring these features.

Appendix A, Technical Specifications lists physical and performance characteristics, as

well as environmental and regulatory specifications. It also provides standard cable pin­outs.

Appendix B, Standard Defaults references common factory default settings for reader

features and options.

Appendix C, LED and Beeper Indications supplies tables containing descriptions of the

functions and behaviors of the reader’s LED and Beeper indicators.

Appendix D, Sample Barcodes offers sample barcodes of several common symbologies.
Appendix E, Keypad includes numeric barcodes to be scanned for certain parameter set-

tings.

Appendix F, Scancode Tables lists control character emulation information for Wedge

and USB Keyboard interfaces.

Manual Conventions

The following conventions are used in this document:

The symbols listed below are used in this manual to notify the reader of key issues or
procedures that must be observed when using the reader:

References

Current versions of the Product Reference Guide (PRG), Quick Reference Guide
(QRG), the Datalogic Aladdin™ Configuration application, and any other manuals, in­struction sheets and utilities for this product can be downloaded from the website listed
on the back cover of this manual. Alternatively, printed copies or product support CDs
can be purchased through your Datalogic reseller.

Notes contain information necessary for properly diagnosing, repair­ing and operating the reader.

NOTE

The CAUTION symbol advises you of actions that could damage
equipment or property.

CAUTION

2PowerScan

®

PD7100 Corded

Technical Support

Datalogic Website Support

The Datalogic website (www.scanning.datalogic.com) is the complete source for technical
support and information for Datalogic products. The site offers product support, prod­uct registration, warranty information, product manuals, product tech notes, software
updates, demos, and instructions for returning products for repair.

Reseller Technical Support

An excellent source for technical assistance and information is an authorized Datalogic
reseller. A reseller is acquainted with specific types of businesses, application software,
and computer systems and can provide individualized assistance.

Telephone Technical Support

If you do not have internet or email access, you may contact Datalogic technical support
at [phone] or check the back cover of your manual for more contact information.

Technical Support

Product Reference Guide 3

Introduction

NOTES

4PowerScan

®

PD7100 Corded

About the Reader

Advancements in the LED technology used in this reader significantly improve the illumination
of the target field of view, resulting in higher scan efficiency. Whether used in Single Trigger or
Continuous Mode, the ergonomic design of the reader will help to promote comfortable han­dling during extended periods of use.

See Interface Selection on page 11 for a listing and descriptions of available interface sets by
model type.

Unpacking

Check carefully to ensure the reader and any accessories ordered are present and undamaged. If
any damage occurred during shipment, contact Technical Support on page 3.

Chapter 2

Getting Started

KEEP THE PACKAGING. Should the unit ever require service, it should be returned in its
original shipping container.

Product Reference Guide 5

Getting Started

Setting Up the Reader

Follow the steps provided in this section to connect and get your reader up and communicating
with its host:

1. Install the Interface Cable

2. Select the Interface Type

3. Configure Interface Settings (only if not using factory settings for that interface)

4. Configure Other Features (if modifications are needed from factory settings)

Install the Interface Cable

The reader cable connection is secured using the “clamshell” retainer referenced in the enlarged
area of Figure 1. Fit and clamp the retainer over the cable connector as shown in the illustra­tion, then fully seat the cable assembly into the reader, aligning both the connector and the
retainer boss with their respective openings. Secure the captive screws.

RS-232 Serial Connection —

the terminal/PC serial port via the RS-232 cable as shown in Figure 1. If the terminal will not
support POT (Power Off the Terminal) to supply reader power, use the approved power supply
(AC Adapter). Plug the AC Adapter barrel connector into the socket on the RS-232 cable con­nector and the AC Adapter plug into a standard power outlet.

Figure 1. Connecting the Interface Cable/RS-232 Connection

Cable Connector

Retainer Boss

Turn off power to the terminal/PC and connect the reader to

Captive
Screws

6PowerScan

®

PD7100 Corded

Other connection types are described below and illustrated in Figure 2.

Setting Up the Reader

USB Connection —

Connect the reader to a USB port on the terminal/PC using the correct

USB cable for the interface type you ordered. Reference Figure 2.

IBM Connection —

Connect the reader to the IBM port on the terminal/PC using the cor-

rect IBM cable. Reference Figure 2.

Keyboard Wedge Connection —

The Keyboard Wedge cable has a ‘Y’ connection from

the reader. Connect the female to the male end from the keyboard and the remaining end at the
keyboard port at the terminal/PC. Reference Figure 2.

Figure 2. Other Interface Connections

B

S

U

K

e

y

b

W

o

a

e

r

d

or...

or...

M

B

I

d

g

e

Programming

The reader is factory-configured with a set of default features standard. After scanning the inter­face barcode from the Interfaces section, you can select other options and customize your
reader through use of the instructions and programming barcodes available in the corresponding
features section for your interface and also the Data Editing and Symbologies chapters of this
manual.

NOTE

Specific cables are required for connection to different hosts. The
connectors illustrated above are examples only. Actual connectors
may vary from those illustrated, but the steps to connect the reader
remain the same.

Product Reference Guide 7

Getting Started

Using the Programming Barcodes

This manual contains feature descriptions and barcodes which allow you to reconfigure your
reader. Some programming barcode labels, like the Standard Product Default Settings on

page 9, require only the scan of that single label to enact the change. Most of the programming

labels in this manual, however, require the reader to be placed in Programming Mode prior to
scanning them. Scan an ENTER/EXIT barcode once to enterProgramming Mode. Once the
reader is in Programming Mode, you can scan a number of parameter settings before scanning
the ENTER/EXIT barcode a second time, which will then accept your changes, exit Program­ming Mode and return the reader to normal operation.

There are some exceptions to the typical programming sequence
described above. Please read the description and setting instruc­tions carefully when configuring each given programmable feature.

NOTE

Select the Interface Type

Upon completing the physical connection between the reader and its host, proceed directly to

Interfaces on page 11 for information and programming for the interface type the reader is

connected to (for example: RS-232, Keyboard Wedge, USB, etc.) and scan the appropriate bar­code in that section to select your system’s correct interface type.

Configure Interface Settings

If after scanning the interface barcode from the Interfaces section, your installation requires
you to select options to further customize your reader, turn to the appropriate section for your
interface type as listed below:

• RS-232 ONLY Interface, starting on page 47

• Keyboard Interface, starting on page 73

• USB-OEM Interface, starting on page 87

• IBM 46XX Interface, starting on page 89

Configure Other Features

If your installation requires different programming than the standard factory default settings,
the following sections of this manual allow configuration of non-interface-specific settings you
might require:

General Features

indicators and other such universal settings.

Symbologies

tings allow you to enable/disable symbologies, set label lengths, require check digit, etc.

—

General Features includes programming for scanning, beeper and LED

—

Includes options concerning the barcode label types (symbologies). These set-

8PowerScan

®

PD7100 Corded

Resetting the Standard Product Defaults

Resetting the Standard Product Defaults

If you aren’t sure what programming options are in your reader, or you’ve changed some options
and want the factory settings restored, scan the Standard Product Default Settings barcode
below. This will copy the factory configuration for the currently active interface to the current
configuration.

Factory defaults are based on the interface type. Configure the
reader for the correct interface before scanning this label.

NOTE

Standard Product Default Settings

The programming section lists the factory default settings for each of the menu commands
(indicated by shaded blocks and bold text) on the following pages.

Product Reference Guide 9

Getting Started

NOTES

10 PowerScan® PD7100 Corded

Interface Selection

Each reader model will support one of the following sets of host interfaces:

General Purpose Models (5 volt supply)

RS-232
RS-232 OPOS
USB
Keyboard Wedge

Retail Point of Sale Models (4 to 14 volt supply)

RS-232
RS-232 OPOS
USB
IBM 46XX

Chapter 3

Interfaces

Configuring the Interface

Scan the programming barcode from this section which selects the appropriate interface
type matching the system the reader will be connected to. Next, proceed to the corre­sponding chapter in this manual (also listed in Table 1) to configure any desired settings
and features associated with that interface.

Unlike some other programming features and options, interface
selections require that you scan only one programming barcode
label. DO NOT scan an ENTER/EXIT barcode prior to scanning an
interface selection barcode.

Some interfaces require the scanner to start in the disabled state

NOTE

when powered up. If additional scanner configuration is desired
while in this state, pull the trigger and hold it for five seconds. The
scanner will change to a state that allows programming with bar­codes.

Product Reference Guide 11

Interfaces

Table 1. Available Interfaces

RS-232 FEATURES

RS-232 standard interface

Select RS232-STD

RS-232 Wincor-Nixdorf

Select RS232-WN

Interface
Features

starting on

page 47

Set RS-232

RS-232 for use with OPOS/UPOS/JavaPOS

Select RS-232 OPOS

USB Com to simulate RS-232 standard interface

Select USB-COM-STD

a

IBM FEATURES

IBM-46xx Port 5B reader interface

Set IBM

Select IBM-P5B

Interface
Features

starting on

page 89

IBM-46xx Port 9B reader interface

Select IBM-P9B

USB-OEM FEATURES

Set USB-OEM

Interface
Features

starting on

page 87

Select USB-OEM

a.

Download the correct USB Com driver from www.datalogic.com

USB-OEM

(can be used for OPOS/UPOS/JavaPOS)

12 PowerScan® PD7100 Corded

Configuring the Interface

KEYBOARD FEATURES

AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95
w/Standard Key Encoding

Select KBD-AT

Keyboard Wedge for IBM AT PS2 with standard key
encoding but without external keyboard

Select KBD-AT-NK

AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95
w/Alternate Key

Select KBD-AT-ALT-NK

PC/XT w/Standard Key Encoding

Select KBD-IBM-3153

Select KBD-AT-ALT

Keyboard Wedge for IBM AT PS2 with alternate key
encoding but without external keyboard

Select KBD-XT

Keyboard Wedge for IBM Terminal 3153

Set KEYBOARD

WEDGE
Interface
Features

starting on page

73

Product Reference Guide 13

Interfaces

KEYBOARD — cont. FEATURES

Keyboard Wedge for IBM Terminals 31xx, 32xx,
34xx, 37xx make only keyboard

Select KBD-IBM-M

Keyboard Wedge for IBM Terminals 31xx, 32xx,
34xx, 37xx make break keyboard

Select KBD-IBM-MB

Keyboard Wedge for DIGITAL Terminals VT2xx,
VT3xx, VT4xx

Select KBD-DIG-VT

Set KEYBOARD

WEDGE
Interface
Features

starting on page

73

USB Keyboard with standard key encoding

Select USB Keyboard

USB Keyboard with alternate key encoding

Select USB-KBD-APPLE

Select USB Alternate Keyboard

USB Keyboard for Apple computers

14 PowerScan® PD7100 Corded

Global Interface Features

DEFAULT

The following interface features are configurable by all interface types. To set features
specific to your interface, turn to that section of this manual:

•

RS-232 ONLY Interface on page 47

• Keyboard Interface on page 73

• USB-OEM Interface on page 87

• IBM 46XX Interface on page 89

Host Commands — Obey/Ignore

This option specifies whether the reader will obey or ignore host commands. When set
to ignore, the reader will ignore all host commands except for those necessary for:

• service mode

• flash programming mode

• keeping the interface active

• transmission of labels.

Global Interface Features

Host Commands = Ignore

ENTER/EXIT PROGRAMMING MODE

Host Commands = Obey

Product Reference Guide 15

Interfaces

DEFAULT

USB Suspend Mode

This setting enables/disables the ability of USB interfaces to enter suspend mode.

ENTER/EXIT PROGRAMMING MODE

USB Suspend Mode = Disable

USB Suspend Mode = Enable

16 PowerScan® PD7100 Corded

Double Read Timeout

DEFAULT

To prevent a double read of the same label, the Double Read Timeout sets the minimum
time allowed between reads of labels of the same symbology and data. If the unit reads a
label and sees the same label again within the Double Read Timeout, the second read of
the label will be ignored. Double Read Timeout does not apply to scan modes that re­quire a trigger pull for each label that is read.

ENTER/EXIT PROGRAMMING MODE

Chapter 4

General Features

Double Read Timeout = 0.1 Second

Double Read Timeout = 0.2 Second

Double Read Timeout = 0.3 Second

Double Read Timeout = 0.4 Second

Product Reference Guide 17

General Features

Double Read Timeout — continued

ENTER/EXIT PROGRAMMING MODE

Double Read Timeout = 0.5 Second

Double Read Timeout = 0.6 Second

Double Read Timeout = 0.8 Second

Double Read Timeout = 1 Second

Double Read Timeout = 0.7 Second

Double Read Timeout = 0.9 Second

18 PowerScan® PD7100 Corded

Label Gone Timeout

This feature sets the time after the last label segment is seen before the reader prepares for
a new label. The timeout can be set within a range of 10 milliseconds to 2,550 millisec­onds (2.55 seconds) in 10ms increments. Label Gone Timeout does not apply to scan
modes that require a trigger pull for each label that is read

Follow these instructions to set this feature:

1. Determine the desired setting in milliseconds.

2. Divide the desired setting by 10 (setting is in 10ms increments). Pad the result
with leading zeroes to yield three digits. For example: 0 = 000, 5 = 005, 20 = 020,
etc.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT LABEL GONE TIMEOUT SETTING.

5. Scan the appropriate three alpha-numeric characters from the keypad in Appendix

E, Keypad representing the duration which was determined in the steps above. You

will hear a two-beep indication after the last character.

Label Gone Timeout

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 2 for some examples of how to set this feature.

Table 2. Timeout Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting 50ms 150ms 1800ms (1.8 sec.) 2550ms (2.55 sec.)

Divide by 10 (and pad with leading

2

zeroes)

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT LABEL GONE TIMEOUT SETTING

Scan Three Characters From

5

Appendix E, Keypad

005 015 180 255

‘0’, ‘0’ and ‘5’ ‘0’, ‘1’ and ‘5’ ‘1’, ‘8’ and ‘0’ ‘‘2’, ‘5’ and ‘5’

6 Scan ENTER/EXIT PROGRAMMING MODE

Product Reference Guide 19

General Features

Label Gone Timeout — cont.

ENTER/EXIT PROGRAMMING MODE

Select Label Gone Timeout Setting

Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the beginning.

CANCEL

DEFAULT

016 = Timeout of 160 ms

20 PowerScan® PD7100 Corded

Sleep Mode Timeout

DEFAULT

Specifies the timeout value for the reader to enter low power Sleep Mode.

ENTER/EXIT PROGRAMMING MODE

Sleep Mode Timeout

Sleep Mode Timeout = Disable

Sleep Mode Timeout = 500ms

Sleep Mode Timeout = 2 Seconds

Sleep Mode Timeout = 1 Second

Sleep Mode Timeout = 3 Seconds

Sleep Mode Timeout = 4 Seconds

Product Reference Guide 21

General Features

Sleep Mode Timeout — continued

ENTER/EXIT PROGRAMMING MODE

Sleep Mode Timeout = 6 Seconds

Sleep Mode Timeout = 5 Seconds

Sleep Mode Timeout = 8 Seconds

Sleep Mode Timeout = 9.9 Seconds (9,900ms max.)

Sleep Mode Timeout = 7 Seconds

Sleep Mode Timeout = 9 Seconds

22 PowerScan® PD7100 Corded

LED and Beeper Indicators

Power On Alert

Disables or enables the indication (from the Beeper) that the reader is receiving power.

ENTER/EXIT PROGRAMMING MODE

LED and Beeper Indicators

Power On Alert = Disable (No Audible Indication)

Power On Alert = Four Beeps

DEFAULT

Product Reference Guide 23

General Features

Good Read: When to Indicate

This feature specifies when the reader will provide indication (beep and/or flash its green
LED) upon successfully reading a barcode. Choices are:

• Good Read = Indicate after decode

• Good Read = Indicate after transmit

• Good Read = Indicate after CTS goes inactive, then active

This option, which uses CTS, is only valid for RS-232
interfaces.

NOTE

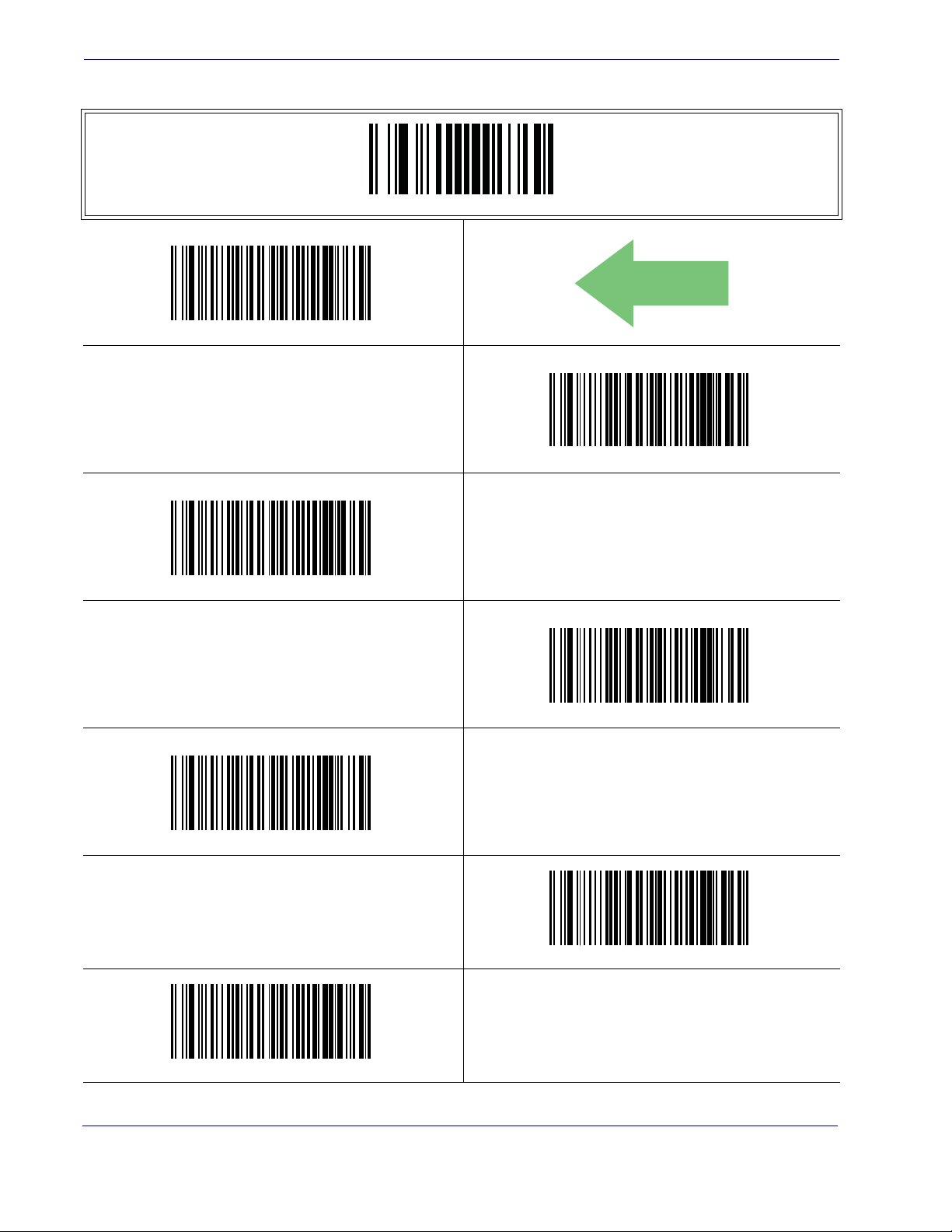

ENTER/EXIT PROGRAMMING MODE

DEFAULT

Indicate Good Read = After Transmit

Indicate Good Read = After Decode

Indicate Good Read = After CTS Goes Inactive, Then Active

24 PowerScan® PD7100 Corded

Good Read Beep Type

DEFAULT

Specifies whether the good read beep has a mono or bitonal beep sound.

LED and Beeper Indicators

ENTER/EXIT PROGRAMMING MODE

Good Read Beep Type = Mono

Good Read Beep Type = Bitonal

Product Reference Guide 25

General Features

DEFAULT

Good Read Beep Frequency

Adjusts the good read beep to sound at a selectable low, medium or high frequency, se­lectable from the list below. (Controls the beeper’s pitch/tone.)

ENTER/EXIT PROGRAMMING MODE

Good Read Beep Frequency = Low

Good Read Beep Frequency = Medium

Good Read Beep Length

Specifies the duration of a good read beep.

ENTER/EXIT PROGRAMMING MODE

Good Read Beep Frequency = High

26 PowerScan® PD7100 Corded

Good Read Beep Length = 60 msec

Good Read Beep Length — continued

ENTER/EXIT PROGRAMMING MODE

Good Read Beep Length = 80 msec

LED and Beeper Indicators

DEFAULT

Good Read Beep Length = 100 msec

Good Read Beep Length = 120 msec

Good Read Beep Length = 160 msec

Good Read Beep Length = 140 msec

Good Read Beep Length = 180 msec

Good Read Beep Length = 200 msec

Product Reference Guide 27

General Features

Good Read Beep Volume

Selects the beeper volume (loudness) upon a good read beep. There are three selectable
volume levels.

ENTER/EXIT PROGRAMMING MODE

Good Read Beep Volume = Beeper Off

Good Read Beep Volume = Low

Good Read Beep Volume = High

Good Read Beep Volume = Medium

DEFAULT

28 PowerScan® PD7100 Corded

Good Read LED Duration

This feature specifies the amount of time that the Good Read LED remains on following
a good read. The good read LED on time can be set within a range of 10 milliseconds to
2,550 milliseconds (0.001 to 2.55 seconds) in 10ms increments.
Follow these instructions to set this feature:

1. Determine the desired setting in milliseconds. A setting of 0 means that the good
read LED stays on until the next time the trigger is pulled.

2. Divide the desired setting by 10 (setting is in 10ms increments). Pad the result
with leading zeroes to yield three digits. For example: 0 = 000, 5 = 000, 20 = 020,
etc.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT GOOD READ LED DURATION SETTING.

5. Scan the appropriate three digits from the keypad in Appendix E, Keypad represent-
ing the duration which was determined in the steps above. You will hear a two­beep indication after the last character.

LED and Beeper Indicators

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 3 for some examples of how to set this feature.

Table 3. Good Read LED Duration Setting Examples

STEP ACTION EXAMPLES

Good Read LED

1 Desired Setting

Divide by 10 (and pad with leading

2

zeroes)

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT LABEL GONE TIMEOUT SETTING

Scan Three Characters From

5

Appendix E, Keypad

stays on until next

trigger pull (00)

000 002 015 255

‘0’, ‘0’ and ‘0’ ‘0’, ‘0’ and ‘2’ ‘0’, ‘1’ and ‘5’ ‘2’, ‘5’ and ‘5’

20ms 150ms 2550ms (2.55 sec.)

6 Scan ENTER/EXIT PROGRAMMING MODE

Product Reference Guide 29

General Features

Good Read LED Duration — cont.

ENTER/EXIT PROGRAMMING MODE

Select Good Read LED Duration Setting

Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the beginning.

CANCEL

DEFAULT

Indicators are dimmed during sleep.

NOTE

020 = Good Read LED stays on for
2 seconds.

30 PowerScan® PD7100 Corded

Scanning Features

Scan Mode

Selects the scan operating mode for the reader. Selections are:

Scanning Features

Trigger Single —

When the trigger is pulled, scanning is activated until one of the fol-

lowing occurs:

- Scanning Active Time has elapsed

- a label has been read

- the trigger is released

This mode is associated with typical handheld reader operation: when the trigger is
pulled, scanning starts and the product scans until the trigger is released, or a label is read,
or the maximum Scanning Active Time has elapsed.

Trigger Hold Multiple —

When the trigger is pulled, scanning starts and the product
scans until the trigger is released or Scanning Active Time has elapsed. Reading a label does
not disable scanning. Double Read Timeout prevents undesired multiple reads of the same
label while in this mode.

Trigger Pulse Multiple —

When the trigger is pulled, continuous scanning is activated

until Scanning Active Time has elapsed or the trigger has been released and pulled again.

Double Read Timeout1 prevents undesired multiple reads of the same label while in this

mode.

Flashing —

The reader flashes1 on and off regardless of the trigger status. Flash rate is
controlled by Flash On Time and Flash Off Time. When Flash is ON the reader reads con­tinuously, when Flash is OFF scanning is deactivated.

Always On —

No trigger pull is required to read a barcode. Scanning is continually on.

If the trigger is pulled, the reader acts as if it is in Trigger Single Mode. Double Read

Timeout1 prevents undesired multiple reads of the same label while in this mode.

Stand Mode —

No trigger pull is required to read a barcode. Scanning is turned on au­tomatically when an item is placed in reader’s field of view. If the trigger is pulled, the
reader acts as if it in single read mode. Double Read Timeout1 prevents undesired multiple
reads of the same label while in this mode.

Trigger Object Sense —

This mode is similar to Stand Mode, except that a trigger pull

is required to activate the decoder.

1. Controlled by Flash On Time.

Product Reference Guide 31

General Features

Scan Mode — continued

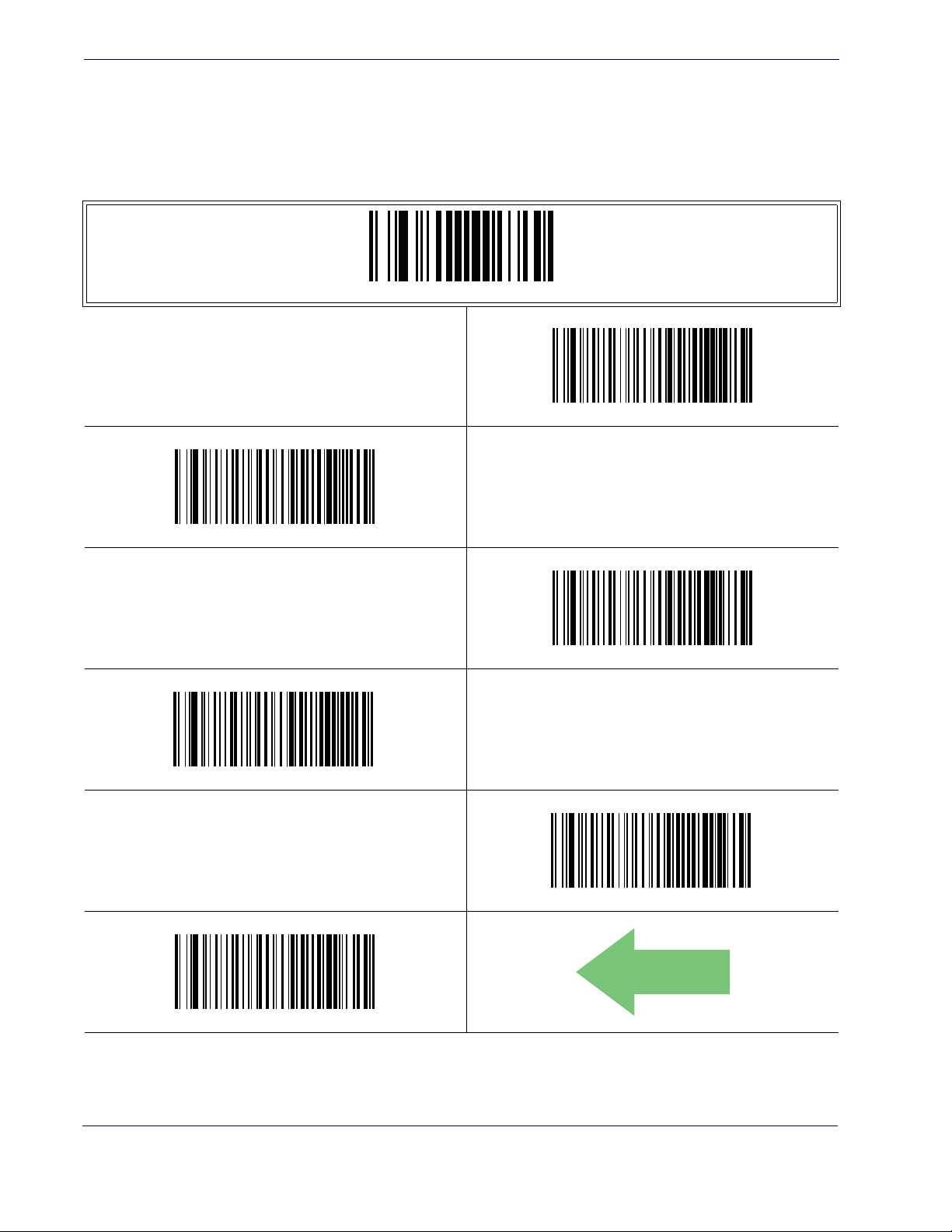

ENTER/EXIT PROGRAMMING MODE

Scan Mode = Trigger Single

DEFAULT

Scan Mode = Trigger Hold Multiple

Scan Mode = Trigger Pulse Multiple

Scan Mode = Always On

Scan Mode = Flashing

Scan Mode = Stand Mode

Scan Mode = Trigger Object Sense

32 PowerScan® PD7100 Corded

Stand Mode Triggered Timeout

This feature specifies the time to remain in Trigger Single mode after the trigger is pulled
while in Stand Mode.

Scanning Features

This timeout is only used when the Scan Mode is configured as

Mode.

NOTE

ENTER/EXIT PROGRAMMING MODE

Stand Mode Triggered Timeout = 0.5 Seconds

Stand

DEFAULT

Stand Mode Triggered Timeout = 1.5 Seconds

Stand Mode Triggered Timeout = 2 Seconds

Stand Mode Triggered Timeout = 3 Seconds

Stand Mode Triggered Timeout = 4 Seconds

Product Reference Guide 33

General Features

Stand Mode Triggered Timeout — continued

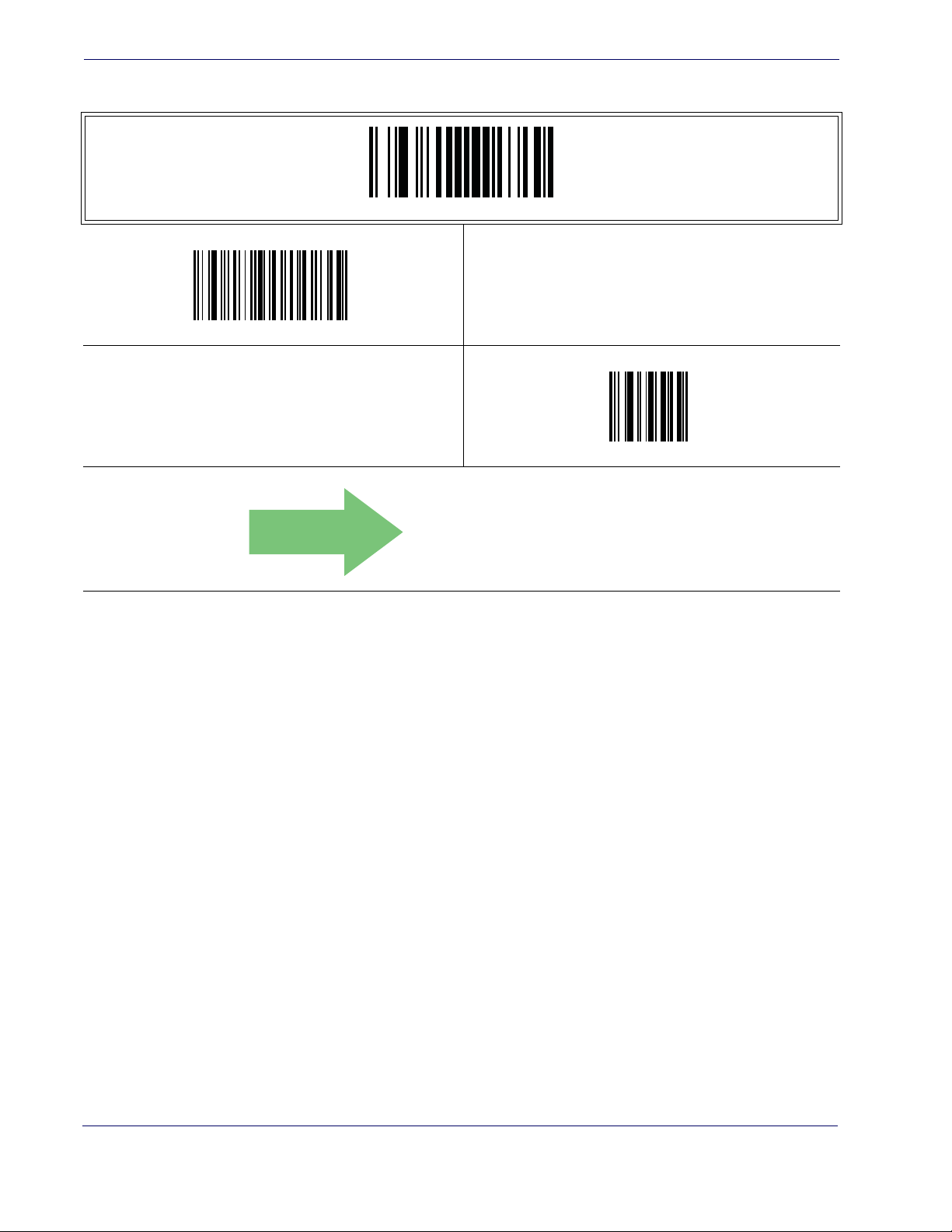

ENTER/EXIT PROGRAMMING MODE

Stand Mode Triggered Timeout = 6 Seconds

Stand Mode Triggered Timeout = 8 Seconds

Stand Mode Triggered Timeout = Switch back to Trigger Single

on trigger pull

34 PowerScan® PD7100 Corded

Scanning Active Time

This setting specifies the amount of time that the reader stays in scan ON state once the
state is entered. The range for this setting is from 1 to 255 seconds in 1-second incre­ments.

Follow these instructions to set this feature:

1. Determine the desired setting.

2. Pad the result with leading zeroes to yield three digits. For example: 0 = 000, 5 =
005, 20 = 020, etc.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT SCANNING ACTIVE TIME SETTING.

5. Scan the appropriate three digits from the keypad in Appendix E, Keypad, that rep-
resent the duration which was determined in the steps above. You will hear a two­beep indication after the last character.

Scanning Features

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 4 for some examples of how to set this feature.

Table 4. Scanning Active Time Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting 1 Second 90 Sec. (1.5 min.) 180 Sec. (3 min.) 255 Seconds (4.25 min.)

2 Pad leading zero(es) 001 090 180 255

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT SCANNING ACTIVE TIME SETTING

Scan Three Characters From

5

Appendix E, Keypad

6 Scan ENTER/EXIT PROGRAMMING MODE

‘0’, ‘0’ and ‘1’ ‘0’, ‘9’ and ‘0’ ‘1’, ‘8’ and ‘0’ ‘2’, ‘5’ and ‘5’

Product Reference Guide 35

General Features

Scanning Active Time — cont.

ENTER/EXIT PROGRAMMING MODE

Select Scanning Active Time Setting

Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the beginning.

CANCEL

DEFAULT

005 = Scanning is active for 5 Seconds

36 PowerScan® PD7100 Corded

Flash On Time

This feature specifies the ON time for the indicator LED while in Flash Mode. The se­lectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond in­crements.

Follow these instructions to set this feature.

1. Determine the desired setting in milliseconds.

2. Divide the desired setting by 100 (setting is in 100ms increments). Pad the result
with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT FLASH ON TIME SETTING.

5. Scan the appropriate two digits from the keypad in Appendix E, Keypad represent-
ing the duration which was determined in the steps above. You will hear a two­beep indication after the last character.

Flash On Time

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 5 for some examples of how to set this feature.

Table 5. Flash On Time Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting 500ms 1,000ms (1 sec.) 5200ms (5.2 sec.) 9,900ms (9.9 sec.)

Divide by 100 (and pad with

2

leading zeroes to yield two digits)

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT FLASH OFF TIME SETTING

Scan Two Characters From

5

Appendix E, Keypad

05 10 52 99

‘0’ and ‘5’ ‘1’ and ‘0’ ‘5’ and ‘2’ ‘9’ and ‘9’

6 Scan ENTER/EXIT PROGRAMMING MODE

Product Reference Guide 37

General Features

Flash On Time — cont.

ENTER/EXIT PROGRAMMING MODE

Select Flash ON Time Setting

Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the beginning.

CANCEL

DEFAULT

10 = Flash is ON for 1 Second

38 PowerScan® PD7100 Corded

Flash Off Time

This feature specifies the OFF time for the indicator LED while in Flash Mode. The se­lectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond in­crements.

Follow these instructions to set this feature.

1. Determine the desired setting in milliseconds.

2. Divide the desired setting by 100 (setting is in 100ms increments). Pad the result
with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT FLASH OFF TIME SETTING.

5. Scan the appropriate two digits from the keypad in Appendix E, Keypad, that repre­sent the duration which was determined in the steps above. You will hear a two­beep indication after the last character.

Flash Off Time

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 6 for some examples of how to set this feature.

Table 6. Flash Off Time Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting 500ms 1,000ms (1 sec.) 5200ms (5.2 sec.) 9,900ms (9.9 sec.)

Divide by 100 (and pad with

2

leading zeroes to yield two digits)

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT FLASH OFF TIME SETTING

Scan Two Characters From

5

Appendix E, Keypad

05 10 52 99

‘0’ and ‘5’ ‘1’ and ‘0’ ‘5’ and ‘2’ ‘9’ and ‘9’

6 Scan ENTER/EXIT PROGRAMMING MODE

Product Reference Guide 39

General Features

Flash Off Time — cont.

ENTER/EXIT PROGRAMMING MODE

Select Flash OFF Time Setting

Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the beginning.

CANCEL

DEFAULT

06 = Flash is OFF for 600ms

40 PowerScan® PD7100 Corded

Stand Mode Sensitivity

Sets the sensitivity level for stand mode wakeup. Choices are low, medium and high.

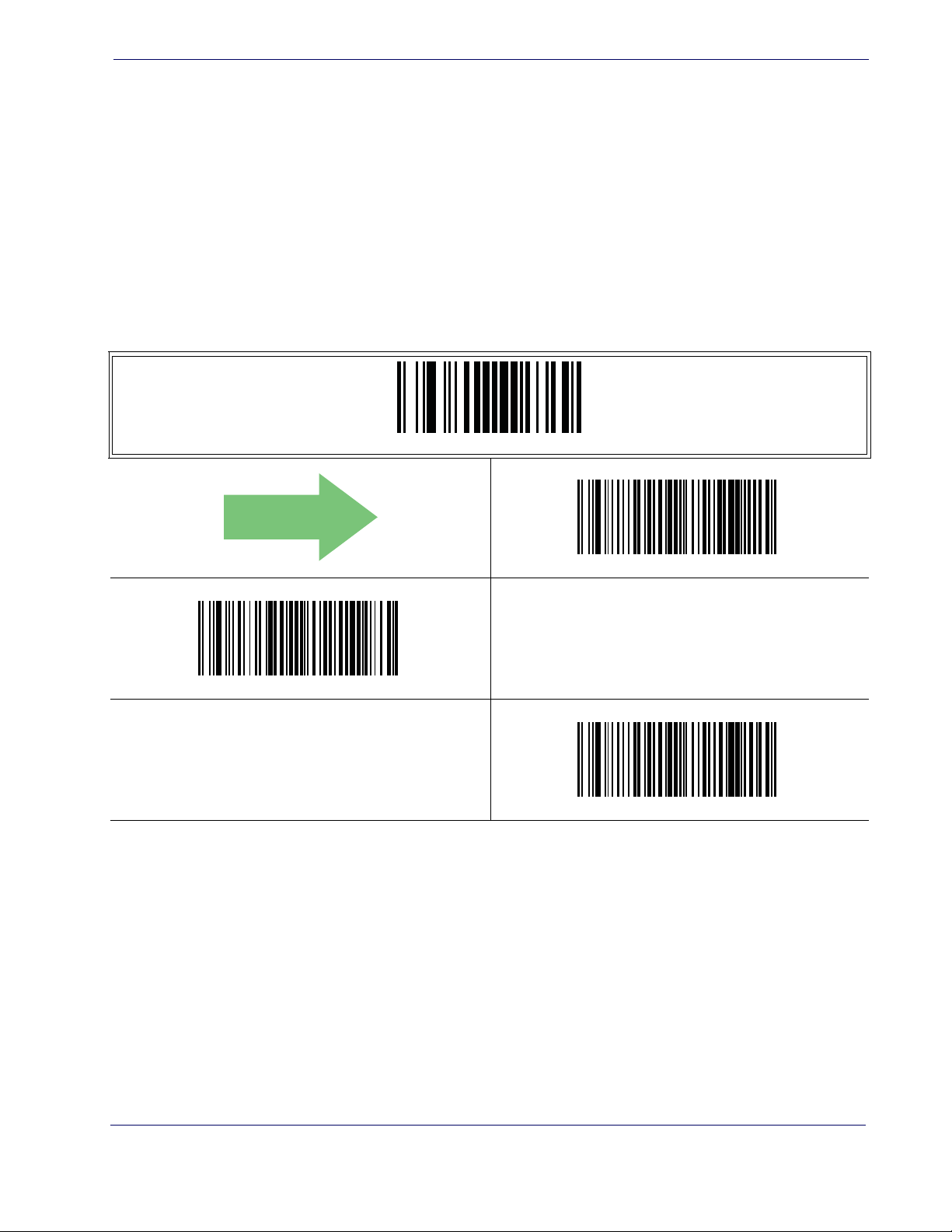

ENTER/EXIT PROGRAMMING MODE

Stand Mode Sensitivity

Stand Mode Sensitivity = Low

DEFAULT

Stand Mode Sensitivity = Medium

Stand Mode Sensitivity = High

Product Reference Guide 41

General Features

Laser Pointer Control

The Laser Pointer is a value-added option which might not
have been included when your reader was ordered.

NOTE

Specifies the amount of time that the laser pointer is turned on preliminary to scanning.
When the trigger is pressed in Trigger Single Mode, the laser pointer will be activated for
the time period configured by this feature. Immediately following this, the reader will
start scanning.

ENTER/EXIT PROGRAMMING MODE

DEFAULT

Laser Pointer Control = 100 msec

Laser Pointer Control = 300 msec

Laser Pointer Control = 0 msec (No preliminary pointer

— i.e. start scanning immediately after trigger)

Laser Pointer Control = 200 msec

Laser Pointer Control = 400 msec

Laser Pointer Control = 500 msec

42 PowerScan® PD7100 Corded

Laser Pointer Period

This option specifies the period of the laser pointer blink during scanning. The laser
pointer will be activated for the time specified by Laser Pointer Control. then start blinking
OFF then ON at 50% duty cycle for the duration set by Laser Pointer Period.

ENTER/EXIT PROGRAMMING MODE

Laser Pointer Period = 500 ms

Laser Pointer Period

Laser Pointer Period = Disable

DEFAULT

Laser Pointer Period = 1.5 Seconds (1,500 ms)

Laser Pointer Period = 1 Second (1,000 ms)

Laser Pointer Period = 2 Seconds (2,000 ms)

Product Reference Guide 43

General Features

Laser Pointer Period — cont.

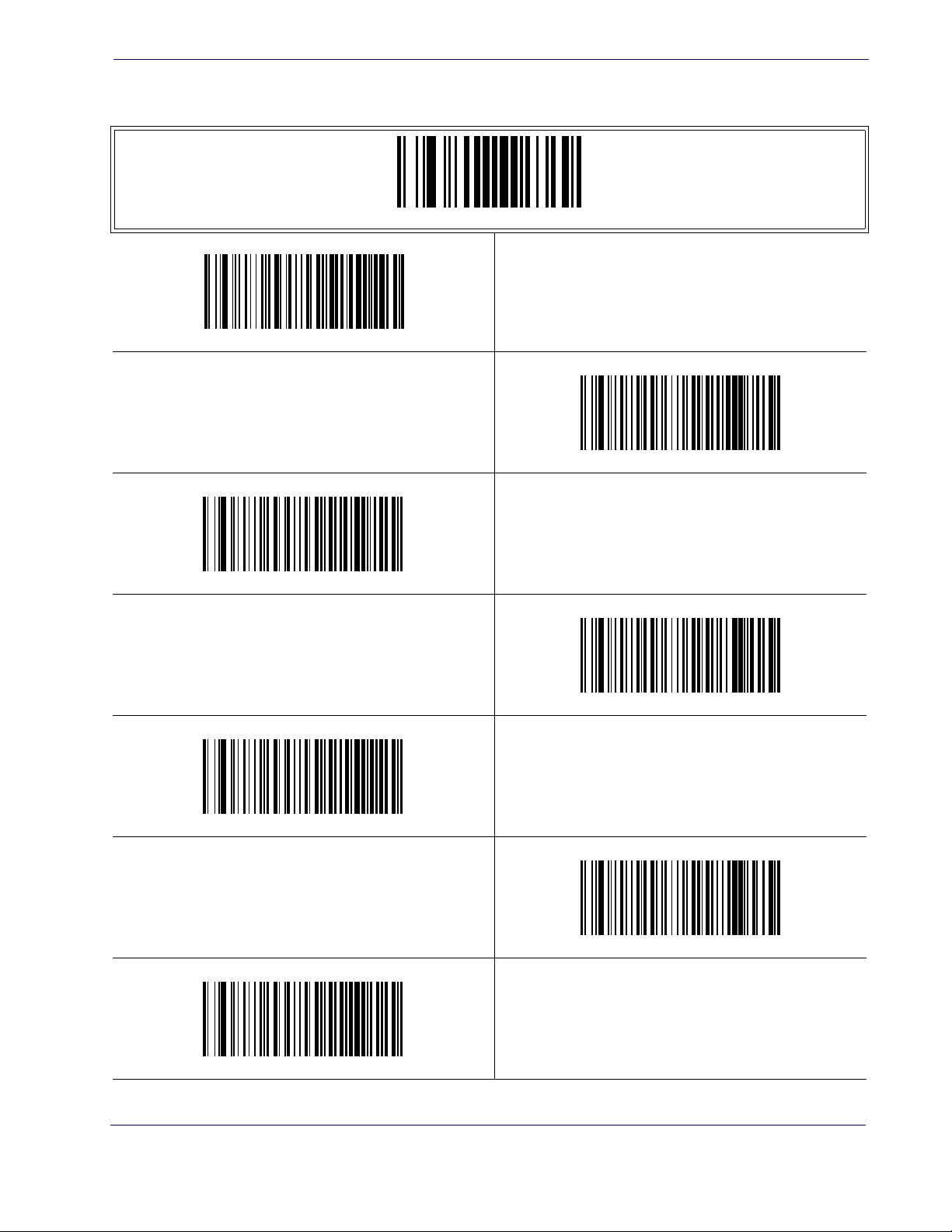

Laser Pointer Period = 2.5 Seconds (2,500 ms)

Laser Pointer Period = 3.5 Seconds (3,500 ms)

Laser Pointer Period = 3 Seconds (3,000 ms)

Laser Pointer Period = 4.5 Seconds (4,500 ms)

Laser Pointer Period = 4 Seconds (4,000 ms)

Laser Pointer Period = 5 Seconds (5,000 ms)

44 PowerScan® PD7100 Corded

Green Spot Duration

Specifies the duration of the good read pointer beam after a good read.

ENTER/EXIT PROGRAMMING MODE

Green Spot Duration

Green Spot Duration = Disable (Green Spot is Off)

DEFAULT

Green Spot Duration = Short (300 msec)

Green Spot Duration = Long (800 msec)

Green Spot Duration = Medium (500 msec)

Product Reference Guide 45

General Features

NOTES

46 PowerScan® PD7100 Corded

RS-232 ONLY Interface

Introduction

Use the programming barcodes in this chapter if modifications to the standard RS­232 interface settings are necessary to meet your system’s requirements. Additional
settings which apply to both the RS-232 and USB interfaces are available in

6, RS-232/USB-Com Interfaces

RS-232 Standard Factory Settings

Reference Appendix B, Standard Defaults for a listing of standard factory settings.

Baud Rate

Baud rate is the number of bits of data transmitted per second. Set the reader's baud
rate to match the baud rate setting of the host device. With an improper baud rate set­ting, data may not reach the host correctly.

.

Chapter 5

Chapter

ENTER/EXIT PROGRAMMING MODE

Baud Rate = 1200

Baud Rate = 2400

Baud Rate = 4800

Product Reference Guide 47

RS-232 ONLY Interface

DEFAULT

Baud Rate — continued

ENTER/EXIT PROGRAMMING MODE

Baud Rate = 9600

Baud Rate = 19,200

Baud Rate = 38,400

Baud Rate = 115,200

Baud Rate = 57,600

48 PowerScan® PD7100 Corded

Data Bits

Data Bits

This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit
ASCII protocol for sending and receiving data.

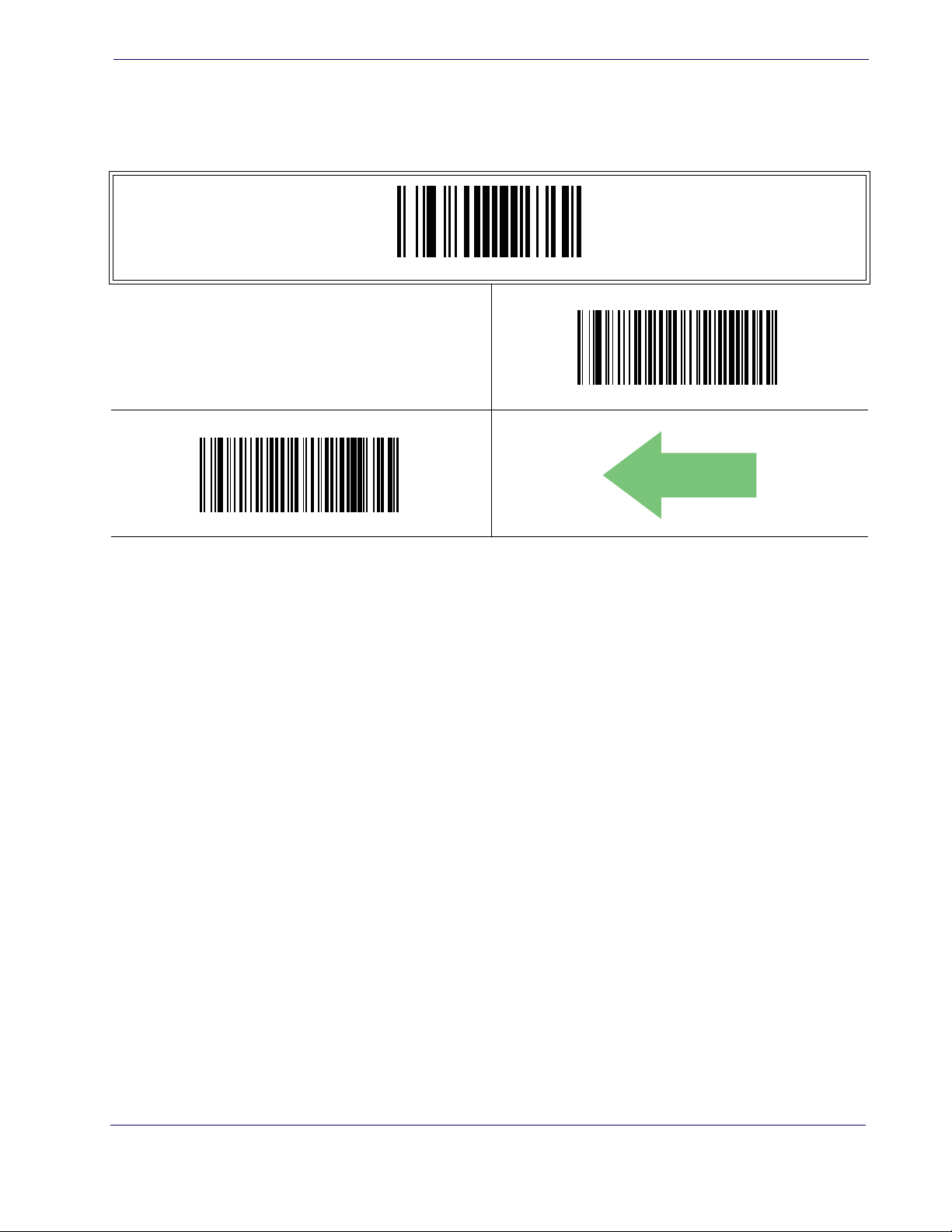

ENTER/EXIT PROGRAMMING MODE

7 Data Bits

DEFAULT

8 Data Bits

Product Reference Guide 49

RS-232 ONLY Interface

Stop Bits

The stop bit(s) at the end of each transmitted character marks the end of transmission
of one character and prepares the receiving device for the next character in the serial
data stream. The number of stop bits selected (one or two) depends on the number
the receiving terminal is programmed to accommodate. Set the number of stop bits
to match host device requirements.

DEFAULT

ENTER/EXIT PROGRAMMING MODE

1 Stop Bit

2 Stop Bits

50 PowerScan® PD7100 Corded

Parity

Parity

This feature specifies parity required for sending and receiving data. A parity check
bit is the most significant bit of each ASCII coded character. Select the parity type
according to host device requirements.

• Select None when no parity bit is required.

• Select Odd parity and the parity bit value is set to 0 or 1, based on data, to ensure
that an odd number of 1 bits are contained in the coded character.

• Select Even parity and the parity bit value is set to 0 or 1, based on data, to ensure
that an even number of 1 bits are contained in the coded character.

ENTER/EXIT PROGRAMMING MODE

DEFAULT

Parity = Even

Parity = None

Parity = Odd

Product Reference Guide 51

RS-232 ONLY Interface

Handshaking Control

The data interface consists of an RS-232 port designed to operate either with or with­out the hardware handshaking lines, Request to Send (RTS), and Clear to Send
(CTS). Handshaking Control includes the following options:

• RTS — RTS is asserted during transmissions. CTS is ignored.

• RTS/CTS — RTS is asserted during transmissions. CTS gates transmissions.

• RTS/XON/XOFF — RTS is asserted during transmissions. CTS is ignored.
XON and XOFF gate transmissions.

• RTS On/CTS — RTS is always asserted. CTS gates transmissions.

• RTS/CTS Scan Control — RTS is asserted during transmissions. CTS gates
transmissions and controls enable and disable state of scanner.

ENTER/EXIT PROGRAMMING MODE

DEFAULT

Handshaking Control = RTS/CTS

Handshaking Control = RTS On/CTS

Handshaking Control = RTS

Handshaking Control = RTS/XON/XOFF

Handshaking Control = RTS/CTS Scan Control

52 PowerScan® PD7100 Corded

RS-232/USB-Com Interfaces

Introduction

The programming barcodes in this chapter allow modifications to the standard RS­232 and USB-Com interfaces.

Standard Factory Settings

Reference Appendix B, Standard Defaults for a listing of standard factory settings.

Chapter 6

Product Reference Guide 53

RS-232/USB-Com Interfaces

Intercharacter Delay

This parameter specifies the intercharacter delay between the end of one character
and the beginning of the next. The delay can be set within a range of zero (0) to 990
milliseconds in 10ms increments. A setting of zero specifies no delay.

To set the delay:

1. Determine the desired setting in milliseconds.

2. Divide the desired setting by 10 (setting is in 10ms increments). Pad the result
with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT INTERCHARACTER DELAY SETTING.

5. Scan the appropriate two digits from the keypad in Appendix E, Keypad, that rep-
resent the duration which was determined in the steps above. You will hear a two­beep indication after the last character.

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 7 for some examples of how to set this fea­ture.

Table 7. Intercharacter Delay Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting 50ms 150ms 600ms 850ms

Divide by 10 (and pad with leading

2

zeroes to yield two-digits)

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT INTERCHARACTER DELAY SETTING

Scan Two Characters From

5

Appendix E, Keypad

6 Scan ENTER/EXIT PROGRAMMING MODE

05 15 60 85

‘0’ and ‘5’ ‘5’ and ‘0’ 0’ and ‘0’ ‘8’ and ‘5’

54 PowerScan® PD7100 Corded

Intercharacter Delay — cont.

ENTER/EXIT PROGRAMMING MODE

Select Intercharacter Delay Setting

Intercharacter Delay

Intercharacter Delay = No Delay

Make a mistake? Scan the CANCEL barcode to abort and not

save the entry string. You can then start again at the beginning.

DEFAULT

00 = No Intercharacter Delay

CANCEL

Product Reference Guide 55

RS-232/USB-Com Interfaces

Beep On ASCII BEL

When this parameter is enabled, the reader issues a beep when a <BEL> character is
detected on the RS-232 serial line. <BEL> is issued to gain a user's attention to an
illegal entry or other important event.

Beep On ASCII BEL = Disable

ENTER/EXIT PROGRAMMING MODE

DEFAULT

Beep On Not on File

This option enables/disables the action of the reader to sound a three beep sequence
upon receiving a Not-On-File (NOF) host command.

Beep On Not On File = Disable

DEFAULT

Beep On ASCII BEL = Enable

ENTER/EXIT PROGRAMMING MODE

Beep On Not On File = Enable

56 PowerScan® PD7100 Corded

ACK NAK Options

This enables/disables the ability of the reader to support the RS-232 ACK/NAK pro­tocol. When configured, the reader and/or host sends an “ACK” when it receives
data properly, and sends “NAK” when the data is in error.
Options are:

•Disable

• Enable for label transmission — The reader expects an ACK/NAK response from

the host when a label is sent.

• Enable for host-command acknowledge — The reader will respond with ACK/

NAK when the host sends a command.

• Enable for label transmission and host-command acknowledge

ACK NAK Options

ENTER/EXIT PROGRAMMING MODE

DEFAULT

ACK/NAK Protocol = Enable for label transmission

ACK/NAK Protocol = Enable for label transmission and host-com-

mand acknowledge

ACK/NAK Protocol = Disable ACK/NAK

ACK/NAK Protocol = Enable for host-command

acknowledge

Product Reference Guide 57

RS-232/USB-Com Interfaces

ACK Character

This setting specifies an ASCII character or hex value to be used as the ACK charac­ter. ASCII characters or any hex value from 0 to 0xFF can be selected.

To set this feature:

1. Determine the desired character or value.

NOTE

Setting to previously defined characters such as XON, XOFF, or host
commands conflicts with normal operation of these characters. 8-bit

data is not recognized when the option

Data Bits.

Data Bits has been set as 7

2. Use the

ASCII Chart on the inside back cover of this manual to find the hex equiv-

alent for the desired character/value.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT ACK CHARACTER SETTING.

5. Scan the appropriate two alpha-numeric characters from the keypad in

E, Keypad

, that represent the desired character/value in step 1 above. The second

character will cause a two-beep indication.

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 8 for some examples of how to set this fea­ture.

Table 8. ACK Character Setting Examples

STEP ACTION EXAMPLES

1 Desired Character/Value ACK $ @ >

2 Hex equivalent 0x06 0x24 0x40 0x3E

3 Scan ENTER/EXIT PROGRAMMING MODE

Appendix

4 Scan SELECT ACK CHARACTER SETTING

Scan Two Characters From

5

Appendix E, Keypad

6 Scan ENTER/EXIT PROGRAMMING MODE

‘0’ and ‘6’ ‘2’ and ‘4’ ‘4’ and ‘0’ ‘3’ AND ‘E’

58 PowerScan® PD7100 Corded

ACK Character — cont.

Select ACK Character Setting

ACK NAK Options

ENTER/EXIT PROGRAMMING MODE

DEFAULT

0x06 ‘ACK’ Character

Product Reference Guide 59

RS-232/USB-Com Interfaces

NAK Character

This setting specifies an ASCII character or hex value to be used as the NAK charac­ter. ASCII characters or any hex value from 0 to 0xFF can be selected.

To set this feature:

1. Determine the desired character or value.

NOTE

Setting to previously defined characters such as XON, XOFF, or host
commands conflicts with normal operation of these characters. 8-bit

data is not recognized when the option

Data Bits.

Data Bits has been set as 7

2. Use the

ASCII Chart on the inside back cover of this manual to find the hex equiv-

alent for the desired character/value.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT NAK CHARACTER SETTING.

5. Scan the appropriate two alpha-numeric characters from the keypad in

E, Keypad

, that represent the desired character/value in step 1 above. The second

character will cause a two-beep indication.

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 9 for some examples of how to set this fea­ture.

Table 9. NAK Character Setting Examples

STEP ACTION EXAMPLES

1 Desired Character/Value NAK $ @ >

2 Hex equivalent 0x15 0x24 0x40 0x3E

3 Scan ENTER/EXIT PROGRAMMING MODE

Appendix

4 Scan SELECT ACK CHARACTER SETTING

Scan Two Characters From

5

Appendix E, Keypad

6 Scan ENTER/EXIT PROGRAMMING MODE

‘1’ and ‘5’ ‘2’ and ‘4’ ‘4’ and ‘0’ ‘3’ AND ‘E’

60 PowerScan® PD7100 Corded

NAK Character — cont.

Select NAK Character Setting

ACK NAK Options

ENTER/EXIT PROGRAMMING MODE

DEFAULT

0x15 ‘NAK’ Character

Product Reference Guide 61

RS-232/USB-Com Interfaces

ACK NAK Timeout Value

This option specifies the amount of time the reader waits for an ACK character from
the host following label transmission. The selectable timeout range is 200 millisec­onds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the
timeout.

To set this value:

1. Determine the desired setting in milliseconds.

2. Divide the desired setting by 200 (setting is in 200ms increments). Pad the result
with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT ACK NAK TIMEOUT VALUE SETTING.

5. Scan the appropriate two digits from the keypad in Appendix E, Keypad, that rep-
resent the duration which was determined in the steps above. You will hear a two­beep indication after the last character.

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 1 0 for some examples of how to set this
feature.

Table 10. ACK NAK Timeout Value Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting 200ms 1,000ms (1 sec.) 5200ms (5.2 sec.) 15,000ms (1 sec.)

2 Divide by 200 01 05 26 75

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT ACK NAK TIMEOUT VALUE SETTING

Scan Two Characters From

5

Appendix E, Keypad

‘0’ and ‘1’ ‘0’ and ‘5’ ‘2’ and ‘6’ ‘7’ and ‘5’

7 Scan ENTER/EXIT PROGRAMMING MODE

62 PowerScan® PD7100 Corded

ACK NAK Timeout Value — cont.

DEFAULT

ENTER/EXIT PROGRAMMING MODE

Select ACK NAK Timeout Value Setting

Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the beginning.

ACK NAK Options

CANCEL

01 ACK NAK Timeout value is 200ms

Product Reference Guide 63

RS-232/USB-Com Interfaces

ACK NAK Retry Count

This feature specifies the number of times the reader retries a label transmission due
to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0
disables the count, and a selection of 255 specifies unlimited retries.

To set this feature:

1. Determine the desired setting.

2. Pad the number with leading zeroes to yield three digits. For example: 0 = 000, 5 =
005, 20 = 020, etc.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT ACK NAK RETRY COUNT SETTING.

5. Scan the appropriate three digits from the keypad in

Appendix E, Keypad, that

represent the number which was determined in the steps above. You will hear a
two-beep indication after the last character.

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See

Ta bl e 1 1 for some examples of how to set this

feature.

Table 11. ACK NAK Retry Count Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting

2 Pad with leading zero(es) 000 003 054 255

3 Scan ENTER/EXIT PROGRAMMING MODE

Disable Retry

Count

3 Retries 54 Retries Unlimited Retries

4 Scan SELECT ACK NAK RETRY COUNT SETTING

Scan Three Characters From

5

Appendix E, Keypad

6 Scan ENTER/EXIT PROGRAMMING MODE

‘0’, ‘0’ and ‘0’ ‘0’, ‘0’ and ‘3’ ‘0’, ‘5’ and ‘4’ ‘2’, ‘5’ and ‘5’

64 PowerScan® PD7100 Corded

ACK NAK Retry Count — cont.

ENTER/EXIT PROGRAMMING MODE

Select ACK NAK Retry Count Setting

Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the beginning.

ACK NAK Options

CANCEL

DEFAULT

003 = 3 Retries

Product Reference Guide 65

RS-232/USB-Com Interfaces

ACK NAK Error Handling

This feature specifies the method the reader uses to handle receive errors detected
while waiting for an ACK character from the host.
Options are:

• Ignore errors detected

• Process error as valid ACK character

• Process error as valid NAK character

ENTER/EXIT PROGRAMMING MODE

DEFAULT

ACK NAK Error Handling = Process Error as Valid ACK Character

ACK NAK Error Handling = Ignore Errors Detected

ACK NAK Error Handling = Process Error as

Valid NAK Character

66 PowerScan® PD7100 Corded

Indicate Transmission Failure

This option enables/disables the reader’s ability to sound an error beep to indicate a
transmission failure while in ACK/NAK mode.

ENTER/EXIT PROGRAMMING MODE

Indicate Transmission Failure

Indicate Transmission Failure = Disable Indication

DEFAULT

Indicate Transmission Failure = Enable Indication

Product Reference Guide 67

RS-232/USB-Com Interfaces

Disable Character

Specifies the value of the RS-232 host command used to disable the reader.
ASCII characters or any hex value from 0 to 0xFF can be selected.

NOTE

To set the value:

1. Determine the desired character or value. A setting of 0xFF indicates the the Dis­able Character is not used (not available).

2. Use the ASCII Chart on the inside back cover of this manual to find the hex equiv­alent for the desired character/value.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT DISABLE CHARACTER SETTING.

Setting to previously defined characters such as XON, XOFF, or host
commands conflicts with normal operation of these characters. 8-bit

data is not recognized when the option

Data Bits.

Data Bits has been set as 7

5. Scan the appropriate two alpha-numeric characters from the keypad in Appendix

E, Keypad

, that represent the desired character/value in step 1 above. The second

character will cause a two-beep indication.

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 1 2 for some examples of how to set this
feature.

Table 12. Disable Character Setting Examples

STEP ACTION EXAMPLES

1 Desired character/value ‘d’ ‘}’ ‘D’

2 Hex equivalent 0x64 0x7D 0x44 0xFF

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT DISABLE CHARACTER VALUE SETTING

Scan Two Characters From

5

Appendix E, Keypad

6 Scan ENTER/EXIT PROGRAMMING MODE

‘6’ and ‘4’ ‘7’ and ‘D’ ‘4’ and ‘4’ ‘F’ AND ‘F’

Disable Command

Not Used

68 PowerScan® PD7100 Corded

Disable Character — cont.

ENTER/EXIT PROGRAMMING MODE

Select Disable Character Setting

Disable Character

DEFAULT

0x44 = Disable Character is ‘D’

Product Reference Guide 69

RS-232/USB-Com Interfaces

Enable Character

Specifies the value of the RS-232 host command used to enable the reader.
ASCII characters or any hex value from 0 to 0xFF can be selected.

NOTE

To set this feature:

Determine the desired character or value. A setting of 0xFF indicates the the Enable

Character is not used (not available).

1. Determine the desired character or value.

Setting to previously defined characters such as XON, XOFF, or host
commands conflicts with normal operation of these characters. 8-bit

data is not recognized when the option

Data Bits.

Data Bits has been set as 7

2. Use the

ASCII Chart on the inside back cover of this manual to find the hex equiv-

alent for the desired character/value.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT ENABLE CHARACTER SETTING.

5. Scan the appropriate two alpha-numeric characters from the keypad in

E, Keypad

, that represent the desired character/value in step 2 above. The second

character will cause a two-beep indication.

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 1 3 for some examples of how to set this
feature.

Table 13. Enable Character Setting Examples

STEP ACTION EXAMPLES

1 Desired character/value ‘e’ ‘}’ ‘E’

2 Hex equivalent 0x65 0x7D 0x45 0xFF

Enable Command

Not Used

Appendix

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT DISABLE CHARACTER VALUE SETTING

Scan Two Characters From

5

Appendix E, Keypad

6 Scan ENTER/EXIT PROGRAMMING MODE

‘6’ and ‘5’ ‘7’ and ‘D’ ‘4’ and ‘5’ ‘F’ AND ‘F’

70 PowerScan® PD7100 Corded

Enable Character — cont.

ENTER/EXIT PROGRAMMING MODE

Select Enable Character Setting

Enable Character

DEFAULT

0x45 = Enable Character is ‘E’

Product Reference Guide 71

RS-232/USB-Com Interfaces

NOTES

72 PowerScan® PD7100 Corded

Keyboard Interface

Introduction

Use the programming barcodes in this chapter to select options for USB Keyboard and
Wedge Interfaces.

Standard Factory Settings

Reference Appendix B, Standard Defaults for a listing of standard factory settings.

Scancode Tables

Information about control character emulation which applies to keyboard interfaces is
listed in Appendix F, Scancode Tables.

Chapter 7

Product Reference Guide 73

Keyboard Interface

Country Mode

This feature specifies the country/language supported by the keyboard.
Only the following interfaces support ALL Country Modes.

• USB Keyboard (without alternate key encoding)

• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Std Key Encoding

• Keyboard Wedge for IBM AT PS2 with standard key encoding but without exter­nal keyboard

• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 without Alternate Key

• Keyboard Wedge for IBM AT PS2 without alternate key encoding but without
external keyboard

All other interfaces support ONLY the following Country Modes: U.S., Belgium, Brit­ain, France, Germany, Italy, Spain, Sweden.

ENTER/EXIT PROGRAMMING MODE

DEFAULT

Country Mode = Belgium

Country Mode = Croatia

Country Mode = U.S.

Country Mode = Britain

Supports only the interfaces listed in theCountry Mode feature
description.

Supports only the interfaces listed in theCountry Mode feature
description.

Country Mode = Czechoslovakia

74 PowerScan® PD7100 Corded

Country Mode — continued

ENTER/EXIT PROGRAMMING MODE

Country Mode = Denmark

Country Mode

Supports only the interfaces listed in theCountry Mode feature
description.

Country Mode = France

Country Mode = Germany

Supports only the interfaces listed in theCountry Mode feature
description.

Country Mode = Italy

Supports only the interfaces listed in theCountry Mode feature
description.

Country Mode = Hungary

Country Mode = Japanese 106-key

Supports only the interfaces listed in theCountry Mode feature
description.

Country Mode = Norway

Product Reference Guide 75

Keyboard Interface

Country Mode — continued

ENTER/EXIT PROGRAMMING MODE

Country Mode = Poland

Supports only the interfaces listed in theCountry Mode feature
description.

Supports only the interfaces listed in theCountry Mode feature
description.

Country Mode = Portugal

Country Mode = Romania

Supports only the interfaces listed in theCountry Mode feature
description.

Country Mode = Spain

Supports only the interfaces listed in theCountry Mode feature
description.

Country Mode = Slovakia

Country Mode = Sweden

Supports only the interfaces listed in theCountry Mode feature
description.

Country Mode = Switzerland

76 PowerScan® PD7100 Corded

Caps Lock State

This option specifies the format in which the reader sends character data. This applies to
keyboard wedge interfaces. This does not apply when an alternate key encoding keyboard
is selected.

DEFAULT

Caps Lock State

ENTER/EXIT PROGRAMMING MODE

Caps Lock State = Caps Lock OFF

Caps Lock State = Caps Lock ON

Numlock

Caps Lock State = AUTO Caps Lock Enable

This option specifies the setting of the Numbers Lock (Numlock) key while in keyboard
wedge interface. This only applies to alternate key encoding interfaces. It does not apply
to USB keyboard.

ENTER/EXIT PROGRAMMING MODE

DEFAULT

Numlock = Numlock key unchanged

Numlock = Numlock key toggled

Product Reference Guide 77

Keyboard Interface

Send Control Characters

This feature Specifies how the reader transmits ASCII control characters to the host. Ref­erence

Options are as follows:

Appendix F, Scancode Tables for more information about control characters.

Control Character 00 —

Characters from 00 to 0x1F are sent as control character

Ctrl+Keys, special keys are located from 0x80 to 0xA1.

Control Character 01 —

Characters from 00 to 0x1F are sent as control character

Ctrl+Capital Key, special keys are located from 0x80 to 0xA1.

Control Character 02 —

Special keys are located from 00 to 0x1F and characters from
0x80 to 0xFE are intended as an extended ASCII table (Microsoft Windows Codepage
1252 — see Microsoft Windows Codepage 1252 on page 310).

ENTER/EXIT PROGRAMMING MODE

DEFAULT

Wedge Send Control Characters = 00

Wedge Send Control Characters = 01

Wedge Send Control Characters = 02

78 PowerScan® PD7100 Corded

Wedge Quiet Interval

This option specifies the amount of time to look for keyboard activity before the read­er breaks the keyboard connection in order to transmit data to host. The selectable
range for this feature is from 0 to 990ms in 10ms increments.

This feature applies ONLY to the Keyboard Wedge interface.

NOTE

Follow these instructions to set this feature:

1. Determine the desired setting in milliseconds.

2. Divide the desired setting by 10 (setting is in 10ms increments). Pad the result
with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT WEDGE QUIET INTERVAL SETTING.

Wedge Quiet Interval

5. Scan the appropriate two digits from the keypad in

Appendix E, Keypad, that rep-

resent the duration which was determined in the steps above. You will hear a two­beep indication after the last character.

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure to set the Wedge Quiet Interval. See Table 14 for some
examples of how to set this feature.

Table 14. Timeout Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting 10ms 150ms 600ms 850ms

Divide by 10 (and pad with leading

2

zeroes)

01 15 60 85

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT WEDGE QUIET INTERVAL SETTING

Scan Two Characters From

5

Appendix E, Keypad

6 Scan ENTER/EXIT PROGRAMMING MODE

Product Reference Guide 79

‘0’ and ‘1’ ‘1’ and ‘5’ ‘6’ and ‘0’ ‘8’ and ‘5’

Keyboard Interface

Wedge Quiet Interval — cont.

ENTER/EXIT PROGRAMMING MODE

Select Wedge Quiet Interval Setting

Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the beginning.

CANCEL

DEFAULT

10 = Quiet Interval of 100 ms

80 PowerScan® PD7100 Corded

Intercharacter Delay

This parameter specifies the intercharacter delay between the end of one character
and the beginning of the next. The delay can be set within a range of zero (0) to 990
milliseconds in 10ms increments. A setting of zero specifies no delay.

This feature applies ONLY to the Keyboard Wedge interface.

NOTE

To set the delay:

1. Determine the desired setting in milliseconds.

2. Divide the desired setting by 10 (setting is in 10ms increments). Pad the result
with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc.

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT INTERCHARACTER DELAY SETTING.

Intercharacter Delay

5. Scan the appropriate two digits from the keypad in

Appendix E, Keypad, that rep-

resent the duration which was determined in the steps above. You will hear a two­beep indication after the last character.

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Ta bl e 1 4 for some examples of how to set this
feature.

Table 15. Intercharacter Delay Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting 50ms 150ms 600ms 850ms

Divide by 10 (and pad with leading

2

zeroes to yield two-digits)

3 Scan ENTER/EXIT PROGRAMMING MODE

05 15 60 85

4 Scan SELECT INTERCHARACTER DELAY SETTING

Scan Two Characters From

5

Appendix E, Keypad

6 Scan ENTER/EXIT PROGRAMMING MODE

Product Reference Guide 81

‘0’ and ‘5’ ‘1’ and ‘5’ ‘6’ and ‘0’ ‘8’ and ‘5’

Keyboard Interface

Intercharacter Delay — cont.

ENTER/EXIT PROGRAMMING MODE

Select Intercharacter Delay Setting

Intercharacter Delay = No Delay

Make a mistake? Scan the CANCEL barcode to abort and not

save the entry string. You can then start again at the beginning.

DEFAULT

00 = No Intercharacter Delay

CANCEL

82 PowerScan® PD7100 Corded

Intercode Delay

Specifies the delay between labels transmitted to the host for this interface. The selectable
range for this feature is from 0 to 99 seconds.

Follow these instructions to set this feature:

1. Determine the desired setting.

2. Pad the number with leading zeroes to yield two digits. For example: 0 = 00, 5 =
05, 20 = 20, etc

3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Program­ming Mode.

4. Scan the barcode: SELECT INTERCODE DELAY SETTING.

Intercode Delay

5. Scan the appropriate two digits from the keypad in

Appendix E, Keypad, that rep-

resent the duration which was determined in the steps above. You will hear a two­beep indication after the last character.

If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.

NOTE

6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Program­ming Mode.

This completes the procedure. See Table 16 for some examples of how to set this feature.

Table 16. Wedge Intercode Delay Examples

STEP ACTION EXAMPLES

1 Desired Setting No Delay 5 Seconds 60 Seconds 99 Seconds

2 Pad with leading zero(es) 00 05 60 99

3 Scan ENTER/EXIT PROGRAMMING MODE

4 Scan SELECT INTERCODE DELAY SETTING

Scan Two Characters From

5

Appendix E, Keypad

7 Scan ENTER/EXIT PROGRAMMING MODE

Product Reference Guide 83

‘0’ and ‘0’ ‘0’ and ‘5’ ‘6’ and ‘0’ ‘9’ AND ‘9’

Keyboard Interface

DEFAULT

Intercode Delay — cont.

ENTER/EXIT PROGRAMMING MODE

Set Intercode Delay

Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the beginning.

CANCEL

00 = No Wedge Intercode Delay

84 PowerScan® PD7100 Corded

USB Keyboard Speed

This option specifies the USB poll rate for a USB keyboard.

This feature applies ONLY to the USB Keyboard interface.

NOTE

ENTER/EXIT PROGRAMMING MODE

DEFAULT

USB Keyboard Speed

USB Keyboard Speed = 1ms

USB Keyboard Speed = 2ms

USB Keyboard Speed = 4ms

USB Keyboard Speed = 3ms

USB Keyboard Speed = 5ms

Product Reference Guide 85

Keyboard Interface

USB Keyboard Speed — continued

ENTER/EXIT PROGRAMMING MODE

USB Keyboard Speed = 6ms

USB Keyboard Speed = 7ms

USB Keyboard Speed = 8ms

USB Keyboard Speed = 10ms

USB Keyboard Speed = 9ms

86 PowerScan® PD7100 Corded

USB-OEM Interface

Introduction

Feature settings for USB interfaces differ depending upon which host type the reader will
be connected with. Use the feature settings in this chapter and Chapter 9, IBM 46XX

Interface

included in the approprite chapter for their host type.

Standard Factory Settings

Reference Appendix B, Standard Defaults for a listing of standard factory settings.

to specifically configure for the USB-OEM interface. Other USB interfaces are

Chapter 8

Product Reference Guide 87

USB-OEM Interface

DEFAULT

USB-OEM Device Usage

The USB-OEM protocol allows for the reader to be identified as one of two different
types of barcode scanners. Depending on what other scanners you may already have con­nected to a USB-OEM POS, you may need to change this setting to enable all devices to
communicate.
Options are:

• Table Top Scanner

• Handheld Scanner

It may be necessary to switch device usage when connecting two
readers/scanners of the same type to a POS system.

NOTE

ENTER/EXIT PROGRAMMING MODE

USB-OEM Device Usage = Handheld Scanner

USB-OEM Device Usage = Table Top Scanner

88 PowerScan® PD7100 Corded

IBM 46XX Interface

Introduction

Use the barcodes in this section to configure programmable features for available IBM
46XX interfaces.

IBM Standard Factory Settings

Reference Appendix B, Standard Defaults for a listing of standard factory settings.

Chapter 9

Product Reference Guide 89

IBM 46XX Interface

DEFAULT

46xx Number of Host Resets

Specifies how many consecutive resets are processed before the reader starts a five-second
period to allow the user to enter Programming Mode and configure the reader. The con­figurable range for this feature is 1 to 15 resets.

ENTER/EXIT PROGRAMMING MODE

46xx Number of Host Resets = 1

46xx Number of Host Resets = 2

46xx Number of Host Resets = 4

46xx Number of Host Resets = 3

46xx Number of Host Resets = 5

46xx Number of Host Resets = 6

90 PowerScan® PD7100 Corded

46xx Number of Host Resets — cont.

ENTER/EXIT PROGRAMMING MODE

46xx Number of Host Resets = 7

46xx Number of Host Resets = 8

46xx Number of Host Resets

46xx Number of Host Resets = 10

46xx Number of Host Resets = 12

46xx Number of Host Resets = 9

46xx Number of Host Resets = 11

Product Reference Guide 91

IBM 46XX Interface

46xx Number of Host Resets — cont.

ENTER/EXIT PROGRAMMING MODE

46xx Number of Host Resets = 13

46xx Number of Host Resets = 14

46xx Number of Host Resets = 15

92 PowerScan® PD7100 Corded
