MATRIX-2000™
Reference Manual
Datalogic Automation S.r.l.
Via S. Vitalino 13
40012 - Lippo di Calderara di Reno
Bologna - Italy
Matrix-2000™ Reference Manual
Ed.: 06/2008
ALL RIGHTS RESERVED
Datalogic reserves the right to make modifications and improvements without prior notification.
Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for
incidental or consequential damages resulting from the use of this material.
Product names mentioned herein are for identification purposes only and may be trademarks and or
registered trademarks of their respective companies.
Datalogic is a registered trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a
trademark of Datalogic S.p.A.
© Datalogic Automation S.r.l. 2000 - 2008
24/06/08
CONTENTS
REFERENCES .............................................................................................................v
Conventions..................................................................................................................v
Reference Documentation............................................................................................ v
Service and Support ..................................................................................................... v
Patents.......................................................................................................................... v
COMPLIANCE.............................................................................................................vi
EMC Compliance......................................................................................................... vi
Power Supply............................................................................................................... vi
LED Class.................................................................................................................... vi
CE Compliance............................................................................................................ vi
FCC Compliance ......................................................................................................... vi
HANDLING.................................................................................................................vii
GENERAL VIEW.........................................................................................................ix
1 RAPID CONFIGURATION ...........................................................................................1
Step 1 – Connecting the System ..................................................................................1
Step 2 – Mounting and Positioning the System............................................................5
Step 3 – Autolearning Configuration.............................................................................6
Step 4 – Installing VisiSet™ Configuration Program ....................................................9
Step 5 – Configuration Using Autolearning Wizard ....................................................10
Advanced Reader Configuration.................................................................................12
2 GENERAL FEATURES..............................................................................................13
2.1 Introduction.................................................................................................................13
2.2 Description..................................................................................................................14
2.3 Model Description.......................................................................................................16
2.4 Accessories ................................................................................................................16

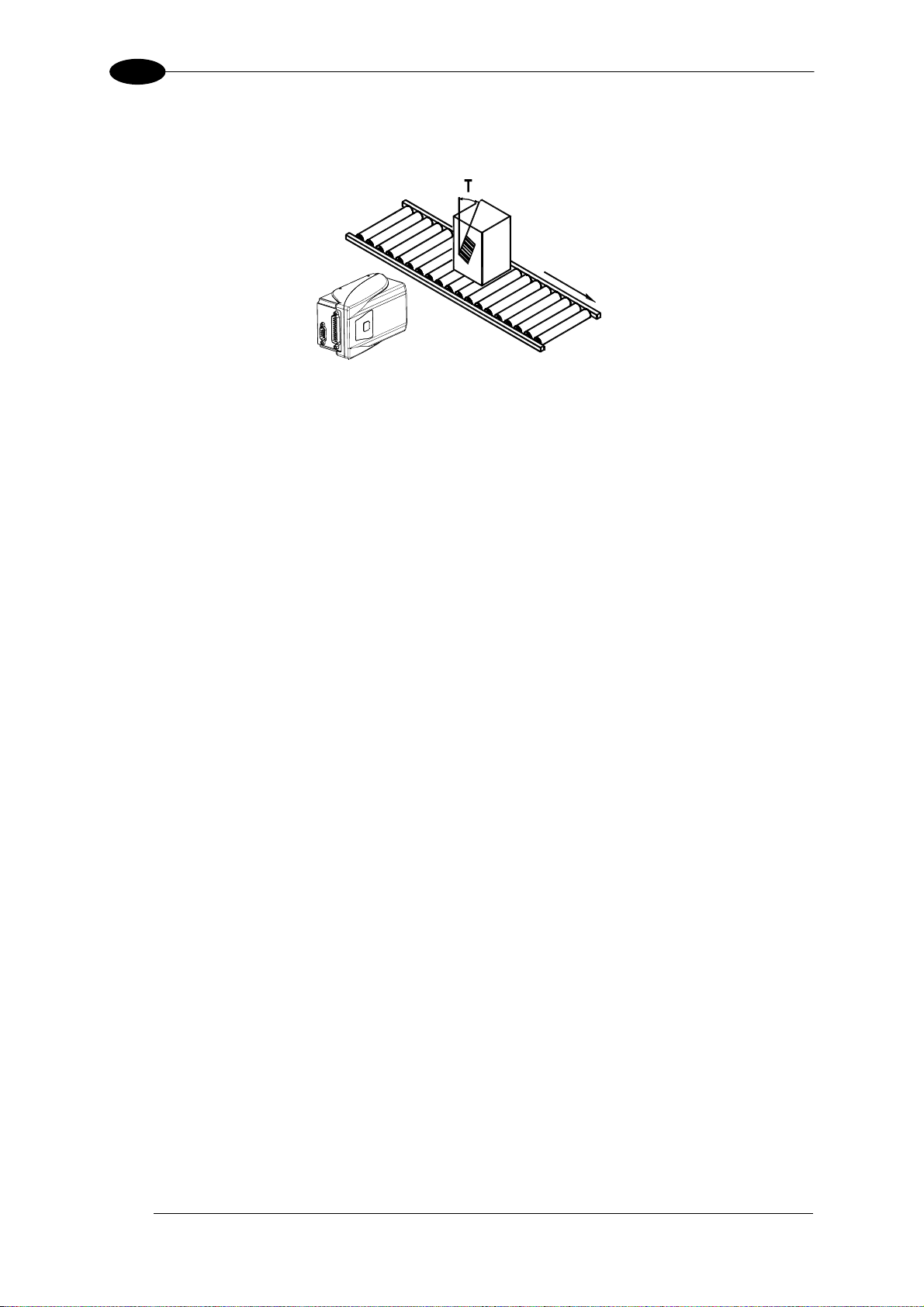

2.5 Application Examples .................................................................................................17
2.6 External Lighting Systems ..........................................................................................20
3 INSTALLATION .........................................................................................................24
3.1 Package Contents ......................................................................................................24
3.2 Mechanical Dimensions..............................................................................................25
3.2.1 Mounting Matrix-2000™ .............................................................................................26
3.3 Positioning ..................................................................................................................27
4 CBX ELECTRICAL CONNECTIONS.........................................................................29
4.1 Power Supply..............................................................................................................30
4.2 Main Serial Interface...................................................................................................30
4.2.1 RS232 Interface..........................................................................................................31
4.2.2 RS485 Full-Duplex Interface.......................................................................................32
4.2.3 RS485 Half-Duplex Interface......................................................................................33
4.3 Auxiliary RS232 Interface ...........................................................................................35
4.4 Inputs..........................................................................................................................36
4.5 Outputs .......................................................................................................................39
4.6 External Lighting Systems ..........................................................................................41
4.7 User Interface - Host...................................................................................................42
5 MATRIX-2000™ CONNECTOR ELECTRICAL CONNECTIONS..............................43
iii

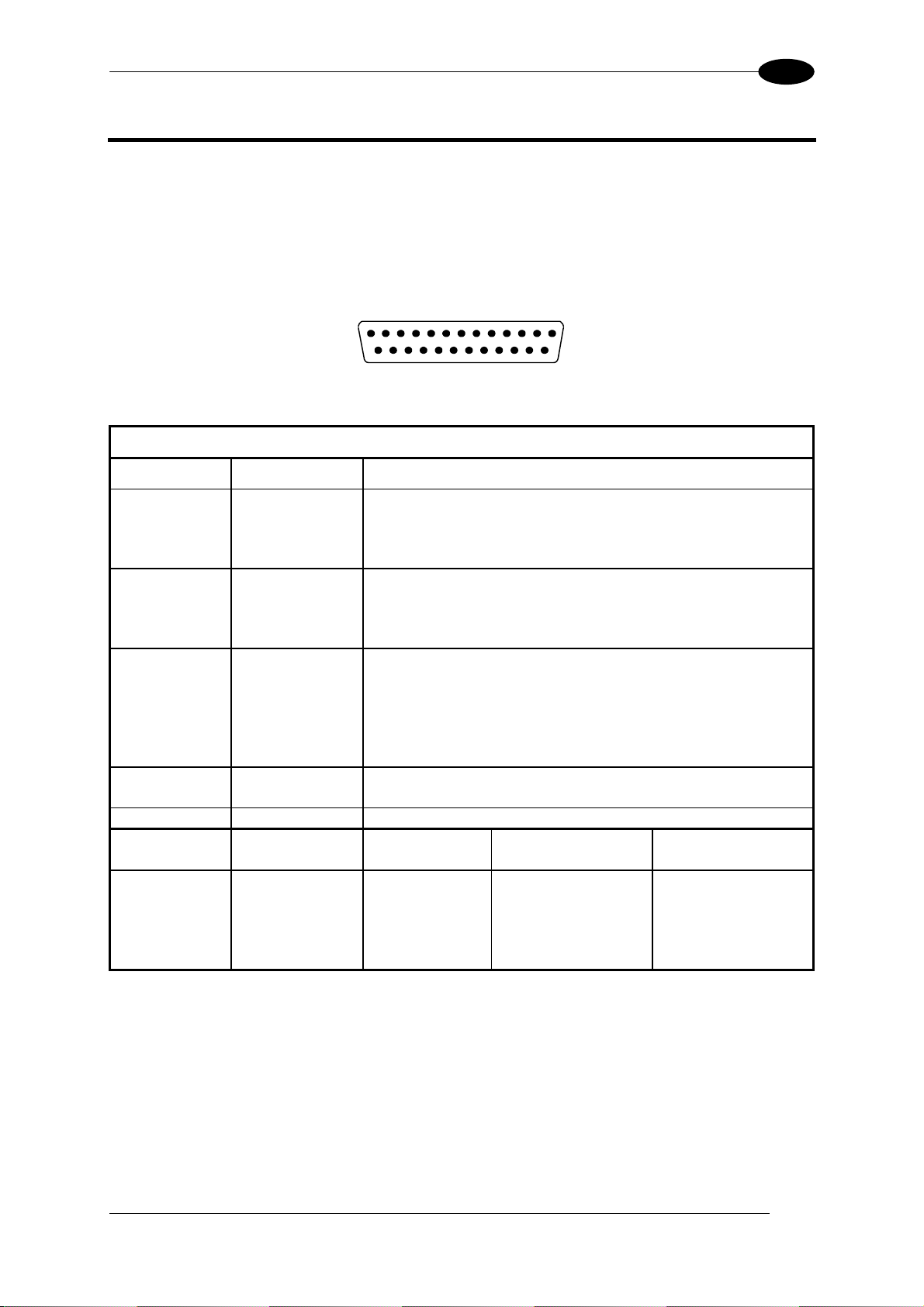

5.1 DB25-Pin Connector...................................................................................................43
5.2 DB9-Pin Connector (RS232 Auxiliary Port) ................................................................44
5.3 RJ45 8-Pin Connector (Ethernet) ...............................................................................44
5.4 Power Supply..............................................................................................................45
5.5 Main Serial Interface...................................................................................................45
5.5.1 RS232 Interface..........................................................................................................45
5.5.2 RS485 Full-Duplex Interface.......................................................................................47
5.5.3 RS485 Half-Duplex Interface......................................................................................48
5.6 Auxiliary RS232 Interface ...........................................................................................50
5.7 Ethernet Interface (Matrix-21XX models only)............................................................51

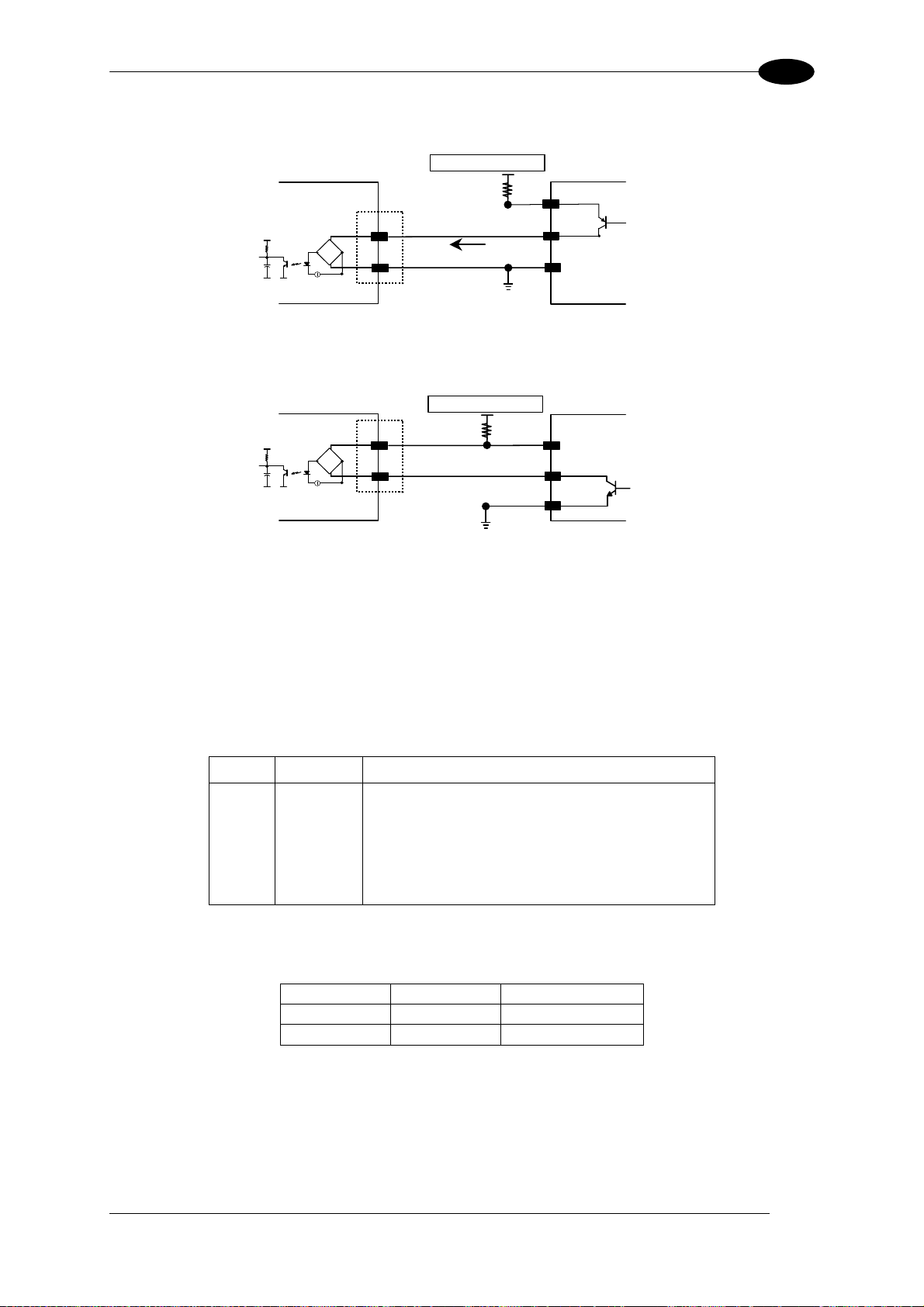

5.8 Inputs..........................................................................................................................52
5.9 Outputs .......................................................................................................................55
5.10 User Interface .............................................................................................................57

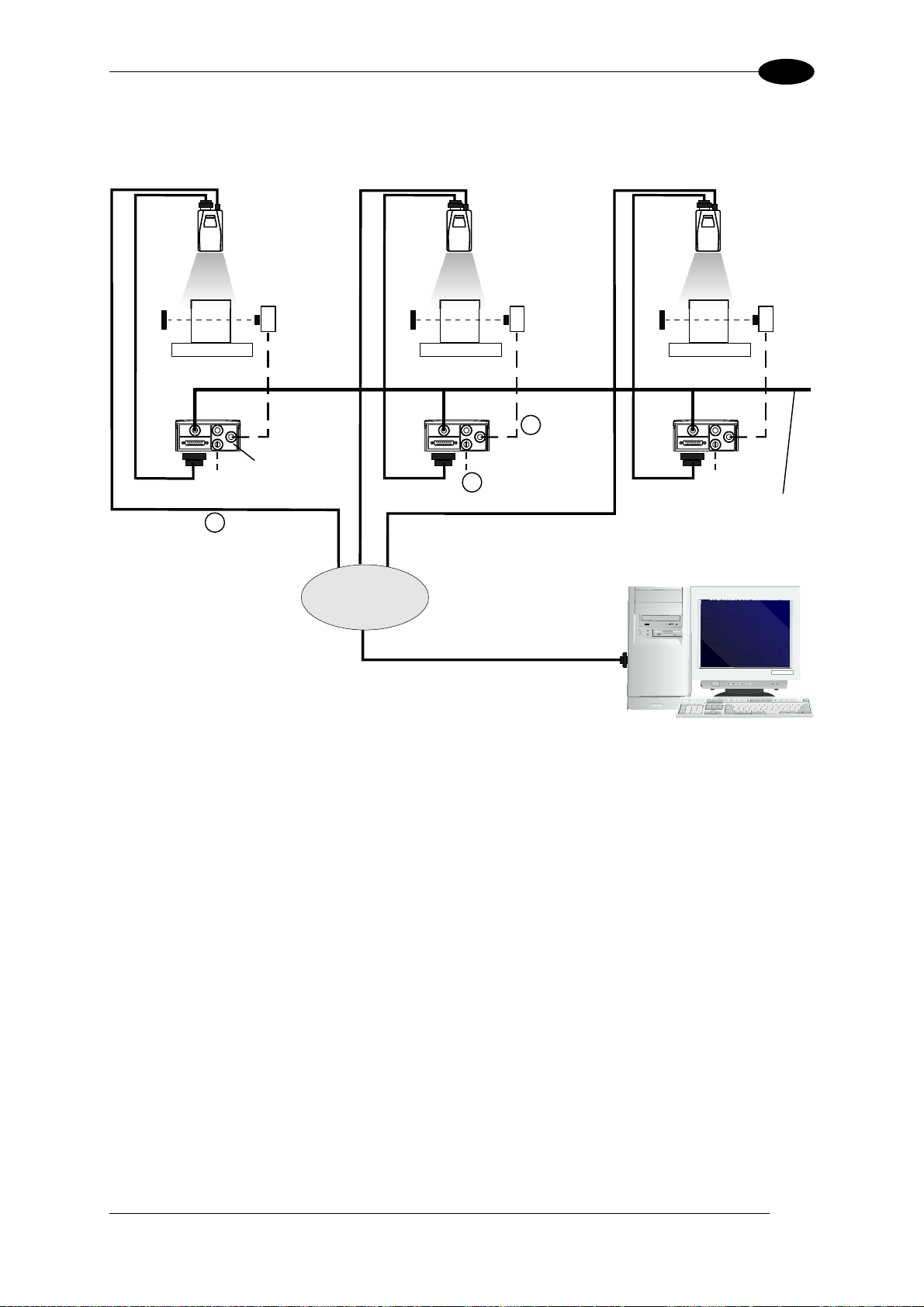

6 TYPICAL LAYOUTS ..................................................................................................58
6.1 Point-to-Point..............................................................................................................58
6.2 Pass-Through .............................................................................................................59
6.3 RS232 Master/Slave...................................................................................................60
6.4 Multiplexer ..................................................................................................................61
6.5 Ethernet Connection (Matrix-21XX models only)........................................................ 62
7 READING FEATURES...............................................................................................64
7.1 Reading Distance and FOV........................................................................................64
7.2 Maximum Line Speed Calculation ..............................................................................66
8 SOFTWARE CONFIGURATION................................................................................68
8.1 VisiSet™ System Requirements................................................................................. 68
8.2 Installing VisiSet™......................................................................................................68
8.3 Startup ........................................................................................................................69
8.3.1 VisiSet™ Options........................................................................................................70
8.4 Configuration ..............................................................................................................72
8.4.1 Edit Reader Parameters .............................................................................................73

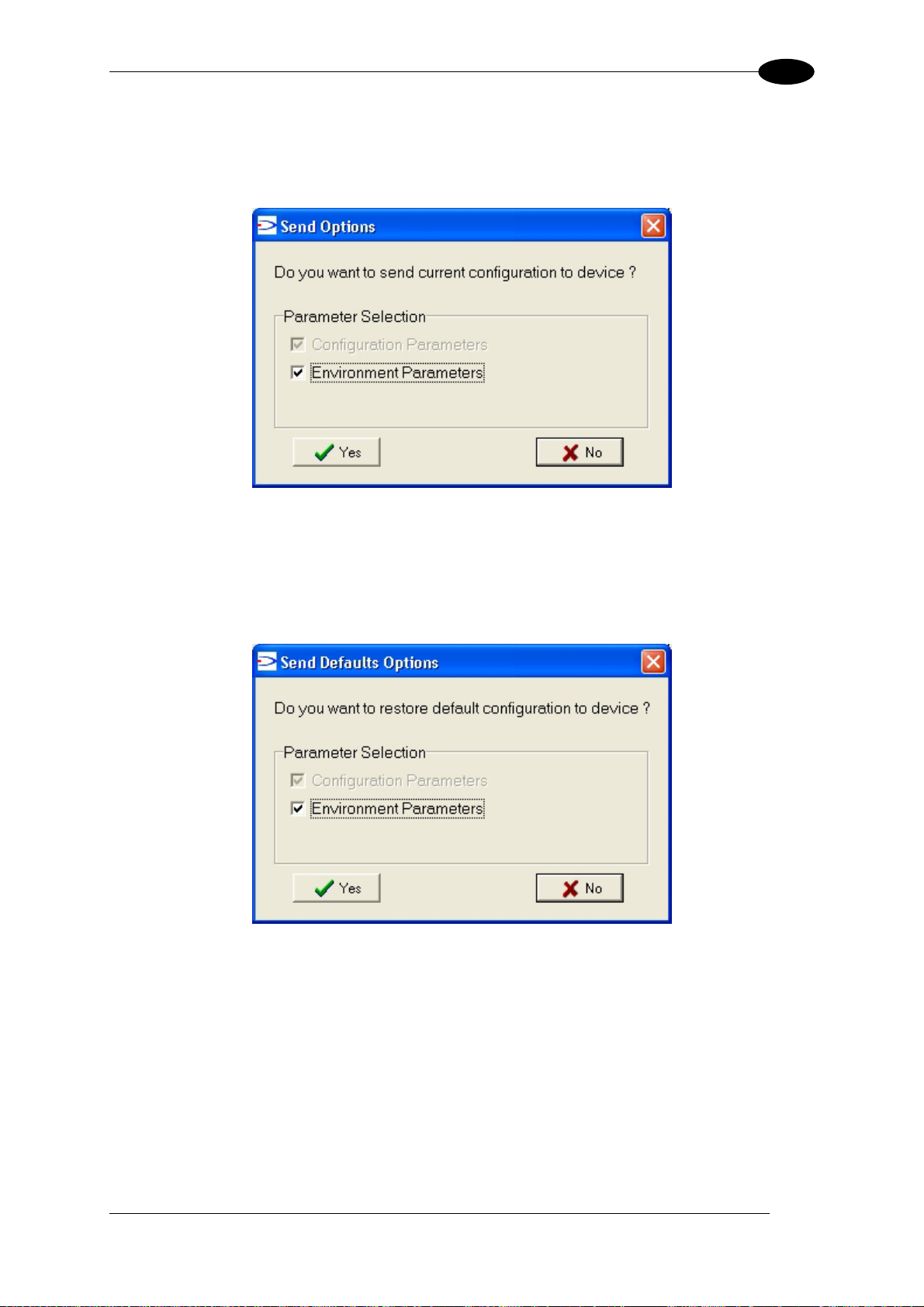

8.4.2 Send Configuration Options........................................................................................75
8.4.3 Calibration...................................................................................................................78
8.4.4 Multi Image Acquisition Settings.................................................................................82
8.4.5 Run Time Self Tuning (RTST) ....................................................................................82
8.4.6 Region Of Interest Windowing....................................................................................83
8.4.7 Direct Part Marking Applications.................................................................................84
8.5 Image Capture and Decoding.....................................................................................86
8.6 Statistics .....................................................................................................................86
9 MAINTENANCE .........................................................................................................87
9.1 Cleaning......................................................................................................................87
10 TROUBLESHOOTING ...............................................................................................88
10.1 General Guidelines.....................................................................................................88
11 TECHNICAL FEATURES........................................................................................... 91
GLOSSARY................................................................................................................ 93
INDEX.........................................................................................................................96
iv
REFERENCES
CONVENTIONS
This manual uses the following conventions:
"User" refers to anyone using a Matrix-2000™ reader.
"Reader" refers to the Matrix-2000™ reader.
"You" refers to the System Administrator or Technical Support person using this manual to
install, configure, operate, maintain or troubleshoot a Matrix-2000™ reader.
REFERENCE DOCUMENTATION
For further details refer to: the VisiSet™ Help On Line, Matrix Reading Methods, Matrix Host
Mode Programming, Matrix SW Parameter Guide, Matrix Symbol Verifier Solution provided
as supplementary documentation on CD-ROM.
SERVICE AND SUPPORT
Datalogic provides several services as well as technical support through its website. Log on
to www.automation.datalogic.com and click on the
including:
links indicated for further information
•
PRODUCTS
Search through the links to arrive at your product page where you can download specific
Manuals and Software & Utilities
- VisiSet™ a utility program, which allows device configuration using a PC. It provides
RS232 and Ethernet interface configuration.
SERVICES & SUPPORT
•
-
Datalogic Services - Warranty Extensions and Maintenance Agreements
-
Authorised Repair Centres
• CONTACT US
E-mail form and listing of Datalogic Subsidiaries
PATENTS
This product is covered by one or more of the following patents:
U.S. patents: 6,512,218 B1; 6,616,039 B1
European patents: 999,514 B1; 1,014,292 B1.
Additional patents pending.
; 7,102,116 B2; 7,282,688 B2
v
COMPLIANCE
For installation, use and maintenance it is not necessary to open the reader.
EMC COMPLIANCE
In order to meet the EMC requirements:
• connect reader chassis to the plant earth ground by means of a flat copper braid shorter
than 100 mm;
• connect the main interface cable shield to pin 1 of the reader 25-pin connector;
• use two clip-on ferrite sleeves (type Stewart 28A2029-0A0) on the main interface cable
near the reader 25-pin connector;
• connect the Ethernet interface cable shield to the reader chassis (for Matrix-21XX only).
POWER SUPPLY
ATTENTION: READ THIS INFORMATION BEFORE INSTALLING THE PRODUCT
This product is intended to be installed by Qualified Personnel only.
This product is intended to be connected to a UL Listed Computer which supplies power
directly to the reader or a UL Listed Direct Plug-in Power Unit marked LPS or “Class 2”,
rated 10 to 30 V, minimum 1 A.
LED CLASS
Class 1 LED Product to EN60825-1:2001
CE COMPLIANCE
Warning: This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
FCC COMPLIANCE
Modifications or changes to this equipment without the expressed written approval of Datalogic could
void the authority to use the equipment.
This device complies with PART 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference which may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
vi
HANDLING
The Matrix-2000™ is designed to be used in an industrial environment and is built to
withstand vibration and shock when correctly installed, however it is also a precision product
and therefore before and during installation it must be handled correctly to avoid damage.
• avoid that the readers are dropped (exceeding shock limits).
• do not fine tune the positioning by striking the reader or bracket.
vii
• do not weld the reader into position which can cause electrostatic, heat or reading
window damage.
• do not spray paint near the reader which can cause reading window damage.
viii
A
GENERAL VIEW
Matrix-2000™
1
12
11
Reading Window
1
2
F2 LED
Keypad button
3
4
F1 LED
Power On LED
5
6
External Trigger LED
2
3
Figure A
4
Good Read LED
7
Communication LED
8
Main/Auxiliary Interface
9
10
11
12
uxiliary Interface
Ethernet Interface
(for 21XX models only)
Ethernet MAC Address
5
6
7
8
9
10
ix
x
RAPID CONFIGURATION
X
r
1
1 RAPID CONFIGURATION
STEP 1 – CONNECTING THE SYSTEM
To connect the system in a Stand Alone configuration, you need the hardware indicated in
Figure 1. In this layout the data is transmitted to the Host on the main serial interface.
The RS232 auxiliary interface can be used for reader configuration by connecting a laptop
computer running VisiSet™.
When One Shot or Phase Mode Operating mode is used, the reader is activated by an
External Trigger (photoelectric sensor) when the object enters its reading zone.
PG 6000
CB
Terminal
Matrix-2000™
CAB-Sxx
Main Interface
* External Trigger or Presence Senso
P.S.*
(for On Shot or Phase Mode)
Figure 1 – Matrix-2000™ in Stand Alone Layout
Local Host
1
1
Matrix-2000™ Reference Manual
CBX100/CBX500 Pinout for Matrix-2000™
The table below gives the pinout of the CBX100/CBX500 terminal block connectors. Use this
pinout when the Matrix-2000™ reader is connected by means of the CBX100/CBX500:
CBX100/500 Terminal Block Connectors
Input Power Outputs
Vdc Power Supply Input Voltage + +V Power Source - Outputs
GND Power Supply Input Voltage - -V Power Reference - Outputs
Earth Protection Earth Ground O1+ Output 1 +
O1- Output 1 -
Inputs
+V Power Source – External Trigger O2- Output 2 I1A External Trigger A (polarity insensitive) O3A Output 3 + (CBX500 only – polarity sensitive)
I1B External Trigger B (polarity insensitive) O3B Output 3 - (CBX500 only – polarity sensitive)
-V Power Reference – External Trigger
+V Power Source – Inputs TX Auxiliary Interface TX
I2A Input 2 A (polarity insensitive) RX Auxiliary Interface RX
I2B Input 2 B (polarity insensitive) SGND Auxiliary Interface Reference
-V Power Reference – Inputs
Main Interface
RS232 RS485 Full-Duplex RS485 Half-Duplex
TX TX+ RTX+
RTS TX- RTX RX
CTS
SGND SGND SGND
* Do not leave floating, see par. 4.2.2 for connection details.
O2+ Output 2 +
Auxiliary Interface
Shield
Shield Network Cable Shield
*RX+
*RX-
CAUTION
CAUTION
Do not connect GND and SGND to different (external) ground references.
GND and SGND are internally connected through filtering circuitry which
can be permanently damaged if subjected to voltage drops over 0.8 Vdc.
If Matrix-2000™ is connected to a CBX with a BM100 Backup Module, then
the Matrix-2000™ 9-pin Auxiliary port connector cannot be used for
communication (i.e. configuration through VisiSet™). In this case use the
Auxiliary port 9-pin connector inside the CBX.
2
RAPID CONFIGURATION
1
DB25-Pin Connector
The Matrix-2000™ reader is equipped with a 25-pin male D-Sub connector for connection to
the power supply and input/output signals. The details of the connector pins are indicated in
the following table:
1
Figure 2 - 25-pin male D-Sub Connector
19-pin M16 male connector pinout
Pin Name Function
9, 13 Vdc Power supply input voltage +
23, 25 GND Power supply input voltage -
1 CHASSIS
Cable shield internally connected by capacitor to the
chassis
18 I1A External Trigger A (polarity insensitive)
19 I1B External Trigger B (polarity insensitive)
6 I2A Input 2 A (polarity insensitive)
10 I2B Input 2 B (polarity insensitive)
8 O1+ Output 1 +
22 O1- Output 1 11 O2+ Output 2 +
12 O2- Output 2 16 O3+ Output 3 +
17 O3- Output 3 20 RX Auxiliary RS232 RX (referred to GND)
21 TX Auxiliary RS232 TX (referred to GND)
14, 15, 24 NC Not connected
Pin Name RS232
2 TX TX+ RTX+
3 RX *RX+
4 RTS TX- RTX-
5
MAIN
INTERFACE
(SW
SELECTABLE)
CTS *RX-
7 GND_ISO GND_ISO GND_ISO
* Do not leave floating, see par. 5.5.2 for connection details.
In order to meet EMC requirements:
13
2514
RS485
Full-Duplex
RS485
Half-Duplex
• connect the reader chassis to the plant earth ground by means of a flat copper braid
shorter than 100 mm;
• connect the main interface cable shield to pin 1 of the 25-pin connector;
• use two clip-on ferrite sleeves (type Stewart 28A2029-0A0 or equivalent) on the main
interface cable near the reader 25-pin connector;
• connect the Ethernet interface cable shield to reader chassis (for Matrix-21XX only)
3
1
Matrix-2000™ Reference Manual
DB9-Pin Connector (RS232 Auxiliary Port)
There is also a separate 9-pin female D-sub connector for the Auxiliary port connection with
the following pinout:
5
1
9
Figure 3 - 9-pin female D-Sub Connector
6
9-pin female D-sub connector pinout
Pin Name Function
2 TX Transmitted data of auxiliary RS232
3 RX Received data of auxiliary RS232
5 GND Reference GND of auxiliary RS232
1,4,6,7,8,9 N.C. Not connected
If Matrix-2000™ is connected to a CBX with a BM100 Backup Module,
then the Matrix-2000™ 9-pin Auxiliary port connector cannot be used for
communication (i.e. configuration through VisiSet™). In this case use the
CAUTION
Auxiliary port 9-pin connector inside the CBX.
RJ45 8-Pin Connector (Ethernet)
In Matrix-21XX models a RJ45 Modular Jack is provided for Ethernet connection. This
interface and the connector pinout (see the following table) are IEEE 802.3 10 BaseT and
IEEE 802.3u 100 BaseTx compliant. See par. 5.7 for connection details.
4
8
Figure 4 - RJ45 Modular Jack
1
RJ45 modular jack pinout
Pin Name Function
1 TX + Transmitted data (+)
2 TX - Transmitted data (-)
3 RX + Received data (+)
6 RX - Received data (-)
4,5,7,8 N.C. Not connected
RAPID CONFIGURATION
1
STEP 2 – MOUNTING AND POSITIONING THE SYSTEM
1. To mount the Matrix-2000™, use the mounting bracket to obtain the most suitable
position for the reader as shown in the figures below.
Figure 5 - Positioning with Mounting Bracket
2. When mounting the Matrix-2000™ take into consideration these three ideal label position
angles: Pitch or Skew 10° to 20° and Tilt 0°, although the reader can read a code at any Tilt
angle.
Minimize Assure at least 10° Minimize
Figure 6 – Pitch, Skew and Tilt Angles
3. Refer to the Reading Features in chp. 7 to determine the distance your reader should be
positioned at.
5
1
Matrix-2000™ Reference Manual
STEP 3 – AUTOLEARNING CONFIGURATION
An autolearning procedure is available to reduce installation time.
Status and diagnostic information are clearly presented by means
of four colored LEDs, whereas the single push button and F1 and
F2 LEDs give immediate access to the following relevant
functions:
• Positioning (F1) gives visual feedback from the F1 LED to
help center the code in the reader's FOV without external
tools or software programs
• Auto Learn (F2) to self-detect and auto-configure
calibration and code setting parameters
• Restore Default (F3) to return to factory default settings
The colors and meaning of the four status LEDs are illustrated in the following table:
PWR (red) This LED indicates the device is powered
TRIG (yellow) This LED indicates the external trigger activity
This LED confirms successful reading. It is also used to signal successful startup. At power
READ (red)
COM (green)
on this LED turns on and after a few seconds turns off. If the startup is not successful, this
LED remains on.
This LED indicates active communication on the main serial port (Ethernet port for 21xx
models). This LED is also software configurable.
Auto Learn
If you are configuring your reader using the Auto Learn procedure:
1. Place the desired code in front of the reader at the correct reading distance (depending
on the model, see the Reading Features table in chp 7).
2. Enter the Auto Learn function (F2) by pressing and holding the push button until only the
F2 LED is on: Matrix-2000™ also beeps twice.
3. Release the button to enter the Auto Learn function.
Once entered, the reader acquires an image and automatically configures the optimal
Exposure Time and Gain parameters for static reading, as well as detecting and
recognizing the code, which is presented to it. The F2 LED blinks during this process.
4. At the end of the procedure, the new configuration parameters will be stored to
permanent memory, the F2 LED remains on continuously and then the function
automatically exits, the F2 LED turns off. Matrix-2000™ also emits 3 high pitched beeps.
If the Auto Learn calibration cannot be reached within a short timeout (max. 1 minute),
Matrix-2000™ will exit without saving the configuration parameters, the F2 LED
will not
remain on continuously but it will just stop blinking. In this case, Matrix-2000™ emits a long
low pitched beep.
To cancel the Auto Learn function without saving the configuration parameters, press and
hold the keypad button at any time during the procedure: the F2 LED will stop blinking and
Matrix-2000™ will emit a long low pitched beep.
6
RAPID CONFIGURATION
1
Autolearning configuration parameters can be saved to temporary memory
only by selecting the "Autolearning Setup>Store Memory" parameter in
VisiSet™.
NOTE
The Autolearning function on the keypad button can also be disabled by the
user via VisiSet™.
Auto Learn (F2)
green
Figure 7 – Auto Learn Function
Repeat the procedure if needed, to program different code symbologies, however you must
present only one code at a time to the reader.
Matrix-2000™ is able to decode any code symbology in its library with this procedure.
If your application has been configured using Auto Learn, your reader is ready.
If necessary you can use VisiSet™ for advanced reader configuration.
NOTE
Positioning (Optional)
At the end of the Auto Learn procedure, you can use the Positioning procedure to center the
code with respect to the reader's FOV.
1. While the desired code is in front of the reader at the correct reading distance, enter the
Positioning function (F1) by pressing and holding the push button until only the F1 LED is
on: Matrix-2000™ also beeps once.
2. Release the button to enter the Positioning function.
Once entered, the reader continuously acquires images and gives visual feedback using
the F1 LED to indicate when the code is centered with respect to the reader's FOV. Slow
blinking means that the positioning value must be improved.
3. To obtain the best value in terms of positioning, move the code and/or the reader so as to
position the code as close as possible to the center of the Field of View, keeping the
correct focus distance. Check F1 LED blinking: the best code positioning corresponds to
fast (almost continuous) blinking.
4. After a short timeout the function automatically exits, the F1 LED remains on continuously
and then stops blinking. Matrix-2000™ also emits 3 high pitched beeps.
If no valid code is present in the FOV, after about 3 minutes, Matrix-2000™ will automatically
exit, the F1 LED
Matrix-2000™ emits a long low pitched beep.
will not remain on continuously but it will just stop blinking. In this case,
7
1
Matrix-2000™ Reference Manual
To cancel the Positioning function, press and hold the keypad button at any time during the
procedure: the F1 LED will stop blinking and Matrix-2000™ will emit a long low pitched beep.
Positioning (F1)
yellow
Figure 8 – Positioning Function
Restore Default (Optional)
At any time you can use the Restore Default procedure to return the reader to the factory
default settings.
1. Enter the Restore Default function (F3) by pressing and holding the push button until both
the F1 and F2 LEDs are on: Matrix-2000™ also beeps three times.
2. Release the button to perform the Restore Default function.
Restore Default (F3)
= F1 yellow +
F2 green
Figure 9 – Restore Default Function
8
RAPID CONFIGURATION
1
STEP 4 – INSTALLING VISISET™ CONFIGURATION PROGRAM
VisiSet
• Autolearning Wizard for rapid configuration and for new users;
• Defined configuration directly stored in the reader;
• Communication protocol independent from the physical interface allowing to consider the
To install VisiSet™, turn on the PC that will be used for the configuration, running
Windows 98, 2000/NT, XP or Vista, then insert the VisiSet™ CD-ROM, wait for the CD to
autorun and follow the installation procedure.
This configuration procedure assumes a laptop computer, running VisiSet™, is connected to
the reader's auxiliary port.
After installing and running the VisiSet™ software program the following window:
™
is a Datalogic reader configuration tool providing several important advantages:
reader as a remote object to be configured and monitored.
Figure 10 - VisiSet™ Opening Window
Set the communication parameters from the "Options" menu. Then select "Connect", the
following window appears:
Figure 11 - VisiSet™ Main Window After Connection
The Autolearning Wizard option is advised for rapid configuration or for new users. It allows
reader configuration in a few easy steps.
9
1
Matrix-2000™ Reference Manual
STEP 5 – CONFIGURATION USING AUTOLEARNING WIZARD
1. Select the Autolearning Wizard button from the Main menu.
2. Place the desired code in front of the reader at the correct reading distance (depending
on the model, see the Reading Features table in par. 7.1).
3. Press the "Positioning" button. The reader continuously acquires images and gives visual
feedback in the view image window to indicate when the code is centered with respect to
the reader's FOV. Move the reader (or code) to center it. Press the Positioning button
again to stop positioning.
4. Select a Calibration Mode choice and press the "Calibrate" button.
3
4
5
Autolearning
Result
10
RAPID CONFIGURATION
1
The reader flashes once acquiring the image and auto determines the best exposure and
gain settings. If the code symbology is enabled by default, the code will also be decoded.
5. If the code symbology is not enabled by default, select a Code Setting Mode choice and
press the "Code Setting" button.
The Autolearning Result section of the Autolearning Wizard window shows the parameter
settings and the code type results.
6. Select a Saving Options choice and press the "Save" button.
6
7. Close the AutoLearning Wizard.
If your application has been configured using the VisiSet™ Autolearning
Wizard, your reader is ready. If necessary you can use VisiSet™ for advanced
NOTE
reader configuration.
11
1
Matrix-2000™ Reference Manual
ADVANCED READER CONFIGURATION
For further details on advanced product configuration, refer to the VisiSet™ Help On-Line.
The following are alternative or advanced reader configuration methods:
Advanced Configuration Using VisiSet™
Advanced configuration can be performed through the VisiSet™ program by selecting
Device> Get Configuration From Temporary Memory to open the Parameter Setup window in
off-line mode. Advanced configuration is addressed to expert users being able to complete a
detailed reader configuration. The desired parameters can be defined in the various folders
of the Parameter Setup window and then sent to the reader memory (either Temporary or
Permanent):
Figure 12 - VisiSet™ Parameter Setup Window
Host Mode Programming
The reader can also be configured from a host computer using the Host Mode programming
procedure, by commands via the serial interface. See the Host Mode Programming file on
the CD-ROM.
Alternative Layouts
If you need to install an Ethernet network, Pass-Through network, Multiplexer network or an
RS232 Master/Slave refer to chp. 6.
Code Quality Verification
Matrix-2000™ can be used as a Code Quality Verifier according to the ISO/IEC 15415,
ISO/IEC 15416, AS9132, and AIM DPM Standards. For more details see the Matrix-2000™
Code Quality Verifier Solution manual on the CD-ROM.
12
GENERAL FEATURES
2
2 GENERAL FEATURES
2.1 INTRODUCTION
Matrix-2000™ is a Datalogic compact 2D reader designed and produced to be a high
performance affordable solution for both linear and two-dimensional code reading
applications. Matrix-2000™ has been developed for use in numerous applications, including
PCB and electronic manufacturing, packaging lines, small item tracking, analysis machines
and document handling systems, and can also be easily integrated into a wide range of OEM
solutions.
Matrix-2000™ uses imaging technology and provides complete reading system functions by
integrating: lighting system, image acquisition, image processing, decoding and
communication into a single compact unit.
This technology intrinsically provides omni-directional reading.
Standard Application Program
A Standard Application Program is factory-loaded onto Matrix-2000™. This program controls
code reading, data formatting, serial port and Ethernet interfacing, and many other operating
and control parameters. It is completely user configurable from a Laptop or PC using the
dedicated configuration software program VisiSet™, provided on CD-ROM with the reader.
There are different programmable operating modes to suit various code reading system
requirements.
Quick, automatic calibration and positioning of the reader can be accomplished using the
Autolearning button and LEDs on top of the reader without the necessity of a PC.
Autolearning can also be performed through VisiSet™ through the Autolearning Wizard. This
tool includes visual feedback from the reader.

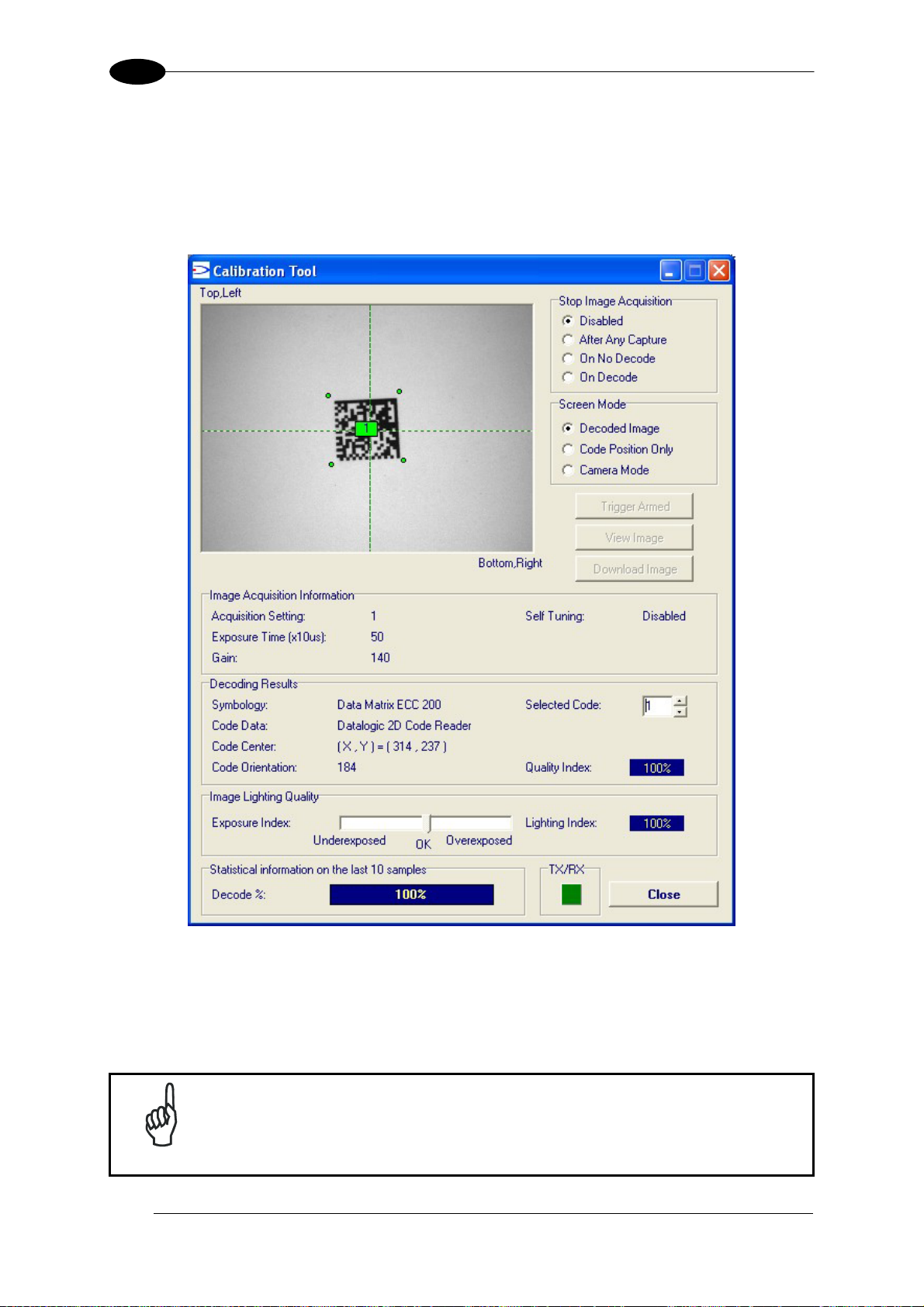

VisiSet™ provides a Calibration Tool to verify the exact positioning of the reader and to
maximize its reading performance.
Statistics on the reading performance can also be visualized through a dedicated window in
VisiSet™.
Symbol Verification can be performed through VisiSet™ when the reader has been installed
and setup as a Verifier station. For details see the Matrix Symbol Verifier Solution manual.
Programmability
If your requirements are not met by the Standard Application Program, Custom Application
Programs can be requested at your local Datalogic distributor.
13
2
Matrix-2000™ Reference Manual
2.2 DESCRIPTION
Some of the main features of this reader are given below:
• Decoding of most popular linear and stacked barcodes, 2D code symbologies and postal
codes
• Omni-directional reading
• Direct or 90° reading Window
• Quick installation without PC by using Autolearning button and F1, F2 LEDs
• Image Windowing function
• Frame rate up to 60 frames/sec (3600 frames/min)
• Up to 200 readable codes in the same reading phase
• Calibration Tool to verify exact code positioning in the Field of View and to maximize the
reading performance
• Ethernet interface (Matrix-21XX only) with TCP/IP socket for reader parameter
configuration, data and image transfer, HTTP server, FTP and mail client, etc.
• Windows-based VisiSet™ software to configure the reader parameter via PC serial or
Ethernet interface
• Code quality assessment according to ISO/IEC 16022, ISO/IEC 18004, ISO/IEC 15415,
ISO/IEC 15416 and AS9132 and AIM DPM standards.
• Different operating modes to suit various application requirements
• User-defined database of Image Acquisition Settings (parameter sets)
• Match Code option with a user-defined match code database
• Diagnostic software tools
• 2 serial communication interfaces
• General purpose optocoupled I/Os
• Supply voltage ranges from 10 to 30 Vdc
The reader is contained in a magnesium alloy housing; the mechanical dimensions are 121 x
73 x 57 mm and it weighs about 380 g.
The protection class of the enclosure is IP64 for all 20XX models; therefore the reader is
particularly suitable for industrial environments where protection against harsh external
conditions is required.
Electrical connection of Power, Host interfaces and I/O signals is provided through a 25-pin
connector (see Figure A, 9). In addition there is a 9-pin Auxiliary interface connector for
reader configuration (see Figure A, 10). A standard Ethernet RJ45 connector is present on
Matrix-21XX models (see Figure A, 11).
14
GENERAL FEATURES
2
The following indicators are located on the top of the reader:
PWR red LED indicates that the reader is connected to the power supply (see Figure A,
5).
TRIG yellow LED indicates external trigger activity (Figure A, 6).
READ red LED signals successful code decoding (Figure A, 7).
It is also used to signal successful startup. At power on this LED turns on and after a
few seconds turns off. If the startup is not successful, this LED remains on.
COM green LED is software configurable. As default it indicates: data transmission on the
main serial interface for Matrix-20XX models; Ethernet interface external connection
for Matrix-21XX models (Figure A, 8).
F1 yellow LED signals distance of code from the center of FOV during the Positioning
(Optional) procedure. The faster it blinks, the better Matrix-2000™ is positioned (see
Figure A, 4).
F2 green LED signals reader calibration with respect to image quality during the Auto
Learn procedure (see Figure A, 2).
The keypad
button is software programmable. By default it starts the Auto Learn or
Positioning procedure to calibrate and position the reader for quick installation without using
a PC (see Figure A, 3).
15
2
X
y
Matrix-2000™ Reference Manual
2.3 MODEL DESCRIPTION
The Matrix-2000™ reader is available in different versions according to the following
characteristics:
MATRIX - 2XXX-
Device Connectivit
0 = RS232/RS485 + RS232
1 = RS232/RS485 +
RS232+ Ethernet
Optics
1 = Ultra High Density (UHD)
2 = High Density (HD)
3 = Standard Density (STD)
4 = Low Density (LD)
5 = Medium Range (MR)
6 = Long Range (LR)
Image Sensor
1 = VGA CCD
Other Options
R = 90° Reading Window
2.4 ACCESSORIES
Order No. Accessory Description
93A051351 CAB-S01 Cable to CBX (1 m)
93A051352 CAB-S02 Cable to CBX (2 m)
93A051353 CAB-S05 Cable to CBX (5 m)
93A051354 CAB-S10 Cable to CBX (10 m)
93A301067 CBX100 Compact Connection Box
93A301069 CBX100LT Compact Connection Box Low Temp
93A301068 CBX500 Modular Connection Box
93ACC1808 BM100 Backup Module for CBX100/500
93ACC1809 * BM150 Display Module for CBX500
93ACC1810,
93ACC1811
93ACC1814 * BM400 DeviceNet Module IP65 for CBX500
93ACC1718 PG6002 AC/DC Power Supply Unit (US)
93ACC1719 PG6001 AC/DC Power Supply Unit (UK)
93ACC1720 PG6000 AC/DC Power Supply Unit (EU)
93ACC1790 LTC-630 Four Bar Lighting System Controller
93ACC1791 PH-1 Photocell Kit PNP
93ACC1728 MEP- 543 Photocell Kit NPN
93A401003 LT-100 Cone Lighting System
93A401004 LT-200 Spot Lighting System
93A401012 LT-210 Mini-Spot Lighting System
93A401008 LT-300 Ring Lighting System
93A401013 LT-314 45° Dark Field Ring Lighting System
93A401014 LT-316 60° Dark Field Ring Lighting System
93A401015 LT-410 Coaxial Lighting System
93A401016 LT-510 Mini-Dome Lighting System
93A401017 LT-511 Dome Lighting System
93A401018 LT-630 Four Bar Lighting System
93ACC1786 BK-410 Coaxial Lighting System Bracket
93ACC1787 BK-510 Mini-Dome Lighting System Bracket
93ACC1788 BK-511 Dome/Ring Lighting System Bracket
93ACC1789 BK-630 Four Bar Lighting System Bracket
93ACC1729 USX-60 Adjustable Bracket
93A201090 GFC-MATRIX-2000 90° Deflection Mirror
93ACC1841 ISO/IEC Calibration Chart Calibration Chart for Code Verifier Solution
* Accessories compatible with Matrix-2000™ application software 5.20 and later.
* BM300/BM310 Profibus Module STD/IP65 for CBX500
16
GENERAL FEATURES
2
2.5 APPLICATION EXAMPLES
Matrix-2000™ is profitably used in the omnidirectional reading of 2D, stacked, linear and
postal codes. The powerful LED illuminator, the Matrix 2XX1 60 fps CCD sensor and the 400
MHz CPU allow the decoding of fast moving codes (over 6.0 m/s) on industrial printing lines
(see Figure 13) and in automated document handling and mail processing systems (see
Figure 14).
Figure 13 - Matrix-2000™ Reading Station on a High Speed Printing Line
Figure 14 - Address Coded in Data Matrix Symbology for Automated Mail Processing
17
2
Matrix-2000™ Reference Manual
Matrix-2000™ assures the reading of deformed and / or overprinted codes, even though
damaged or printed on high reflective surfaces (see Figures 15,16,17).
Figure 15 - Unidose Flow-Pack with PDF417 Code
Figure 16 - Overprinted Barcode Readable by Matrix-2000™ also Through the Envelope Window Film
Figure 17 - Barcode Printed on Curved Surface Readable by Matrix-2000™ in spite of Image Optical
Distortion
Matrix-2000™ is also very powerful in reading low-contrast direct part marked codes (see
Figures 18, 19, 20, 21 and 22).
Figure 18 - Dot Matrix Code Directly Marked on Metal Surface by Using Dot Peening Technology
18
GENERAL FEATURES
2
Figure 19 - Dot Peening Marking on Metal Surface with Multi-dot per Code Element
Figure 20 - Directly Marked Dot Matrix Code Characterized by Outstanding Separation Distance between
Adjacent Code Elements
Figure 21 - Data Matrix Code Directly Marked on PCB Surface by Using Laser Etching Technology
Figure 22 - Dot Matrix Code Directly Marked on PCB Copper Pad by Using Ink-Jet Technology
19
2
Matrix-2000™ Reference Manual
2.6 EXTERNAL LIGHTING SYSTEMS
In some direct part marking applications best reading results are obtained by using an
external lighting system. A series of accessory illuminators are available which cover a
variety of applications.
The LT-100 Cone Lighting System provides a circular symmetrical light source designed for
the following applications:
• with uneven or noisy background surfaces
• where dot peening or laser etching codes are directly marked onto metal surfaces or
PCBs and need to be highlighted
• in the presence of highly reflective surfaces (metal, glass, etc.) causing direct reflections
Figure 23 - LT-100 Cone Lighting System
The LT-200 Spot Lighting System provides a high intensity light source designed for the
following applications:
• with uneven, noisy and scratched surfaces
• where dot peening or laser etching codes are directly marked onto metal surfaces or
PCBs and need to be highlighted. Here the use of more than one Spot Light can remove
any shadowing effect.
• in the presence of highly reflective surfaces (metal, glass, etc.) causing direct reflections.
Low light path to surface angles strongly reduce direct reflections.
20
Figure 24 - LT-200 Spot Lighting System
Loading...
