User's manual

Datalogic DLL2020-WO

Copyright © 1998, Datalogic.

This manual is copyrighted, with all rights reserved. Under the copyright laws, this manual may not, in whole
or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or
machine readable form without prior written consent of Datalogic.

Limited Warranty

Under all circumstances this manual should be read attentively, before installing and/or using the pro-duct.
In no event Datalogic will be liable for any direct, indirect, special, consequential or incidental damages
arising out of the use or inability to use this documentation or product, even if advised of the possibility of
such damages. In particular, Datalogic shall not be liable for any hardware, software, or data that is stored
or used with the product, including the cost of repairing, replacing or recovering the above. Datalogic
reserves the right to change parts of the device at any time without preceding or direct announcement to
the client.

Datalogic reserves the right to revise this manual, and to make changes in the contents without obli-gation
to notify any person or entity of the revision or change. A serial number appears on the product. Make sure
that this official registration number has not been removed. It should be used whenever servicing by
Datalogic or an authorized Datalogic dealer is ne-cessary.

Important

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
EN55022, and with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the user’s manual, may cause harmful interference to radio
communications. Operation of the equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense. Any unauthorized
changes or modifications to this equipment could void the user’s authority to operate this equipment.

For CE-countries:

- The Dll2020-wo is in conformity with the CE standards.

For USA & Canada:

- To be used with UL listed and CSA certified computers/POS systems.

- À utiliser avec des ordinateurs/systèmes POS registrés UL/certifiés CSA.

Radio and television interference

Operation of this equipment in a residential area can cause interference to radio or television reception. This
can be determined by turning the equipment off and on. The user is encouraged to try to correct the
interference by one or more of the following measures:

• Re-orientate the receiving antenna

• Relocate the device with respect to the receiver

• Move the device away from the receiver

• Plug the device into a different outlet in order to have the device and receiver on different branch
circuits

If necessary, the user should consult the manufacturer, an authorized Datalogic dealer or experienced
radio/television technician for additional suggestions. The booklet

"How to Identify and Resolve Radio-TV

Interference Problems"

, prepared by the Federal Communications Commission, can be of help. It can be

obtained from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004000003454.

P/N A232001 September

’

98

Table of contents

Preface i

Chapter 1 The DLL2020-WO 1

1.1 Unpacking the DLL2020-WO 2

1.2 Scanning bar codes with the DLL2020-WO 4

1.3 Scanner labelling 7

1.4 Maintaining the scanner 11

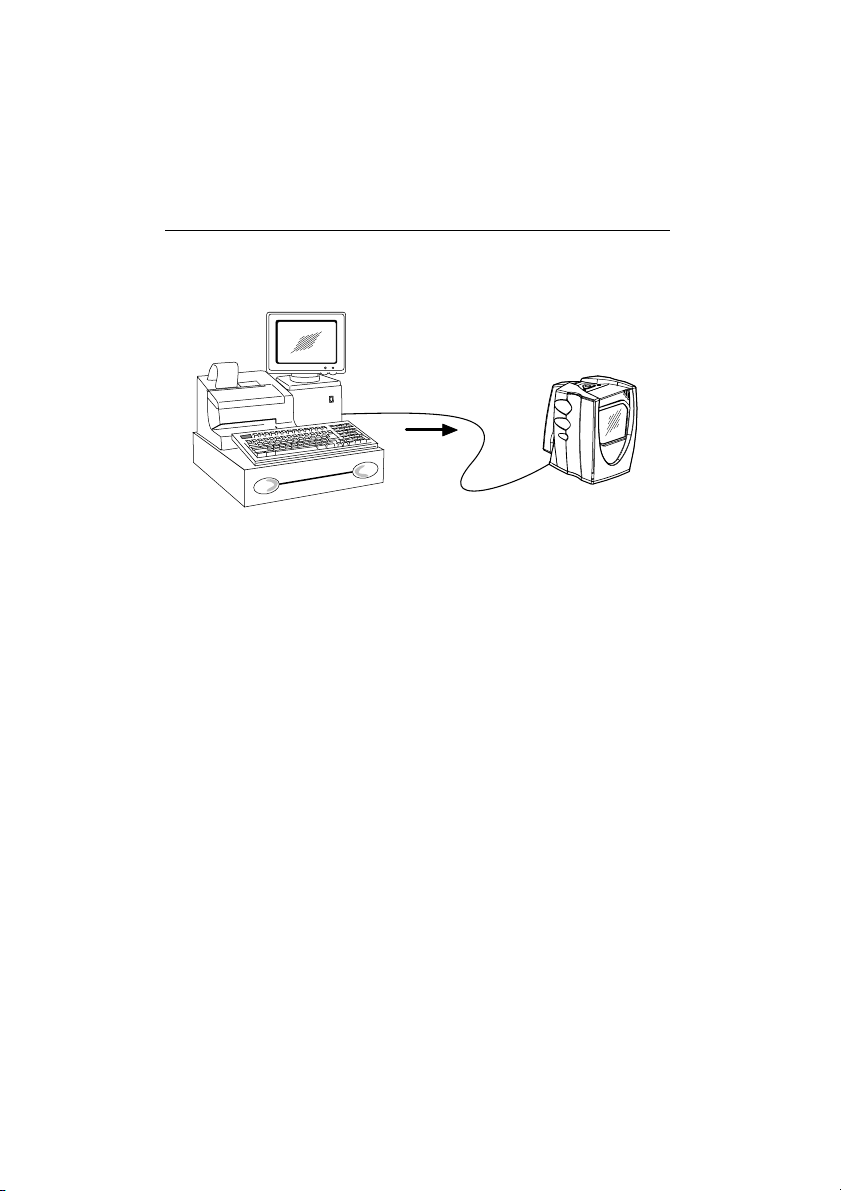

1.5 Controlling the scanner from the POS system 11

Chapter 2 Installing the DLL2020-WO 13

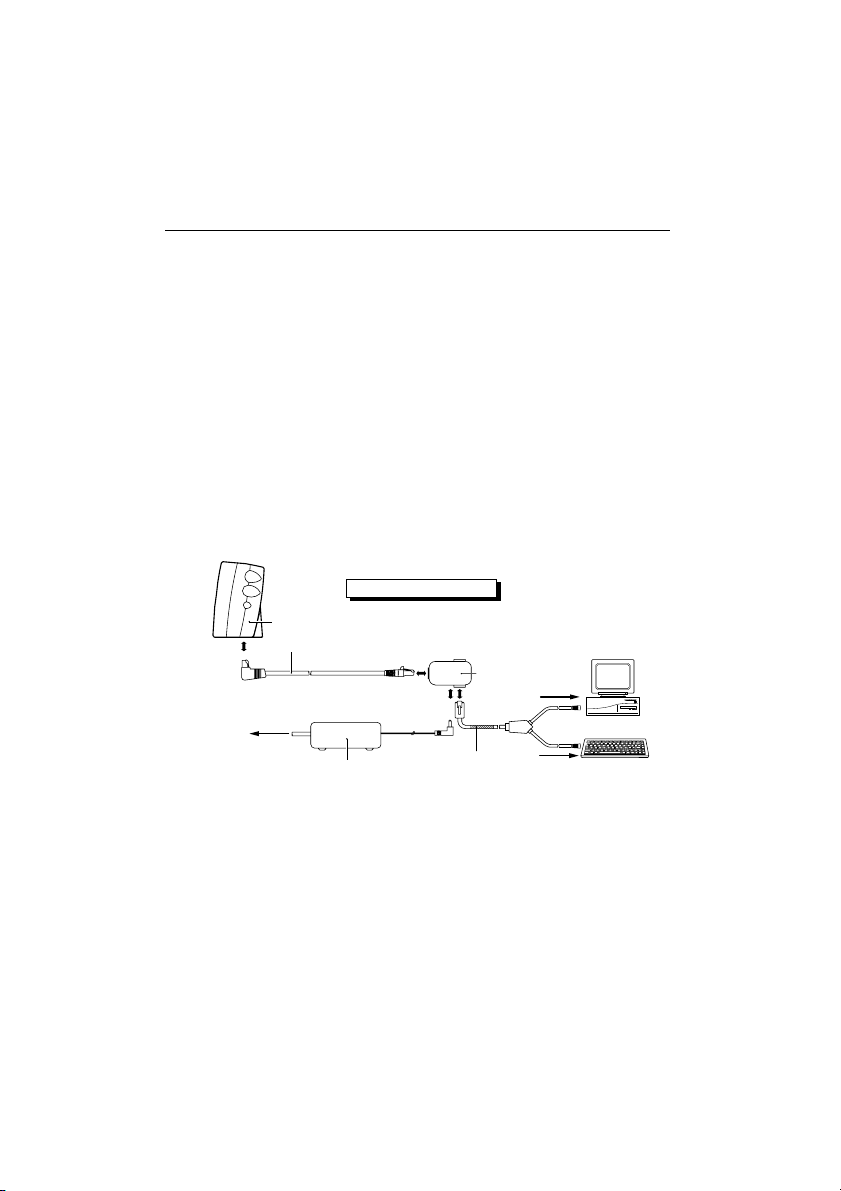

Installing the scanner 14

Appendices A. Connector types and pin definitions 22

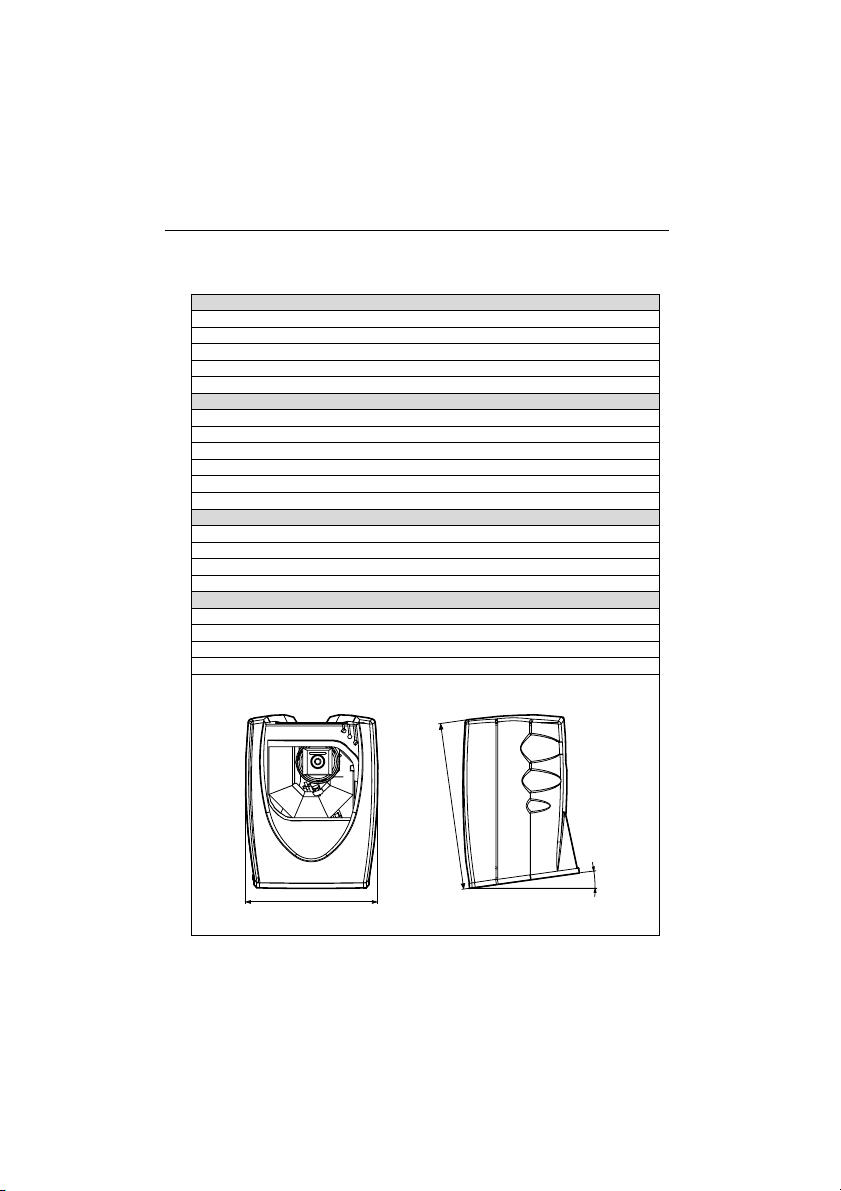

B. Technical specifications 23

C. Troubleshooting 24

Preface

The Datalogic DLL2020-WO is a high performance omni-directional scanner, which
provides optimal scanning conditions. The DLL2020-WO shares the same quality of
the GOLDRUSH

TM

polygon and Scantium decoder chip as Datalogic’s popular Hunter
H-3010, Pollux P-4010 and Castor C-5010 scanners. Together with its compact and
ergonomic design, operator fatique and other discomforts are less then any
competitive omni-directional scanner.

These characteristics make the DLL2020-WO especially suitable for installation in
small counters such as in drugstores, pharmacies, department stores, tobacconists,
kiosks, petrol stations, and convenience stores.

The omni-directional scan field of the DLL2020-WO generates a scan pattern of
16 lines, ensuring high performance scanning. Featuring an unequalled scan rate of
800 scans per second, the DLL2020-WO is an aggressive scanner.

Barcodes are read simply on presentation to the scanner window. However, the
ergonomic design of DLL2020-WO rubber sleeve, which fits naturally in the hand,
makes the unit easy to pick up when larger or heavier products have to be scanned.

The scanner con be installed ‘free-standing’ on a counter surface using its protective
rubber sleeve or without the sleeve, flush or surface fixed to check-out furniture,
making for a very neat installation.

The DLL2020-WO can also be supplied in different colours to match with corporate/­retail designs and schemes thus enhancing the check-out environment even further.

This manual contains two chapters and three appendices. The first chapter describes
the DLL2020-WO scanner, its general features as well as the way in which it can be
used. The precise instructions for installing the scanner are listed in the second
chapter. Default settings can be changed using the bar code labels in the
Configuration Guide supplied with the scanner. Appendix A shows the connector types
of the scanner. Technical specifications of the DLL2020-WO can be found in Appendix
B. Refer to Appendix C for troubleshooting if the scanner is not working properly.

Chapter 1

The DLL2020-WO

1.1 Unpacking the DLL2020-WO

Take the scanner and its accessories out of the box and remove all
packing materials. Refer to the packing list in order to ensure that you
have received all the items ordered. Visually inspect the scanner and
accessories for any visible traces of damage. Refer to the figure in
paragraph 1.3 to locate the interface label and verify if the scanner
interface corresponds with the host system interface. Immediately contact
your supplier if anything appears to be damaged, or if the supported
interface does not correspond with the host system interface.

Red LedGreen Led Good read buzzer

Detachable

handle

Sleep mode switch

Rubber sleeve

2 The DLL2020-WO

The various parts of the DLL2020-WO are:

Sleep mode switch If a sleep mode time-out has been programmed,

the scanner can be reactivated by pressing this
switch. The sleep-mode feature can be program­med by means of the menu labels in the
Configuration Guide.

NOTE: The default value for the sleep mode

time-out is set to 30 minutes. When the
scanner is in sleep mode, the LED is
intermittently flashing red.

Red LED The red LED indicates that the scanner is ready to

read a bar code.

Green LED The green LED indicates a good read.

Good read buzzer The buzzer sounds whenever data have been

correctly read. The frequency can be adjusted by
means of the menu labels from the Configuration
Guide.

Rubber sleeve A rubber sleeve encloses the scanner. The sleeve

protects the scanner, and takes care that it does
not slide when installed ‘free-standing’ on a counter
surface. Furthermore, its ergonomic design makes
the unit easy to pick up; it fits naturally in the hand.

Detachable handle A handle can be attached to the scanner,

depending on the preference of the user. The
handle makes the scanner easy to pick up, in case
large or heavy products need to be scanned.

The DLL2020-WO 3

1.2 Scanning bar codes with the DLL2020-WO

The DLL2020-WO is an omnidirectional scanner featuring a 4-directional
scan field with a 16-lines scan pattern. Bar codes can easily be read by
presenting them to the scanner. The scan volume is illustrated in the
figure above. The optimal reading zone lies between 3 and 15 cm from
the scanner window. However, bar codes can still be read up to 25 cm
(10 inch) from the scanner window.

25 cm

15 cm

X

Z

3 cm

4 The DLL2020-WO

The Dll2020-wo scanner can be used handsfree as well as hand held,
e.g.:

a) Handsfree scanning by presenting the item to the scanner.

b) Bar code labels can also be scanned in hand held mode, by taking the

scanner by the handle and hold it in front of the bar code label on the
product.

1

2

2

1

The DLL2020-WO 5

c) You can also hold the scanner without the handle.

1

2

6 The DLL2020-WO

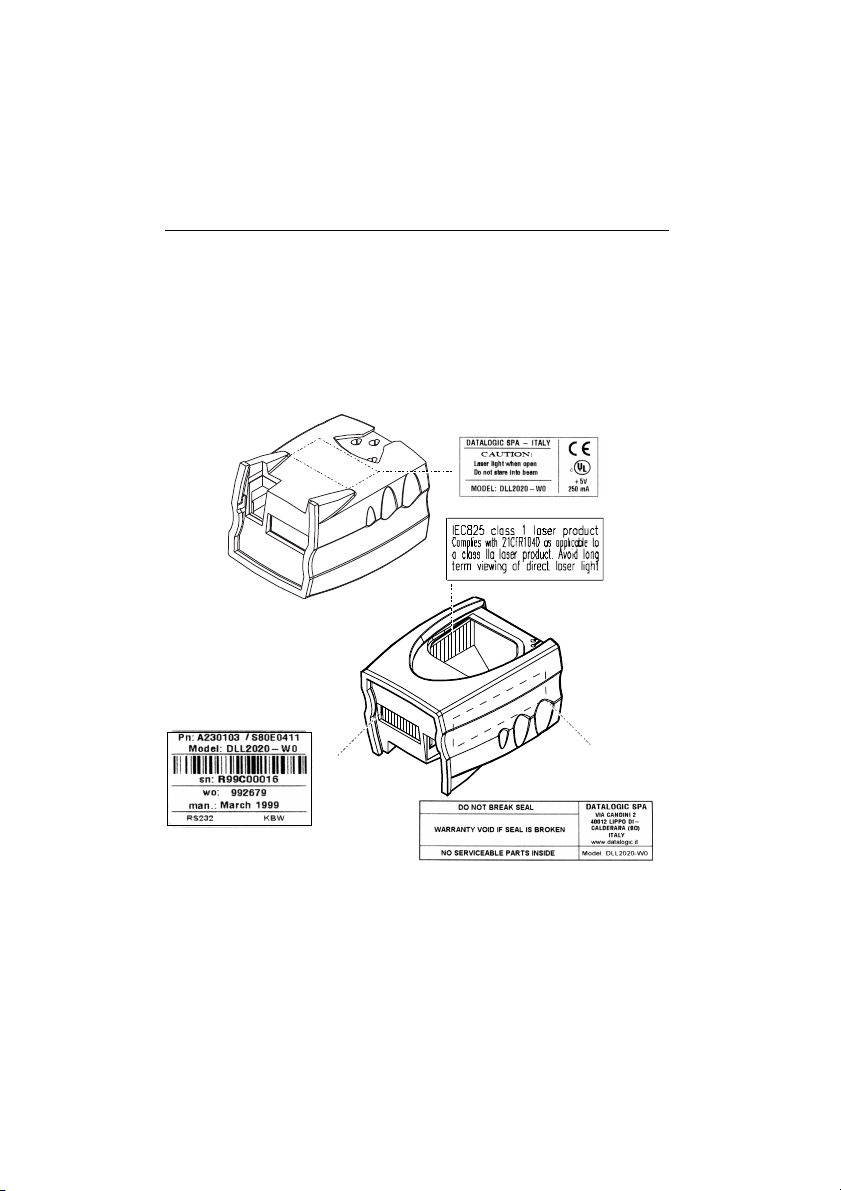

1.3 Scanner labelling

There are four labels on the scanner. The first three labels can be found
on the housing of the DLL2020-WO, as indicated in the figures below. The
fourth label is visible through the scanner window.
All the labels have been attached by the manufacturer and should in no
case be removed.

The scanner’s serial number can be found under the bar code label. This
official registration number is strictly related to the device. The supplier
may ask for this number when the scanner needs servicing.

The DLL2020-WO 7

Laser safety

English:

The DLL2020-WO scanner complies with safety standard IEC 825-1
(1993) for a Class 1 laser product. It also complies with U.S. 21CFR1040
as applicable to a Class IIa laser product. Avoid long term viewing of
direct laser light.

German:

Der Strichcode-Scanner DLL2020-WO entspricht den
Sicherheitsvorschriften nach IEC 825-1 (1993) für ein Laserprodukt der
Klasse 1. Er entspricht auch U.S. 21CFR1040, anwendbar auf ein
Laserprodukt der Klasse IIa. Vermeiden Sie langzeitiges Hineinblicken in
direktes Laserlicht.

Dutch:

De DLL2020-WO scanner voldoet aan de veiligheidsnormen IEC 825-1
(1993) voor een Klasse 1 laserprodukt. Tevens voldoet de scanner aan
U.S. 21CFR1040, van toepassing op een Klasse IIa laserprodukt. Vermijd
langdurig kijken in direkt laserlicht.

French:

Le scanner DLL2020-WO est conforme aux normes de sécurité IEC 825-1
(1993) s’appliquant à un produit laser de la classe 1. Il est également
conforme à la U.S. 21CFR1040 telle qu’elle s’applique à un produit laser
de la classe IIa. Eviter de rester exposé longtemps à la lumière directe du
laser.

Danish:

DLL2020-WO skanneren er i overensstemmelse med
sikkerhedsstandarden IEC 825-1 (1993) for laserprodukter i klasse 1. Den
er også i overensstemmelse med U.S. 21CFR1040, der gælder for
laserprodukter i klasse IIa. Undgå at se direkte på laserlys i længere
perioder.

8 The DLL2020-WO

Finnish:

DLL2020-WO-skanneri täyttää luokan 1 lasertuotteelle IEC 825-1:ssä
(1993) asetetut turvavaatimukset. Se täyttää myös U.S. 21CFR1040:ssa
asetetut vaatimukset siltä osin kuin ne koskevat luokan IIa lasertuotetta.
Vältä pitkäaikaista suoraan laservaloon katsomista.

Swedish:

Avsökaren DLL2020-WO uppfyller säkerhetsnormen IEC 825-1 (1993)
för laserprodukter av klass 1. Den uppfyller dessutom U.S. 21CFR1040
som gäller för laserprodukter av klass IIa. Undvik att titta i direkt laserljus
under längre perioder.

Norwegian:

DLL2020-WO skanneren er i samsvar med sikkerhetsstandarden IEC 825­1 (1993) for laserprodukter i klasse 1. Den er også i samvar med U.S.
21CFR1040 for laserprodukter i klasse IIa. Unngå å se langvarig på
direkte laserlys.

Italian:

Lo scanner DLL2020-WO è conforme alle norme di sicurezza IEC 825-1
(1993) relative ad un prodotto laser di Classe 1. È inoltre conforme alla
norma U.S. 21CFR1040 relativa ad un prodotto laser di Classe IIa. Evitare
l’esposizione prolungata all’emissione diretta di luce laser.

Portuguese:

O scanner DLL2020-WO está conforme as normas de segurança IEC 825­1 (1993) para a Classe 1 dos produtos laser. Também está conforme a
norma U.S. 21CFR1040 aplicada nos produtos laser da Classe IIa. Evite
expor os olhos directa e prolongadamente aos raios laser.

Spanish:

El scanner DLL2020-WO reune las normas de seguridad IEC 825-1 (1993)
para un producto laser de Clase 1. Y también reune las normas U.S.
21CFR1040 que se aplican a un producto laser de Clase IIa. Se debe
evitar mirar muy fijo en luz lasérica directa.

The DLL2020-WO 9

Optical The use of optical instruments with this product will

increase eye hazard. Optical instruments include
binoculars, microscopes and magnifying glasses
but do not include eye glasses worn by the user.

Radiant Energy The DLL2020-WO uses a low-power laser diode

operating at 650 nm in an opto-mechanical scanner
resulting in less than 0.7 mW peak output power.
Laser light observed at 15.0 cm (5.9 inch) above
the window through a 7 mm (0.28 in.) aperture and
averaged over 1000 seconds is less than 3.9 µW
per CDRH Class IIa specification. Do not attempt to
remove the protective housing of the scanner, as
unscanned laser light with a peak output up to 0.90
mW could be accessible inside.

Laser Light Viewer The scanner window is the only aperture through

which laser light may be observed on this product.
A failure of the scanner motor, while the laser diode
continues to emit a laser beam, may cause
emission levels to exceed those for safe operation.
The scanner has safeguards to prevent this
occurrence. If, however, a stationary laser beam is
emitted, the failing scanner should be disconnected
from its power source immediately.

Adjustments Do not attempt to make any adjustments to or

alteration of this product. Do not remove the
scanner’s protective housing. There are no user­serviceable parts inside.

CAUTION Use of controls or adjustments or performan-

ce of procedures other than those specified
herein may result in hazardous laser light
exposure.

10 The DLL2020-WO

1.4 Maintaining the scanner

The DLL2020-WO scanner requires little maintenance. Only occasional
cleaning of the scanner window is necessary in order to remove dirt and
fingerprints. The scanner can be cleaned during operation. To this end use
a non-abrasive glass spray cleaner and a soft lint-free cloth only.

1.5 Controlling the scanner from the pos system

The DLL2020-WO can be controlled from the POS system via the RS232C
interface. Controlling is accomplished by transmitting the following single­byte commands to the scanner. In the Datalogic default setting the
following commands are available (more details upon request):

When the scanner is disabled, the scanner motor will remain switched-on
until the scanner goes into sleep mode.

ASCII code

0E Hex

0F Hex

05 Hex

function

enable (cancels disable)

disable

power-up re-initialization

byte is also called:

Shift Out or <Ctrl-N>

Shift In or <Ctrl-O>

ENQ or <Ctrl-E>

12 Hex

sleep

DC2 or <Ctrl-R>

14 Hex

wake (cancels sleep)

DC4 or <Ctrl-T>

The DLL2020-WO 11

POS system

Polaris P-7010

Scanner control

12 The DLL2020-WO

DLL2020-WO

Chapter 2

Installing the DLL2020-WO

14 Installing the DLL2020-WO

2.1 Installing the scanner

This chapter describes the instructions necessary for installing the
DLL2020-WO scanner.
Due to many POS systems on the market, a large number of
communication cables is available. Make sure that you have the right
cable to connect the scanner to your POS or computer.

Follow these steps carefully in order to install the scanner.

1. Locate the optimal scanner position in relation to the counter surface.

Pay attention to the product flow, the distance to the counter edge and
convenience for the operator.

■ The scanner and the host system must be switched off before

starting the installation of the scanner. By following this precaution
you prevent any electrical damage.

■ You are advised to install the scanner in an air circulated place out

of direct sunlight.

NOTES

Installing the DLL2020-WO 15

2. You have four options to connect the scanner to your POS or

computer.

A) RS232 direct power

For those systems which supply electrical power on the serial port
(minimal requirements: +5 V dc, 250 mA), the following set-up is
applicable.
Plug the cable with the 10-pin modular jack into the scanner port
until a firm ‘click’ is heard.
Plug the other connector of the cable into the appropriate serial
port of your POS or computer.

RS 232 direct power

Polaris

To host

Cable

Host

DLL2020-WO

16 Installing the DLL2020-WO

B) Keyboard Wedge direct power

For those systems which supply electrical power on the keyboard
port (minimal requirements: +5 V dc, 250 mA), the following set-up
is applicable.
Plug the cable with the 10-pin modular jack into the scanner port
until a firm ‘click’ is heard.
Connect the female connector at the other cable end to the
keyboard.
Plug the male connector into the keyboard port of your computer.

Keyboard Wedge direct power

Polaris

Cable

computer

To computer

To keyboard

DLL2020-WO

Installing the DLL2020-WO 17

C) RS232 non direct power

For those systems which do not supply electrical power on the
serial port, the following set-up is applicable.
Plug the cable with the 10-pin modular jack into the scanner port
until a firm ‘click’ is heard.
Plug the other connector into the splitter box, as illustrated in the
figure below. Plug the communication cable with the 8-pin modular
jack into the RS232 port of the splitter box. Plug the other
connector of the communication cable into the appropriate serial
port of your POS or computer. Connect the Datalogic power supply
unit to the power supply port of the splitter box. Power on the
scanner by connecting the IEC power cord to the AC/DC power
supply and by plugging the AC power cord into an AC outlet.

RS 232 non-direct power

Polaris

Cable

Splitter box

Power supply

Communication

cable

RS - 232

To host

To AC

Power outlet

Host

DLL2020-WO

18 Installing the DLL2020-WO

D) Keyboard Wedge non direct power

For those systems which do not supply electrical power on the
keyboard port, the following set-up is applicable.
Plug the cable with the 10-pin modular jack into the scanner port
until a firm ‘click’ is heard.
Plug the other connector into the splitter box as illustrated in the
figure below. Plug the communication cable with the 8-pin modular
jack into the Keyboard Wedge port of the splitter box. Connect the
female connector at the other end of the cable to the keyboard.
Plug the male connector into the keyboard port of your computer.
Connect the Datalogic power supply unit to the power supply port
of the splitter box. Power on the scanner by connecting the IEC
power cord to the AC/DC power supply and by plugging the AC
power cord into an AC outlet.

Once the scanner has been installed, you can start scanning bar
code labels.
If you want to change the default settings of the scanner, proceed to
the Configuration Guide supplied with the scanner.

Polaris

Cable

Splitter box

Power supply

Communication

cable

KBW

To AC

Power outlet

To keyboard

To computer

Computer

Keyboard Wedge non direct power

DLL2020-WO

Installing the DLL2020-WO 19

OPEN PROGRAMMING MODE

1.

To select the scanner interface (RS232 factory default), scan the
following codes:

1. Open the scanner Programming Mode by scanning code 1

2. - Return to RS232 default by scanning code 2 OR

- Return to Keyboard Wedge default by scanning code 3

IMPORTANT

8 712345 100001

20 Installing the DLL2020-WO

RETURN TO RS232 DEFAULT

2.

IMPORTANT: Programming Mode is closed after scanning this code.

RETURN TO KEYBOARD WEDGE DEFAULT

3.

IMPORTANT: Programming Mode is closed after scanning this code.

712345 100100

712345 100131

Appendices

A. Connector types and pin definitions
B. Technical Specifications
C. Troubleshooting

22 Appendices

A. Connector types and pin definitions

The Dll2020-wo has a dual interface: RS232/Keyboard Wedge. The pin
definition for the scanner port and the connector to be used for the port
are shown in the connection diagram below.

Connection Diagram

PC - CLOCK

DESCRIPTION

RJ - 48 PCB
( front view )

Scanner port 10 pin connector

CTS
RXD

Pin 1 Pin 10

TXD
RTS
GND

KB - DATA

KB - CLOCK

PC - DATA

+5V

Pin 1

RJ - 48 Cable - connector

( front view )

Pin 10

1

PIN

2
3
4
5
6
7
8
9

10

Use approved Datalogic cables only.

IMPORTANT

Slot for
screwdriver

Locking pin

1

2

Removing the RJ-48 connector

Appendices 23

B. Technical specifications

Electrical

Power supply voltage 100 - 250 V ac, 50/60 Hz
DC input to scanner + 5 V dc ±5%, 250 mA
Dual interface RS232/Keyboard Wedge

Optical

Light source Visible laser diode (650nm)
Depth of field 250 mm
Scan pattern 4 directions scan field, 16 lines scan pattern
Scan rate 800 scans / second

Decoding

Bar code types EAN/UPC/JAN + Add-on
Code 128, EAN 128, Code 39, Code 32, Codabar, ITF

Physical

Weight 0.3 kg
Dimensions L x W x D: 100 x 80 x 60 mm
: 3.9 x 3.1 x 2.4 inch

Front view Side view

98.8 mm

78.2 mm

8.00°

24 Appendices

C. Troubleshooting

This section contains information on solving problems you may encounter
when using the scanner. If troubles occur, take a moment to read the
information in this section. However, before referring to the diagnostic tips
make sure that the scanner is installed as described in Chapter 2 and that
all cables are properly connected.

Environmental

Operating temperature 0° C ~ 40° C
Humidity 0% ~ 95% RH (non-condensing)

Safety

Laser safety IEC 825-1 (1993) Class 1, U.S. 21CFR1040 Class IIa
Electrical safety EN 60950 second edition
UL1950 (third edition), c-UL (according CSA22.2.950-95)

EM Compatibility

Radio and TV interference EN 55022 Class B (1994), FCC part 15 Class A (1992)
Harmonic current emissions EN 61000-3-2 (1995)
EM-immunity EN 50082-1 (1992) based on:
ElectroStatic Discharge (ESD) IEC 801-2 (1991)
Radio frequency immunity IEC 801-3 (1984) / ENV 50140 (1993)
Electrical fast transient IEC 801-4 (1988)

Appendices 25

The scanner is on but a bar code cannot
be read. The LED is red.

Diagnostic Tips

n The scanner window is dirty. Clean the

n scanner window as described in the
n Maintenance section.

n The presented bar code type is not

n enabled. Select the bar code type with
n the Configuration Guide.

n The scanner is disabled by the host.

n Refer to Section 1.5.

n The bar code type you presented to the

n scanner is not supported by the Polaris.

Problem

The scanner is on, but the motor is not
rotating. A bar code cannot be read.
The LED is intermittently flashing red.

The red LED and green LED are alternating.

The red LED and green LED are
alternating and beeps are heard.

The scanner does not accept more than
two or three bar codes.

Both the red LED and green LED are on.

Both the red LED and green LED are blinking.

The scanner is in sleep mode. Press the
switch on top of the scanner to reactivate
the scanner (or use the wake protocol.
Refer to section 1.5).

Mirror motor is defective and must be
replaced (Authorized personnel only).

Possible failure of the scanning safeguard
circuit. Immediately disconnect the scanner
from its power source. Contact your
supplier.

There is no proper handshaking with the
host system. Switch the host system on
and check connection and communication
settings.

The laser is not functioning. The laser is
defect. Contact your supplier.

The ambient temperature is too high. Make
sure the scanner has enough air ventilation
and is not placed in direct sunlight.

26 Appendices

The green LED stays on.

A bar code is read by the scanner but
not accepted by the host system.

Diagnostic Tips

The scanner is continuously seeing a bar
code. Remove all bar code labels from the
scan volume of the scanner and try again.

The scanner cannot send the data to the
host system. There is no proper
handshaking between the scanner and the
host. Scanner buffer is full. Make sure that
all cables are connected and your host
system is ready to receive data.

The scanner is in test mode.

Power off and on the scanner

The communication cable is not connected
to the serial port of your host system.
Refer to the manual of your host system
to locate the serial port.

The communication settings of the host
and scanner do not match. Ensure that the
setting value for both devices are the same.
For proper adjustment values see the
Configuration Guide.

The communication cable does not suit
your host system. Contact your supplier for
the correct communication cable.

The data format is not supported by the
software running on the host system.

Problem
