REFERENCES

CONVENTIONS

This manual uses the following conventions:

"User" refers to anyone using a DL Cordless Card™. "DLCC" refers to the DL Cordless Card™. "You" refers to the System Administrator or Technical Support person using this manual to install, configure, operate, maintain or troubleshoot a DLCC.

REFERENCE DOCUMENTATION

For further details refer to the card Quick Reference Manual and to the RHINO™ Reference Manual.

SERVICES AND SUPPORT

Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the including:

•

PRODUCTS

Search through the links to arrive at your product page where you can download specific

SERVICES & SUPPORT

•

• CONTACT US E-mail form and listing of Datalogic Subsidiaries

Manuals and Software & Utilities including:

Datalogic Services - Warranty Extensions and Maintenance Agreements

Authorised Repair Centres

links indicated for further information

COMPLIANCE

RADIO COMPLIANCE

Contact the competent authority responsible for the management of radio frequency devices of your country to verify the eventual necessity of a user license. Refer to the web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm for further information.

N2468

WEEE COMPLIANCE

Informazione degli utenti ai sensi della Direttiva Europea 2002/96/EC

L’apparecchiatura che riporta il simbolo del bidone barrato deve essere smaltita, alla fine della sua vita utile, separatamente dai rifiuti urbani.

Smaltire l’apparecchiatura in conformità alla presente Direttiva consente di:

 evitare possibili conseguenze negative per l’ambiente e per la salute umana che

potrebbero invece essere causati dall’errato smaltimento dello stesso;

 recuperare materiali di cui è composto al fine di ottenere un importante risparmio di

energia e di risorse.

Per maggiori dettagli sulle modalità di smaltimento, contattare il Fornitore dal quale è stata acquistata l’apparecchiatura o consultare la sezione dedicata sul sito www.mobile.datalogic.com.

Information for the user in accordance with the European Commission Directive 2002/96/EC

At the end of its useful life, the product marked with the crossed out wheeled wastebin must be disposed of separately from urban waste.

Disposing of the product according to this Directive:

 avoids potentially negative consequences to the environment and human health

which otherwise could be caused by incorrect disposal

 enables the recovery of materials to obtain a significant savings of energy and

For more detailed information about disposal, contact the supplier that provided you with the product in question or consult the dedicated section at the website www.mobile.datalogic.com.

Information aux utilisateurs concernant la Directive Européenne 2002/96/EC

Au terme de sa vie utile, le produit qui porte le symbole d'un caisson à ordures barré ne doit pas être éliminé avec les déchets urbains.

Éliminer ce produit selon cette Directive permet de:

Pour obtenir des informations complémentaires concernant l'élimination, veuillez contacter le fournisseur auprès duquel vous avez acheté le produit ou consulter la section consacrée au site Web www.mobile.datalogic.com.

Información para el usuario de accuerdo con la Directiva Europea 2002/96/CE

Al final de su vida útil, el producto marcado con un simbolo de contenedor de bassura móvil tachado no debe eliminarse junto a los desechos urbanos.

Eliminar este producto de accuerdo con la Directiva permite de:

Para obtener una información más detallada sobre la eliminación, por favor, póngase en contacto con el proveedor donde lo compró o consultar la sección dedicada en el Web site www.mobile.datalogic.com.

resources.

 éviter les retombées négatives pour l'environnement et la santé dérivant d'une

élimination incorrecte

 récupérer les matériaux dans le but d'une économie importante en termes d'énergie

et de ressources

 evitar posibles consecuencias negativas para el medio ambiente y la salud derivadas

de una eliminación inadecuada

 recuperar los materiales obteniendo así un ahorro importante de energía y recursos

vii

Benutzerinformation bezüglich Richtlinie 2002/96/EC der europäischen Kommission

Am Ende des Gerätelebenszyklus darf das Produkt nicht über den städtischen Hausmüll entsorgt werden. Eine entsprechende Mülltrennung ist erforderlich.

Beseitigung des Produkts entsprechend der Richtlinie:

 verhindert negative Auswirkungen für die Umwelt und die Gesundheit der Menschen  ermöglicht die Wiederverwendung der Materialien und spart somit Energie und

Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das Produkt erworben haben, oder besuchen sie unsere Hompage unter www.mobile.datalogic.com.

Resourcen

viii

QUICK START

The following can be used as a checklist to verify all of the steps necessary for complete installation of the DL Cordless Card™ for a DOS terminal and for a laptop (with two PCMCIA overlaid slots for PC cards of type II and with Windows 98, ME, XP, and later versions).

Installing to portable PC

1) Read all information in the section "Safety Precautions" at the beginning of this manual.

2) Start your PC.

3) Insert the DLCC correctly in the PCMCIA slot. Refer to the PC user's manual.

Figure 1 - Laptop Card Installation

A) Windows notifies the PC has a new hardware device (DLCC); B) Windows searches for a driver; C) Insert the enclosed installation CD-ROM and follow the procedure; D) At the end of the driver installation, Windows assigns DLCC a virtual

COM port.

4) Configure the DLCC address according to your application. See "Configuration Methods".

The default communication parameters of the COM port are: 9600 baud, no parity, 8 data bits, 1 stop bit, handshaking disabled

NOTE

The installation is now complete.

Installing to DOS Terminal

Read all information in the section "Safety Precautions" at the beginning of this manual.

1) Rhino™ will recognize the card if the correct drivers are loaded. Therefore, before inserting the card into the terminal make sure that:

- in NEWCFG.SYS the driver for the PCMCIA serial ports is loaded:

A:\PCMCIA\PCMSCD.EXE

- the scan engine driver is correctly configured (COM 3, interrupt 5) and

loaded after PCMSCD.EXE: A:\DRIVERS\REDIR.SYS -c3 -i5 -b3

The following is an example of the NEWCFG.SYS:

;Load PCMCIA drivers DEVICE=A:\PCMCIA\CNFIGNAM.EXE /DEFAULT DEVICE=A:\PCMCIA\PCMSSC40.EXE DEVICE=A:\PCMCIA\PCMCSFUL.EXE DEVICE=A:\PCMCIA\PCMRMAN.SYS DEVICEHIGH=A:\PCMCIA\PCMSCD.EXE

; Scan Engine Device Driver ; (Emulate SE1200 on Com3 @ 9600 N-8-1 Irq5) DEVICEHIGH=A:\DRIVERS\REDIR.SYS -c3 -i5 -b3

2) Insert the DLCC correctly in the PCMCIA slot. Refer to the terminal user's manual.

Figure 2 - DOS Terminal Card Installation

3) Start the DOS terminal. The system assigns DLCC a virtual COM port (COM 3, interrupt 5).

4) Configure the DLCC address according to your application. See "Configuration Methods" paragraph.

The default communication parameters of the COM port are: 9600 baud, no parity, 8 data bits, 1 stop bit, handshaking disabled

NOTE

The installation is now complete.

CONFIGURATION METHODS

DLCC configuration can be performed by four methods:

• DL Mobile Configurator™ to set the primary DLCC parameters;

• DL Sm@rtSet™ software configuration program;

• configuration strings sent from the Host via COM port;

• DLCARD.EXE DOS Configuration Program to perform a complete

configuration of DLCC.

Your card is supplied with its own Quick Reference Manual which provides basic application parameter settings using configuration strings, default values, and specific technical features. You can see either your card's Quick Reference Manual or this manual for

If you need to change the default settings for your specific application, see chapter 3 and the Examples in appendix A.

DL Mobile Configurator™

Through this Windows-based utility program it is possible to configure the terminal and set the primary DLCC parameters from a PC. To send the configuration to the terminal connect the PC to Rhino™ via RS232. For more details about this configuration method refer to the DL Mobile Configurator™ manual.

DL Sm@rtSet™

DL Sm@rtSet™ program, available on the Datalogic website, is a Windows-based utility program providing a quick and user-friendly configuration method. It allows defining the complete DLCC configuration and sending it directly to the card via virtual COM port. Connect to www.datalogic.com/services/support/ to download the software.

Configuration Strings from Host

This configuration method may be used for initial and complete configuration (see chapter 2) by sending the desired strings provided in chapter 3 through the COM port. Batch files containing the desired parameter settings can be prepared to configure the card quickly and easily. Reference notes describing the operation of more complex parameters are given in chapter 4.

initial configuration.

To use this manual for initial setup see chapter 2.

xii

DLCARD.EXE DOS Configuration Program

This configuration method allows setting DLCC through a vehicle mounted terminal running the DOS operating system. Upon start, the DOS DLCARD.EXE program checks communication with DLCC. If the test is successful, the program will open the file DLCARD.INI that includes a list of keywords. The keywords accepted are the following:

• RESET_CFG, to reset card configuration to default (possible values: TRUE or FALSE)

• ADDRESS, to set the DLCC address (range 0 to 1999)

• TERMINATOR, to set the terminator (possible values: CR, CR+LF or NONE)

• CMD, to send any command configuration string

Here is an example of DLCARD.INI file:

____________________________________________________________

[main] reset_cfg = TRUE address = 1973 terminator = cr

[commands] ;set minimum destination address cmd = $+MS1234$-

;set maximum destination address cmd = $+MT1235$-

____________________________________________________________

The DLCC will be set consequently.

In the DOS command line, if you launch the DLCARD.EXE program with the parameter /?, the list of all the possible parameters will be shown.

Example: C:\ DLCARD /?

xiii

xiv

INTRODUCTION

1 INTRODUCTION

The DL Cordless Card™ is a PCMCIA card developed to provide wireless 433 MHz RF communication between a laptop or a vehicle mounted terminal (Host) and Datalogic RF devices or base stations, which are STAR-System™ compatible:

Gryphon™ M Readers

Dragon™ M Laser Scanners

STARModem™ Radio Modems

Formula Basic Line RF Terminals (F734-E/RF, F725-E/RF, F660-E/RF)

STARGATE™ Base Stations

1.1 OVERVIEW

DLCC provides a wireless devices. DLCC installed in a vehicle mounted terminal is a Server (receiver) to the RF Devices and also a Client (transmitter) to STARModem, which receives data for the printer (Figure 3). STAR-System™ uses the Narrow Band RF radio and Datalogic CSMA/CA protocol to automatically link and manage all the RF devices in the system. This protocol manages the data transmission using a 16-bit CRC checksum. All RF devices in the system must implement the CSMA/CA protocol and therefore be configured using the STAR-System™ setup procedure.

bi-directional communication between the Host and the RF

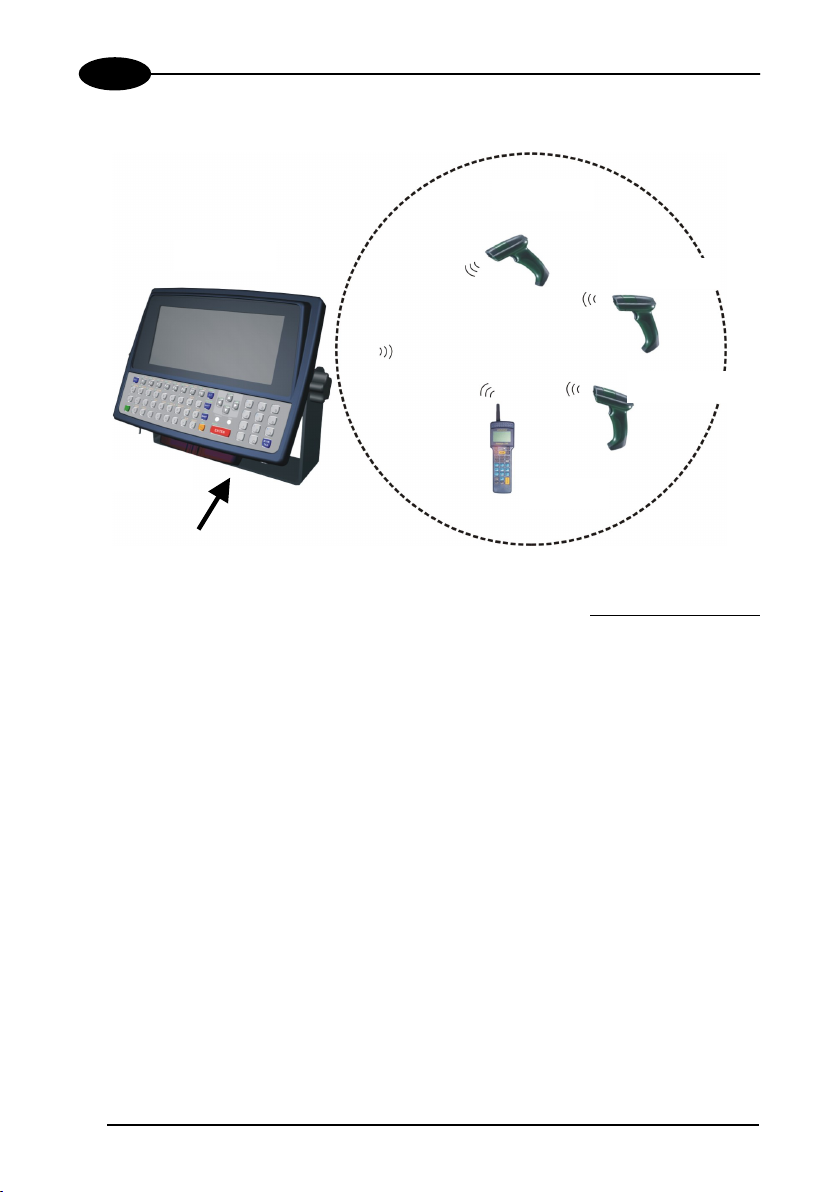

Figure 3 – Bi-directional communication.

To configure the card for operating in this mode refer to paragraph 2.2.

DL CORDLESS CARD

1.2 LED INDICATOR

DL Cordless Card™ has one red LED as displayed in the following figure:

LED

Indicator

The LED signals activity on PCMCIA interface.

Figure 4 - DLCC LED Indicator

INITIAL SETUP

2 INITIAL SETUP

For a correct DLCC configuration keep in mind the following:

• when using the DLCC for the first time, set the desired card address via COM Port, since its factory default address is "Undefined";

2.1 CONFIGURATION STRINGS

When using a DLCC on a terminal or a portable PC, initial setup can be performed via COM port by sending the configuration strings to the card using any terminal emulation program, for example Hyper Terminal.

Ensure that your PC COM port is set as follows: 9600 baud, no parity, 8 data bits, 1 stop bit, handshaking disabled.

NOTE

The programming sequence is the following:

Command $-

Enter configuration environment

Example

Command programming sequence:

$+ RC1237 $- CR

DLCC address: 1237

Enter configuration environment

If you sent a wrong configuration string, you have to wait for a period of time equal to Rx timeout (default: 5 sec.) before sending the

NOTE

following configuration string.

Carriage return character (0D Hex.)

Exit and Save configuration

Character sequence in following tables

Carriage return character (0D Hex.)

Exit and Save configuration

DL CORDLESS CARD™

2.2 DLCC SETUP

RESTORE DEFAULT

Whenever necessary, send the following string to DLCC via COM Port to restore its default values. Otherwise skip to step 2:

Restore DLCC Default

This command does addresses, nor the RF Baud Rate parameters.

not change the DLCC address nor the destination device

$+$*CR

SET RADIO ADDRESSES

Follow the procedure below to set the DLCC radio address and prepare it to receive and transmit data to all devices included in the range from the First to the Last destination device.

Enter Configuration

Set DLCC Radio Address xxxx = four digits for the DLCC address (from 0000 to 1999). This address must be unique.

RCxxxx

First Destination Device Address

xxxx = four digits for the Destination Device address (from 0000 to 1999).

Last Destination Device Address

xxxx = four digits for the Destination Device address (from 0000 to 1999). If transmitting to one Destination device only, this selection is not required.

Exit and Save Configuration

Step 4 and 5 can be omitted when the card is used only to receive data (Server).

When a range of cable-connected destination devices (i.e. a Stargate™ RS485 network) is defined, DLCC activates roaming towards all these devices.

MSxxxx

MTxxxx

$-CR

CONFIGURATION

3 CONFIGURATION

Once the card is setup, you can change the default parameters to meet your application needs by sending the desired strings to the card via COM Port.

The following table lists all configuration commands which do not require the $character:

Description String Enter Configuration

Exit and Save Configuration

Restore Default

Transmit Software Release

Transmit Configuration

In this manual, the configuration parameters are divided into logical groups making it easy to find the desired function based on its reference group.

The configuration parameter groups are the following:

COM parameters allow the configuration of the COM port.

DATA FORMAT parameters regard the messages sent and received via COM port.

RADIO PARAMETERS allow configuration of radio protocol parameters.

$+$*CR

$+$!CR

$+$&CR

NOTE

It is strongly recommended to read par. 4.1 in Radio and Serial Communication controls and the example applications in appendix A for correct parameter settings.

COM PORT PARAMETERS

     

ACK/NACK P

 

NTER-CHARACTER DELAY

 

The programming sequence is the following:

Command

AUD RATE

ARITY

ATA BITS

D S

TOP BITS

ANDSHAKING

FIFO

IMEOUT

RX T

RAME PACKING

ROTOCOL

         

Carriage return character (0D Hex.)

Exit and Save configuration

Character sequence in following tables

Enter configuration environment

COM PORT

Description String

AUD RATE

150 baud

300 baud

600 baud

1200 baud

2400 baud

4800 baud

9600 baud

19200 baud

38400 baud

57600 baud

ARITY

None

Even parity

Odd parity

ATA BITS

CD0 CD1 CD2 CD3 CD4 CD5 CD6 CD7 CD8 CD9

CC0 CC1 CC2

7 bits

8 bits

9 bits

TOP BITS

1 bit

2 bits

CA0 CA1 CA2

CB0 CB1

COM PORT

Description String

ANDSHAKING

see par. 4.2.1

Disable

Hardware (RTS/CTS)

Software (XON/XOFF)

RTS always ON

Modem (RTS/CTS)

ACK/NACK P

ROTOCOL

see par. 4.2.2

Disabled

Enable ACK/NACK

Enable DATA/NACK

FIFO

see par. 4.2.4

Disable

Enable

NTER-CHARACTER DELAY

Inter-character delay (ms)

RX T

IMEOUT

CK00 – CK99

see par. 4.2.3 and par. 4.2.5

CE0 CE1 CE2 CE3 CE4

ER0 ER1 ER2

ME1 ME0

RX Timeout (sec)

RAME PACKING

Frame + [CR]

[STX] + Len + frame + [CR]

Frame after timeout

CL00 – CL99

see par. 4.2.5

ML0 ML1 ML2

DATA FORMAT

     

The programming sequence is the following:

Command

C A A

EADER

ERMINATOR

EADER POSITION

ODE LENGTH

DDRESS STAMPING

DDRESS DELIMITER

     

Carriage return character (0D Hex.)

Exit and Save configuration

Character sequence in following tables

Enter configuration environment

DATA FORMAT

Description String

EADER

No header

One character header

Two character headers

Three character headers

Four character headers

Five character headers

Six character headers

Seven character headers

Eight character headers

ERMINATOR

No terminator

One character terminator

Two character terminators

Three character terminators

Four character terminators

Five character terminators

Six character terminators

Seven character terminators

Eight character terminators

x = HEX values representing an ASCII character. x = HEX value from 00 to FE in Appendix B.

Example: Header = AB

Example: Terminator = CR LF

For more details see par. 4.3.1.

Two character header A B

EA02

Two character terminator CR LF

EA12

+ 41 + 42

+0D + 0A

EA00

EA01x

EA02xx

EA03xxx

EA04xxxx

EA05xxxxx

EA06xxxxxx

EA07xxxxxxx

EA08xxxxxxxx

EA10

EA11x

EA12xx

EA13xxx

EA14xxxx

EA15xxxxx

EA16xxxxxx

EA17xxxxxxx

EA18xxxxxxxx

DATA FORMAT

Description String

EADER POSITION

see par. 4.3.1

First frame field

Before message field

ODE LENGTH

Code length not transmitted

Code length transmitted in variable-digit length

Code length transmitted in fixed 4-digit format

The code length is transmitted in the message after the Headers and Code Identifier characters.

The code length is calculated after performing any field adjustment operations.

DDRESS STAMPING

Disable

Enable

see par. 4.3.2

ES0 ES1

EE0 EE1 EE2

RU0 RU1

DDRESS DELIMITER

Disable

Enable

a = a Hex value representing the ASCII character in the range from 00 to FE in Appendix B.

see par. 4.3.3

RV0

RV1a

RADIO PARAMETERS

  

RANSMISSION MODE

ADIO PROTOCOL TIMEOUT



ACK/NACK F



The programming sequence is the following:

Command

AUD RATE

RF B

INGLE STORE

OST

EACON

ROM REMOTE

   



Carriage return character (0D Hex.)

Exit and Save configuration

Character sequence in following tables

Enter configuration environment

RADIO PARAMETERS

Description String

RF B

AUD RATE

see par. 4.4.1

9600 baud

19200 baud

RANSMISSION MODE

1 way mode

2 way mode

ADIO PROTOCOL TIMEOUT

Radio protocol timeout (seconds)

INGLE STORE

Disable

One attempt

Two attempts

Three attempts

Four attempts

Five attempts

Six attempts

Seven attempts

Eight attempts

Continuous

(Client only)

MF0 MF1

see par. 4.4.2

MW0 MW1

see par. 4.4.3

MH01 – MH19

see par. 4.4.4

MO0 MO1 MO2 MO3 MO4 MO5 MO6 MO7 MO8 MO9

RADIO PARAMETERS

Description String

ACK/NACK F

ROM REMOTE HOST

(Client only)

see par. 4.4.5

Disabled

Enable ACK/DATA/NACK

EACON

Disabled

Beacon every 2 seconds

Beacon every 3 seconds

Beacon every 4 seconds

Beacon every 5 seconds

Beacon every 6 seconds

Beacon every 8 seconds

Beacon every 10 seconds

Beacon every 20 seconds

Beacon every 30 seconds

(Client only)

MR0 MR1

see par. 4.4.6

MB0 MB1 MB2 MB3 MB4 MB5 MB6 MB7 MB8 MB9

PARAMETER ISSUES AND DEFINITIONS

4 PARAMETER ISSUES AND DEFINITIONS

4.1 RADIO AND SERIAL COMMUNICATION CONTROLS

DLCC communication can be controlled by several parameters depending on whether it is a Client or Server. DLCC can act as both Client and Server.

The following table summarizes which parameters are controlled by the Client and which ones are controlled by the Server.

Client (Transmitter)

controlled parameters:

Transmission Mode ACK/NACK Protocol ACK/NACK From Remote Host Handshaking FIFO Handshaking Single Store

To avoid incorrect interpretation of ACK characters, ACK/NACK Protocol and ACK/NACK From Remote Host cannot be

NOTE

To help understand the various communication control possibilities among the different communication modes, we will analyze the communication control parameter settings for the following 3 cases:

1) DLCC acting as Server

2) DLCC acting as Client (like an RF device)

3) DLCC as client / server

simultaneously enabled on the same DLCC.

Server (Receiver)

controlled parameters

Case 1 – DLCC as Server

DL CORDLESS CARD™

DRAGON 1

HOST

DLCC

F734-E

DRAGON 2

DRAGON 3

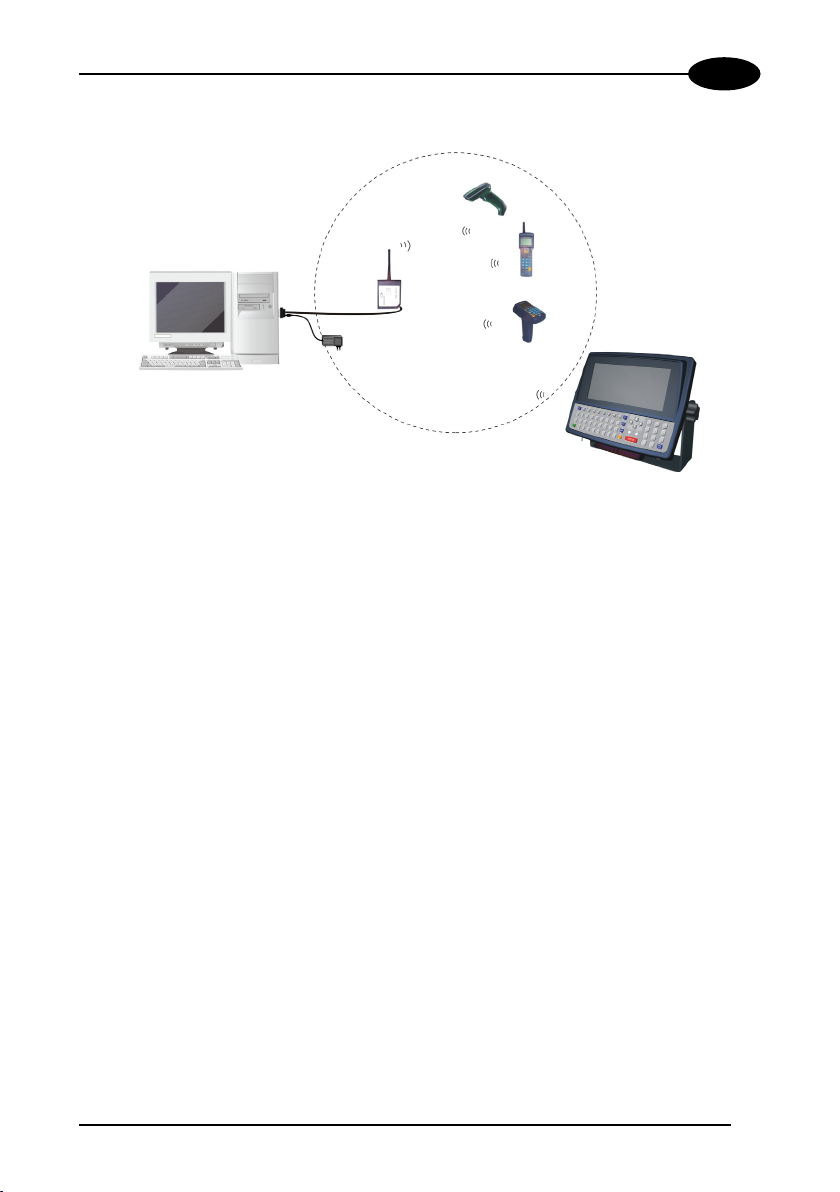

Figure 5 –DLCC as Server

DLCC as a Server receives data from RF devices. The

ACK/NACK Protocol parameter can be set to assure correct communication between DLCC and the local Host.

Assuming the RF devices are setup for 2 way transmission in STAR-System™ mode we can analyze the following ACK/NACK protocol selections:

RF devices - Transmission Mode = 2 ways The Host must respond to a 2 way transmission

•

If DLCC - ACK/NACK = disabled there is no control of the communication between DLCC and the Local Host. DLCC answers the RF device which initiated the 2 way transaction with DATA received from the Local Host.

•

If DLCC - ACK/NACK = enabled when the Local Host receives a message correctly, it answers DLCC with the ACK character. Only then does DLCC acknowledge the RF device which initiated the 2 way transaction with an Empty Answer.

•

DLCC - DATA/NACK = enabled when the Local Host receives a message correctly, it answers DLCC with DATA. DLCC then answers the RF device which initiated the 2 way transaction with this DATA (i.e. command to RF device display).

PARAMETER ISSUES AND DEFINITIONS

Case 2 – DLCC as Client (like an RF device)

HOST

Client

Figure 6 - DLCC Client

In the figure above, DLCC is a Client (as an RF device). The following parameters may be set depending on the application:



STAR

Modem™ - ACK/NACK = enabled

STAR-System™ - Rx / Tx = enabled

•

If DLCC - Transmission Mode = 1 way

ACK/NACK from Remote Host = disabled FIFO = disabled Handshaking = modem (RTS/CTS)

In this case, DLCC sends data (messages) to the Remote Host. The special

case of FIFO disabled blocks transmission until an acknowledgement is received



from Host. Because ACK/NACK is enabled for STAR

Modem™, only after this has received an ACK from the Remote Host does it acknowledge reception (Empty Answer to DLCC).

Case 3 – DLCC as Client / Server

DL CORDLESS CARD™

Client

HOST 1

HOST 2

Server

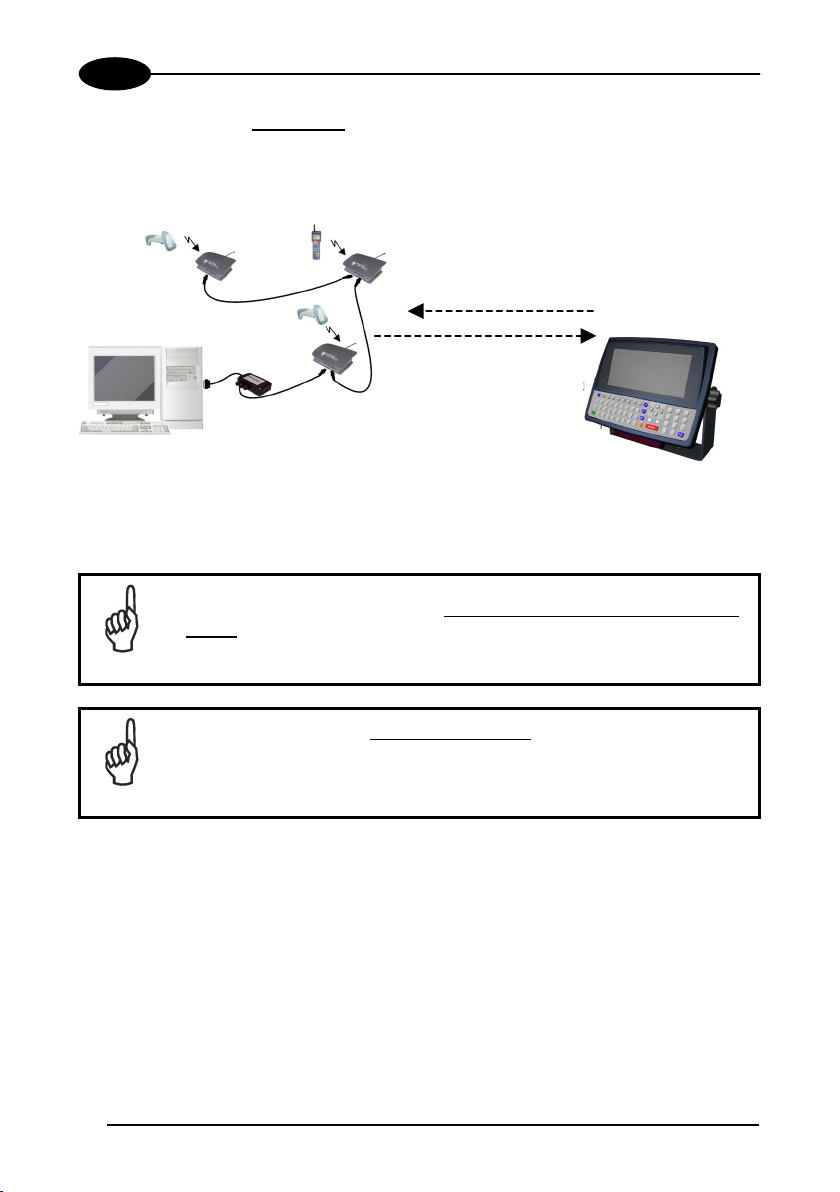

Figure 7 – DLCC as Client / Server

Both DLCCs are able to communicate bi-directionally. For analysis purposes only, we assume the situation where Host 1 is Client and Host 2 is Server. It is clear that the situation is analogous in the opposite direction:

•

If DLCC 1 - Transmission Mode = 1 way

ACK/NACK from Remote Host = disabled FIFO = enabled Handshaking = any

The Client, (Host 1) sends a message to the Remote Host (Host 2), but no

control exists upon reception and even if ACK/NACK Protocol is implemented on the Server side (Remote Host), no answer is returned from DLCC 2 to DLCC 1. This is not a secure communication.

•

If DLCC 1 - Transmission Mode = 1 way

ACK/NACK from Remote Host = enabled FIFO = enabled Handshaking = any

The Client, (Host 1) sends a message to the Remote Host (Host 2). DLCC 2

acknowledges good radio reception but no control is made on Remote Host reception. If DLCC 2 acknowledges radio reception within the Radio Protocol Timeout, DLCC 1 sends ACK to its local Host, otherwise it sends NACK.

PARAMETER ISSUES AND DEFINITIONS

•

If DLCC 1 - Transmission Mode = 2 ways

ACK/NACK from Remote Host = enabled FIFO = enabled Handshaking = any Single Store = enabled

The Client, (Host 1) sends a message to the Remote Host (Host 2) and expects

an answer from Host 2. Host 2 answers with DATA (a string of up to 238 characters). If DLCC 2 sends this DATA answer within the Radio Protocol Timeout, DLCC 1 sends it to its local Host (Host 1), otherwise DLCC 1 sends NACK. In addition, the Single Store parameter upon Radio Protocol timeout, causes DLCC 1 to retry transmission of the same message the defined number of times, before responding to its local Host (Host 1) with NACK.

Host 1 - Handshaking = RTS/CTS

•

If DLCC 1 - Transmission Mode = any

ACK/NACK from Remote Host = enabled FIFO = disabled Handshaking = modem (RTS/CTS)

The Client, (Host 1) sends a message to the Remote Host (Host 2). DLCC 1

after receiving the message, blocks transmission of Host 1 until communication is completed according to the other communication control parameter settings as described above.

The most secure settings for bi-directional communication is to have ACK/NACK from Remote Host enabled and Two-way transmission at both ends. In addition, in case the first transmission fails, the Single Store parameter automatically repeats transmission of the same data

NOTE

packet up to the number of specified attempts.

DL CORDLESS CARD™

4.2 COM PORT PARAMETERS

4.2.1 Handshaking

Modem: (RTS/CTS)

DLCC deactivates the RTS line when it cannot receive a character from the Host. DLCC can transmit data only if the CTS line (controlled by the Host) is active.

Signals at EIA levels

DLCC™ Side

Received data Received data

Host Side

RTS

Modem busy

Signals at EIA levels

DLCC™ Side

CTS

Transmitted data Transmitted data

Host busy

Host Side

Modem RTS/CTS Handshaking

PARAMETER ISSUES AND DEFINITIONS

Hardware handshaking: (RTS/CTS)

The RTS line is activated by DLCC before transmitting a character. Transmission is possible only if the CTS line (controlled by the Host) is active.

Signals at EIA levels

RTS

Transmitted data Transmitted data

CTS

Host busy

Hardware RTS/CTS Handshaking

Software handshaking: (XON/XOFF)

During transmission, if the Host sends the XOFF character (13 Hex), the card interrupts the transmission with a maximum delay of one character and only resumes when the XON character (11 Hex) is received.

Transmitted dataTransmitted data

XONXOFF

Host readyHost busy

Software XON/XOFF Handshaking

DL CORDLESS CARD™

4.2.2 ACK/NACK Protocol

This parameter sets a transmission protocol which takes place between DLCC (Server) and an RF device. An RF device (such as a hand-held reader) passes its data (code read) to the card installed into the terminal. The Host sends an ACK character (06 HEX) to the card in the case of good reception; a NACK character (15 HEX) requesting re-transmission is sent to the card in case of bad reception.

In the particular case where the RF device is configured for 2 way transmission and therefore requires an answer, it is advised to set DLCC with the DATA/NACK protocol. The DATA answer from the Local Host is implicitly considered an ACK and is sent to the RF device. If instead ACK/NACK is used, the card generates an Empty Answer to the RF device.

Before selecting this parameter ensure that “ACK/NACK from Remote Host” is disabled (see par. 4.4.5).

CAUTION

Data

Server

ACK/NACK Disabled

Data

Server

CK or NACK

ACK/NACK Enabled

Data

Server

DATA or NACK

DATA/NACK Enabled

PARAMETER ISSUES AND DEFINITIONS

If the card does not receive an ACK, DATA or NACK, transmission is ended after the RX Timeout (see par. 4.2.3 ). See also Radio Protocol Timeout, par. 4.4.3, for radio transmission to RF devices.

For ACK/NACK selection when DLCC as Client, is transmitting to a destination device connected to a Remote Host, refer to par. 4.1.

4.2.3 RX Timeout

This parameter can be used to automatically end data reception from the Local Host after the specified period of time.

If no character is received from the Local Host, after the timeout expires, any incomplete string is flushed from the card buffer.

Refer to par. 4.2.5 for RX Timeout functioning when defining the frame packing.

4.2.4 FIFO

If enabled, the Destination Device collects all messages sent by DLCC and sends them in the order of acquisition to the connected Remote Host.

If disabled, DLCC blocks the message transmission from the Local Host until an answer signaling the right/wrong message transmission has been received from the Destination Device (1 way) or the Remote Host (2 way). Once the answer has been received, the Local Host is allowed to send a new message.

This command requires the modem (RTS/CTS) handshaking to be enabled.

For more details about the Transmission Mode refer to par. 4.4.2.

DL CORDLESS CARD™

4.2.5 Frame Packing

This parameter defines the format of the frame to be transmitted

Host.

the The frame received by DLCC may contain a maximum of 238 characters. All characters not included within this number will be transmitted from the Host in a new frame.

Frame from Host to DLCC

FRAME

Address Address Delimiter MESSAGE

The Address field has different meanings depending on if the FRAME is sent as a 2 way answer to an RF device, or if it is a new message that the DLCC Client sends to a destination device. See par. 4.3.2 for details.

Frame from DLCC to Host

FRAME

*Header Address Address Delimiter

MESSAGE

*Header **Time-Stamp **Time-Stamp-Del **Code Id Code Len DATA Terminator

* There is only one header whose position can be defined through the related

parameter (see par. 4.3.1).

** These are optional fields which can be configured depending on the type of RF

device used.

The Address field has different meanings depending on if the FRAME is a 2 way answer to a previous 2 way transaction initiated by a DLCC Client, or if it is a new message that an RF device sends to the DLCC Server. See par. 4.3.2 for details.

between DLCC and

PARAMETER ISSUES AND DEFINITIONS

Correct FRAME identification is managed by frame packing. Three different types of frame packing can be selected:

•

Frame+ [CR]

(default)

: the frame sent to DLCC is terminated by [CR]. This means you cannot use the [CR] character within the frame. In Frame + [CR] mode, make sure the FRAME does not contain [CR], nor begin with $+ or #+ characters.

FRAME [CR]

The frame transmitted by DLCC has no additional field. In this case the end of

the FRAME is either DATA or Terminator if any.

FRAME

•

[STX]+LEN+Frame+[CR]: both frames sent to and by DLCC are preceded by [STX], LEN and terminated by [CR], where LEN is a field of 4 digits and indicates the FRAME length in number of characters, that is FRAME +CR.

[STX] LEN FRAME [CR]

In this mode, it is not necessary to use the Frame Packing to send commands.

(i.e. $+$&[CR]).

The [STX], [CR] and [ESC] characters contained in the frame must be preceded by the [ESC] character for a correct transmission.

•

Frame after Timeout: if the delay between two consecutive characters is more than the selected timeout, the card considers the frame completed. The timeout corresponds to 1/10 of the value defined for RX Timeout (see par. 4.2.3). Therefore, the timeout for frame packing is calculated in ms (from 10 ms to 990 ms).

It is not possible to disable this timeout, therefore possible values are in the range 10 - 990 ms. If RX Timeout is disabled,

NOTE

Frame after Timeout is 10 ms.

Both the frames sent to and by DLCC have no additional fields:

FRAME

All commands to be sent using this frame packing must be preceded by the

string below, which substitutes the $+ character:

#+++PROG_REQ+++#

DL CORDLESS CARD™

This string is always transmitted in a single frame preceding the one containing

the configuration command, as shown in the following examples:

Example 1

Sending the $+$![CR] command to transmit the card software release:

Frame = #+++PROG_REQ+++#

Frame = $![CR]

Example 2

Sending the $+ML0$-[CR] command to set the default frame packing

configuration:

Frame = #+++PROG_REQ+++#

Frame = ML0$-[CR]

4.3 DATA FORMAT

4.3.1 Header/Terminator Selection

The header/terminator selection is not effected by restore default command.

Header Position

This parameter defines the header position within the frame to be transmitted DLCC to the Host. The header can be positioned in either the first field of the frame or in the field preceding the message:

FRAME

HEADER

Address Address Delimiter

MESSAGE

HEADER

Time-Stamp Time-Stamp-Del Code Id Code Len DATA Terminator

from

PARAMETER ISSUES AND DEFINITIONS

4.3.2 Address Stamping

If enabled, this command includes the RF device or DLCC address in the message/answer transmitted. It is advised to enable this parameter when DLCC is a Server for more than one Client in 2 way transmission. In this way the Host knows to which Client the answer must be sent.

receiving data from an RF device working in 1 way mode, DLCC (Server)

If automatically includes the RF device address in the message to be sent to the Host.

receiving data from an RF device working in 2 way mode, DLCC (Server)

If automatically includes the RF device address in the message to be sent to the Host. It is required to set the Host application to include the same address in the answer to be transmitted back to the RF device.

RF Device

in 2 way mode

Figure 8 - Receiving a Message from RF device in 2 Way Mode

If DLCC as Client, is Stargates in the figure below) in 1 way mode, it is necessary to set its Host application to include the card address in the message to be transmitted to the destination devices of the system.

RF Dev. Addr + message

RF Dev. Addr + answer

DLCC Server

transmitting to more than one destination device (see the three

Card Addr. + message

Destination

Device

DLCC Client

Figure 9 - Transmitting a Message in 1 Way Mode

DL CORDLESS CARD™

If DLCC as Client, is

transmitting to more than one destination device (see the three Stargates in the following figure) in 2 way mode, it is necessary to set its Host application to include the card address in the message to be transmitted to the destination devices of the system. DLCC will include the same address in the answer it receives from the destination devices and sends back to the Host.

Card Addr. + message

Card Addr. + answer

Destination

Device

Client

Figure 10 - Transmitting a Message in 2 Way Mode

The Address Stamping parameters consist of a 4-digit number in the range 0000-

1999.

When the card receives data in 2 way mode from more than one RF device, it is advised to enable Address Stamping for correct radio transaction management.

NOTE

If communicating with only one RF device in 2 way mode, Address Stamping is not required, since the data/answer generated by the Host is only sent to that device. In this case DLCC can receive data

NOTE

(messages) via radio only after sending the 2 way answer.

4.3.3 Address Delimiter

The Address Delimiter allows a character to be included to separate the Address stamping fields from the next fields in the message. Once enabled, it is required to set the Host application to include the Address Delimiter character in the message. Any character can be included in the hexadecimal range from 00 to FE.

PARAMETER ISSUES AND DEFINITIONS

4.4 RADIO PARAMETERS

4.4.1 RF Baud Rate

This parameter defines the baud rate used for radio communication. The baud rate value can be set to 9600 or 19200 according to the device communicating with DLCC. 19200 is the default value.

4.4.2 Transmission Mode (Client only)

DLCC Client can communicate within the system using two different transmission modes:

•

1 way mode: (default)

•

2 way mode:

DLCC transmits data without requiring an acknowledgement answer from the Remote Host (see par. 4.1 for details).

DLCC transmits data requiring an acknowledgement answer from the Remote Host (see par. 4.1 and par. 4.4.5 for details.

4.4.3 Radio Protocol Timeout (Client only)

This parameter sets the valid time to wait before radio and a destination device is considered failed.

This parameter should be set taking into consideration the radio traffic (number of devices in the same area).

If the RS232 interface connecting the Remote Host and the destination device is used with ACK/NACK enabled, this parameter should be at least equal to the RX Timeout parameter for low traffic environments. It should be increased if there are many devices in the same area.

transmission between DLCC

4.4.4 Single Store (Client only)

This command is active when DLCC (Client) destination device. It guarantees a secure control to prevent the transmission of duplicated data. If Single Store is enabled and DLCC does not receive any answer of good transmission from the destination device, it enters a special operating mode that stops sending new messages. When such operating mode is entered, the card retries transmission itself for the number of attempts selected in the configuration.

transmits messages/data to a

DL CORDLESS CARD™

Once the transmission is successful, the card continues to send new messages. If transmission is not successful after the number of configured attempts, the message is lost. To be absolutely sure that messages are received by the destination device, set Single Store to continuous. A new message will not be sent unless the previous one is received. If using Single Store as continuous, and the transaction is not received, check that the Server is active and that the DLCC configuration is correct. If your application requires an acknowledgement from the Remote PC, you must define Single Store and enable ACK/NACK From Remote Host (see par. 4.4.5).

4.4.5 ACK/NACK From Remote Host (Client only)

This parameter sets a transmission protocol which takes place between the DLCC (Client) Host and the destination device Host (Remote Host). The transmission is influenced by the transmission mode selected (see par. 4.4.2).

Before selecting this parameter ensure that “ACK/NACK Protocol” is disabled (see par. 4.2.2).

CAUTION

One way mode:

Host sends a message to DLCC which passes it to the destination device via radio. In case of good transmission, the destination device transmits a radio acknowledgement back to the card. If received before the Radio Protocol Timeout expires, DLCC sends an ACK character to the Host. If the timeout expires before receiving any acknowledgement, the card transmits a NACK character.

Message

Host

radio

acknowledgement

1 Way Transmission Mode

Remote Host

PARAMETER ISSUES AND DEFINITIONS

Two way mode:

Host sends a message to DLCC which passes it to the destination device via radio. The destination device transmits the message to the Remote Host which responds with DATA. This answer is sent to DLCC through the destination device. Then, the card transmits it to the Host. If the Radio Protocol Timeout expires before the answer from Remote Host is received by DLCC or in case the Remote Host does not respond, DLCC sends a NACK character to the Host.

Message

Remote Host answer

Host

2 Way Transmission Mode

DATA

Remote Host

If the Host continues to send new messages before receiving any answer from the Remote Host, it is strongly suggested to enable the handshaking on the Host connected to DLCC for a correct

NOTE

functioning.

4.4.6 Beacon (Client only)

If this parameter is enabled, DLCC polls the server for data at regular intervals (configurable from 2 to 30 seconds) by sending a character ENQ (ASCII 05) with a 2 way transaction. The server must always respond with data or with an Empty Answer. The selection of this parameter does not influence the card normal radio transaction. This means that it does not modify the transmission of data sent by the Local Host.

DL CORDLESS CARD™

5 DEFAULT CONFIGURATION

Configuration Parameter Default Setting

Serial Communication

Baud Rate 9600 Parity, Data Bits, Stop Bits No parity; 8 Data bits; 1 Stop bit Handshaking Disabled ACK/NACK Protocol Disabled FIFO Enabled Intercharacter Delay Disabled RX Timeout 5 seconds Frame Packing Frame +[CR]

Data Format Header No headers Terminator [CR] and [LF] Header Position First frame field Code Length TX Code Length not Transmitted Address Stamping Disabled Address Delimiter Disabled

Radio Parameters

RF Baud Rate Transmission Mode 1 way mode Radio Protocol Timeout 2 sec Single Store Disabled ACK/NACK from Remote Host Disabled Beacon Disabled

19200 baud

TECHNICAL FEATURES

6 TECHNICAL FEATURES

Electrical Features

Supply voltage 5 Vdc ± 3% Power consumption 400 mW Indicator One red LED

Radio Features

Working frequency 433.92 Mhz Bit rate Up to 19200 baud Effective Radiated Power <10 mW Range (in open air) 15 m / 49.2 ft RF Modulation FSK

System Configuration

Maximum number of client RF devices supported by a DLCC server

Environmental Features

Working temperature -20° to +50 °C / -4° to +122 °F Storage temperature -20° to +70 °C / -4° to +158 °F Humidity 90% non condensing Protection class IP30

Mechanical Features

Weight Dimensions 118.25 mm x 54 mm x 9.4 mm

47 gr

DL CORDLESS CARD™

A TYPICAL SYSTEM LAYOUTS

The following examples give a graphical representation of DLCC applications in 2 typical layouts and provide the software configuration required by each device to communicate within the system (see par. 4.1 for details about the main parameter functioning).

The examples provide two different DLCC applications:

- Example 1 DLCC Server

DLCC, installed in a vehicle-mounted terminal, receives data

from Datalogic hand-held devices;

- Example 2: Bi-Directional Communication

Two DLCCs are installed into two different Hosts and

communicate via radio transmitting/receiving data.

TYPICAL SYSTEM LAYOUTS

A.1 DLCC SERVER

DLCC is installed into a Rhino™ vehicle mounted terminal and DRAGON™ M scanner.

receives data from a

Wired

LAN

A.P.

433 MHz RF Connection

2.4 GHz

Network

DLCC

Figure 11 - DLCC Server Installed into Rhino™

DRAGON

RHINO™

™ M

This layout shows the integration of the 433 MHz and 2.4 GHz networks for data collection. To define this type of communication, the system devices may be configured as follows:

DLCC

- Setup for Server Only Functioning

- DLCC Radio Address = 0017

RHINO™

- Run an application managing the data communication between the mobile computer and the host system, for example Terminal Emulation.

DRAGON™ M

- Setup for STAR-System mode

- DRAGON™ M Radio Address = 1235

- Destination Address = 0017

DL CORDLESS CARD™

A.2 BI-DIRECTIONAL COMMUNICATION

Two DLCCs are installed into the dedicated Host. They communicate with each other by transmitting

and receiving data.

HOST 1

Card 1

Figure 12 – Bi-directional Communication

Each system device may be configured as follows:

DLCC 1

- DLCC Radio Address = 0325

- First Destination Device Address = 0263

- Handshaking = modem (RTS/CTS)

- Frame Packing = frame after timeout (selection advised for this example for a faster transmission)

HOST 1

- Run the desired application or a terminal emulation

program.

- Adjust the Host communication parameters and

handshaking according to DLCC 1.

DLCC

- DLCC Radio Address = 0263

- First Destination Device Address = 0325

- Handshaking = modem (RTS/CTS)

- Frame Packing = frame after timeout

HOST 2

- Run the desired application or a terminal emulation

program.

- Adjust the Host communication parameters and

handshaking according to DLCC 2.

HOST 2

Card 2

HEX AND NUMERIC TABLE

B HEX AND NUMERIC TABLE

CHARACTER TO HEX CONVERSION TABLE

char hex char hex char hex

NUL 00 * 2A U 55

SOH 01 + 2B V 56

STX 02 , 2C W 57 ETX 03 - 2D X 58 EOT 04 . 2E Y 59

ENQ 05 / 2F Z 5A

ACK 06 0 30 [ 5B BEL 07 1 31 \ 5C

BS 08 2 32 ] 5D HT 09 3 33 ^ 5E LF 0A 4 34 _ 5F VT 0B 5 35 ` 60

FF 0C 6 36 a 61 CR 0D 7 37 b 62 SO 0E 8 38 c 63

SI 0F 9 39 d 64 DLE 10 : 3A e 65 DC1 11 ; 3B f 66 DC2 12 < 3C g 67 DC3 13 = 3D h 68 DC4 14 > 3E i 69 NAK 15 ? 3F j 6A SYN 16 @ 40 k 6B ETB 17 A 41 l 6C

CAN 18 B 42 m 6D

EM 19 C 43 n 6E SUB 1A D 44 o 6F ESC 1B E 45 p 70

FS 1C F 46 q 71

GS 1D G 47 r 72

RS 1E H 48 s 73 US 1F I 49 t 74

SPACE 20 J 4A u 75

! 21 K 4B v 76

" 22 L 4C w 77 # 23 M 4D x 78 $ 24 N 4E y 79

% 25 O 4F z 7A & 26 P 50 { 7B

' 27 Q 51 | 7C ( 28 R 52 } 7D ) 29 S 53 ~ 7E

T 54 DEL 7F

GLOSSARY

1 way transmission

2 way transmission

Client

Server

Bi-directional Communication

Destination Device

DATA

Empty Answer

Local Host

Remote Host

STAR-System™

a radio transmission in which DLCC transmits data without requiring an acknowledgement answer from the remote Host.

a radio transmission in which DLCC transmits data requiring an acknowledgement answer from the remote Host.

a radio device which can initiate a 1 way or 2 way transmission to a Server. The Client Transmitter readers function as Clients.

a radio device which is continuously waiting for a 1 way or 2 way transmission initiated by a Client. The Server also defined as Receiver as Servers.

the ability to both receive radio messages as a Server and to initiate radio transmission as a Client.

the radio device to which a message must be sent or to which an answer to a previously received message must be given.

a string of up to 238 characters sent by a client to a server, or received by a client as a 2 way response.

a radio acknowledgement containing no information (data) content.

the Host to which DLCC is physically inserted in.

the Host to which a transmitting message via radio.

a Datalogic radio communication system that uses a Narrow Band RF radio and Datalogic proprietary CSMA/CA protocol to automatically link and manage all the RF devices in the system.

. DLCC, RF terminals or RF hand-held

. DLCC or Stargates™ function

is also defined as

DLCC Client sends a

INDEX

COM Port Parameters; 20

ACK/NACK Protocol; 22

Handshaking; 20 Compliance; vi Configuration; 5

COM Port Parameters; 6

Data Format; 9

Radio Parameters; 12 Configuration Methods; xii

Configuration Strings from Host; xii

DL Mobile Configurator™; xii

DL Sm@rtSet™; xii

DLCARD.EXE DOS Configuration

Program; xiii Configuration Strings; 3 Conventions; v

Data Format; 26

Address Delimiter; 28 Address Stamping; 27

Header/Terminator Selection; 26 Default Configuration; 32 DLCC as Client; 17 DLCC as Client / Server; 18 DLCC as Server; 16 DLCC Setup; 4

Restore Default; 4

Set Radio Addresses; 4

FIFO; 23 Frame Packing; 24

Glossary; 38

Hex and Numeric Table; 37

LED Indicator; 2

Quick Start; ix

Installing to DOS Terminal; x Installing to portable PC; ix

Radio and Serial Communication

Controls; 15

Radio Parameters; 29

ACK/NACK From Remote Host; 30 Beacon; 31 Radio Protocol Timeout; 29 RF Baud Rate; 29 Single Store; 29 Transmission Mode; 29

RX Timeout; 23

Technical Features; 33 Typical System Layouts; 34

Bi-Directional Communication; 36 DLCC Server; 35

Datalogic Mobile S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara Bologna - Italy

dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el

DL Cordless Card EU, Radio Modem with PCMCIA Interface

e tutti i suoi modelli and all its models et tous ses modèles und seine modelle y todos sus modelos

sono conformi alla Direttiva del Consiglio Europeo sottoelencata: are in conformity with the requirements of the European Council Directive listed below: sont conformes aux spécifications de la Directive de l'Union Européenne ci-dessous: der nachstehenden angeführten Direktive des Europäischen Rats: cumple con los requisitos de la Directiva del Consejo Europeo, según la lista siguiente:

Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti: This declaration is based upon compliance of the products to the following standards: Cette déclaration repose sur la conformité des produits aux normes suivantes: Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht: Esta declaración se basa en el cumplimiento de los productos con las siguientes normas:

ETSI EN 301 489-3 v 1.4.1, A

UGUST

2002

ETSI EN 300 220 v 1.1.1, S

EPTEMBER

2004

EN 60950-1, D

ECEMBER

2001

: I

Lippo di Calderara, September 3rd, 2007

Paola Chientaroli Quality Assurance Manager

1999/5/EEC R&TTE

: E

LECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM MATTERS

(ERM); E

RADIO EQUIPMENT AND SERVICES FOR

HORT-RANGE DEVICES

BETWEEN

: E

LECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM MATTERS

(ERM); S

USED IN THE POWER LEVELS RANGING UP TO COVERING ESSENTIAL REQUIREMENTS UNDER ARTICLE

R&TTE D

NFORMATION TECHNOLOGY EQUIPMENT

ENERAL REQUIREMENTS

LECTROMAGNETIC COMPATIBILITY

9 KH

Z AND

40 GHZ.

HORT-RANGE DEVICES

25 MH

Z TO

; P

ART

(SRD)

OPERATING ON FREQUENCIES

(SRD); R

1000 MH

Z FREQUENCY RANGE WITH

500 MW; P

IRECTIVE

(EMC)

3: S

PECIFIC CONDITIONS

ADIO EQUIPMENT TO BE

ART

3: H

– S

AFETY

STANDARD FOR

ARMONIZED

3.2

– P

OF THE

ART

www.mobile.datalogic.com

World wide Sales Network

available from: www.mobile.datalogic.com/contacts

Datalogic Mobile S.r.l.

Via S. Vitalino, 13

40012 Lippo di Calderara di Reno Bologna - Italy Telephone: (+39) 051-3147011 Fax: (+39) 051-3147561

03/09/2007

09/07

Datalogic Scanning DLCC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTENTS

REFERENCES

CONVENTIONS

REFERENCE DOCUMENTATION

SERVICES AND SUPPORT

COMPLIANCE

RADIO COMPLIANCE

WEEE COMPLIANCE

QUICK START

CONFIGURATION METHODS

INTRODUCTION

INITIAL SETUP

RESTORE DEFAULT

SET RADIO ADDRESSES

CONFIGURATION

PARAMETER ISSUES AND DEFINITIONS

4.4.1 RF Baud Rate

4.4.2 Transmission Mode (Client only)

4.4.3 Radio Protocol Timeout (Client only)

4.4.4 Single Store (Client only)

4.4.5 ACK/NACK From Remote Host (Client only)

4.4.6 Beacon (Client only)

TECHNICAL FEATURES

A TYPICAL SYSTEM LAYOUTS

A.1 DLCC SERVER

A.2 BI-DIRECTIONAL COMMUNICATION

B HEX AND NUMERIC TABLE

GLOSSARY

INDEX
