Datalogic Pegaso User Manual

Download

Industrial PDA

with Windows® CE

Product Reference Guide

Datalogic Mobile, Inc

1505 Westec Dr. Eugene, Oregon 97402 Telephone: (541) 743-4800 Fax: (541) 743-4900

of this documentation or the procedures described therein may be repro-

ior written permission of Datalogic Mobile, Inc. or its affiliates or subsidiaries ("Datalogic" or “Datalogic Mobile”) . Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this documentation and shall ensure that all notices appear on any reproductions of the documentation.

Should future revisions of this manual be published, you can acquire pr

inted versions by contacting your Datalogic representative. Electronic versions may either be downloadable from the Datalogic Mobile website (www.mobile.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Da

talogic publications, please let us know via the

“Contact Datalogic” page.

Disclaimer

Datalogic has taken reasonable measures to pro

vide information in this manual that is complete and accurate, however, Datalogic reserves

the right to change any specification at any time without prior notice.

Datalogic is a registered trademark of Datalogic S.p.A. and the Datalo

gic logo is a trademark of Datalogic S.p.A. all licensed to Datalogic

Mobile, Inc. All other trademarks and trade names referred to herein are property of their respective owners.

Falcon

Microsoft Windows

is a registered trademark of Datalogic Mobile Inc. and of its associates and subsidiaries.

, Windows® 2000, Windows®CE, Windows® NT, Windows® XP and the Windows logo are registered trademarks of

Microsoft Corporation.

Patents

This product may be covered by one or more of the following patents: 4,861,972 • 4,866,257 • 4,879,456 • 5,198,649 • 5,208,449 • 5,212,372 • 5,247,161 • 5,311,000 • 5,440,110 • 5,481,098 • 5,493,108 • 5,508,505

• 5,664,231 • 5,671,374 • 5,686,716 • 6,041,374 • 6,412,698 • 6,415,978 • 6,454,168 • 6,478,224 • 6,513,714 • 6,536,670 •

6,561,427 • 6,585,157 • 6,923,377 • 7,108,170 • D377345 • CA2,188,399 • Other U.S. and Foreign Patents Pending.

Table of Contents

Preface: About this Guide ....................................................................................................... i-v

How to Use this Manual .........................................................................................................................i-v

Document Conventions ....................................................................................................................... i-vi

Chapter 1. Batteries and Power ............................................................................................. 1-1

Overview .......................................................................................................................................... 1-1

Suspend Mode ................................................................................................................................... 1-1

Suspending ................................................................................................................................ 1-1

Resuming ..........................................................................................................................

Battery Warnings and Cautions ............................................................................................................ 1-2

Battery Disposal ............................................................................................................................... 1-3

Chapter 2. Configuring the Pegaso ........................................................................................ 2-1

Overview .......................................................................................................................................... 2-1

Backlight ......................................................................................................................................... 2-2

Brightness ................................................................................................................................. 2-2

Auto-Off ............................................................................................................................

Activation .................................................................................................................................. 2-3

Bluetooth Manager ............................................................................................................................. 2-3

Search for device ................................................................................................................

Connect to a Bluetooth Device ...................................................................................................... 2-4

Viewing or Deleting Paired Devices ................................................................................................ 2-5

Settings .............................................................................................................................

Certificates ........................................................................................................................................ 2-6

Date and Time ................................................................................................................................... 2-6

Decoding .................................................................................................................................

Configuration Control Panels ......................................................................................................... 2-7

Device Info ......................................................................................................................................2-11

Display Configuration .................................................................................................................

Background ........................................................................................................................

Appearance ...............................................................................................................................2-12

Settings .............................................................................................................................

Error Reporting .........................................................................................................................

Falcon Config ....................................................................................................................................2-13

Input Panel Properties ...............................................................................................................

Internet Options .......................................................................................................................

Keyboard Configuration .............................................................................................................

Network and Dialup ...................................................................................................................

Owner .....................................................................................................................................

Password .................................................................................................................................

PC Connection ..........................................................................................................................

Persistent Registry ....................................................................................................................

Power Configuration ..................................................................................................................

Regional Settings ......................................................................................................................

Remove Programs .....................................................................................................................

Storage Manager ......................................................................................................................

Stylus Calibration ......................................................................................................................

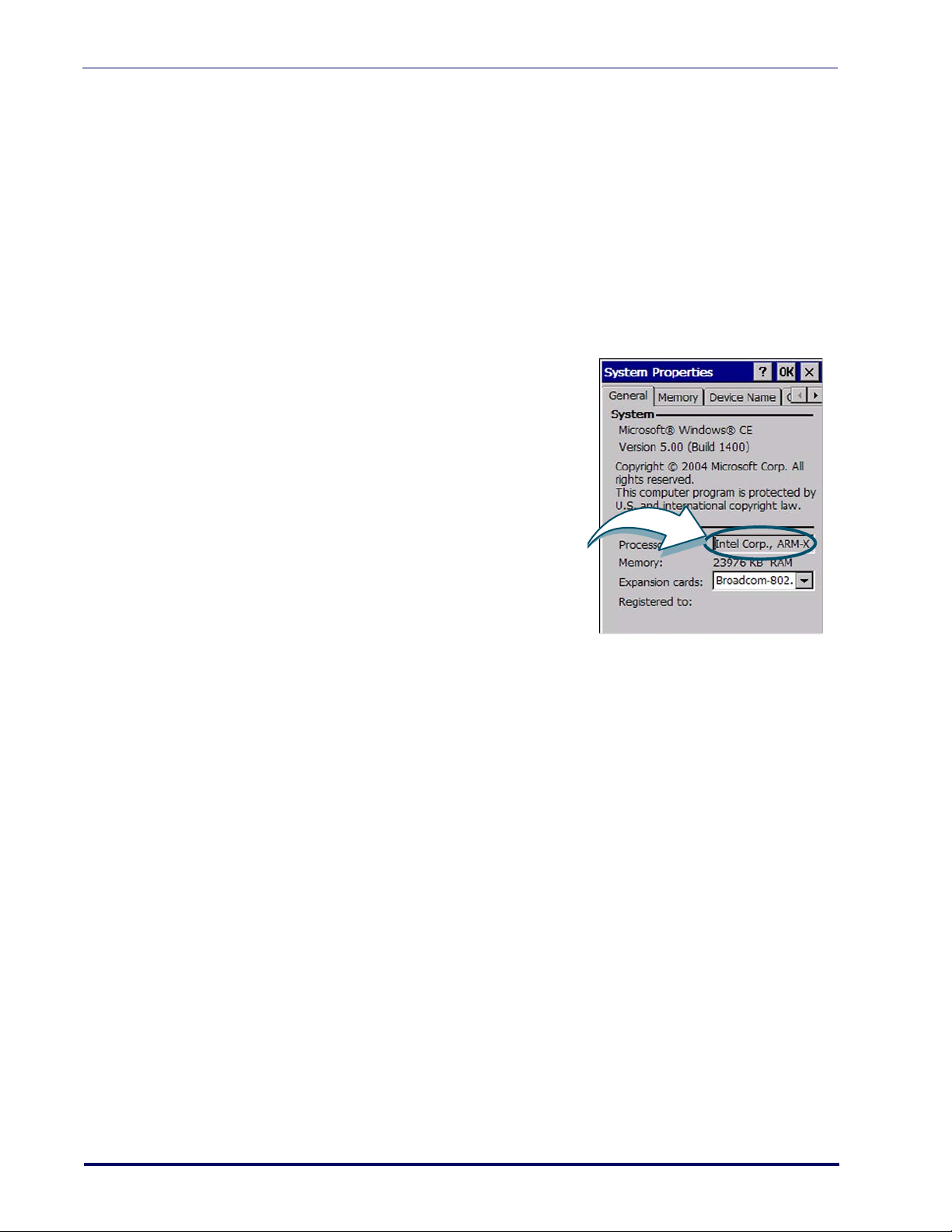

System Properties ....................................................................................................................

General Tab ......................................................................................................................

Memory Configuration ................................................................................................................

Device Name .............................................................................................................................2-25

Copyrights .........................................................................................................................

........ 1-2

........ 2-2

........ 2-3

........ 2-6

......... 2-7

........2-11

.......2-11

.......2-12

........2-12

........2-13

........2-14

........2-16

........2-17

........2-18

........2-19

........2-20

........2-21

........2-22

........2-24

.......2-24

2-24

.......2-25

Product Reference Guide i

Contents

Volume and Sounds ...........................................................................................................................2-25

Wi-FI ...............................................................................................................................................2-26

Using the Summit Client Utility ....................................................................................................2-26

SCU Windows .....................................................................................................................

Chapter 3. Software Applications........................................................................................... 3-1

Overview .......................................................................................................................................... 3-1

Inbox ............................................................................................................................................... 3-2

Internet Explorer ......................................................................................................................

Media Player .............................................................................................................................

WordPad ..................................................................................................................................

Persistent Memory ............................................................................................................................. 3-4

Saving to Persistent Memory ........................................................................................................ 3-4

Location ............................................................................................................................

Disk Size ................................................................................................................................... 3-5

Installing Programs ............................................................................................................................ 3-5

Using an Installation Wizard .........................................................................................................

Installing Programs Manually ........................................................................................................ 3-6

Using Windows Explorer to Add to the Start Menu ........................................................................... 3-7

Using ActiveSync to Add to the Start Menu ..................................................................................... 3-7

Removing Programs ..................................................................................................................

Firmware Update Utility ...................................................................................................................... 3-8

Retrieving a Firmware Image Update

Installing FUU on the Host PC ....................................................................................................... 3-8

Updating the Pegaso Firmware .....................................................................................................3-10

Restoring Pegaso Firmware .........................................................................................................

AutoStart .........................................................................................................................................3-12

Installing CAB files .....................................................................................................................3-13

Autostart.ini .......................................................................................................................

.............................................................................................3-8

.......2-27

......... 3-2

......... 3-3

........ 3-4

3-6

......... 3-7

3-11

.......3-14

Chapter 4. Networks, Communications, and Connections ...................................................... 4-1

Overview .......................................................................................................................................... 4-1

Installing & Setting Up Microsoft ActiveSync .......................................................................................... 4-1

Installing Microsoft ActiveSync .

Setting up ActiveSync .................................................................................................................. 4-3

Installing the USB Driver ..................................................................................................................... 4-4

Using ActiveSync ......................................................................................................................

Setting up a Partnership .............................................................................................................. 4-5

Transferring Files ........................................................................................................................ 4-5

File Synchronizing using Activ

Networking ..............................................................................................................................

Setting up the Network ID ............................................................................................................ 4-8

The Network Icon ...............................................................................................................

Network and Dialup Connections ................................................................................................... 4-8

Network Setup: Remote ActiveSync ...............................................................................................4

SNMP ......................................................................................................................................

..................................................................................................... 4-1

......... 4-5

eSync .............................................................................................. 4-6

......... 4-8

........ 4-8

-9

......... 4-9

Appendix A. Accessories ........................................................................................................ A-1

Overview .......................................................................................................................................... A-1

Power Supplies .........................................................................................................................

Powered USB Cable & Power Supply .............................................................................................. A-

Battery Pack ......................................................................................................................

Single Slot Dock .................................................................................................................

Four-Slot Charge Dock .................................................................................................................

Four-Slot Ethernet Dock ...............................................................................................................

Four-Slot Battery Charger ............................................................................................................

Car Charging Adapter ..................................................................................................................

Modem Module .........................................................................................................................

Ethernet Module .......................................................................................................................

Handstrap ................................................................................................................................

Removing the Handstrap .............................................................................................................. A-7

......... A-2

........ A-2

........ A-3

A-4 A-4 A-5

A-5

......... A-6

......... A-7

Pegaso™ Industrial PDA with Windows® CE

Contents

Installing the Handstrap ............................................................................................................... A-8

Handle .............................................................................................................................................. A-8

Installing a Handle on the Pegaso .................................................................................................. A-9

Belt Clip ...................................................................................................................................

Attaching to a Belt .....................................................................................................................A-11

Screen Protector ...............................................................................................................................A-12

Appendix B. Falcon® Desktop Utility for Windows® CE ......................................................... B-1

Overview .......................................................................................................................................... B-1

Falcon Desktop Utility ................................................................................................................

Administrative Options .........................................................................................................

Setting a Password ...................................................................................................................... B-4

Changing a Password .................................................................................................................. B-4

Removing a Password ..................................................................................................................

Password Request Dialog Box ....................................................................................................... B-4

Setting Hot Keys ........................................................................................................................ B-5

Internet Explorer Configuration ...............

Modifying Windows Controls ......................................................................................................... B-9

Application Selector ...........................................................................................................................B-11

Add Application ...................................................................................................................

Application Selector ...........................................................................................................................B-13

Application Switcher User Interface .....................................................................................................B-13

...................................................................................... B-8

Appendix C. Configuring the Web Server ............................................................................... C-1

Overview .......................................................................................................................................... C-1

Enabling the Web Server ..................................................................................................................... C-1

Setting up a User ............................................................................................................................... C-2

Testing the Web Server .............................................................................................................

Launching the Network Administration Page .......................................................................................... C-4

Web Server Registry Settings .............................................................................................................. C-4

Creating and Using an ISAPI Service

..................................................................................................... C-5

........A-10

......... B-2

........ B-3

B-4

.......B-11

......... C-3

Appendix D. SNMP Interface................................................................................................. D-1

Overview .......................................................................................................................................... D-1

SNMP Concepts .......................................................................................................................... D-1

MIB Files ...........................................................................................................................

Additional Resources ................................................................................................................... D-2

........ D-1

Appendix E. Cable & Connector Configurations ...................................................................... E-1

Introduction ...................................................................................................................................... E-1

General Specifications ...............................................................................................................

Wire Requirements ..............................................................................................................

Supply Voltage ........................................................................................................................... E-1

Docking Connector ....................................................................................................................

USB Cable ................................................................................................................................

......... E-1

........ E-1

......... E-1

......... E-2

Appendix F. Programming Parameters .................................................................................. F-1

Overview ...........................................................................................................................................F-1

Programming Codes Without Parameters ................................................................................................

Bar Code Parameters .................................................................................................................

F-2

..........F-3

Appendix G. Programming Bar Codes .................................................................................... G-1

Overview .......................................................................................................................................... G-1

Predefined Defaults ..................................................................................................................

Codabar ...................................................................................................................................

Code 39 ...................................................................................................................................

Code 93 ...................................................................................................................................

Code 128 .................................................................................................................................

EAN-13 ....................................................................................................................................

EAN-8 .....................................................................................................................................

Interleaved 2 of 5 ............................................................................................................................ G-13

......... G-2

......... G-5

......... G-7

......... G-9

....... G-10

....... G-12

Product Reference Guide iii

Contents

Matrix 2 of 5 ................................................................................................................................... G-15

MSI ................................................................................................................................................ G-17

Pharmacode 39 (Code 32) ................................................................................................................. G-19

RSS-14 ....................................................................................................................................

RSS Limited .................................................................................................................................... G-19

RSS Expanded ................................................................................................................................. G-21

Standard 2 of 5 ........................................................................................................................

Trioptic ........................................................................................................................................... G-23

UPC-A ............................................................................................................................................ G-25

UPC-E ......................................................................................................................................

UPC/EAN Extensions ......................................................................................................................... G-27

Other Controls ..........................................................................................................................

Appendix H. Glossary............................................................................................................ H-1

....... G-19

....... G-22

....... G-26

....... G-27

Pegaso™ Industrial PDA with Windows® CE

Preface: About this Guide

How to Use this Manual

This Product Reference Guide contains comprehensive basic user instructions for the Pegaso Industrial PDA software, batteries, dock, serial cable, data transfer, as well as advanced user information such as bar code configuration and parameters.

This section provides an overview of the manual’s contents and organization.

Document Overview

This document contains the following material:

• This Preface provides an overview of the contents for each chapter, and describes document style conventions.

• Chapter 1, "Batteries and Power", discusses checking battery power, power conservation, battery installation, battery charging with a dock or battery charger, battery storage, battery disposal, and resetting the mobile computer.

• Chapter 2, "Configuring the Pegaso", uses the control panels to adjust touchscreen calibration, date and time, display backlight/contrast, volume/sounds, scanner, power, and memory.

• Chapter 3, "Software Applications", covers memory, installing, selecting, using, and removing applications, entering data, and using the soft input panel with Inbox, Internet Explorer, and Word Pad.

• Chapter 4, "Networks, Communications, and Connections", describes installing, setting up, and using ActiveSync, IrDA, and Networking.

• Appendix A, "Accessories", describes the Accessories, such as docks, battery chargers, holsters, and soft cases available for the Pegaso.

• Appendix B, Falcon® Desktop Utility (FDU) allows Datalogic Windows adminis-

trators to configure Windows access.

• Appendix C, "Configuring the Web Server", describes configuring the Pegaso to work with a Web Server.

• Appendix D, "SNMP Interface", describes SNMP (Simple N Protocol) concepts, MIB (Management I tional resources.

• Appendix E, Cable and Connector Configurations contains pinout information, to create standard interface cables for use in interconnecting the Dock to power and/or peripheral devices.

CE PDAs and PDTs to control individual user

etwork Management

nformation Base) files, and provides addi-

Product Reference Guide

Preface: About this Guide

• Appendix F, "Programming Parameters", provides the programmable settings for the Pegaso.

• Appendix G, "Programming Bar Codes", provides bar codes for common setup parameters used to program the Pegaso.

• Appendix H, "Glossary", is a glossary of terms used in this manual that you may not be familiar with that are specific to Windows®CE and the mobile computer.

Registering Your Datalogic Product

Datalogic values your feedback. Please take a few moments and complete the Product Registration form located on our website (www.datalogic.com). Registering your prod- ucts ensures that you will be informed of the latest product news, technical specifications, software updates and other future developments from Datalogic.

Document Conventions

Formatting conventions are used throughout this guide to provide a consistent method for representing screen shots, command entries, and keyboard characters. This guide also provides special conventions for notes and cautions, information of high interest.

CAUTION

WARNIN G

NOTES contain information necessary for properly diagnosing, repairing and operating the terminal.

The CAUTION symbol advises you of actions that could damage equipment or property.

A WARNING symbol calls attention to actions that could result in personal injury.

Keystrokes.

Filenames, paths, field selections from a pull-down list, and data or key-

strokes entered by the user are shown in this monospaced typeface.

Windows Controls.

Windows controls including command bar sequences, prompts,

dialog boxes, fields, pull-down lists, check boxes and radio buttons are printed in this

bold typeface.

Portable Keys

Keys on the Pegaso are bracketed by “greater than” and “less than” symbols

< >) to distinguish them from keys on the PC.

(

<F1> — <F19> Keys.

The Function keys, such as <F1>, refers only to keys on the

Pegaso.

vi Pegaso™ Industrial PDA with Windows® CE

Document Conventions

<ENTER> Key.

To differentiate the <ENTER> key on the portable from the Enter key on the PC’s keyboard, portable keys are formatted with “greater than” and “less than” symbols:

<ENTER>.

Stylus Actions

Stylus actions apply to the Pegaso only; most PCs use a mouse as an input device.

Tap or Select.

Tap the display screen once with the stylus to activate a specific button

or select an item from a pull-down list.

Double-Tap.

Tap and Hold.

Refer to the Quick Start Guide (QSG) for mor

Tap the stylus twice rapidly in the same location to open an application.

Tap and hold the stylus to view the context menu.

e information on using a stylus with the

Pegaso.

Mouse Actions

Applies to the software installation portions of this document using a PC; the Pegaso comes equipped with a stylus. Refer to Stylus Actions on page vii, or see the QRG for more information.

Click or Select.

Press and immediately release the left mouse button without moving

the mouse. Clicking is used to select specific buttons on various forms and tables.

Double-Click.

Click the left mouse button twice in rapid succession. Used to initiate

an application.

Right Click.

Select.

Press and hold the right mouse button without moving the mouse.

Click and release the left mouse button to choose an item or items from a pull-

down list.

Product Reference Guide

vii

Preface: About this Guide

NOTES

viii Pegaso™ Industrial PDA with Windows® CE

Overview

This section contains the following topics:

• "Suspend Mode" starting on page 1-1

• "Battery Warnings and Cautions" on page 1-2

• "Battery Disposal" starting on page 1-3.

Suspend Mode

The Pegaso will go into a suspend or sleep mode when it is idle for a period of time. This duration can be customized using the Power control panel (refer to "The Battery tab provides power indicators for External power, Main battery, and Backup battery as shown in Figure 2-17 on page 2-20. To save your settings, tap OK on the command bar, or press <Enter> on the keypad." on page 2-20. Suspend mode works and looks just like you have turned the unit off. Press <Power> to suspend (put to sleep) the Pegaso. Press

<Power> again for the Pegaso to resume its previous state.

Chapter 1

Batteries and Power

Use the Battery Power control panel to set the idle duration and the initiation of suspend mode. These features save battery power when the unit is not in use. Refer to "The Battery tab provides power indicators for External po as shown in Figure 2-17 on page 2-20. To save your settings, tap OK on the command bar, or press <Enter> on the keypad." on page 2-20 for more information.

Suspending

The following conditions will put the unit into suspend (sleep) mode:

1. When the unit is on, and you press <Power> for 0.5 second to initiate suspend

2. When the sleep timer expires, indicating that ther

3. A discharged battery pack.

wer, Main battery, and Backup battery

mode.

e has been no use for a specified

period of time.

Product Reference Guide

1-1

Batteries and Power

Resuming

Use one of the following methods to resume (wake up the Pegaso):

•Press <Power> to resume (wake up).

• Put the Pegaso into a dock.

•Press the Scan Trigger to wake up the unit (handled version only).

When a battery pack is fully discharged while the unit is in suspend mode, the Pegaso remains in the suspended mode until the battery pack is charged or external power is supplied via the dock or a power cable.

Battery Warnings and Cautions

Do not discharge the battery using any device except for the Pegaso. When the battery is used in devices other than the Pegaso, it may damage the battery or reduce its life expectancy. If the device causes an abnormal current to flow, it may cause the battery to become hot, explode or ignite and cause serious injury.

WARNIN G

Lithium-ion battery packs may get hot, explode or ignite and cause serious injury if exposed to abusive conditions. Be sure to follow the safety warnings listed below:

• Do not place the battery pack in fire or heat.

• Do not install the battery pack backwards so the polarity is reversed.

• Do not connect the positive terminal and negative terminal of the battery pack to each other with any metal object (such as wire).

• Do not carry or store the battery pack together with metal objects.

• Do not pierce the battery pack with nails, strike it with a hammer, step on it or otherwise subject it to strong impacts or shocks.

• Do not solder directly onto the battery pack.

• Do not expose the battery pack to liquids, or allow the battery to get wet.

1-2

In the event the battery pack leaks and the fluid gets into your eye, do not rub the eye. Rinse well with water and immediately seek medical care. If left untreated, the battery fluid could cause damage to the eye.

Pegaso™ Industrial PDA with Windows® CE

Battery Disposal

Always charge the battery at 32°–104°F (0°–40°C) temperature range. Regularly charging near the temperature limits will increase the time necessary to fully charge the battery, and will shorten the battery’s useful life.

CAUTION

If you remove the battery pack or it becomes completely discharged, there is a 30-minute window in which to insert a charged battery pack before the backup battery fails. If your backup battery completely discharges, the contents of the RAM memory will be lost. If your back-up battery is less than fully charged, there is a proportionally smaller time available.

Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Datalogic reseller. The use of any other power supplies can damage the Pegaso and

void your warranty. Refer to Appendix

ries".

Do not disassemble or modify the battery. The battery contains safety and protection devices, which, if damaged, may cause the battery to generate heat, explode or ignite.

Do not place the battery in or near fire, on stoves or other high temperature locations. Do not place the battery in direct sunlight, or use or store the battery inside unventilated areas such as cars in hot weather. Doing so may cause the battery to generate heat, explode or ignite. Using the battery in this manner may also result in a loss of performance and a shortened life expectancy.

Do not place the battery in microwave ovens, high-pressure containers or on induction cookware.

Immediately discontinue use of the battery if, while using, charging or storing the battery, the battery emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any other way.

A for the correct "Power Supplies" and "Accesso-

Datalogic recommends annual replacement of rechargeable battery packs to ensure maximum performance under normal use. If battery pack has heavy use (requires charging more than once a day), it is recommended that batteries be replaced at 6-month intervals.

Battery Disposal

If you must dispose of a battery pack, please follow the CAUTIONS below:

Use only a battery pack supplied by a Datalogic reseller for this device.The use of other battery supplies can damage the Pegaso and void your warranty. Contact your reseller to

for the correct power supplies; view your options under "Battery Pack" on page

CAUTION

When the battery pack is worn out, insulate the batter or similar materials before disposal.

CAUTION

Recycle Lithium-Ion Batteries.

Do not throw Lithium-Ion Batteries in the trash

A-2.

y pack terminals with adhesive tape

Please reference your local regulations fo

Product Reference Guide

r any further guidelines about battery disposal.

1-3

Batteries and Power

NOTES

1-4

Pegaso™ Industrial PDA with Windows® CE

Overview

Control Panel

This section contains the following topics on configuring your Pegaso. Most control panels are accessed by selecting/ tapping Start > Settings > Control Panel.

Chapter 2

Configuring the Pegaso

• "Backlight" on page 2-2

• "Bluetooth Manager" on page 2-3 (optional)

• "Certificates" on page 2-6

• "Date and Time" on page 2-6

• "Decoding" on page 2-7

• "Device Info" on page 2-11

• "Display Configuration" on page 2-11

• "Error Reporting" on page 2-12

• "Falcon Config" on page 2-13

• "Input Panel Properties" on page 2-13

• "Internet Options" on page 2-14

• "Keyboard Configuration" on page 2-16

• "Network and Dialup" on page 2-17

• "Owner" on page 2-18

• "Password" on page 2-18

• "PC Connection" on page 2-19

• "Persistent Registry" on page 2-19

• "Power Configuration" on page 2-20

• "Regional Settings" on page 2-21

• "Remove Programs" on page 2-22

• "Storage Manager" on page 2-22

• "Stylus Calibration" on page 2-22

• "System Properties" on page 2-24

• "Volume and Sounds" on page 2-25

• "Wi-FI" on page 2-26

Product Reference Guide

2-1

Configuring the Pegaso

Backlight

Increasing backlight brightness can cause the battery pack to discharge at a faster rate. The battery discharge rate slows with a decrease in backlight usage.

Select Start > Settings > Control Panel > Backlight to open the Backlight control panel.

Brightness

1. On the Brightness tab (refer to Figure 2-1), use the slider to adjust the brightness to the desired setting. You can also use the this setting.

2. Auto Power-Save dims (rather than turning off) the backlight after 15 seconds of inactivity. This features does not change the behavior of the Auto-Off Settings. (Refer to "Power Configuration" on page 2-20).

3. The ambient light sensor automatically adjusts the intensity of the backlight on the display and keypad in response to changes in lighting conditions. Select the check box to enable or disable this feature.

<UP> and <DOWN> arrow keys to adjust

Auto-Off

Figure 2-1. Backlight Control Panel & Brightness

On the Auto-Off tab, enable the desired option checkbox and select the desired options from the pull-down lists (refer to Figure 2-1).

2-2

Pegaso™ Industrial PDA with Windows® CE

Activation

Bluetooth Manager

1. On the Activation tab, just tap the checkbox(es) to enable or disable them (refer to

Figure 2-1):

• Set the backlight to turn on automatically when any key is pressed or the touchscreen is tapped, either while on battery or external power.

• Turn on the backlight when the trigger is pulled.

• Deselect Launch Control Panel from the Keyboard to turn off the ability to open the Backlight control panel with a key sequence.

Using Auto-on while running from battery power will cause the battery pack to discharge at a faster rate. The battery discharge rate decreases with a decrease in backlight usage.

2. To exit and save your modifications, tap OK on the command bar, or press <Enter> on the keypad.

Bluetooth Manager

Search for device

1. Select Start > Settings > Control Panel > Bluetooth Manager to open the Bluetooth con- trol panel.

2. Search for the type of Device(s) you want to connect to by tapping Printer, Serial, or

All

. The Pegaso will search for Bluetooth Devices within range.

3. If you attempt to set up a connection when the B will receive a message reminding you that the radio is turned off, and asking you if you want to turn it on. Tap

Once searching is complete, Bluetooth Device Profiles will be displayed in the Discovery tab. You can set up a connection to a device on the list, or clear it fr tapping the Clear button.

luetooth Radio is disabled, you

Yes if you need to enable the Bluetooth Radio.

om the list by

Product Reference Guide

2-3

Configuring the Pegaso

Figure 2-2. Searching for a Bluetooth Device

Connect to a Bluetooth Device

1. From the list of available devices, double tap the one you want to activate, or select and then tap Connect.

2. The resulting dialog will display services that are available on the device.

Select the service you want to connect to. The following table shows the icons that display for different types of service.

Figure 2-3. Bluetooth Device Icons

Icon Service

Dialup Networking

Printer

2-4

File Transfer Protocol (FTP) Object Exchange (OBEX)

Object Push (OPP) Object Exchange (OBEX)

ActiveSync

Human Interface Device (HID) - Keyboard

Serial

Pegaso™ Industrial PDA with Windows® CE

Bluetooth Manager

Virtual Port allows you to specify the incoming port, which is used to communicate seri-

ally with an incoming device just as if it were a physical COM port. This option is available only if you have selected a Printer or Serial service.

You can also select Encrypt or Authenticate from the Bluetooth control panel to apply or modify those settings.

1. To require Authentication, tap the checkbox, then

tap OK.

2. The Authentication Request dialog will then

open, requesting that you enter a PIN. Use the Input Panel to type in the PIN.

3. Tap OK to complete.

The dialog will also appear when an Authentication request is received from another device.

Viewing or Deleting Paired Devices

Once you have set up a Pairing, you can view the settings by double-tapping its name from the Connections tab. Tap the arrow to change the Virtual Port, or Delete to remove the device pairing. Tap Sync to initiate a Sync (available only if the service is an ActiveSync connection).

Figure 2-4. Bluetooth Pairing Info

The icons displayed in the taskbar at the bottom of your Pegaso’s screen will show you the state of the Bluetooth connection, as shown in Table 2-1.

Product Reference Guide

2-5

Configuring the Pegaso

Table 2-1. Bluetooth taskbar icons

Icon Name Description

Disabled Icon Indicates that the Bluetooth has been disabled.

Settings

Unpaired Icon

Paired Icon

Discoverable

Indicates that the Bluetooth radio is on but the device is currently not paired to another.

Indicates that the Bluetooth radio is on and the

evice is paired with at least one other device.

Indicates that the device is discoverable by other Blu

etooth devices.

The Settings tab allows you to enable or disable the Bluetooth radio and specify settings for Incoming Connections.

Tapping Find Me will make the Pegaso available to other Bluetooth devices for 60 seconds, allowing them to set up a connection.

Ta p Apply to apply the settings you have selected.

Certificates

Certificates are used by some applications for establishing trust and to secure communications. See the Microsoft Windows CE help on your unit for further information about C

ertificates.

Date and Time

In this control panel, you can change the year, month, date, time, time zone, or select automatic adjust for Daylight Savings Time. To set or change the date and time:

2-6

Pegaso™ Industrial PDA with Windows® CE

Decoding

1. Select Start > Settings > Control Panel > Date/Time.

2. Select the month to open a pull-down list of

months or tap the arrow buttons on either side of the month to increase or decrease the month.

3. To change the year, select the year to open a

numeric dial. S value; select the down arrow to decrease the value. Or you can type a new year value in the field.

4. To change the time, select the hour, minute, sec-

onds, or AM/PM and select the up arrow to increase the type a new time value in the field.

5. Select your correct time zone from the pull-down list.

6. To automatically adjust the clock for Daylight Savings Time, enable the checkbox

at the bottom of the screen.

elect the up arrow to increase the

value; select/tap the down arrow to decrease the value. Or you can

7. Select Apply to save your changes and make additional modifications.

• Select OK to save your changes and exit Date/Time Properties.

• Select/tap the close button to exit without saving your changes.

Decoding

You can configure the Pegaso’s decoding options by tapping on Start > Settings > Control

Panel > Decoding

terminals using FMU (Falcon Management Utility).

There are two sections in the Decoding control panel, each containing additional pages. There are six General Configuration pages and multiple Bar Code symbology pages.

Other decoding parameters are described in Programming Parameters, starting on page F-1; bar code settings are provided in Programming Bar Codes, starting on page G-1.

Configuration Control Panels

Select the desired configuration from the following options shown in Figure 2-5, and the other Decoding Properties figures on the following pages.

. Decoder configuration can also be accomplished for large numbers of

Use the pull-down menus or tap the left and right arro pages of the Configure utility.

Product Reference Guide

w keys to navigate the different

2-7

Configuring the Pegaso

To view other configuration options, select Configure > General from the menu.

Figure 2-5. Decoding Properties: Audio

• Audio: Sets volume, tone, duration, and number of various types of beeps.

Figure 2-6. Decoding Properties: General Options

• General Options: Select from Label Programming Enable, Symbology IDs, Label Prefix, Label Suffix, and Data Separator options.

2-8

Pegaso™ Industrial PDA with Windows® CE

Decoding

To view other configuration options, select Configure > General from the menu.

Figure 2-7. Decoding Properties: Decoding Options

• Decoding Options: Set the User ID character associated with a symbology, the Redun-

dancy

and select Aggressive Decoding when available.

Figure 2-8. Decoding Properties: Devices

• Devices: Enable the keyboard wedge for bar code scanner, Magnetic Stripe Reader,

RFID, and enable Read-Ahead for attached devices.

Bar Code Symbology Pages

Use the pull-down menus from Configure > 1D Bar Code, or tap the left and right arrow keys to navigate the different pages of the bar code symbology pages. Each bar code symbology opens to its own page, as shown in Figure 2-10 on page 2-10.

Product Reference Guide

2-9

Configuring the Pegaso

Codabar Pharmacode 39 Code 39 RSS-14 Code 93 RSS-Limited Code 128 RSS-Expanded EAN-13 Standard 2/5 EAN-8 Trioptic Interleaved 2/5 UPC-A Matrix 2/5 UPC-E MSI UPC/EAN Extensions See Appendix

G for details on parameters

available for each symbology.

Figure 2-9. Available 1D Bar Code Symbologies

Refer to the sample symbology control panels in Figure 2-10 for examples of the types of fields and options you can modify.

Decoding parameters are described in Programming Parameters, starting on page F-1; bar code settings are provided in Programming Bar Codes, starting on page G-1.

2-10

Figure 2-10. Common Symbologies: Code 39 and UPC-A

• Code 39: Select from enable, min/max lengths, enable checksum, send checksum, and Full ASCII conversion.

• UPC-A: Select from Enable, Send Check Digit, and Send System Digit.

Other decoding parameters are described in Programming Parameters, starting on page F-1; bar code settings are provided in Programming Bar Codes, starting on page G-1.

Pegaso™ Industrial PDA with Windows® CE

Device Info

Serial Number

Select Start > Settings > Control Panel > Device Info to view the device serial number, model number, firmware version, and keyboard type.

The serial number is also displayed on a label inside the Battery compartment, as shown in Figure 2-11.

Figure 2-11. Serial Number Locations

Device Info

Display Configuration

To change the default Background or Appearance (Windows Color Scheme), select Start

> Settings > Control Panel > Display

Background

To change the Background image:

1. Select

2. Place a new image in the Windows directory.

3. The current file is located in the Windows

4. Select the new file name by using Browse.

Start > Settings > Control Panel > Display.

This file must be exactly 480 pixels wide by 640 pixels high.

dir

ectory with the Datalogic logo file named

DeskLogo.bmp.

Product Reference Guide

2-11

Configuring the Pegaso

Appearance

To change the default Windows color scheme:

1. Tap the Appearance tab.

2. Tap the Scheme pull-down list and select a new Windows color scheme if desired.

3. Tap OK on the control bar, or press <Enter> on the keypad.

Settings

To change the Display settings:

1. Tap the Settings tab.

2. Select the desired Rotation using the radio buttons.

3. Change the Resolution by selecting the desired setting.

4. Tap OK on the control bar, or press <Enter> on the keypad.

Error Reporting

1. Select Start > Settings > Control Panel > Error Reporting

2-12

Pegaso™ Industrial PDA with Windows® CE

2. Enable or disable error reporting and related

features by tapping on the desired selections.

3. Tap OK on the control bar, or press <Enter> on

the keypad.

Falcon Config

Ta p Start > Settings > Control Panel > Falcon Config to access configuration utilities such as the Falcon Management Utility (FMU) and Falcon Desktop Utility (FDU) settings. See "Falcon® Desktop Utility for Windows® CE", starting on page B-1, for complete information on FDU.

Falcon Config

Falcon Management Utility (FMU)

The Falcon Management Utility (FMU) is the easiest method to use to configure multiple units, especially if you have an enterprise-wide deployment. A copy of FMU is shipped with all Pegaso Windows CE units. For complete information on FMU, refer to the FMU User’s Guide on the Product CD included with your Pegaso.

Input Panel Properties

To change the Soft Input Panel settings:

1. Select

2. Change the desired settings.

3. To change the Soft Keyboard Options, tap

4. Change the soft keyboard options as desired,

Start > Settings > Control Panel > Input

Panel

Options.

selecting from:

• Large or small keys.

• Using gestures for space, backspace, shift, and enter.

Product Reference Guide

2-13

Configuring the Pegaso

5. To exit the Soft Keyboard Options, tap OK on the control bar, or press <Enter> on the keypad.

6. To exit Input Panel settings, tap OK on the control bar, or press <Enter> on the keypad.

Internet Options

To change the Internet default settings:

1. Select

2. On the

Start > Settings > Control Panel > Internet Settings.

General tab (refer to Figure 2-12A), type in the URL of the desired start

page and the desired search engine. You can also select a User Agent, change the

Cache Size, clear the Cache, and clear the History.

3. On the Connection tab (refer to Figure 2-12B) modify the network access settings as desired.

Figure 2-12. Internet Settings

2-14

4. On the Security tab (refer to Figure 2-13A) add sites or modify the security settings for Internet, Local intranet, Trusted Sites, and Restricted Sites.

Pegaso™ Industrial PDA with Windows® CE

Internet Options

Figure 2-13. Internet Settings

5. The Privacy tab (refer to Figure 2-14) allows you to modify the settings by tapping

the radio buttons. You can Accept, Block or receive a Prompt for First-party and Thir

d-party Cookies. Enable/Disable session cookies by selecting/deselecting the

check box.

Figure 2-14. Internet Privacy Settings

6. On the Advanced tab (refer to Figure 2-15A) modify the advanced settings for

Accessibility, Browsing, Multimedia, and Security by tapping the check boxes.

Product Reference Guide

2-15

Configuring the Pegaso

Figure 2-15. Advanced Internet and Popup Settings

7. The Popups tab provides options for blocking popups, to display notification when popups have been blocked, and to open new pages in the current window.

8. To exit

Internet Settings, tap OK on the control bar or press <Enter> on the keypad.

Keyboard Configuration

1. Select Start > Settings > Control Panel > Keyboard Options to open the Keyboard con- trol panel.

2. Adjust the slider for Multi-Tap Timeout to match your personal preferences. Use the box provided to test the timeout delay.

3. Click the Load Map tab to select a keyboard keymap by browsing, or click the button for Default Map. Use the box provided to test the current keyboard mapping.

4. Use the drop-down box, then clicking the desired option. Available items will vary depending on the model.

Trig gers tab to define the behavior of each Trigger by selecting it from the

2-16

5. Tap OK to exit the Keyboard Options control panel.

Pegaso™ Industrial PDA with Windows® CE

Network and Dialup

To change the Network and Dialup connection settings, complete these steps:

1. Select Start > Settings > Network and Dialup Connections.

Figure 2-16. Changing the Network & Dialup Connection Settings.

Network and Dialup

2. Double-tap the connection to view or change the settings. The SDCCF10G1 item

shown as an example can vary, depending on the radio installed and the number of connections.

3. Complete the two tabs as shown in Figure 2-16:

• IP Address: Select DHCP or set static IP settings.

Name Servers: If using static IP, set DNS and WINS servers.

•

Product Reference Guide

2-17

Configuring the Pegaso

Owner

To change the Owner default settings:

1. Select Start > Settings > Control Panel > Owner

Properties

entering data.

2. Enter data using the input panel or the keypad on the PDA.

3. To exit the Owner Properties control panel, tap

OK on the control bar, or press <Enter> on the

keypad.

For more information on using the Network ID tab, refer to "Setting up the Network ID" on page 4-8.

Password

. The Input Panel opens to facilitate

To change the Password default settings:

1. Select Start > Settings > Control Panel > Password

Properties

2. Enter the desired password twice as indicated in the two fields.

3. Select to enable password protection at poweron and/or enabling password protection for the screen-saver.

4. To exit the the control bar, or press <Enter> on the keypad.

Password control panel, tap OK on

2-18

Pegaso™ Industrial PDA with Windows® CE

PC Connection

The PC Connection control panel determines how ActiveSync works with the PDA. To modify the default settings:

1. Select Start > Settings > Control Panel > PC Con-

nection

2. Select the first checkbox to enable direct con-

nections to the desktop computer.

PC Connection

3. Tap

4. To exit the Change Connection dialog, tap OK

5. To exit the PC Connection Properties control

Change Connection to modify the connec-

tion method from USB or Serial.

on the control bar, or press <Enter> on the keypad.

panel, tap OK on the control bar, or press <Enter> on the keypad.

Persistent Registry

Persistent Registry saves the RAM-based registry to persistent storage.

1. Tap Persist to persist the registry.

2. Tap Persist registry settings to automatically

persist the settings at the time specified in the dropdown box

3. Tap Clear to delete all persistent registry files

from the Flash FX disk.

Automatically persisting the registry at frequent intervals may slow system performance.

Product Reference Guide

2-19

Configuring the Pegaso

Power Configuration

To adjust power management settings, select Start > Settings > Control Panel > Power. Use this control panel to check the charge on the battery or to change the Power settings.

Battery Tab

The Battery tab provides power indicators for External power, Main battery, and Backup

battery

mand bar, or press <Enter> on the keypad.

Schemes Tab

The Schemes tab allows you to switch the power scheme and specify the Idle settings for User (in 1-minute increments) or System (in 5-minute increments). You can also specify Suspend settings in 5-minute increments). To save your settings, tap OK on the command bar, or press <Enter> on the keypad.

Device Status Tab

as shown in Figure 2-17 on page 2-20. To save your settings, tap OK on the com-

The Device Status tab displays the power usage of active devices.

Figure 2-17. Battery and Power Tabs

2-20

Pegaso™ Industrial PDA with Windows® CE

Regional Settings

To change the Regional Settings defaults, select Start > Settings > Control Panel > Regional

Settings

Figure 2-18. Region and Custom Settings

1. Select your locale from the spin box. See Figure 2-18 on page 2-21.

2. Review the Appearance Samples in the bottom half of the screen. Click Customize

to change the appearance of Number, Currency, Time, and Date.

Regional Settings

3. The options on the Language tab are disabled because the Pegaso will display only

in English.

4. The Input Panel will open to facilitate data input.

Figure 2-19. Language and Input Tabs

5. To exit Regional Settings, tap OK on the control bar, or press <Enter> on the keypad.

Product Reference Guide

2-21

Configuring the Pegaso

Remove Programs

See "Removing Programs" on page 3-7.

Storage Manager

To change the Storage Manager control panel default settings:

1. Select Start > Settings > Control Panel > Storage

Manager

2. From the Store Info pull-down list, select the desired storage device.

3. You can also format, dismount, and create partitions on storage devices using this control panel.

4. To save and exit the Storage Manager control panel, tap OK on the control bar, or press

<Enter> on the keypad.

Dismounting or formatting the persistent storage drive will erase all files and programs stored in Memory.

CAUTION

Stylus Calibration

You might need to recalibrate the touch screen (i.e. when you attempt to select one item with the stylus, another item is erroneously selected).

To recalibrate the touch screen, complete the following steps:

1. Select

2. Adjust

3. Select the Calibration tab to open the Calibration application.

Start > Settings > Control Panel > Stylus to open the Stylus Properties dialog as

shown in Figure 2-20 on page 2-23.

Double-Tap sensitivity if needed or desired.

2-22

Pegaso™ Industrial PDA with Windows® CE

Figure 2-20. Stylus Properties Control Panel

4. Tap Recalibrate to open

the Calibration screen shown to the right

Stylus Calibration

5. Carefully press and

briefly hold stylus on the center of the target as the target moves around the screen or press <ESC> to cancel the stylus calibration.

For more information about the touch-sensitive display, refer to “Using the Stylus” and “Navigating the Display” in the Quick Start Guide (QSG).

Product Reference Guide

2-23

Configuring the Pegaso

System Properties

Refer to the System control panel for information related to the system.To view the System properties, select Start > Settings > Control Panel > System Properties.

General Tab

To view the expansion card settings, select Start > Set-

tings > Control Panel > System

Properties > General tab.

Memory Configuration

RAM Memory Allocation and Usage

Complete the following steps to adjust the Memory

Allocation

1. Select Start > Settings > Control Panel > System

2. Select the Memory tab.

3. Move the slider to adjust memory allocation.

4. Tap

(RAM Memory):

Properties

OK, or <Enter> on the Pegaso.

2-24

Pegaso™ Industrial PDA with Windows® CE

Device Name

Your device uses this information to identify itself to other computers.

Copyrights

Refer to this tab for specific copyright data. As a user, you are responsible to read this statement.

Volume and Sounds

To change the Volume and Sound settings, complete the following steps:

1. Select Start > Settings > Control Panel > Volume & Sounds Properties to open the Vol -

ume

settings.

Product Reference Guide

2-25

Configuring the Pegaso

Figure 2-21. Volume and Sounds Control Panels

2. Set the volume by adjusting the slider from Soft to Loud.

3. Enable the desired sounds for key clicks, scr tions.

4. Select the Sounds tab to choose from various wave files in the menu.

5. You can listen to the sound by selecting Preview.

6. Save your new sound scheme by selecting Save As and entering a name for your new Sound Scheme in the field. Delete a sound scheme by tapping Delete.

7. Tap OK when finished modifying your volume and sounds properties.

Wi-FI

Using the Summit Client Utility

The Summit Client Utility (SCU) is an application designed for end users and administrators of mobile devices that use a Summit radio module. F beyond the scope of this manual, you can download the complete Summit User’s Guide from www.summitdatacom.com.

een taps, notifications, and applica-

or further information

2-26

Reference the QRG for details about the basic functions of this utility an administrator login to the utility, you can perform these additional tasks:

• Create, rename, edit, and delete profiles

• Alter global settings, which apply to every profile

SCU provides a graphical user interface (GUI) for access to all of its functions. Access to these functions also is available through an application programming interface (API), which an application programmer can use to enable another utility to manage the radio.

Pegaso™ Industrial PDA with Windows® CE

. After completing

To initialize SCU:

Enable/Disable

Active Profile

Association Status

Regulatory Domain

Software Versions

About SCU

Tabs

1. Go to Start> Settings > Control Panel.

2. Tap on the Wi-fi icon.

SCU Windows

SCU has five tabs: Main, Profile, Status, Diags (Troubleshooting), and Global Settings. Tabs enable easy navigation. Each tab is described in more detail in this section.

Main Tab

Reference Figure 2-22 on page 2-27 to view the features of the Main tab.

• Enable/Disable Radio: Select or deselect to enable or disable the radio.

• Active Profile: Displays the name of the active configuration profile. An administra-

tor can use the selection list to select a different profile.

• Association Status: Indicates if the radio is associated to an access point and, if not,

what the radio’s status is.

Wi-FI

Figure 2-22. Main tab

• Regulatory Domain: Indicates the regulatory domain or domains for which the

radio is configured. “Worldwide” means that the radio can be used in any domain. The domain cannot be configured by an administrator or user.

• Software Versions: Indicates the version of the device driver and the version of SCU

that are running on the device.

• About SCU: Supplies information on SCU.

Profile Tab

Profile settings are radio and security settings that are stored in the registry as part of a configuration profile. When a profile is selected, its settings become active. An administrator can define, edit, or delete up to 20 profiles in the Profile tab in SCU. Profile changes made are saved only when the Commit button is pressed.

Product Reference Guide

2-27

Configuring the Pegaso

Profile

Actions

Radio Attributes & Settings

Security Settings

Figure 2-23 on page 2-28 is an example of a Profile tab. Here are the highlights:

• Profile: Use to select the profile to be viewed or edited. If “ThirdPartyConfig” is selected then, after the device goes through a power cycle, WZC is used for configuration of the radio.

• Actions: Four actions are available to an administrator:

- Rename: Give the profile a new name, one that is not assigned to another pro-

- Delete: Delete the profile, provided that it is not the active profile

- New: Create a new profile with default settings and give it a name (and then

- Commit: Ensure that changes to profile settings made on the tab are saved in

Figure 2-23. Profile tab

file

change settings using other selections on the tab)

the profile

2-28

3. Radio attribute and setting: Attributes in the list box can be selected individually. When an attribute is selected, the current setting or an appropriate selection box with the current setting highlighted appears on the right. For example, selecting SSID causes an edit box to appear; selecting transmit power causes SCU to display a drop-down list box with available settings.

Security settings: The items at the bottom of the tab enable the administrator to

4. configure the settings for EAP Type (used for 802.1X authentication) and Encryption.

To connect a Summit radio to a typical business WL

AN, you must select a profile that

specifies the SSID, EAP type, and encryption type supported by the WLAN:

• SSID: The name or identification of the WLAN.

• EAP type: The protocol used to authenticate the device and its user if the WLAN uses the Enterprise version of Wi-Fi Protected Access (WPA) and WPA2. SCU supports four EAP types: PEAP with EAP-MSCHAP (PEAP-MSCHAP), PEAP with EAP-GTC (PEAP-GTC), LEAP, and EAP-FAST

Pegaso™ Industrial PDA with Windows® CE

Wi-FI

Client

AP info

Connection

• Encryption: Specifies the type of key used to encrypt and decrypt transmitted data

and how that key is specified or derived. Encryption options include:

- WPA2 or WPA with dynamic keys (derived from the EAP authentication process)

- WPA2 or WPA with pre-shared keys

- Static WEP keys

Consult the Summit User’s Guide for details on all profile settings, including security settings.

Status Tab

The Status tab shown in Figure 2-24 on page 2-29 provides status information on the radio. Status items include IP address and MAC address for the client radio, IP address and MAC address for the AP, signal strength, channel, transmit power, and data rate. A sample Status tab is shown in Figure 2-24 on page 2-29.

• Client info: Name of active profile, client name, client IP address, and client MAC address

• AP info: AP name, AP IP address, and AP MAC address

• Connection info: Channel, transmit power, and bit rate

One status item, the radio association state, is shown on both the Status tab and the Main tab. Potential values are: Down (not recognized), Not Associated, Associated, or [EAP type] Authenticated.

Figure 2-24. Status tab

Diags Tab

A sample Diags, or troubleshooting, tab is shown in Figure 2-25 on page 2-30.

Product Reference Guide

2-29

Configuring the Pegaso

Ping address

Ping results

Figure 2-25. Diags tab, with ping active

Here are the functions available on the Diags tab:

• (Re)connect: Disable and enable the radio, apply or reapply the current profile, and attempt to associate and authenticate to the wireless LAN, logging all activity in the output area at the bottom.

• Release/Renew: Obtain a new IP address through DHCP release/renew, and log all activity in the output area at the bottom.

• Start Ping: Start a continuous ping to the address in the edit box next to it. Once the button is clicked, its name and function will change to Stop Ping. Leaving the Diags tab also will stop the ping, as will pressing any other button on the screen.

• Diagnostics: Attempt to (re)connect to an AP, and provide a more thorough dump of data than is obtained with (Re)connect. The dump will include radio state, profile settings, global settings, and a BSSID list of APs in the area.

Global Settings Tab

Global settings include:

• Radio and security settings that apply to all profiles

• Settings that apply to SCU itself

An administrator can define and change most global settings on the G in SCU. Figure 2-26 shows a sample Global Settings tab.

lobal Settings tab

2-30

Pegaso™ Industrial PDA with Windows® CE

Wi-FI

Figure 2-26. Global Settings

The default setting for each global setting ensures reliable operation in most environments. Consult the user’s guide for de

tails on all global settings.

Product Reference Guide

2-31

Configuring the Pegaso

NOTES

2-32

Pegaso™ Industrial PDA with Windows® CE

Overview

This section contains the following topics:

Chapter 3

Software Applications

• "Inbox" starting on page 3-2.

• "Internet Explorer" starting on page 3-2.

• "Media Player" on page 3-3.

• "WordPad" starting on page 3-3.

• "Persistent Memory" starting on page 3-4

• "Installing Programs" starting on page 3-5.

• "Using an Installation Wizard" starting on page 3-6.

• "Installing Programs Manually" on page 3-6.

• "Using Windows Explorer to Add to the Start Menu" on page 3-7.

• "Using ActiveSync to Add to the Start Menu" on page 3-7.

• "Removing Programs" starting on page 3-7.

• "Firmware Update Utility" on page 3-8.

• "Retrieving a Firmware Image Update" on page 3-8.

• "Installing FUU on the Host PC" on page 3-8.

• "Updating the Pegaso Firmware" on page 3-10.

• "Restoring Pegaso Firmware" on page 3-11.

• "AutoStart" on page 3-12.

Product Reference Guide

3-1

Inbox

Internet Explorer window with the

Status bar and View menu.

The Pegaso comes with Inbox for Windows CE installed from the factory. Inbox is a familiar Microsoft email interface. To set up your Inbox:

1. Open Inbox by selecting Start > Programs > Inbox.

2. Select Services > Options from the command bar to configure email.

3. Drag the screen to show Add.... Select Add....

4. Select the Service Type and type the email service name in the Service Name text box. Select OK.

5. Enter the server and user information in the Mail

Service Definition

6. Configure your inbox using the Mail General Pref-

erences

7. Configure your mail retrieval settings in the Mail Inbox Preferences.

dialog.

8. Tap OK to complete the Inbox configuration.

9. Select Services > Connect from the command bar.

10. Select Services > Send/Receive Mail from the command bar to manually retrieve mail. Pending email appears in the inbox after connecting.

Internet Explorer

The Pegaso comes with Internet Explorer for Windows CE installed.

1. Open Internet Explorer by selecting Start > Pro-

grams > Internet Explorer

2. To set a default home page, navigate to the desired default web page.

3. Select

View > Internet Options from the com-

mand bar.

3-2

4. Enter the desired URL in the

5. Tap OK.

Start Page field.

Pegaso™ Industrial PDA with Windows® CE

Internet Explorer uses sliding menus for application

Internet Explorer window with the

Status bar and View menu hidden.

and navigation control. Tap and drag the sliding menus to the left or right to see the hidden menu items and toolbars.

To achieve more screen real estate in Internet Explorer, you can hide the Status bar and View menu. From the top menubar, go to View > Hide Toolbars.

Once it is hidden, you must reset the Pegaso to access these features again. Refer to the Pegaso Quick Start Guide (QSG) for reset instructions.

For more control over the way Internet Explorer is displayed, refer to "Falcon® Desktop Utility for Windows® CE", starting on page B-1

Media Player

The Pegaso comes with Media Player for Windows CE installed.

Media Player

WordPad

The Pegaso comes with WordPad for Windows CE installed from the factory. The following text and document file types are compatible with

1. Open Media Player by selecting Start > Programs >

Media Player

2. Select File > Open to open an available existing

media file.

3. Please refer to www.microsoft.com for additional

information and help with your Microsoft Windows Media Player.

•Text (*.txt)

• Word Document (*.doc)

• Rich Text File (*.rtf)

• WordPad (*.pwd)

WordPad:

Product Reference Guide

When file types other than the device, Windows CE translates the files into a compressed file type.

To st a rt

WordPad

WordPad, select Start > Programs > Microsoft

*.pwd are transferred to

3-3

Persistent Memory

In addition to the RAM-based storage standard on Windows CE terminals, the Pegaso is also equipped with a persistent storage application and file storage area.

The persistent storage memory persists across all reset (warm/cold reboot) conditions and software/firmware updates.

Because of this, Datalogic very strongly recommends installing all applications, applets, programs, and important data files to the persistent disk of the Pegaso.

If an application or a data file is only installed or saved in RAM, a hard reset may result in the loss of that application or data file.

CAUTION

Saving to Persistent Memory

To save an application or data to the persistent memory, from your current application select File > Save As > and navigate to the location as described below.

Location

To access the contents of Persistent Memory:

1. Double-tap the My Device icon on the desktop.

2. Double-tap the FlashDisk icon to view.

Figure 3-1. Location of the FlashDisk

3-4

Pegaso™ Industrial PDA with Windows® CE

Disk Size

Installing Programs

The size of the persistent storage disk will vary, depending upon several factors, such as the size and number of currently running applications and the amount of memory currently consumed by the OS.

To view the current size of flash memory:

1. Double-tap the My Device icon on the desktop. (See Figure 3-1).

2. Press and hold the FlashDisk directory with the stylus, and select Properties from

the pop-up menu.

3. The FlashDisk Properties dialog opens. The number following Free is the amount

of memory currently available on the Pegaso.

Table 3-1. Persistent Memory Specifications

Persistent Memory Specifications

Total Flash size

OS/Firmware uses

FlashDisk size

Installing Programs

Programs pre-installed on the Pegaso are stored in ROM (read-only memory). You cannot remove or modify this software.

You may add programs and data files to RAM (random access memory) or into persistent storage memory via the persistent storage disk. Y

*.zip files, or other files designed for the Pegaso.

Please follow the directions provided with the software to install it.

128 MB

32 MB

96 MB

ou can install *.cab, *.exe

Product Reference Guide

3-5

Using an Installation Wizard

If the file has an installer, the installation wizard begins automatically if you have ActiveSync installed. Most installation programs require an ActiveSync connection. (Refer to "Installing & Setting Up Microsoft ActiveSync" on page 4-1.)

Follow the directions on the screen. Once the software is installed on your desktop computer, the installer transfers the softwar

Installing Programs Manually

To quickly install programs on multiple units, use the Falcon Management Utility (FMU). For more information, refer to page 2-13.

If the file does not contain an installer, an error message indicates the program is valid but is designed for a different type of computer.

• Install *.cab, *.exe *.zip, setup.exe files, or other files designed for the Pegaso.

• Many Windows CE applications will also work on the Pegaso.

Start by downloading the program to your desktop computer (or insert the CD or disk that contains the program into your desktop computer).

e to your Pegaso.

1. Select Start > Settings > Control Panel > System >

General

information in the Processor field as shown at right. The processor type is required to determine file type compatibility.

2. Read the installation instructions, ReadMe files, or manual that comes with the program. Many programs provide installation instructions.

• If you cannot find installation instructions for the program in the

• For more information on copying files using ActiveSync, refer to the ActiveSync

3. Connect your Pegaso and desktop co tions, and Connections", starting on page 4-1 to connect your Pegaso with your PC.

4. Double-click the *.exe or *.cab file.

5. Once the installation is complete, double-tap the program icon from the desktop, or select

on the Pegaso. Make a note of the

ReadMe file

or manual, use ActiveSync Explore to copy the program file to the Program

Files

online Help.

folder on your Pegaso.

mputer. Refer to "Networks, Communica-

Programs > program icon to select it.

3-6

Refer to "Using ActiveSync to Add to the Start Menu" on page 3-7.

Pegaso™ Industrial PDA with Windows® CE

Removing Programs

Using Windows Explorer to Add to the Start Menu

1. Select Start > Programs > Windows Explorer, and select the directory where the appli-

cation or program is stored.

2. Select Cut from the Edit menu.

3. Open the Programs folder located in the Windows folder, select Paste from the

pop-up menu.

The program appears on the menu.

Using ActiveSync to Add to the Start Menu

1. Use the Explorer in ActiveSync on your desktop computer to explore the files on

your Pegaso and locate the program. For more information on using ActiveSync, refer to "Installing & Setting Up Microsoft ActiveSync" on page 4-1, or see the

ActiveSync online help on your unit.

2. Right-click on the program, then select Create Shortcut.

Move the shortcut to the Programs folder in the Windows folder. The shortcut appears on the menu.

Removing Programs

Only user-installed programs can be removed.

1. To remove a program, select Start > Settings > Con-

trol Panel > Remove Programs

2. Select the program you wish to remove from the

list and tap

Remove.

Product Reference Guide

3-7

Firmware Update Utility

The Pegaso is equipped with a field upgradeable firmware mechanism. Firmware updates for the Pegaso are uploaded to the Datalogic Mobile website (www.mobile.data-

logic.com). After you have downloaded the desired update, there are several ways you

can update the firmware on the Pegaso.

• Use the Falcon Management Utility (FMU) if you have multiple units to update. Refer to the FMU User’s Guide on the Product CD included with your Pegaso for more information.

• If FMU is not available or you have only a few units to update, use the Firmware Update Utility (FUU), described below, to install or update the firmware using an ActiveSync connection. Refer to "Installing & Setting Up Microsoft ActiveSync" on page 4-1 for more information.

FUU can also be used to restore the firmware onto a Pegaso that has become corrupted, such as would happen if the unit were powered down during an ActiveSync firmware update. See "Restoring Pegaso Firmware" on page 3-11.

The following sections provide procedures for the retrieval and installation of the most current firmware image onto a Pegaso.

Retrieving a Firmware Image Update

The following instructions use Internet Explorer to retrieve the most current firmware image.

1. Launch Internet Explorer on your PC and navigate to www.mobile.datalogic.com.

2. Navigate to the Downloads section of the website.

3. Select the product, desired language, and software updates. Click Go!

4. Select the file you want to download, then click Save and navigate to the location where you want to save the firmware files.

5. Click Save again to begin copying the files to your local machine (or local network location).

Installing FUU on the Host PC

The Firmware Update Utility (FUU) provides administrators with a field upgrade mechanism. You must have Microsoft® ActiveSync already loaded and running on the host PC to use FUU. Refer to "Installing & Setting Up Microsoft A

and "Using ActiveSync" on page 4-5 for mor

ctiveSync" on page 4-1

e information about ActiveSync.

3-8

Prior to installing FUU, you must remove any previous versions of FUU installed on the host PC.

Pegaso™ Industrial PDA with Windows® CE

Firmware Update Utility

To install Datalogic Mobile’s Falcon® Firmware Update Utility, complete the following steps on the PC:

1. Insert the CD shipped with your Pegaso and click on the link to Firmware Update

Utility

OR Go to the Datalogic Mobile website at most current version of the Firmware Update Utility. Unzip the file, then double-click to run FUU_Setup.exe.

Click OK to continue once you have removed previous versions of FUU.

www.mobile.datalogic.com and download the

2. The Welcome to FUU Setup Program screen opens.

• Please exit all Windows applications before running this setup.

• Click Cancel to quit Setup and close any programs you have running.

• Click Next to continue with the Setup program.

3. You must agree to accept the terms of the License Agreement by clicking on the

appropriate button.

4. Follow the on-screen instructions to complete the installatio

Product Reference Guide

3-9

Updating the Pegaso Firmware

After copying the firmware image to the host PC ("Retrieving a Firmware Image Update" on page 3-8) and installing FUU ("Installing FUU on the Host PC" on page 3-

8), you can upgrade the firmware on your Pegaso.

The following steps require that you have already established an ActiveSync connection between the host computer and the Pegaso. To establish an ActiveSync connection with the Pegaso, refer to "Installing & Setting Up Microsoft ActiveSync" on page 4-1 and "Using ActiveSync" on page 4-5, for more information on ActiveSync.

1. Go to Start > Programs > Firmware Update Utility > Firmware Update Utility.

2. Verify that ActiveSync is selected from the Communicate Using pull-down list.

3. Click browse (...) and navigate to the location where you saved the firmware file for your terminal.

3-10

4. Select the current *.img file and click Open.

5. Verify that the Pegaso is turned on. Insert the device into a powered dock connected to the host computer.

6. Click

Update Terminal on FUU on the host PC.

Pegaso™ Industrial PDA with Windows® CE

7. FUU will compare the selected firmware image with the firmware already loaded on

the Pegaso; if the images are different, FUU will proceed to update the firmware image on your Pegaso.

Please be patient and do not remove the Pegaso from the Dock during this procedure. The firmware image of the Pegaso can take as long as:

• 6 minutes to download using a USB connection.

• 22 minutes to download using a serial connection with 115K baud rate.

• 130 minutes to download using a serial connection with 19.2K baud rate.

8. After the firmware of your Pegaso has been updated, you must perform a warm

reset. Refer to the Pegaso Quick Reference Guide (QRG) for reset instructions.

Restoring Pegaso Firmware

If the firmware image on the Pegaso becomes corrupted, the unit will beep twice and show a blank screen when powered on. This can happen if a firmware update is aborted, such as during a power loss or if the Pegaso is removed from the Dock before completion of the procedure.

To reinstall the firmware, complete the following steps:

Firmware Update Utility

1. On the PC, click Start > Programs > Firmware Update Utility > Firmware Update Utility.

2. Set Communicate Using to the communications port to which the dock is attached

ActiveSync, USB, COM1 or COM2.)

to (

3. Click browse (...) and navigate to the file location.

4. Select the current *.img file and click Open.

5. Verify that the Pegaso is turned on. Insert the unit into a powered dock connected

to the host computer.

Product Reference Guide

3-11

6. Click Update Terminal on FUU on the host PC.

7. FUU will restore the firmware on the Pegaso as shown on page 3-10.

Please be patient and do not remove the Pegaso from the Dock during this procedure. The firmware image of the Pegaso can take as long as:

• 6 minutes to download using a USB connection.

• 22 minutes to download using a serial connection with 115K baud rate.

• 130 minutes to download using a serial connection with 19.2K baud rate.

8. After the firmware has been restored, the Pegaso will automatically reset.

AutoStart

The AutoStart program provides three functions:

• Allows you to create a list of applications (with optional command line arguments)

• Automatically reinstalls specified CAB files when the Falcon is Hard Reset.

• Allows you to create a list of applications (with optional command line arguments)

AutoStart launches each time the Falcon is r

PreAuto.ini (reference Table 3-3 for the location), executing each line with the spec-

ified command line arguments. It will take into account any AutoStart options at the begining of the line.

Upon a Cold Reset, AutoStart installs all the CAB files located in the AutoStart CAB folder. If the AutoStart CAB folder does not exist, no CAB files will be installed.

Table 3-2. AutoStart CAB folder location

F4400

to run automatically prior to loading CAB files.

to run automatically after loading CAB files.

ebooted. AutoStart first runs

Product Operating System Location

Windows CE \FlashFX Disk Windows Mobile \FlashDisk

3-12

AutoStart will then run the Autostart.ini (reference Table 3-3 for the location), executing each line with the specified command line

arguments. It will take into

account any AutoStart options at the beginning of the line.

Pegaso™ Industrial PDA with Windows® CE

Table 3-3. PreAuto.ini and Autostart.ini location

Product Operating System Location

F4400

Windows CE \FlashFX Disk

Windows Mobile \FlashDisk

Installing CAB files

Copy any CAB files you want to install into the AutoStart CAB folder. These CAB files will then be automatically installed in alphabetical order the next time you start the device.

How AutoStart Uses Wceload

If you intend to create highly interactive installers, you should either install the CABs manually or review the section on “Interactive CAB Install” in this chapter.

In certain environments, CAB files will be deleted after execution. To prevent the CAB file from being deleted, write protect the file before copying the file onto the device.

CAUTION

AutoStart

CAB files are installed by AutoStart using the Wceload.exe application. Table 3-4 on page 3-13 shows available command line options:

Table 3-4. AutoStart command line options

Option Description

Specifies that you will not be prompted for any input during the instal-

/noui

/silent Suppresses dialog boxes during the installation.

lation. If the CAB file is signed, an answered ‘Yes.’ If the CAB is unsigned, then any responses will be answered ‘No.’

y responses will automatically be

Please refer to the Microsoft documentation on your device for further details on Wce-

load.exe

Sample:

\Windows\Wceload.exe /delete 1 /noui /silent “\FlashDisk\CAB\<cab file>”

Interactive CAB Install

If the CAB installer requires user interaction that must be performed during the AutoStart CAB installation process, you can specify a special file name to disable the silent mode installation. If this mode is specified, the CAB file will be installed with

Wceload without any command line arguments specified.

An example of what AutoStart would execute is:

\Windows\Wceload.exe <cab file>

To force this mode of installation via AutoStart, rename the CAB file to include a ‘_’ character before the “.cab” extension of the file.

Product Reference Guide

3-13

Example:

“File.cab” should be renamed “File_.cab” to force AutoStart to not install the CAB in silent mode. This specially-named CAB file should be placed in the AutoStart folder with other CAB files intended for installation on the next reboot.

Autostart.ini

Autoexec.ini, which uses AutoCE on some older models, has been deprecated. These files should be renamed to Autostart.ini and reformatted as described in "AutoStart" on page 3-12.

In the following section, all references to AutoStart.ini also pertain to PreAuto.ini.

Autostart.ini and PreAuto.ini are text files that AutoStart will run upon star-

tup of the Falcon, and after any CAB files are installed. This file should be placed in the AutoStart folder. AutoStart will run the device.

Line Formatting

Each line of the Autostart.ini can consist of Autostart options, an executable, and any command line arguments.

< Autostart option(s)> <full path to executable> <command line arguments>

Sample:

- \windows\pword.exe \file.doc

Ta bl e 3-5 breaks down the sample Autostart.ini line.

Autostart.ini file on each reboot of the

Table 3-5. Autostart.ini line formatting

Autostart option(s)

- \windows\pword.exe \file.doc

Full path to executable Command line arguments

Spaces must be placed between each component of the line in the Autostart.ini.

If the executable path is in a folder that contains spaces in the name, quotes are required to distinguish what the actual executable name is. The following is an example of this:

“\Program Files\ScannerApp.exe” /run (valid)

\Program Files\ScannerApp.exe /run (invalid)

The second line is an invalid line because there is no way to distinguish the executable from the argument.

AutoStart Options

Ta bl e 3-6 shows options you can use when writing a line in the Autostart.ini or

PreAuto.ini file.

3-14

Pegaso™ Industrial PDA with Windows® CE

AutoStart

Table 3-6. Options for Autostart.ini and PreAuto.ini

Description Character Comments

This may only be used as the first

Comment: This line will not be e

xecuted.

Do not wait on line completion: This will cause the line to e cute and immediately move onto the ne

Query: Request user confirmation when running the executable.

Execute only on Cold Reset ‘!’

Cold Reset Only: This will cause the line to execute only after a Cold Reset.

xt line.

‘#’ OR ‘ ‘ (space)

xe-

‘-’

‘?’

character of the line. If the comment option is specified in the options elsewhere, it is ignored.

This will halt parsing the

utostart.ini until the confirma-

A tion is answered. Th

intended for debugging the Autostart.ini file.

is is

An empty line will be treated as a comment line.

Combining Options

Autostart options can be combined together as shown in the following sample:

?- \Windows\Pword.exe

This line would:

• Request confirmation before executing the line. The next line would not be processed before the confirmation is answered.

• Run the next line without waiting on the current line to complete execution.

Query Option

The query option is intended for use when debugging the autostart.ini. When a line with this option is executed, the following dialog will appear with the specified executable and command line arguments. The populated fields shown in the AutoStart Execute Query are described in Table 3-7 on page 3-16.

AutoStart Execute Query

Product Reference Guide

3-15

Table 3-7. AutoStart Query options

Field Description

Line Number This is the line number in the script being executed.

Exe The executable as parsed by AutoStart.

Args The argument as parsed by AutoStart.

The fields may be broken up into multiple lines (as shown in the example) due to limited space in the dialog.

Parentheses are used to surround the given field and make it very clear what the value of the field is.

Ta bl e 3-8 describes the results of each choice:

Table 3-8. AutoStart Query actions

Button Action

Ye s The current line will execute.

Cancel

The current line will not execute. AutoStart will continue parsing the Autostart.ini.

The current line will not execute and AutoStart will discontinue parsing the Autostart.ini.

Autostart.ini Samples

Ta bl e 3-9 on page 3-16 is a collection of sample Autostart.ini lines.

Table 3-9. Sample Autostart.ini lines

Line Description

? \windows\wceload.exe “\My Docum

\Program Files\App.exe

\Program Files\App.exe /run

“\Program Files\App.exe” / run

?- \Windows\Pword.exe

!”\Program Files\App.exe” /run

ents\FDU.cab”

This will confirm the execution of \Windows\wceload.exe with specified argument “\My Documents\FDU.cab”

(invalid) Th

Files\App.exe.

(invalid) Th

Files\App.exe /run.

This will execute the program \Progra argument /run.

This will confirm the execution of \

cution is confirmed, AutoStart will immediately process the next line. This will execute the program \Progra

argument /run ONLY after a Cold Reset.

is will execute \Program with the argument

m Files\App.exe with the

Windows\Pword.exe. If the exe-

m Files\App.exe with the

3-16

Pegaso™ Industrial PDA with Windows® CE

Overview

This section contains the following topics:

Chapter 4

Networks, Communications, and

Connections

• "Installing & Setting Up Microsoft ActiveSync" starting on page 4-1.

• "Installing Microsoft ActiveSync" on page 4-1.

• "Setting up ActiveSync" on page 4-3.

• "Installing the USB Driver" on page 4-4.

• "Using ActiveSync" starting on page 4-5.

• "Networking" starting on page 4-8.

• "Setting up the Network ID" starting on page 4-8.

• "Network and Dialup Connections" starting on page 4-8.

• "Network Setup: Remote ActiveSync" starting on page 4-9.

• "SNMP" starting on page 4-9.

Installing & Setting Up Microsoft ActiveSync

This section provides instructions on setting up the Host PC so that the PC can communicate with the Pegaso and the dock.

The screen shots in the manual were taken and the procedures were written using Win-

dows

XP. If you are using a different Windows operating system, appearances and pro-

cedures may be slightly different.

Important! You must disconnect any other PDAs, PDTs, or Pegasos using USB ActiveSync from the Host PC prior to connecting the Pegaso or the Host PC and Microsoft ActiveSync may not recognize the new device.

Installing Microsoft ActiveSync

Microsoft® ActiveSync is a file transfer tool used to synchronize the files on a PC with the files on your Pegaso. The device comes from the factory with ActiveSync loaded. If you have ActiveSync already installed on your PC, make sure that you have v3.7.1 or higher.

Product Reference Guide

4-1

Networks, Communications, and Connections

To install Microsoft® ActiveSync on the PC, complete the following steps:

1. Go to the Microsoft® Windows website at

http://www.microsoft.com/downloads/.

2. Use the Product/Technology pull-down list to search on “ActiveSync” for the most current version.

3. Download the current version of ActiveSync from the Microsoft website.

4. Install the most current version of Microsoft® ActiveSync on the host PC (refer to Figure 4-1).

Figure 4-1. Microsoft ActiveSync Installer

4-2

Figure 4-2. Microsoft ActiveSync Installer

Pegaso™ Industrial PDA with Windows® CE

Installing & Setting Up Microsoft ActiveSync

5. Click Next to continue the installation. Click Cancel to cancel the installation of

ActiveSync.

Figure 4-3. Microsoft ActiveSync Installer

6. Reboot your PC.

7. You have completed installing ActiveSync.

Setting up ActiveSync

1. Open ActiveSync from the Host PC.

2. Connect the Pegaso to the Host PC via a dock or USB/Serial cable.

3. Verify that the Pegaso is turned on.

4. Within a minute, the ActiveSync window should appear, attempting to connect to

a new device.

Figure 4-4. Microsoft ActiveSync dialog

5. If ActiveSync does not connect within two minutes, try the following:

Product Reference Guide

4-3

Networks, Communications, and Connections

• Double-click and open ActiveSync from the Host PC’s System Tray if it is not

already open.

• Remove the Pegaso from the dock and then reinsert it into the dock or discon-

nect the cable from the Host PC and reconnect it.

• Select

•Go to

File > Get Connected for ActiveSync to look for a mobile device.

File > Connection Settings and make sure that your Connection Settings

dialog show the same selections as that in Figure 4-5 below if you have a USB connection. If you have a serial connection, select the correct COM port from the pull-down list.

Figure 4-5. Connection Settings

6. You have completed setting up ActiveSync. Proceed to "Installing the USB Driver", below, to install the USB driver.

Installing the USB Driver

In order for the Host PC to communicate with the Pegaso, you must install the USB driver file from the CD that came with the P website at www.mobile.datalogic.com.

Microsoft ActiveSync must be installed on your computer before proceeding. See "Set-

ting up ActiveSync" on page

Important! Install the USB driver PRIOR to connecting the Pegaso to the host PC.

4-4

4-3.

Pegaso™ Industrial PDA with Windows® CE

egaso, or download it from the Datalogic

1. Copy the USB driver file from your Pegaso CD or the Datalogic website to the

following location on your computer:

C:\Program Files\Microsoft ActiveSync\Drivers.

2. Connect the USB or Serial cable to Pegaso or place the unit in the dock.

3. Connect the USB or Serial cable to a Host PC.

4. Follow the directions onscreen. The specified source directory will be the one

identified in step 1.

5. You are now ready to use ActiveSync.

Using ActiveSync

Use ActiveSync to transfer and synchronize (share) files between the Pegaso and the Host PC.

Important! You must disconnect any other PDAs, PDTs, or Pegasos using USB ActiveSync from the Host PC prior to connecting the Pegaso, or the Host PC and Microsoft ActiveSync may not recognize the new device.

Using ActiveSync

Setting up a Partnership

During the Microsoft ActiveSync installation, you were prompted to create a partnership with your mobile device. When you set up a partnership, you select synchronization and file conversion settings, which are contained in a file on your desktop computer. This file enables your desktop computer to recognize your device. Only devices that have a partnership with a desktop computer can synchronize information between the two computers.

Partnerships are stored in ActiveSync and have the same name as the corresponding device. Your desktop computer can set up partnerships with many different mobile devices, but the Pegaso can have partnerships with only two computers. For more information on partnerships, please refer to your Microsoft ActiveSync documentation or help file.

Transferring Files

To transfer files, complete the following steps on the host PC:

1. Select Start > Programs > Microsoft ActiveSync.

2. Double-click on the

ActiveSync icon in the System Tool Tray.

3. After you have established a connection with your Pegaso, tap Explore at the top of

the ActiveSync window (or select Explore from the File menu). Refer to Figure 4-6 on page 4-6.

Product Reference Guide

4-5

Networks, Communications, and Connections

Figure 4-6. ActiveSync Dialog

4. Navigate to the target directory (folder) on your portable.

Figure 4-7. Exploring the Mobile Device

5. Copy the desired file by using the Copy/Paste method or dragging and dropping the desired file(s) into the directory (folder).

Depending on the file type, ActiveSync may convert the file into a format appropriate for the Windows CE device.

File Synchronizing using ActiveSync

ActiveSync file synchronization requires an ActiveSync partnership between the Pegaso and the Host PC. Refer to "Setting up a Partnership" on page 4-5.

1. Select the controls in the synchronization configuration for the P ship. Refer to Figure 4-8 on page 4-7.

2. Select

Tools > Options from the ActiveSync command bar to configure the synchro-

nization options.

egaso partner-

4-6

Pegaso™ Industrial PDA with Windows® CE

Figure 4-8. File Synchronization Options

Using ActiveSync

3. Place the file to be synchronized in the Synchronization folder created in your

My Documents directory (defaults to the desktop). Refer to Figure 4-7 on page

4-6.

During the ActiveSync connection, all files in the Synchronization folder will be synchronized with (copied to) the \My Documents directory on the Pegaso.

Figure 4-9. Select Synchronization Settings

Product Reference Guide

4-7

Networks, Communications, and Connections

11:57 AM

System Tray

Network

Connection Icon

Connected Not Connected

Networking

Setting up the Network ID

To set up your Network ID (configure the Windows user settings, such as the user name, password, and domain), complete the following steps on the Pegaso:

1. Go to Start > Settings > Control Panel > Owner.

2. Select the Network ID tab on the Owner Properties dialog box.

3. Enter your User Name, Password, and Domain on the Network ID tab.

4. Select OK on the command bar to save your network ID information.

Access basic network connection information by double-tapping on the Network icon in the system tray. Tap Details to show more information.

The Network Icon

The network icon in the system tray indicates if the network is currently connected or not.

Figure 4-10. The Network Icon

Network and Dialup Connections

Radio Card settings will vary depending on the type of radio card you are using. For assistance configuring the Pegaso for your RF network, reference Remote Connections in the online help on your unit. Reference the documentation for your radio card type for further information.

4-8

Pegaso™ Industrial PDA with Windows® CE

Network Setup: Remote ActiveSync

To execute a Remote ActiveSync, complete the following steps:

1. Go to Start > Programs > Communication > Netlink.

2. Select the target host to which you wish to connect in the Connect To field.

3. Tap Connect.

4. A network ActiveSync connection will be established.

Network functions and operations work the same when using the Dock.

You must have established an ActiveSync partnership with a host before you can use Remote ActiveSync to connect to it. To establish an ActiveSync connection with the Pegaso, refer to "Installing & Setting Up Microsoft ActiveSync" on page 4-1.

SNMP

SNMP (Simple Network Management Protocol) is the standard protocol for managing devices on a network. The Falcon Management Utility (FMU) makes use of SNMP to send and receive configuration information to the Datalogic terminals. Since the networked terminals are constantly running SNMP, this allows FMU to interface with the terminal at any time, without requiring user intervention on the terminal.

With SNMP running on the terminal, other SNMP based network management tools such as HP Openview® and CastleRock SNMPpc® may also be used to interface with the terminals. To support this capability, Datalogic has released the Management Information Base (MIB) for the Datalogic Windows-based terminals. The MIB is used by the management tools to allow them to better support the configuration values provided on the terminals, such as scanner controls and terminal type information.

The MIB is available at www.mobile.datalogic.com.

For more information on SNMP, refer to "SNMP Interface", or go to:

http://www.microsoft.com.

Product Reference Guide

4-9

Networks, Communications, and Connections

NOTES

4-10

Pegaso™ Industrial PDA with Windows® CE

Overview

This appendix covers the following topics:

"Power Supplies" on page A-2.

• "Powered USB Cable & Power Supply"

• "Battery Pack"

• "Single Slot Dock"

• "Four-Slot Charge Dock"

• "Four-Slot Ethernet Dock"

• "Four-Slot Battery Charger"

• "Car Charging Adapter"

"Ethernet Module" on page A-7

Appendix A

Accessories

"Modem Module" on page A-6

"Handstrap" on page A-7

"Handle" on page A-8

"Belt Clip" on page A-10

"Screen Protector" on page A-12

Contact your Datalogic reseller for accessories and supplies for the Pegaso; go to the Datalogic website for the most current information.

Product Reference Guide

A-1

Accessories

Power Supplies

Powered USB Cable & Power Supply

Use only the correct battery chargers and docks with this Windows CE Pegaso. The technology used for these models is incompatible with other Datalogic chargers and docks.

Figure A-1. Power Supply and Powered USB Cable

Battery Pack

The Battery Pack and the Battery Door are integrated and are not sold separately. The Pegaso is available with either a standard or high-capacity battery.

To remove the Battery Pack on the Pegaso, complete the following steps:

1. While pushing the Battery Latch (shown in Figure A-2), lift out the Battery Pack, top first.

2. To replace, seat the bottom end first, then click the Battery Pack into place.

A-2

Pegaso™ Industrial PDA with Windows® CE

Figure A-2. Battery Pack

Battery Pack in Charger

USB/Serial Connector

Pull Upward to Remove

LEDs

Power Supplies

Battery Pack

Single Slot Dock

Figure A-3. Single Slot Dock

Battery Latch (push in to release)

Seat this end first

Product Reference Guide

A-3

Accessories

Four-Slot Charge Dock

The Four-Slot Charging Dock provides the ability to charge up to four Pegasos and four spare batteries simultaneously.

Figure A-4. Four-Slot Charge Dock

Four-Slot Ethernet Dock

Like the Four-Slot Charging Dock, the Four-Slot Ethernet Dock provides the ability to charge four Pegaso and four spare batteries simultaneously. In addition, the built-in Ethernet hub gives all the docks a unique Ethernet address accessible through one physical 802.3 CAT5 connection. See "Ethernet Module"on page A-7 for more information on setting up an Ethernet connection.

Use when you want to connect to an Ethernet network, or for batch units to synchronize without the need for wireless technology.

There are two LEDs; one for 10/100 Mbps link and the other for Tx/Rx.

Figure A-5. Four-Slot Ethernet Dock

A-4

Pegaso™ Industrial PDA with Windows® CE

Four-Slot Battery Charger

LEDs

Charge up to four spare battery packs simultaneously with the Four-Slot Battery Charger.

Figure A-6. Four-Slot Battery Charger

Power Supplies

Car Charging Adapter

A Car Charging Adapter is available for the Pegaso. To attach, just plug the adapter into the connector on the bottom of the unit, and tighten the thumb screws to secure it.

Figure A-7. Car Charging Adapter

Product Reference Guide

A-5

Accessories

Modem Module

An optional Modem Module allows you to use the Pegaso to dial a server in a remote office.

Features:

• V.92/56K data rate backward compatible with lower speeds

• V.44 and V.42 bits data compression

• V.42 error correction

• AT command compatible

• U. S. Caller ID reporting

• FastPOS (V.29) and V.22vis Fast Connect

• V.80 Synchronous Access

• Built-in speaker

•Easy to use

To connect:

1. Remove the Pegaso from the dock and detach power from the dock.

2. Plug the modem module into the dock, and then plug the phone cable into modem.

3. Replace the Pegaso into the dock and restore power.

4. Select Start > Settings > Network and Dial-up Connections to open dial-up network- ing.

5. Tap Make New Connection to create a new connection.

6. Type a name for the connection, and tap the radio button to select Direct Connec-

tion

. Tap Next.

7. Select

Hayes Compatible Modem on Com1 as the device.

A-6

Pegaso™ Industrial PDA with Windows® CE

Ethernet Module

8. Click on TCP/IP Settings and Security Settings and fill in as needed to connect to

the remote server. Check with your network administrator for settings. Tap Finish when complete.

9. Double tap the newly named connection.

10. Fill in the necessary username, passwor

11. Tap

A PPP connection has now been created. TCP/IP network communications can commence.

Connect to continue.

Ethernet Module

The optional Ethernet Module allows the Pegaso to connect to an Ethernet network. There are two LEDs; one for 10/100 Mbps link and the other for Tx/Rx. The communications rate is 10/100Mbps – Auto-negotiate.

To Connect:

1. Remove the Pegaso from the dock, and

unplug the power from the Dock.

2. Plug the ethernet module into the Dock, then

plug a CAT5 cable into the Ethernet module.

3. Replace the Pegaso into the Dock, and restore

power to the Dock.

d, and domain.

A network icon will be displayed in the system tray. All normal network activities can now take place.

Handstrap

It is not necessary to remove the Handstrap to install the Handle or the Belt Clip.

Removing the Handstrap

An elastic Handstrap is included with the Pegaso. To remove the Handstrap, complete the following steps. Reference Figure A-8 while performing these actions.

1. Grasp the lower handstrap attachment and pull to slide out from the unit.

2. Using a Phillips screwdriver, remove the two screws securing the upper handstrap

attachment to the unit.

Product Reference Guide

A-7

Accessories

Handstrap

Back Enclosure Handstrap Holder

Closure Area

Upper

Handstrap

Assembly

Figure A-8. Removing/Replacing the Handstrap

Installing the Handstrap

To install a Handstrap on the Pegaso, follow the steps described below.

1. Feed the strap end of the handstrap down through the Back Enclosure Handstrap Holder slot as shown in Figure A-8 and loop it up to engage the closure area at the desired position.

2. Attach the Upper Handstrap Assembly to the unit using the two Phillips screws.

Handle

The Pegaso is available with an attachable handle which provides an additional trigger for scanning. When y to press the trigger on the handle and must use the

<Scan> key on the keypad or Scan triggers on the

Pegaso instead.

To install a handle, refer to the following sections. Reverse the instructions to remove the handle.

ou remove the handle, you lose the ability

A-8

The Handstrap can be left on when installing the Handle.

Pegaso™ Industrial PDA with Windows® CE

Installing a Handle on the Pegaso

Ears

Handle

Locked

Position

Unlocked

Position

1/4 Turn Latch

The handle may be installed without removing the handstrap. To install the handle on the Pegaso, complete the following steps:

1. Align the “ears” on the handle with the corresponding holes on the underside of

the Pegaso and slide them into place.

Handle

2. Seat the top of the Handle against the Pegaso and turn the quarter-turn fastener to

secure the Handle to the unit.

The trigger is automatically activated and available. Press to initiate scanning

Product Reference Guide

A-9

Accessories

Ears

Belt Clip

The Handstrap can be left on when installing the Belt Clip.

The Belt Clip comes with two separate pieces: one that attaches to the Pegaso, and one that attaches to your belt.

To install the Belt Clip on the unit, complete the follo

1. Turn the Pegaso face-down and ensure

2. Orient the Belt Clip on the underside of

3. Align the “ears” on the inside of the Belt Clip with the corresponding holes on the

wing steps:

that power is off.

egaso.

the P

underside of the P

egaso and slide them into place.

A-10

4. Push the top of the Belt Clip against the Pegaso and turn the quarter-turn fastener to secure it.

Pegaso™ Industrial PDA with Windows® CE

Figure A-9. Installing the Belt Clip

1/4 Turn Latch

Locked

Position

Belt Clip

Unlocked

Position

Belt Clip

Attaching to a Belt

To attach the Pegaso to a belt, snap the Belt Attachment onto your Belt. Slide the Pegaso onto the Belt Attachment sideways, then rotate to an upright position to secure it into place, as shown in Figure A-10.

Figure A-10. Attaching to a Belt

Product Reference Guide

A-11

Accessories

Tab

Screen Protector

A Screen Protector is available for the Pegaso. Use the following instructions to attach a Screen Protector.

You may find it helpful to have the unit firmly seated in its dock while performing these procedures. Another useful tip is to have a credit card handy to assist in smoothing the Screen Protector in place.

1. Gently but thoroughly clean the touchscreen using a lens cloth or other soft, lint-free cloth. If necessary, dampen the cloth with a mild cleaning solution, such as liquid hand soap and water. Thoroughly dry the area after cleaning, and ensure it is lint-free.

Never use corrosive or abrasive cleaners or cloths on the Pegaso.

CAUTION

2. Remove the Screen Protector from its packaging and, while holding it by the edges, pull the tab to begin peeling the backing from about one inch of the adhesive side. Fold the backing down as you go.

DO NOT touch the adhesive area, as this could leave a fingerprint when installed.

3. Orient the Screen Protector with its adhesive side towards the screen and CAREFULLY align its top edge and corners with the screen recess, as shown in Figure A-11A. If alignment is not perfect, gently lift up and star

4. Continue to peel the backing while slowly seating the protector in place

t again.

. Use a credit card (if available) or similar soft-edged object to evenly smooth the Screen Protector and push out any bubbles between the surfaces. Reference Figure A-11B.

Figure A-11. Applying a Screen Protector to the Pegaso

A-12

Pegaso™ Industrial PDA with Windows® CE

Appendix B

Overview

Falcon® Desktop Utility (FDU) allows Datalogic Pegaso™ Windows® administrators to configure Pegaso Windows® CE devices to control individual user access. This includes:

This section covers the following information:

Falcon

Desktop Utility

for Windows® CE

• Prevent users from changing Pegaso OS settings.

• Define keys to access specific functionality/programs.

• Use Application Selector to replace desktop with a selection of authorized applica-

tions.

• Internet Explorer access restriction, configuration and customized recovery mecha-

nisms.

• "Falcon Desktop Utility" on page B-2

• "Administrative Options" on page B-3.

• "Setting Hot Keys" on page B-5.

• "Internet Explorer Configuration" on page B-8.

• "Modifying Windows Controls" on page B-9

• "Add Application" on page B-11.

Product Reference Guide

B-1

Falcon® Desktop Utility for Windows® CE

Falcon Desktop Utility

To open the FDU for the first time, select Start > Settings > Falcon Config.

Figure B-1. Accessing FDU

These options are available from all screens:

Table B-1. Options Available on all Screens

Command Description

Ta p OK to apply the settings and modifications you have made in the FDU tabs. OK saves every modification.

Ta p X to cancel the settings and modifications you have made in the FDU tabs. X cancels all modifications you have made in FDU.

B-2

Pegaso™ Industrial PDA with Windows® CE

Administrative Options

When you open the Admin control panel, the FMU tab will open. Select the Admin tab to set up FDU.

Figure B-2. Setting a Password/Admin Tab Fields

Table B-2. Setting a Password/ Admin Tab Fields

Falcon Desktop Utility

Command Description

Enable Falcon Desktop

Enter Password

Re-Enter Password

Set Password

Restore

faults

Select/tap this checkbox to activate the FDU functions such as Hot Key assignments, IE Restrictions, Windows Settings, and the authorized application menu.

Enter a password in the text box. This allows the user to specify a password when this utility is launched. By default there is no password. A password can consist of all standard keyboard characters.

Carefully re-enter the password in the second text box.

Select/tap Set Password to enable the password.

To change or remove the password, enter a new value, re-enter the

new value, and select/tap Set Password.

Select/tap Re functions on all the tabs. After you select this option, you will receive a prompt to verify this selection.

store Defaults to reset the default values of all the

Product Reference Guide

B-3

Falcon® Desktop Utility for Windows® CE

Setting a Password

To set a password:

1. Enter a password in the field. This allows the user to specify a password when this utility is launched. By default there is no password set.

Be sure to record the Password for future reference.

2. Re-enter the password in the second field.

3. Select/tap Set Password to enable the password.

4. Select/tap OK close the Set Password Confirmation dialog.

You must select/tap Set Password prior to exiting FDU in order to store and activate your new password. It is not necessary to select Enable Falcon

Desktop.

If you select/tap Restore Defaults it will remove all custom settings and restore all the factory default settings, except a previously set password.

CAUTION

Changing a Password

To change to a new password:

1. Enter a new value in the Enter Password field.

2. Re-enter the new value in the

3. Select/tap Set Password.

Removing a Password

To remove a password:

1. Enter blanks in both Password fields.

2. Select/tap Set Password.

Re-enter Password field.

Password Request Dialog Box

Once the password is set, the next time you open the Falcon Desktop Utility, the FDU Pass-

word

dialog box opens.

This dialog box will only open if a password was defined.

B-4

Pegaso™ Industrial PDA with Windows® CE

Figure B-3. Setting a Password

Table B-3. Setting a Password Dialog

Command Description

Falcon Desktop Utility

Enter Password

OK Select/tap OK to accept the password.

X Select/tap X to can

Complete the FDU Config dialog:

1. Type in your password using either the keypad on the unit, or using the stylus on

the soft input panel (SIP). If you enter an incorrect password, the system will prompt you to input the correct one.

2. Select/tap OK to verify the password. Or tap X to cancel.

Setting Hot Keys

You can use Hot Keys (HKeys) Tab to associate specific keys, such as <F1>-<F10>, with specific applications. You can also create a new Hot Key combinations ("Adding a New Hot Key" on

B-7). Select the HKeys tab to access these options.

page

For example, you could set <F2> to launch a sample application like:

Enter your password using the keypad, or using the stylus on the soft input panel (SIP) in the text box.

cel the request to start the FDU.

\Windows\pword.exe.

Product Reference Guide

B-5

Falcon® Desktop Utility for Windows® CE

Figure B-4. Hot Keys Tab

Table B-4. Hot Keys Tab Fields

Command Description

Hot Key

New

Delete

Associated Function

Application

Browse

Arguments

Action

This pull-down list displays the available function keys to define. Select the desired one from the list.

Select/tap to specify a new Hot Key, not on the Hot Key list. This opens a new dialog, shown on page

Tap to delete the selected Hot Key. You can only delete the Hot Keys you have added. You cannot delete <F1> -<F10>.

This pull-down list displays the available functions. Select either Application or Action.

Displays path to the selected application.

Select/tap to browse for application files. You can associate an executable program with the specified Hot K

Type the command-line arguments that are needed for the specified application. This option is only available when Application is selected in the Associated Function pull-down list.

Specify an action to associate with a Hot Key. This list includes:

SIP, toggle Taskbar, FDU Admin, and Applica- tion Switcher.

is selected in the Associated Function pull-down list.

This option is only available when Action

B-7.

ey.

B-6

The <F6> is the key initially assigned to FDU Admin:

If you wish to assign this key to a differ Hot Key and assign it to the Action -

FKey to something else.

ent function, you must first select an unassigned

FDU Admin. You can then go back and reassign the

Pegaso™ Industrial PDA with Windows® CE

Falcon Desktop Utility

Table B-5. Pegaso Hot Keys Available

Pegaso

19-key models

Numeric

F1-F10

Alpha keys

Side/top triggers

The administrator is responsible for verifying that these keys don’t override existing functions. To prevent FDU Hot Keys from overriding existing application keys, select “No Action” in the Action combo box.

Adding a New Hot Key

When you select New on the HKeys tab, this opens the Add New Hot Key dialog box.

To define a new Hot Key, complete the following steps:

1. Enter the key combination to define a new Hot Key in the Enter Key textbox.

2. The Note displays important information indicating Hot Keys that should not be

used.

Figure B-5. Add a New Hot Key Dialog

Table B-6. Adding a New Hot Key Dialog

Command Description

Enter Key

OK Select/tap OK to add the specified Hot Key.

X Select/tap X to ca

Product Reference Guide

Enter the desired key combination in this text box to define a Hot Key.

ncel the specified Hot Key.

B-7

Falcon® Desktop Utility for Windows® CE

IE Address Bar

IE Tool

IE Menu Bar

IE Status Bar

Make sure you do not attempt to add a Hot Key that is already defined.

3. Select/tap OK to save the New Hot Key. If you select/tap X, the key will not be saved.

It is possible for the keyboard wedge to activate assigned Hot Keys using alphanumeric characters. Bar codes containing characters associated with assigned Hot Keys will trigger the action or application assigned to that Hot Key.

Internet Explorer Configuration

Tap the IE (Internet Explorer) tab to access the IE Configuration option. Use the IE Error

Redirection

error occurs, the browser can redirect access to a specified error page with instructions on how to recover from the problem.

Figure B-6. IE Configuration Tab / IE Window Features

option to provide customized recovery from common IE errors. When an

B-8

Table B-7. IE Tab Fields

Command Description

Error Type

Error Page

The Error Types pull-down list displays available IE Error

Typ es:

(400) Invalid Syntax, (403) Request Forbidden, (404) Object Not Found, (406) No Response Format, (410) Page Doesn't Exist, (500) Internal Server Error, (501) Server Can't Do That, Generic Error, Server Is Busy, Couldn't Find Server, URL Syntax Error, Request Cancelled, Not Available Offline

Edit this textbox to associate a website or html file with the specified error

Pegaso™ Industrial PDA with Windows® CE

Command Description

Select/tap to set a specified error page as the default. A confir-

Assign as Default

mation dialog opens to ask if the default error page applies to all errors

Falcon Desktop Utility

CAUTION

Browse

Show Address Bar

Show Tool Bar

Show Status Bar Select/tap this check box to show the IE status bar.

Show Menu Bar

Select/tap

Select/tap this check box to show the IE address bar.

Select/tap this check box to show the IE toolbar.

Select/tap this check box to show the IE menu bar.

to browse for files.

Internet Options

Ta p Internet Options on the IE tab to open the Windows CE Internet Options control panel. Customize these settings as necessary.

The Internet Options control panel applet is part of the Microsoft® Windows® CE operating system.

For more information on the Windows CE operating system, please refer to the Microsoft

website at

The FDU allows you to cancel prior to applying your changes. However, any settings modified in the Internet Options control panel applet through the FDU interface will be applied even if you later cancel the your modifications in the FDU.

http://www.microsoft.com.

Modifying Windows Controls

Select/tap the Win (Windows Controls) tab to access the Windows Controls option. Use

Windows controls to allow or restrict access to Windows system functions.

You can disable normal Windows functions such as the desktop and taskbar, leaving nothing but a blank workspace. This allows applications to be run on the full screen and prevents users from accidental or unauthorized use of the taskbar, Internet Explorer, and any other resident applications.

Product Reference Guide

B-9

Falcon® Desktop Utility for Windows® CE

WinCE Desktop

Start Menu

Taskbar

Figure B-7. Windows CE Desktop and Win Tab

Table B-8. Win Tab Fields

Command Description

Show Taskbar

Taskbar Enabled

Start Menu Enabled

Windows CE Desktop Enabled

Select/tap Show Taskbar to specify that the taskbar is shown or hidden.

Select/tap Tas k b a r E nabled to specify whether the taskbar is accessible. This option is only available when the Show

Task bar is checked.

Select/tap Start Menu Enabled to specify whether the Start menu is accessible or not. This option is only available when both Show Tas kbar and Task Bar Enabled are checked.

Select/tap Windows CE Desktop Enabled to specify that the desktop icons are accessible or not.

B-10

Pegaso™ Industrial PDA with Windows® CE

Application Selector

Use the Application Selector (AppSelect Tab) function to edit, add, or delete applications for the application selector.

Figure B-8. AppSelect Tab

Application Selector

Table B-9. AppSelect Tab Fields

Command Description

Enable Application Selector

Authorized Applications

New

Edit Select/tap Edit to edit the selected entry.

Delete

Up/Down

Add Application

The Add Application dialog opens when you tap either New or Edit.

From the new application entry in the list.

Add Application dialog the administrator can configure and/or add/change an a

Select/tap Enable Application Selector to enable/disabled the application selector. When this is enabled, the Application

Selector replaces the desktop and allows only authorized use

of applications.

This is a list of applications that the user may access.

Select/tap New to create a new application entry.

Select/tap Delete to delete the selected entry.

Select/tap Up/Down to move an entry up or down in the listview.

Applications with the

Run Application at Startup option enabled will start automatically

when the Application Selector starts up.

Product Reference Guide

B-11

Falcon® Desktop Utility for Windows® CE

Figure B-9. Add Application Dialog

Table B-10. Add Application Dialog

Command Description

Application Title

Executable Displays the path for the executable file which you want to run.

Browse

Arguments

Icon File

Browse

Run Application at

Startup

Delay

Type the name of the application in this textbox in the way you wish it to appear for the user.

Select/tap to browse for the desired executable file. The

results of this search are placed in the Executable textbox.

Type any command line arguments to be used when an application is executed.

Displays the path/link to the desired icon file.

Select/tap to browse for the desired icon file. The results of this search are placed in the Ico

Select/tap this box to force this application to auto start when the Application Selector starts up. Applications will be started in the order listed in the authorized application list.

Enter a delay duration in seconds in the combo box.

This option delays auto start of application(s) to allow drivers to loa

d prior to starting applications

Select/tap OK to add/save changes.

n File textbox.

B-12

X Select/tap X to cancel the creation of this entry.

Pegaso™ Industrial PDA with Windows® CE

Application Selector

The administrator can choose for the user to have access to the desktop or not. The Application Selector can replace the desktop and limit the user to the specified list of applications.

Figure B-10. Application Selector

Application Selector

The user can select/tap the desired application.

The administrator can customize this list as shown in "Application Selector" on page B-11.

Application Switcher User Interface

The application switcher provides the same functionality as the standard Windows® Alt+Tab function. This allows the user to cycle through the various open applications.

The <Esc> key can be used to close the Application Switcher.

The application switcher is activated via an assigned

Action key specified in the Hot Key tab. (Refer to "Set-

ting Hot Keys" on page B-5.) When the assigned

is pressed, the dialog shown to the right will be

Key

displayed.

The application switcher can only be assigned to a single Hot Key, not a Hot Key with modifier keys. For instance, switcher action, but

<Shift>+<F3> cannot be assigned to the task

<F3> can be.

Hot

Press the switcher. Press the assigned

Hot Key assigned to open the application

Hot Key to cycle through

the running applications when the dialog is open.

<Enter> to switch to the selected application or

Press

<Esc> to close the application switcher.

Product Reference Guide

B-13

Falcon® Desktop Utility for Windows® CE

NOTES

B-14

Pegaso™ Industrial PDA with Windows® CE

Appendix C

Configuring the

Overview

The Web Server can perform several different actions, including generating a web page containing statistics relating to performance of the mobile computer. The Web Server can also be used for creating an interface for interaction with the Terminal to configure system behavior.

This section contains the following topics on configuring the Web Server:

• "Enabling the Web Server" below.

• "Testing the Web Server" on page C-3.

• "Launching the Network Administration Page" on page C-4.

• "Web Server Registry Settings" on page C-4.

• "Creating and Using an ISAPI Service" on page C-5.

Enabling the Web Server

Web Server

By default the Web Server is disabled. The following demonstrates how to enable the Web Server:

1. On the Pegaso, either through a CE-based registry editor or using the Remote

ools RemoteRegEdit included with eVC++ 4.0, modify the following registry

T entry:

[HKEY_LOCAL_MACHINE\COMM\HTTPD]

"Enabled"=dword:1

2. In a Command Prompt window on the Terminal, type the following:

\> services list

This will display a list of loaded and services and their state.

3. If the service HTP0: is not listed, then type the following to load the HTTP Web

Server:

\> services load httpd

4. If the service is listed and not running, type the following to start the HTTP Web

Server:

\> services start HTP0:

Product Reference Guide

C-1

Configuring the Web Server

5. To restart the Web Server, type:

\> services refresh HTP0:

This will cause the Web Server to reload any information pertaining to the Web Server in the registry. For additional information on the registry entries, see "Web Server Registry Settings" on page C-4.

To configure the Web Server to allow access to the Web and Net administration pages:

1. On the Pegaso create the following registry entries:

[HKEY_LOCAL_MACHINE\COMM\HTTPD\VROOTS\/NetAdmin]

“Default” = “\windows\natadmin.dll”

[HKEY_LOCAL_MACHINE\COMM\HTTPD\VROOTS\/WebAdmin]

“Default” = “\windows\httpdadm.dll”

2. In a Command Prompt window on the Terminal, type the following:

\> services refresh HTP0:

Setting up a User

The following example demonstrates how to set up a user named Testuser in a group called Testgroup.

To configure User and Group Permissions for the Web Server:

1. On the Pegaso, launch Internet Explorer and type the following address in the address bar: http://localhost/NetAdmin. The Web-based network configuration utility appears.

2. Fill in the Enter new password and Confirm new password boxes, then click Submit on the bottom of the page.

3. On the menu bar of the displayed web page, click the

Enter Network Password dialog box appears.

User Accounts link. The

4. Type Admin in the User Name box, and type the password that you specified above in the Password box. Leave the Domain box empty.

5. Click OK. The User Manager Setup page appears.

6. In the Logon Name dialog, type Testuser in the Create a new user box, then click

Create.The User Manager Setup page appears.

C-2

7. On the User Configuration page, type a password for Testuser, confirm the password, and then click

Name

box on the User Manager Setup page.

Create Account. The new user will appear below the Logon

8. In the User Group Setup box, type Testgroup in the Create a new group box. Click

Create.
