Datalogic PD9530 User guide

PowerScan™ PD9530
Industrial Corded Handheld
Area Imager Bar Code Reader
Quick Reference Guide
Datalogic ADC, Inc.
959 Terry Street Eugene, Oregon 97402 USA Telephone: (541) 683-5700 Fax: (541) 345-7140
An Unpublished Work - All rights reserved. No part of the con­tents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Own­ers of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this documentation and shall ensure that all notices appear on any reproductions of the docu­mentation.
Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic represen­tative. Electronic versions may either be downloadable from the Datalogic website (www.datalogic.com) or provided on appro­priate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publica­tions, please let us know via the "Contact Datalogic" page.
Disclaimer
Datalogic has taken reasonable measures to provide informa­tion in this manual that is complete and accurate, however, Dat­alogic reserves the right to change any specification at any time without prior notice.
Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. All other brand and product names may be trademarks of their respective owners.
Patents
This product is covered by one or more of the following patents.
This product is covered by one or more of the following patents: Utility Patents: EP996284; EP999514; EP1128315; EP1172756;
EP1396811; EP1413971; EP1828957; JP4435343; US5481098; US6478224; US6512218; US6513714; US6561427; US6808114; US6877664; US6997385; US7053954; US7234641; US7387246; US7721966.
Additional patents pending.
Table of Contents
Software Product Policy .............................................................................4
Customers Under Software Support ..........................................4
Description .....................................................................................................5
General Features ................................................................................5
Setting Up the Reader ................................................................................6
Connecting the Cable ......................................................................7
Using the PowerScan™ PD9530 ..............................................................8
Selecting the Interface Type .....................................................................9
Interface Selection ............................................................................9
Configuring the Interface .................................................... 9
Scancode Tables .................................................................. 12
Keyboard Interface.............................................................. 12
Country Mode....................................................................... 13
Caps Lock State .................................................................... 17
Numlock.................................................................................. 18
Programming ..............................................................................................19
Using Programming Bar Codes .................................................19
Configure Other Settings .............................................................19
Resetting Product Defaults .........................................................19
Reading Parameters .................................................................................20
Good Read Green Spot Duration ..............................................20
Operating Modes ......................................................................................21
Scan Mode ........................................................................................21
Motion Aiming Control ................................................................22
Pick Mode ..........................................................................................23
Multiple Label Reading ................................................................23
Technical Specifications .......................................................................... 24
LED and Beeper Indications ...................................................................27
Error Codes ..................................................................................................29
Cleaning ........................................................................................................30
Regulatory Information ...........................................................................31
Statement of Agency Compliance ...........................................31
FCC Class B Compliance Statement ......................................... 31
FCC RF Radiation Exposure Statement........................ 32
Canadian Notice ..............................................................................32
Power Supply ...................................................................................33
Imager Labeling .............................................................................. 33
Aiming System...................................................................... 33
WEEE Statement ............................................................................. 38
Datalogic ADC
Limited Factory Warranty ............................................................39
Ergonomic Recommendations .............................................................41
Services and Support ...............................................................................41
NOTES
Datalogic ADC, Inc.
PowerScan™ PD9530 PRODUCT SERIES
END USER LICENSE AGREEMENT
Notice to End User: The Datalogic Product you have acquired contains embedded Software, which is integral to the product's operation. This Software is being provided to you under license, subject to the terms and conditions of this Agreement. If you use the Datalogic Product, you will be deemed to have accepted the terms and conditions of this Agreement. If you do not intend to be bound to the terms of this Agreement, Datalogic is not willing to license the Software to you, you may not use the Datalogic Product or the Software, and you must contact the party from whom you acquired the Datalogic Product for instructions.
This End User Software License Agreement ("Agreement") is a legally binding agree­ment governing the licensing of the Software and Documentation by Datalogic ADC, Inc. and its Affiliates ("Datalogic") to the entity or person who has purchased or other­wise acquired a Datalogic Product ("End User"). For purposes of this Agreement, any software that is associated with a separate end-user license agreement is licensed to you under the terms of that license agreement. Datalogic and End User hereby agree as follows:
1. Definitions
1.1 "Affiliate" means a business entity currently existing or later acquired that controls, is controlled by, or is under common control w ith Datalogic S.p.A.
1.2 "Documentation" means materials such as user's guides, program reference guides, quick reference guides, manuals, or similar materials associated with or related to the D atalogic Product, whether in printed, "online", or other form.
1.3 "Proprietary Information" means: (a) source code, object code, software, docu­mentation, and any related internal design, system design, data base design, algorithms, technology, technical data or information, implementation tech­niques, and trade secrets related to the Software, (b) any other trade secrets marked appropriately or identified as proprietary or confidential, and (c) any information that End User, under the circumstances, should recognize as confi­dential. Proprietary Information does not include any information that the receiv­ing party can establish was (1) in the public domain, (2) already in the receiving party's possession or rightfully known prior to receipt, (3) rightfully learned from a third party not in violation of any other's proprietary rights, or (4) indepen­dently developed without access to Proprietary Information.
1.4 "Datalogic Product" means the Datalogic® Powerscan™ series scanner product, including all embedded Software in and all Documentation related to such prod­uct, which has been purchased or otherwise acquired by End User, whether obtained directly or indirectly from Datalogic.
1.5 "Software" means any software or computer programs of Datalogic or its third party licensors in machine readable form which is embedded in the Datalogic Product, whether obtained directly or indirectly from Datalogic, including any replacement, update, upgrade, enhancement or modification.
2. Scope Of License Granted
2.1 Datalogic grants to End User a non-exclusive, non-transferable, perpetual license to use the Software, solely on the Datalogic Product in which it is embedded ("designated Datalogic Product"), in machine-readable form only, solely for End User's internal business purposes. This Agreement does not convey ownership of the Software to End User. Title to the Software shall be and remain with Datalogic or the third party from whom Datalogic has obtained a licensed right. As used in this Agreement, the term "purchase" or its equivalents when applied to the Soft­ware shall mean "acquire under license." End User is not entitled to receipt or use of the source code to any Software.
2.2 End User shall not copy, modify, decompile, disassemble, reverse engineer, or otherwise reproduce or remanufacture the Software, whether modified or unmodified, nor sell, assign, sublicense, distribute, lend, rent, give, or otherwise transfer the Software to any other person or organization, for purposes other than as expressly provided in this Agreement, without Datalogic's prior written consent.
3. Transfers, Support
3.1 Any copying, installing, reproduction, remanufacture, reverse engineering, elec­tronic transfer, or other use of the Software on other than the designated Data­logic Product will be a material breach of this Agreement. However, Datalogic may elect not to terminate this Agreement or the granted licenses, but instead
Quick Reference Guide 1
may elect to notify End User that End User is deemed to have ordered and accepted a license for each breaching use. End User shall pay Datalogic the appli­cable list price for such licenses as of the date of such breach.
3.2 End User shall not sell, assign, sublicense, distribute, lend, rent, give, or otherwise transfer the Datalogic Product to any third party unless such third party agrees with Datalogic in wri ting to be bound by the terms and conditions of this Agree­ment. Any such transfer of the Datalogic Product absent such agreement shall be null and void.
3.3 End User may obtain support for Software from Datalogic at Datalogic's standard support fees and under Datalogic's standard support terms and conditions in effect at the time the support is requested.
4. Intellectual Property
End User acknowledges that the Software constitutes valuable trade secrets of Data­logic or Datalogic's third party licensors and that the Software is protected by intellec­tual property laws and treaties. The license set forth in this Agreement does not transfer to End User any ownership of Datalogic's or its third party licensors' copy­rights, patents, trademarks, service marks, trade secrets, or other intellectual property rights and End User shall have no right to commence any legal actions to obtain such rights. End User shall not remove, modify, or take any other action that would obscure any copyright, trademark, patent marking, or other intellectual property notices con­tained in or on the Datalogic Product.
5. Proprietary Information
5.1 End User acknowledges that Proprietary Information is the confidential, proprie­tary, and trade secret property of Datalogic and Datalogic's third party licensors and End User acquires no right or interest in any Proprietary Information.
5.2 End User shall not disclose, provide, or otherwise make available the Proprietary Information of Datalogic or its third party licensors to any person other than End User's authorized employees or agents who are under confidentiality agreement, and End User shall not use the Proprietary Information other than in conjunction with use of the Datalogic Product exclusively for End User's internal business pur­poses. End User shall take steps to protect the Proprietary Information no less securely than if it were End User's own intellectual property.
5.3 The provisions of this Proprietary Information Section shall survive and continue for five (5) years after the termination of this Agreement.
6. Limited Warranty
6.1 Datalogic warrants that, under normal use and operation, the Datalogic Product will conform substantially to the applicable Documentation for the period speci­fied in the Documentation. During this period, for all reproducible nonconformi­ties for which Datalogic has been given written notice, Datalogic will use commercially reasonable efforts to remedy nonconformities verified by Data­logic. End User agrees to supply Datalogic with all reasonably requested informa­tion and assistance necessary to help Datalogic in remedying such nonconformities. For all defects reported to Datalogic within the warranty period, Datalogic's liability is limited to providing End User with one copy of corrections or responding to End User's problem reports according to Datalogic's standard assistance practices. Datalogic does not warrant that the product will meet End User's requirements or that use of the product will be uninterrupted or error free, or that Datalogic's remedial efforts will correct any nonconformance. This limited warranty does not cover any product that have been subjected to damage or abuse, whether intentionally, accidentally, or by neglect, or to unauthorized repair or unauthorized installation, and shall be void if End User modifies the product, uses the product in any manner other than as established in the Docu­mentation, or if End User breaches any of the provisions of this Agreement.
6.2 EXCEPT AS PROVIDED IN THIS AGREEMENT, THE DATALOGIC PRODUCT IS PRO­VIDED "AS IS" AND DATALOGIC MAKES NO WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, WRITTEN OR ORAL, WITH RESPECT TO THE PRODUCT, AND SPECIFI­CALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FIT­NESS FOR A PARTICULAR PURPOSE.
7. Infringement
7.1 Datalogic will defend End User against any claim in a lawsuit that the Datalogic Product furnished hereunder infringe a United States patent or copyright of a third party and Datalogic will pay any damages finally awarded against End User by a court of competent jurisdiction that are attributable to such claim or will pay End User's part of any settlement that is attributable to such claim, provided, that
2 PowerScan™ PD9530
1) End User notifies Datalogic promptly in writing of the claim, 2) Datalogic con­trols the defense or settlement of the claim, and 3) End User cooperates fully with Datalogic in such defense or settlement. All notices of a claim should be sent to Datalogic ADC, Inc., Legal Department, 959 Terry Street, Eugene, OR 97402.
7.2 In the defense or settlement of any such claim, Datalogic may, at its option, 1) procure for End User the right to continue using the Datalogic Product, 2) modify the Datalogic Product so that it becomes non-infringing, 3) replace the Datalogic Product with an equivalent product not subject to such claim, or 4) provide End User an opportunity to return the Datalogic Product and receive a refund of the purchase price paid, less a reasonable allowance for use.
7.3 Datalogic shall have no liability to End User for claims of infringement based upon 1) the use of any Datalogic Product in combination with any product which Datalogic has not either furnished or authorized for use with such Datalogic Product 2) the use of any Datalogic Product designed, manufactured, or modified to the specifications of End User, or 3) End User's modification of the Datalogic Product without written authorization from Datalogic.
7.4 THE FOREGOING STATES DATALOGIC'S COMPLETE AND ENTIRE OBLIGATION CON­CERNING CLAIMS OF PATENT, COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY INFRINGEMENT, CANCELS AND SUPERCEDES ANY PRIOR AGREEMENTS, WHETHER ORAL OR WRITTEN, BETWEEN THE PARTIES CONCERNING SUCH CLAIMS, AND WILL NOT BE MODIFIED OR AMENDED BY ANY PAST, CONTEMPO­RANEOUS, OR FUTURE AGREEMENTS OR DEALINGS BETWEEN THE PARTIES, WHETHER ORAL OR WRITTEN, EXCEPT AS SET FORTH IN A FUTURE WRITING SIGNED BY BOTH PARTIES.
8. Limitation Of Liability
EXCEPT AS PROVIDED IN SECTION 7, DATALOGIC SHALL NOT BE LIABLE FOR ANY CLAIMS AGAINST END USER BY ANY OTHER PARTY. IN NO EVENT SHALL DATALOGIC'S LIABILITY FOR DAMAGES, IF ANY, WHETHER BASED UPON CONTRACT, TORT (INCLUDING NEGLI­GENCE), PRODUCT LIABILITY, STRICT LIABILITY, WARRANTY, OR ANY OTHER BASIS, EXCEED THE PRICE OR FEE PAID BY END USER FOR THE DATALOGIC PRODUCT. UNDER NO CIRCUMSTANCES SHALL DATALOGIC BE LIABLE TO END USER OR ANY THIRD PARTY FOR LOST PROFITS, LOST DATA, INTERRUPTION OF BUSINESS OR SERVICE, OR FOR ANY OTHER SPECIAL, CONSEQUENTIAL, CONTINGENT, INDIRECT, INCIDENTAL, PUNITIVE, EXEMPLARY, OR OTHER SIMILAR DAMAGES, EVEN IF DATALOGIC HAS BEEN ADVISED OF THE POSSIBIL­ITY OF SUCH DAMAGES.
9. Government Restricted Rights; International Use
9.1 Use, duplication, or disclosure of the Software by the U.S. Government is subject to the restrictions for computer software developed at private expense as set forth in the U.S. Federal Acquisition Regulations at FAR 52.227-14(g), or 52.227-19 or in the Rights in Technical Data and Computer Software clause at DFARS
252.227-7013(c)(1)(ii), whichever is appl icable.
9.2 If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used, with U.S. export control laws, and with the English language ver­sion of this Agreement. The provisions of the "United Nations Convention on International Sale of Goods" shall not apply to this Agreement.
10. Termination
10.1 Either party may terminate this Agreement or any license granted under this Agreement at any time upon written notice if the other party breaches any provi­sion of this Agreement.
10.2 Upon termination of this Agreement, End User immediately shall cease using any nonembedded software and shall return to Datalogic or destroy all non-embed­ded software covered by this Agreement, and shall furnish Datalogic with a certif­icate of compliance with this provision signed by an officer or authorized representative of End User. For embedded software, End User agrees to sign a waiver prepared by Datalogic concerning further use of the embedded Software. End User's resumed or continued use of the embedded Software after termina­tion shall constitute End User's agreement to be bound by the terms and condi­tions of this Agreement for such use.
11. General Provisions
11.1 Entire Agreement; Amendment. This document contains the entire agreement between the parties relating to the licensing of the Software and supersedes all prior or contemporaneous agreements, written or oral, between the parties con­cerning the licensing of the Software. This Agreement may not be changed, amended, or modified except by written document signed by Datalogic.
Quick Reference Guide 3

Software Product Policy

11.2 Notice. All notices required or authorized under this Agreement shall be given in writing, and shall be effective when received, with evidence of receipt. Notices to Datalogic shall be sent to the attention of Contract Administration, Datalogic ADC, Inc., 959 Terry Street, Eugene, OR 97402, or such other address as may be specified by Datalogic in writing.
11.3 Waiver. A party's failure to enforce any of the terms and conditions of this Agree­ment shall not prevent the party's later enforcement of such terms and condi­tions.
11.4 Governing Law; Venue: This Agreement and the rights of the parties hereunder shall be governed by and construed in accordance with the laws of the State of Oregon U.S.A, without regard to the rules governing conflicts of law. The state or federal courts of the State of Oregon located in either Multnomah or Lane coun­ties shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have the right, at its absolute discretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located.
11.5 Attorneys' Fees. In the event an action is brought to enforce the terms and condi­tions of this Agreement, the prevailing party shall be entitled to reasonable attor­neys' fees, both at trial and on appeal.
- END -
Software Product Policy
Datalogic reserves the right to ship its products with the latest version of software/firmware available. This provides our cus­tomers with the very latest in Datalogic software technology.
The only exception to this policy is when the buyer has a signed contract with Datalogic that clearly defines the terms and conditions for making software/firmware changes in products shipped to the buyer.

Customers Under Software Support

Customers that elect to subscribe to Datalogic Software Main­tenance and Support Agreement will receive 30 days advance notification of: (1) the release of a new software version; and/ or (2) discontinuation of any prior software version that will no longer be supported. Datalogic will provide maintenance for a fee that will assist customers in transitioning to the next software version. If a customer is currently using the software version being discontinued, the customer may elect to transi­tion to any one of the newer versions, depending on the hard­ware in use.
To arrange for a Software Maintenance and Support Agree­ment please contact your Datalogic sales person.
4 PowerScan™ PD9530

Powerscan™ PD9530

Description

The PowerScan™ 9530 is a feature-rich and rugged area im­ager reader. It is offered in several different models to better fit the different needs of each customer.
The table below shows the unique features of each model:
Model P/N Optical feature
PD9530 Standard optic, standard and low density codes
PD9530-HP
PD9530-HPE
PD9530-DPM

General Features

Omni-
directional
Operating
Autofocus optic, High, standard and low density codes, wide angle Autofocus optic, High, standard and low density codes, wide angle High Density optic, high and medium density codes, DPM (laser, ink jet and dot peen)
To read a symbol or capture an image, you simply aim the reader and pull the trigger. Since the PowerScan™ PD9530 is a powerful omni-directional reader, the orientation of the symbol is not important.
Thanks to powerful algorithms, PowerScan™ PD9530 reliably decodes all major 1D (linear) barcodes, 2D stacked codes (such as PDF417),
Decoding
Formatting
and
Concatenating
Quick Reference Guide 5
2D matrix symbols (such as DataMatrix), postal codes (such as POSTNET, PLANET). The data stream — acquired from decoding a symbol — is rapidly sent to the host. The reader is immediately available to read another symbol.
The string of a decoded code may be pro­cessed according to either a simple or advanced data formatting and be concate­nated.

Setting Up the Reader

PowerScan™ PD9530 can also function as a
Imaging
Autoscanning
Flash Memory
USA Driver License Parsing
camera by capturing entire images or image portions of labels, signatures, and other items.
An autoscan command causes the reader to scan continuously and to monitor the central zone of its reading area.
Flash technology allows you to upgrade the PowerScan™ PD9530 reader as new symbol­ogies are supported or as improved decod­ing algorithms become available.
The reader can be set up to select and out­put a subset of data elements from USA Driver License PDF417 barcodes. This feature can be enabled using either Datalogic Alad­din™ or the barcodes in the USA Driver License Parsing Quick Reference Guide (QRG), available on the Datalogic website.
Setting Up the Reader
Follow the steps below to connect and get your reader up and communicating with its host.
1. Connect the Cable to the reader and the Host, shown on
page 7.
2. Configure the Interface (see
3. Configure the Reader starting on depends on settings needed)
page 9).
page 19 (optional,
Connect the PowerScan by plugging directly into the host de­vice as shown. The power can also be supplied through an ex­ternal power supply via the Interface Cable supplied with a power jack.
6 PowerScan™ PD9530

Connecting the Cable

A
B
C
D
FRONT>>
1
2
3
6
4
5
7
1. Slip the cable through the Cover.
2. Push the Rubber Gasket onto the Cable Holder.
3. Push the Cable Holder and gasket into the handle. Ensure that the “Front” marking on the Cable Holder is facing out, with the arrow pointing towards the front of the scanner.
4. Insert the end of the cable into the socket of the Cable Holder.
5. Push the Cover along the cable towards the reader, and hook it over the yel­low “tooth” on the back of the handle.
6. Insert the cable through the Connector Holder, and push it up into the Cover.
7. Insert and tighten the screw to affix the cable assembly to the reader handle.
Setting Up the Reader
A. Rubber gasket B. Cable Holder C. Cover D. Connector Holder
Quick Reference Guide 7

Using the PowerScan™ PD9530

Using the PowerScan™ PD9530
The PowerScan™ PD9530 normally functions by capturing and decoding bar codes. The reader is equipped with an inter­nal motion-sensing function which activates the aiming sys­tem on device motion. The intelligent aiming system indicates the field of view which should be positioned over the bar code:
Tab le 1 . Ai ming S ystem
Model P/N Aimer pattern
PD9530 / PD9530-DPM
PD9539-HP / PD9530-HPE
The field of view indicated by the aiming system will be small­er when the reader is closer to the bar code and larger when it is farther from the code. Symbologies with smaller bars or el­ements (mil size) should be read closer to the unit. Symbolo­gies with larger bars or elements (mil size) should be read farther from the unit.
If the entire bar code is within the aiming field, you will get a good read. Successful reading is signaled by an audible tone plus a good-read green spot LED indicator.
Reference the PowerScan PD9530 Product Reference Guide (PRG) for more information about this feature and other pro­grammable settings.
8 PowerScan™ PD9530

Selecting the Interface Type

Selecting the Interface Type
Upon completing the physical connection between the reader and its host, proceed directly to Interface Selection below for information and programming for the interface type the read­er is connected to (for example: RS-232, Keyboard Wedge, USB, etc.) and scan the appropriate bar code to select your sys­tem’s correct interface type.

Interface Selection

All models are multi-interface and support RS-232, USB and Keyboard Wedge.
Information and programming options for each interface type are provided in this section. For defaults and additional infor­mation associated with each interface, proceed to the corre­sponding chapter in the PowerScan PD9530 PRG.
Configuring the Interface

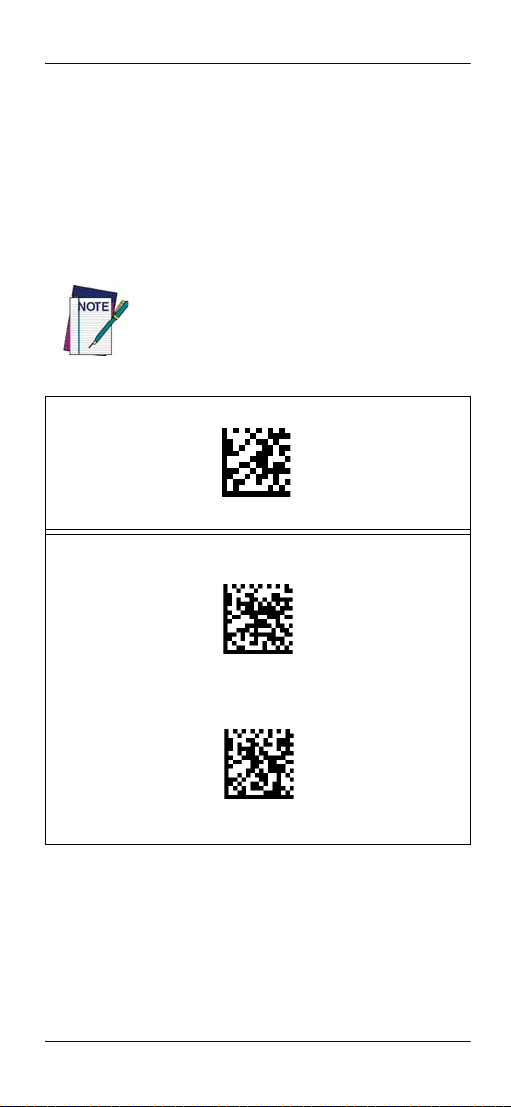

Scan the appropriate programming bar code to selects the in­terface type for your system.
Unlike some other programming features and options, interface selections require that you scan only one programming bar code label. DO NOT scan an ENTER/ EXIT bar code prior to scanning an interface selection bar code.
Some interfaces require the scanner to star t in the dis­abled state when powered up. If additional scanner configuration is desired while in this state, pull the trigger and hold for 5 seconds. The scanner will change to a state that allows programming with bar codes.
Quick Reference Guide 9
Selecting the Interface Type
RS-232
RS-232 for use with OPOS/UPOS/JavaPOS
USB
RS-232 standard interface
RS-232
RS-232 Wincor-Nixdorf
RS232-WN
RS-232 OPOS
USB Com to simulate RS-232 standard interface
a
USB-COM
USB-OEM
(can be used for OPOS/UPOS/JavaPOS)
USB-OEM
a. Download the correct USB Com driver from www.datalogic.com
10 PowerScan™ PD9530
USB (continued)
USB Keyboard with standard key encoding
USB Keyboard with alternate key encoding
USB Keyboard for Apple computers
USB-KBD
USB-KBD-ALT
USB-KBD-APPLE
Selecting the Interface Type
Quick Reference Guide 11
Selecting the Interface Type
Keyboard Interface
KEYBOARD WEDGE
IBM AT or PS/2 PCs
Standard Key Encoding
KBD-AT
Standard Key Encoding without external keyboard
KBD-AT-NK
IBM AT or PS/2 PCs
IBM AT or PS/2 PCs
w/Alternate Key
KBD-AT-ALT
IBM AT or PS/2 PCs
Alternate Key Encoding without external keyboard
KBD-AT-ALT-NK
Scancode Tables
Reference the PowerScan PD9530 PRG for information about control character emulation for keyboard interfaces.
12 PowerScan™ PD9530
Selecting the Interface Type
Country Mode
This feature specifies the country/language supported by the keyboard. This option is usable only with USB-KBD and Keyboard Wedge interface without the "Alternate Key" mode.
COUNTRY MODE
ENTER/EXIT PROGRAMMING MODE
Country Mode = U.S.
Country Mode = Belgium
Country Mode = Britain
Country Mode = Croatia*
Supports only the interfaces listed in the Country Mode feature description
*
Quick Reference Guide 13
Selecting the Interface Type
$CKBCO13(CR)
COUNTRY MODE (Continued)
Country Mode = Czech*
Country Mode = Denmark*
Country Mode = France
Country Mode = French Canadian*
Country Mode = Germany
Country Mode = Hungary*
Supports only the interfaces listed in the Country Mode feature description
*
14 PowerScan™ PD9530
COUNTRY MODE (Continued)
Country Mode = Italy
Country Mode = Japanese 106-key*
Country Mode = Lithuanian*
Selecting the Interface Type
Country Mode = Norway*
Country Mode = Poland*
Country Mode = Portugal*
Supports only the interfaces listed in the Country Mode feature description
*
Quick Reference Guide 15
Selecting the Interface Type
COUNTRY MODE (Continued)
Country Mode = Romania*
Country Mode = Spain
Country Mode = Sweden
Country Mode = Slovakia*
Country Mode = Switzerland*
*Supports only the interfaces listed in the Country Mode feature description
16 PowerScan™ PD9530
Selecting the Interface Type
Caps Lock State
This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding keyboard is se­lected.
ENTER/EXIT PROGRAMMING MODE
Caps Lock State = Caps Lock OFF
Caps Lock State = Caps Lock ON
Caps Lock State = AUTO Caps Lock Enable
Quick Reference Guide 17
Selecting the Interface Type
Numlock
This option specifies the setting of the Numbers Lock (Num­lock) key while in keyboard wedge interface. This only applies to alternate key encoding interfaces. It does not apply to USB keyboard.
ENTER/EXIT PROGRAMMING MODE
Numlock = Numlock key unchanged
Numlock = Numlock key toggled
18 PowerScan™ PD9530

Programming

Reset Default Settings
Programming
The reader is factory-configured with a set of standard default features. After scanning the interface bar code from the Inter­faces section, select other options and customize your reader through use of the programming bar codes available in the PowerScan PD9530. Check the corresponding features sec­tion for your interface, and also the Data Editing and Symbol­ogies chapters of the PRG.

Using Programming Bar Codes

This manual contains bar codes which allow you to reconfig­ure your reader. Some programming bar code labels, like the "Reset Default Settings" on page 19, require only the scan of that single label to enact the change.
Other bar codes require the reader to be placed in Program­ming Mode prior to scanning them. Scan an ENTER/EXIT bar code once to enter Programming Mode; scan the desired parameter settings; scan the ENTER/EXIT bar code again to accept your changes, which exits Programming Mode and re­turns the reader to normal operation.

Configure Other Settings

Additional programming bar codes are available in the PRG to allow for customizing programming features. If your installa­tion requires different programming than the standard factory default settings, refer to the PRG.

Resetting Product Defaults

If you aren’t sure what programming options are in your read­er, or you’ve changed some options and want your custom fac­tory settings restored, scan the bar code below to reset the reader to its initial configuration. Reference the PRG for other options, and a listing of standard factory settings.
Factory defaults are based on the interface type. Be sure your reader is configured for the correct inter­face before scanning this label. See "Selecting the Interface Type" on page 9 for more information.
Quick Reference Guide 19

Reading Parameters

Reading Parameters
Move the reader toward the target and center the aiming pat­tern and illumination system to capture and decode the image. See Using the PowerScan™ PD9530 on page 8 for more informa­tion.
The aiming system will briefly switch off after the acquisition time, and if no code is decoded will switch on again before the next acquisition. The illuminator will remain on until the symbol is decoded.
As you read cod e sy mbol s, a dju st t he d ist anc e at whic h yo u are holding the reader.

Good Read Green Spot Duration

Successful reading can be signaled by a good read green spot. Use the bar codes that follow to specify the duration of the good read pointer beam after a good read.
ENTER/EXIT PROGRAMMING MODE
Disabled
Short (300 ms)
Medium (500 ms)
20 PowerScan™ PD9530
Long (80 0 ms)

Operating Modes

Operating Modes

Scan Mode

The imager can be set to operate in one of several scanning modes. See the PRG for more information and settings for any of the options:
Trigger Single (Default):
handheld reader operation. Motion Sense is active and if the scanner detects motion the aiming pattern is turned on. When the trigger is pulled, illumination is turned on and the scanner attempts to read a label. Scanning is activated until one of the following occurs:
the programmable “maximum scan on time” elapsed
a label has been read
the trigger is released
Trigger Pulse Multiple:
pulled and continues after the trigger is released, until the trig­ger is pulled again or until the programmable “maximum scan
1
on time”
has elapsed. Reading a label does not disable scan­ning. Double Read Timeout reads while in this mode.
Trigger Hold Multiple :
starts and the product scans until the trigger is released or “maximum scan on time” not disable scanning. Double Read Timeout sired multiple reads while in this mode.
Always On:
The illuminator is always ON and the reader is al­ways ready for code reading. Double Read Timeout undesired multiple reads.
Flashing:
of the trigger status. Code reading takes place only during the Flash On
The reader illuminator flashes on and off regardless
2
time. Double Read Timeout1 prevents undesired
multiple reads.
Stand Mode:
The scanner looks for changes within its field-of­view. The Aiming Pattern is always on to show the optimum reading area. If a predefined amount of movement is detected, the red illumination switches on. Scanning continues until a label is read or "maximum scan on time" is reached.
This mode is associated with typical
1
has
Scanning begins when the trigger is
1
prevents undesired multiple
When the trigger is pulled, scanning
1
has elapsed. Reading a label does
1
prevents unde-
1
prevents
1. See the Product Reference Guide (PRG) for these an d other programmable features
2. Controlled by Flash On Time and Flash Off Time. Use the PRG to program these options.
Quick Reference Guide 21
Operating Modes
Scan Mode (continued)
ENTER/EXIT PROGRAMMING MODE

Scan Mode = Trigger Single
Scan Mode = Trigger Hold Multiple
Scan Mode = Always On
Scan Mode = Trigger Pulse Multiple
Scan Mode = Flashing
Scan Mode = Stand Mode

Motion Aiming Control

This feature configures the ability of the scanner to Enable/ Disable the Aiming system when motion is detected. Scan the Enter/Exit Programming bar code above, then either of the barcodes below.

Motion Aiming Control = Enable
Motion Aiming Control = Disable
22 PowerScan™ PD9530
Operating Modes

Pick Mode

Specifies the ability of the reader to decode labels only when they are close to the center of the aiming pattern. Pick Mode is a Decoding and Transmission process where bar codes that are not within the configurable distance from the center of the aiming pattern are not acknowledged or transmitted to the host. It is active only while the scanner is in Trigger Single mode. If the scanner switches to a different Read Mode, Pick Mode is automatically disabled.
This feature is not compatible with Multiple Labels Reading in a Volume. See the PRG for more infor­mation.
ENTER/EXIT PROGRAMMING MODE

PIck Mode = Disable
Pick Mode = Enable

Multiple Label Reading

The reader offers a number of options for multiple label read­ing. See the PRG or software configuration tool for descrip­tions of these features and programming labels.
Quick Reference Guide 23

Technical Specifications

Technical Specifications
The following table contains Physical and Performance Char­acteristics, User Environment and Regulatory information.
Item Description
Physical Characteristics
Height: 212 mm
Dimensions
Weight (without cable) 330 gr (without cable)
Electrical Characteristics
Length: 110 mm Width: 74 mm
Voltage & Current
Input Voltage 5 VDC +/- 5% 10 to 30 VDC 5 VDC +/-5%
Input Current
Operating (typical): 335mA 135mA @ 10V 350mA
Operating (max): 475mA 300mA @ 10V 480mA
Idle/Standby (typical) 180mA 60mA @ 10V 120 mA
Perf ormance C haracte ristics
Light Source LED
Roll (Tilt) Tolerance ± 180°
Pitch Tolerance ± 40°
Skew (Yaw) Tolerance ± 40°
Print Contras t Minimum 1 5% minimum reflectance
Resolution
PD9530/
PD9530-HP
Max resolution 1D 4 mils Max resolution 2D 7.5 mils
PD9530-HPE PD9530-DPM
PD9530
PD9530-HP / PD9530-HPE
1D 2.5 mil 2D 4 mil
24 PowerScan™ PD9530
Technical Specifications
Depth of Field (Typical)
a
Symbology Standard Model: High Performance:
Code 39
4 mils: 6-17 cm 20 mils: 4-55 cm 40 mils: 4-85 cm
2.5 mils: 2-6 cm 20 mils: 3-70 cm 40 mils: 3-110 cm
EAN 13 13 mils: 4-48 cm 13 mils: 3-60 cm
PDF-417 10 mils: 2-25 cm 10 mils: 2-30 cm
DataMatrix
a. 13 mils DOF based on EAN. All other 1D codes are Code 39. All labels grade A,300 lux ambient light, 20°C,
label inclination 10°
7.5 mils: 7-14 cm 10 mils: 4-18 cm
4mil: 2-6 cm 10mil: 2-20 cm
Decode Capability
1D Bar Codes
GS1 Databar linear codes, UPC/EAN (A,E,13,8), UPC/EAN with P2/P5 Addons, UPC/EAN Cou­pons, ISBN, Code128, EAN128, ISBT128, Code39, Code39 Full ASCII, Code39 CIP, Code 32, Coda­bar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code11, MSI, Plessey, Code 93, Follet 2/5
2D / Stacked Codes
DataMatrix, MaxiCode and QR Codes(QR, Micro QR and Multiple QR codes), Aztec
- Postal codes including: Australian Post, China Post, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code(RM45CC), IMB
- stacked codes including EAN/JAN Composites; GS1 Databar Composites, GS1 Databar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar St acked Omnidirectional; MacroPDF; Micro PDF417; PDF417; UPC A/E Composites, French CIP13, Grid Matrix(Chinese) code
Interfaces Supported
User Environment
RS-232, Keyboard Wedge, and USB. See page 9 for a listing of available interface options.
Operating Temperature -4° to 122° F (-20° - +50° C )
Storage Temperature -40° to 158° F (-40° to 70° C)
Humidity 0 to 95% non-condensing
Quick Reference Guide 25
Technical Specifications
Drop Specifications Scanner withstands >50 times 6.5' (2 m) drops to concrete
Ambient Light Immunity 100,000 Lux
Contaminants: Spray/rain, Dust/particulates
IP65
ESD Level 20 KV
Beeper/Speaker >= 80 dB @ 10 cm
Regulatory
Electrical Safety UL 60950, CSA C22.2 No. 60950, IEC 60950
North America (FCC) : Part 15 Class B; Canada ( IC) : ICES-
EMI/RFI
003 Class B; Russia ( Gost); European Union EMC Directive; VCCI-Japan; Korean KCC; Taiwan EMC (BSMI); Australia (ACMA); Mexico (NOM Nyce)
IEC Class 2
Laser Class Safety
Radiation 1 mW Avg., Emitted wavelength 650 nm, 12ms pulse, Beam Divergence 8.4 deg x 8.1 deg (“plus” pattern)
26 PowerScan™ PD9530

LED and Beeper Indications

LED and Beeper Indications
The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The following tables list these indications. One exception to the behaviors listed in the tables is that the reader’s functions are programmable, and so may or may not be turned on. For example, certain indications such as the power-up beep can be disabled using programming bar code labels.
Indicator Description LED Beeper
Power-up Beep
Good Read Beep
ROM Failure
Limited Scan­ning Label Read
Reader Active Mode
Reader Disabled
The reader is in the process of power­ing-up.
A label has been successfully scanned by the reader.
There is an error in the reader's soft­ware/programming
Indicates that a host connection is not established.
The reader is active and ready to scan.
The reader has been disabled by the host.
LED behavior for this indication is configurable via the feature “Good Read: When to Indicate” (see the PRG for information.)
Flashes
N/A
The LED is lit
a
steadily
The LED blinks continuously
Reader beeps four times at highest fre­quency and volume upon power-up.
The reader will beep once at current fre­quency, volume, mono/bi-tonal se t­ting and duration upon a successful label scan.
Reader sounds one error beep at high­est volume.
Reader 'chirps' six times at the high­est frequency and current volume.
N/A
N/A
Quick Reference Guide 27
LED and Beeper Indications
Indicator Description LED Beeper
Upon successful read of a label, the
a
Green Spot flashes momen­tarily
software shall turn the green spot on for the time speci-
N/A N/A
fied by the config­ured value.
Image Capture
a
Except when in sleep mode or when a Good Read LED Duration other than 00 is selected
Programming Mode
When ready to cap­ture image
-
The following indications ONLY occur
when the reader is in Programming Mode
Blue light flashes 2 times when updating
N/A
.
INDICATION DESCRIPTION LED BEEPER
Label Program­ming Mode Entr y
A valid programming label has been scanned.
LED blinks con­tinuously
Reader sounds four low fre­quency beeps.
Reader sounds Label Program­ming Mode Reje c­tion of Label
A label has been rejected.
N/A
three times at
lowest fre-
quency and cur-
rent volume.
In cases where multi-
Label Program­ming Mode Acceptance of Partial Label
ple labels must be scanned to program one feature, this indica­tion acknowledges each portion as it is suc-
N/A
Reader sounds
one short beep at
highest fre-
quency and cur-
rent volume.
cessfully scanned.
Label Program­ming Mode Acceptance of Programming
have been successfully programmed via labels and the reader has exited Programming
N/A
Mode.
28 PowerScan™ PD9530
Configuration option(s)
Reader sounds
one high fre-
quency beep and
4 low frequency
beeps followed
by reset beeps.

Error Codes

Label Program­ming Mode Can­cel Item Entry
Cancel label has been scanned.
N/A
Reader sounds two times at low frequency and current volume.
Error Codes
Upon startup, if the reader sounds a long tone, this means the reader has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode. If the reader is reset, the sequence will be repeated. Press and release the trig­ger to hear the FRU indication code.
The following table describes the LED flashes/beep codes as­sociated with an error found.
Number of
LED Flashes/
Beeps
1 Configuration
2Interface PCB
6Digital PCB
11 Imager
Error Corrective Action
Contact Helpdesk for
assistance
Quick Reference Guide 29

Cleaning

Cleaning
Exterior surfaces and scan windows exposed to spills, smudges or debris require periodic cleaning to ensure best performance during scanning.
Use a soft, dry cloth to clean the product. If the product is very soiled, clean it with a soft cloth moistened with a diluted non­aggressive cleaning solution or diluted ethyl alcohol.
Do not use abrasive or aggressive cleansing agents or abrasive pads to clean scan windows or plastics.
Do not spray or pour liquids directly onto the unit.
CAUTION
30 PowerScan™ PD9530

Regulatory Information

Regulatory Information
All models are designed to be compliant with rules and regu­lations in locations they are sold and will be labeled as re­quired.
Any changes or modifications to equipment, not expressly ap­proved by Datalogic could void the user's authority to operate the equipment.

Statement of Agency Compliance

This device complies with part 15 of the FCC Rules. Opera­tion is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Class B Compliance Statement

The user is cautioned that changes or modifications not ex­pressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal­lation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer­ence will not occur in a particular installation. If this equip­ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter­ference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dif­ferent from that to which the receiver is connected.
Consult the dealer or an experienced radio or televi­sion technician for help.
Quick Reference Guide 31
Regulatory Information
FCC RF Radiation Exposure Statement
Exposure to Radio-Frequency Radiation
CAUTION
To comply with FCC RF exposure compliance requirements, for mobile configurations, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.
This device must not be co-located or operating in conjunc­tion with any other antenna or transmitter.

Canadian Notice

This equipment does not exceed the Class B limits for radio noise emissions as described in the Radio Interference Regula­tions of the Canadian Department of Communications.
Le present appareil numerique n’emet pas de bruits radioelec­triques depassant les limites applicables aux appareils nume­riques de la classe B prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Commu­nications du Canada.
Do not attempt to open or otherwise service any components in the optics cavity. Opening or servic­ing any part of the optics cavity by unauthorized per-
CAUTION
sonnel may violate laser safety regulations.
32 PowerScan™ PD9530
Regulatory Information
Aiming System
Output Win
dow
Scanner Regulatory Labels

Power Supply

This device is intended to be connected to a UL Listed/CSA Certified computer which supplies power directly to the read­er or else be supplied by UL Listed/CSA Certified Power Unit marked “Class 2” or LPS power source rated 5-14V minimum 900mA.
Model P/N Power Supply
PD9530 5 VDC
PD9530-HP 5 VDC
PD9530-HPE 10-30 VDC
PD9530-DPM 5 VDC

Imager Labeling

Aiming System
The PowerScan™ aiming system meets the Class 2 require­ments for laser safety. The laser information is located on the sides of the Scanner as shown below.
Sample labels are shown here to illustrate their location only. Please view the labels on your product for actual details, as they may vary from those depicted.
Quick Reference Guide 33
Regulatory Information
IDFE
LA LUCE LASER È VISI­BILE ALL'OCCHIO UMANO E VIENE EMESSA DALLA FINES­TRA INDICATA NELLA FIG­URA.
LUCE LASER NON FISSARE IL FASCIO APPAREC­CHIO LASER DI CLASSE 2 MASSIMA POTENZA D'USCITA: LUNGHEZZA D'ONDA EMESSA: CONFORME A EN 60825-1 (2007)
DIE LASER-STRAH­LUNG IST FÜR DAS MENSCHLICHE AUGE SICHTBAR UND WIRD AM STRAHLAUS TRITTSFENSTER AUSGESENDET (SIEHE BILD)
LASERSTRAHLUNG NICHT IN DEN STRAHL BLICKEN PRODUKT DER LASERKLASSE 2 MAXIMALE AUS­GANGSLEISTUNG: WELLENLÄGE: ENTSPR. EN 60825­1 (2007)
LE RAYON LASER EST VISI­BLE À L'OEIL NU ET IL EST ÉMIS PAR LA FENÊTRE DÉSIGNÉE SUR L'ILLUSTRA­TION DANS LA FIGURE
RAYON LASER EVITER DE REGARDER LE RAYON APPAR­EIL LASER DE CLASSE 2 PUIS­SANCE DE SOR­TIE: LONGUEUR D'ONDE EMISE: CONFORME A EN 60825-1 (2007)
A LUZ LÁSER ES VISIBLE AL OJO HUMANO Y ES EMITIDA POR LA VENTANA INDICADA EN LA FIGURA.
RAYO LÁSER NO MIRAR FIJO EL RAYO APARATO LÁSER DE CLASE 2 MÁX­IMA POTENCIA DE SALIDA: LONGITUD DE ONDA EMIT­IDA: CONFORME A EN 60825-1 (2007)
ENGLISH
The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of your terminal.
STANDARD LASER SAFETY REGULATIONS
This product conforms to the applicable requirements of both CDRH 21 CFR 1040 and EN 60825-1 at the date of manu­facture.
For installation, use and maintenance, it is not necessary to open the device.
Use of controls or adjustments or perfor­mance of procedures other than those speci­fied herein may result in exposure to
WAR NIN G
34 PowerScan™ PD9530
hazardous visible laser light.
Regulatory Information
The product utilizes a low-power laser diode. Although staring directly at the laser beam momentarily causes no known bio­logical damage, avoid staring at the beam as one would with any very strong light source, such as the sun. Avoid that the la­ser beam hits the eye of an observer, even through reflective surfaces such as mirrors, etc.
ITALIANO
Le seguenti informazioni vengono fornite dietro direttive delle autorità internazionali e si riferiscono all’uso corretto del ter­minale.
NORMATIVE STANDARD PER LA SICUREZZA LASER
Questo prodotto risulta conforme alle normative vigenti sulla sicurezza laser alla data di produzione: CDRH 21 CFR 1040 e EN 60825-1.
Non si rende mai necessario aprire l’appa-recchio per motivi di installazione, utilizzo o manutenzione.
L'utilizzo di procedure o regolazioni differenti da quelle descritte nella documentazione può provocare un'esposizione pericolosa a luce
ATTENZIONE
laser visibile.
Il prodotto utilizza un diodo laser a bassa potenza. Sebbene non siano noti danni riportati dall’occhio umano in seguito ad una esposizione di breve durata, evitare di fissare il raggio laser così come si eviterebbe qualsiasi altra sorgente di luminosità intensa, ad esempio il sole. Evitare inoltre di dirigere il raggio laser negli occhi di un osservatore, anche attraverso superfici riflettenti come gli specchi.
DEUTSCH
Die folgenden Informationen stimmen mit den Sicherheit­shinweisen überein, die von internationalen Behörden aufer­legt wurden, und sie beziehen sich auf den korrekten Gebrauch vom Terminal.
NORM FÜR DIE LASERSICHERHEIT
Dies Produkt entspricht am Tag der Herstellung den gültigen EN 60825-1 und CDRH 21 CFR 1040 Normen für die La­sersicherheit.
Quick Reference Guide 35
Regulatory Information
Es ist nicht notwendig, das Gerät wegen Betrieb oder Installa­tions-, und Wartungs-Arbeiten zu öffnen.
Jegliche Änderungen am Gerät sowie Vorge­hensweisen, die nicht in dieser Betriebsanlei­tung beschreiben werden, können ein
ACHTU NG
gefährliches Laserlicht verursachen.
Der Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine Augenschäden von kurzen Einstrahlungen bekannt sind, sollten Sie es vermeiden für längere Zeit in den Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen (z.B. die Sonne). Vermeiden Sie es, den Laserstrahl weder gegen die Au­gen eines Beobachters, noch gegen reflektierende Oberflächen zu richten.
FRANÇAIS
Les informations suivantes sont fournies selon les règles fixées par les autorités internationales et se réfèrent à une correcte utilisation du terminal.
NORMES DE SECURITE LASER
Ce produit est conforme aux normes de sécurité laser en vi­gueur à sa date de fabrication: CDRH 21 CFR 1040 et EN 60825-1.
Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation, l’utilisation ou l’entretien.
L'utilisation de procédures ou réglages dif­férents de ceux donnés ici peut entraîner une dangereuse exposition à lumière laser visible.
AT TE N T IO N
Le produit utilise une diode laser. Aucun dommage aux yeux humains n’a été constaté à la suite d’une exposition au rayon laser. Eviter de regarder fixement le rayon, comme toute autre source lumineuse intense telle que le soleil. Eviter aussi de di­riger le rayon vers les yeux d’un observateur, même à travers des surfaces réfléchissantes (miroirs, par exemple).
36 PowerScan™ PD9530
Regulatory Information
ESPAÑOL
Las informaciones siguientes son presentadas en conformidad con las disposiciones de las autoridades internacionales y se re­fieren al uso correcto del terminal.
NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER
Este aparato resulta conforme a las normativas vigentes de se­guridad láser a la fecha de producción: CDRH 21 CFR 1040 y EN 60825-1.
No es necesario abrir el aparato para la instalación, la uti­lización o la manutención.
La utilización de procedimientos o regulaciones diferentes de aquellas describidas en la docu­mentación puede causar una exposición pelig-
AT EN C IÓ N
rosa a la luz láser visible.
El aparato utiliza un diodo láser a baja potencia. No son noto­rios daños a los ojos humanos a consecuencia de una ex­posición de corta duración. Eviten de mirar fijo el rayo láser así como evitarían cualquiera otra fuente de luminosidad intensa, por ejemplo el sol. Además, eviten de dirigir el rayo láser hacia los ojos de un observador, también a través de superficies re­flectantes como los espejos.
The PowerScan™ Handheld Reader is not user­serviceable. Opening the case of the unit can cause internal damage and will void the war-
CAUTION
Quick Reference Guide 37
ranty.
Regulatory Information

WEEE Statement

Waste Electrical and Electronic Equipment (WEEE) Statement
English
For information about the disposal of Waste Electrical and Electronic Equipment (WEEE), please refer to the website at www.adc.datalogic.com.
Italian
Per informazioni sullo smaltimento delle apparecchiature elettriche ed elettroniche consultare il sito Web www.adc.datalogic.com.
French
Pour toute information relative à l’élimination des déchets électroniques (WEEE), veuillez consulter le site internet www.adc.datalogic.com.
German
Informationen zur Entsorgung von Elektro- und Elektronik- Altgeräten (WEEE) erhalten Sie auf der Webseite www.adc.datalogic.com.
Spanish
Si desea información acerca de los procedimientos para el desecho de los residuos del equipo eléctrico y electrónico (WEEE), visite la página Web www.adc.datalogic.com.
Portuguese
Para informações sobre a disposição de Sucatagem de Equipamentos Elétricos e Eletrônicos (WEEE -Waste Electrical and Electronic Equipment), consultar o site web www.adc.datalogic.com.
Chinese
有关处理废弃电气电子设备 (WEEE) 的信息, 请参考 Datalogic 公司的网站 www.adc.datalogic.com/。
Japanese
廃電気電子機器 (WEEE) の処理についての関連事項は Datalogic のサイト www.adc.datalogic.com をご参照下さい。
38 PowerScan™ PD9530
Regulatory Information

Datalogic ADC Limited Factory Warranty

Warrant y Coverage
Datalogic warrants to Customer that Datalogic's products will be free from defects in materials and workmanship for a period of one year from product shipment. Datalogic (“Datalogic”) hardware products are warranted against defects in mate­rial and workmanship under normal and proper use. The liability of Datalogic un­der this warranty is limited to furnishing the labor and parts necessary to remedy any defect covered by this warranty and restore the product to its normal operat­ing condition. Repair or replacement of product during the warranty does not ex­tend the original warranty term. Products are sold on the basis of specifications applicable at the time of manufacture and Datalogic has no obligation to modify or update products once sold.
If Datalogic determines that a product has defects in material or workmanship, Datalogic shall, at its sole option repair or replace the product without additional charge for parts and labor, or credit or refund the defecti ve products duly returned to Datalogic. To perform repairs, Datalogic may use new or reconditioned parts, components, subassemblies or products that have been tested as meeting appli­cable specifications for equivalent new material and products. Customer will allow Datalogic to scrap all parts removed from the repaired product. The warranty peri­od shall extend from the date of shipment from Datalogic for the duration pub­lished by Datalogic for the product at the time of purchase (Warranty period). Datalogic warrants repaired hardware devices against defects in workmanship and materials on the repaired assembly for a 90 day period starting from the date of shipment of the repaired product from Datalogic or until the expiration of the original warranty period, whiche ver is longer. Datalogic does not guarantee, and it is not responsible for, the maintenance of, damage to, or loss of configurations, da­ta, and applications on the repaired units and at its sole discretion can return the units in the “factory default” configuration or with any software or firmware up­date available at the time of the repair (other than the firmware or software in­stalled during the manufacture of the product). Customer accepts responsibility to maintain a back up copy of its software and data.
Warranty Claims Process
In order to obtain service under the Factory Warranty, Customer must notify Data­logic of the claimed defect before the expiration of th e applicable Warranty period and obtain from Datalogic a return authorization number (RMA) for return of the product to a designated Datalogic service center. If Datalogic determines Custom­er’s claim is valid, Datalogic will repair or replace product without additional charge for parts and labor. Customer shall be responsible for packaging and ship­ping the product to the designated Datalogic service center, with shipping charg­es prepaid. Datalogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Datalogic service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locati ons. Failure to f ollow the ap plic able R MA po licy, may re sult in a pr ocess ing f ee. Cu stome r sha ll be responsible for return shipment expenses for products which Datalogic, at its sole discretion, determines are not defective or eligible for warranty repair.
Warrant y Exclusions
The Datalogic Factory Warranty shall not apply to:
(i) any product which has been damaged, modified, altered, repaired or
upgraded by other than Datalogic service personnel or its authorized representatives;
(ii) any claimed defect, failure or damage which Datalogic determines was
caused by faulty operati ons, improper use, abuse, misuse, wear and tear, negligence, improper storage or use of parts or accessories not approved or supplied by Datalogic;
(iii) any claimed defect or damage caused by the use of product with any
other instrument, equipment or apparatus;
Quick Reference Guide 39
Regulatory Information
(iv) any claimed defect or damage caused by the failure to provide proper
maintenance, including but not limited to cleaning the upper window in accordance with product manual;
(v) any defect or damage caused by natural or man-made disaster such as
but not limited to fire, water damage, floods, other natural disasters, vandalism or abusive events that would cause internal and external component damage or destruction of the whole unit, consumable items;
(vi) any damage or malfunctioning caused by non-restoring action as for
example firmware or software upgrades, software or hardware reconfig­urations etc.;
(vii) the replacement of upper window/cartridge due to scratching, stains or
other degradation and/or
(viii) any consumable or equivalent (e.g., cables, power supply, batteries, key-
pads, touch screen, triggers etc.).
No Assignment
Customer may not assign or otherwise transfer its rights or obligations under this warranty except to a purchaser or transferee of product. No attempted assignment or transfer in violation of this provision shall be valid or binding upon Datalogic.
DATALOGIC'S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EX­PRESS OR IMPLIED, ORAL OR WRITTEN, STATUTORY OR OTHERWISE, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FIT­NESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT. DATALOGIC SHALL NOT BE LIABLE FOR ANY DAMAGES SUSTAINED BY CUSTOMER ARISING FROM DE­LAYS IN THE REPLACEMENT OR REPAIR OF PRODUCTS UNDER THE ABOVE. THE REMEDY SET FORTH IN THIS WARRANTY STATEMENT IS THE CUSTOMER’S SOLE AND EXCLUSIVE REMEDY FOR WARRANTY CLAIMS. UNDER NO CIRCUMSTANCES WILL DATALOGIC BE LIABLE TO CUSTOMER OR ANY THIRD PARTY FOR ANY LOST PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL IN-DIRECT, SPECIAL OR CONTIN­GENT DAMAGES REGARDLESS OF WHETHER DATALOGIC HAD ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
Risk of Loss
Customer shall bear risk of loss or damage for product in transit to Datalogic. Dat­alogic shall assum e risk of los s or damage fo r product in D atalogic’s possession . In the absence of specific written instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment.
40 PowerScan™ PD9530

Ergonomic Recommendations

Ergonomic Recommendations
In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations
CAUTION
below. Consult with your local Health & Safety Man­ager to ensure that you are adhering to your com­pany’s safety programs to prevent employee injury.
Reduce or eliminate repetitive motion
Maintain a natural position
Reduce or eliminate excessive force
Keep objects that are used frequently within easy reach
Perform tasks at correct heights
Reduce or eliminate vibration
Reduce or eliminate direct pressure
Provide adjustable workstations
Provide adequate clearance
Provide a suitable working environment
Improve work procedures.

Services and Support

Datalogic provides several services as well as technical support through its website. Log on to cated for further information.
Product s
Search through the links to arrive at your product page where you can download specific
Datalogic Aladdin™
allows device configuration using a PC. It provides RS-232 interface configuration as well as configuration bar code printing.
Service & Support
Technical Support
ming guides and Technical Support Department in the world
Service Programs
Agreements
Repair Services
Authorization (RMA) Repairs
Downloads
Product Catalogues, etc.
Contact Us
Information Request Form and Sales & Service Network
www.datalogic.com
Manuals
and
, a multi-platform utility program that
- Product documentation and program-
- Warranty Extensions and Maintenance
- Flat Rate Repairs and Return Material
– Manuals & Documentation, Data Sheets,
and click on the links indi-
Software & Utilities
, including:
Quick Reference Guide 41
Services and Support
NOTES
42 PowerScan™ PD9530
11
DECLARATION OF CONFORMITY
EC-65 Rev.: 0
Datalogic ADC, Inc. 959 Terry St. Eugene, OR 97402 USA
dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el
PowerScan PD9530 Barcode Reader
e tutti i suoi modelli and all its models et tous ses modèles und seine Modelle y todos sus modelos
sono conformi alle Direttive del Consiglio Europeo sottoelencate: are in conformity with the requirements of the European Council Directives listed below: sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous: den nachstehenden angeführten Direktiven des Europäischen Rats: cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:
2004/108/EC EMC Directive
2006/95/EC Low Voltage Directive
Basate sulle legislazioni degli Stati membri in relazione alla compatibilità elettromagnetica ed alla sicurezza dei prodotti. On the approximation of the laws of Member States relating to electromagnetic compatibility and product safety. Basée sur la législation des Etats membres relative à la compatibilité électromagnétique et à la sécurité des produits. Über die Annäherung der Gesetze der Mitgliedsstaaten in bezug auf elektromagnetische Verträglich­keit und Produktsicherheit entsprechen. Basado en la aproximación de las leyes de los Países Miembros respecto a la compatibilidad electro­magnética y las Medidas de seguridad relativas al producto.
Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti: This declaration is based upon compliance of the products to the following standards: Cette déclaration repose sur la conformité des produits aux normes suivantes: Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht: Esta declaración se basa en el cumplimiento de los productos con las siguientes normas:
EN 55022 (CLASS B ITE ), SEPTEMBER 2006: AMMENDMENT A1: OCTOBER 2007
EN 55024, SEPTEMBER 1998 : A
MENDMENT A2, JUNE 2003
EN 60950-1, APRIL 2006+A11:2009 :
EUGENE, OREGON USA FEBRUARY 18, 2011
IMITS AND METHODS OF MEASUREMENTS OF RADIO DISTURBANCE
L
CHARACTERISTICS OF INFORMATION TECHNOLOGY EQUIPMENTS
NFORMATION TECHNOLOGY EQUIPMENT
I IMMUNITY CHARACTERISTICS LIMITS AND METHODS OF MEASUREMENT
INFORMATION TECHNOLOGY EQUIPMENT - SAFETY ­PART 1 : GENERAL REQUIREMENTS
Pag.: 1 di 1
www.datalogic.com
Datalogic ADC, Inc.
959 Terry Street Eugene, OR 97402 USA Telephone: (541) 683-5700 Fax: (541) 345-7140
©2013 Datalogic ADC, Inc. 820045614 (Rev A) January 2013
Loading...
