DS6300

Reference Manual

Datalogic Automation S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara di Reno Bologna - Italy

DS6300 Reference Manual

Ed.: 10/2007

Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the use of this material.

Product names mentioned herein are for identification purposes only and may be trademarks and or registered trademarks of their respective companies.

03/10/2007

REFERENCES .............................................................................................................v

Reference Documentation............................................................................................ v

Services and Support ...................................................................................................v

COMPLIANCE.............................................................................................................vi

Electrical Safety........................................................................................................... vi

Laser Safety................................................................................................................. vi

Power Supply...............................................................................................................vii

CE Compliance............................................................................................................vii

WEEE Compliance ......................................................................................................vii

GENERAL VIEW.........................................................................................................ix

GUIDE TO INSTALLATION ....................................................................................... xii

Point-to-Point Installation.............................................................................................xii

Master/Slave Lonworks Installation ............................................................................xiii

1 INTRODUCTION ..........................................................................................................1

1.1 Product Description ......................................................................................................1

1.2 Model Description.........................................................................................................2

1.3 Oscillating Mirror Models ..............................................................................................3

1.4 Indicators ......................................................................................................................5

1.5 Accessories ..................................................................................................................6

2 INSTALLATION ...........................................................................................................7

2.1 Package Contents ........................................................................................................7

2.2 Mechanical Mounting....................................................................................................8

2.2.1 Mounting the Scanner...................................................................................................8

2.2.2 Mounting the Scanner with Accessories.....................................................................11

2.2.3 Mounting the Scanner with GFX-60............................................................................ 13

2.3 Electrical Connections ................................................................................................15

2.3.1 Main/Aux. Serial Interface and I/O Connector ............................................................17

2.3.2 Lonworks Connectors.................................................................................................26

2.3.3 Ethernet Connector.....................................................................................................30

2.3.4 DeviceNet Connector..................................................................................................32

2.3.5 Profibus Connector.....................................................................................................33

2.3.6 Power Supply..............................................................................................................34

2.4 User Interface .............................................................................................................34

2.5 Positioning the Scanner..............................................................................................35

2.6 Typical Installations ....................................................................................................37

2.6.1 Standard Installation...................................................................................................37

2.6.2 “45° Skew” Installation................................................................................................37

2.7 Typical Layouts...........................................................................................................38

2.7.1 Point-to-Point..............................................................................................................38

2.7.2 Pass Through .............................................................................................................40

2.7.3 RS232 Master/Slave...................................................................................................41

2.7.4 Multiplexer ..................................................................................................................43

2.7.5 Local Lonworks Network.............................................................................................44

2.7.6 Fieldbus Network........................................................................................................49

2.8 Keypad and Display....................................................................................................50

2.8.1 Internal Net .................................................................................................................50

iii

2.8.2 Test Mode...................................................................................................................51

2.9 Focus Adjustment.......................................................................................................51

3 SOFTWARE CONFIGURATION................................................................................53

3.1 Genius™ Installation...................................................................................................53

3.2 Guide to Rapid Configuration .....................................................................................53

3.2.1 Wizard for Quick Reader Setup..................................................................................53

3.2.2 Genius™ Network Setup Through Master..................................................................56

3.2.3 Alternative Slave Address Assignment.......................................................................61

3.3 Advanced Genius™ Configuration .............................................................................61

3.4 Parameter Default Values...........................................................................................62

4 READING FEATURES...............................................................................................65

4.1 Advanced Code Reconstruction (ACR™ 4)................................................................ 65

4.1.1 Tilt Angle for Advanced Code Reconstruction............................................................65

4.2 Performance ...............................................................................................................66

4.2.1 Reading Conditions ....................................................................................................66

4.3 Reading Diagrams......................................................................................................68

4.3.1 DS6300 Standard Model ............................................................................................68

4.3.2 DS6300 Oscillating Mirror Model ................................................................................ 72

4.3.3 DS6300 with GFX-60..................................................................................................76

5 MAINTENANCE .........................................................................................................78

5.1 Cleaning......................................................................................................................78

5.2 Automatic Scanner Replacement (ASR) ....................................................................78

5.2.1 ASR Network Configuration........................................................................................78

5.2.2 Scanner Replacement Procedure............................................................................... 79

6 TROUBLESHOOTING ...............................................................................................80

7 TECHNICAL FEATURES........................................................................................... 83

GLOSSARY................................................................................................................ 85

INDEX.........................................................................................................................88

REFERENCES

REFERENCE DOCUMENTATION

The documentation related to the DS6300 management is listed below:

• C-BOX Installation Manual

• INT-30 20 mA Current Loop Interface Board for C-BOX 100

• PWR-120 power supply unit

• GFC-60 90° deflecting mirror

• GFC-600 90° deg. mirror close distance

• GFX-60 X-pattern mirror

• Document about the Ethernet connectivity

• Document about the Profibus connectivity

• Help On-Line in PDF format

SERVICES AND SUPPORT

Datalogic provides several services as well as technical support through its website. Log on to www.automation.datalogic.com and click on the including:

links indicated for further information

•

PRODUCTS

Search through the links to arrive at your product page where you can download specific

Manuals and Software & Utilities including:

- Genius™ a utility program, which allows device configuration using a PC. It provides

RS232 interface configuration.

•

SERVICES & SUPPORT

Datalogic Services - Warranty Extensions and Maintenance Agreements

Authorised Repair Centres

•

E-mail form and listing of Datalogic Subsidiaries

COMPLIANCE

ELECTRICAL SAFETY

This product conforms to the applicable requirements contained in the European Standard for electrical safety EN-60950-1 at the date of manufacture.

LASER SAFETY

The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of the DS6300 reader.

Standard Regulations

This scanner utilizes a low-power laser diode. Although staring directly at the laser beam momentarily causes no known biological damage, avoid staring at the beam as one would with any very strong light source, such as the sun.

Avoid that the laser beam hits the eye of an observer, even through reflective surfaces such as mirrors, etc.

This product conforms to the applicable requirements of both EN60825-1 and CDRH 21 CFR1040 at the date of manufacture. The reader is classified as a Class 2 laser product according to EN60825-1 regulations and as a Class II laser product according to CDRH regulations.

Disconnect the power supply when opening the device during maintenance or installation to avoid exposure to hazardous laser light.

There is a safety device which allows the laser to be switched on only if the motor is rotating above the threshold for its correct scanning speed.

Use of controls or adjustments or performance of procedures other than those specified herein may result in exposure to hazardous visible laser light.

WARNING

The laser light is visible to the human eye and is emitted from the window on the head of the reader (Figure A, 7).

Warning labels indicating exposure to laser light and the device classification are applied onto the head of the reader (Figure A, 1, 3):

LASER RADIATION IS EMITTED FROM THIS APERTURE

AVOID EXPOSURE

Laser Safety Label for Oscillating Mirror and Standard Models

CAUTION-CLASS 3B

LASER LIGHT WHEN OPEN

AVOID EXPOSURE

TO BEAM

LASER LIGHT – DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

MAX. OUTPUT RADIATION 1 m W

EMITTED WAVE LENGTH 630 ~ 680 nm

EN60825-1:2001

AVOID EXPOSURE – LASER LIGHT

IS EMITTED FROM THIS APERTURE

Warning and Device Class Label

The identification label is applied onto the bottom part of the scanner (Figure A, 2):

DATALOGIC S.p.A. Via Candini, 2 40012 LIPPO DI CALDERARA DI RENO (BO) ITALY MANUFACTURED VOLT Amp. JANUARY 2002 15-30 DC 1.5-0.5 MODEL No.

SERIAL No.

This product conforms to the applicable requirements of 21CFR 1040 at the date of manufacture.

Device Identification Label

N2468

The laser diode used in this device is classified as a Class 3B laser product according to EN60825-1 regulations and as a Class IIIb laser product according to CDRH regulations. Any violation of the optic parts in particular can cause radiation up to the maximum level of the laser diode (35 mW at 630~680 nm).

POWER SUPPLY

- This product is intended to be installed by Qualified Personnel only.

- All DS6300 Models:

This device is intended to be supplied by a UL Listed Power Unit marked “Class 2” or LPS power source which supplies power directly to the scanner via the 25/26-pin connector.

CE COMPLIANCE

Warning:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WEEE COMPLIANCE

ENGLISH

Information for the user in accordance with the European Commission Directive 2002/96/EC

t the end of its useful life, A

separately from urban waste.

Disposin

g of the product according to this Directive:

• avoids potentially negative consequences to the environment and human health which o be caused by incorrect disposal

• enables the recovery of materials to obtain a significant savings of energy and resources.

or more detailed information about disposal, contact the supplier that provideF r consult the dedicated section at the website www.automation.datalogic.com.

the product marked with the crossed out wheeled wastebin must be disposed of

therwise could

d you with the product in question

vii

ITALIANO

Informazione degli utenti ai sensi della Direttiva Europea 2002/96/EC

L’apparecchiatura che riporta il simbolo del bidone barrato deve essere smaltita, alla fine della sua vita utile, separatamente dai rifiuti urbani.

Smaltire l’apparecchiatura in conformità alla presente Direttiva consente di:

• evitare possibili conseguenze negative per l’ambiente e per la salute umana che potrebbero invece essere causati dall’errato smaltimento dello stesso;

• recuperare materiali di cui è composto al fine di ottenere un importante risparmio di energia e di risorse.

Per maggiori dettagli sulle modalità di smaltimento, contattare il Fornitore dal quale è stata acquistata l’apparecchiatura o consultare la sezione dedicata sul sito www.automation.datalogic.com.

DEUTSCH

Benutzerinformation bezüglich Richtlinie 2002/96/EC der europäischen Kommission

Am Ende des Gerätelebenszyklus darf das Produkt nicht über den städtischen Hausmüll entsorgt werden. Eine entsprechende Mülltrennung ist erforderlich.

Beseitigung des Produkts entsprechend der Richtlinie:

• verhindert negative Auswirkungen für die Umwelt und die Gesundheit der Menschen

• ermöglicht die Wiederverwendung der Materialien und spart somit Energie und Resourcen

Weitere Informationen zu dieser Richtlinie erhalten Sie von Ihrem Lieferanten, über den Sie das Produkt erworben haben, oder besuchen Sie unsere Homepage unter www.automation.datalogic.com.

FRANÇAIS

Information aux utilisateurs concernant la Directive Européenne 2002/96/EC

Au terme de sa vie utile, le produit qui porte le symbole d'un caisson à ordures barré ne doit pas être éliminé avec les déchets urbains.

Éliminer ce produit selon cette Directive permet de:

• éviter les retombées négatives pour l'environnement et la santé dérivant d'une élimination incorrecte

• récupérer les matériaux dans le but d'une économie importante en termes d'énergie et de ressources

Pour obtenir des informations complémentaires concernant l'élimination, veuillez contacter le fournisseur auprès duquel vous avez acheté le produit ou consulter la section consacrée au site Web www.automation.datalogic.com.

ESPAÑOL

Información para el usuario de accuerdo con la Directiva Europea 2002/96/CE

Al final de su vida útil, el producto marcado con un simbolo de contenedor de bassura móvil tachado no debe eliminarse junto a los desechos urbanos.

Eliminar este producto de accuerdo con la Directiva permite de:

• evitar posibles consecuencias negativas para el medio ambiente y la salud derivadas de una eliminación inadecuada

• recuperar los materiales obteniendo así un ahorro importante de energía y recursos

Para obtener una información más detallada sobre la eliminación, por favor, póngase en contacto con el proveedor donde lo compró o consultar la sección dedicada en el Web site www.automation.datalogic.com.

viii

GENERAL VIEW

DS6300

4 5

Figure A - DS6300

Laser Safety Label

Identification Label

Warning and Device Class Label

Focus Adjusting Screw

Service Cap Connector Panel

Display and Keypad Panel

Laser Beam Output Window

DS6300

Figure B - DS6300 Oscillating Mirror Version

Figure C - Display and Keypad Panel

Programming Keypad

Laser Safety Label

Laser Beam Output Window

Power On LED

TX Data LED

Phase On LED

LCD Display

Figure D - Connector Panel for Master/Slave Models

Lonworks 9-pin male connector

nnector Main/Aux. Interface 25-pin D-Sub male co

Lonworks 9-pin female connector

Figure E – Connector Panel for Ethernet Models

Main/Aux. Interface 26-pin D-Sub male connector

RJ45 modular connector for Ethernet Interface

Lonworks 9-pin female connector

Figure F – Connector Panel for DeviceNet Models

Main/Aux. Interface 26-pin D-Sub male connector

DeviceNet 5-pin male connector

Lonworks 9-pin female connector

Figure G – Connector Panel for Profibus Models

Main/Aux. Interface 26-pin D-Sub male connector

Profibus 9-pin female connector (white)

Lonworks 9-pin female connector

GUIDE TO INSTALLATION

POINT-TO-POINT INSTALLATION

The following can be used as a checklist to verify all the steps necessary to complete installation of the DS6300 scanner.

1) Read all information in the section “Safety Precautions” at the beginning of this manual.

2) Correctly mount the scanner using the bracket provided according to the information in par. 2.2.2 and position it at the correct reading distance according to your model as shown in par.2.5 and par. 4.3.

3) Make electrical connections to your DS6300 scanner by:

a) Connecting the DS6300 scanner to the C-BOX 100 by means of one of the cables

provided as accessory (see par. 1.5).

b) Providing correct and complete system cabling through the C-BOX 100 according to

the signals (trigger, inputs, outputs) necessary for the layout of your application.

• Layout: Point-to-Point, Pass Through, RS232 Master/Slave, Lonworks, Fieldbus.

See sub-paragraphs under 2.7 for reference.

• Cabling: Power, Main Serial Interface – RS232, RS485 Half Duplex, RS485 Full

Duplex, 20 mA Current Loop, Auxiliary Interface, Inputs, Outputs, etc -. For further details, see all sub-paragraphs under par. 2.3.

4) Configure the DS6300 scanner by installing and running the Genius™ configuration program from the CD-ROM provided. The main steps are:

• Select the codes to be read

• Set-up the communication parameters

• Define data formatting parameters

Fine tuning of the scanner position for barcode reading can be accomplished by performing a test through the SPY configuration toll

NOTE

in Genius™.

5) Exit the configuration program and run your application.

he installation is now complete.

xii

MASTER/SLAVE LONWORKS INSTALLATION

The following can be used as a checklist to verify all the steps necessary to complete installation of the DS6300 scanner in a Master/Slave Lonworks network.

1) Read all information in the section “Safety Precautions” at the beginning of this manual.

3) Make electrical connections to your DS6300 scanner by: a) Connecting the DS6300

Master scanner to the C-BOX 100 by means of one of the

cables provided as accessory (see par. 1.5).

b) Correctly inserting the BTK-6000 terminator in the DS6300 Master reader according

to the information given under “Local Lonworks Network” in par. 2.3.2 and par. 2.7.5.

c) Completing the system wiring adding as much slave scanners as required by your

system layout (refer to par. 2.7.5).

d) Correctly inserting the BTK-6000 terminator in the last DS6300 Slave reader of the

network according to the information given under “Local Lonworks Network” in par.

2.3.2 and par. 2.7.5.

4) Install and run the Genius™ configuration program from the CD-ROM provided. Configure the Local Lonworks Network using one of the procedures given below:

a) Configure the entire network through the Master as described in par. 3.2.2 b) Configure the Master as described in par. 3.2.2 and locally define each slave scanner

address as described in par. 3.2.3

c) Define each scanner, master and slaves (with their addresses), by using the scanner

keypad according to the information given in par. 2.8.1

5) Configure the Master scanner through the Genius™ program. The main steps are:

• Select the codes to be read

• Set-up the communication parameters

• Define data formatting parameters

6) Configure each Slave scanner through the Master scanner using Genius™. The main steps are:

• Select the codes to be read

Fine tuning of the scanner position for barcode reading can be accomplished by performing a test through the SPY configuration toll

NOTE

in Genius™.

7) Send the configuration to the Master.

xiii

8) Optionally, perform the ASR Network Configuration procedure for system backup purposes (see par. 5.2.1).

9) Exit the configuration program and run the application.

The installation is now complete.

xiv

INTRODUCTION

1 INTRODUCTION

1.1 PRODUCT DESCRIPTION

The DS6300 is the first high performance laser scanner in a complete range of industrial barcode readers offering an innovative and modular solution in terms of reading performance, connectivity and maintenance, in addition to a completely new hardware and software platform.

The DS6300 has been specifically designed for simple installation, easy use and flexibility. An innovative mechanical design together with the Datalogic patent pending Step-a-Head feature make it possible to rotate the reader head and the decoder base independently from each other. Step-a-Head

enables the DS6300 to always be installed in the ideal position, by modifying the orientation of the connector panel while leaving the laser window in the desired position. The need for space is minimized and installation is easier.

The DS6300 has an innovative multi-step optic assembly for mechanically adjustable focusing, providing the scanner with a particularly large reading range of 250 mm to 2,000 mm (10-80 inches). Its key features are excellent reading field at the minimum distance and outstanding reading performance on low contrast bar codes. These features are a great benefit in applications such as reading bar codes directly printed on cardboard boxes.

The DS6300 can read all most popular bar codes even in the most difficult conditions, thanks to a new generation decoder with Intel XScale CPU and code reconstruction technology (ACR™ 4).

This reader is also offered in a model with an integrated SW programmable oscillating mirror.

Great attention has been given to built-in connectivity for all market standards. Lonworks, Profibus, DeviceNet and Ethernet bus have been integrated in dedicated versions of the decoder base.

Some of the main features of DS6300 are listed below:

• scanning speed up to 1200 scans/sec;

• 2 serial communication interfaces

• reading all popular codes;

• supply voltage from 15 to 30 Vdc;

• electrical connection through connectors;

• high speed Lonworks connectivity for Master/Slave layout;

• built-in connectivity for Profibus, DeviceNet and Ethernet;

• programmable in 5 different operating modes to suit the most various barcode reading

system requirements;

• light source: solid state laser diode; the light emitted has a wavelength between

630~680nm.

• IP64 protection class of the enclosure (not yet available for Ethernet models).

The DS6300 is the first product of a new family of scanners designed to satisfy the needs of the Manufacturing industry. Manufacturing, the core process from row material to finished product, is a huge industry divided in different branches of economic sectors: from automotive to electronics, from food & beverages to white goods.

The DS6300 features have been defined to give a set of benefits answering the main manufacturing industry needs .

Features Benefits

DS6300

Modular solution with separated head and base and Step-A-Head feature

Reading performance on low contrasted or thermal printed barcodes

“Sealed” scanner • All the scanner setup are managed via SW, with

Master working as a multiplexer on a high speed Lonworks bus

GENIUS™ Configurator SW • Reduced learning time, with an easy wizard

• Possibility to select the combination of head and

base that best fits the needs of the application;

• Great scalability of the offer;

• Down time cost reduction, since the decoder

base works even if the head has been removed;

• Easy maintenance. In case of replacement of

the head, all the configuration parameters are stored in the base, and the scanner is automatically configured;

• Easy installation with the minimum room

needed.

• Best result in typical manufacturing reading

application.

the possibility to “clone” a customized scanner by simply downloading a configuration file.

• Great competitiveness of the offer, since the

cost of an external multiplexer is saved;

• High data transfer on a industrial, reliable bus

running at 1,2 Mbit/sec

approach;

• Multilanguage platform;

• All the configuration parameters stored into the

scanner;

• Not dependent on Physical interface.

1.2 MODEL DESCRIPTION

The DS6300 scanner is available in versions that differ in regard to the following characteristics:

• Optical Model (Head)

• Decoder Model (Base)

DS6300 - 10X - 0Y

Decoder Model (Base)

Optical Model (Head)

0 = Standard 5 = Oscillating Mirror

10 = Master/Slave 11 = Profibus 12 = Ethernet 15 = Devicenet

INTRODUCTION

1.3 OSCILLATING MIRROR MODELS

Oscillating mirror models are used when coverage of a large reading area is required, mainly in picket fence applications. The DS6300 scanner mounts a dedicated optic head with integrated oscillating mirror driven by a linear motor. The speed, the precision, the repeatability, and the reliability of this driving technology assure high level performance.

The new oscillating mirror is completely software controlled and software programmable. The Genius™ software tool allows adjusting the linear motor speed (oscillating frequency) and the upper and lower limits of the oscillation by defining the top and bottom line limit angles.

When the oscillating mirror is programmed to read barcode labels at very small angles, position the reader to assure at least 10° for the Skew angle (see par. 2.4). This angle refers to the most inclined or external laser line, so that all other laser lines assure more than 10° Skew. This avoids the direct reflection of the laser light emitted by the reader.

1 0

Figure 1 – Oscillating Mirror Skew Angle

Otherwise, the scanner can be mounted at an angle of inclination of 17.5° in order to attain symmetrical deflection ranges.

Figure 2 - Oscillating Mirror Reading Position

In the above case, the zone where the scan line is perpendicular to the reflecting surface corresponds to a neutral zone at the center of the reading field.

DS6300

The mirror can be deflected up to 40°. Oscillation with respect to the output window median axis is asymmetrical ( see figure below).

40°

0°

Figure 3 - Oscillating Mi rture and Asymmetry

rror Maximum Ape

By configuring the oscillating speed up to the maximum value of 19 Hz, raster emulation can be performed for read st moving objects

ing fa .

Hz Aper

Max. ture

0-5 40°

6-10 30° 11-15 20° 16-19 10°

By limiting the raster width to the minimum necessary, the number of

NOTE

scans on the reading surface is increased.

Oscillating angles are selected in software where the minimum and maximum angles correspond to –2.5° and +37.5°.

The scanner can be tilted in order for the 17.5° software setting to correspond with the 0° horizontal plane.

+37.5°

+17.5°

-2.5°

Figure 4 - Oscillating Mirror Extreme Angle Positions

These models provide higher scanning speed (1200 scans/sec) compared to standard models and the reading performance is not adversely effected by the oscillating mirror.

INTRODUCTION

The following example represents the selection of an angle of +10° for the bottom line and an angle of +20° for the top line (see figure below).

+37.5°

+27.5°

+17.5°

Figure 5 - Oscillating Mode

Refer to par. 2.2.1 for details about oscillating mirror mounting.

1.4 INDICATORS

T dec se

he DS6300 oder ba provides an LCD display for system messages and configuration

menus. The three keys present on the side of the display allow configuration menu

avigation (Figure CFigure , 1).

he three LED indicators have the following functions:

POWER ON PHASE ON TX DATA

(red) Indicates the reader is turned on (Figure C, 4) (yellow) Indicates the presence sensor is turned on (Figure C, 3). (green) Indicates the main serial interface is operating correctly during

data transmission (Figure C, 2).

DS6300

1.5 ACCESSORIES

The following accessories are available on request for DS6300:

Name Description Part Number

CAB-6001 cable to C-BOX100 1 m 93A051190 CAB-6002 cable to C-BOX100 2 m 93A051200 CAB-6005 cable to C-BOX100 5 m 93A051210 CAB-6010 cable to C-BOX100 10 m 93A051271 CAB-6011 cable to C-BOX100 1 m (DS6300 Fieldbus version) 93A051221 CAB-6012 cable to C-BOX100 2 m (DS6300 Fieldbus version) 93A051222 CAB-6015 cable to C-BOX100 5 m (DS6300 Fieldbus version) 93A051223 CAB-6101 cable master/slave 1 m 93A051220 CAB-6102 cable master/slave 2 m CAB-6105 cable master/slave 5 m 93A051240 CAB-6112 cable master/slave no power 2 m 93A051224 CAB-6115 cable master/slave no power 5 m 93A051225 CAB-6305 power cable Fam 6k 5 m 93ACC1768 CAB-6310 power cable Fam 6k 10 m 93ACC1752 C-BOX 100

passive connection box 93ACC1510 INT-30 20 m.A. C.L. interface board for C-BOX 100 93A151022 PWR-120 power unit 110/230 V AC 24 V 93ACC1530 BTK-6000 terminator kit (5 pcs) PG6002 PG6001

single unit power supply (US) 93ACC1718

single unit power supply (UK) 93ACC1719 PG6000 single unit power supply (EU) 93ACC1720 FBK-6000 fast bracket kit (2 pcs) 93ACC1721 GFC-60 90° mirror 93A201100 GFC-600 90° deg. mirror close distance 93A201102 GFX-60 X-pattern mirror 93ACC1730 US-60 mounting bracket kit (5 pcs) for multisided stations 890001020 PH-1 Photocell kit – PNP 93ACC1791 MEP-543 Photocell kit - NPN 93ACC1728 OEK-2 Optical encoder (10 m cable + spring) 93ACC1770 OEK-1 Optical encoder kit + 10 m 93ACC1600

93A051230

93ACC1710

INSTALLATION

2 INSTALLATION

To install the system follow the given procedure:

• Select the mounting location for DS6300;

• Mount the DS6300 scanner;

• Position the scanner with respect of the barcode;

• Proceed with system electrical connection;

• Install the GENIUS™ program on the PC;

• Adjust the focus position to the reading plane of the barcode.

When installing several scanners, take care to position them correctly so that no laser beam enters the reading window perpendicularly and at the same level of the output beam of the other scanners. This condition could occur more frequently for side mounted applications. If these precautions are not followed, it may occur that the laser of the blinded scanner starts

WARNING

blinking due to an internal circuit which temporarily turns the laser off when detecting a power anomaly. To resolve this problem, it is sufficient to slightly change the inclination and position of one of the two scanners involved.

Refer to the Reference Documentation for details on connecting

NOTE

DS6300 reader to other devices in the system (i.e. C-BOX 100 etc.).

2.1 PACKAGE CONTENTS

Verify that the DS6300 reader and all the parts suppl

ct when opening the packaging; the list of parts inc

ta ludes:

• DS6300 reader

• Installation Quick Reference +

barcode test chart

• DS6300 configuration CD-ROM

• Mounting bracket and screws

ied with the equipment are present and

your

Figure 6 - DS6300 Package Contents

DS6300

2.2 MECHANICAL MOUNTING

2.2.1 Mounting the Scanner

The DS6300 reader can be positioned and installed in the best way possible as a result of the Step-a-Head™ feature. Thanks to the separation between Head and Base, you can modify the orientation of the decoder base, and therefore display-keypad and connector panels, while keeping the optic head in the correct reading position. The reading head and the decoder base can be rotated independently from each other allowing the installation even in the most critical locations.

Head Screws

Fixing Screw (4)

Figure 7 - Step-A-Head™ Feat ure

o rotate the head follow the given procedure:

. detach the head from the base by unscrewing the four fixing screws;

. rotate the head in the desired position;

3. loosen but don't remove the two screws on top of the head;

4. affix the head onto the base carefully aligning the four fixing screws and progressively tightening them about half-way;

5. completely tighten the two screws on top of the head;

6. completely tighten the four fixing screws.

INSTALLATION

The following diagrams give the overall dimensions of the reader standard model, the oscillating mirror model and mounting brackets. They may be used for their installation. Refer to par. 2.5 for correct positioning of the scanner with respect to the code passage zone.

16.5

0.65 85

3.34

2.36

1.18

2.99

1.18

2.85

3.90

113

4.45

110

4.33

inch

Figure 8 - DS6300 Overall Dimensions

1.65

0.4 22

0.86

0.71 N°2

0.98

3.22 50

0.78

1.96

2.83 100

3.93

N 3

1.96

3.22

1.37

106°

73.2

2.88

1.41

mm inch

0.15

130

5.12

Figure 9 – ST-237 Mounting Bracket Overall Dimensions

4.11

104.5

63.5

2.50

2.72 56

2.20

3060

85 16.5

3.35 0.65

114

4.48

DS6300

1.18

2.36

3.90

4.34

110.3

102

4.01

180

7.08

113

4.45

mm inch

Figure 10 - DS6300 Oscillating Mirror Model Overall Dimensions

1.65

Ø4.1

0.16

1.96 72

2.83 100

3.93

0.86

1.96

1.37

1111

0.43 14

0.55

0.15

0.4

0.98

3.22 20

1.96

0.78

5.11

130

0.43 14

0.55

R36

Ø8

R22

1.41

2.95

mm inch

Figure 11 – ST-210 Mounting Bracket Overall Dimensions

INSTALLATION

2.2.2 Mounting the Scanner with Accessories

The following accessories allow installing the DS6300 reader in the most suitable position for your network layout:

- ST-237 mounting bracket;

- ST-210 mounting bracket;

- FBK-6000 fast bracket.

The ST-237 is a 106° mounting bracket to be mounted on the reader as displayed in the image below:

Figure 12 – Mounting the ST-237 Mounting Bracket

The ST-210 is a 90° mounting bracket to be mounted on the reader as displayed in the image below:

Figure 13 – Mounting the ST-210 Mounting Bracket

DS6300

The FBK-6000 is a fast bracket kit allowing a quick and easy mounting of the scanner on either the ST-210 or the ST-237 brackets.

First, it is necessary to fix the FBX-6000 to the DS6300 scanner by means of the mounting screws:

Figure 14 – Mounting the FBK-6000 on the Scanner

Then, attach the assembly to the mounting bracket by slipping the hook into the bracket hole.

Finally, fix it by means of the 2 fixing screws:

Figure 15 – Mounting the Assembly on the Bracket

INSTALLATION

2.2.3 Mounting the Scanner with GFX-60

The GFX-60 is an X-pattern mirror for the DS6300 Series Scanners. The following procedure describes how to mount the GFX-60.

1. Unscrew the upper cover of the scan head, which houses the scanner output window.

a) Remove the two top head screws.

b) Loosen all four fixing screws.

c) Carefully remove the scanner output window from the scan head.

head screws

fixing screws (4)

. Mount the GFX-60 onto the scan head paying attention to correctly align the sealing

gasket.

3. Start the four fixing screws and the two head screws partially to assure correct alignment to the scan head.

4. Completely tighten the two head screws.

. Completely tighten the four fixing screws.

DS6300

6. Mount the scanner at an angle of 16°, as indicated in figure below, in order to obtain an angle of 90° between the two scan lines. This guarantees an omni directional reading of the barcode, if the code label satisfies the ACR™ 4 conditions (see par. 4.1).

The DS6300 with the GFX-60 can be mounted over a conveyor in different positions.

The following picture illustrates the suggested position offering the best compromise between width and height of the reading area:

Figure 16 – Central Reading Position

The Central Reading position allows maximizing the reading distance (height) when the

width of the reading area is not critical (narrow conveyors). In this case a complete reading on the central part of the conveyor plane is guaranteed.

To better exploit the scanner reading performance when GFX-60 is

NOTE

mounted, the use of a dedicated recipe is recommended.

For details about the reading performance of the DS6300 with GFX-60 see par. 4.3.3.

INSTALLATION

2.3 ELECTRICAL CONNECTIONS

All the connectors available for each scanner model are the following:

Scanner Model Connector

Master/Slave 25-pin male serial interface and I/O connector

9-pin male Lonworks connector* 9-pin female Lonworks connector

Ethernet 26-pin male serial interface and I/O connector

9-pin female Lonworks connector RJ45 modular connector

DeviceNet 26-pin male serial interface and I/O connector

9-pin female Lonworks connector 5-pin male connector

Profibus 26-pin male serial interface and I/O connector

9-pin female Lonworks connector 9-pin female Profibus connector (white)

CAUTION

* Do not connect an RS232 port to the 9-pin Lonworks Connector. This may damage your Laptop PC.

DS6300

The table below gives the pinout of the C-BOX 100 terminal block connectors. Use this pinout when the DS6300 reader is connected in a network by means of the C-BOX 100:

C-BOX 100 Terminal Block Connectors

Power

1, 3, 5 VS 2, 4, 6 GND

7, 8 EARTH GROUND

20, 40 Reserved

Inputs

27 EXT TRIG/PS A (polarity insensitive) for PS 28 EXT TRIG/PS B (polarity insensitive) for PS 29 IN 2/ENC A (polarity insensitive) for Encoder

30 IN 2/ENC B (polarity insensitive) for Encoder 31, 33 IN 3A (polarity insensitive) 32, 34 IN 4A (polarity insensitive)

36 IN 3B/IN 4B Reference (polarity insensitive)

Outputs

21 OUT 1+

22 OUT 1-

23 OUT 2+

24 OUT 2-

25 OUT 3A (polarity insensitive)

26 OUT 3B (polarity insensitive)

Auxiliary Interface

35 TX AUX

37 RX AUX 38, 39 GND

Main Interface

Pin RS232

RS485

Full-Duplex

RS485

Half-Duplex

20 mA C.L.

(with INT-30 only)

11, 15 TX232 TX485+ RTX485+ 12, 16 RTS232 TX485- RTX485-

17 RX232 * RX485+

18 CTS232 * RX485-

10, 14, 19

9, 13

SGND Main Isolated SGND Main Isolated SGND Main Isolated

RS485 Cable Shield RS485 Cable Shield

see INT-30 instructions

* Do not leave floating, see par. "RS485 Full-Duplex Interface" for connection details.

INSTALLATION

2.3.1 Main/Aux. Serial Interface and I/O Connector

The DS6300 master/slave model is equipped with a 25-pin male D-sub connector for connection to the host computer, power supply and input/output signals.

The DS6300 fieldbus models (Ethernet, DeviceNet, Profibus) adopt a 26-pin male connector instead of the 25-pin one.

The details of the connector pins are indicated in the following table:

Figure 17 - 26-pin Connector Figure 18 - 25-pin Connector

DS6300 25-pin/26-pin D-sub connector pinout

Pin Name Function

1 CHASSIS

Chassis - internally connected to GND

Cable shield connected to chassis 20 RXAUX Receive data of auxiliary RS232 (referred to GND) 21 TXAUX Transmit data of auxiliary RS232 (referred to GND)

8 OUT 1+ Configurable digital output 1 - positive pin 22 OUT 1- Configurable digital output 1 - negative pin 11 OUT 2+ Configurable digital output 2 - positive pin 12 OUT 2- Configurable digital output 2 - negative pin 16 OUT 3A Configurable digital output 3 - polarity insensitive 17 OUT 3B Configurable digital output 3 - polarity insensitive 18 EXT_TRIG/PS A External trigger (polarity insensitive) for PS 19 EXT_TRIG/PS B External trigger (polarity insensitive) for PS

6 IN 2/ENC A Input signal 2 (polarity insensitive) for Encoder 10 IN 2/ENC B Input signal 2 (polarity insensitive) for Encoder 14 IN 3A Input signal 3 (polarity insensitive) 15 IN 4A Input signal 4 (polarity insensitive) 24 IN_REF Common reference of IN3 and IN4 (polarity insensitive)

9,13 VS Supply voltage - positive pin

23,25,26 GND Supply voltage - negative pin

Main Interface Connector Pinout

RS232

RS485

Full Duplex

RS485

Half Duplex

20 mA C.L.

(INT-30 with C-BOX 100 only)

2 TX TX485 + RTX485 + see INT-30 instructions

3 RX * RX485 +

4 RTS TX485 - RTX485 -

5 CTS * RX485 -

7 GND_ISO GND_ISO GND_ISO

Pin 26 is only available for fieldbus models (Ethernet, DeviceNet, Profibus). * Do not leave floating, see par. "RS485 Full-Duplex Interface" for connection details.

DS6300

Main Interface

The main serial interface is compatible with the following electrical standards:

RS232 RS485 full-duplex RS485 half-duplex (20 mA current loop)

The 20 mA Current Loop interface is available by using the C-BOX 100 with the optional INT-30 accessory installed in it. The scanner communicates to the C-BOX 100 through the RS232 interface and the INT-30 converts the signals.

The main serial interface type and its relative parameters (baud rate, data bits, etc.) are selected via software using the Genius™ utility program. For more details refer to the section "Main Serial Port" in the Genius™ Help On Line.

Details regarding the connections and use of the main interface selection are given in the next paragraphs.

RS232 Interface

The main serial interface is used for communication with the Host computer and allows both transmission of code data and configuring the reader. The overall maximum cable length should not exceed 15 m (50 ft).

The following pins of the 25-pin and 26-pin connector are used for RS232 interface connection depending on the reader model:

Pin Name Function

2 TX Transmit 3 RX Receive 4 RTS Request to send 5 CTS Clear to send 7 GND_ISO Main signal ground

The RTS and CTS signals control data transmission and synchronize the connected devices.

If the RTS/CTS hardware protocol is enabled, the DS6300 activates the RTS output to indicate a message can be transmitted. The receiving unit must activate the CTS input to enable the transmission.

DS6300

RTS

CTS

GND_ISO

CHASSIS

Figure 19 - RS232 Connections

USER INTERFACE

RXD

TXD

SGND Main Isolated

Earth

Ground

INSTALLATION

RS485 Full-Duplex Interface

The RS485 full-duplex interface is used for non-polled communication protocols in point-to-point connections over longer distances than those acceptable for RS232 communications or in electrically noisy environments. The overall maximum cable length should not exceed 1200 m (3937 ft).

The following pins of the 25-pin and 26-pin connector are used for RS485 full-duplex interface connection:

Pin Name Function

2 TX485 + RS485 output (+) 3 RX485 + RS485 input (+) 4 TX485 - RS485 output (-) 5 RX485 - RS485 input (-) 7 GND_ISO Main signal ground

Figure 20 - RS485 Full-Duplex Interface Connections

DS6300

USER INTERFACE

TX485+

RX485+

TX485-

RX485-

GND_ISO

CHASSIS

RX485+

TX485+

RX485-

TX485-

SGND Main Isolated

Earth

Ground

For applications that do not use RX485 signals, do not leave these lines

NOTE

floating but connect them to GND_ISO as shown below.

DS6300

TX485+

TX485-

RX485+

RX485-

GND_ISO

CHASSIS

USER INTERFACE

RX485+

RX485-

SGND Main Isolated

Earth

Ground

Figure 21 - RS485 Full-Duplex Interface Connections Using Only TX Signals

DS6300

RS485 Half-Duplex Interface

The RS485 half-duplex interface can be used for multidrop connections with a Datalogic multiplexer or it can also be used for a master/slave layout. The overall maximum cable length should not exceed 1200 m (3937 ft).

The following pins of the 25-pin and 26-pin connector are used for RS485 half-duplex interface connection:

Pin Name Function

2 RTX485 + RS485 input/output (+) 4 RTX485 - RS485 input/output (-) 7 GND_ISO Main signal ground

Figure 22 – RS485 Half-Duplex Interface Connections

DS6300

MULTIPLEXER

RTX485+

RTX485-

GND_ISO

CHASSIS

RTX485+

RTX485-

RS485REF

Earth

Ground

INSTALLATION

Auxiliary Interface

The auxiliary serial interface is equipped with RS232 full-duplex interface connections. The interface type is exclusive and is selectable through the Genius™ configuration program. The overall maximum cable length should not exceed 15 m (50 ft).

The following pins of the 25-pin and 26-pin connector are used for RS232 full-duplex interface connection:

Pin Name Function

20 RXAUX Receive data

21 TXAUX Transmit data 23 SGND AUX Auxiliary signal ground

DS6300

RXAUX

TXAUX

SGNDAUX

CHASSIS

USER INTERFACE

TXD

RXD

GND

Earth

Ground

Figure 23 - RS232 Auxiliary Interface Connections

DS6300

Inputs

The inputs of the reader are on the 25-pin and 26-pin connector (Figure D, 1 and Figure E, 1) of the DS6300.

These inputs are called EXT_TRIG/PS, IN2/ENC, IN3 and IN4.

Pin Name Function

18 EXT_TRIG/PS A External trigger (polarity insensitive) for PS 19 EXT_TRIG/PS B External trigger (polarity insensitive) for PS

6 IN2/ENC A Input signal 2 (polarity insensitive) for Encoder 10 IN2/ENC B Input signal 2 (polarity insensitive) for Encoder 14 IN3A Input signal 3 (polarity insensitive) 15 IN4A Input signal 4 (polarity insensitive) 24 IN_REF Common reference of IN3 and IN4 (polarity insensitive)

IN2/ENC is normally used for the Encoder input. The maximum Encoder frequency is 2 KHz.

EXT_TRIG/PS is the main presence sensor. When active, this input tells the scanner to scan for a code and that decoding can take place. The yellow LED (Figure C, 3) indicates the EXT_TRIG/PS is active.

IN3 and IN4 can be used as the stop signal for the reading phase.

All inputs are optocoupled, polarity insensitive, and driven by a constant current generator; the command signal is filtered through an anti-disturbance circuit which generates a delay which can be set to 5 ms or 500 µs. In particular, EXT_TRIG/PS, IN3 and IN4 share the same value which usually corresponds to 5 ms when using a photoelectric sensor, while IN2/ENC has a different value which is set to 500 µs when this input is used for the Encoder.

+ 5V

DS6300

A/B

B/A

Vext

EXTERNAL TRIGGER/ENCODER

Ground

Figure 24 – PNP Command Input Connection using External Power

DS6300

A/B

+ 5V

B/A

GND

EXTERNAL TRIGGER/ENCODER

Ground

Figure 25 - PNP Command Input Connection using Scanner Power

INSTALLATION

DS6300

+ 5V

EXTERNAL TRIGGER/ENCODER

Vext

A/B

B/A

Ground

Figure 26 - NPN Command Input Connection using External Power

+ 5V

DS6300

A/B

B/A

GND

EXTERNAL TRIGGER/ENCODER

Ground

Figure 27 - NPN Command Input Connection using Scanner Power

DS6300

Vext

EXTERNAL DEVICE

+ 5V

IN3A

Ground

Vext

IN4A

INREF

Ground

Figure 28 - IN3/IN4 PNP Input Command using External Power

DS6300

+ 5V

DS6300

INREF

IN3A

IN4A

GND

EXTERNAL DEVICE

Ground

EXTERNAL DEVICE

Ground

Figure 29 - IN3/IN4 NPN Input Command using Scanner Power

Input devices can be supplied by either scanner power (VS and GND) or external power supplies (Vext).

Electrical isolation between the input command logic and the scanner is maintained when powering the input devices from an external supply voltage (Vext).

The driving logic of the input signals may be powered, for convenience, with the voltage supply between pins 9 (VS) and 23 (GND) of the 26-pin I/O connector. In this case, however, the device is no longer electrically isolated.

The voltage available on the 26-pin I/O connector, is physically the same as used to power the scanner.

The electrical features of these inputs are:

Maximum voltage 30 V Maximum current 10 mA

Outputs

Three general purpose outputs are available.

Pin Name Function

8 OUT 1+ Configurable digital output 1 – positive pin 22 OUT 1- Configurable digital output 1 – negative pin 11 OUT 2+ Configurable digital output 2 – positive pin 12 OUT 2- Configurable digital output 2 – negative pin 16 OUT 3A Configurable digital output 3 – polarity insensitive 17 OUT 3B Configurable digital output 3 – polarity insensitive

The function of the three outputs OUT1, OUT2 and OUT3 can be defined by the user. Refer to Genius™ Help On-Line for further details.

INSTALLATION

By default, OUT1 is associated with COMPLETE READ event, which activates when the code has been read correctly. In case the reader has been programmed to read several codes within the same reading phase, the event activates when all codes have been read.

OUT2 is associated with NO READ event, which activates when no code has been read.

OUT3 is associated with NONE, which means that the output is always in Line State.

The OUT1 and OUT2 electrical features are given below:

Collector-emitter voltage 30 V Max. Collector current (pulse) 130 mA Max. Collector current (continuous) 40 mA Max. Saturation voltage (VCE) 1 V at 10 mA Max. Maximum power dissipation 90 mW at 50°C (Ambient temperature).

The limit requested by the maximum power dissipation is more important than that of the maximum collector current: if one of these outputs is continuously driven, the maximum current must not be more than 40 mA although 130 mA may be reached in pulse conditions.

DS6300

USER INTERFACE

30 Vdc max

Vext

Figure 30 – Output 1 and Output 2 Interface

When the load is powered by an external power supply, the voltage must be less than 30 V.

OUT3 has different electrical features, since it is a bi-directional solid state relay with built-in current limit protection. If this output is continuously driven, the maximum current must be not more than 200 mA although more than 300 mA may be reached in pulse conditions for an ambient temperature of 25°C. At the maximum ambient temperature of 50°C the maximum respective current is 150 mA continuous and 240 mA pulse.

The OUT3 electrical features are given below:

Maximum voltage ± 100 V Collector current (pulse) 240 mA Max. Collector current (continuous) 150 mA Max. R on 6 – 15 Ω R off > 500 Ω Off-state leakage current < 1 µA

Maximum power dissipation 550 mW at 50°C (Ambient temperature).

DS6300

USER INTERFACE

100 Vdc max

Vext

Figure 31 – Output 3 Interface

The command signal is filtered and generates a delay of about 50 µs for OUT1 and OUT2 and 1 ms for OUT3.

2.3.2 Lonworks Connectors

Do not connect an RS23 damage your Laptop PC.

CAUTION

The local network used by DS6300 exploits a Lonworks standard communication system requiring only two wires (polarity insensitive) to enable a connection. The connector also

rovides a positive and a negative supplying wire. In this way, all the slave readers can be

p powered by the master through the Datalogic standard cables.

When working in applications requiring enhanced synchronization capabilities, the DS6300 master reader (output) transmits two system signals named Sys_I/O and Sys_Enc_I/O to slave readers (input). For example, when working with applications requiring an encoder the signal is received by the master and directly transmitted to the slaves throug

he internal circuits generating the system signals are externally supplied by means of the

T VS_I/O and REF_I/O pins and are isolated from the reader supply voltage.

The use of these system circuits is not required in all the operating modes (see pa

etails). Anyway, for a correct system functioning it is suggested to use Datalogic cables and

ccessories and follow the description of the typical layout (see par. 2.7 for details).

2 port to the 9-pin Lonworks Connector. This may

the

h the cable.

r. 2.7 for

Female (all mode

ls)

Figure 32 – 9-pin Local Lonworks Connectors

Male (Master/Slave model)

INSTALLATION

DS6300 9-pin Lonworks connector pinout

Pin Name Function

1 CHASSIS Cable shield internally connected by capacitor to chassis 9 VS Supply voltage - positive pin 2 GND Supply voltage - negative pin 6 VS_I/O Supply voltage of I/O circuit 3 Ref_I/O Reference voltage of I/O circuit 4 SYS_ENC_I/O System signal 5 SYS_I/O System signal 7 LON A Lonworks line (polarity insensitive) 8 LON B Lonworks line (polarity insensitive)

Network Termination

When building a Lonworks system the network must be properly terminated by positioning BTK-6000 terminator in the DS6300 master reader and in the last DS6300 slave reader.

Each side of the terminator provides a different connector; thus, it can be inserted either into the Lonworks 9-pin male connector of the master reader or in the Lonworks 9-pin female connector of the last slave reader:

Slave

Master

NOTE

Female

Male

Female

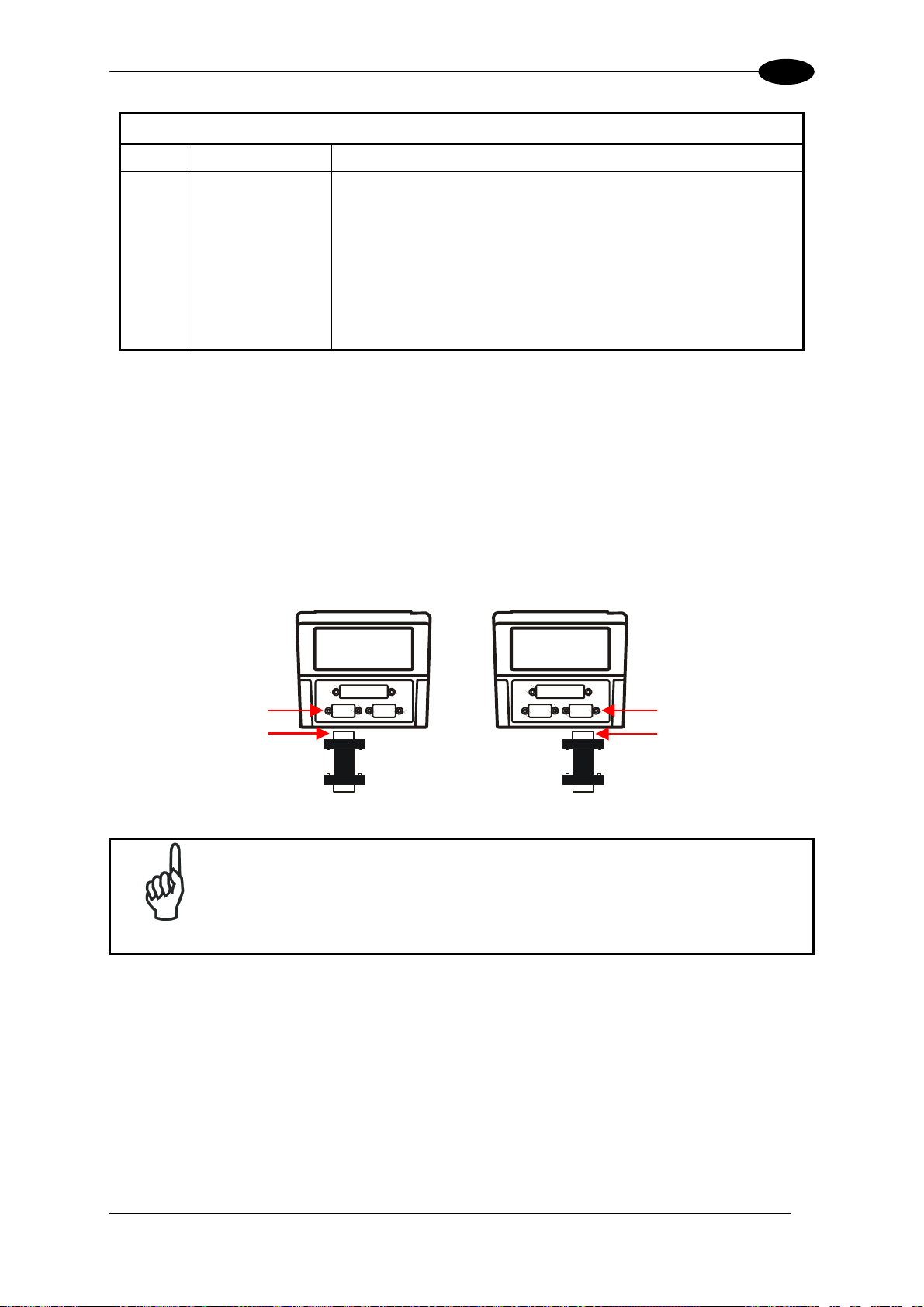

Figure 33 - BTK-6000 Network Terminator

For Fieldbus models no terminator must be inserted in the reader, since it is internally integrated.

DS6300

Lonworks Interface

The Lonworks network is used for both input and output connection to build a multi-sided or omni-station system connecting several readers.

The DS6300 master usually employs the 9-pin female connector for output connection to the first slave, while the 9-pin male one is terminated by inserting the BTK6000 terminator (see par. 2.7.2 for details). If creating a T-network configuration, it is necessary to use both connectors to create the double branch line of slave readers.

Both connectors are always employed when connecting together the slave readers. In particular, the 9-pin female connector is used for output connection and the male one for input connection. The female connector is always terminated in the last slave reader to close the system network.

The following diagram represents the connection between a DS6300-XXX-010 working as master and a DS6300-XXX-010 working as a slave reader.

The cable shield for LON A/B is connected to pin 1 - CHASSIS.

Master

VS_I/O

Slave

REF_I/O

CHASSIS

LON A

LON B

GND

AWG 16

= male connecto = female connecto

CHASSIS

Figure 34 – DS6300-XXX-010 Master/Slave Lonworks Connection

The maximum current to be propagated to the slave readers through the master is 2 A. For this reason, it is suggested the use of a 24 V power supply allowing to

CAUTION

supply up to three readers (master + 2 slaves).

The following diagrams represent different network terminations using the BTK-6000 terminator. In each diagram the terminator is indicated by the

element, while the figure

elow shows its electrical circuit in details: b

Figure 35 – BTK-6000 Electrical Circuit

INSTALLATION

The diagram below represents the termination of a DS6300-XXX-010 working as master by means of the BTK-6000 terminator.

Master

VS_I/O

LON A

LON B

GND

REF_I/O

= male connecto = female connector

Figure 36 – DS6300-XXX-010 Master Termination

BTK-6000 Female Side

The diagram below represents the termination of a DS6300-XXX-010 working as slave by means of the BTK-6000 terminator.

Slave BTK-6000 Male Side

LON A

LON B

= male connecto = female connecto

Figure 37 – DS6300-XXX-010 Slave Termination

The diagram below represents the connection between a DS6300 Fieldbus model, which always works as master, and a DS6300-XXX-010 working as a slave reader.

Fieldbus Master

REF_I/O

VS_I/O

CHASSIS

LON A

LON B

GND

AWG 16

= male connecto = female connecto

Figure 38 – DS6300-XXX-010 Master/Slave Lonworks Connection

Slave

CHASSIS

DS6300

2.3.3 Ethernet Connector

This connector is only available for DS6300 Ethernet models and allows the Ethernet connection between the host and the scanner.

Figure 39 – Cable RJ45 Male Modular Connector

Figure 40 – DS6300 RJ45 Female Modular Connector

This interface and the connector pinout (see the following table) are IEEE 802.3 10 BaseT and IEEE 802.3u 100 BaseTx co

mpliant.

Modu

RJ45 lar Jack Pinout

P in Name Function

1 TX + Transmitted data (+) 2 TX - Transmitted data (-) 3 RX + Received data (+) 6 RX - Received data (-)

4, 5, 7, 8 N.C. Not connected

In order to meet EMC requirements:

• use Eth shielded cable connect the E

• thernet interface cable shield to the plant earth ground

The cable shield must be connected to the chassis of both connectors. A ferrite (type Stewart 28A2029-0A0) may also be applied on the scanner

NOTE

side of the Ethernet cable to reduce electrical noise.

INSTALLATION

Ethernet Interface

The Ethernet interface (NIC) can be used for TCP/IP communication with remote or local host computer by connecting the scanner to a LAN as well as with a host PC directly connected to the scanner.

The following is an example of a connection to a LAN through a Hub using a straight through cable:

DS6300

HUB / SWITCH

TX+

TX-

RX+

n. c.

RX-

n. c.

n. c. = not connected

Figure 41 – Straight Through Cable

The following is an example of direct connection to a PC using an inverted cable:

DS6300

Host PC

Figure 42 – Inverted Cable

For further details refer to the “Ethernet Service Guide" document provided as supplementary documentation.

DS6300

2.3.4 DeviceNet Connector

When using DeviceNet, the Main serial interface is disabled and must not

NOTE

The 5-pin male connector is only available in the DS6300 DeviceNet model and allows connection between the host and the reader:

be physically connected.

NOTE

Figure 43 - DeviceNet 5-pin Male Connector

DS6300 evic

5-pin D eNet connector pinout

P n in Name Functio

2 V + Supply voltage – positive pin 5 CAN_L CAN bus data line – L 1 SHIELD Shield 4 CAN_H CAN bus data line – H 3 V - Supply voltage – negative pin

The power supplied on pin V+ and V- is used only to propagate power to the section of the DeviceNet board directly connected to the Bus. It is completely isolated from the DS6300 power which must be supplied on pin 9, 13 and pin 23, 25 of the 26-pin Main/Aux connector.

INSTALLATION

2.3.5 Profibus Connector

The 9-pin female Profibus connector (white) is only available in the DS6300 Profibus model and allows connection between the host and the reader:

Pin Name Function

1 Shield* Shield, Protective Ground resp. 2 Free 3 B-LINE (RxD/TxD-P) Received/Transmitted Data-P 4 CNTR-P** Repeater Control Signal 5 DGND Data Ground (M5V) 6 +5 V Voltage Plus (P5V) 7 Free 8 A-LINE (RxD/TxD-N) Received/Transmitted Data 9 CNTR-N** Repeater Control Signal

* signal is optional

Figure 44 - Profibus 9-pin Female Connector

DS6300 9-pin Profibus connector pinout

** signal is optional; RS485 level

Profibus Interface

The Profibus interface is used for communication with an Host and allows expanding the networking and remote diagnostic capabilities of the scanner.

For further details refer to the “Profibus_Fam6k.pdf” document provided as supplementary documentation.

DS6300

2.3.6 Power Supply

The supply voltage of a single scanner must be between 15 and 30 VDC.

Datalogic strongly recommends a minimum 24 VDC supply voltage when using a master/slave configuration.

The power consumption of the different DS6300 models is slightly different. In particular, when connecting several DS6300 readers in a master/slave connection, the typical power consumption for each scanner is 15 W. There is a power peak of about 20 W lasting 5..10 seconds caused by the motor starting.

A security system allows the laser to activate only once the motor has reached the correct rotational speed; consequently, the laser beam is generated after a slight delay from the power on of the scanner.

Note that GND is internally connected to chassis. The cable shield is also connected to pin 1 - CHASSIS.

DS6300

USER INTERFACE

Chassis

Figure 45 – Power Supply Using the 25/26-pin Connector

2.4 USER INTERFACE

9-pin male connector

Pin Name Pin Name

2 RX 3 RX 3 TX 2 TX 5 GND 7 GND 7 RTS 4 RTS 8 CTS 5 CTS

9/13

23/25

GND

CHASSIS

V+ (15 – 30 Vdc)

V- (Ground)

RS232 PC-side connections

9 6

25-pin male connector

Earth Ground

25 14

INSTALLATION

How To Build A Simple Interface Test Cable:

The following wiring diagram shows a simple test cable including power, external (push-button) trigger and PC RS232 COM port connections.

DS6300

25-pin D-sub female

Trigger

TXAUX

RXAUX

GND

EXT TRIG A

EXT TRIG B

9-pin D-sub female

Power Supply

VS (15 – 30 VDC) Power GND

GND

Test Cable for DS6300

2.5 POSITIONING THE SCANNER

The DS6300 reader is able to decode moving barcode labels at a variety of angles, however significant angular distortion may degrade reading performance.

When mounting DS6300 take into consideration these three ideal label position angles: Pitch 0°, Skew 10° to 30° and Tilt 0°.

Follow the suggestions for the best orientation:

The Pitch angle is represented by the value P in Figure 46. Position the reader in order to minimize the Pitch angle.

Figure 46 - "Pitch" Angle

DS6300

The Skew angle is represented by the value S in Figure 47. Position the reader to assure at least 10° for the Skew angle. This avoids the direct reflection of the laser light emitted by the scanner. For oscillating mirror models, this angle refers to the most inclined or external laser line, so that all other laser lines assure more than 10° Skew.

Figure 47 - "Skew" Angle

The Tilt angle is represented by the value T in Figure 48.

Figure 48 - "Tilt" Angle

INSTALLATION

2.6 TYPICAL INSTALLATIONS

2.6.1 Standard Installation

The DS6300 scanner is mounted on the ST-237 106° mounting bracket (see Figure 9) which guarantees a built-in Skew angle (S in the figure below) of 16° with respect to the frame plane (typically the Skew angle should be between 10° - 20°). This avoids the direct reflection of the laser light emitted by the scanner. Furthermore, the bracket guides allow adjusting the Tilt angle (T in the figure below, which is typically 0°) for the best scanner orientation:

Conveyor Direction

Figure 49 – Standard Installation

2.6.2 “45° Skew” Installation

The DS6300 scanner is mounted on the ST-210 90° mounting bracket (see Figure 11). By adjusting the mounting bracket guides, reach 45° for the Skew angle (S in the figure below) to avoid the direct reflection of the laser light emitted by the scanner:

45°

Figure 50 – 45° Skew Installation

ATTENTION

If using the “45° Skew” installation, the scanner reading performance is not guaranteed to match that measured for the standard installation with Skew angle between 10° - 20° (see reading diagrams in par. 4.3.1).

DS6300

NOTE

The ST-210 mounting bracket is an accessory of the D model available in the US-60 kit (order no. 890001020).

S6300 standard

2.7 TYPICAL LAYOUTS

The DS6300 scanners can be connected in a variety of layouts depending on the number of scanners used and the required complexity of the reading station. These layouts range from Single Stand Alone to Complex Lonworks Networks.

everal power supplies are available to power the reading stations. Photoelectric sensors

S used as code presence sensors and optical encoders to signal conveyor speed are also available accessories.

The following typical layouts refer to the system hardware configurations, but they also require the correct setup of the software configuration paramete

rs (see par. 3.2 for details).

he accessories and cables indicated in the following figures are Datalogic products. We

T suggest their use to guarantee

the correct system functioning.

2.7.1 Point-to-Point

Using a Point-to-Point layout, the data is transmitted on the Main interface as well as on the Auxiliary inte

ommunications.

c Two different layouts are available according to the DS6300 reader model used for the connection.

rface. The Main interface can be selected for RS232 or RS485 full-duplex

INSTALLATION

Master/Slave Models

When On-Line operating mode is used, the reader is activated by an External Trigger (photoelectric sensor) when the object enters its reading zone. In the following case, the signal is passed to the DS6300 by the C-BOX 100, which also supplies the system.

M/S

CAB-600X

C-BOX 100

Local Host

Presence

Sensor*

PG6000

* P.S. (Presence Sensor) connected to External Trigger/PS input.

Figure 51 – Point-to-Point for Master/Slave Models

Fieldbus Models

In this case no External Trigger is used and the C-BOX 100 only supplies the reader. The DS6300 (Ethernet, DeviceNet or Profibus model) is connected to a fieldbus remote Host. It can be activated by a signal generated by the remote Host or be always active if working in Automatic operating mode.

Fieldbus

Network

Fieldbus

CAB-601X

C-BOX 100

PG6000

Remote Host

Figure 52 – Point-to-Point for Fieldbus Models

DS6300

2.7.2 Pass Through

When Pass Through is activated on the Auxiliary interface, the DS6300 reader (all models) can be integrated in a network consisting of different scanners not provided with a Lonworks interface.

This connection mode allows two or more devices to be connected to a single external serial interface. The DS6300 transmits the messages received by its auxiliary interface (RS232 only) onto its main interface.

In this configuration a series of scanners can be connected together using RS232 on the main interface and all messages will be passed through this chain to the host. The reading phase of each scanner is independent from the others. In Pass Through connections each scanner is provided with its relative External Trigger (multi P.S.).

Applications can be implemented to connect a device such as a hand-held reader to the Auxiliary port for manual code reading capability.

For the RS232 connections the maximum cable length is 15 m (50 ft).

The DS4600A scanners represented in the following figures are configured in Pass Through mode.

P.S.* P.S.*

DS4600

DS6300

CAB-600X

P.S.*

PWR-120

C-BOX 100

MAIN

AUX

Local Host

C-BOX 100

Main Serial Interface

uxiliary Serial Interface

* P.S. (Presence Sensor) connected to External Trigger/PS input.

Figure 53 – Pass Through Connection for DS6300 Master/Slave Models

C-BOX 100

DS4600

Gryphon

INSTALLATION

Remote Host

P.S.*

N E

C-BOX 100

DS4600

Gryphon

DS6300

PWR-120

Fieldbus

work

Net

CAB-601X

P.S.*

DS4600

C-BOX 100

AUX

C-BOX 100

2 1 2 1

Main Serial Interface

uxiliary Serial Interface

* P.S. (Presence Sensor) connected to External Trigger/PS input.

Figure 54 – Pass Through Connection for Fieldbus Models

2.7.3 RS232

Master/Slave

The RS232 mas n a network consisti

ter/slave connection is used to integrate a DS6300 reader (all models) i

ng of different scanners not provided with a Lonworks interface.

The Sla e scan e scanner transmi . All messages wi

ners use RS232 only on the main and auxiliary interfaces. Each slavv ts the messages received by the auxiliary interface onto the main interface ll be transferred towards the master.

he master scanner is connected to the Host PC on the main RS232 serial interface through

e C-BOX 100 (20 mA C.L. can be used if the INT-30 accessory is installed).

In RS232 Master/Slave connections the External Trigger signal is unique to the system (single P.S.).

The DS6300 master/slave scanner model (DS6300-10X-010 only),

working as Master in an

connected to a

Lonworks network consisting of DS6300 slave scanners.

RS232 network, may be simultaneously

Be careful when assigning the slave address, since the number of the first

NOTE

Lonworks slave must be a progressive number with respect to the

address number defined for the last slave scanner of the RS232 network.

For example, if the RS232 network consists of Slave 1 and Slave 2, the

address to be assigned to the first Lonworks slave scanner will be Slave 3

(not Slave 1).

DS6300

DS6300- Master

C-BOX 100

DS4600A

Slave 1

N E

CAB-600X

P.S.*

AUX

MAIN

Local Host

C-BOX 100

DS4600A

Slave 2

PWR-120

C-BOX 100

Main Serial Interface

uxiliary Serial Interface

* P.S. (Presence Sensor) connected to External Trigger/PS input.

Figure 55 – RS232 Master/Slave for DS6300 Master/Slave Models

DS6300

Master

Fieldbus

Net

work

Remote Host

DS4600A

Slave 2

C-BOX 100

* P.S. (Presence Sensor) connected to

External Trigger/PS input.

Main Serial Interface

uxiliary Serial Interface

Figure 56 – RS232 Master/Slave for DS6300 Fieldbus Models

DS4600A

Slave 1

T N

C-BOX 100

CAB-601X

P.S.*

PWR-120

AUX

C-BOX 100

INSTALLATION

2.7.4 Multiplexer

The Multiplexer connection is used to integrate a DS6300 network consisting of different scanners not provided with a Lonworks interface.

Each scanner is connected to a Multiplexer (MX4000) with the RS485 half-duplex main interface.

P.S.*

slave reader in a Multidrop

OX 10

C-B 0

DS4600

Local Host

PWR-120

MX4000

CAB-600X

C-B 0

OX 10

DS6300

DS4600

OX 10

C-B 0

#1 #31

RS485 HD Main Interface

* P.S. (Presence Sensor) connected to External Trigger/PS input.

Figure 57 – Multiplexer for DS6300 Master/Slave Models

The auxiliary serial interface of the slave scanners can be used to visualize collected data or to configure it using the Genius™ utility.

When On-Line operating mode is used, the scanner is activated by an External Trigger when the object enters its reading zone.

DS6300

2.7.5 Local Lonworks Network

A local Lonworks network allows logically connecting a DS6300 master reader with up to 31 DS6300 slaves. Actually, the maximum number of readers to be employed in the network depends on the system operating conditions; that is adopted operating mode and amount of data stream.

When creating your network, always keep in mind the following guidelines:

• the Lonworks network logically supports a maximum number of 32 devices (master + slaves);

• it is recommended to adhere to the 8-in-16 rule (not more than 8 devices in any 16 meter bus segment;

• for DS6300 scanners the total bus length may extend up to 130 m (426 ft);

• the maximum number of DS6300 readers supported also depends on the type of power

propagation adopted by the system (see the specific power supply installation manual for details).

Typically the layouts can be divided into Synchronized (single P.S.) or Multidata (multi P.S.) networks. They can be small (up to 10 scanners) or large (more than 10 scanners).

Contact Datalogic Automation S.r.l. if your network requires a higher number of readers or in case the application throughput is very high.

For further information on Lonworks network cabling and connections see the “LonWorks® TPT Twisted Pair Transceiver Module User’s Guide”, available from the website: www.echelon.com.

NOTE

For some DS6300 Lonworks Network layouts power is propagated through the scanners. For these layouts a special setting is required C-BOX 100 to pass scanner power to the presence sensor, encoder, etc.

INSTALLATION

Small Synchronized Network

When building a small local Lonworks network (less than 10 scanners), the DS6300 master reader must be connected to a local host computer or a C-BOX 100 by means of a CAB-60XX cable connected to the 25-pin or 26-pin D-sub male connector.

The master reader connects to the first slave reader of the system through the local Lonworks 9-pin female connector. For Master/Slave models, the local Lonworks 9-pin male connector must be properly terminated by inserting the BTK-6000 Lonworks terminator. Fieldbus models are provided with an internal Lonworks terminator.

The slave readers are connected together through the local Lonworks connectors. Only the 9-pin female connector of the last slave reader must be terminated by the BTK-6000 terminator.

The presence sensor is connected and powered through the C-BOX 100 by the scanner and is unique to the system. There is only a single reading phase and a single message from the master reader to the Local Host. The On-Line operating mode is used for this layout.

CAB-610X

BTK-6000

CAB-60XX

C-BOX 100**

Master

BTK-6000

P.S.*

Slave 1

CAB-63XX

PWR-120

* P.S. (Presence Sensor) connected to External Trigger/PS input.

** C-BOX 100 modified to accept scanner power.

*** Encoder connected to IN2/ENC input.

Figure 58 – Small Synchronized Network with 2 Readers

Encoder***

Local Host

DS6300

The following image shows a system consisting of six readers where:

• the system is powered by the PWR-240

• the master and all slaves are connected together through the CAB-610X cables

• the external signals (trigger, encoder, serial to host, etc.) are connected to the master

through the C-BOX 100

• one or more slaves are connected through CAB-63XX. The last slave must be terminated with the BTK-6000

Slave 2 Slave1

Master

CAB-610 CAB-610

X X

X CAB-610

CAB-610X

BTK-6000

Slave 5 Slave 4 Slave 3

CAB-610X

CAB-63XX

BTK-6000

CAB-60XX

* P.S. (Presence Sensor) connected to External Trigger/PS input.

** C-BOX 100 modified to accept scanner power.

*** Encoder connected to IN2/ENC input.

Figure 59 – Small Synchronized Network with more than 2 Readers and Single Power Unit

C-BOX 100**

CAB-63XX

PWR-240

PS*

Host

Encoder

***

NOTE

If a single power source is used, it is not necessary to separate groups of scanners with "no power" cables (CAB-611X).

INSTALLATION

Large Synchronized Network

When building a large local Lonworks network (more than 10 scanners), an SC6000 Controller must be used together with a PWO power supply/junction box unit. In this case the SC6000 unit acts as the system master and is connected to the host through one of its interfaces.

All scanners act as slaves and are connected to the SC6000 through the PWO power supply/junction box. For DS6300 scanners, a single branch connector provides Lonworks communications between the scanners and the SC6000 unit. Power is distributed evenly by connecting groups of up to 4 Slave scanners through CAB-63XX cables. The last scanner on the line requires a Termination connector.

The allowed maximum bus length is 130 m.

External devices such as a presence sensor and an encoder are all connected to the PWO.

* P.S. (Presence Sensor) connected to External Trigger/PS input.

** Encoder connected to ENC input.

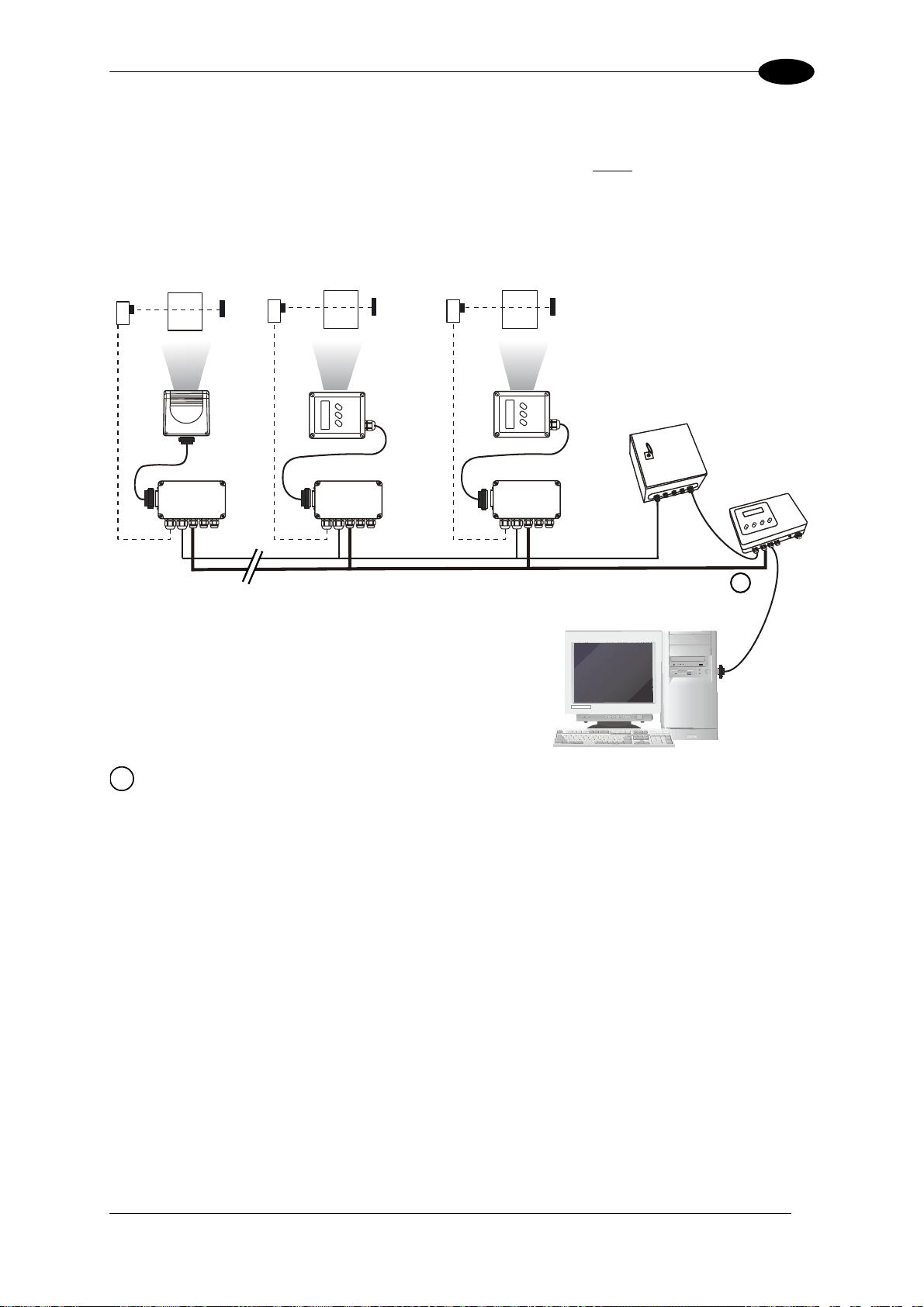

Figure 60 – Large Synchronized Network with DX6X00 and DS6XXX Scanners

DS6300

Multidata Network

In this layout, one master and up to 7 DS6300 slave readers have their own P.S. and therefore multiple reading phases. Each P.S. is connected through a C-BOX 100, which in turn is connected to its relative scanner through a CAB-60XX cable.

The master sends all the individual messages collected from the Lonworks interface as well as its own to the Local Host through its C-BOX 100.

The following image shows a system consisting of five readers, which are all connected together using CAB-611X cables and each scanner is individually powered by PG6000 through C-BOX 100.

C-BOX 100

Host

P.S.*

C-BOX 100

P.S.*

C-BOX 100

P.S.* P.S.*

C-BOX 100

P.S.*

BTK-6000

PG6000

CAB-611X

No powe

Slave 1 Master Slave 2 Slave 3 Slave 4

PG6000

CAB-611X CAB-611X

No powe

PG6000

No powe

* P.S. (Presence Sensor) connected to External Trigger/PS input.

Figure 61 – Multidata Network

PG6000

CAB-611X

No powe

PG6000

BTK-6000

INSTALLATION

2.7.6 Fieldbus Network

The Fieldbus Ethernet model offers connectivity without any converter or adapter needed.

The DS6300 master Fieldbus communicates with a remote host (for ex. remote PC connected via Internet) by means of a cable connected to the Fieldbus connector provided. It can be activated by a signal generated by the remote Host or by a physical presence sensor.

The external signals (trigger, encoder) are connected to the master through the C-BOX 100.

The master reader connects to the first slave reader of the system through the local Lonworks 9-pin female connector. Fieldbus models are provided with an internal Lonworks terminator.

The slave readers are connected together through the local Lonworks connectors. Only the 9-pin female connector of the last slave reader must be terminated by the BTK-6000 terminator.

The example below shows a system powered by the PWR-240 where multiple slaves are connected through CAB-63XX power cable. The master and all slaves are connected together through the CAB-610X cables.

The same network layouts are available as for the DS6300 standard model.

Remote Host

Fieldbus Network

e 2*** e1***

Slav Slav

CAB-610X

Slave 5*** Slave 4*** Slave 3***

CAB-610X

BTK-6000

CAB-60XX

CAB-610X

CAB-63XX

Master

C-BOX 100**

CAB-610X

PS*

Encoder****

CAB-63XX

PWR-240

* P.S. (Presence Sensor) connected to External Trigger/PS input. ** C-BOX 100 modified to accept scanner power. *** The Slave scanners are Master/Slave models, which allow Lonworks network propagation. **** Encoder connected to IN2/ENC input.

Figure 62 – Fieldbus Small Synchronized Network

DS6300

2.8 KEYPAD AND DISPLAY

The DS6300 keypad allows entering a menu for selection of one of the following functions:

• Welcome: shows the current software release and operating mode;

• Focus Adjustment:

• Autolearn: starts the procedure making it possible to obtain an automatic, accurate and

fast configuration of DS6300 without the necessity of directly checking/modifying the relevant parameters;

• Internal Net: defines scanner function within the network (see below);

• Ethernet Mode: allows setting the scanner IP address to be used within the network;

• LCD Contrast: sets the LCD contrast;

• Bus: allows setting the scanner address (value range 0-125) to be used in a Profibus

network;

• Test Mode: allows verifying the scanner reading position and features (see below).

The same settings may be performed by using the Genius™ program (see chapter 3 for details).

2.8.1 Internal Net

This submenu can be used as an alternative to configuration through Genius™, to assign the DS6300 scanner within a master/slave network. It allows defining the scanner function (slave/master) within the network and, if configured as Slave, its address. To enter the Internal Net submenu and configure the scanner follow the given procedure:

1) Press and hold both the ▲ (up arrow) and ▼ (down arrow) keys for about 2 seconds to enter the Main menu;

2) Use the ▲ (up arrow) or ▼ (down arrow) key to select the “Internal Net” item, then press the ENT (enter) key to confirm;

3) Use the ▲ (up arrow) or ▼ (down arrow) key to select the “LonWAddrSel”” item, then press the ENT (enter) key to confirm;

4) Use the ▲ (up arrow) or ▼ (down arrow) key to select your scanner function among “Master”, “Slave n”, “Slave jolly”, “Disabled”; then, press the ENT (enter) key to confirm;

5) Use the ▲ (up arrow) or ▼ (down arrow) key to select the “Exit” item, then press the ENT (enter) key to confirm. Repeat this step again to exit the Main Menu and return to the scanner current operating mode.

INSTALLATION

2.8.2 Test Mode

Test Mode is particularly advised during the installation phase, since it causes the reader to be continuously activated allowing to verify its reading features and its reading position with respect to the barcode. To enter the Test Mode submenu and configure the scanner follow the given procedure:

1) Press and hold both the ▲ (up arrow) and ▼ (down arrow) keys for about 2 seconds to enter the Main menu.

2) Use the ▲ (up arrow) or ▼ (down arrow) key to select the “Test Mode” item, then press the ENT (enter) key to confirm. The reader enters Test Mode.

3) Press the ▲ (up arrow) key to exit the Test Mode.

4) Use the ▲ (up arrow) and ▼ (down arrow) key to select the “Exit” item, then press the ENT (enter) key to confirm. The scanner exits the Main Menu and returns to its current operating mode.

2.9 FOCUS ADJUSTMENT

The DS6300 provides a manual adjustment of the optics to optimize the reading performance by choosing the best focus between two extreme positions. The focus adjustment is continuous and not by step; thus, allowing an optimum adjustment around the selected position. The relative focus positions range from 0 to 100. The adjustment can be simply made through an external screw placed on the back of the optic HEAD and protected by a cap (Figure 65). The screw may be rotated either clockwise or counterclockwise in order to move the scanner internal lenses. In particular, a clockwise rotation causes a farther focus from the scanner, while a counterclockwise rotation causes a nearer focus to the scanner.

An internal sensor tracks the exact laser beam focusing position allowing it to be shown on the reader display or through the Genius™ software program.

Do not stare at the laser beam output window during this operation to avoid hazardous visible laser light.

WARNING

Refer to the following instructions when adjusting the focus:

1) Remove the regulation screw protecting cap (see Figure 65) positioned on the back of the optic Head;

2) Press and hold both the ▲ (up arrow) and ▼ (down arrow) key for about 2 seconds to enter the Main menu;

3) Use the ▲ (up arrow) or ▼ (down arrow) key to select “Test Mode” item, then press the ENT (enter) key to confirm. The reader enters Test Mode;

4) Press the ENT (enter) key to toggle between the graphical (default) and numerical visualization of the focus position;

Display Visualization

The first line of the display shows the read code and Good Read percentage. Possible suspending commas at the end of the code mean that the code is too long to be displayed. The second line of the display indicates the value of the focus position according to the table below. The indications “Too Near” or “Too Far” are represented for values outside the focus range.

Graphical Visualization Numerical Visualization

|---^----------|

N-------------|

|--------------F

Æ where ^ indicates the focus position Fxxx Æ where xxx ranges from 000 to 100

Æ where N indicates that the focus

position is “Too Near”

Æ where F indicates that the focus

position is “Too Far”

TooNear

Æ where xxx is greater than 100

Fxxx*

DS6300

CodeRead… 100% |------^------------------|

Figure 63 – Graphical Visualization Figure 64 – Normal Visualization

5) Rotate the focus adjustment screw to reach the desired focus position. The display is refreshed with the new values;

CodeRead… 094% F034

6) Press the ▲ (up arrow) key to exit the Test Mode;

7) Use the ▲ (up arrow) and ▼ (down arrow) key to select the “Exit” item, then press the ENT (enter) key to confirm. The scanner exits the Main Menu and returns to its current operating mode.

Figure 65 - Focus Adjustment Screw

The reader display shows the focus position only when the laser beam is

NOTE

activated.

It is possible to visualize the focus position and the reading percentage on the terminal tool provided by the Genius™ configuration program (see Genius™ Help On-Line for details).

To avoid breakage, do not use excessive force when rotating the focus adjustment screw.

SOFTWARE CONFIGURATION

3 SOFTWARE CONFIGURATION

3.1 GENIUS™ INSTALLATION

Genius advantages:

• Wizard approach for low skilled users;

• Multi-language version;

• Defined configuration directly stored in the reader;

• Communication protocol independent from the physical interface allowing to consider the

To install Genius™, proceed as follows:

1) Turn on the PC that will be used for configuration, running either Windows 98, 2000/NT or

™

is a new Datalogic scanner configuration tool providing several important

reader as a remote object to be configured and monitored.

XP;

2) Insert the Genius™ CD-ROM;

3) Wait for the CD autorunning and follow the installation procedure.

3.2 GUIDE TO RAPID CONFIGURATION

3.2.1 Wizard for Quick Reader Setup

After installing the Genius™ software program (see par. 3.1) the following window appears asking the user to choose the desired configuration level:

Figure 66 - Genius™ Wizard Opening Window

The Wizard option is advised to low skilled users, since it shows a step by step scanner configuration. The parameters to be defined are the following:

- Barcode selection and definition;

- Operating mode selection and definition (see sub-paragraphs for further details);

- Digital Inputs/Outputs configuration;

- Hardware interface selection;

- Output data format configuration.

DS6300

After defining the parameter values the following window appears allowing to complete the reader configuration as follows:

- Saving the configuration to disk;

- Switching to Advanced mode;

- Sending the configuration to the scanner.

Figure 67 - Genius™ Wizard Closing Window

Test Oper

ating Mode

This operating mode is not available when DS6300 works as slave.

NOTE

Figure 68 - Test Mode Selection

This operating mode causes the reader to be continuously activated allowing to verify its reading features and its reading position with respect to the barcode. For this reason, it is particularly advised during the installation phase of the reader.

After 100 scan, the values relative to an internal counter and the decoded code are displayed and transmitted on the serial interface. The counter reports the percentage of good reads of the label.

SOFTWARE CONFIGURATION

On Line Operating Mode

Figure 69 - On Line Mode Selection

This operating mode requires the reader to be connected to an external Presence Sensor using EXT TRIG/PS A and EXT TRIG/PS B inputs.

During the active phase of the presence sensor, the DS6300 reader tries to acquire and correctly decode the code. In case the decoding phase is successful, the barcode characters are transmitted on the serial interface. Otherwise, a no read message is sent.

Automatic Operating Mode

Figure 70 - Automatic Mode Selection

This operating mode does not require connection to an external Presence Sensor.

When working in this mode the reader is continuously scanning, while the reading phase is activated each time a barcode enters the reader reading zone. The reader stops reading after an N number of scans without a code. Barcode characters are transmitted on the serial interface. In case of a failed reading phase no message is sent to the host computer.

DS6300

3.2.2 Genius™ Network Setup Through Master

The Network Setup allows configuring your Local Lonworks Network through the Master using Genius™.

Three different procedures are available to define the number of network slave scanners, their label and address according to two main conditions:

Condition Available Procedure Feature

Unknown Slave Addresses Net-Autoset

Known Slave Addresses

Network Wizard

Express Network Setup

automatically assigns random addresses to slave or Stand Alone scanners.

customizes the network (slave label and address definition and of a specific slave within network), updates configuration to a file and makes it ready to be sent to the Master.

automatically performs all the operations of the Network Wizard apart from the identification

of a specific slave scanner.

physical identification

physical

The Network Setup procedure as described requires Genius™ software version 1.06 or later. In addition, the Net-Autoset procedure requires

NOTE

scanner software version 6.40 or later.

The first operation to perform is the configuration of your scanner as "Master" from the Local Device Network Settings item in the Device Menu, see figure below:

Figure 71 – Local Device Network Settings

SOFTWARE CONFIGURATION

The following dialog box appears asking whether to send the configuration to the Master or not:

2. Click the "Yes" button, then click on the

icon available on the Toolbar to make the

“Devices” area appear next to the Parameter Explorer window. By repeatedly clicking the icon this area will be displayed or hidden.

Figure 72 – Cluster Configuration

Each scanne y the following graphical objects:

r of the cluster is indicated b

• check box allowing to select/deselect a specific scanner to perform the desired

operations (i.e. program downloading);

• icon representing the scanner status;

• a label reporting information transmitted by the scanner when connected (the scanner

address, generated errors, scanner description).

Then, proceed with the network setup by using one of the icons available on the Tool

Bar according to the procedure to follow:

DS6300

= Network Wizard procedure

Net-Autoset procedure

Express Network Setup procedure

Net-Autoset

This procedure is to be used when all scanner addresses and labels are unknown (typically when configuring t etwork for the first time or whenever a network reconfiguration is required).

By clicking the

-Autoset procedure is started allowing automatic ass

t ignment of random addresses to all

sla e or Stand Alone scanners connected within the network. Once the procedure has been completed, it is possible to:

• define customized addresses and la ;

• display the scanner default labels through the Express Network Setup.

xpress Network Setup

Before performing this procedure, a Lonworks address must be assigned to each slave scanner. The most practical method is through the alternative address assignment methods.

Once all addresses have been assigned, the Express Network Setup is to be used when all scanner addresses and labels

he n

icon or selecting the "Net_Autoset"

bels through the Network Wizard

Net-Autoset

do not need to be modified.

option from the right-click menu, the

procedure. See par. 3.2.3 for

By clicking on the procedure is started which automatically performs the following operations:

- opening the wizard;

- polling the network to discover connected scanners;

- transferring all scanners found to the "Requested Devices" area of the wizard where

your network customization is defined;

- saving the new network configuration;

Once the procedure has been completed, a dialog box will appear asking whether to send the configuration to the Master. Choose the “Yes” option to start this procedure.

icon or by choosing the related option from the right-click menu, the

SOFTWARE CONFIGURATION

Network Wizard

Before performing this procedure, a Lonworks address must be assigned to each slave scanner. The most practical method is through the alternative address assignment methods.

Once all addresses have been assigned, the Network Wizard is to be used when one or more scanner addresses and labels

need to be modified.

Net-Autoset procedure. See par. 3.2.3 for

1. Click on the

a. if the

the Autodetect button to start a polling procedure of the current network. All slave scanners found will be represented in the “Current Devices” area. Then, select the

button to open the Network Wizard dialog box:

slave scanners have already been configured and wired to the network, click on

desired slave scanner from the “Current Devices” area and click on the drag and drop) to transfer it to the “Requested Devices” area where your network customization is defined. The following dialog box will appear allowing (if necessary) to change the slave address ("Available Device" field) and label ("Description" field):

if the slave scanners have not been configured and wired to the network, click on the

icon to add a new device defining its address and model. The added slave

scanner will be then displayed in the “Requested Devices” area. This option in any

requires that all slave scanners have their address set before the network can

case function.

icon (or

2. If desired, select a slave scanner within the "Current Devices" area and click on the

icon (or select the "Show Device" option from the right-click menu) to make the

dialog box appear as follows:

DS6300

The "Show Device" option is particularly useful after the Net-Autoset procedure or whenever it is necessary to know which address is assigned to a specific slave scanner. Indeed, it activates the following signals which physically indicate the scanner corresponding to the one selected, in particular:

• in Network Wizard the icon corresponding to the selected slave scanner starts

blinking red;

• in the Physical Network all slave scanner lasers turn off except the one of the

selected scanner which turns on.

3. If desired, select the transferred/added slave scanner within the “Requested Devices”

area and click on the

icon to customize the scanner label and address.

4. Once your network has been customized, close the network wizard. Before closure,

the program will show a dialog box asking whether to send the new configuration to the Master. Choose the “Yes” option to start this procedure.

SOFTWARE CONFIGURATION

3.2.3 Alternative Slave Address Assignment

As alternatives to Network Setup through the Master, each Slave scanner can be assigned an address through the following methods:

• address setting through the Local Device Network Settings item in the Device Menu

with the slave scanner connected to Genius™

• manual address setting through slave scanner keyboard (see par. 2.8.1 for details).

3.3 ADVANCED GENIUS™ CONFIGURATION

The ADVANCED selection available when starting the Genius™ program is addressed to expert users being able to complete a detailed scanner configuration. By choosing this option it is possible either to start a new scanner configuration or to open and modify an old one. The desired parameters can be defined in the following window, similar to the MS Explorer:

Figure 73 - Genius™ Parameter Explorer Window

The procedure for setting the scanner parameters is supported by an help on-line, which is displayed in an HTML browser. It can be selected from the Configuration Help option available in the Help menu. In addition, a context-sensitive help can be enabled by pressing the <F1> key after selecting the desired parameter.

DS6300

3.4 PARAMETER DEFAULT VALUES

The following table contains the list of the factory default settings for the DS6300. Genius™ also allows checking the parameter default values by selecting the "Compare parameters" option available in the Tools menu and comparing the current scanner configuration to the default one.

Parameter Default Setting Code Definition

Code Combination Single Label No read Message

No Read String <CAN> Multiple Read Filters Disabled (unchecked) Code Label Settings #1 Code Symbology Interleaved 2 of 5 Label Length 8 Min Code Position 0 Max Code Position 255 Check Digit Disabled (unchecked) Decoding Safety 1 Decoding Severity 3 Match String Rule Match Pattern Match String Empty Match Direction Rule Disable Code Label Settings #2 Code Symbology Code 39 Label Length Variable Minimum Label Length 1 Maximum Label Length 60 Min Code Position 0 Max Code Position 255 Check Digit Disabled (unchecked) Decoding Safety 1 Decoding Severity 3 Match String Rule Match Pattern Match String Empty Match Direction Rule Disable Operating Modes Operating Mode Selection On Line On Line Options On Line 1 Input Start Input Number 1 Start Input Active Level Active Closed Reading Phase Timeout Disabled (unchecked) Verifier Disabled (unchecked)

Reading System Layout

Device Assignment Alone Modify&Backup Lon Slave Configuration Disabled (unchecked) Enable A.S.R. Disabled (unchecked)

Global No Read Message

SOFTWARE CONFIGURATION

Parameter Default Setting Reading Parameters

Beam Shutter Disabled Overflow Start Ratio 5 Overflow Stop Ratio 5 Reading Mode Reconstruction Reconstruction Parameters Enabled Stacked Code Disabled (unchecked) Extended MinMatch 0 Position Tolerance 50 Duration Tolerance 50 Min Start/Stop Number 2 Inter Char Gap 8 Addon Overflow Ratio 2 Scan Line Amplitude Amplitude Settings Enable Disabled (unchecked)

Data Communication Settings Host Application Protocol Type Standard Data Format Header TX Start With data Termination After No Read Message Enabled (checked) Message Tx Trigger Selection On Decoding Format Type Standard Tx Max Delay After Phase Off Disabled Code Identifier Disabled Parameters Header String <STX> Code Position Disabled (unchecked) Code Direction Identifier Enable Disabled (unchecked) Termination String <CR><LF> Data Packet Separators <CR><LF> Code Field Length Setting Variable Length Main Serial Port Data Tx Enabled (checked) Heartbeat Disable Parameters Main Port Communication Mode Standard Main Port Electrical Interface RS232 Handshake None Baud Rate 9600 Parity None Data Bits 8 Stop Bits 1 Auxiliary Serial Port Data Tx Enabled (checked)

DS6300

Parameter Default Setting

Auxiliary Serial Port Heartbeat Disable Pass Through Disabled (unchecked) Parameters Baud Rate 115200 Parity None Data Bits 8 Stop Bits 1 Digital I/O Setting Digital Input Lines Setting Debouncing For Input 1, 3 and 4 5 ms Debouncing For Input 2 500 µs Input 1 Active Level Overridden by Op. Mode Active Closed Input 2 Active Level Overridden by Op. Mode Active Closed Input 3 Active Level Overridden by Op. Mode Active Closed Input 4 Active Level Overridden by Op. Mode Active Closed Output 1 Line State Normally Open Activation Event Complete Read Alternative Activation Event Wrong Deactivation Event Timeout Alternative Deactivation Event None Deactivation Timeout (ms) 50 Output 2 Line State Normally Open Activation Event No Read Alternative Activation Event Partial Read Deactivation Event Timeout Alternative Deactivation Event None Deactivation Timeout (ms) 50 Output 3 Line State Normally Open Activation Event None Alternative Activation Event None Deactivation Event None Alternative Deactivation Event None System Information Section User Information Section End User Name Device Name Line Name

Diagnostics

PackTrack Debug Message TX Disabled (unchecked) Enable Unchecked

Statistics

Disabled (unchecked)

READING FEATURES

4 READING FEATURES

4.1 ADVANCED CODE RECONSTRUCTION (ACR™ 4)

The traditional way of barcode reading could be called “Linear Reading”. In this case, the laser beam crosses the barcode symbol from its beginning to its end as shown in the following figure:

Laser Beam

Figure 74 – Linear Reading

In Advanced Code Reconstruction mode it is no longer necessary for the laser beam to cross the label from the start to the end. With just a set of partial scans on the label (obtained using the motion of the label itself), the DS6300 is able to “reconstruct” the barcode. A typical set of partial scans is shown in the figure below:

Code Direction

Figure 75 – Partial Scans

None of the partial scans contains the whole label. The decoder aligns each partial scan correctly and combines them in order to obtain the entire code.

The alignment is performed by calculating the time difference from one partial scan to another using a reference code element.

4.1.1 Tilt Angle for Advanced Code Reconstruction

The most important parameter in Advanced Code Reconstruction is the value of the maximum tilt angle (α maximum) under which the code reconstruction process is still possible.

Laser Beam

0° toαmax

= tilt angle

Figure 76 – Tilt Angle

KOKOKOK

DS6300

The decoder will be able to read the label with a tilt angle between + α max and - α max as shown in the following figure:

0°

No Read

Figure 77 – Reading Zones with α Max

-α+

Laser Beam

No Read

Conveyor

4.2 PERFORMANCE

The scan rate is 800 scans/sec.

Refer to the diagrams in par. 4.3 for further details on the reading features. These diagrams are taken on various resolution sample codes at a 25 °C ambient temperature depending on the conditions listed under each diagram.

4.2.1 Reading Conditions

• ANSI Grade B minimum

• 800 scans/sec

The following tables describe the requirements for standard applications.

Minimum Code Height for ACR Reading (mm) 45° 30°

Conveyor Speed (m/s) 0.5 1 1.5 2 2.5 3 0.5 1 1.5 2 2.5 3

10 12 14 16 18 20 7 9 10 12 13 15 12 14 15 17 19 21 8 9 11 12 14 15 13 14 16 18 20 22 8 10 11 13 14 16 14 16 18 19 21 23 9 11 12 14 15 17 18 19 21 23 25 26 11 12 14 15 17 18 24 25 27 28 30 32 15 16 17 19 20 22 33 34 35 36 38 40 20 21 22 23 25 26

2/5 Interleaved

Code Resolution

(mm)

0.25

0.30

0.33

0.38

0.50

0.72

1.00

Ratio 3:1

Table 1

READING FEATURES

Minimum Code Height for ACR Reading (mm) 45° 30°

Conveyor Speed (m/s) 0.5 1 1.5 2 2.5 3 0.5 1 1.5 2 2.5 3

9 10 12 14 16 17 6 7 9 10 12 13 10 11 13 15 17 18 7 8 9 11 12 14 11 12 13 15 17 19 7 8 10 11 13 14 12 13 14 16 18 20 8 9 10 12 13 15 15 16 17 18 20 22 10 10 11 13 14 16 20 21 22 23 24 26 13 13 14 15 17 18 27 28 29 30 31 32 17 17 18 19 20 21

Code 39

Code Resolution

(mm)

0.25

0.30

0.33

0.38

0.50

0.72

1.00

Ratio 3:1; Interdigit = Module Size

Table 2

Minimum Code Height for ACR Reading (mm) 45° 30°

Conveyor Speed (m/s) 0.5 1 1.5 2 2.5 3 0.5 1 1.5 2 2.5 3

8 9 11 13 15 17 5 7 8 10 11 13

8 10 12 14 16 18 6 7 9 10 12 13

9 11 13 14 16 18 6 8 9 11 12 14 10 11 13 15 17 19 7 8 10 11 13 14 12 13 15 17 19 21 8 9 11 12 14 15 16 17 19 21 22 24 10 11 13 14 16 17 22 23 24 25 27 29 13 14 15 17 18 20

Code 128 – Ean 128

Code Resolution

(mm)

0.25

0.30

0.33

0.38

0.50

0.72

1.00

Table 3

Minimum Code Height for ACR Reading (mm) 45° 30°

Conveyor Speed (m/s) 0.5 1 1.5 2 2.5 3 0.5 1 1.5 2 2.5 3

8 9 11 13 15 17 5 7 8 10 11 13

9 10 12 14 16 18 6 7 9 10 12 13

9 11 13 14 16 18 6 8 9 11 12 14 10 11 13 15 17 19 7 8 10 11 13 14 13 14 15 17 19 21 8 9 11 12 14 15 17 18 19 21 22 24 11 12 13 14 16 17 23 24 25 26 27 29 14 15 16 17 18 20

Codabar

Code Resolution

(mm)

0.25

0.30

0.33

0.38

0.50

0.72

1.00

Ratio 3:1; Interdigit = Module Size

Table 4

Minimum Code Height for ACR Reading (mm) 45° 30°

Conveyor Speed (m/s) 0.5 1 1.5 2 2.5 3 0.5 1 1.5 2 2.5 3

7 9 10 12 14 16 5 6 8 9 11 12

8 9 11 13 15 17 6 7 8 10 11 13

9 10 11 13 15 17 6 7 9 10 12 13 10 11 12 14 16 18 7 7 9 10 12 13 12 13 14 15 17 19 8 9 10 11 13 14 16 17 18 19 20 22 10 11 12 13 14 16 22 23 24 24 25 26 13 14 15 16 16 18

EAN 8-13, UPC-A

Code Resolution

(mm)

0.25

0.30

0.33

0.38

0.50

0.72

1.00

Table 5

4.3 READING DIAGRAMS

4.3.1 DS6300 Standard Model

DS6300-100-0XX - Resolution: 0.20 mm/8 mils

06 12

0 1520253035404550

810 1416

20 18 22 24

55 60

DS6300

(in)

(cm)

CONDITIONS

Focus

Position = 0

Focus

Position = 40

Code = Interleaved 2/5 or Code 39

PCS = 0.90

-2

-5

Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0°

-10

-4

-15

-6

-8

-20

-25

-10

(cm)

(in)

Figure 78 – Standard Model 0.20 mm / 8 mils Reading Diagram

Note: (0,0) is the center of the laser beam output window.

READING FEATURES

DS6300-100-0XX - Resolution: 0.30 mm/12 mils

0 8 14

0 20 25 30 35 40 45 50 55

10 12 16 18

Focus

Position = 0

2220 24 26

60 65

30 28 32 34

70 75 80 85

(in) (cm)

-2

-4

-6

-8

-10

-12

(in)

-5

-10

-15

-20

-25

-30

(cm)

Focus

Position = 60

Figure 79 - Standard Model 0.30 mm / 12 mils Reading Diagram

CONDITIONS

Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0°

Note: (0,0) is the center of the laser beam output window.

Focus

Position = 40

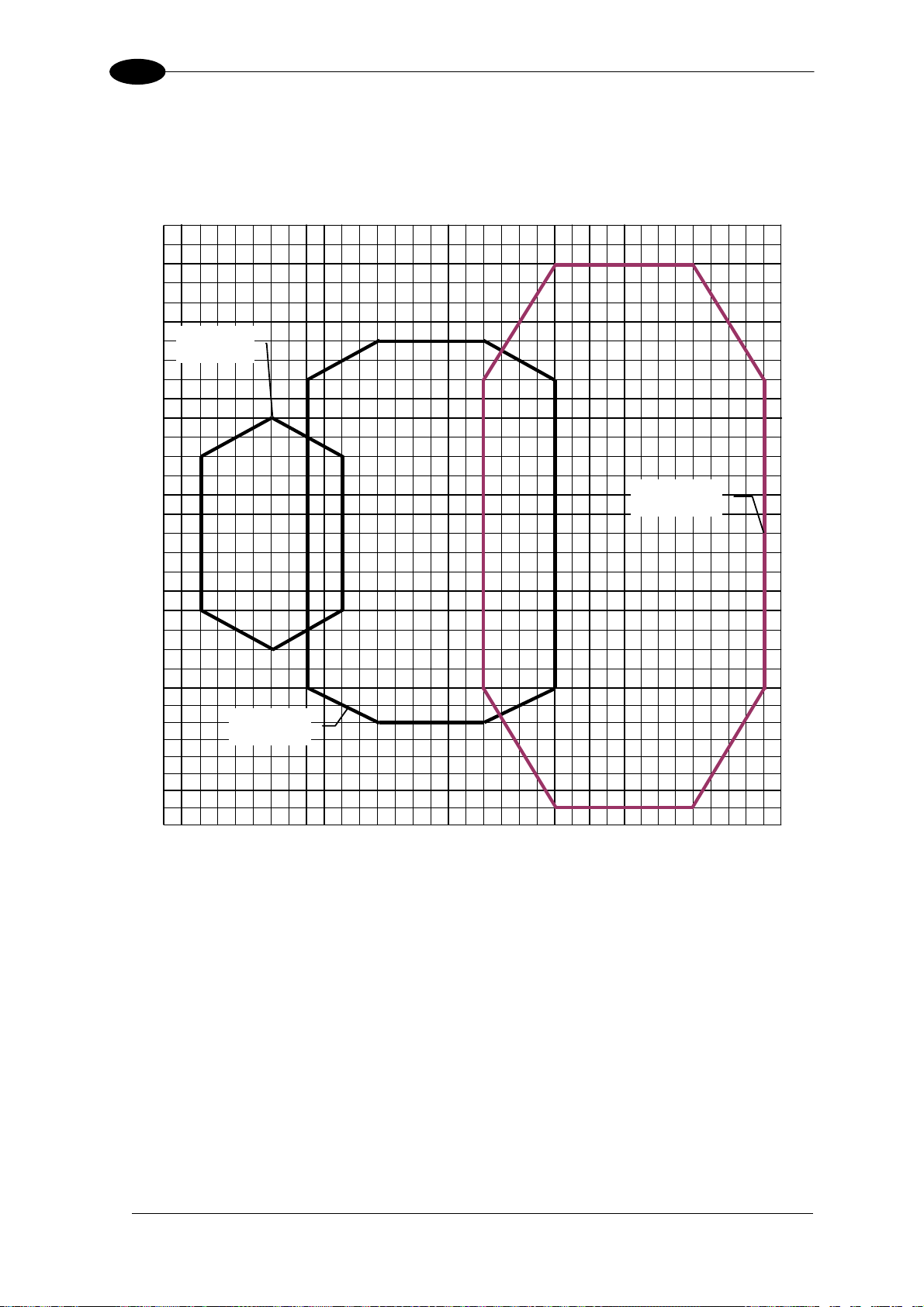

DS6300-100-0XX - Resolution: 0.38 mm/15 mils

0 12 18

14 16 20 22

2624 28 30

3432 36 38

DS6300

40 42 44

(in)

0 30 35 40 45 50 55

Focus

-5

Position = 0

-2

-4

-6

-10

-15

60 65

70 75 80 85

90 95 100 105 110

Focus

Position = 100

(cm)

-8

-20

-10

-12

-14

-16

(in)

-25

-30

-35

-40

(cm)

Focus

Position = 60

Figure 80 - Standard Model 0.38 mm / 15 mils Reading Diagram

CONDITIONS

Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0°

Note: (0,0) is the center of the laser beam output window.

READING FEATURES

DS6300-100-0XX - Resolution: 0.50 mm/20 mils

0 8 20

0 20 30 40 50 60 70 80 90

12 16 24 28

3632 40 44

100

110 120 130 140

Focus

Position = 100

52 56

150

(in)

(cm)

-4

-8

-12

-16

-20

-24

(in)

-10

-20

-30

-40

-50

-60

(cm)

Focus

Position = 60

Focus

Position = 0

Figure 81 - Standard Model 0.50 mm / 20 mils Reading Diagram

CONDITIONS

Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0°

Note: (0,0) is the center of the laser beam output window.

4.3.2 DS6300 Oscillating Mirror Model

DS6300-105-0XX (oscillating mirror) - Resolution: 0.20 mm/8 mils

0 6 12

8 10 14 16

2018 22 24

DS6300

(in)

-2

-4

-6

-8

0 15 20 25 30 35 40 45 50

Focus

Position = 0

-5

-10

-15

-20

55 60

Focus

Position = 40

(cm)

-10

(in)

-25

(cm)

Figure 82 – Oscillating Mirror Model 0.20 mm / 8 mils Reading Diagram

CONDITIONS

Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0°

Note: (0,0) is the center of the laser beam output window.

READING FEATURES

DS6300-105-0XX (oscillating mirror) - Resolution: 0.30 mm/12 mils

0 8 14

0 20 25 30 35 40 45 50 55

Position = 0

10 12 16 18

Focus

2220 24 26

Focus

Position = 40

60 65

70 75 80 85

30 28 32 34

(in) (cm)

-2

-4

-6

-8

-10

-12

(in)

-5

-10

-15

-20

-25

-30

(cm)

Focus

Position = 60

Figure 83 - Oscillating Mirror Model 0.30 mm / 12 mils Reading Diagram

CONDITIONS

Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0°

Note: (0,0) is the center of the laser beam output window.

DS6300-105-0XX (oscillating mirror) - Resolution: 0.38 mm/15 mils

0 10 16

12 14 18 20

2422 26 28

3230 34 36

DS6300

38 40 42

(in)

0 25 30 35 40 45 50

-2

-4

-6

-5

-10

-15

Focus

Position = 0

55 60

65 70 75 80

85 90 95 100 105

Focus

Position = 100

(cm)

-8

-20

-10

-12

-14

-16

(in)

-25

-30

-35

-40

(cm)

Focus

Position = 60

Figure 84 - Oscillating Mirror Model 0.38 mm / 15 mils Reading Diagram

CONDITIONS

Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0°

Note: (0,0) is the center of the laser beam output window.

READING FEATURES

DS6300-105-0XX (oscillating mirror) - Resolution: 0.50 mm/20 mils

0 8 20

0 20 30 40 50 60 70 80 90

12 16 24 28

3632 40 44

100

110 120 130 140

52 56

150

(in)

(cm)

-4

-8

-12

-16

-20

-24

(in)

-10

-20

-30

-40

-50

-60

(cm)

Focus

Position = 60

Focus

Position = 0

Figure 85 - Oscillating Mirror Model 0.50 mm / 20 mils Reading Diagram

Focus

Position = 100

CONDITIONS

Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° - 20° Tilt angle = 0°

Note: (0,0) is the center of the laser beam output window.

4.3.3 DS6300 with GFX-60

DS6300 with GFX-60 - Resolution: 0.20 mm/8 mils

DS6300

Figure 86 – GFX-60 0.20 mm / 8 mils Reading Diagram

Note: 0 value on the X axis is measured from the nose of the GFX-60

0 value on the Y axis is measured from the conveyor plane focus position = 0

DS6XXX with GFX-60 - Resolution: 0.30 mm/12 mils

Figure 87 - GFX-60 0.30 mm / 12 mils Reading Diagram

Note: 0 value on the X axis is measured from the nose of the GFX-60

0 value on the Y axis is measured from the conveyor plane focus position = 40

READING FEATURES

DS6XXX with GFX-60 - Resolution: 0.50 mm/20 mils

Note: 0 value on the X axis is measured from the nose of the GFX-60

0 value on the Y axis is measured from the conveyor plane focus position = 100

Figure 88 - GFX-60 0.50 mm / 20 mils Reading Diagram

DS6XXX with GFX-60 - Resolution: 1.00 mm/40 mils

Note: 0 value on the X axis is measured from the nose of the GFX-60

0 value on the Y axis is measured from the conveyor plane focus position = 100

Figure 89 - GFX-60 1.00 mm / 40 mils Reading Diagram

DS6300

5 MAINTENANCE

5.1 CLEANING

Clean the laser beam output window (Figure A, 7) periodically for correct operation of the scanner.

Dust, dirt, etc. on the window may alter the reading performance.

Repeat the operation frequently in particularly dirty environments.

Use soft material and alcohol to clean the window and avoid any abrasive substances.

the scanner is turned off or at

WARNING

Clean the window of the DS6300 when least when the laser beam is not active.

5.2 AUTOMATIC SCANNER REPLACEMENT (ASR)

The Datalogic Automatic Scanner Replacement (ASR) procedure allows restoring system

nctioning automatically after one or more scanners are replaced in a Master/Slave

fu Lonworks network.

he Master must be prepared at the time of installation in order for this procedure to work

orrectly.

5.2.1 ASR Network Configuration

1. p Lon Slave Scanner

On the Master scanner, check the Modify & Backu Configuration parameter in Genius™ and configure the Lonworks Slave Scanner Common Parameters (Code and Reconstruction Parameters).

. Enable the ASR procedure through the Enable A.S.R. parameter in the Master

configuration.

3. end the configuration to the Master EEPROM to force the Slave Operating Mode, Code

S Reading Symbologies and Reconstruction parameters.

Now the Slave scanners are configured through the Master and the ASR procedure is implemented.

4. Save this configuration to file (.ddc).

MAINTENANCE

5.2.2 Scanner Replacement Procedure

The ASR procedure requires replacing one scanner at a time.

NOTE

Slave

1. Power down the entire system.

2. Replace the Slave scanner with a new one (default settings).

3. Power up the system and wait for initialization.

Master

1. Load the saved configuration from file (.ddc) to the new Master.

2. Power down the entire system.

3. Replace the Master scanner with the new one.

4. Power up the system and wait for initialization.

ks only if both the Master and Slave devices have software

NOTE

The ASR wor

6.40 or later.

6 TROUBLESHOOTING

Before contacting your local Datalogic office or Datalogic Partner or ARC, it is suggested to save the device configuration to a *.ddc file by means of

NOTE

Problem Suggestion Power On:

the “Power On” LED is not lit.

On Line Mode:

the Master’s “Phase On” LED is not lit (when external trigger activates).

On Line Mode:

the Master’s “Phase On” LED is correctly lit but nothing happens (no reading results).

Serial On Line Mode:

the reader is not triggered (no reading results).

the Genius™ software configuration program and check the device exact model and serial number.

TROUBLESHOOTING GUIDE

• Is power connected?

• If using a power adapter (like PG6000), is it

connected to AC source?

• If using rail power, does rail have power?

• If using C-BOX 100, does it have power

(check switch and LED)? Check if you are referring to the 25/26-pin connector or to the C-BOX 100 spring clamp connectors.

• Measure voltage either at pin 13 and

pin 25 (for 25/26-pin connector) or at spring clamp 1 and (for C-BOX 100).

• Check carefully if you are referring to the

25/26-pin connector or to the C-BOX 100 spring clamp connectors.

• Is sensor connected to EXT TRIG/PS input?

• Is power supplied to photo sensor?

• Is power supplied to one out of the two EXT

TRIG/PS (NPN output)?

• Is one out of the two EXT TRIG/PS grounded

(PNP output)?

• Are the photo sensor LEDs (if any) working

correctly?

• Is the sensor/reflector system aligned (if

present)?

• Is the software configuration consistent with

the application condition (operating mode, etc..)? In the Genius™ software configuration program select the OPERATING MODES folder and check for related parameters.

• In the Genius™ program select the

OPERATING MODE folder and check if serial on line is enabled as “On Line options” parameter value.

• Are the Start-Stop string correctly assigned?

• Is the serial trigger source correctly

connected and configured)

DS6300

TROUBLESHOOTING

TROUBLESHOOTING GUIDE

Problem Suggestion On Line Mode and Serial On Line

Mode:

the reader does not respond correctly to the expected external signal end.

Reading:

it is not possible to read the target barcode (always returns No Read)

• In the Genius™ software configuration

program select the OPERATING MODES folder and check the “Reading Phase Timeout” parameterization.

• Check synchronization of reading pulse with

object to read.

• Is the scan line correctly positioned?

• Place barcode in the center of scan line and

run TEST MODE (selectable by Genius™ as Operating Modes). If you still have troubles, check the following:

• Is the reading distance within that allowed

(see reading diagrams)?

• Is the Tilt angle too big?

• Is the Skew angle less than 10° (direct

reflection)?

• Choose the CODE tab and enable

different code types (except Pharmacode). LENGTH = Variable.

• Is the barcode quality sufficient?

• If you had no success, try to perform the test

using the BARCODE TEST CHART included with the product.

Communication:

the device is not transmitting anything to the host.

• Is serial cable connected?

• Is correct wiring respected?

• If using MAIN RS232 or RS485 interface, is

the reference ground connected to proper SGND Main Isolated (also referred to as GND_ISO)? Be careful that it is not completely different from GND power ground.

• If using C-BOX 100, be sure the RS485

termination switch is positioned to OFF.

• Are serial host settings equivalent to serial

device setting?

Communication:

data do not appear on the terminal.

• In the Genius™ program enable the DATA

COMMUNICATION SETTINGS/MAINAUXILIARY PORT\DATA TX parameter.

Communication:

data transferred to the host are incorrect, corrupted or incomplete.

• In the Genius™ program select the DATA

COMMUNICATION SETTINGS/DATA FORMAT folder and check for HEADER, TERMINATOR, SEPARATOR and FILL CHAR values.

• Check the CODE FIELD LENGTH value, too.

• Are the COM port parameters correctly

assigned?

TROUBLESHOOTING GUIDE

Problem Suggestion How do I obtain my units’ serial

numbers?

• The device serial number is printed on the

device identification label that is affixed to the reader (Figure A, 2).

• The serial number is also displayed when

connecting the device through the Genius™ program.

• Serial numbers consist of 9 characters: one

letter, 2 numbers, another letter followed by 5 numbers.

DS6300

TECHNICAL FEATURES

7 TECHNICAL FEATURES

ELECTRICAL FEATURES

Supply voltage 15 to 30 Vdc Power consumption 15 W typical

Communication Interfaces

Inputs External Trigger 1,

3 auxiliary digital inputs Outputs (optocoupled), 3 software programmable digital

outputs

(see note 1)

20 W Max. (including startup current)

Main (isolated) Baud Rate

RS232 1200 to 115200 RS485 full-duplex 1200 to 115200 RS485 half-duplex 1200 to 115200 20 mA current loop

(INT-30 with C-BOX 100 only)

Auxiliary

19200

RS232 1200 to 115200

Other

Lonworks 1.25 Mb/s Ethernet 10 or 100 Mb/s DeviceNet 125 or 250 Kb/s Profibus 12 Mb/s

(optocoupled NPN or PNP)

(optocoupled)

OPTICAL FEATURES (see note 1)

Light receiver Avalanche photodiode Wavelength 630 to 680 nm Safety class Class 2 - EN60825-1; Class II - CDRH Laser control Security system to turn laser off in case of motor slow

down

READING FEATURES

Scan rate 600-1200 scans/s Maximum resolution Max. reading distance Max. reading width

(see reading diagrams)

Max. depth of field

USER INTERFACE

LCD Display 2 lines by 16 characters LCD Keypad 3 keys LED indicators Power ON (red)

Phase ON (yellow)

TX data (green)

Note 1: The features given are typical at 25 °C ambient temperature (if not otherwise indicated).

SOFTWARE FEATURES

DS6300

Readable codes

Interleaved 2/5 Code 39 standard Codabar Code 128 EAN128

Code 93 (Standard and Full ASCII)

EAN/UPC (including Add-on 2 and Add-on 5) Code selection Up to 10 codes during one reading phase Headers and Terminators Transmitted messages can be personalized using up to

128-byte headers and 128-byte terminators Operating modes On Line

Automatic

Test Configuration modes Genius™ utility program Parameter storage Non-volatile internal FLASH

ENVIRONMENTAL FEATURES

Operating temperature 0° to +40 °C (+32° to +104 °F) Storage temperature -20° to +70 °C (-4° to +158 °F) Humidity 90% non condensing Ambient light immunity 3500 lux Vibration resistance 14 mm @ 2 to 10 Hz IEC 68-2-6 test FC 1.5 mm @ 13 to 55 Hz 2 g @ 70 to 200 Hz 2 hours on each axis Shock resistance 30 g; 11 ms; IEC 68-2-27 test EA 3 shocks on each axis Protection class IP64*

PHYSICAL FEATURES

Mechanical dimensions 110 x 113 x 99 mm

(4.33 x 4.45 x 3.9 in)

Standard Models Oscillating Mirror Models

113 x 180 x 104.5 mm (4.45 x 7.08 x 4.11 in)

Weight 1.5 kg. (3.3 lb) 2.0 kg. (4.4 lb)

* IP50 grade for standard Ethernet versions.

GLOSSARY

ACR™ 4

Each version of the base has the powerful code reconstruction technology (ACR™ 4). The new fourth generation ACR considerably increases the code reconstruction reading capability in the case of damaged or very tilted barcodes.

Aperture

Term used on the required CDRH warning labels to describe the laser exit window.

Barcode

A pattern of variable-width bars and spaces which represents numeric or alphanumeric data in machine-readable form. The general format of a barcode symbol consists of a leading margin, start character, data or message character, check character (if any), stop character, and trailing margin. Within this framework, each recognizable symbology uses its own unique format.

Barcode Label

A label that carries a barcode and can be affixed to an article.

Baud Rate

A unit used to measure communications speed or data transfer rate.

CDRH (Center for Devices and Radiological Health)

This organization (a service of the Food and Drug Administration) is responsible for the safety regulations governing acceptable limitations on electronic radiation from laser devices. Datalogic devices are in compliance with the CDRH regulations.

Code Positioning

Variation in code placement that affects the ability of a scanner to read a code. The terms Pitch, Skew, and Tilt deal with the angular variations of code positioning in the X, Y and Z axes. See par. 2.5. Variations in code placement affect the pulse width and therefore the decoding of the code. Pulse width is defined as a change from the leading edge of a bar or space to the trailing edge of a bar or space over time. Pulse width is also referred to as a transition. Tilt, pitch, and skew impact the pulse width of the code.

EEPROM

Electrically Erasable Programmable Read-Only Memory. An on-board non-volatile memory chip.

Full Duplex

Simultaneous, two-way, independent transmission in both directions.

Half Duplex

Transmission in either direction, but not simultaneously.

Host

A computer that serves other terminals in a network, providing services such as network control, database access, special programs, supervisory programs, or programming languages.

Interface

A shared boundary defined by common physical interconnection characteristics, signal characteristics and meanings of interchanged signals.

LED (Light Emitting Diode)

A low power electronic device that can serve as a visible or near infrared light source when voltage is applied continuously or in pulses. It is commonly used as an indicator light and uses less power than an incandescent light bulb but more than a Liquid Crystal Display (LCD). LEDs have extremely long lifetimes when properly operated.

Multidrop Line

A single communications circuit that interconnects many stations, each of which contains terminal devices. See RS485.

Parameter

A value that you specify to a program. Typically parameters are set to configure a device to have particular operating characteristics.

Pitch

Rotation of a code pattern about the X-axis. The normal distance between center line or adjacent characters. See par. 2.5.

Position

The position of a scanner or light source in relation to the target of a receiving element.

Protocol

A formal set of conventions governing the formatting and relative timing of message exchange between two communicating systems.

Resolution

The narrowest element dimension which can be distinguished by a particular reading device or printed with a particular device or method.

RS232

Interface between data terminal equipment and data communication equipment employing serial binary data interchange.

RS485

Interface that specifies the electrical characteristics of generators and receivers for use in balanced digital multipoint systems such as on a Multidrop line.

Scanner

A device that examines a printed pattern (barcode) and either passes the uninterpreted data to a decoder or decodes the data and passes it onto the Host system.

Serial Port

An I/O port used to connect a scanner to your computer, identifiable by a 9-pin or 25-pin connector.

Signal

An impulse or fluctuating electrical quantity (i.e.: a voltage or current) the variations of which represent changes in information.

Datalogic DS6300 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTENTS

REFERENCES

REFERENCE DOCUMENTATION

SERVICES AND SUPPORT

COMPLIANCE

ELECTRICAL SAFETY

LASER SAFETY

POWER SUPPLY

CE COMPLIANCE

WEEE COMPLIANCE

GENERAL VIEW

GUIDE TO INSTALLATION

POINT-TO-POINT INSTALLATION

MASTER/SLAVE LONWORKS INSTALLATION

INTRODUCTION

INSTALLATION

2.2.1 Mounting the Scanner

2.2.2 Mounting the Scanner with Accessories

2.2.3 Mounting the Scanner with GFX-60

2.3.1 Main/Aux. Serial Interface and I/O Connector

USER INTERFACE

2.6.2 “45° Skew” Installation

Fieldbus Network

SOFTWARE CONFIGURATION

3.2.1 Wizard for Quick Reader Setup

3.2.2 Genius™ Network Setup Through Master

READING FEATURES

4.1.1 Tilt Angle for Advanced Code Reconstruction

4.3.1 DS6300 Standard Model

4.3.2 DS6300 Oscillating Mirror Model

TECHNICAL FEATURES

GLOSSARY
