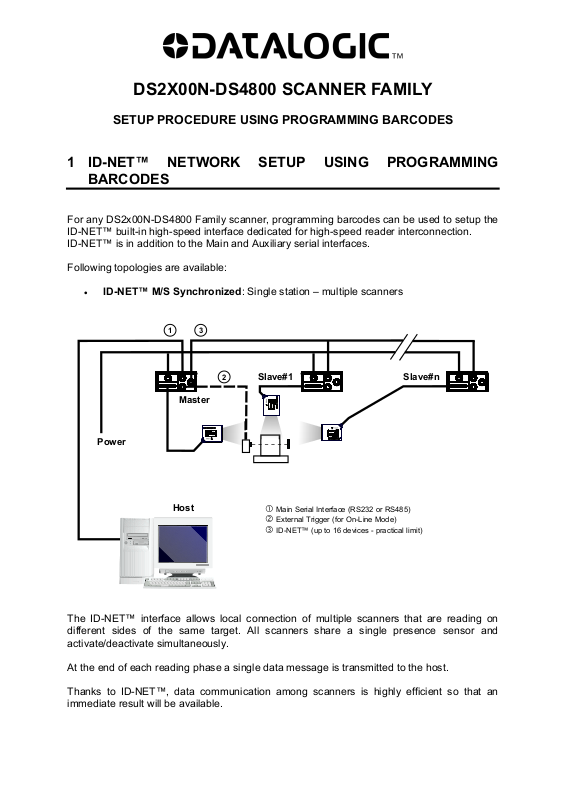

DS2X00N-DS4800 SCANNER FAMILY
SETUP PROCEDURE USING PROGRAMMING BARCODES
1 ID-NET™ NETWORK SETUP USING PROGRAMMING
BARCODES
For any DS2x00N-DS4800 Family scanner, programming barcodes can be used to setup the
ID-NET™ built-in high-speed interface dedicated for high-speed reader interconnection.
ID-NET™ is in addition to the Main and Auxiliary serial interfaces.
Following topologies are available:
ID-NET™ M/S Synchronized: Single station – multiple scanners
1 3
2
Master
Power
Host
The ID-NET™ interface allows local connection of multiple scanners that are reading on
different sides of the same target. All scanners share a single presence sensor and
activate/deactivate simultaneously.
At the end of each reading phase a single data message is transmitted to the host.
Thanks to ID-NET™, data communication among scanners is highly efficient so that an
immediate result will be available.
Slave#1 Slave#n
Main Serial Interface (RS232 or RS485)
External Trigger (for On-Line Mode)
ID-NET™ (up to 16 devices - practical limit)
Page 2
Setup Procedure Using Programming Barcodes
ID-NET™ M/S Multidata: Multiple stations – single scanner
Master Slave#1 Slave#n
1 4
3
Power
2
Terminal
Host
Main Serial Interface (RS232 or RS485)
Auxiliary Serial Interface (Local Echo) (RS232)
External Trigger (for On-Line Mode)
ID-NET™ (up to 32 devices, max network extension of 1000 m)
The ID-NET™ interface allows connection of scanners that are reading objects placed on
independent conveyors. All scanners are typically located far away from each other and they
use a dedicated presence sensor.
At the end of each reading phase, every scanner transmits its own data message to the host.
Thanks to ID-NET™, data collection among readers is accomplished at a high speed without
the need of an external multiplexing device. This leads to an overall cost reduction and to
simplified system wiring.
2
Page 3
Setup Procedure Using Programming Barcodes
Y
Y
Y
Y
Y
1. Press and hold the X-PRESS™ button to enter the “AutoLearn Mode”. Once button is
pressed, the LED cycle appears as follows:
SETUP
LEARN
TEST
Just pressed.
READ
GOOD
TRIGGER
COM
STATUS
SETUP
LEARN
TEST
After 2 seconds.
READ
GOOD
TRIGGER
COM
STATUS
SETUP
LEARN
TEST
After 4 seconds.
Release the button to
enter the AutoLearn
Mode.
READ
GOOD
TRIGGER
COM
STATUS
READ
SETUP
LEARN
TEST
GOOD
TRIGGER
COM
STATUS
The laser beam turns ON
and the yellow LEARN
LED blinks: the
AutoLearn Mode is
working.
2. Now, put the barcode related to the planned role and address in front of the scanner.
The picture below shows, as example, the scanner configuration as “Slave 1”
1
Slave 1
3. Once the scanner has successfully read the code, the LEDs stay on steady for 2
seconds:
:
READ
SETUP
LEARN
TEST
GOOD
TRIGGER
COM
STATUS
Successful reading.
1
the barcodes shown are examples, only. Use the barcodes in the Network Layout Barcodes paragraph for the
actual programming.
3
Page 4
Setup Procedure Using Programming Barcodes
Y
4. The scanner is programmed and the AutoLearn Mode ends. The green “ready” LED
is on.
READ
SETUP
LEARN
TEST
Programming done.
GOOD
TRIGGER
COM
STATUS
5. Repeat steps 1..3 above to configure all the slaves and master. The maximum
number of scanners is 32, including the master.
Master
Slave 1
Slave n
6. Connect the master scanner to a PC by means of the Genius™ configuration software.
Master
4
Page 5
Setup Procedure Using Programming Barcodes
7. Start the Genius™ Express Network Setup procedure. Refer to the Help On Line
document for details.
NOTE
Any network role can also be programmed using Genius
Help On Line
documentation for further details.
™. Refer to the
5
Page 6
Setup Procedure Using Programming Barcodes
NETWORK LAYOUT BARCODES
ID-NET™ M/S Synchronized
Ì$+SYN00$-dÎ
Master
Ì$+SYN01$-kÎ
Slave 1
Ì$+SYN02$-rÎ
Slave 2
Ì$+SYN03$-yÎ
Slave 3
6
Ì$+SYN04$-ÄÎ
Slave 4
Ì$+SYN05$-ÂÎ
Slave 5
Ì$+SYN06$-'Î
Slave 6
Ì$+SYN07$-.Î
Slave 7
Page 7
Setup Procedure Using Programming Barcodes
ID-NET™ M/S Synchronized
Ì$+SYN08$-5Î
Slave 8
Ì$+SYN09$-<Î
Slave 9
Ì$+SYN10$-jÎ
Slave 10
Ì$+SYN11$-qÎ
Slave 11
Ì$+SYN12$-xÎ
Slave 12
Ì$+SYN13$-ÃÎ
Slave 13
Ì$+SYN14$-ÊÎ
Slave 14
Ì$+SYN15$-&Î
Slave 15
7
Page 8
ID-NET™ M/S Multidata
Setup Procedure Using Programming Barcodes
Ì$+MUL00$-8Î
Master
Ì$+MUL01$-?Î
Slave 1
Ì$+MUL02$-FÎ
Slave 2
Ì$+MUL03$-MÎ
Slave 3
Ì$+MUL04$-TÎ
Slave 4
Ì$+MUL05$-[Î
Slave 5
Ì$+MUL06$-bÎ
Slave 6
Ì$+MUL07$-iÎ
Slave 7
8
Page 9
ID-NET™ M/S Multidata
Setup Procedure Using Programming Barcodes
Ì$+MUL08$-pÎ
Slave 8
Ì$+MUL09$-wÎ
Slave 9
Ì$+MUL10$->Î
Slave 10
Ì$+MUL11$-EÎ
Slave 11
Ì$+MUL12$-LÎ
Slave 12
Ì$+MUL13$-SÎ
Slave 13
Ì$+MUL14$-ZÎ
Slave 14
Ì$+MUL15$-aÎ
Slave 15
9
Page 10
ID-NET™ M/S Multidata
Setup Procedure Using Programming Barcodes
Ì$+MUL16$-hÎ
Slave 16
Ì$+MUL17$-oÎ
Slave 17
Ì$+MUL18$-vÎ
Slave 18
Ì$+MUL19$-}Î
Slave 19
Ì$+MUL20$-DÎ
Slave 20
Ì$+MUL21$-KÎ
Slave 21
Ì$+MUL22$-RÎ
Slave 22
Ì$+MUL23$-YÎ
Slave 23
10
Page 11
ID-NET™ M/S Multidata
Setup Procedure Using Programming Barcodes
Ì$+MUL24$-`Î
Slave 24
Ì$+MUL25$-gÎ
Slave 25
Ì$+MUL26$-nÎ
Slave 26
Ì$+MUL27$-uÎ
Slave 27
Ì$+MUL28$-|Î
Slave 28
Ì$+MUL29$-ÇÎ
Slave 29
Ì$+MUL30$-JÎ
Slave 30
Ì$+MUL31$-QÎ
Slave 31
11
Page 12
Setup Procedure Using Programming Barcodes
2 STAND-ALONE LAYOUT BARCODE
In order to re-program a network scanner for a stand alone configuration, the following
barcode can be used.

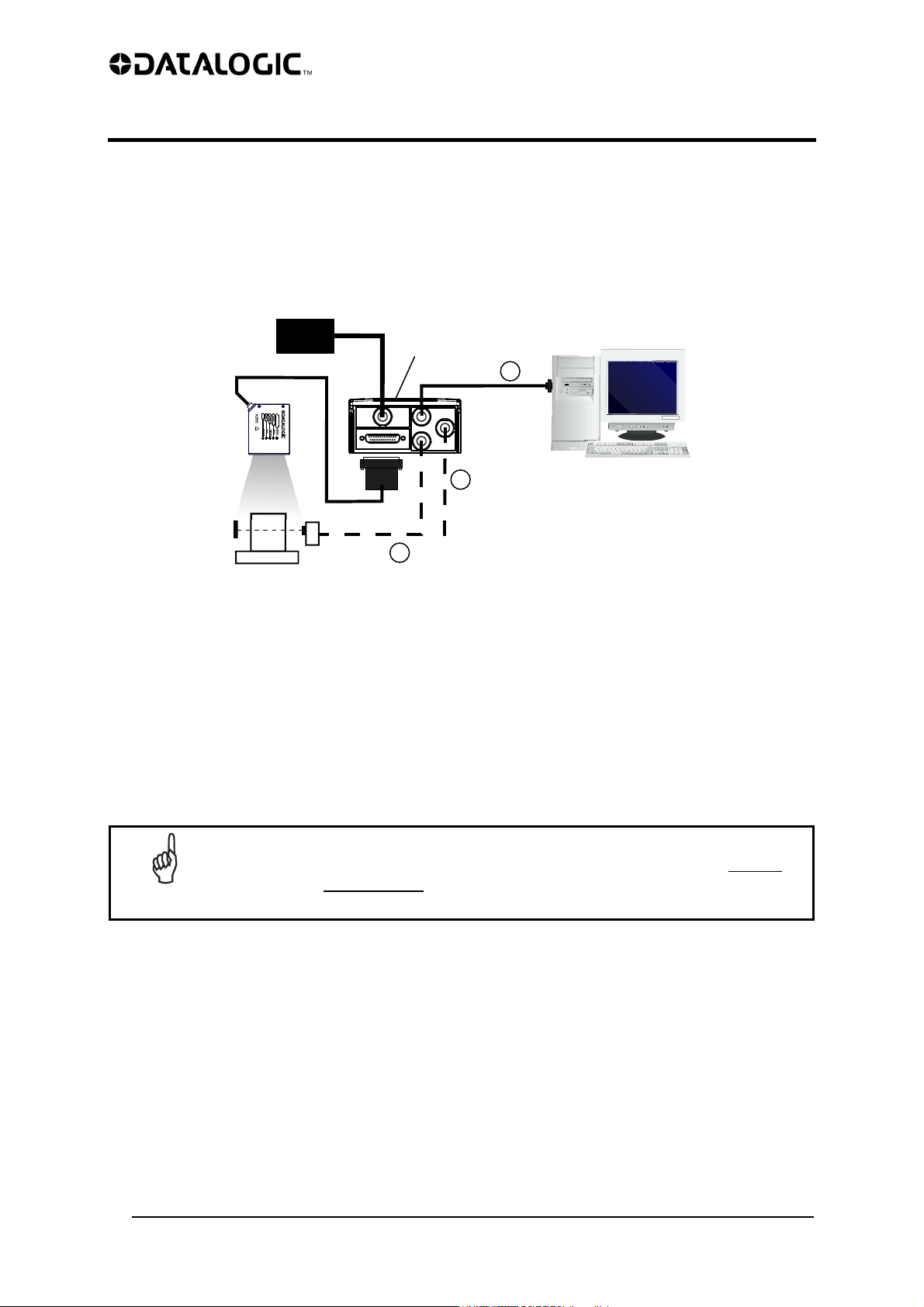

Stand Alone Layout
PG6000
Scanner
CBX
1
2
Terminal
Host
Main Serial Interface (RS232 or RS485 Full-Duplex)
3
Auxiliary Serial Interface (Local Echo) (RS232)
External Trigger (for On-Line Mode)
The programming barcode procedure uses the AutoLearn Mode as described in chapter 1.
Ì$+OTHA$-rÎ
Stand Alone
NOTE
The Stand-Alone configuration can also be programmed using Genius
Refer to the Help On Line
documentation for further details.
™.
12
Page 13
Setup Procedure Using Programming Barcodes
3 X-PRESS™ KEY LOCK – UNLOCK BARCODE
The X-PRESS™ key can be locked and unlocked through two different methods:
by means of a Genius™ parameter
with a programming barcode
The programming barcode procedure uses the AutoLearn Mode as described in chapter 1.
The code below is a “toggle-code”:
if the key is locked, the programming code will unlock the key
if the key is unlocked, the programming code will lock the key
Ì$+KLOCK$-~Î
Lock-Unlock X-PRESS™ key
4 RESTORE DEFAULT PARAMETERS BARCODE
The programming barcode procedure uses the AutoLearn Mode as described in chapter 1.
The code below allows setting the scanner to its factory default values, Configuration and
Environmental Parameters:
Ì$+DEFS$-wÎ
Restore Default Values
13
Page 14
Setup Procedure Using Programming Barcodes
5 NETWORK STATUS MONITOR LOCK – UNLOCK BARCODE
For Master
Network Status Monitor shows diagnostic messages regarding the network. It can be
enabled/disabled through two different methods:
by means of a Genius™ parameter
with a programming barcode
The programming barcode procedure uses the AutoLearn Mode as described in chapter 1.
The code below is a “toggle-code”:
if the Network Status Monitor is disabled, the programming code enables it.
if the Network Status Monitor is enabled, the programming code disables it.
scanners with display (or connected to a CBX500 with accessory display), the
Ì$+NETDISP$-GÎ
Network Status Monitor
Network Status Monitor
On the Master display the following messages are shown:
1 N e t w o r k 1 5
* * * * * - - - - - - - - - -
1 6 N e t w o r k 3 1
- - - - - - - - - - - - - - - -
Where:
*
= Device OK
-
= Device not detected at startup
?
= Device detected at startup but not responding to polling
!
= Device with diagnostic error
The DS4800 has a two-line display and so the messages alternate.
14
Page 15
Setup Procedure Using Programming Barcodes
6 TCP/IP ETHERNET INTERFACE TO HOST
For any DS2x00N-DS4800 Family scanner having software package 005 or later, connected
to either a QL500 or to a BM2x0 module (inside a CBX connection box), you can setup the
Ethernet communication with programming barcodes.
Ì$CBETHD$-}Î
Ethernet TCP/IP enabled
DHCP enabled
Using the X-PRESS™ interface setup functions described in the Quick Reference Guide,
correctly position the scanner and read one of these barcodes with the AutoLearn
function
The scanner can now communicate using Ethernet TCP/IP.
For scanner configuration through Genius™ using Ethernet TCP/IP, follow one of the
procedures in the next paragraph.
.
Ì$CBETHN$-\Î
Ethernet TCP/IP enabled
DHCP disabled
(uses static IP Address parameters)
The Factory Default static IP address parameter settings for all DS2x00N-DS4800 Family
scanners are:
IP Address = 172.16.11.0
Subnet Mask = 255.255.0.0
Gateway Address = 172.16.0.2
IP ADDRESS ALIGNMENT PROCEDURES FOR CONFIGURATION
In order to connect a scanner to Genius™ using Ethernet TCP/IP, the Ethernet IP
Addressing parameters must be aligned between Genius™ and the scanner. The following
procedures can be used:
DHCP Enabled
1. Read the Ethernet TCP/IP enabled DHCP enabled barcode using the X-PRESS™
Autolearn function (as described in chapter 1).
15
Page 16
Setup Procedure Using Programming Barcodes
2. Launch the Finder program on the Genius™ CD-ROM in ..Doc\Software Utilities\QL500-
BM2x0 IP Finder.zip
to determine the IP address assigned to the scanner.

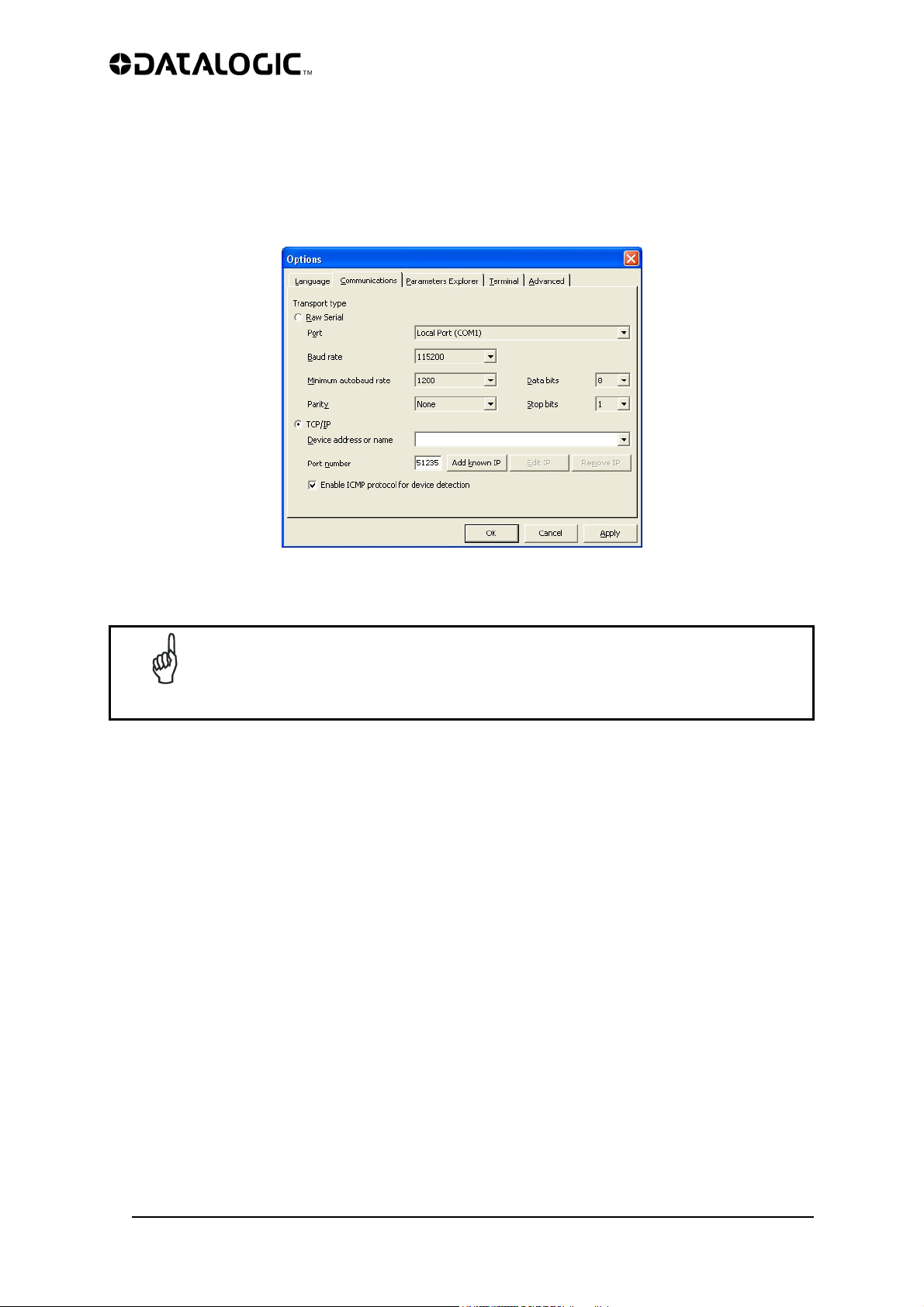

3. Set the Genius™ Tools>Options>Communications window to TCP/IP and in the
Device address or name field, input the IP address returned by the finder program.
The port number is 51235. Then click OK.
4. Perform a Device>Get (configuration) from Genius™.
Devices working in DHCP may be assigned different IP addresses at each
NOTE
powerup, therefore steps 2 - 4 of the above procedure may need to be
repeated at successive connections between Genius™ and the scanner.
Static IP Addressing (DHCP Disabled)
1. Read the Ethernet TCP/IP enabled DHCP disabled barcode using the X-PRESS™
Autolearn function (as described in chapter 1).
2. Before changing the Ethernet network settings on the PC running Genius™, close
any open applications which use network resources (i.e. Outlook, or Web browser).
3. On the Configuration PC, from the Control Panel>Network Connections, right-click on
the LAN connection icon and open the properties window.
4. Select the Internet Protocol (TCP/IP) item and open the properties window.
16
Page 17
Setup Procedure Using Programming Barcodes

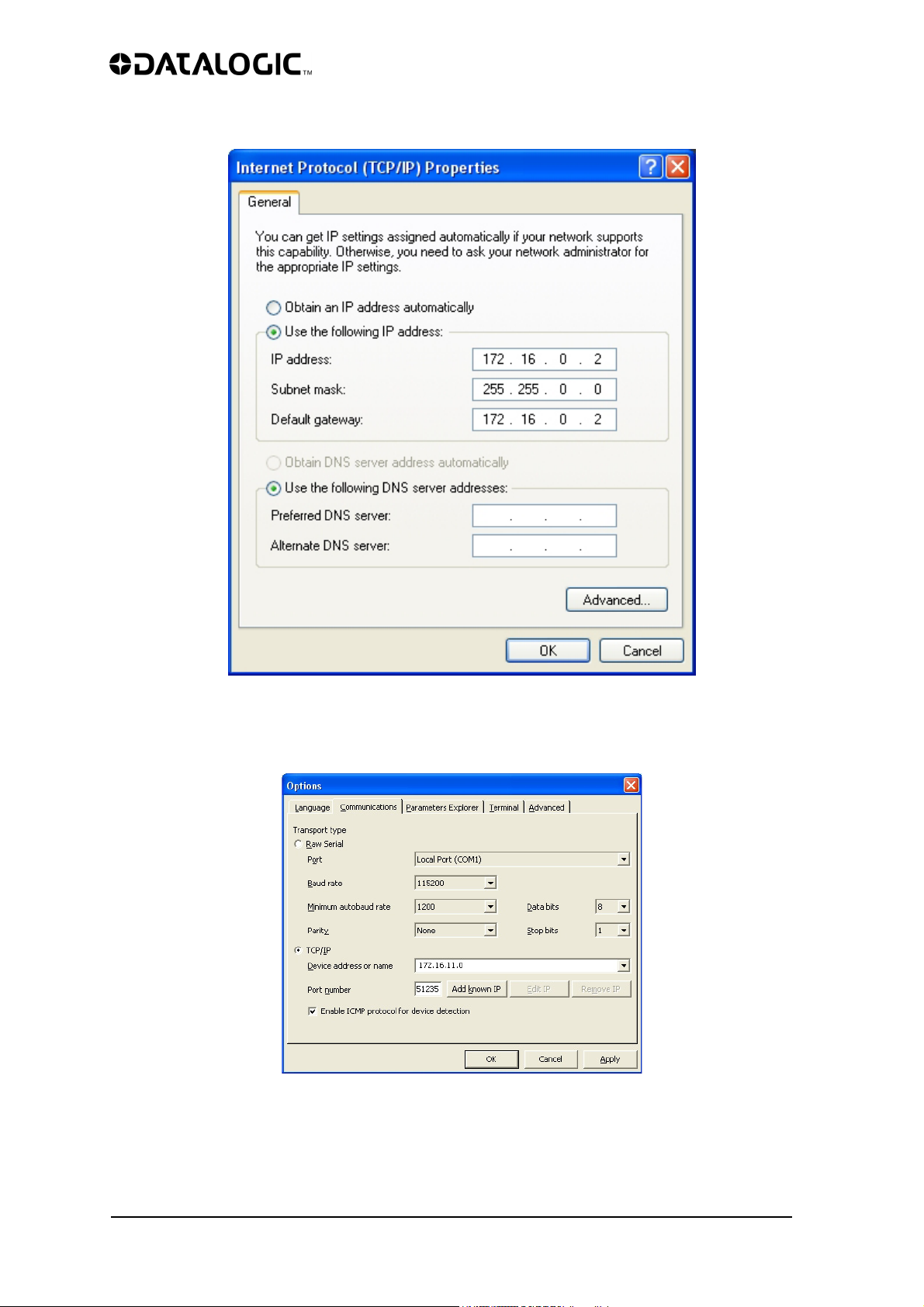

5. Set the IP Address fields as follows and click OK to save.
6. Set the Genius™ Tools>Options>Communications window to TCP/IP and in the
Device address or name field, input the scanner Factory Default address. The port
number is 51235. Then click OK.
7. Perform a Device>Get (configuration) from Genius™.
17
Page 18
Setup Procedure Using Programming Barcodes
r

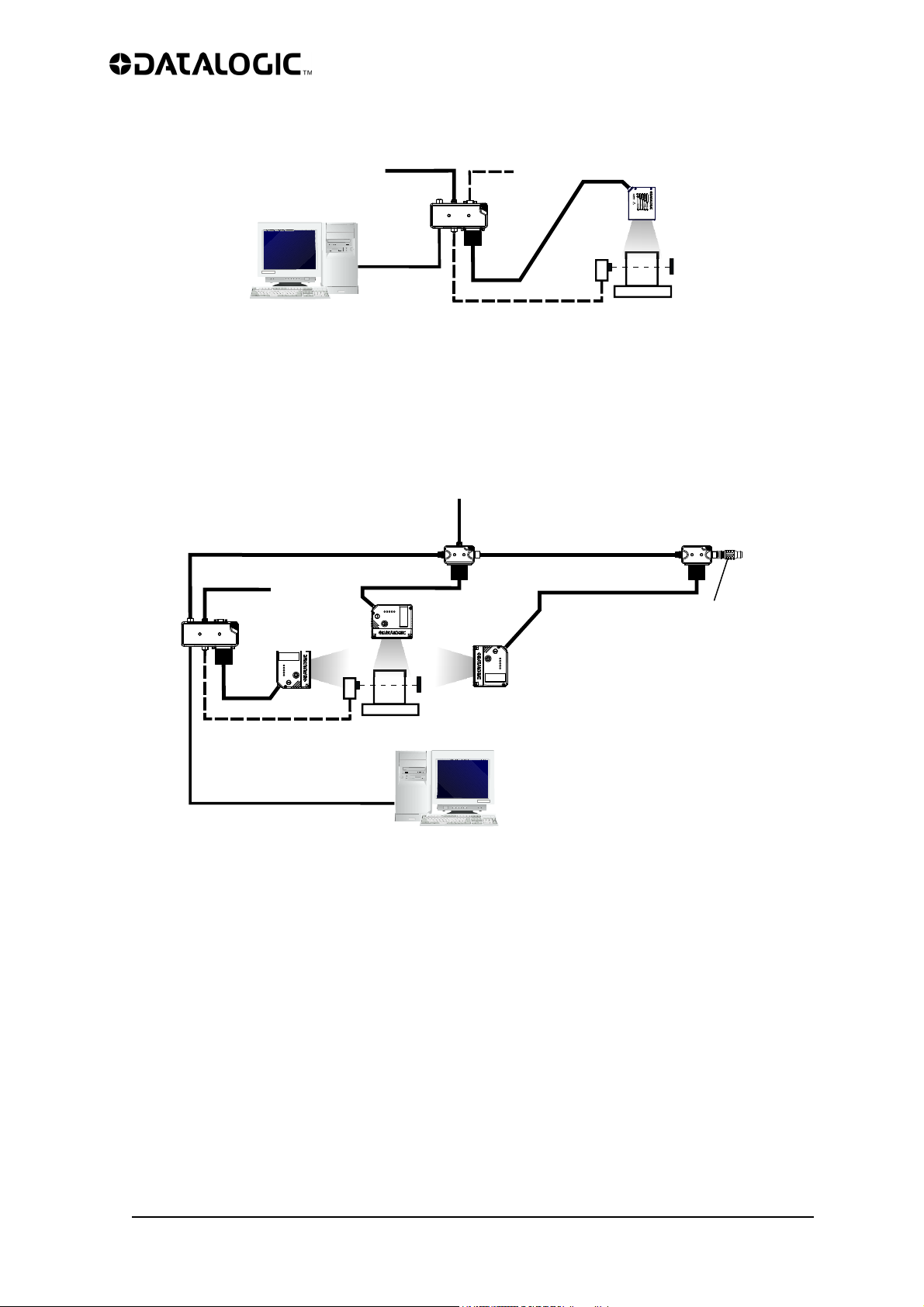

The following figures are examples of these layouts:
Host
Power
CAB-PW-EXT
QL500
Ethernet
DS2100N
PS
Point to Point - DS2100N with QL500 (Ethernet to Host)
The Point-to-Point reader must be configured for Ethernet communication using the specific
programming barcode.
Powe
QL500
CBL-1480-xx
Power
CAB-PW-EXT
Master
PS
QL200
Slave Nodes
Host
CBL-1480-xx
The ID-NET network must be terminated
inserting an ID-NET terminator into the
last QL in the network.
ID-NET on the QL500 is internally
terminated.
QL100 ID-NET™
CBL-1490
ID-NET
Terminator
Ethernet Interface
ID-NET™ M/S Synchronized Layout with QL500 TCP/IP Ethernet Interface to Host
The Master reader must be configured for Ethernet communication using the specific
programming barcode.
18
Page 19
Power
Setup Procedure Using Programming Barcodes
3
Slave#1 Slave#n
CBX500
1
2
Master
BM200/210 TCP/IP Ethernet Interface
Host
External Trigger
ID-NET™ (up to 16 devices - practical limit)

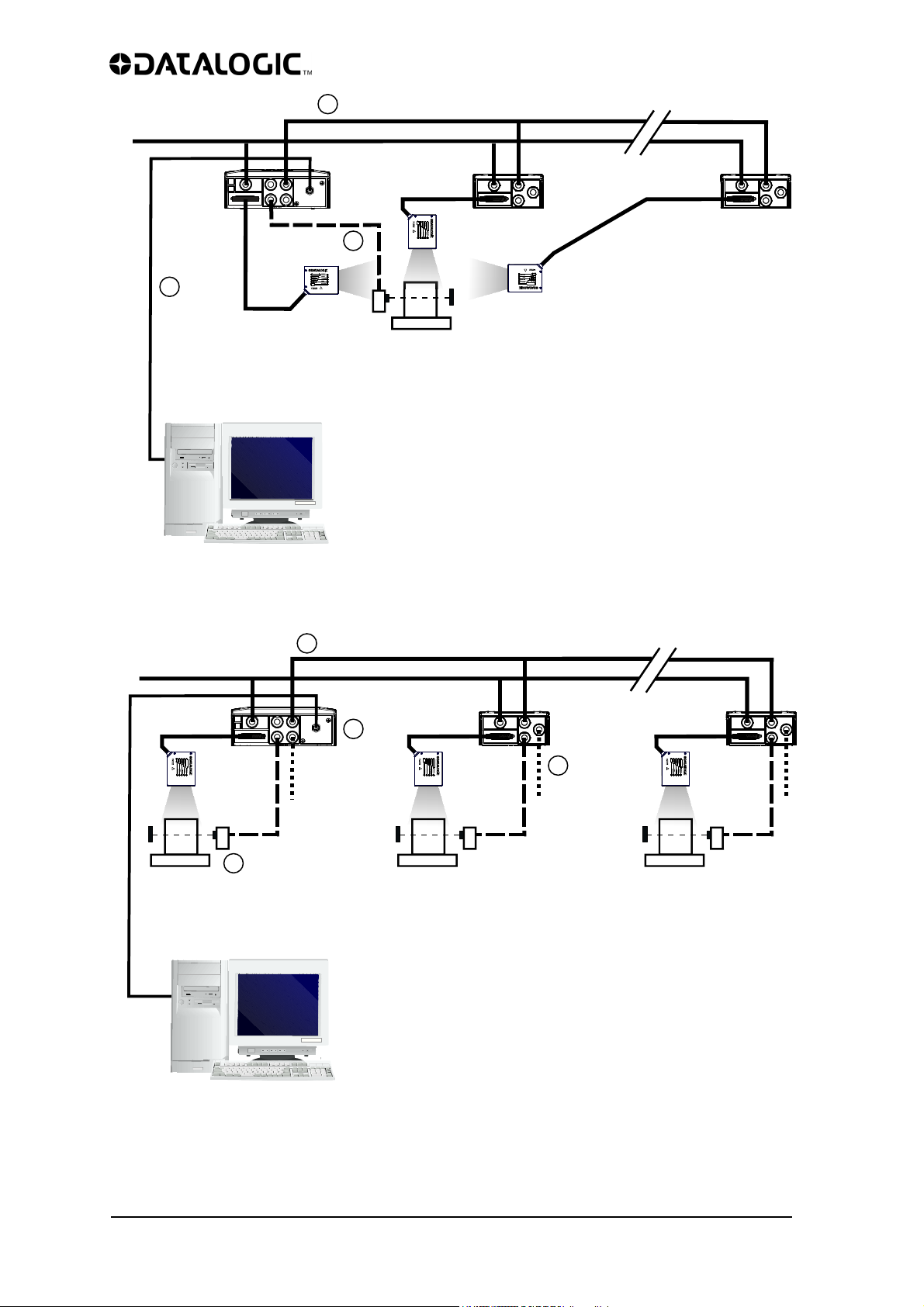

ID-NET™ M/S Synchronized Layout with BM200/210 TCP/IP Ethernet Interface to Host
Power
4
CBX500
1
2
Master
3
Slave#1 Slave#n
Terminal
Host
BM200/210 TCP/IP Ethernet Interface
Auxiliary Serial Interface (Local Echo) (RS232)
External Trigger (for One Shot or Phase Mode)
ID-NET™ (up to 32 devices, max network extension of 1000 m)
ID-NET™ M/S Multidata Layout with BM200/210 TCP/IP Ethernet Interface to Host
19
Page 20
Setup Procedure Using Programming Barcodes
7 PARAMETER SETTING SUMMARY
The network setup through programming barcodes automatically sets
parameters in order to produce a consistent and correct configuration.
The following table summarizes the modified values and the related programming actions.
Programmed Code Modified Parameters
Topology Role = Other
Stand Alone
Reading System Layout/Local Device Alternative Network Setting = Alone or Id-Net
Topology Role = Master Synchronized
Master Synchronized
Operating Mode/ Operating Mode Selection = On Line *
Topology Role = Slave Synchronized
all the necessary
Slave Synchronized
Master Multidata Topology Role = Master Multidata
Slave Multidata
Ethernet TCP/IP
DHCP Enabled
Ethernet TCP/IP
DHCP Disabled
Slave Address = xx
Operating Mode/ Operating Mode Selection = On Line *
Topology Role = Slave Multidata
Slave Address = xx
CBX Gateway>Host Interface Type = Ethernet TCP/IP
IP Addressing = DHCP
CBX Gateway>Host Interface Type = Ethernet TCP/IP
IP Addressing = Static Assignment (uses static IP address parameters) **
* This setting only occurs if the starting Operating Mode is Continuous or Automatic
** The Factory Default static IP Address parameter settings are:
IP Address = 172.16.11.0
Subnet Mask = 255.255.0.0
Gateway Address = 172.16.0.2
20
18/12/09
Loading...
