Datalogic DS2400A Quick Manual

8

A

DS2400A

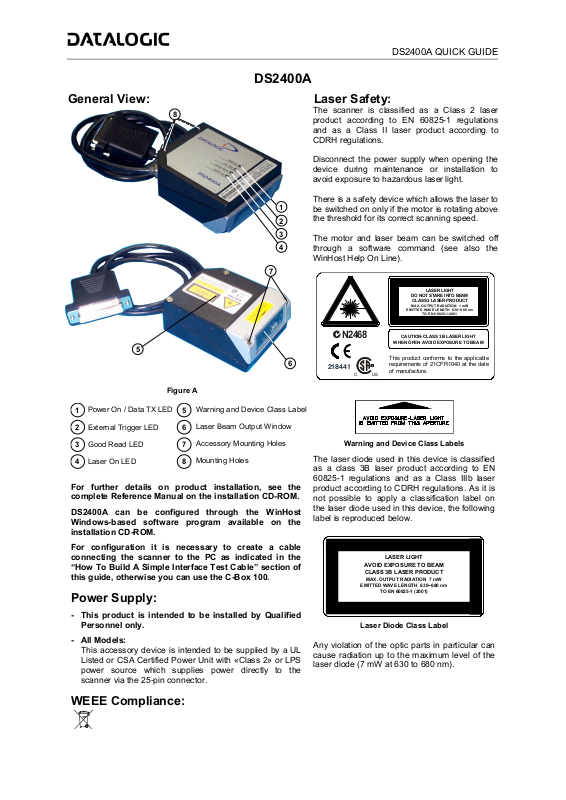

General View: Laser Safety:

8

1

2 3 4

7

The scanner is classified as a Class 2 laser product according to EN 60825-1 regulations and as a Class II laser product according to CDRH regulations.

Disconnect the power supply when opening the device during maintenance or installation to avoid exposure to hazardous laser light.

There is a safety device which allows the laser to be switched on only if the motor is rotating above the threshold for its correct scanning speed.

The motor and laser beam can be switched off through a software command (see also the WinHost Help On Line).

DS2400A QUICK GUIDE

LASER LIGHT

DO NOT ST ARE INTO BEAM

CLASS 2 LASER PRODUCT

MAX. OUTPUT RADIATION 1 mW

EMITTED WAVE LENGTH 630~680 nm

TO EN 60825-1:2001

5

6

Figure A

Power On / Data TX LED

1

External Trigger LED

2

Good Read LED

3

Laser On LED

4 8

Warning and Device Class Label

5

Laser Beam Output Window

6

ccessory Mounting Holes

7

Mounting Holes

For further details on product installation, see the complete Reference Manual on the installation CD-ROM.

DS2400A can be configured through the WinHost Windows-based software program available on the installation CD-ROM.

For configuration it is necessary to create a cable connecting the scanner to the PC as indicated in the “How To Build A Simple Interface Test Cable” section of this guide, otherwise you can use the C-Box 100.

Power Supply:

N246

218441

R

CUS

CAUTION-C LASS 3B LASER LI GHT

WHEN OPEN AVOID EX POSURE TO BEAM

This product conforms to the applicable requirements of 21CFR1040 at the date of manufacture.

Warning and Device Class Labels

The laser diode used in this device is classified as a class 3B laser product according to EN 60825-1 regulations and as a Class IIIb laser product according to CDRH regulations. As it is not possible to apply a classification label on the laser diode used in this device, the following label is reproduced below.

LASER LIGHT AVOID EXPOSURE TO BEAM CLASS 3B LASER PRODUCT

MAX. OUTPUT RADIATION 7 mW

EMITTED WAVE LENGTH 630~680 nm

TO EN 60825-1 (2001)

- This product is intended to be installed by Qualified Personnel only.

- All Models:

This accessory device is intended to be supplied by a UL

Listed or CSA Certified Power Unit with «Class 2» or LPS power source which supplies power directly to the

Laser Diode Class Label

Any violation of the optic parts in particular can cause radiation up to the maximum level of the laser diode (7 mW at 630 to 680 nm).

scanner via the 25-pin connector.

WEEE Compliance:

Model Description:

DS2400A QUICK GUIDE

DS2400A - X X X 0

Reading Range

0 = Short range 1 = Medium range 2 = Long range

Communication Interface

2 = RS232/RS485 main + RS232 aux

Optic Version

0 = Linear 1 = Raster

Reading Performance:

Version Reading Distance Max Code Resolution

mm (mils)

Speed

scans/s

0XX0 75 mm (3 in) - 340 mm (13.4 in) on 0.35 mm (14 mils) codes 0.20 (8) 600 to 1000 1XX0 100 mm (3.9 in) - 440 mm (17.3 in) on 0.50 mm (20 mils) codes 0.25 (10) 600 to 1000 2XX0 190 mm (7.5 in) - 600 mm (23.6 in) on 0.50 mm (20 mils) codes 0.35 (14) 600 to 1000

Technical Features:

ELECTRICAL FEATURES SOFTWARE FEATURES Power Supply Power Consumption Main Serial Interface

10 –30 Vdc 5 W maximum Programmable: RS232; RS485 Full-Duplex/HalfDuplex;

Auxiliary Interface

Baudrates Inputs External Trigger Voltage max. Current Consumption max. Outputs) OUT1, OUT2

V

max.

CE

Collector Current max. VCE Saturation

Power Dissipation max.

RS232

150 to 115200

(optocoupled NPN or PNP) 30 Vdc 25 mA

(optocoupled)

40 Vdc 40 mA continuous;

130 mA pulsed 1V at 10 mA max.

90 mW at 40 °C (Ambient temp.)

OPTICAL FEATURES Parameter Storage Light Source Wavelength Safety Class

semiconductor laser diode In the range 630 to 680 nm Class 2 - EN 60825-1; CDRH

USER INTERFACE Temperature LED Indicators

Laser ON, Good Read, External Trigger, Data TX / Power ON IEC 68-2-6 test FC 1.5 mm @ 13 to 55 Hz; 2 G @ 70 to 200 Hz;

PHYSICAL FEATURES Dimensions Weight

68x83.6x34 mm

(11.64 oz) IEC 68-2-27 test EA 11 ms; 3 shocks on each axis

330 g.

(2.7x3.29x1.3 in)

Readable Codes

* = ACB readable

Headers and Terminators Operating Modes

Configuration Modes

*

EAN/UPC

(including Add-on 2 and Add-on 5)

Code 39

*

2/5 Interleaved

*

Code 128

*

EAN 128

*

Codabar

*

Code 93

*

ISBT 128 Pharmacode Up to four header and four terminator characters On-Line, Automatic, Serial-On-Line, Test Through menus using: WinHost utility Host Mode (commands from

Code Selection

Decoding Safety

Special Functions

one of the serial ports) Up to six different codes

during one reading phase Can enable multiple good reads of the same code

ACB (Advanced Code Builder) Motor Off

Non-volatile internal EEPROM

ENVIRONMENTAL FEATURES Operating

0° to +40 °C (+32° to +104 °F)

Temperature Storage

-20° to +70 °C (-4° to +158 °F)

Humidity max Vibration Resistance

90% non condensing 14 mm @ 2 to 10 Hz;

2 hours on each axis

Shock Resistance

Protection Class

30 G;

IP65

2

DS2400A QUICK GUIDE

Accessories:

Name Description Part Number

GFC-2100 90° Reading Device 93A201000 GFC-2000 105° Reading Device 93A201080 OM2000 Oscillating Mirror 93A251031 INT-30 (for C-Box 100) 20 mA Current Loop Interface Board 93A151022 C-BOX 100/200 Connection Box 93ACC1510, 93ACC1520 C-BOX 300/310 Connection Box Profibus 93A301000, 93A301030 C-BOX 400/410 Connection Box DeviceNet 93A301010, 93A301040 MEP-542/543 Photocell Kit NPN/PNP 93ACC1727, 93ACC1728

Electrical Connections:

DS2400A is equipped with a cable terminated by a 25-pin female D-sub connector for connection to the power supply, communication interface and input/output signals. You can bring system cables directly to the 25-pin connector or you can connect the scanner directly to one of the various C-Box models and bring system wiring to it (see the relative C-Box Installation Manual).

Do not connect GND and SGND to different (external) ground references. GND and SGND are internally connected through filtering circuitry which can be permanently damaged if

CAUTION

The details of the connector pins are indicated in the following table:

subjected to voltage drops over 0.8 Vdc.

25-pin D-sub female connector pinout

Pin Name Function

13 VS Power supply input voltage + 25 GND Power supply input voltage -

1 CHASSIS Chassis Ground

9 VS External Trigger supply voltage + 18 EXT TRIG+ External Trigger + 19 EXT TRIG- External Trigger -

8 OUT1 + Output 1 + 11 OUT2 + Output 2 +

12, 22 OUT REF Output reference

20 RXAUX Auxiliary RS232 21 TXAUX Auxiliary RS232 23 CTSAUX Auxiliary handshake RS232 24 RTSAUX Auxiliary handshake RS232

6, 10, 14,

15, 16, 17

Pin RS232

2 TX232 TX485+ RTX485+

3 RX232 RX485+

4 RTS232 TX485- RTX485-

5 CTS232 RX485-

7 SGND SGND SGND

NC Not Connected

RS485

Full-Duplex

25-pin female connector

RS485

Half-Duplex

3

Mechanical Installation:

23.3*

0.92 14

0.55

0.41

10.3

3.31

4

0.16

DS2400A QUICK GUIDE

84

14.7

0.58

M 4 n° 4

0.41

10.3

9

4.2

7.8

68

46

2.68

1.81

mm inch

40

1.57

DS2400A

DS2100A

* The quote refers to the scan line

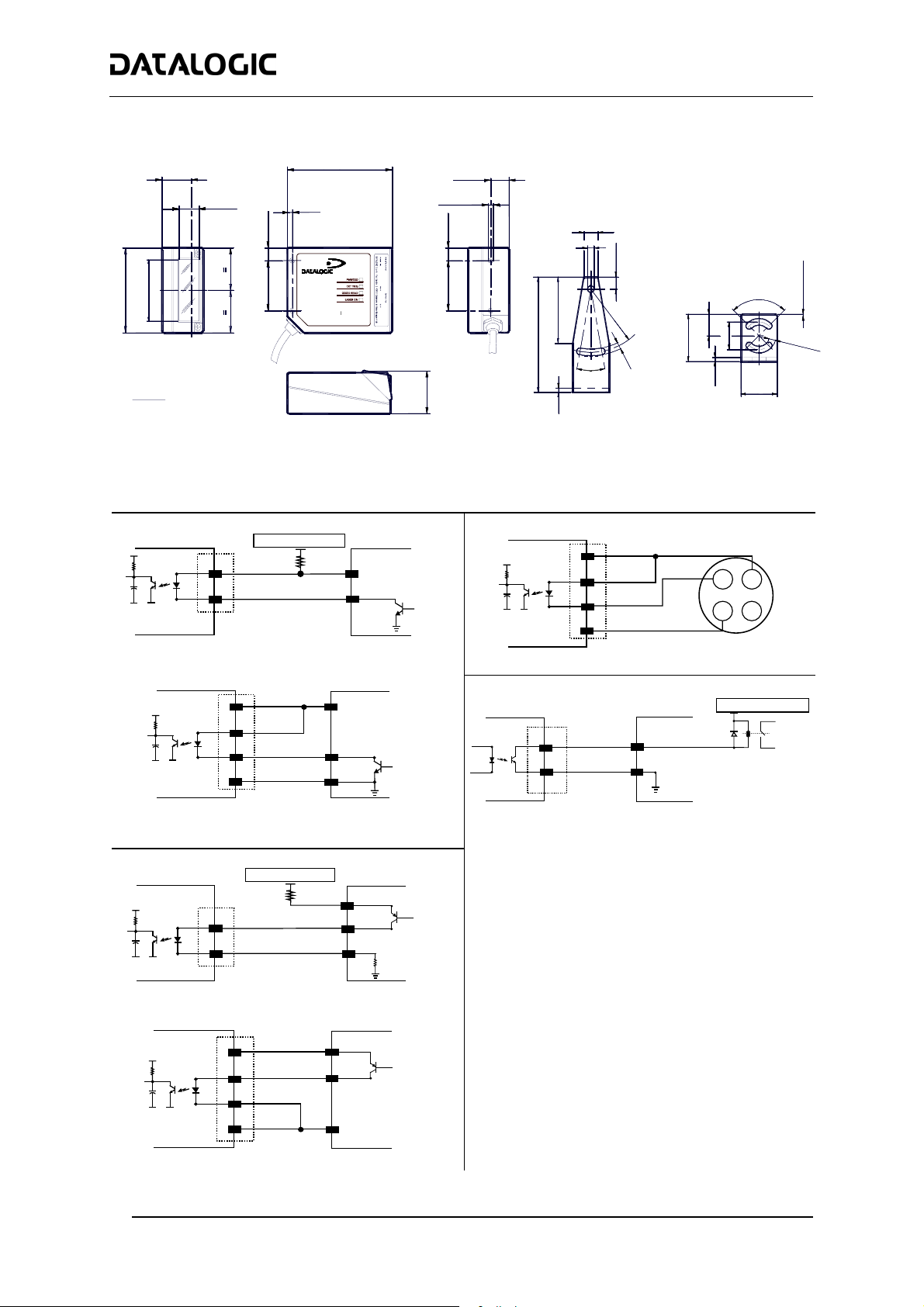

Input/Output Connections:

INPUT NPN INPUT NPN MEP-543

DS2400A

+ 5V

Input NPN command using external power

DS2400A

+ 5V

Input NPN command using DS2400A power

DS2400A

+ 5V

Vext 30 Vdc max.

18

EXT TRIG+

19

EXT TRIG-

9

EXT TRIG+

18

EXT TRIG-

19

25

VS

GND

EXTERNAL TRIGGER

V

Ground

INPUT PNP

Vext 30 Vdc max.

18

EXT TRIG+

19

EXT TRIG-

EXTERNAL TRIGGER

V

Signal

Ground

32.7

Signal

40

1.57

1.29

V I

73

DS2400A

+ 5V

R

20°

9

18

19

25

4

0

4

.

2

VS

EXT TRIG+

EXT TRIG-

GND

13.8

30

mm

MEP-543 Connector

(white)

(blue)

42

2.5

17.5

2.5

(brown)

2 1

90°

23

4 3

Input NPN command using MEP-543 Photocell

OUTPUT

DS2400A

C

E

8/11

12/22

USER INTERFACE

+

OUT REF

Vext 40 Vdc max.

Output open collector connections

max = 40 Vdc

CE

max = 40 mA continuous

1 x 45° n° 2

4

.

2

n

°

2

4

Input PNP command using external power

DS2400A

+ 5V

9

18

19

25

VS

EXT TRIG+

EXT TRIG-

GND

EXTERNAL TRIGGER

V

Ground

Input PNP command using DS2400A power

Signal

A

r

A

r

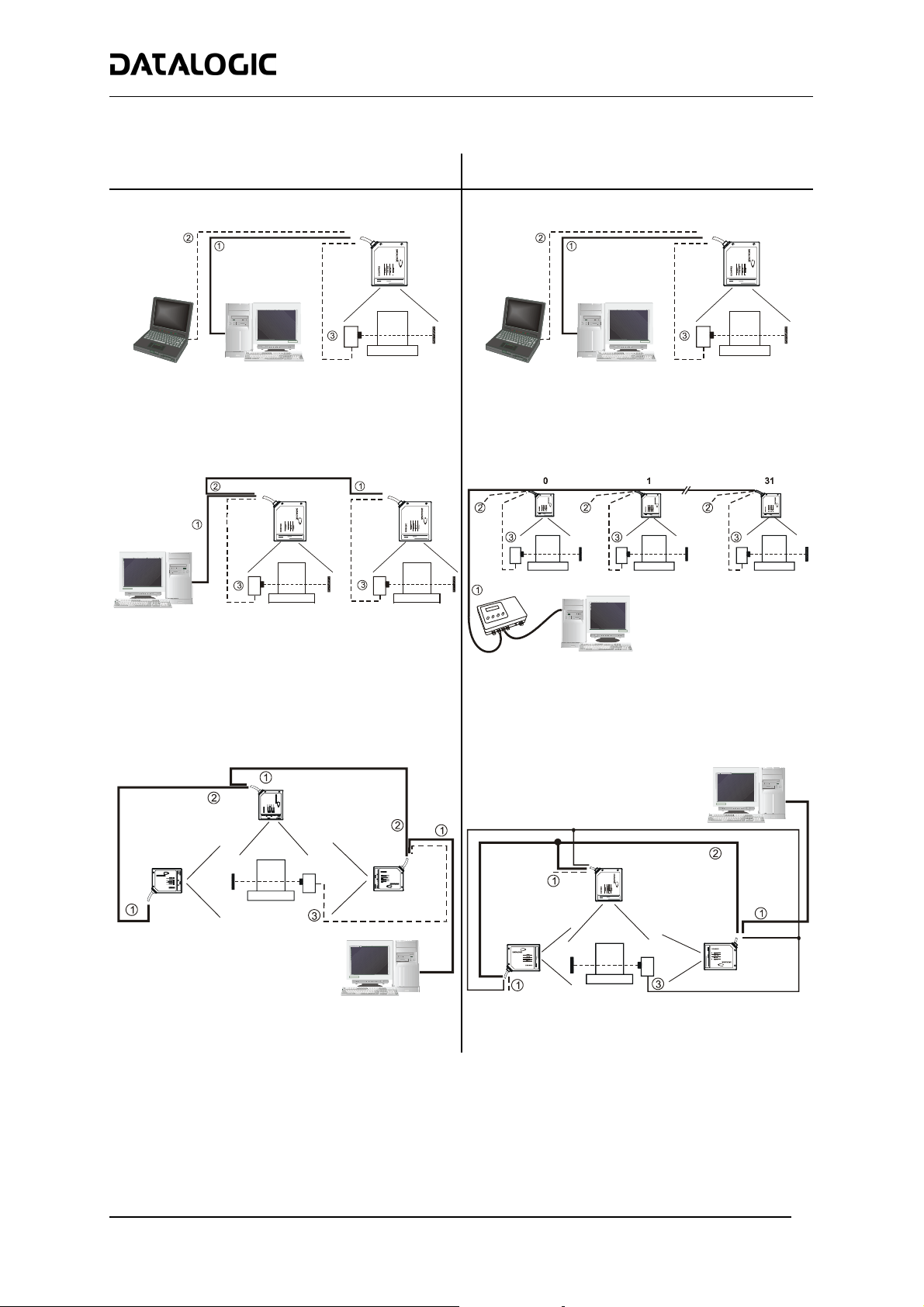

Connectivity:

RS232 Main Interface Connections RS485 Main Interface Connections

RS232 Point-to-point layout RS485 Point-to-point layout

DS2400A QUICK GUIDE

DS2400

Terminal Host

Host

Terminal

c Main Serial Interface (RS232) c Main Serial Interface (RS485 Full Duplex) dAuxiliary Serial Interface (Local Echo) (RS232) dAuxiliary Serial Interface (Local Echo) (RS232) eExternal Trigger (for On-Line Mode) eExternal Trigger (for On-Line Mode)

Pass-through layout Multiplexer layout

DS2400

Host

DS2400

MX4000

Host

c Main Serial Interface (RS232) c Main Serial Interface (RS485 Half-Duplex) dAuxiliary Serial Interface (RS232) dAuxiliary Serial Interface (Local Echo) (RS232) eExternal Trigger (for On-Line Mode) eExternal Trigger (for On-Line Mode)

RS232 Master/slave layout RS485 Master/slave layout

DS2400

DS2400A

Slave

DS2400A

Slave

DS2400A

DS2400

Maste

Host

DS2400

Slave

c Main Serial Interface (Slaves RS232 only) c Auxiliary Serial Interface (RS232) dAuxiliary Serial Interface (RS232) d Main Serial Interface (RS485 Half-Duplex) eExternal Trigger (for On-Line Mode) eExternal Trigger

Host

DS2400

Maste

5

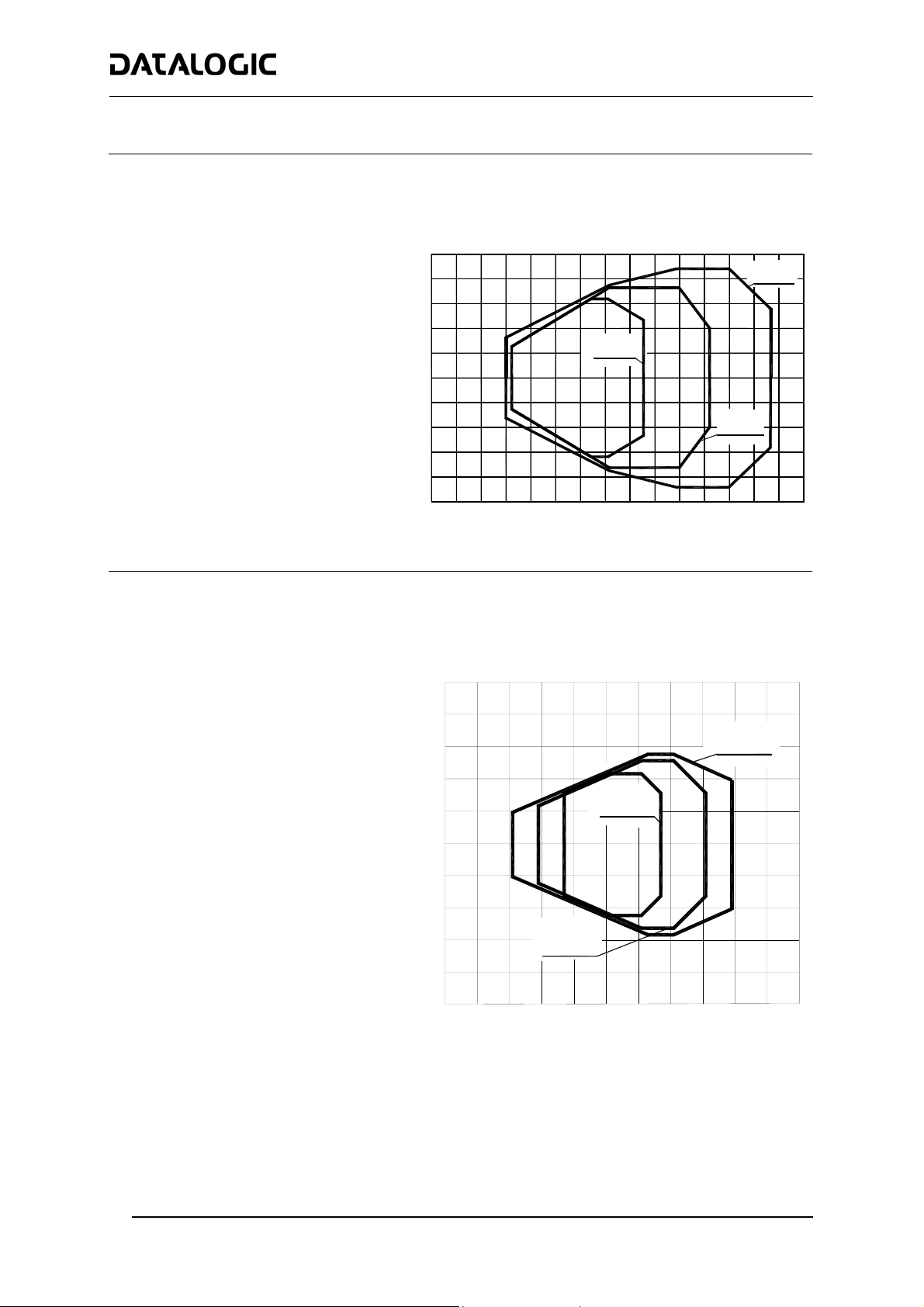

Reading Diagrams:

CONDITIONS

Optic Version = Linear Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° Tilt angle = 0° * Code Resolution = High * Code Reading Condition = Standard * Scanning Speed = Speed_3 (800 scans/s)

* Parameters selectable in WinHost.

DS2400A-1200 (Medium Reading Range)

DS2400A-0200 (Short Reading Range)

2

51015

4

10

7,5

3

5

2

2,5

1

0

2,5

1

5

2

7,5

3

10

4 in

cm

DS2400A QUICK GUIDE

64

8

20 25 30 35 cm

0.20 mm

(8 mils)

10

12

≥0.35 mm

0.25 mm

(10 mils)

14 in

(14 mils)

CONDITIONS

Optic Version = Linear Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° Tilt angle = 0° * Code Resolution:

High – for 0.25 mm (10 mils) codes Std – for 0.35 mm (14 mils) codes and

greater * Code Reading Condition = Standard * Scanning Speed = Speed_3 (800 scans/s)

* Parameters selectable in WinHost.

4128

10 20 30

8

20

6

15

4

10

0.25 mm

2

5

0

5

2

10

4

15

6

20

8

cm

in

0.35 mm

(14 mils)

(10 mils)

16

40 50 cm

≥0.50 mm

(20 mils)

20

6

DS2400A QUICK GUIDE

DS2400A-2200 (Long Reading Range)

CONDITIONS

Optic Version = Linear Code = Interleaved 2/5 or Code 39 PCS = 0.90 Pitch angle = 0° Skew angle = 10° Tilt angle = 0° * Code Resolution:

High – for 0.35 mm (14 mils) codes

Std – for 0.50 mm (20 mils) codes and

greater * Code Reading Condition = Standard * Scanning Speed = Speed_3 (800 scans/s)

* Parameters selectable in WinHost.

48

12

10 20 30 40 50 60 70 cm

8

20

6

15

4

10

2

5

0

5

2

10

4

15

6

20

8

cm

in

16 20

0.35 mm

(14 mils)

≥ 0.50 mm

(20 mils)

24

28 in

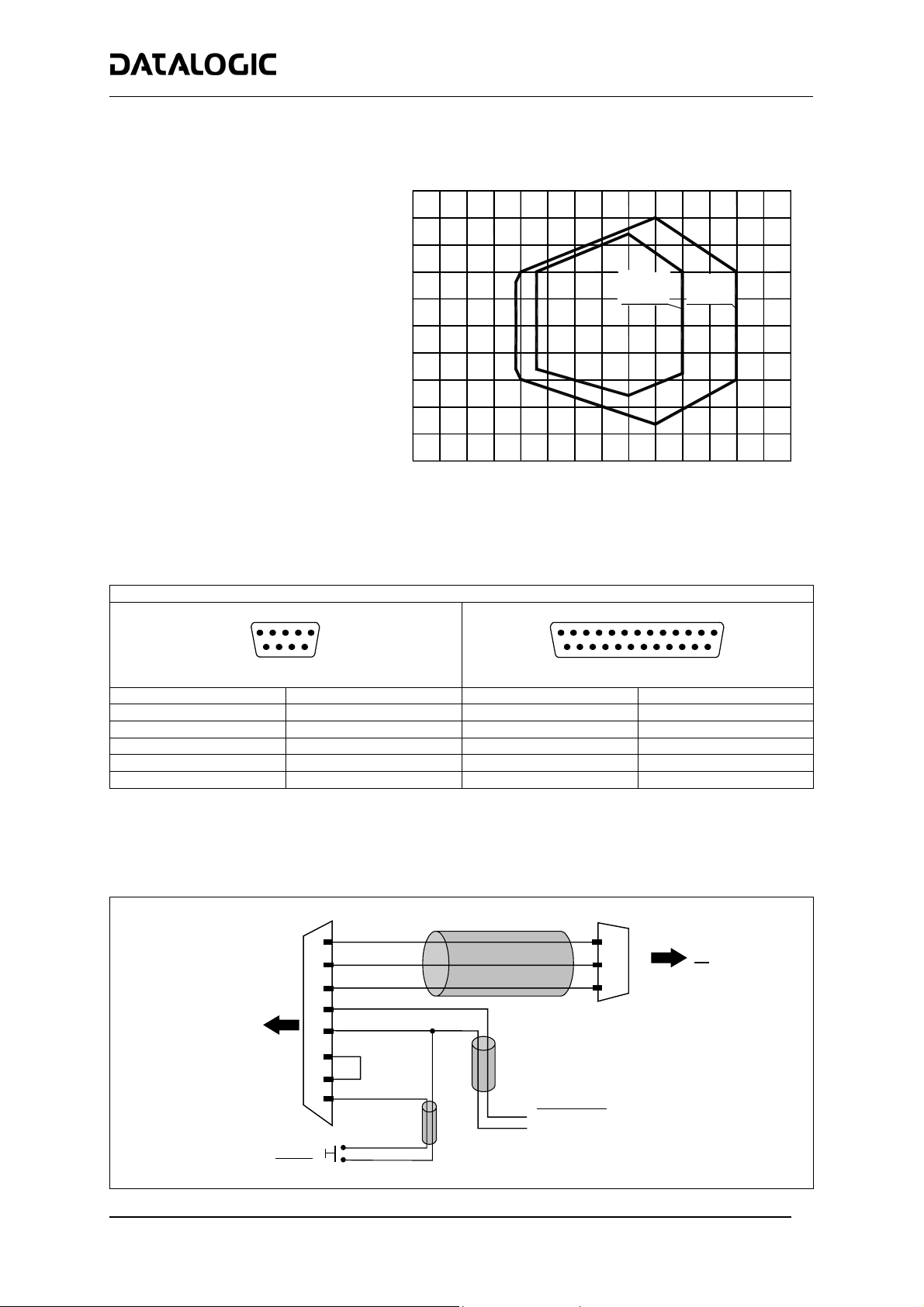

User Interface:

The following table contains the pinout for standard RS232 PC Host interface. For other user interface types please refer to their own manual.

RS232 PC-side connections

1

5

1

13

9 6

9-pin male connector

25-pin male connector

25 14

Pin Name Pin Name

2 RX 3 RX 3 TX 2 TX 5 GND 7 GND 7 RTS 4 RTS 8 CTS 5 CTS

How To Build A Simple Interface Test Cable:

The following wiring diagram shows a simple test cable including power, external (push-button) trigger and PC RS232 COM port connections.

DS2400A

25-pin D-sub male

Trigger

21

20

7

13

25

9

18

TXAUX

RXAUX

SGND

VS

GND

VS

EXT TRIG+

19

EXT TRIG-

Test Cable for DS2400A

9-pin D-sub female

2

3

5

Power Supply

VS (10 – 30 Vdc) Power GND

RX

TX

GND

PC

7
