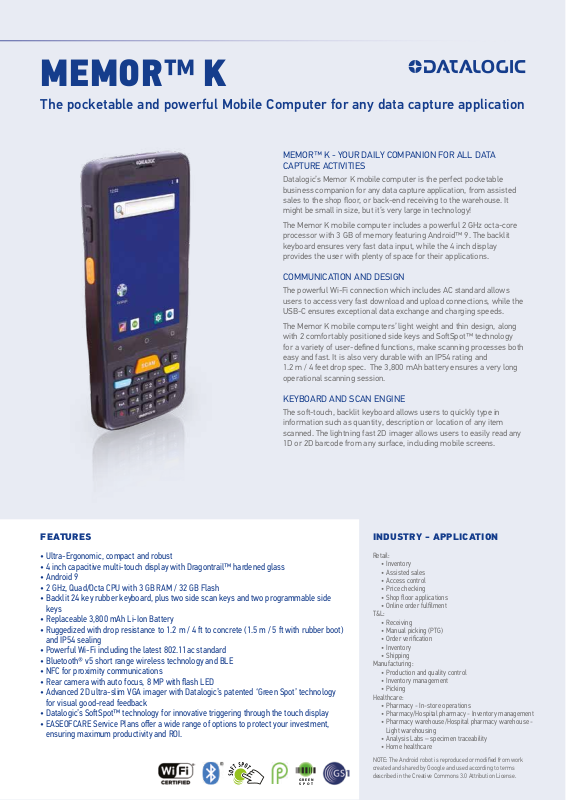

MEMOR™ K
SPOT
The pocketable and powerful Mobile Computer for any data capture application
MEMOR™ K - YOUR DAILY COMPANION FOR ALL DATA
CAPTURE ACTIVITIES
Datalogic’s Memor K mobile computer is the perfect pocketable
business companion for any data capture application, from assisted
sales to the shop floor, or back-end receiving to the warehouse. It
might be small in size, but it’s very large in technology!
The Memor K mobile computer includes a powerful 2 GHz octa-core
processor with 3 GB of memory featuring Android™ 9. The backlit
keyboard ensures very fast data input, while the 4 inch display
provides the user with plenty of space for their applications.
COMMUNICATION AND DESIGN
The powerful Wi-Fi connection which includes AC standard allows
users to access very fast download and upload connections, while the
USB-C ensures exceptional data exchange and charging speeds.
The Memor K mobile computers’ light weight and thin design, along
with 2 comfortably positioned side keys and SoSpot™ technology
for a variety of user-defined functions, make scanning processes both
easy and fast. It is also very durable with an IP54 rating and
1.2 m / 4 feet drop spec. The 3,800 mAh battery ensures a very long
operational scanning session.
KEYBOARD AND SCAN ENGINE
The so-touch, backlit keyboard allows users to quickly type in
information such as quantity, description or location of any item
scanned. The lightning fast 2D imager allows users to easily read any
1D or 2D barcode from any surface, including mobile screens.
FEATURES
• Ultra-Ergonomic, compact and robust
• 4 inch capacitive multi-touch display with Dragontrail™ hardened glass
• Android 9
• 2 GHz, Quad/Octa CPU with 3 GB RAM / 32 GB Flash
• Backlit 24 key rubber keyboard, plus two side scan keys and two programmable side
keys
• Replaceable 3,800 mAh Li-Ion Battery
• Ruggedized with drop resistance to 1.2 m / 4 to concrete (1.5 m / 5 with rubber boot)
and IP54 sealing
• Powerful Wi-Fi including the latest 802.11ac standard
• Bluetooth® v5 short range wireless technology and BLE
• NFC for proximity communications
• Rear camera with auto focus, 8 MP with ash LED
• Advanced 2D ultra-slim VGA imager with Datalogic’s patented ‘Green Spot’ technology
for visual good-read feedback
• Datalogic’s SoSpot™ technology for innovative triggering through the touch display
• EASEOFCARE Service Plans oer a wide range of options to protect your investment,
ensuring maximum productivity and ROI.
GREEN
INDUSTRY - APPLICATION
Retail:
• Inventory
• Assisted sales
• Access control
• Price checking
• Shop oor applications
• Online order fullment
T&L:
• Receiving
• Manual picking (PTG)
• Order verication
• Inventory
• Shipping
Manufacturing:
• Production and quality control
• Inventory management
• Picking
Healthcare:
• Pharmacy - In-store operations
• Pharmacy/Hospital pharmacy - Inventory management
• Pharmacy warehouse/Hospital pharmacy warehouse -
Light warehousing
• Analysis Labs – specimen traceability
• Home healthcare
NOTE: The Android robot is reproduced or modified from work
created and shared by Google and used according to terms
described in the Creative Commons 3.0 Attribution License.
Page 2
MEMOR™ K
TECHNICAL SPECIFICATIONS
WIRELESS COMMUNICATIONS
IEEE 802.11 a/b/g/n/ac/d/e/i/w;
Local Area Network (WLAN)
Personal Area Network
(WPAN)
NFC Communication
Frequency range: Country dependent, typically 2.4 GHz
and 5 GHz bands
Bluetooth wireless technology v5 (Classic Bluetooth
wireless technology and BLE)
Support for the following standards: ISO14443-4 (type-A,
type-B); ISO15693; Mifare; Felica
DECODING CAPABILITY
1D / Linear Codes
2D Codes
Postal Codes
Stacked Codes
Auto discriminates all standard 1D codes including GS1
DataBar™ linear codes.
Aztec Code, Data Matrix, HanXin Code, MaxiCode,
MicroQR Code, QR Code, EAN/JAN Composites, UPC A/E
Composites
Australian Post, Japan Post, British Post; China Post;
IMB, Korea Post, KIX Code, PLANET, POSTNET, Royal
Mail Code (RM4SCC)
Micro-PDF417, MacroPDF, PDF417, GS1 DataBar
Composites, GS1 DataBar Expanded Stacked, GS1
DataBar Stacked, GS1 DataBar Stacked Omnidirectional
ELECTRICAL
Battery
Removable battery pack 3800 mAh with rechargeable
Li-Ion batteries
ENVIRONMENTAL
Withstands 18 drops from 1.2 m / 4 to concrete
according to IEC62-2-32 Method 1.
Drop Resistance
Tumbles
Particulate and Water
Sealing
Temperature
Device with rubber boot: withstands 18 drops from
1.5 m / 5 to concrete according to IEC62-2-32 Method 1
with rubber boot.
Device: exceeds 400 hits at 0.5 m (200 cycle) per IEC
60068-2-32 specification.
Device with rubber boot: exceeds 600 hits at 0.5 m (300
cycle) per IEC 60068-2-32 specification.
IP54
Operating: -20 to 50 ºC / -4 to 122 ºF
Storage/Transport: -30 to 70 ºC / -22 to 158 ºF
INTERFACES
Interfaces
USB-C: High Speed USB 2.0 OTG
SENSORS
Accelerometer
Ambient Light
Proximity
3-Axis accelerometer to detect orientation
Auto adjusts display backlight
Auto deactivates display when close to face
PHYSICAL CHARACTERISTICS
Dimensions
Display
Keys
Weight
16.0 x 7.1 x 1.7 cm / 6.2 x 2.7 x 0.66 in
4 inch WVGA resolution 800 x 480; LED backlight;
Touch Screen: 5 points multi-touch capacitive panel with
Dragontrail hardened glass
Backlighted 24 keys rubber keyboard, plus two side scan
keys and two programmable side keys
With Battery: 268 g / 9.4 oz
READING PERFORMANCE
Camera
Scan Engine
Minimum Element Width
Resolution: 8 MP; Illumination: LED flash; Lens: Auto
focus
2D Ultra slim area imager (supports 1D / 2D codes);
Datalogic’s ‘Green Spot’ for good-read feedback;
Resolution: VGA (640 x 480 pixels)
1D Linear: 0.0762 mm / 4 mils;
PDF417: 0.127 mm / 6.6 mils;
Data Matrix: 0.195 mm / 7.5 mils
SAFETY & REGULATORY
Agency Approvals
Environmental Compliance
The product meets necessary safety and regulatory
approvals for its intended use.
Complies to EU RoHS
SOFTWARE
Applications
Provisioning
Conguration and
Maintenance
Development
MDM
Datalogic’s SoSpot technology for configurable so
triggers
QR Code enrollment
Scan2Deploy Studio, DXU
Java, Cordova and Xamarin SDK available
SOTI MobiControl, VMWare AirWatch, Ivanti Avalanche,
42Gears SureMDM
SYSTEM
Expansion Slots
Memory
Microprocessor
Operating System
Real-Time Clock
Micro-SD card slot: Compatible with Micro SD-HC cards,
up to 64 GB; User-accessible
System RAM: 3 GB; eMMC Flash: 32 GB
2 GHz Octa-core
Android 9
Time and date stamping under software control
WARRANTY
Warranty
1-Year Factory Warranty
ACCESSORIES
Base Stations/Chargers
94A150111 Memor K Single Slot Dock
© 2020 Da talogic S. p.A. and/or it s affiliates . • All right s reserve d. Withou t limiting th e rights u nder copyr ight, no pa rt of this do cumentat ion may be rep roduced , stored in or i ntroduce d into a retri eval syste m, or trans mitted in
any form or by a ny means, o r for any purp ose, witho ut the expre ss writte n permiss ion of Datalo gic S.p.A . and/or its affil iates. • Dat alogic and t he Datalog ic logo are re gistered t rademar ks of Datal ogic S.p.A . in many coun tries,
incl uding the U. S. and the E.U. • M emor is a tradema rk of Datalo gic S.p.A. a nd/or its affil iates, regi stered in ma ny countri es, inclu ding the U.S . and the E.U. • An droid is a tra demark of G oogle Inc. T he Androi d robot is rep roduced
or mod ified from wo rk created a nd shared by G oogle and u sed accord ing to term s describ ed in the Crea tive Comm ons 3.0 Attri bution Lic ense. • The B luetooth wo rd mark and lo gos are own ed by Bluetoo th SIG, Inc. an d any use
of suc h marks by Datalog ic Group com panies is u nder licen se. • All othe r tradema rks and br ands are proper ty of their r especti ve owners • P roduct sp ecificat ions are sub ject to cha nge withou t notice. •
DS-MEMOR-K-EN Rev A 20200729
Miscellaneous
94ACC0312 Memor K Belt Holster
94ACC0313 Memor K Rubber Boot
