Orbital Motor
TMTHW
powersolutions.danfoss.com
Technical Information TMTHW Orbital Motors
Revision history Table of revisions
Date Changed Rev
November 2015 Code number corrected 0101
April 2015 Converted to Danfoss layout BA
August 2013 First version AA
2 L1327341 en-US • Rev 0101 • November 2015
Technical Information
TMTHW Orbital Motors
Contents
A wide range of Orbital Motors
Characteristic, features and application areas of Orbital Motors....................................................................................4
Characteristic features of Danfoss Orbital Motors.......................................................................................................... 4
Technical features of Danfoss Orbital Motor.....................................................................................................................4
The Danfoss Orbital Motors are used in the following application areas:..............................................................5
Survey of literature with technical data on Danfoss Orbital Motors..............................................................................5
Introduction the Orbital Motor Series
T-Series – The Highest Torque.....................................................................................................................................................6
O-Series – The Flexible Choice.....................................................................................................................................................6
V-Series – The Core Solution........................................................................................................................................................ 6
TMTHW features................................................................................................................................................................................6
Speed, torque and output
TMTHW speed, torque and output............................................................................................................................................ 7
Versions and code numbers
TMTHW version and code numbers.......................................................................................................................................... 8
Technical data
Technical data for TMTHW............................................................................................................................................................9
Maximum permissible shaft seal pressure.............................................................................................................................. 9
Pressure drop in motor................................................................................................................................................................ 10
Direction of shaft ...........................................................................................................................................................................11
Permissible shaft load for TMTHW...........................................................................................................................................11
Function diagrams
TMTHW 315......................................................................................................................................................................................12
TMTHW 400......................................................................................................................................................................................13
TMTHW 500......................................................................................................................................................................................13
TMTHW 630......................................................................................................................................................................................14
TMTHW 800......................................................................................................................................................................................14
Technical data
Port thread versions......................................................................................................................................................................15
Manifold............................................................................................................................................................................................ 15
Dimensions
Wheel flange-spigot diameter Ø 180 mm - BC Ø 210 mm..............................................................................................16
Wheel flange-spigot diameter Ø 223.9 mm - BC Ø 265 mm.......................................................................................... 17
L1327341 en-US • Rev 0101 • November 2015 3
Technical Information
TMTHW Orbital Motors
A wide range of Orbital Motors
Characteristic, features and application areas of Orbital Motors
Danfoss is a world leader within production of low speed orbital motors with high torque. We can offer
more than 3,000 different orbital motors, categorised in types, variants and sizes (including different shaft
versions).
The motors vary in size (rated displacement) from 8 cm³ [0.50 in³] to 800 cm³ [48.9 in³] per revolution.
Speeds range up to approximate 2,500 min-1 (rpm) for the smallest type and up to approximate 600 min
(rpm) for the largest type.
Maximum operating torques vary from 13 N•m [115 lbf•in] to 2,700 N•m [24,000 lbf•in] (peak) and
maximum outputs are from 2.0 kW [2.7 hp] to 70 kW [95 hp].
Characteristic features of Danfoss Orbital Motors
Smooth running over the entire speed range
•
Constant operating torque over a wide speed range
•
High starting torque
•
High return pressure without the use of drain line (High pressure shaft seal)
•
High efficiency
•
Long life under extreme operating conditions
•
Robust and compact design
•
High radial and axial bearing capacity
•
For applications in both open and closed loop hydraulic systems
•
Suitable for a wide variety of hydraulics fluids
•
-1
Technical features of Danfoss Orbital Motor
The programme is characterised by technical features appealing to a large number of applications and a
part of the programme is characterised by motors that can be adapted to a given application. Adaptions
comprise the following variants among others:
4 L1327341 en-US • Rev 0101 • November 2015
Technical Information
TMTHW Orbital Motors
A wide range of Orbital Motors
•
•
•
•
•
•
•
•
•
•
•
•
•
The Danfoss Orbital Motors are used in the following application areas:
•
•
•
•
•
•
•
•
Motors with corrosion resistant parts
Wheel motors with recessed mounting flange
OMP, OMR- motors with needle bearing
OMR motor in low leakage version
OMR motors in a super low leakage version
Short motors without bearings
Ultra short motors
Motors with integrated positive holding brake
Motors with integrated negative holding brake
Motors with integrated flushing valve
Motors with speed sensor
Motors with tacho connection
All motors are available with black finish paint
Construction equipment
Agricultural equipment
Material handling & Lifting equipment
Forestry equipment
Lawn and turf equipment
Special purpose
Machine tools and stationary equipment
Marine equipment
Survey of literature with technical data on Danfoss Orbital Motors
Detailed data on all Danfoss Orbital Motors can be found in our motor catalogue, which is divided into
more individual subcatalogues:
General information on Danfoss Orbital Motors: function, use, selection of orbital motor, hydraulic
•
systems, etc.
Technical data on small motors: OML and OMM
•
Technical data on medium sized motors: OMP, OMR, OMH
•
Technical data on medium sized motors: DH and DS
•
Technical data on medium sized motors: OMEW
•
Technical data on medium sized motors: VMP
•
Technical data on medium sized motors: VMR
•
Technical data on large motors: OMS, OMT and OMV
•
Technical data on large motors: TMK
•
Technical data on large motors: TMT
•
Technical data on large motors: TMTHW
•
Technical data on large motors: TMVW
•
A general survey brochure on Danfoss Orbital Motors gives a quick motor reference based on power,
torque, speed and capabilities.
L1327341 en-US • Rev 0101 • November 2015 5
Technical Information
TMTHW Orbital Motors
Introduction the Orbital Motor Series
By introducing the TMTHW, Danfoss is introducing the first Orbital Motor of a new Series. In order to meet
the demands for motors that have the right duty cycle and efficiency capabilities for a given function.
Danfoss now has 3 Orbital Motor Series:
T-Series – The Highest Torque
Leading performance with a long lifetime makes light work of the heaviest duties. Offering pressure
capability up to 350 bar [5076 psi] and high starting torque, the T-Series is the energy-efficient choice for
the toughest working environments.
O-Series – The Flexible Choice
The O-Series is flexible beyond compare. Delivering premium power across the board, these motors
cover small to large, medium to heavy-duty needs with pressure capability up to 275 bar [3990 psi].
Robust, reliable and designed to fulfill the latest emissions standards.
V-Series – The Core Solution
The V-Series is your quality benchmark in the medium duty market. Based on proven technology, these
reliable motors will reduce your overall system costs while adding value to your machine. Perfect for
many tasks.
TMTHW features
Robust bearing design
•
Not sensitive towards return pressure
•
Extra patented sealing design
•
High pressure rating
•
Excellent performance / weight
•
Designed based on decades of experience with orbital motor-technology
•
6 L1327341 en-US • Rev 0101 • November 2015
P301 810
1
2
min
-1
(rpm)
0
100
200
300
400
500
600
315 400 500 630 800
P301 811
1
2
lbf•in Nm
35 000
30 000
25 000
20 000
15 000
10 000
5 000
0
0
500
1000
1500
2000
2500
3000
3500
4000
315 400 500 630 800
P301 812
1
2
hp kW
90
80
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
315 400 500 630 800
Technical Information
TMTHW Orbital Motors
Speed, torque and output
The following bar diagrams, are useful for a quick selection of relevant motor size for the application. The
final motor size can be determined by using the Function diagrams on page 12.
The function diagrams are based on actual tests on a representative number of motors from our
production. The diagrams apply to a return pressure between 5 and 10 bar [75 and 150 psi] when using
mineral based hydraulic oil with a viscosity of 35 mm2/s [165 SUS] and a temperature of 50°C [120°F]. For
further explanation concerning how to read and use the function diagrams, please consult the paragraph
"Selection of motor size" in the technical information "General" 520L0232.
TMTHW speed, torque and output
The bar diagrams shown are useful for a quick selection of relevant motor size for the application.
1. Intermittend values
2. Continuous values
Maximum speed
Maximum torque
Maximum output
L1327341 en-US • Rev 0101 • November 2015 7
Technical Information TMTHW Orbital Motors
Versions and code numbers
TMTHW version and code numbers
TMTHW standard motor
Mounting flange: Wheel
Spigot
diamer
Bolt circle
diameter
Shaft Port size Port Style Drain Port
Thread hole
Fl.
Code numbers TMTHW wheel flange
Conf. code Displacement
A1 11137330 11137331 11137342 11053388 11125392
Ø180 mm [7.09 in]
Ø210 mm [8.27 in]
size
G 3/4 Side port G 1/4 X X X No TMTHW A1
315 400 500 630 800
Standard
shaft seal
Metric
version
Painted
black
Check valve Main type
designation
Conf. code
Mounting flange: Wheel
Spigot
diamer
Bolt circle
diameter
Shaft Port size Port Style Drain port
Thread hole
Fl.
Ø224 mm [8.82 in]
Ø265 mm [10.4 in]
size
G 3/4 Side port G 1/4 X X X No TMTHW B1
Standard
shaft seal
Metric
version
Painted
black
Check valve Main type
designation
Code numbers TMTHW wheel flange
Conf. code Displacement
315 400 500 630 800
B1 - 11089435 11089438 11089439 11089440
Conf. code
8 L1327341 en-US • Rev 0101 • November 2015
Technical Information
TMTHW Orbital Motors
Technical data
Technical data for TMTHW
Type TMTHW TMTHW TMTHW TMTHW TMTHW
Motor size 315 400 500 630 800
Geometric
displacement
Maximum speed min
Maximum torque N•m
Maximum
output
Maximum
pressure drop
Maximum oil
flow
Max. starting
pressure with
unloaded shaft
Minimum
starting torque
1)
Intermittent operation: the permissible values may occur for max. 10% of every minute
3
cm
[in3]
-1
[rpm]
[lbf•in]
kW
[hp]
bar
[psi]
l/min
[US gal/min]
bar
[psi]
N•m
[lbf•in]
cont.
1)
int.
cont.
1)
int.
cont.
1)
int.
cont.
1)
int.
cont.
1)
int.
at max. press.
drop cont.:
at max. press.
drop int.1):
314.9
[19.2]
393.1
[24.0]
495
[32.2]
630.7
[38.5]
802.2
[49.0]
490 450 400 315 240
580 590 480 370 290
1300
[11 500]
1510
[13 365]
1690
[14 960]
1950
[17 260]
2200
[19 470]
2550
[22 570]
2510
[22 215]
3220
[28 500]
2650
[23 450]
3510
[31 065]
50 [67] 55 [74] 55 [74] 50 [67] 50 [67]
55 [74] 60 [80] 65 [87] 60 [80] 60 [80]
300 [4350] 300 [4350] 300 [4350] 275 [3990] 225 [3260]
350 [5075] 350 [5075] 350 [5075] 350 [5075] 300 [4350]
150 [39.6] 180 [47.6] 200 [52.8] 200 [52.8] 200 [52.8]
180 [47.6] 240 [63.4] 240 [63.4] 240 [63.4] 240 [63.4]
6 [87] 6 [87] 6 [87] 6 [87] 5 [72]
910
[8055]
1060
[9380]
1185
[10490]
1365
[12080]
1540
[13630]
1785
[15800]
1730
[15310]
2255
[19960]
1855
[16420]
2460
[21770]
Type Maximum inlet pressure Maximum return pressure
with drain line
TMTHW 315-800 bar
[psi]
1)
Intermittend operation: the permissible values may occur for max. 10% of every minute
Cont.
Int.
300 [4350] 140 [2031]
1)
380 [5510] 175 [2538]
Oil flow in drain line
The table below shows the maximum oil flow in the drain line at a return pressure less than 5-10 bar
[75-150 psi].
Pressure drop Viscosity Oil flow in drain line
bar [psi] mm2/s [SUS] l/min [US gal/min]
200 [2900] 20 [100] 2.5 [0.66]
35 [165] 1.5 [0.4]
275 [3990] 20 [100] 4.0 [1.1]
35 [165] 2.5 [0.66]
Maximum permissible shaft seal pressure
TMTHW with standard shaft seal and drain connection. The pressure on shaft seal equals the pressure in
the drain line.
L1327341 en-US • Rev 0101 • November 2015 9
151-1673.10
0 100 200 300 400 500 600 max.
1500
1200
900
600
300
0
100
90
80
70
60
50
40
30
20
10
0
psi bar
P P
min
-1
(rpm)
45
40
35
30
25
20
15
10
5
0
250 50 75 100 125 150 175 200
TMTHW Pressure drop in motor
l/min
US gal/min
P301 556
Q
1
2
Q
psi bar
∆p ∆p
650
600
550
500
450
400
350
300
250
200
150
100
50
0
0 5 10 15 20 25 30 35 40 45 50
Technical Information
Technical data
TMTHW Orbital Motors
- - - - Intermittent operation: The permissible values may occur for maximum 10% of every minute.
____ Continuous operation
Drain line should always be used.
Pressure drop in motor
10 L1327341 en-US • Rev 0101 • November 2015
The curve applies to an unloaded motor shaft and an oil viscosity of 35 mm2/s [165 SUS].
1. TMTHW 315
2. TMTHW 400, 500, 630 and 800
0
20 000
40 000
60 000
80 000
100 000
120 000
140 000
-20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120
- 0 +
30 000
24 000
18 000
12 000
6 000
0
P
rad.
[lbf]
P
rad.
N
P301 559
mm
[in]
-1.0 -0.5 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
Technical Information
TMTHW Orbital Motors
Technical data
Direction of shaft
Permissible shaft load for TMTHW
Permissible radial shaft load
The output shaft runs in tapered roller bearings that permit high axial and radial forces.
The permissible radial load on the shaft is shown for an axial load of 0 N as a function of the distance from
the mounting flange to the point of load application.
The curve is based on B10 Bearing life (2000 hours or 12 000 000 shaft revolutions at 100 min 1) at rated
output torque, when mineral-based hydraulic oil with a sufficient content of anti-wear additives, is used.
L1327341 en-US • Rev 0101 • November 2015 11
0
250
500
750
1000
1250
1500
1750
0
5 000
10 000
15 000
VMP 50
lbf•in
Nm
0 50 100 150 200 250 300 350 400 450 500 550 600
P301 551
min
-1
(rpm)
100 l/min
[26.4 US gal/min]
125 l/min
[33.0 US gal/min]
150 l/min
[39.6 US gal/min]
180 l/min
[47.6 US gal/min]
Q = 10 l/min
[2.6 US gal/min]
20 l/min
[5.3 US gal/min]
40 l/min
[10.6 US gal/min]
60 l/min
[15.9 US gal/min]
80 l/min
[21.1 US gal/min]
325 bar
[4713 psi]
300 bar
[4351 psi]
250 bar
[3625 psi]
275 bar
[3988 psi]
225 bar
[3263 psi]
200 bar
[2900 psi]
120 bar
[1740 psi]
160 bar
[2320 psi]
80 bar
[1160 psi]
∆ p= 350 bar
[5076 psi]
75%
20kW
30kW
40kW
50kW
60kW
75kW
η
t
=80%
η
t
=60%
70%
N=2.5kW
10kW
5kW
40 bar
[580 psi]

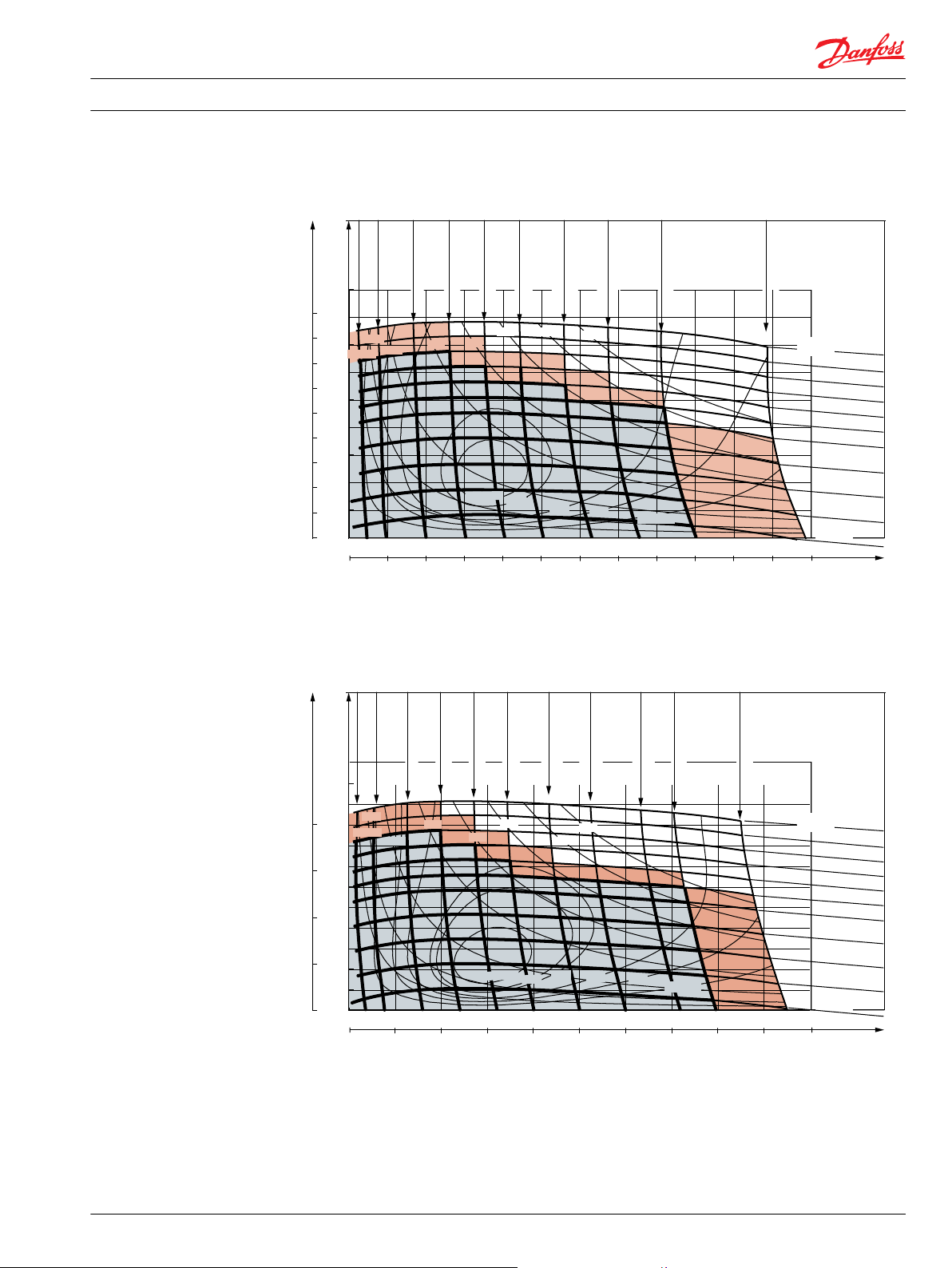

Technical Information TMTHW Orbital Motors
Function diagrams
Explanation of function diagram use, basis and conditions can be found under Speed and torque Speed
and torque
[blue] Continuous range
[pink] Intermittent range (max. 10% operation every minute)
Intermittent pressure drop and oil flow must not occur simultaneously.
TMTHW 315
12 L1327341 en-US • Rev 0101 • November 2015
0
250
500
750
1000
1250
1500
1750
2000
2250
0
2 000
4 000
6 000
8 000
10 000
12 000
14 000
16 000
18 000
VMP 50
lbf•in
Nm
0 50 100 150 200 250 300 350 400 450 500 550 600
P301 552
min
-1
(rpm)
100 l/min
[26.4 US gal/min]
125 l/min
[33.0 US gal/min]
150 l/min
[39.6 US gal/min]
180 l/min
[47.6 US gal/min]
Q = 10 l/min
[2.6 US gal/min]
20 l/min
[5.3 US gal/min]
40 l/min
[10.6 US gal/min]
60 l/min
[15.9 US gal/min]
80 l/min
[21.1 US gal/min]
325 bar
[4713 psi]
300 bar
[4351 psi]
250 bar
[3625 psi]
275 bar
[3988 psi]
225 bar
[3263 psi]
200 bar
[2900 psi]
120 bar
[1740 psi]
160 bar
[2320 psi]
80 bar
[1160 psi]
75%
20kW
30kW
40kW
50kW
60kW
80%
η
t
=81%
η
t
=60%
70%
N=2.5kW
10kW
5kW
240 l/min
[63.4 US gal/min]
40 bar
[580 psi]
∆ p= 350 bar
[5076 psi]
0
0
250
500
750
1000
1250
1500
1750
2000
2250
2500
2750
0
5 000
10 000
15 000
20 000
VMP 50
lbf•in
Nm
0 50 100 150 200 250 300 350 400 450 500
P301 553
min
-1
(rpm)
100 l/min
[26.4 US gal/min]
125 l/min
[33.0 US gal/min]
150 l/min
[39.6 US gal/min]
200 l/min
[52.8 US gal/min]
Q = 10 l/min
[2.6 US gal/min]
20 l/min
[5.3 US gal/min]
40 l/min
[10.6 US gal/min]
60 l/min
[15.9 US gal/min]
80 l/min
[21.1 US gal/min]
325 bar
[4713 psi]
300 bar
[4351 psi]
250 bar
[3625 psi]
275 bar
[3988 psi]
225 bar
[3263 psi]
200 bar
[2900 psi]
120 bar
[1740 psi]
160 bar
[2320 psi]
80 bar
[1160 psi]
80%
20kW
30kW
40kW
50kW
60kW
81%
η
t
=83%
η
t
=60%
70%
75%
N=2.5kW
10kW
5kW
240 l/min
[63.4 US gal/min]
180 l/min
[47.6 US gal/min]
40 bar
[580 psi]
∆ p= 350 bar
[5076 psi]

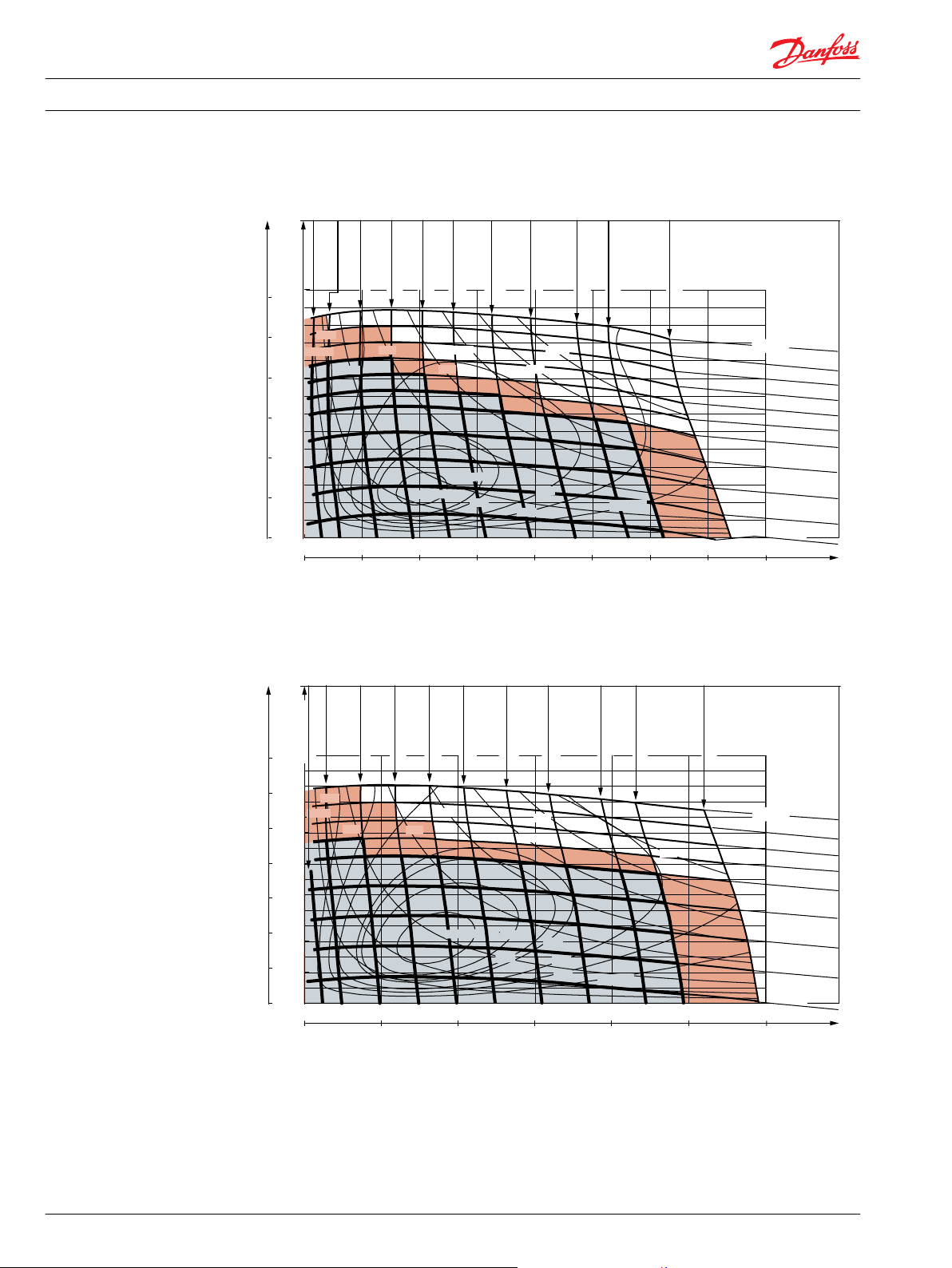

Technical Information
Function diagrams
TMTHW 400
TMTHW Orbital Motors
TMTHW 500
L1327341 en-US • Rev 0101 • November 2015 13
0
250
500
750
1000
1250
1500
1750
2000
2250
2500
2750
3000
3250
3500
0
5 000
10 000
15 000
20 000
25 000
30 000
VMP 50
lbf•in
Nm
0 50 100 150 200 250 300 350 400
P301 554
min
-1
(rpm)
100 l/min
[26.4 US gal/min]
125 l/min
[33.0 US gal/min]
150 l/min
[39.6 US gal/min]
200 l/min
[52.8 US gal/min]
Q = 10 l/min
[2.6 US gal/min]
20 l/min
[5.3 US gal/min]
40 l/min
[10.6 US gal/min]
60 l/min
[15.9 US gal/min]
80 l/min
[21.1 US gal/min]
325 bar
[4713 psi]
300 bar
[4351 psi]
250 bar
[3625 psi]
275 bar
[3988 psi]
225 bar
[3263 psi]
200 bar
[2900 psi]
120 bar
[1740 psi]
160 bar
[2320 psi]
80 bar
[1160 psi]
80%
20kW
30kW
40kW
50kW
60kW
81%
η
t
=83%
η
t
=60%
70%
75%
N=2.5kW
10kW
5kW
240 l/min
[63.4 US gal/min]
180 l/min
[47.6 US gal/min]
40 bar
[580 psi]
∆ p= 350 bar
[5076 psi]
0
250
500
750
1000
1250
1500
1750
2000
2250
2500
2750
3000
3250
3500
3750
4000
0
5 000
10 000
15 000
20 000
25 000
30 000
35 000
VMP 50
lbf•in
Nm
0 50 100 150 200 250 300
P301 555
min
-1
(rpm)
100 l/min
[26.4 US gal/min]
125 l/min
[33.0 US gal/min]
150 l/min
[39.6 US gal/min]
200 l/min
[52.8 US gal/min]
20 l/min
[5.3 US gal/min]
40 l/min
[10.6 US gal/min]
60 l/min
[15.9 US gal/min]
80 l/min
[21.1 US gal/min]
250 bar
[3625 psi]
275 bar
[3988 psi]
225 bar
[3263 psi]
200 bar
[2900 psi]
120 bar
[1740 psi]
160 bar
[2320 psi]
80 bar
[1160 psi]
80%
20kW
30kW
40kW
50kW
60kW
81%
83%
η
t
=85%
η
t
=60%
70%
75%
N=2.5kW
10kW
5kW
240 l/min
[63.4 US gal/min]
180 l/min
[47.6 US gal/min]
40 bar
[580 psi]
∆ p= 300 bar
[4351 psi]
10 l/min
[2.6 US gal/min]
Technical Information
Function diagrams
TMTHW 630
TMTHW Orbital Motors
TMTHW 800
14 L1327341 en-US • Rev 0101 • November 2015
A
E
P301 561_AE
min. 18 [0.71]
C
G
P301 561_CG
min. 12 [0.47]
L3
15.6[0.64]
15.6[0.64]
15.6[0.64]
15.6[0.64]
14.5[0.57]
7.25[0.29] 11.0[0.43]
19.6[0.77] 19.6[0.77]42[1.65] 42[1.65]
P301 566
Technical Information TMTHW Orbital Motors
Technical data
Port thread versions
Manifold
A: G Main port
E: ISO 228/1 – G 3/4
C: G Drain port
G: ISO 228/1 – G 1/4
L3: Dimentional for given TMTHW-motor see: Dimensions on page 16.
L1327341 en-US • Rev 0101 • November 2015 15
5x 72°
Ø140[5.51]
10x Ø14.2[0.56]
max 242.4[9.54]
max 195.4[7.69]
15°
15°
Ø210[8.27]
15°
15°
Ø172[6.77]
Ø92.7[3.65]
Ø92.9[3.66]
max 146[5.75]
Ø180.0 [7.09]
Ø179.8 [7.08]
7[0.28]
12[0.47]
11.7[0.46]
18[0.71]
7.2[0.28]
124.15[4.888]
84[3.31]
L
max
L
1
L
2
L
3
F
C
D
E
P301 565
Not painted
Not painted
Technical Information TMTHW Orbital Motors
Dimensions
Wheel flange-spigot diameter Ø 180 mm - BC Ø 210 mm
C: G 3/4; 17 mm [0.66 in] deep
D: Drain connection G 1/4; 12 mm [0.47 in] deep
E: M10; 17 mm [0.66 in] deep
F: M14 × 1.5
Size
Weight
Output shaft
Mounting flange
315-800 cm
3
34-38 kg
F180/5xM14 BC ø140/PD.ø92.8
Wheel 10x ø14 BC ø210/PD ø180
16 L1327341 en-US • Rev 0101 • November 2015
C
F
E
D
Not painted
Not painted
Ø265.0[10.43]
8xØ17.6[0.69]
max 310.3[9.54]
5.0[0.20]
23.0[0.91]
5.0[0.20]
max 146[5.75]
Ø223.8[8.81]
Ø224.0[8.82]
Ø200[7.87]
Ø129.7[5.16]
Ø129.9[5.11]
138.7[5.46]
16[0.63]
6[0.24]
20°
20°
20°
ø170.0[6.69]
84[3.31]
max 238.0[9.37]
L
max
L
1
L
2
L
3
6x60°
Technical Information TMTHW Orbital Motors
Dimensions
TMTHW dimensions
Size
315-800 cm
TMTHW 315 135.1 [5.33] 117.1 [4.61] 106.1 [4.18] 91.6 [3.61] 33.7 [74.30]
TMTHW 400 143.3 [5.64] 125.1 [4.93] 114.1 [4.49] 99.6 [3.92] 34.8 [76.72]
TMTHW 500 153.8 [6.06] 135.6 [5.34] 124.6 [4.91] 110.1 [4.33] 35.7 [78.70]
TMTHW 630 167.8 [6.61] 149.6 [5.89] 138.6 [5.46] 124.1 [4.89] 37.2 [82.01]
TMTHW 800 167.8 [6.61] 149.6 [5.89] 138.6 [5.46] 124.1 [4.89] 37.2 [82.01]
Wheel flange-spigot diameter Ø 223.9 mm - BC Ø 265 mm
L
MAX
3
mm [in] mm [in] mm [in] mm [in] kg [lb]
L
1
L
2
L
3
Weight
L1327341 en-US • Rev 0101 • November 2015 17
Technical Information TMTHW Orbital Motors
Dimensions
C: G 3/4; 17 mm [0.66 in] deep
D: Drain connection G 1/4; 12 mm [0.47 in] deep
E: M10; 17 mm [0.66 in] deep
F: M16 × 1.5
Size
Weight
Output shaft
Mounting flange
400-800 cm
42.1-44.5 kg
F200/6xM16 BC ø170/PD.ø130
Wheel 8x ø17.5 BC ø265/PD ø224
3
TMTHW dimensions
Size
400-800 cm
TMTHW 400 139 [5.47] 120.8 [4.76] 109.8 [4.32] 95.3 [3.75] 42.1 [92.81]
TMTHW 500 147.6 [5.81] 129.4 [5.09] 118.4 [4.66] 103.9 [4.09] 43.0 [94.80]
TMTHW 630 161.6 [6.36] 143.4 [5.65] 132.4 [5.21] 117.9 [4.64] 44.5 [98.11]
TMTHW 800 161.6 [6.36] 143.4 [5.65] 132.4 [5.21] 117.9 [4.64] 44.5 [98.11]
L
MAX
3
L
1
L
2
L
3
mm [in] mm [in] mm [in] mm [in] kg [lb]
Weight
18 L1327341 en-US • Rev 0101 • November 2015
Technical Information TMTHW Orbital Motors
L1327341 en-US • Rev 0101 • November 2015 19
Danfoss
Power Solutions GmbH & Co. OHG
Krokamp 35
D-24539 Neumünster, Germany
Phone: +49 4321 871 0
Danfoss
Power Solutions ApS
Nordborgvej 81
DK-6430 Nordborg, Denmark
Phone: +45 7488 2222
Danfoss
Power Solutions (US) Company
2800 East 13th Street
Ames, IA 50010, USA
Phone: +1 515 239 6000
Danfoss
Power Solutions Trading
(Shanghai) Co., Ltd.
Building #22, No. 1000 Jin Hai Rd
Jin Qiao, Pudong New District
Shanghai, China 201206
Phone: +86 21 3418 5200
Products we offer:
Comatrol
www.comatrol.com
Schwarzmüller-Inverter
www.schwarzmuellerinverter.com
Turolla
www.turollaocg.com
Hydro-Gear
www.hydro-gear.com
Daikin-Sauer-Danfoss
www.daikin-sauer-danfoss.com
Bent Axis Motors
•
Closed Circuit Axial Piston
•
Pumps and Motors
Displays
•
Electrohydraulic Power
•
Steering
Electrohydraulics
•
Hydraulic Power Steering
•
Integrated Systems
•
Joysticks and Control
•
Handles
Microcontrollers and
•
Software
Open Circuit Axial Piston
•
Pumps
Orbital Motors
•
PLUS+1® GUIDE
•
Proportional Valves
•
Sensors
•
Steering
•
Transit Mixer Drives
•
Danfoss Power Solutions is a global manufacturer and supplier of high-quality hydraulic and
electronic components. We specialize in providing state-of-the-art technology and solutions
that excel in the harsh operating conditions of the mobile off-highway market. Building on
our extensive applications expertise, we work closely with our customers to ensure
exceptional performance for a broad range of off-highway vehicles.
We help OEMs around the world speed up system development, reduce costs and bring
vehicles to market faster.
Danfoss – Your Strongest Partner in Mobile Hydraulics.
Go to www.powersolutions.danfoss.com for further product information.
Wherever off-highway vehicles are at work, so is Danfoss. We offer expert worldwide support
for our customers, ensuring the best possible solutions for outstanding performance. And
with an extensive network of Global Service Partners, we also provide comprehensive global
service for all of our components.
Please contact the Danfoss Power Solution representative nearest you.
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to
products already on order provided that such alterations can be made without changes being necessary in specifications already agreed.
All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
L1327341 en-US • Rev 0101 • November 2015 www.danfoss.com
Local address:
©
Danfoss A/S, 2015
Loading...
