S7_PVE_DI Function Block
This function block reports feedback from the valve about whether the Port A or Port B side of the valve is
open, which serves as a direction indicator.
Inputs
Inputs to the function block are described.
Item Type Range Description
Pin_A BOOL —— Digital input from the valve actuator to indicate if the valve is in Dir_A position.
Pin_B
BOOL
——
Outputs
The output of the function block is described.
Item Type Description
Dir S8 -1—Valve is in A direction.
0—Valve in in Neutral.
1—Valve is in B direction.
127—Error
Digital input from the valve actuator to indicate if the valve is in Dir_B position.
MC Controller Configurations
Configure inputs and outputs on your controller so they are compatible with the signals of your function
block.
This function block:
•
Receives some of its input signals through your controller's inputs.
•
Outputs some of its output signals through your controller's outputs.
You must configure the inputs and outputs on your controller to be compatible with these signals.
Input Configuations
Function Block Input Compatible Controller Input Type Controller Input Configuration Action
Error_Pin MFIn Delete the PinConfig0 route.
DigAn Delete the PinConfig0 route.
Fdbk MFOut
*
Inside the Inputs page; outputs a Status bus that reports the state of a corresponding MFOut inside the Outputs page.
*
Pair with the MFOut used by the function block's
Output.
Output Configurations
Function Block Output Compatible Controller Output Type Controller Output Configuration Action
Supply MFOut Delete the DigOut route.
DigOut
Output MFOut Delete the:
Delete the DigOut route.
•
OutputValue route.
•
PinConfig route.
4 | © Danfoss | January 2018 AQ00000244enUS0101
User Manual
PLUS+1® Compliant S7 PVE DI Function Block
S7_PVE_DI Function Block
Configure a DigAn for the Error_Pin Input
Configure the DigAn so that it can accept the input signal from the Error_Pin.
1. In the GUIDE template, enter the Inputs page.
2. Enter the DigAn that receives the input signal.
3. Make the changes that are shown in the following figure.
©
Danfoss | January 2018 AQ00000244enUS0101 | 5
User Manual
PLUS+1® Compliant S7 PVE DI Function Block
S7_PVE_DI Function Block
Configure an MFIn for the Error_Pin Input
Configure the digital input from the valve actuator that notifies the block that an error has occurred in
the valve actuator.
1. In the GUIDE template, enter the Inputs page.
2. Enter the MFIn that receives the input signal.
3. Make the changes that are shown in the following figure.
6 | © Danfoss | January 2018 AQ00000244enUS0101
User Manual
PLUS+1® Compliant S7 PVE DI Function Block
S7_PVE_DI Function Block
Configure a DigOut for the Supply Output
Configure the digital output signal for the PVE power supply.
1. In the GUIDE template, enter the Outputs block.
2. Enter the DigOut that receives the function block’s output signal.
3. Make the changes that are shown in the following figure.
©
Danfoss | January 2018 AQ00000244enUS0101 | 7
User Manual
PLUS+1® Compliant S7 PVE DI Function Block
S7_PVE_DI Function Block
Configure an MFOut for the Supply Output
Configure the MFOut to accept the output signal for PVE power.
1. In the GUIDE template, enter the Outputs page.
2. Enter the MFOut that receives the function block’s output.
3. Make the changes that are shown in the following figure.
8 | © Danfoss | January 2018 AQ00000244enUS0101
User Manual
PLUS+1® Compliant S7 PVE DI Function Block
S7_PVE_DI Function Block
Configure an MFOut for the Block's Output
Configure the block to accept output signals that match those of an Output pin that drives the valve.
1. In the GUIDE template, enter the Outputs page.
2. Enter the MFOut that receives the function block’s output signal.

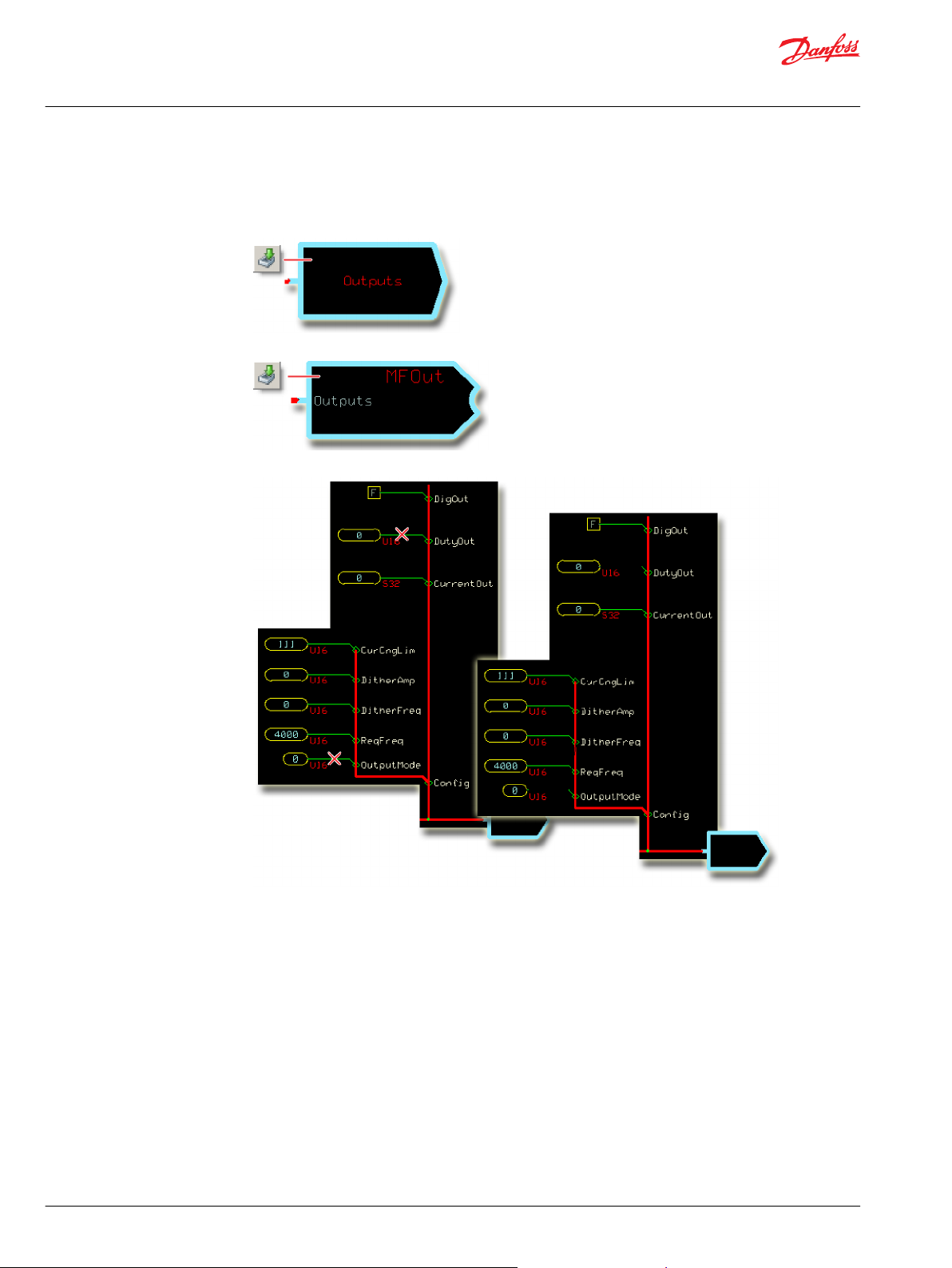

3. Make the changes that are shown in the following figure.
SC Controller Configurations
Configure inputs and outputs on your controller so they are compatible with the signals of your function
block.
This function block:
•
Receives some of its input signals through your controller's inputs.
•
Outputs some of its output signals through your controller's outputs.
You must configure the inputs and outputs on your controller to be compatible with these signals.
©
Danfoss | January 2018 AQ00000244enUS0101 | 9
User Manual
PLUS+1® Compliant S7 PVE DI Function Block
S7_PVE_DI Function Block
Configure a DigAn for the Error_Pin Input
Configure the DigAn to accept input from the valve actuator to notify the block that an error has
occurred in the valve actuator.
1. In the GUIDE template, enter the Inputs page.
2. Enter the DigAn that receives the input signal.
3. Make the changes that are shown in the following figure.
10 | © Danfoss | January 2018 AQ00000244enUS0101
User Manual
PLUS+1® Compliant S7 PVE DI Function Block
S7_PVE_DI Function Block
Configure an MFIn for the Error_Pin Input
Configure the MFIn to accept digital input from the valve actuator to notify the block that an error has
occurred in the valve actuator.
1. In the GUIDE template, enter the Inputs page.
2. Enter the MFIn that receives the input signal.
3. Make the changes that are shown in the following figure.
©
Danfoss | January 2018 AQ00000244enUS0101 | 11
User Manual
PLUS+1® Compliant S7 PVE DI Function Block
S7_PVE_DI Function Block
Configure a DigOut for the Supply Output
Configure the digital output signal for the PVE power supply.
1. In the GUIDE template, enter the Outputs block.
2. Enter the DigOut that receives the function block’s output signal.
3. Make the changes that are shown in the following figure.
12 | © Danfoss | January 2018 AQ00000244enUS0101
User Manual
PLUS+1® Compliant S7 PVE DI Function Block
S7_PVE_DI Function Block
Configure an MFOut for the Supply Output
Configure the MFOut to accept the output signal for PVE power.
1. In the GUIDE template, enter the Outputs page.
2. Enter the MFOut that receives the function block’s output signal.
3. Make the changes that are shown in the following figure.
©
Danfoss | January 2018 AQ00000244enUS0101 | 13
User Manual
PLUS+1® Compliant S7 PVE DI Function Block
S7_PVE_DI Function Block
Configure an MFOut for the Block Output
Configure the block to accept output signals that match those of an Output pin that drives the valve.
1. In the GUIDE template, enter the Outputs page.
2. Enter the MFOut that receives the function block’s output signal.
3. Make the changes that are shown in the following figure.
14 | © Danfoss | January 2018 AQ00000244enUS0101
