Installation Guide

ECL Comfort 310, P348 (code no. 087H3843) (P348.1, P348.2, P348.3)

P P

P

P P

P

P348.1. ex. a

© Danfoss | 2020.11

AN20578646778800-000401 | 1

Installation Guide, ECL Comfort 310, P348

P348.1. ex. b

P348.1. ex. c

2 | © Danfoss | 2020.11

AN20578646778800-000401

Installation Guide, ECL Comfort 310, P348

P348.1. ex. d

P348.2, ex. a

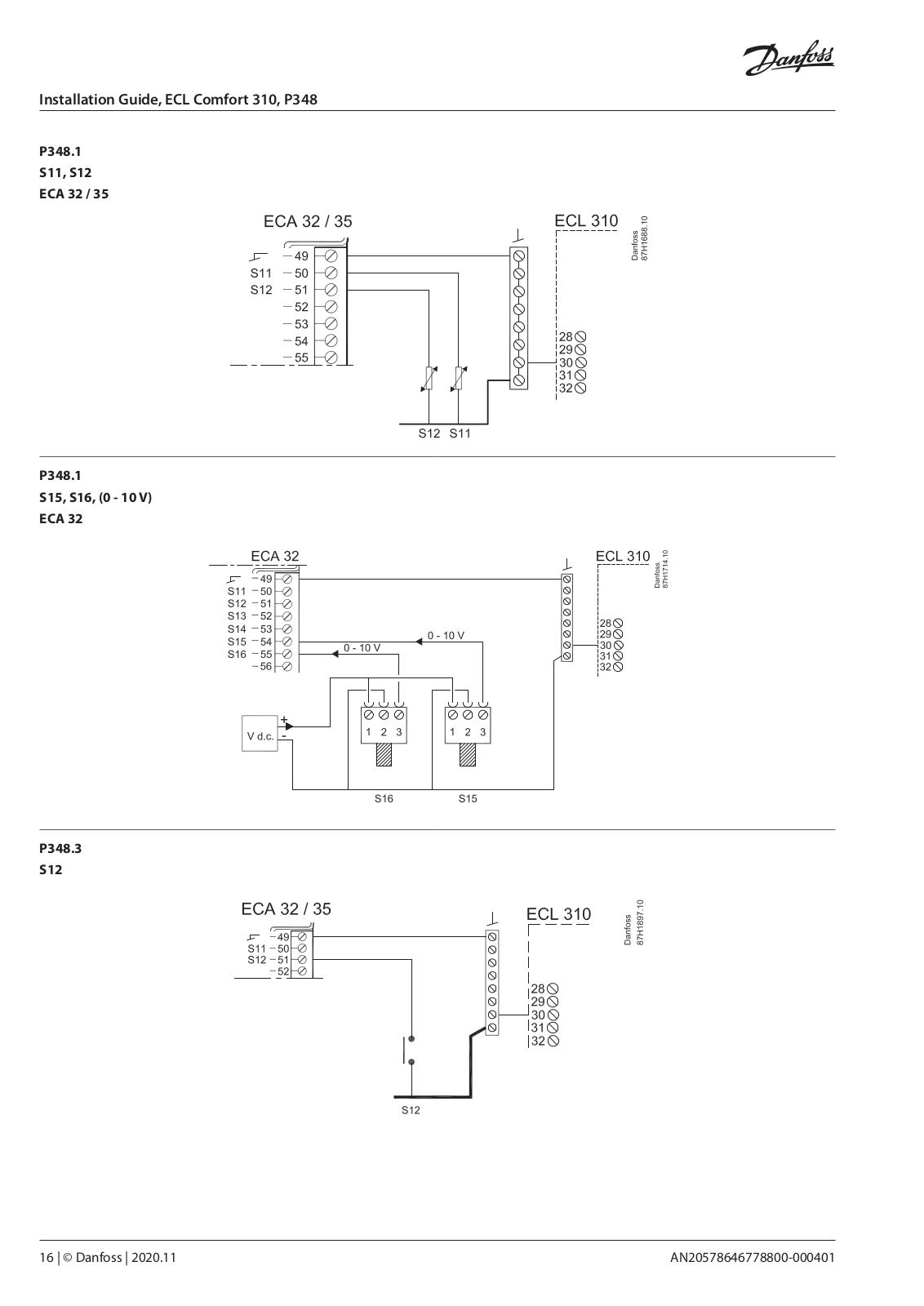

S15* / S16*: ECL Comfort 310 + ECA 32

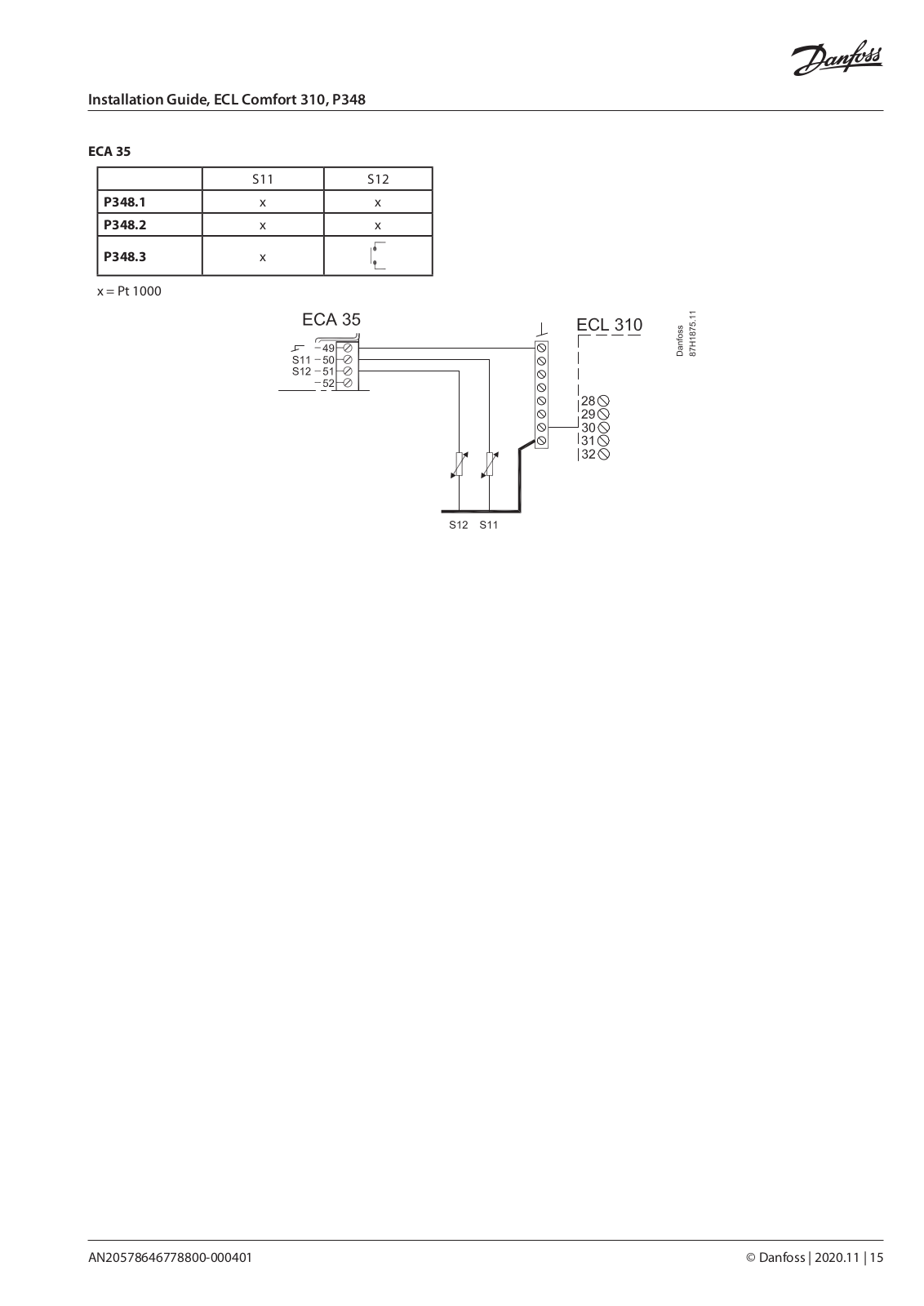

P4 (PWM): ECL Comfort 310 + ECA 35

AN20578646778800-000401

© Danfoss | 2020.11 | 3

Installation Guide, ECL Comfort 310, P348

P348.2, ex. b

S15* / S16*: ECL Comfort 310 + ECA 32

P4 (PWM): ECL Comfort 310 + ECA 35

P348.2, ex. c

S15* / S16*: ECL Comfort 310 + ECA 32

P4 (PWM): ECL Comfort 310 + ECA 35

4 | © Danfoss | 2020.11

AN20578646778800-000401

Installation Guide, ECL Comfort 310, P348

P348.2, ex. d

S15* / S16*: ECL Comfort 310 + ECA 32

P4 (PWM): ECL Comfort 310 + ECA 35

P348.3

S15* / S16*: ECL Comfort 310 + ECA 32

P4 (PWM): ECL Comfort 310 + ECA 35

AN20578646778800-000401

© Danfoss | 2020.11 | 5

Installation Guide, ECL Comfort 310, P348

P348.3, ex. a

P348.3, ex. b

P348.3, ex. c

6 | © Danfoss | 2020.11

AN20578646778800-000401

Installation Guide, ECL Comfort 310, P348

P348.3, ex. 1

S15* / S16*: ECL Comfort 310 + ECA 32

P4 (PWM): ECL Comfort 310 + ECA 35

P348.3, ex. 2

S15* / S16*: ECL Comfort 310 + ECA 32

P4 (PWM): ECL Comfort 310 + ECA 35

AN20578646778800-000401

© Danfoss | 2020.11 | 7

Installation Guide, ECL Comfort 310, P348

P348.3, ex. 3

S15* / S16*: ECL Comfort 310 + ECA 32

P4 (PWM): ECL Comfort 310 + ECA 35

P348.3, ex. 4

S15* / S16*: ECL Comfort 310 + ECA 32

P4 (PWM): ECL Comfort 310 + ECA 35

8 | © Danfoss | 2020.11
