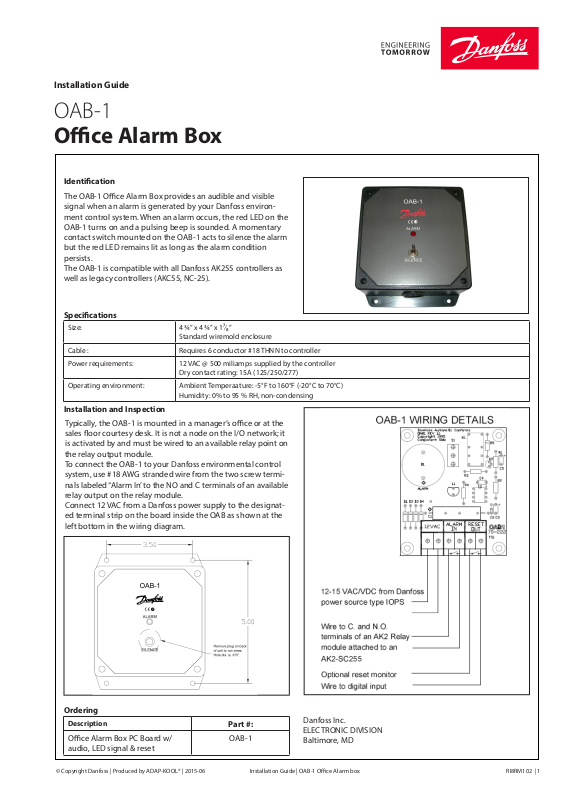

Installation Guide
OAB-1
Oce Alarm Box
Identication
Specications
Size: 4 ¾” x 4 ¾” x 1⁷∕₈”
Cable : Requires 6 conductor #18 THNN to controller
Power requirements: 12 VAC @ 500 miliamps supplied by the controller
Operating environment: Ambient Temperaature: -5°F to 160°F (-20°C to 70°C)
Installation and Inspection
Typically, the OAB-1 is mounted in a manager’s oce or at the sales oor courtesy desk. It is not a node on the I/O network; it is activated by and must be wired to an available relay point on the relay output module. To connect the OAB-1 to your Danfoss environmental control system, use #18 AWG stranded wire from the two screw termi­nals labeled “Alarm In’ to the NO and C terminals of an available relay output on the relay module. Connect 12 VAC from a Danfoss power supply to the designat­ed terminal strip on the board inside the OAB as shown at the left bottom in the wiring diagram.
Standard wiremold enclosure
Dry contact rating: 15A (125/250/277)
Humidity: 0% to 95 % RH, non-condensing
Ordering
Description
Oce Alarm Box PC Board w/ audio, LED signal & reset
© Copyright Danfoss | Produced by ADAP-KOOL® | 2015-06
Part #:
OAB-1
Installation Guide | OAB-1 Office Alarm box
Danfoss Inc. ELECTRONIC DIVISION Baltimore, MD
RI8RM102 | 1
The Product contains electrical components And may not be disposed together with domestic waste. Equipment must be separate collected with Electrical and Elec­tronic waste. According to Local and currently valid legislation.
© Copyright Danfoss | Produced by ADAP-KOOL® | 2015-06
Installation Guide | OAB-1 Office Alarm box
RI8RM102 | 2
