Parts Manual
Axial Piston Closed Circuit Pump
MP1 38 and 45cc
www.danfoss.com

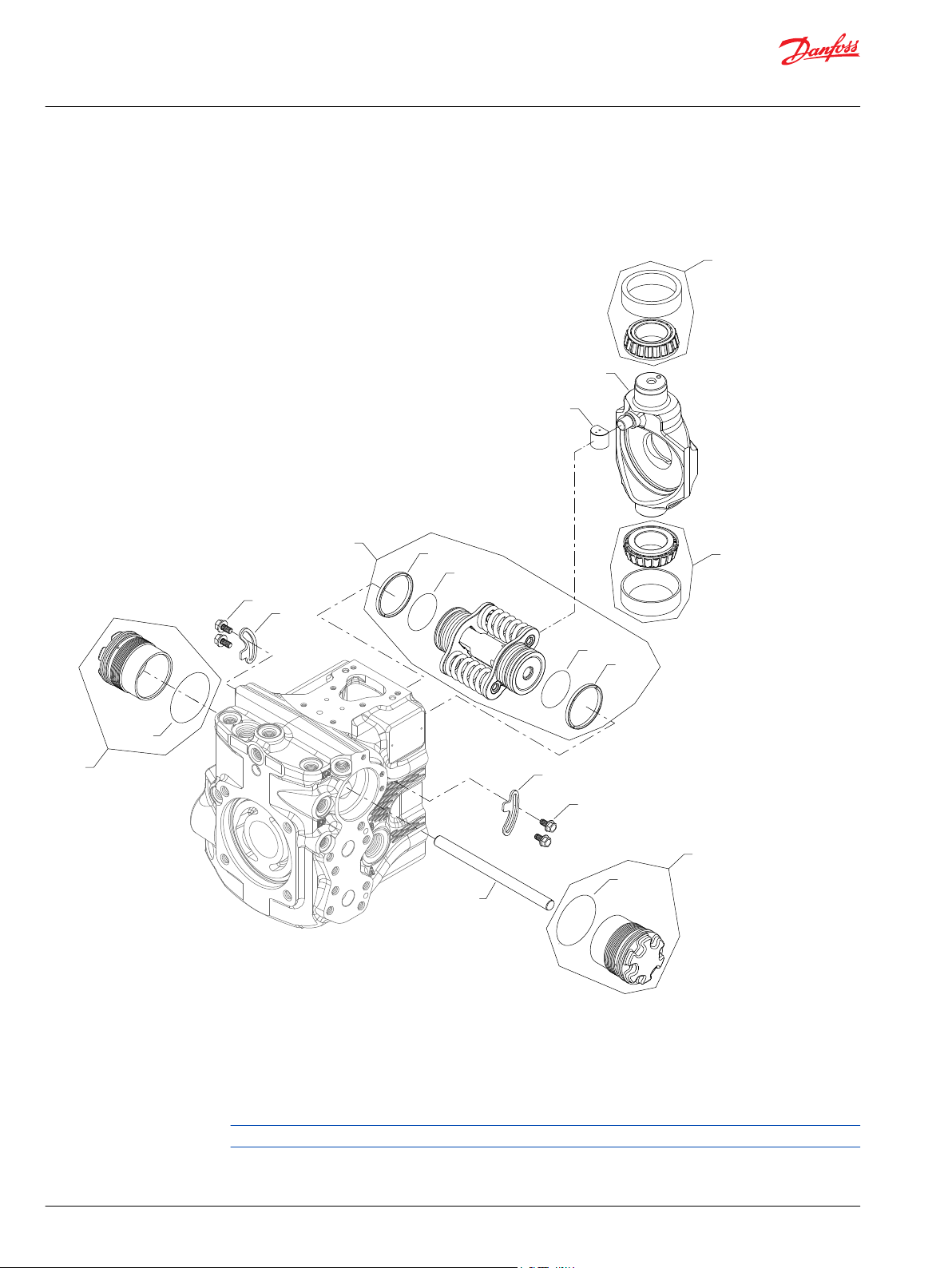

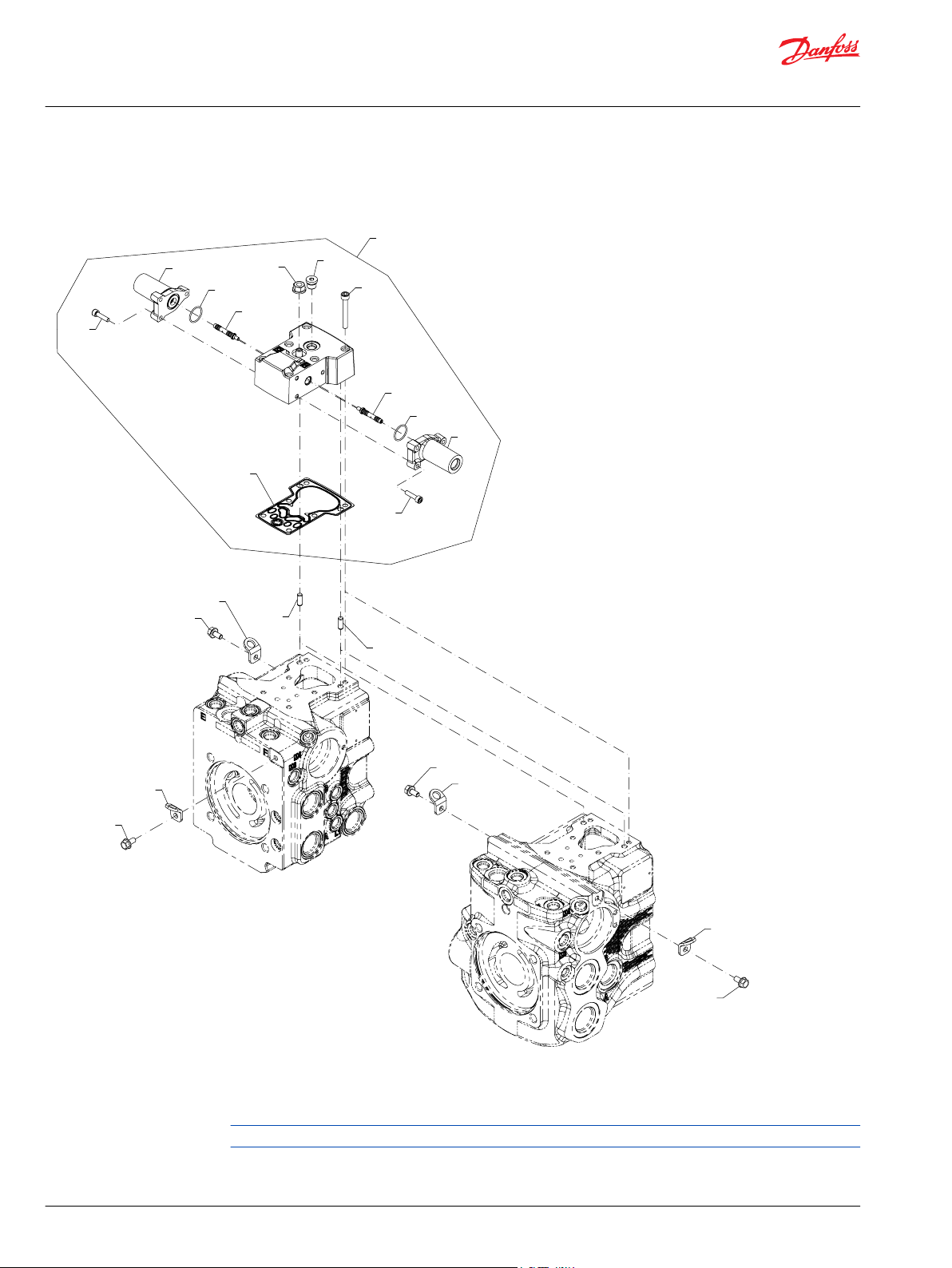

Parts Manual
MP1 38 and 45cc
Revision history Table of revisions
Date Changed Rev
February 2022 Replaced plug assembly part numbers for automotive controls; added new controls 1001
September 2020 Added orifice option D6 0906
May 2020 Updated CCO part numbers 0905
March 2020 Updated loop flushing and porting type options, changed document number from
AX00000306
January 2020 Replaced control gasket part numbers 0802
August 2019 Added various new part options 0801
January 2019 Corrected part numbers 0701
November 2018 Added shaft options F5 and G5 0602
May 2018 Updated MDC control handle and corrected various part numbers 0601
April 2018 Corrected journal bearing part numbers 0502
February 2018 Added new control and special hardware options 0501
October 2017 Updated to Engineering Tomorrow and removed certain control options 0401
0904
2 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Contents
General information
Controls
Displacement limitation
Orifice
Porting type
Mounting flange
Shaft
Auxiliary mounting
Service parts identification........................................................................................................................................................... 5
Nameplate...........................................................................................................................................................................................5
Date code............................................................................................................................................................................................ 6
About service bulletins...................................................................................................................................................................6
Procedure to identify a part..........................................................................................................................................................6
Regional part numbers............................................................................................................................................................. 6
Adobe Acrobat 2-page viewing..................................................................................................................................................7
Order code.......................................................................................................................................................................................... 8
Notes.....................................................................................................................................................................................................9
Control MA4, MA5..........................................................................................................................................................................10
Control MG8, MH1......................................................................................................................................................................... 12
Control SA2, SA3.............................................................................................................................................................................14
Control SA4, SA5.............................................................................................................................................................................16
Control SE7, SE8..............................................................................................................................................................................18
Control SG8, SH1............................................................................................................................................................................ 20
Control SH2...................................................................................................................................................................................... 22
MP1 control MM1, MM2.............................................................................................................................................................. 24
Control SM1, SM2...........................................................................................................................................................................26
Control MA9, MB1..........................................................................................................................................................................28
Control SA9, SB1.............................................................................................................................................................................30
Control MN1, MN2, SN1, SN2.....................................................................................................................................................32
Control MM3, MM4, SM3, SM4.................................................................................................................................................. 34
Controls MM5, MM6, SM5, SM6................................................................................................................................................ 36
Control MNN, SNN......................................................................................................................................................................... 38
Control MT1, MT2...........................................................................................................................................................................40
Control ST1, ST2..............................................................................................................................................................................42
Control AJ1.......................................................................................................................................................................................44
Control AU1......................................................................................................................................................................................46
Control AJ3.......................................................................................................................................................................................48
Control AU3......................................................................................................................................................................................50
Displacement limitation B.......................................................................................................................................................... 52
Displacement limitation C.......................................................................................................................................................... 54
Displacement limitation D..........................................................................................................................................................56
Displacement limitation N..........................................................................................................................................................58
Orifice C1-E2.....................................................................................................................................................................................60
Porting type A1, B1........................................................................................................................................................................62
Porting type C1, D1....................................................................................................................................................................... 64
Porting type A4, C4........................................................................................................................................................................66
Porting type A5, C5........................................................................................................................................................................68
MP1 38/45 porting type B3, D3.................................................................................................................................................72
Porting type B4, D4........................................................................................................................................................................74
Porting type B5, D5........................................................................................................................................................................76
Porting type A3, C3........................................................................................................................................................................78
Mounting flange F......................................................................................................................................................................... 80
Shaft A6-F2....................................................................................................................................................................................... 82
Shaft F1-G7.......................................................................................................................................................................................84
Aux mounting A16-ANN..............................................................................................................................................................86
©
Danfoss | February 2022 AX204686485509en-001001 | 3
Parts Manual
MP1 38 and 45cc
Contents
Aux mounting B16-BNN.............................................................................................................................................................. 88
Aux mounting C16-CNN..............................................................................................................................................................90
Aux mounting D16-DNN.............................................................................................................................................................92
Aux mounting E16-ENN...............................................................................................................................................................94
Aux mounting F16-FNN...............................................................................................................................................................96
Loop flushing
MP1 38/45 loop flushing B, C.....................................................................................................................................................98
System protection
System protection port A......................................................................................................................................................... 100
System protections port B........................................................................................................................................................102
Flitration and charge pressure relief
Filtration and charge pressure relief.....................................................................................................................................104
Special hardware
Special hardware LAE-LBF........................................................................................................................................................106
Special hardware RAE-RBF....................................................................................................................................................... 108
Settings
Settings M00A-M095..................................................................................................................................................................110
Overhaul seal kit
MP1 38/45cc seal kit................................................................................................................................................................... 112
Service bulletin
SB-2018-024...................................................................................................................................................................................113
SB-2018-040...................................................................................................................................................................................113
SB-2021-014...................................................................................................................................................................................114
4 | © Danfoss | February 2022 AX204686485509en-001001
MADE IN U.S.A.
Serial No. Fabr- Nr
A-16-36-23456
Model Code Typ
Model No.
MP1-P-38R-AM-NNN-MA9
C1-F-G4-S-D19-D-175-175
NN-N-16-C1-RAE-C08-NNNN
83047398
Ident-Nr
Parts Manual
MP1 38 and 45cc
General information
Service parts identification
Nameplate
The following information and procedure is used to identify the module group, item number,
manufacture date, part number, and part name of the parts included in the .
The parts listed include all parts which may be used when performing either “Minor Repairs”, “Major
Repairs” or “Conversions” on the MP1 38 and 45cc.
Each unit will have a nameplate affixed to the housing. The nameplate of the MP1 38 and 45cc will
include the following information:
Model code
The Danfoss model code completely defines the specific unit and must be used when ordering parts to
service this product.
Model/material number
The Danfoss model number (also known as material number) is used by the factory in manufacturing. On
repeat orders, a complete unit can be ordered by the model number.
Serial number
The Danfoss serial number is used to identify the manufacture date and the unit sequence in the build.
The serial number is also used to identify the units warranty time period.
The letter code indicates the location of original manufacture (assembly).
The first number (2 digits) indicates the year of manufacture. The second number (2 digits) indicates the
calendar week of manufacture.
The third number (5 digits) is a sequential number used to identify a specific unit.
©
Danfoss | February 2022 AX204686485509en-001001 | 5
Parts Manual
MP1 38 and 45cc
General information
Date code
About service bulletins
The date code is defined as the year and week of manufacture. The same item number may list more than
one part number. This indicates that there is more than one configuration for that item number. You will
see that there are different date codes for the different part numbers. Find the date code of your unit
from the nameplate to determine which service part number you need to order.
Example: The service part desired is item G30
Order Code Item Date Begin Date End Part Number Part Name Qty. per
80 G30 89-17 8000243 End cap gasket 1
G30 89-16 8000151 End cap gasket
(SB-1995-006)
Model/Kit
1
All units using this order code with a date code prior to 89-17 must use part number “8000151.” All units
with a date code of 89-17 and newer must use part number “8000243.”
A Service Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you desire. You must
read that Service Bulletin prior to ordering that part. The information contained in these Service Bulletins,
as of the print date of this bulletin, are included at the end of this manual. Service Bulletins contain more
detailed information such as interchangeability, what additional parts are involved, etc. It is suggested
that you add additional Service Bulletins to this manual as you receive them.
Procedure to identify a part
The modular design of this product results in a simplified service parts list and part number identification
procedure.
The same item numbers are used for same part names on all units within a product type. A part number
that has another number following it in parentheses is done to make this a world wide manual.
Regional part numbers
Some part numbers are region specific and should be ordered accordingly.
As an example, the part number (example: 314583 (9008000-0118) will be used. The first number is sold
in Germany. The number in parentheses is sold in the United States. Customers would order
9008000-0118 if ordering the part in the United States.
6 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
General information
Adobe Acrobat 2-page viewing
While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper
page display.
1. Select “View” → “Page Display” → “Two Page View”
2. Select “View” → “Page Display” → “Show Cover Page in Two Page View”
©
Danfoss | February 2022 AX204686485509en-001001 | 7
P
AM
S
F
D
Series
Frame
Size
Orifice
Mounting flange
Input shaft
Control
Filtration
Auxiliary mounting
Displacement limitation
Automotive control
& inching
High pressure setting, side A
D
C F
J
H T
N
K
E
175
175
M
High pressure setting, side B
Product Type
Unit
Rotation
Product
Version
N
GV
L
Z
POR setting
Porting type
Special hardware features
Loop flushing
Charge relief pressure setting
W
Paint and nametag
Settings
X
NNNN
Y
D19
MA9
NNN
MP1 38R
C1
G4
RAENN 16 C1
C08
Parts Manual
MP1 38 and 45cc
General information
Order code
8 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
General information
Notes
©
Danfoss | February 2022 AX204686485509en-001001 | 9
D300
D300
QD100
D250
*D060
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D065
*D150
Parts Manual
MP1 38 and 45cc
Controls

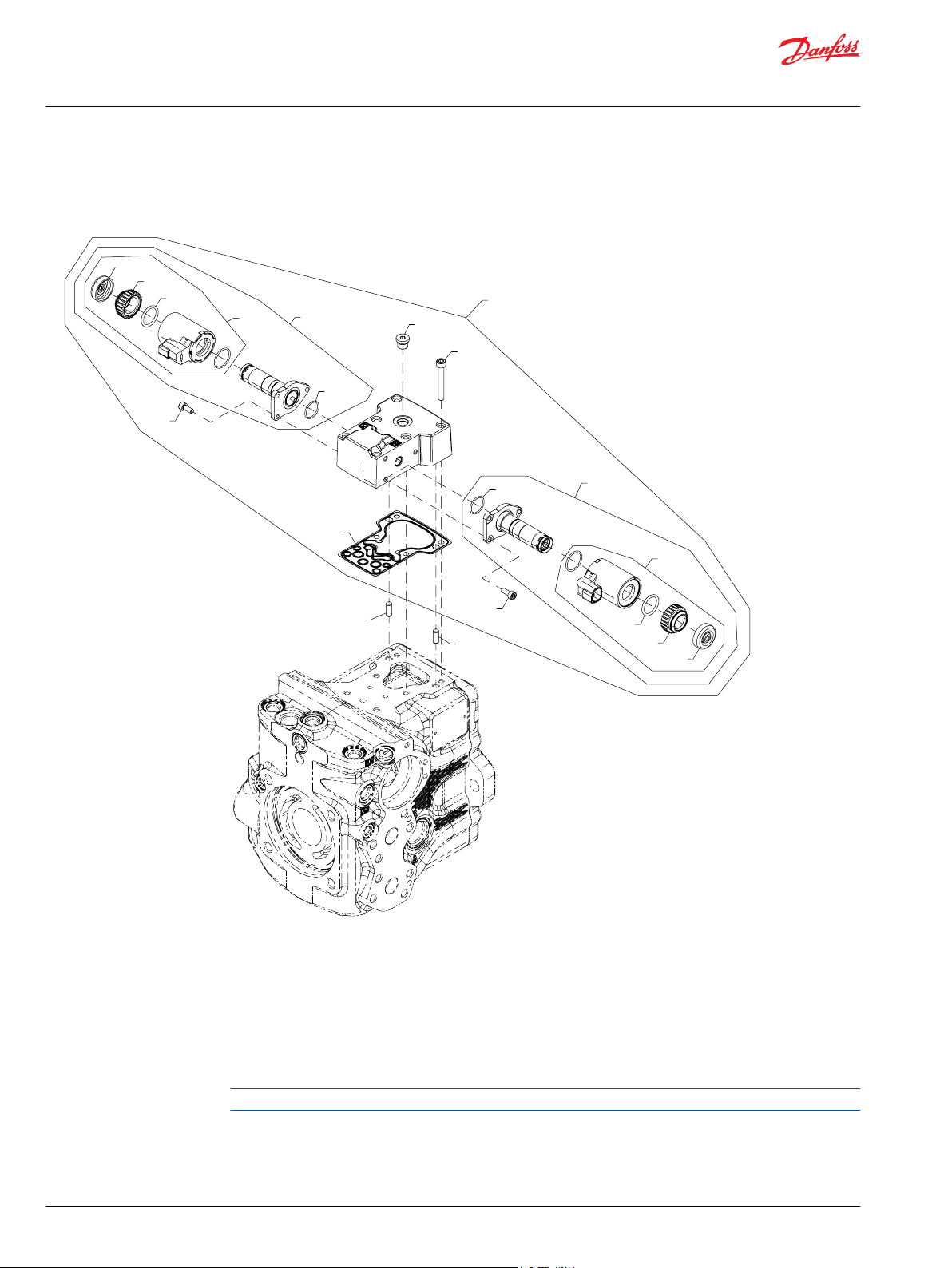

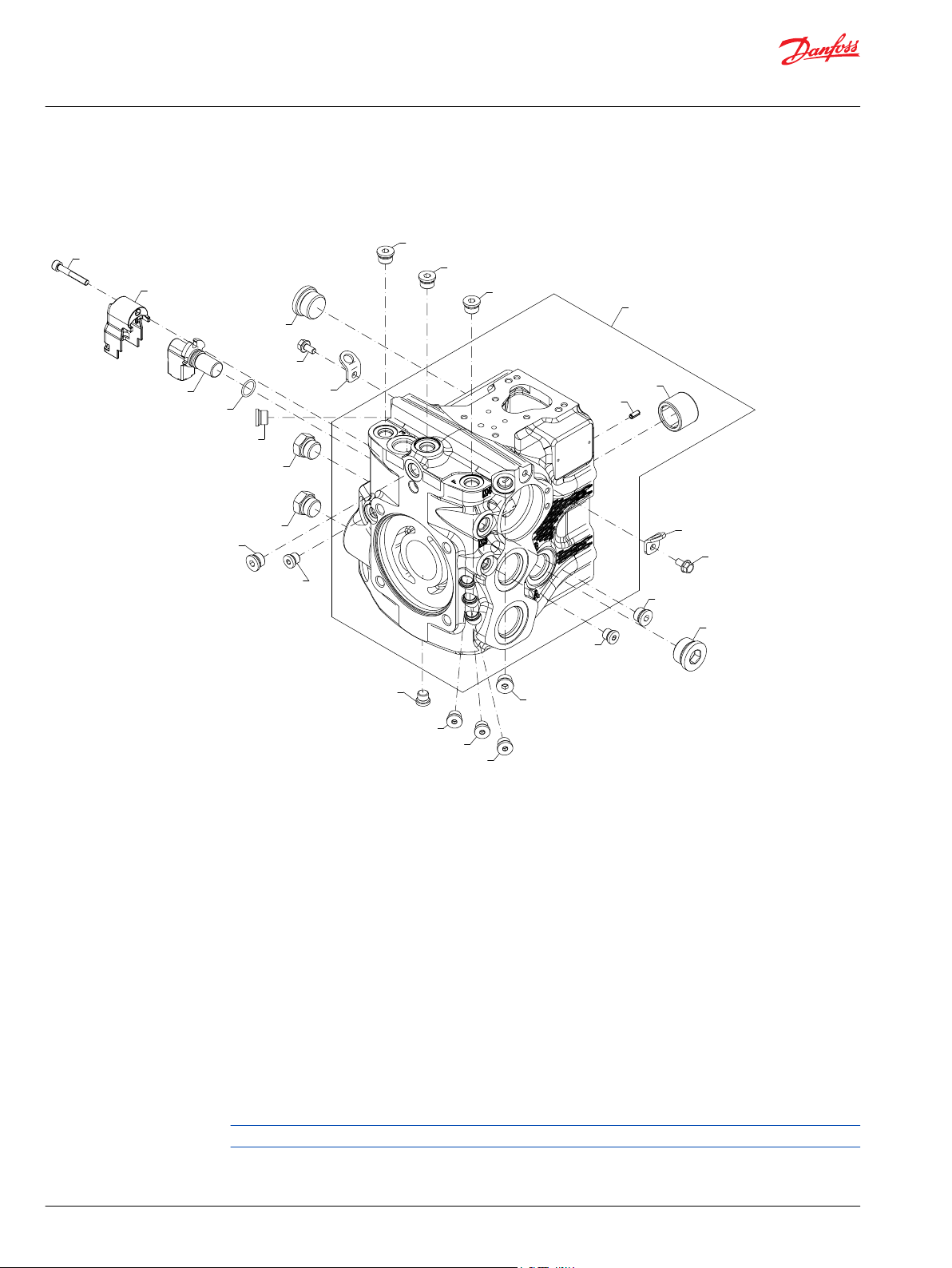

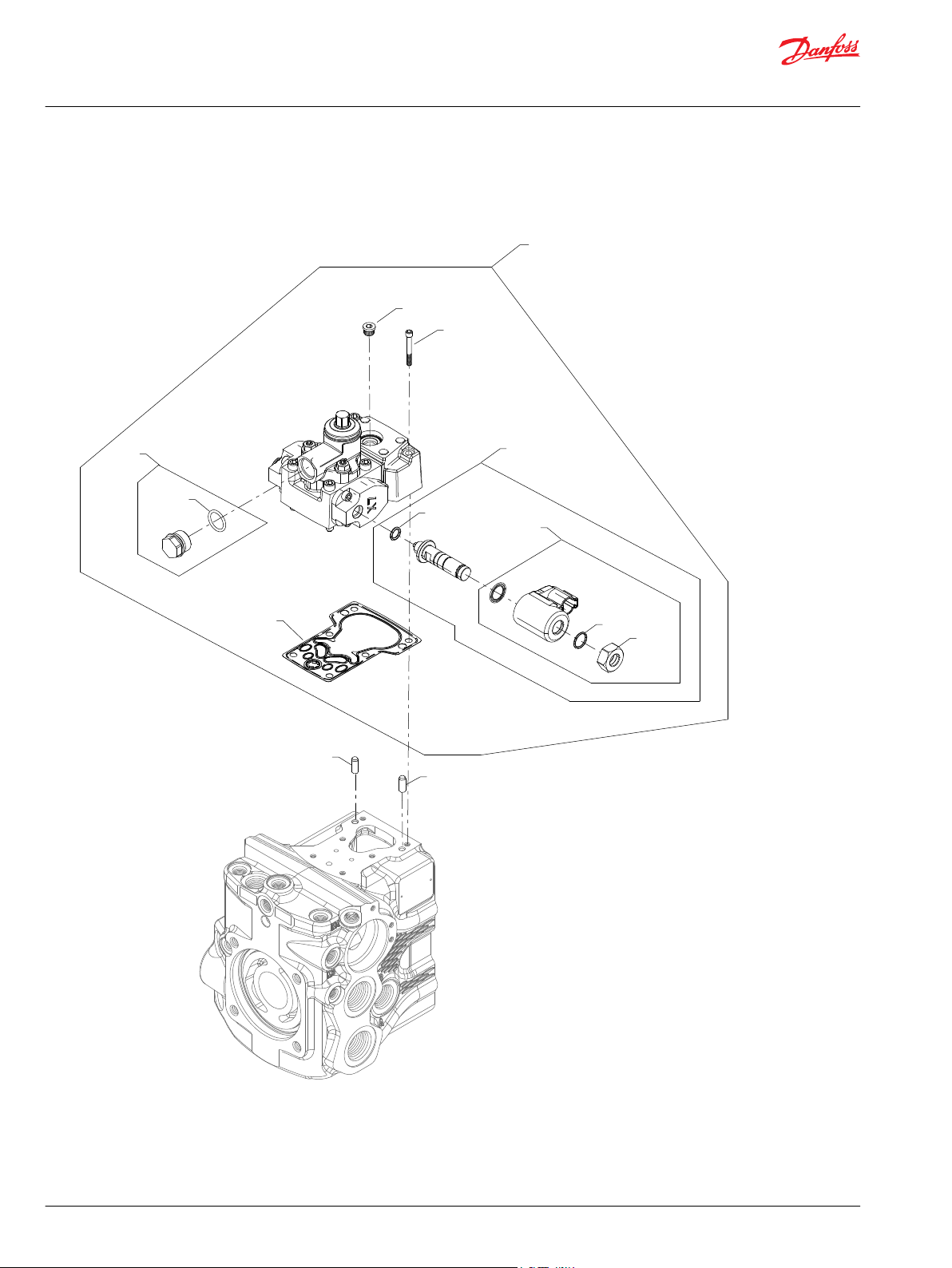

MP1 control MA4, MA5
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
10 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-32 716860 Screw, M5 x 12 6
D060 16-32 612291 (9003508-0008) Seal nut, M8 1
D065 16-32 5000572 Plug assembly, M12 1
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD26 16-32 11001952 O-ring 2
QD28 16-32 063172 O-ring 2
QD30 16-32 11027883 Cap 2
Order code: MA4
QD25 16-32 140750 Proportional solenoid, 12v 2
QD27 16-32 11004698 Coil kit, 12v, DEUTSCH connector 2
QD29 16-32 11004749 Coil nut 2
QD100 16-32 11170081 EDC kit, 12V, high gain spool, manual override,
metric
Model/Kit
1
Order code: MA5
QD25 16-32 140751 Proportional solenoid, 24v 2
QD27 16-32 11004700 Coil kit, 24v, DEUTSCH connector 2
QD29 16-32 11004750 Coil nut 2
QD100 16-32 11170082 EDC kit, 24V, high gain spool, manual override,
metric
1
©
Danfoss | February 2022 AX204686485509en-001001 | 11
D300
D300
D076
*QD81
D050
*QD26
QD25
D065
D067
QD80
QD83
QD84
QD85
D250
D050
QD25
*QD26
*D060
*D150
QD100
QD27
QD28
QD29
QD30
QD27
QD28
QD29
QD30
Parts Manual
MP1 38 and 45cc
Controls
MP1 control MG8, MH1
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
12 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-32 716860 Screw, M5 x 12 6
D060 16-32 612292 (9003508-0008) Seal nut, M8 1
D065 16-32 5000572 Plug assembly, M12 1
D067 16-32 5000572 Plug assembly, M12 1
D076 16-32 067694 Screw, M4 x 10 2
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD26 16-32 11001952 O-ring 2
QD28 16-32 063172 O-ring 2
QD30 16-32 11027883 Cap 2
QD81 16-32 11152257 O-ring 1
QD85 16-32 11140394 Coil nut 1
Model/Kit
Order code: MG8
QD25 16-32 140750 Proportional solenoid, 12v 2
QD27 16-32 11004698 Coil kit, 12v, DEUTSCH 2
QD29 16-32 11004749 Coil nut 2
QD80 16-32 11231200 Solenoid valve, 12v 1
QD83 16-32 11232757 Coil kit, 12v 1
QD84 16-32 11232752 O-ring 1
QD100 16-32 11170083 EDC kit, 12V, manual override, CCO, metric 1
Order code: MH1
QD25 16-32 140751 Proportional solenoid, 24v 1
QD27 16-32 11004700 Coul kit, 24v, DEUTSCH connector 2
QD29 16-32 11004750 Coil nut 2
QD80 16-32 11231201 Solenoid valve, 24v 1
QD83 16-32 11232697 Coil kit, 24v 1
QD84 16-32 11232752 O-ring 1
QD100 16-32 11170085 EDC kit, 24V, manual override, CCO, metric 1
©
Danfoss | February 2022 AX204686485509en-001001 | 13
D300
D300
QD100
D250
*D060
QD25
*QD26
QD27
D050
QD28
QD29
D050
QD27
*QD26
QD25
QD28
QD29
D065
*D150
Parts Manual
MP1 38 and 45cc
Controls

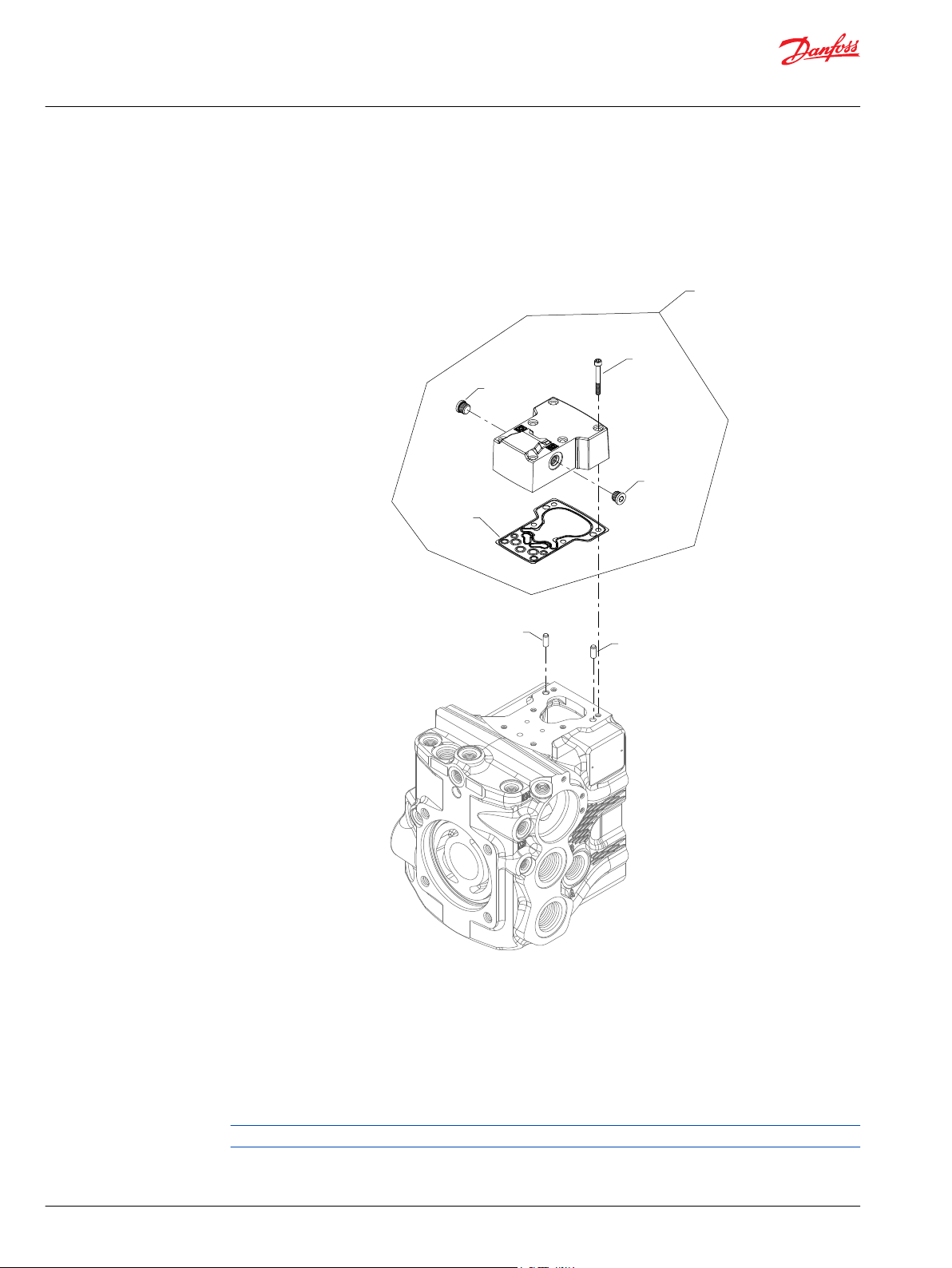

MP1 control SA2, SA3
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
14 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-32 716860 Screw, M5 x 12 6
D060 16-32 612291 (9003508-0008) Seal nut, M8 1
D065 16-32 140642 Plug assembly, SAE 1
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD26 16-32 11001952 O-ring 2
QD28 16-32 063172 O-ring 2
Order code: SA2
QD25 16-32 11012457 Proportional solenoid, 12v 2
QD27 16-32 11028018 Coil kit, 12v, DEUTSCH connector 2
QD29 16-32 11027046 Coil nut 2
QD100 16-32 11019680 EDC kit, 12V 1
Model/Kit
Order code: SA3
QD25 16-32 11012459 Proportional solenoid, 24v 2
QD27 16-32 11028019 Coil kit, 24v, DEUTSCH connector 2
QD29 16-32 11028024 Coil nut 2
QD100 16-32 11019681 EDC kit, 24V 1
©
Danfoss | February 2022 AX204686485509en-001001 | 15
D300
D300
QD100
D250
*D060
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D065
*D150
Parts Manual
MP1 38 and 45cc
Controls
MP1 control SA4, SA5
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
16 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-32 716860 Screw, M5 x 12 6
D060 16-32 612291 (9003508-0008) Seal nut, M8 1
D065 16-32 140642 Plug assembly, SAE 1
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD26 16-32 11001952 O-ring 2
QD28 16-32 063172 O-ring 2
QD30 16-32 11027883 Cap 2
Order code: SA4
QD25 16-32 140750 Proportional solenoid, 12v 2
QD27 16-32 11004698 Coil kit, 12v, DEUTSCH connector 2
QD29 16-32 11004749 Coil nut 2
QD100 16-32 11019732 EDC kit, 12V, high gain spool, manual override 1
Model/Kit
Order code: SA5
QD25 16-32 140751 Proportional solenoid, 24v 2
QD27 16-32 11004700 Coil kit, 24v, DEUTSCH connector 2
QD29 16-32 11004750 Coil nut 2
QD100 16-32 11019733 EDC kit, 24V, high gain spool, manual override 1
©
Danfoss | February 2022 AX204686485509en-001001 | 17
D300
D300
D076
*QD81
D050
QD27
*QD26
QD25
D065
D067
QD29
QD28
QD80
QD83
QD84
QD85
D250
D050
QD25
*QD26
QD27
QD28
QD29
*D060
*D150
QD100
Parts Manual
MP1 38 and 45cc
Controls
MP1 control SE7, SE8
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
18 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-32 716860 Screw, M5 x 12 6
D060 16-32 612291 (9003508-0008) Seal nut, M8 1
D065 16-32 140642 Plug assembly, SAE 1
D067 16-32 140642 Plug assembly 1
D076 16-32 067694 Screw, M4 x 10 2
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD26 16-32 11001952 O-ring 2
QD28 16-32 063172 O-ring 2
QD81 16-32 11152257 O-ring 1
QD84 16-32 11232752 O-ring 1
QD85 16-32 11140394 Coil nut 1
Model/Kit
Order code: SE7
QD25 16-32 11012457 Proportional solenoid, 12v 2
QD27 16-32 11028018 Coil kit, 12v, DEUTSCH connector 2
QD29 16-32 11027046 Coil nut 2
QD80 16-32 11231200 Solenoid valve, 12v 1
QD83 16-32 11232757 Coil kit, 12v 1
QD100 16-32 11147471 EDC kit, 12V, CCO 1
Order code: SE8
QD25 16-32 11012459 Proportional solenoid, 24v 2
QD27 16-32 11028019 Coil kit, 24v, DEUTSCH connector 2
QD29 16-32 11028024 Coil nut 2
QD80 16-32 11231201 Solenoid valve, 24v 1
QD83 16-32 11232697 Coil kit, 24v 1
QD100 16-32 11147472 EDC kit, 24V, CCO 1
©
Danfoss | February 2022 AX204686485509en-001001 | 19
D300
D300
D076
*QD81
D065
D067
QD80
QD83
QD84
QD85
D250
*D060
*D150
QD100
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
Parts Manual
MP1 38 and 45cc
Controls
MP1 control SG8, SH1
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
20 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-32 716860 Screw, M5 x 12 6
D060 16-32 612291 (9003508-0008) Seal nut, M8 1
D065 16-32 140642 Plug assembly, SAE 1
D067 16-32 140642 Plug assembly 1
D076 16-32 067694 Screw, M4 x 10 2
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD26 16-32 11001952 O-ring 2
QD28 16-32 063172 O-ring 2
QD81 16-32 11152257 O-ring 1
QD85 16-32 11140394 Coil nut 1
Order code: SG8
QD25 16-32 140750 Proportional solenoid, 12v 2
QD27 16-32 11004698 Coil kit, 12v, DEUTSCH connector 2
QD29 16-32 11004749 Coil nut 2
QD30 16-32 11027883 Cap 2
QD80 16-32 11231200 Solenoid valve, 12v 1
QD83 16-32 11232757 Coil kit, 12v 1
QD84 16-32 11232752 O-ring 1
QD100 16-32 11155365 EDC kit, 12V, manual override, CCO 1
Model/Kit
Order code: SH1
QD25 16-32 140751 Proportional solenoid, 24v 2
QD27 16-32 11004700 Coil kit, 24v, DEUTSCH connector 2
QD29 16-32 11004750 Coil nut 2
QD30 16-32 11027883 Cap 2
QD80 16-32 11231201 Solenoid valve, 24v 1
QD83 16-32 11232697 Coil kit, 24v 1
QD84 16-32 11232752 O-ring 1
QD100 16-32 11170084 EDC kit, 24V, manual override, CCO 1
©
Danfoss | February 2022 AX204686485509en-001001 | 21
D300
D300
*D150
QD100
D250
*D060
D065
QD25
*QD26
D050
QD27
QD29
QD28
D050
*QD26
QD25
QD27
QD29
QD28
D766
D768
QD760
Parts Manual
MP1 38 and 45cc
Controls
MP1 control SH2
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
22 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Order code: SH2
Item Date Begin Date End Part Number Part Name Qty. per
D050 18-25 716860 Screw, M5 x 12 6
D060 18-25 612291 Seal nut, M8 1
D065 18-25 327007 Plug assembly 1
D150 18-25 11227209 Control gasket 1
D250 18-25 505038 Screw, M6 x 45 6
D300 18-25 310979 Dowel pin 2
D766 18-25 11187406 Protection cover 1
D768 18-25 11184617 Paint cover 1
QD100 18-25 11196619 EDC kit, 12V, ASNSR 1
QD25 18-25 11012457 Proportional solenoid, 12v 2
QD26 18-25 11001952 O-ring 2
QD27 18-25 11028018 Coil kit, 12v, DEUTSCH connector 2
QD28 18-25 063172 O-ring 2
QD29 18-25 11027046 Coil nut 2
QD760 18-25 11201819 EDC angle sensor kit 1
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 23
D300
D300
*D150
QD100
D250
D065
*QD751
QD75
*D150
D250
D065
*QD751
QD75
QD100
D300
D300
(MM1)(MM1)
(MM2)(MM2)
Parts Manual
MP1 38 and 45cc
Controls
MP1 control MM1, MM2
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
24 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D065 16-32 5000572 Plug assembly, M12 1
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD751 16-32 001131 (9004201-5000) O-ring 1
Order code: MM1
QD75 16-32 11119332 Spring seat assembly 1
QD100 16-32 11170088 MDC kit 1
Order code: MM2
QD75 16-32 11126847 Spring seat/neutral start switch assembly 1
QD100 16-32 11170089 MDC kit with neutral start switch, metric 1
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 25
D300
D300
*D150
QD100
D250
D065
*QD751
QD75
*D150
D250
D065
*QD751
QD75
QD100
D300
D300
(SM1)(SM1)
(SM2)(SM2)
Parts Manual
MP1 38 and 45cc
Controls
MP1 control SM1, SM2
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
26 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-32 716860 Screw, M5 x 12 6
D060 16-32 612291 (9003508-0008) Seal nut, M8 1
D065 16-32 140642 Plug assembly, SAE 1
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD26 16-32 11001952 O-ring 2
QD28 16-32 063172 O-ring 2
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD751 16-32 001131 (9004201-5000) O-ring 1
Order code: SM1
QD75 16-32 11119332 Spring seat assembly 1
QD100 16-32 11141225 MDC kit 1
Model/Kit
Order code: SM2
QD75 16-32 11126847 Spring seat/neutral start switch assembly 1
QD100 16-32 11141236 MDC kit with neutral start switch 1
©
Danfoss | February 2022 AX204686485509en-001001 | 27
D300
D300
*D150
QD100
D250
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D065
Parts Manual
MP1 38 and 45cc
Controls
MP1 control MA9, MB1
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
28 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-32 716860 Screw, M5 x 12 6
D065 16-32 5000572 Plug assembly, M12 1
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD26 16-32 11001952 O-ring 2
QD28 16-32 063172 O-ring 2
QD30 16-32 11027883 Cap 2
Order code: MA9
QD25 16-32 141301 Proportional solenoid, 12v 2
QD27 16-32 11005222 Coil kit, 12v, Deutsch connector 2
QD29 16-32 11004749 Coil nut 2
QD100 16-32 11170086 FNR kit, 12V, manual override, metric 1
Model/Kit
Order code: MB1
QD25 16-32 141313 Proportional solenoid, 24v 2
QD27 16-32 11005223 Coil kit, 24v, DEUTSCH connector 2
QD29 16-32 11004750 Coil nut 2
QD100 16-32 11170087 FNR kit, 24V, manual override, metric 1
©
Danfoss | February 2022 AX204686485509en-001001 | 29
D300
D300
*D150
QD100
D250
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D065
Parts Manual
MP1 38 and 45cc
Controls
MP1 control SA9, SB1
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
30 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-32 716860 Screw, M5 x 12 6
D060 16-32 612291 (9003508-0008) Seal nut, M8 6
D050 16-32 716860 Screw, M5 x 12 6
D060 16-32 612291 (9003508-0008) Seal nut, M8 1
D050 16-32 716860 Screw, M5 x 12 6
D060 16-32 612291 (9003508-0008) Seal nut, M8 1
D065 16-32 140642 Plug assembly, SAE 1
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD26 16-32 11001952 O-ring 2
QD28 16-32 063172 O-ring 2
D150 16-32 11227209 Control gasket 1
D250 16-32 505038 Screw, M6 x 45 6
D300 16-32 310979 Dowel pin 2
QD26 16-32 11001952 O-ring 2
QD28 16-32 063172 O-ring 2
QD30 16-32 11027883 Cap 2
Model/Kit
Order code: SA9
QD25 16-32 141301 Proportional solenoid, 12v 2
QD27 16-32 11005222 Coil kit, 12v, DEUTSCH connector 2
QD29 16-32 11004749 Coil nut 2
QD100 16-32 11025905 FNR kit, 12V, manual override, metric 1
Order code: SB1
QD25 16-32 141313 Proportional solenoid, 24v 2
QD27 16-32 11005223 Coil kit, 24v, DEUTSCH connector 2
QD29 16-32 11004750 Coil nut 2
QD100 16-32 11025906 FNR kit, 24V, manual override, metric 1
©
Danfoss | February 2022 AX204686485509en-001001 | 31
QD100
D065
D250
QD25
*QD26
QD27
QD28
QD29
QD30
D050
D300
D300
*D150
D050
*QD26
QD25
QD27
QD28
QD29
QD30
Parts Manual
MP1 38 and 45cc
Controls
MP1 control MN1, MN2, SN1, SN2
Parts configuration
Generic housing used to show part location only.
* Included in overhaul seal kit Q210
32 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 17-42 716860 Screw M5 x 12 6
D150 17-42 11227209 Control gasket 1
D250 17-42 505038 Screw M6 x 45 6
D300 17-42 310979 Dowel Pin 2
QD26 17-42 11001952 O-ring 2
QD28 17-42 63172 O-ring 2
QD29 17-42 11004749 Screw nut 2
QD30 17-42 11027883 Cap 2
Order code: MN1
D065 17-42 5000572 Plug assembly, M12 1
QD25 17-42 140750 Proportional solenoid, 12v 2
QD27 17-42 11004698 Coil kit, 12v DEUTSCH connector 2
QD100 17-42 11192300 NFPE control kit, 12v 1
Model/Kit
Order code: MN2
D065 17-42 5000572 Plug assembly, M12 1
QD25 17-42 140751 Proportional solenoid, 24v 2
QD27 17-42 11004700 Coil kit, 24v DEUTSCH connector 2
QD100 17-42 11192301 NFPE control kit, 24v 1
Order code: SN1
D065 17-42 327007 Plug assembly 1
QD25 17-42 140750 Proportional solenoid, 12v 2
QD27 17-42 11004698 Coil kit, 12v DEUTSCH connector 2
QD100 17-42 11147921 NFPE control kit, 12v 1
Order code: SN2
D065 17-42 327007 Plug assembly 1
QD25 17-42 140751 Proportional solenoid, 24v 2
QD27 17-42 11004700 Coil kit, 24v DEUTSCH connector 2
QD100 17-42 11147925 NFPE control kit, 24v 1
©
Danfoss | February 2022 AX204686485509en-001001 | 33
D300
D300
D250
D065
QD100
QD75
QD751
*D150
QD070
QD81
QD84
QD85
QD83
Parts Manual
MP1 38 and 45cc
Controls
MP1 control MM3, MM4, SM3, SM4
Parts configuration
34 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D150 18-27 11227209 Control gasket 1
D250 18-27 505038 Screw, M6 x 45 6
D300 18-27 310979 Dowel pin 2
QD75 18-27 11119332 Spring seat assembly 1
QD751 18-27 001131 O-ring 1
QD81 18-27 11152257 O-ring 1
QD84 18-27 11140393 O-ring 1
QD85 18-27 11140394 Coil nut 1
Order code: MM3
D065 18-27 5000572 Plug assembly, M12 1
QD100 18-27 11218895 MDC kit, 12V, CCO 1
QD70 18-27 11129916 Solenoid, 12V, DT04-2P 1
QD83 18-27 11136347 Coil kit, 12V, DEUTSCH connector, CCO 1
Model/Kit
Order code: MM4
D065 18-27 5000572 Plug assembly, M12 1
QD100 18-25 11218896 MDC kit, 24V, CCO 1
QD70 18-25 11129917 Solenoid, 24V, DT04-2P 1
QD83 18-25 11136348 Coil kit, 24V, DEUTSCH connector, CCO 1
Order code: SM3
D065 18-25 327007 Plug assembly 1
QD100 18-25 11218976 MDC kit, 12V, CCO 1
QD70 18-25 11129916 Solenoid, 12V, DT04-2P 1
QD83 18-25 11136347 Coil kit, !2V, DEUTSCH connector, CCO 1
Order code: SM4
D065 18-25 327007 Plug assembly 1
QD100 18-25 11218977 MDC kit, 24V, CCO 1
QD70 18-25 11129917 Solenoid, 24V, DT04-2P 1
QD83 18-25 11136348 Coil kit, 24V, DEUTSCH connector, CCO 1
©
Danfoss | February 2022 AX204686485509en-001001 | 35

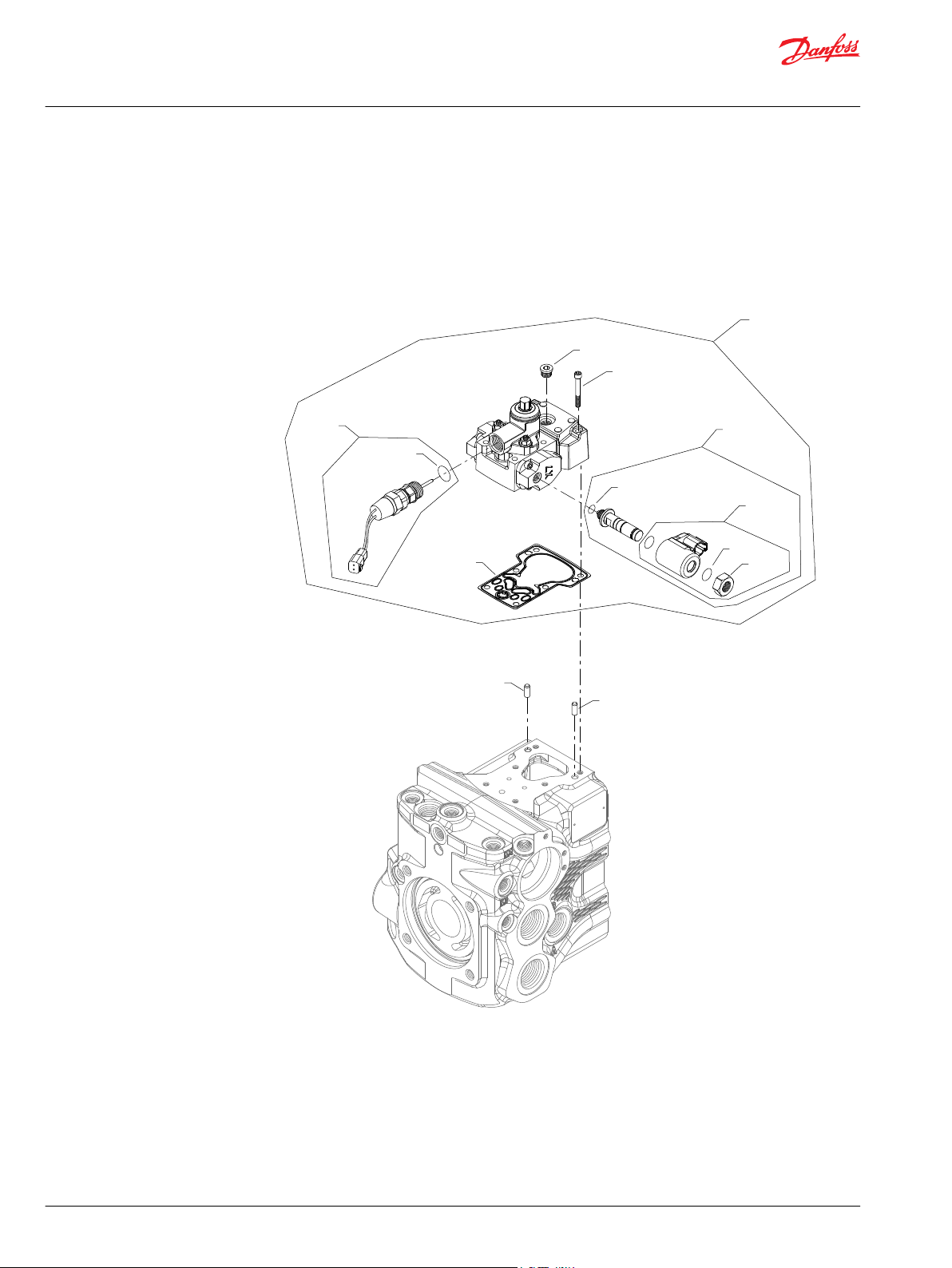

D300
D300
QD100
D250
D065
*QD751
QD75
*QD81
QD85
QD83
QD70
QD84
*D150
Parts Manual
MP1 38 and 45cc
Controls
MP1 control MM5, MM6, SM5, SM6
Parts configuration
* Included in overhaul seal kit Q210
36 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D150 18-25 11227209 Control gasket 1
D250 18-25 505038 Screw, M6 x 45 6
D300 18-25 310979 Dowel pin 2
QD75 18-25 11126847 Spring seat/neutral start switch (NSS) assembly 1
QD751 18-27 001131 O-ring 1
QD81 18-25 11152257 O-ring 1
QD84 18-25 11140393 O-ring 1
QD85 18-25 11140394 Coil nut 1
Order code: MM5
D065 18-25 5000572 Plug assembly, M12 1
QD100 18-25 11218897 MDC kit, 12V, CCO + NSS 1
QD70 18-25 11129916 Solenoid, 12V, DT04-2P 1
QD83 18-25 11136347 Coil kit, 12V, DEUTSCH connector, CCO 1
Model/Kit
Order code: MM6
D065 18-25 5000572 Plug assembly, M12 1
QD100 18-25 11218898 MDC kit, 24V, CCO + NSS 1
QD70 18-25 11129917 Solenoid, 24V, DT04-2P 1
QD83 18-25 11136348 Coil kit, 24V, DEUTSCH connector, CCO 1
Order code: SM5
D065 18-25 327007 Plug assembly 1
QD100 18-25 11218978 MDC kit, 12V, CCO + NSS 1
QD70 18-25 11129916 Solenoid, 12V, DT04-2P 1
QD83 18-25 11136347 Coil kit, 12V DEUTSCH connector, CCO 1
Order code SM6
D065 18-25 327007 Plug assembly 1
QD100 18-25 11218979 MDC kit, 24V, CCO + NSS 1
QD70 18-25 11129917 Solenoid, 24V, DT04-2P 1
QD83 18-25 11136348 Coil kit, 24V, DEUTSCH connector, CCO 1
©
Danfoss | February 2022 AX204686485509en-001001 | 37
D300
D300
*D150
QD100
D250
D550
D550
Parts Manual
MP1 38 and 45cc
Controls
MP1 control MNN, SNN
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
38 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D150 18-25 11227209 Control gasket 1
D250 18-25 505038 Screw, M6 x 45 6
D300 18-25 310979 Dowel pin 2
Order code: MNN
D550 18-25 5000438 Plug assembly 2
QD100 18-25 11216838 Control cover kit 1
Order code: SNN
D550 18-25 9005110-5600 Plug assembly 2
QD100 18-25 11121984 Control cover kit 1
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 39
QD100
D250
D065
*D060
QD77
*QD26
QD72
D050
*D150
D050
QD72
*QD26
QD77
D300
D300
G080
G085
G080
G085
28-32cc
G085
G080
G080
G085
38-45cc
Parts Manual
MP1 38 and 45cc
Controls
Control MT1, MT2
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
40 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 21-48 9007315-0505 Screw, M5 x 20 6
D060 21-48 612291 (9003508-0008) Seal nut, M8 1
D065 21-48 5000572 Plug assembly, M12 1
D150 21-48 11227209 Control gasket 1
D250 21-48 505038 Screw, M6 x 45 6
D300 21-48 310979 Dowel pin 2
G080 21-48 4800754 Lifting bracket 2
G085 21-48 508438 Hex screw, M6 x 12 2
QD26 21-48 11124515 O-ring 2
Order code: MT1
QD72 21-48 11175560 Actuator spool 2
QD77 21-48 11174520 Actuator housing 2
QD100 21-48 11189184 HDC kit 1
Model/Kit
Order code: MT2
QD72 21-48 11175522 Actuator spool 2
QD77 21-48 11174518 Actuator housing 2
QD100 21-48 11189186 HDC kit 1
©
Danfoss | February 2022 AX204686485509en-001001 | 41
QD100
D250
D065
*D060
QD77
*QD26
QD72
D050
*D150
D050
QD72
*QD26
QD77
D300
D300
G080
G085
G080
G085
28-32cc
G085
G080
G080
G085
38-45cc
Parts Manual
MP1 38 and 45cc
Controls
Control ST1, ST2
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
42 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 21-48 9007315-0505 Screw, M5 x 20 6
D060 21-48 612291 (9003508-0008) Seal nut, M8 1
D065 21-48 140642 Plug assembly 1
D150 21-48 11227209 Control gasket 1
D250 21-48 505038 Screw, M6 x 45 6
D300 21-48 310979 Dowel pin 2
G080 21-48 4800754 Lifting bracket 2
G085 21-48 508438 Hex screw, M6 x 12 2
QD26 21-48 11124515 O-ring 2
Order code: ST1
QD72 21-48 11175560 Actuator spool 2
QD77 21-48 11174519 Actuator housing 2
QD100 21-48 11189183 HDC kit 1
Model/Kit
Order code: ST2
QD72 21-48 11175622 Actuator spool 2
QD77 21-48 11174517 Actuator housing 2
QD100 21-48 11189185 HDC kit 1
©
Danfoss | February 2022 AX204686485509en-001001 | 43
QD100
D612
*D611
D250
D672
D674
QD25
*QD26
QD27
QD28
QD29
QD30
D050
D150
D300
D300
G085
G080
G080
G085
D640
D655
D660
D050
QD30
QD29
QD28
QD27
*QD26
QD25
D674
Parts Manual
MP1 38 and 45cc
Controls
MP1 38/45 control AJ1
Parts configuration
* Included in overhaul seal kit Q210
44 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Order code: AJ1
Item Date Begin Date End Part Number Part Name Qty. per
D050 19-07 716860 Screw, M5x12 6
D150 19-07 11227209 Control gasket 1
D250 19-07 505038 Screw, M6x45 6
D300 19-07 11036469 Dowel pin 2
D610 19-07 21-12 11000467 Plug assembly (SB-2021-014 on page 114) 2
D611 21-13 11225703 O-ring 2
D612 21-13 11223708 Plug 2
D640 19-07 11023348 AC wiring harness 1
D655 19-07 11084827 Connector DTM 06-3S 1
D660 19-07 11084822 Connector DTM06-6S 1
D672 19-07 11151875 Protection 1
D674 19-07 716860 Screw, M5x12 2
G080 19-07 4800754 Lifting bracket 2
G081 19-07 11227284 Lifting bracket, long 1
G085 19-07 508438 Screw, M6x12 2
QD25 19-07 140750 Proportional solenoid, 12V 2
QD26 19-07 11001952 O-ring 2
QD27 19-07 11004698 Coil kit, 12V, DEUTSCH connector 2
QD28 19-07 063172 O-ring 2
QD29 19-07 11004749 Coil nut 2
QD30 19-07 11027883 Cap 2
QD100 19-07 11232792 Automotive control kit, 12V 1
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 45
QD100
D612
*D611
D250
D672
D674
QD25
*QD26
QD27
QD28
QD29
QD30
D050
D300
D300
D150
G080
G085
G080
G085
D665
D640
D655
D660
*QD26
QD27
D050
QD28
QD29
QD30
QD25
D674
Parts Manual
MP1 38 and 45cc
Controls
MP1 38/45 control AU1
Parts configuration
* Included in overhaul seal kit Q210
46 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Order code: AU1
Item Date Begin Date End Part Number Part Name Qty. per
D050 19-07 716860 Screw, M5x12 6
D150 19-07 11227209 Control gasket 1
D250 19-07 505038 Screw, M6x45 6
D300 19-07 11036469 Dowel pin 2
D610 19-07 21-12 11000467 Plug assembly (SB-2021-014 on page 114) 2
D611 21-13 11225703 O-ring 2
D612 21-13 11223708 Plug 2
D640 19-07 11197432 AC wiring harness 1
D655 19-07 11084827 Connector DTM 06-3S 1
D660 19-07 11084822 Connector DTM06-6S 1
D665 19-07 11084827 Connector DTM 06-3S 1
D672 19-07 11151875 Protection 1
D674 19-07 716860 Screw, M5x12 2
G080 19-07 4800754 Lifting bracket 2
G085 19-07 508438 Screw, M6x12 2
QD25 19-07 140750 Proportional solenoid, 12V 2
QD26 19-07 11001952 O-ring 2
QD27 19-07 11004698 Coil kit, 12V, DEUTSCH connector 2
QD28 19-07 063172 O-ring 2
QD29 19-07 11004749 Coil nut 2
QD30 19-07 11027883 Cap 2
QD100 19-07 11232792 Automotive control kit, 12V 1
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 47
QD100
D612
*D611
D250
D672
D674
QD25
*QD26
QD27
QD28
QD29
QD30
D050
D150
D300
D300
G080
G085
D640
E400
D450
E405
E410
E415
G085
G080
D655
D660
D050
QD25
QD27
*QD26
D674
Parts Manual
MP1 38 and 45cc
Controls
MP1 38/45 control AJ3
Parts configuration
* Included in overhaul seal kit Q210
48 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Order code: AJ3
Item Date Begin Date End Part Number Part Name Qty. per
D050 19-07 716860 Screw, M5x 12 6
D150 19-07 11227209 Control gasket 1
D250 19-07 505038 Screw, M6x45 6
D300 19-07 11036469 Dowel pin 2
D450 19-07 11003097 Magnet carrier 1
D610 19-07 21-12 11000467 Plug assembly (SB-2021-014 on page 114) 2
D611 21-13 11066774 O-ring 2
D612 21-13 11223798 Plug 2
D640 19-07 11023348 AC wiring harness 1
D655 19-07 11084827 Connector DTM 06-3S 1
D660 19-07 11084822 Connector DTM 06-6S 1
D672 19-07 11151875 Protection 1
D674 19-07 716860 Screw, M5x 12 2
E400 19-07 11212891 Screw, M8x1.25 1
E405 19-07 141135 Screw, M5x30 1
E410 19-07 11212844 Magnet carrier spacer 1
E415 19-07 9004700-1508 Pin 1
G080 19-07 4800754 Lifting bracket 2
G085 19-07 508438 Screw, M6x12 2
QD25 19-07 140750 Proportional solenoid, 12V 2
QD26 19-07 11001952 O-ring 2
QD27 19-07 11004698 Coil kit, 12V, DEUTSCH connector 2
QD28 19-07 063172 O-ring 2
QD29 19-07 11004749 Coil nut 2
QD30 19-07 11027883 Cap 2
QD100 19-07 11232794 Automotive control kit, 12V 1
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 49

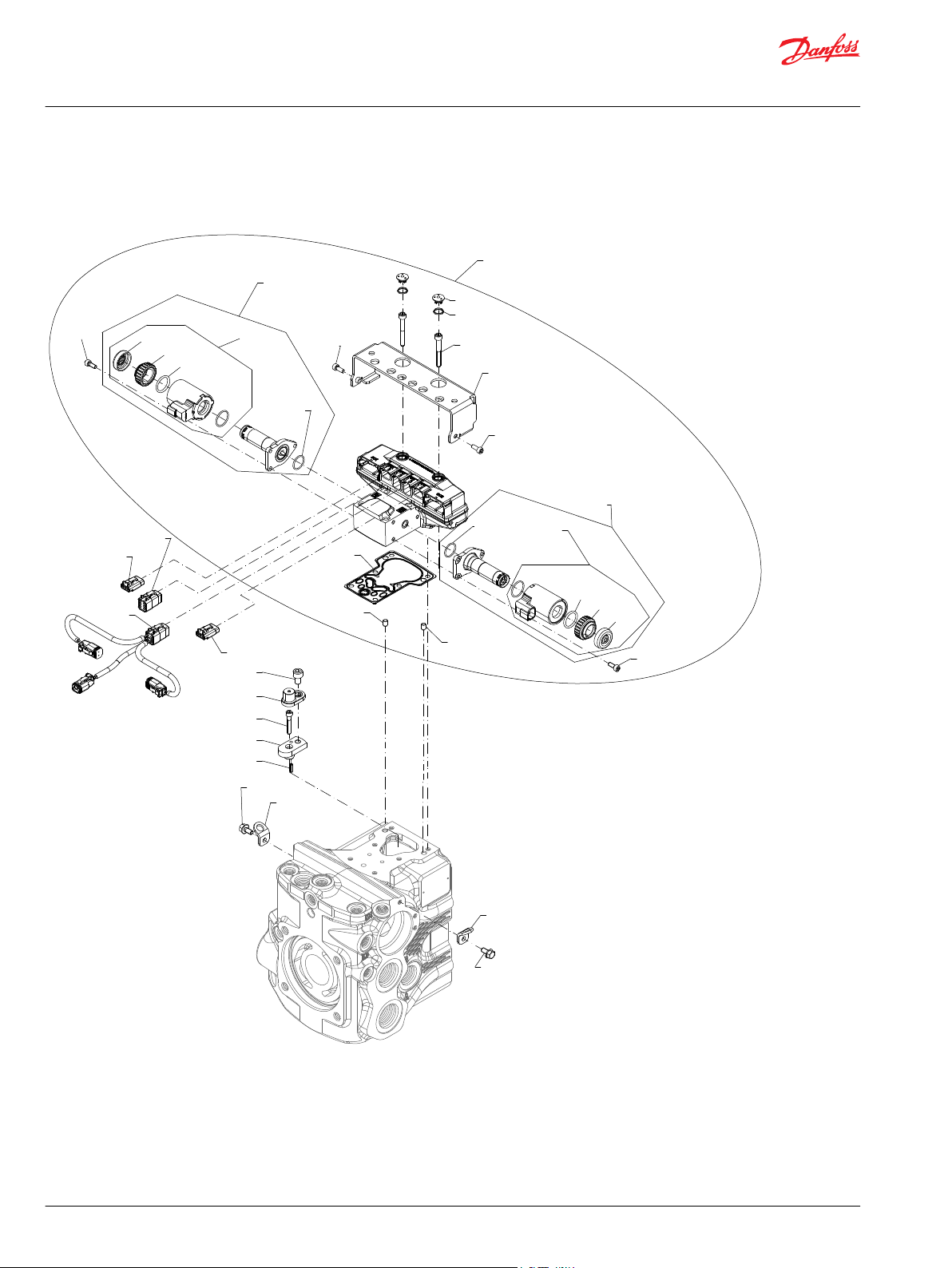

QD100
D612
*D611
D250
D672
D674
QD25
*QD26
QD27
QD28
QD29
QD30
D050
D300
D300
D150
G080
G085
D665
E400
D450
E405
E410
E415
G085
G080
D660
D655
D640
D050
QD30
QD29
QD28
QD27
QD25
D674
*QD26
Parts Manual
MP1 38 and 45cc
Controls
MP1 38/45 control AU3
Parts configuration
* Included in overhaul seal kit Q210
50 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Controls
Order code: AU3
Item Date Begin Date End Part Number Part Name Qty. per
D050 19-07 716860 Screw, M5x 12 6
D150 19-07 11227209 Control gasket 1
D250 19-07 505038 Screw, M6x45 6
D300 19-07 11036469 Dowel pin 2
D450 19-07 11003097 Magnet carrier 1
D610 19-07 21-12 11000467 Plug assembly (SB-2021-014 on page 114) 2
D611 21-13 11225703 O-ring 2
D612 21-13 11223708 Plug 2
D640 19-07 11197432 AC wiring harness 1
D655 19-07 11084827 Connector DTM 06-3S 1
D660 19-07 11084822 Connector DTM 06-6S 1
D665 19-07 11084827 Connector DTM 06-3S 2
D672 19-07 11151875 Protection 1
D674 19-07 716860 Screw, M5x 12 2
E400 19-07 11212891 Screw, M8x1.25 1
E405 19-07 141135 Screw, M5x30 1
E410 19-07 11212844 Magnet carrier spacer 1
E415 19-07 9004700-1508 Pin 1
G080 19-07 4800754 Lifting bracket 2
G085 19-07 508438 Screw, M6x12 2
QD25 19-07 140750 Proportional solenoid, 12V 2
QD26 19-07 11001952 O-ring 2
QD27 19-07 11004698 Coil kit, 12V, DEUTSCH connector 2
QD28 19-07 063172 O-ring 2
QD29 19-07 11004749 Coil nut 2
QD30 19-07 11027883 Cap 2
QD100 19-07 11232794 Automotive control kit, 12V 1
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 51
E055
E065
E070
E030
E020
E010
*E090
E085
E200
*E110
E075
*E080
*E110
E100
E010
E020
*E330
*E320
*E330
*E320
E300
E045
E060
E040
E050
E045
Parts Manual
MP1 38 and 45cc
Displacement limitation

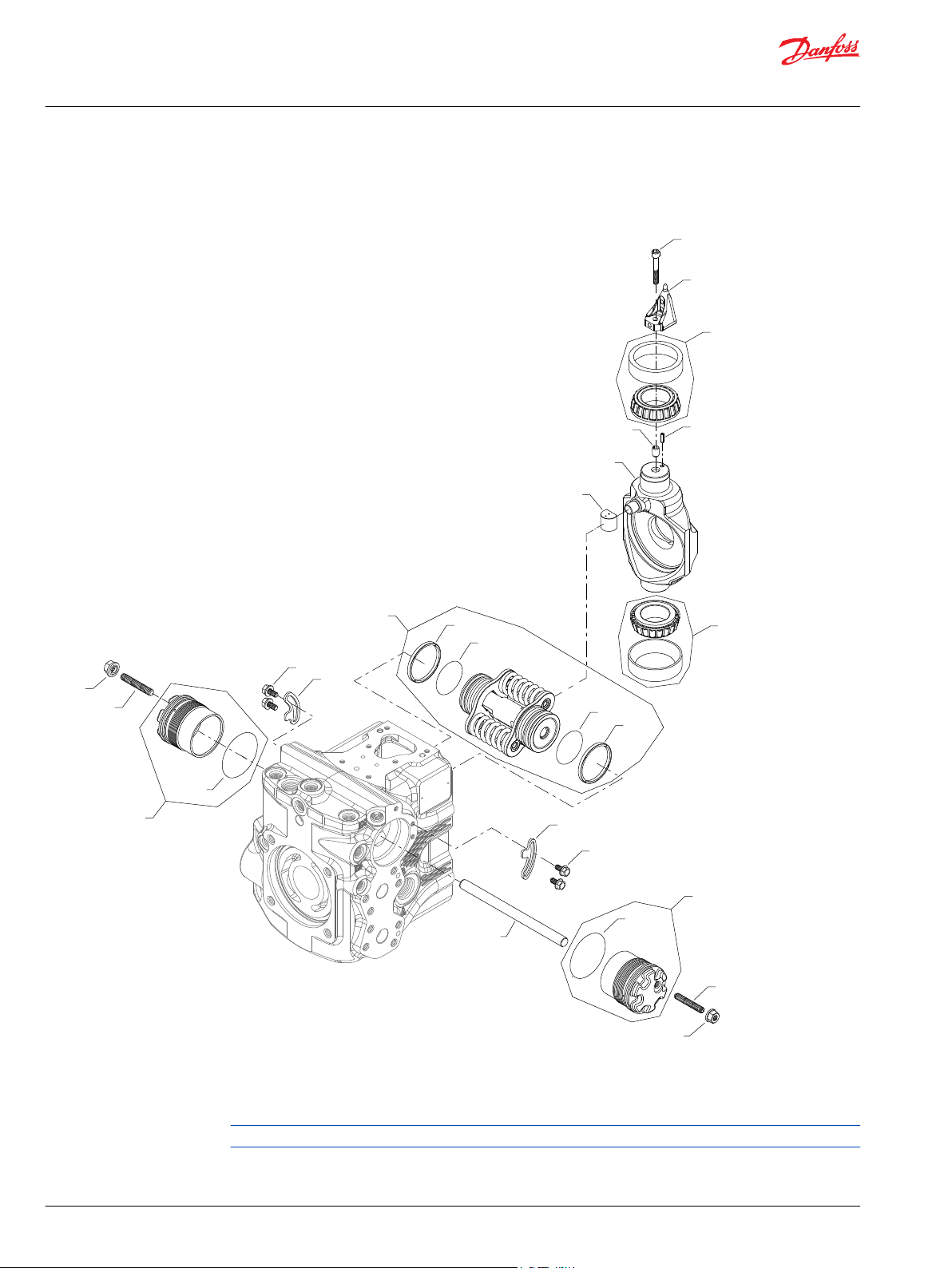

MP1 38/45 displacement limitation B
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
52 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Displacement limitation
Order code: B
Item Date Begin Date End Part Number Part Name Qty. per
E010 16-32 11157170 Locking plate 2
E020 16-32 508438 Screw, M6 x 12 4
E030 16-32 11150891 Servo piston guide rod 1
E040 16-32 11150343 Swashplate 1
E045 16-32 4800470 Roller bearing 2
E050 16-32 11160523 Bushing 1
E055 16-32 9004700-1508 Slotted pin 1
E060 16-32 11152843 Slider block 1
E065 16-32 508994 Screw, M6 x 35 1
E070 16-32 11195668 Swashplate feedback link (SB-2018-040 on page
113)
E075 16-32 528711 Set screw, M8 x 45 1
E080 16-32 505412 (9003509-0008) Seal nut, M8 1
E085 16-32 528711 Set screw, M8 x 45 1
E090 16-32 505412 (9003509-0008) Seal nut, M8 1
E100 16-32 11165019 Servo cylinder assembly 1
E110 16-32 5000709 O-ring 2
E200 16-32 11165019 Servo cylinder assembly 1
E300 16-32 11164461 Servo piston assembly 1
E320 16-32 9004100-2230 O-ring 2
E330 16-32 11164998 Piston ring 2
Model/Kit
1
©
Danfoss | February 2022 AX204686485509en-001001 | 53
E030
E020
E010
E200
*E110
*E110
E100
E010
E020
*E330
*E320
*E330
*E320
E300
E045
E045
E060
E040
Parts Manual
MP1 38 and 45cc
Displacement limitation
MP1 38/45 displacement limitation C
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
54 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Displacement limitation
Order code: C
Item Date Begin Date End Part Number Part Name Qty. per
E010 16-32 11157170 Locking plate 2
E020 16-32 508438 Screw, M6 x 12 4
E030 16-32 11150891 Servo piston guide rod 1
E040 16-32 11212843 Swashplate 1
E045 16-32 4800470 Roller bearing 2
E060 16-32 11152843 Slider block 1
E100 16-32 11165017 Servo cylinder assembly 1
E110 16-32 5000709 O-ring 2
E200 16-32 11165017 Servo cylinder assembly 1
E300 16-32 11164465 Servo piston assembly, nested springs 1
E320 16-32 9004100-2230 O-ring 2
E330 16-32 11164998 Piston ring 2
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 55
*E110
E100
E010
E020
*E330
*E320
*E330
*E320
E300
E045
E045
E030
E020
E010
*E090
E085
E200
*E110
E075
*E080
*E110
E100
E010
E020
E060
E040
Parts Manual
MP1 38 and 45cc
Displacement limitation

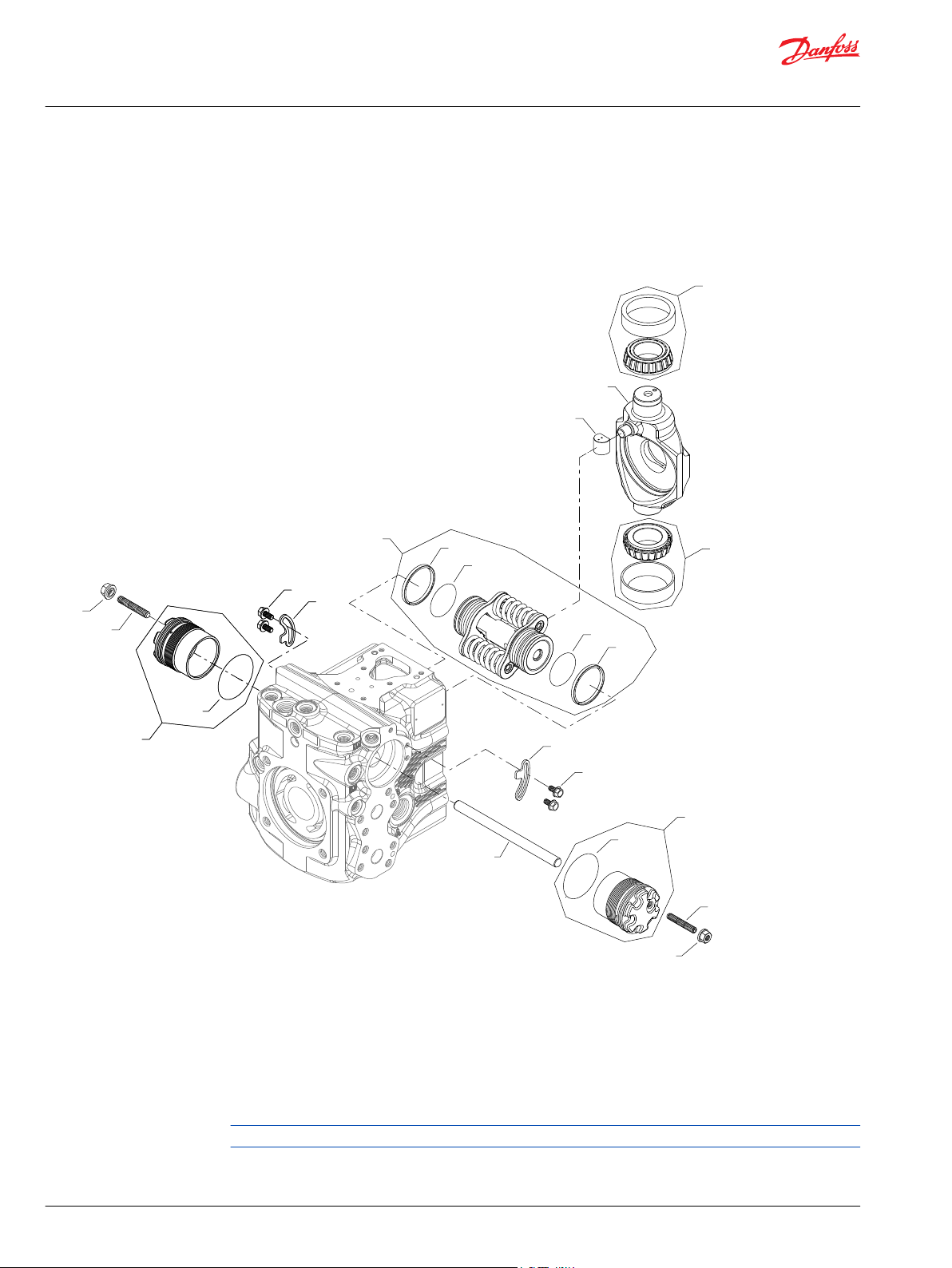

MP1 38/45 displacement limitation D
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
56 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Displacement limitation
Order code: D
Item Date Begin Date End Part Number Part Name Qty. per
E010 16-32 11157170 Locking plate 2
E020 16-32 508438 Screw, M6 x 12 4
E030 16-32 11150891 Servo piston guide rod 1
E040 16-32 11212843 Swashplate 1
E045 16-32 4800470 Roller bearing 2
E060 16-32 11152843 Slider block 1
E075 16-32 528711 Set screw, M8 x 45 1
E080 16-32 505412 (9003509-0008) Seal nut, M8 1
E085 16-32 528711 Set screw, M8 x 45 1
E090 16-32 505412 (9003509-0008) Seal nut, M8 1
E100 16-32 11165019 Servo cylinder assembly 1
E110 16-32 5000709 O-ring 2
E200 16-32 11165019 Servo cylinder assembly 1
E300 16-32 11164465 Servo piston assembly, nested springs 1
E320 16-32 9004100-2230 O-ring 2
E330 16-32 11164998 Piston ring 2
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 57
E055
E065
E070
E030
E020
E010
*E330
*E320
*E330
*E320
E300
E045
E050
E045
*E110
E100
E010
E020
E200
*E110
E060
E040
Parts Manual
MP1 38 and 45cc
Displacement limitation
MP1 38/45 displacement limitation N
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
58 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Displacement limitation
Order code: N
Item Date Begin Date End Part Number Part Name Qty. per
E010 16-32 11157170 Locking plate 2
E020 16-32 508438 Screw, M6 x 12 4
E030 16-32 11150891 Servo piston guide rod 1
E040 16-32 11150343 Swashplate 1
E045 16-32 4800470 Roller bearing 2
E050 16-32 11160523 Bushing 1
E055 16-32 9004700-1508 Slotted pin 1
E060 16-32 11152843 Slider block 1
E065 16-32 508994 Screw, M6 x 35 1
E070 16-32 11195668 Swashplate feedback link (SB-2018-040 on page
113)
E100 16-32 11165017 Servo cylinder assembly 1
E110 16-32 5000709 O-ring 2
E200 16-32 11165017 Servo cylinder assembly 1
E300 16-32 11164461 Servo piston assembly 1
E320 16-32 9004100-2230 O-ring 2
E330 16-32 11164998 Piston ring 2
Model/Kit
1
©
Danfoss | February 2022 AX204686485509en-001001 | 59
F00A
F00B
F00T
F00T
F00A
F00B
F00T
F00T
F00P
F00T
F00T
F00P
(C1, C2, C4)
(C6, C7)
(C8, C9, D1, D2, D3, D6)
(D4, D5, E2, E3)
Parts Manual
MP1 38 and 45cc
Orifice
MP1 orifice C1-E2
Parts configuration
Generic housings and controls used to show part location only.
60 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Orifice
Order code: orifice C1-E2 parts
Order Code Item Date Begin Date End Part Number Part Name Qty. per
C1 F00A 16-32 11182692 Orifice, 0.8 mm 1
F00B 16-32 11182692 Orifice, 0.8 mm 1
C2 F00A 16-32 11167433 Orifice, 1.3 mm 1
F00B 16-32 11167433 Orifice, 1.3 mm 1
C3 None
C4 F00A 16-32 11167421 Orifice, 1.0 mm 1
F00B 16-32 11167421 Orifice, 1.0 mm 1
C6 F00T 16-32 11151734 Orifice, 1.0 mm, M6 2
C7 F00T 16-32 140754 Orifice, 1.3 mm, M6 2
C8 F00P 16-32 11177220 Orifice, 0.8 mm, 1/8-27 1
F00T 16-32 11151733 Orifice, 0.6 mm, M6 2
C9 F00P 16-32 11160290 Orifice, 0.8 mm, 1/8-27 1
F00T 16-32 11151733 Orifice, 0.6 mm, M6 2
D1 F00P 16-32 11160290 Orifice, 1.0 mm, 1/8-27 1
F00T 16-32 140611 Orifice, 0.8 mm, M6 2
D2 F00P 16-32 11160291 Orifice, 1.3 mm, 1/8-27 1
F00T 16-32 140611 Orifice, 0.8 mm, M6 2
D3 F00P 16-32 11160291 Orifice, 1.3 mm, 1/8-27 1
F00T 16-32 11151734 Orifice, 1.0 mm, M6 2
D4 F00A 16-32 11167433 Orifice, 1.3 mm 1
F00B 16-32 11167433 Orifice, 1.3 mm 1
F00P 16-32 11160291 Orifice, 1.3 mm, 1/8-27 1
F00T 16-32 11151734 Orifice, 1.0 mm, M6 2
D5 F00A 16-32 11182692 Orifice, 0.8 mm 1
F00B 16-32 11182692 Orifice, 0.8 mm 1
F00P 16-32 11176799 Orifice, 0.6 mm, 1/8-27 1
F00T 16-32 11151733 Orifice, 0.6 mm, M6 2
D6 F00P 20-31 11176799 Orifice, 0.6 mm, 1/8-27 1
F00T 20-31 11151733 Orifice, 0.6 mm, M6 2
E2 F00A 17-47 11182692 Orifice, 0.8 mm 1
F00B 17-47 11182692 Orifice, 0.8 mm 1
F00P 17-47 11160290 Orifice, 0.8 mm, 1/8-27 1
F00T 17-47 140611 Orifice, 0.8 mm, M6 2
E3 F00A 21-03 11182692 Orifice, 0.8 mm 1
F00B 21-03 11192692 Orifice, 0.8 mm 1
F00P 21-03 11177220 Orifice, 0.8 mm, 1/8-27 1
F00T 21-03 140611 Orifice, 0.8 mm, M6 2
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 61
E103 447E
G120
G130
G080
G085
G085
G080
G020
G025
G075
G070
G065
G060
G050
G045
G055
G015
G010
G030
G035
G040
G100
G120
G130
G080
G085
G085
G080
G020
G025
G075
G070
G065
G060
G050
G045
G055
G015
G010
G030
G035
G040
G100
(A1)
(B1)
Parts Manual
MP1 38 and 45cc
Porting type
MP1 38/45 porting type A1, B1
Parts configuration
62 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Porting type
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
G010 16-32 140644 (9005110-5600) Plug assembly 1
G015 16-32 140644 (9005110-5600) Plug assembly 1
G020 16-32 140644 (9005110-5600) Plug assembly 1
G025 16-32 140644 (9005110-5600) Plug assembly 1
G030 16-32 140644 (9005110-5600) Plug assembly 1
G035 16-32 140644 (9005110-5600) Plug assembly 1
G040 16-32 140644 (9005110-5600) Plug assembly 1
G045 16-32 327007 (9005110-4400) Plug assembly 1
G050 16-32 327007 (9005110-4400) Plug assembly 1
G055 16-32 327007 (9005110-4400) Plug assembly 1
G060 16-32 664524 (9005110-9000) Plug assembly 1
G065 16-32 664524 (9005110-9000) Plug assembly 1
G070 16-32 001529 (9005100-7500) Plug assembly 1
G075 16-32 001529 (9005100-7500) Plug assembly 1
G080 16-32 4800754 Lifting bracket 2
G085 16-32 508438 Screw, M6 x 12 2
G120 16-32 9001465-0015 Needle bearing 1
G130 16-32 9004700-1907 Slotted pin 1
Model/Kit
Order code: A1
G100 16-32 11165969 Housing assembly 1
Order code: B1
G100 16-32 11165970 Housing assembly 1
©
Danfoss | February 2022 AX204686485509en-001001 | 63
E103 447E.B
G120
G130
G080
G085
G085
G080
G020
G025
G075
G070
G065
G060
G050
G045
G055
G015
G010
G030
G035
G040
G100
G120
G130
G080
G085
G085
G080
G020
G025
G075
G070
G065
G060
G050
G045
G055
G015
G010
G030
G035
G040
G100
(C1)
(D1)
Parts Manual
MP1 38 and 45cc
Porting type
MP1 38/45 porting type C1, D1
Parts configuration
64 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Porting type
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
G010 16-32 5000438 Plug assembly, M14 1
G015 16-32 5000438 Plug assembly, M14 1
G020 16-32 5000438 Plug assembly, M14 1
G025 16-32 5000438 Plug assembly, M14 1
G030 16-32 5000438 Plug assembly, M14 1
G035 16-32 5000438 Plug assembly, M14 1
G040 16-32 5000438 Plug assembly, M14 1
G045 16-32 5000571 Plug assembly, M10 1
G050 16-32 5000571 Plug assembly, M10 1
G055 16-32 5000571 Plug assembly, M10 1
G060 16-32 11134927 Plug assembly, M27 1
G065 16-32 11134927 Plug assembly, M27 1
G070 16-32 11164223 Plug assembly, M18 1
G075 16-32 11164223 Plug assembly, M18 1
G080 16-32 4800754 Lifting bracket 2
G085 16-32 508438 Screw, M6 x 12 2
G120 16-32 9001465-0015 Needle bearing 1
G130 16-32 9004700-1907 Slotted pin 1
Model/Kit
Order code: C1
G100 16-32 11165971 Housing assembly, metric 1
Order code: D1
G100 16-32 11165972 Housing assembly, metric 1
©
Danfoss | February 2022 AX204686485509en-001001 | 65
G030
G035
G040
G100
G130
G120
G080
G085
G010
G060
G045
G020
G050
G055
G015
G070
G075
G025
*QG155
G150
G160
G165
G065
G085
G080
Parts Manual
MP1 38 and 45cc
Porting type
MP1 38/45 porting type A4, C4
Parts configuration
* Included in overhaul seal kit Q210
Option A4 is for SAE configurations and C4 is for metric configurations. Please order accordingly.
66 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Porting type
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
G080 19-06 4800754 Lifting bracket 2
G085 19-06 508438 Hex screw 2
G120 19-06 9001465-0015 Needle bearing 1
G130 19-06 9004700-1907 Slotted pin 1
G150 19-06 149055 Speed and temperature sensor 1
G160 19-06 11158928 Screw 1
G165 19-06 11187156 Speed sensor protective cover 1
QG155 19-06 11013397 O-ring 1
Order code: A4
G010 19-06 9005110-5600 Plug assembly 1
G015 19-06 9005110-5600 Plug assembly 1
G020 19-06 9005110-5600 Plug assembly 1
G025 19-06 9005110-5600 Plug assembly 1
G030 19-06 9005110-5600 Plug assembly 1
G035 19-06 9005110-5600 Plug assembly 1
G040 19-06 9005110-5600 Plug assembly 1
G045 19-06 327007 Plug assembly 1
G050 19-06 327007 Plug assembly 1
G060 19-06 9005110-9000 Plug assembly 1
G065 19-06 9005110-9000 Plug assembly 1
G070 19-06 001529 Hex plug assembly 1
G075 19-06 001529 Hex plug assembly 1
G100 19-06 11224503 Housing assembly 1
Model/Kit
Order code: C4
G010 19-06 5000438 Plug assembly 1
G015 19-06 5000438 Plug assembly 1
G020 19-06 5000438 Plug assembly 1
G025 19-06 5000438 Plug assembly 1
G030 19-06 5000438 Plug assembly 1
G035 19-06 5000438 Plug assembly 1
G040 19-06 5000438 Plug assembly 1
G045 19-06 5000571 Plug assembly 1
G050 19-06 5000571 Plug assembly 1
G060 19-06 11134927 Plug assembly 1
G065 19-06 11134927 Plug assembly 1
G070 19-06 11164223 Hex plug assembly 1
G075 19-06 11164223 Hex plug assembly 1
G100 19-06 11224509 Housing assembly 1
©
Danfoss | February 2022 AX204686485509en-001001 | 67
G160
G165
G065
G085
G080
G150
*QG155
G025
G075
G070
G015
G055
G050
G145
G115
G140
G020
G045
G060
G010
G080
G085
G120
G130
G100
G040
G035
G030
Parts Manual
MP1 38 and 45cc
Porting type
MP1 38/45 porting type A5, C5
Parts configuration
* Included in overhaul seal kit Q210
Option A5 is for SAE configurations and C5 is for metric configurations. Please order accordingly.
68 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Porting type
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
G080 19-06 4800754 Lifting bracket 2
G085 19-06 508438 Hex screw 2
G115 19-06 9005110-5000 Plug assembly 1
G120 19-06 9001465-0015 Needle bearing 1
G130 19-06 9004700-1907 Slotted pin 1
G140 19-06 9005110-5000 Plug assembly 1
G145 19-06 9005110-5000 Plug assembly 1
G150 19-06 149055 Speed and temperature sensor 1
G160 19-06 11158928 Screw 1
G165 19-06 11187156 Speed sensor protective cover 1
QG155 19-06 11013397 O-ring 1
Order code: A5
G010 19-06 9005110-5600 Plug assembly 1
G015 19-06 9005110-5600 Plug assembly 1
G020 19-06 9005110-5600 Plug assembly 1
G025 19-06 9005110-5600 Plug assembly 1
G030 19-06 9005110-5600 Plug assembly 1
G035 19-06 9005110-5600 Plug assembly 1
G040 19-06 9005110-5600 Plug assembly 1
G045 19-06 327007 Plug assembly 1
G050 19-06 327007 Plug assembly 1
G055 19-06 327007 Plug assembly 1
G060 19-06 9005110-9000 Plug assembly 1
G065 19-06 9005110-9000 Plug assembly 1
G070 19-06 001529 Hex plug assembly 1
G075 19-06 001529 Hex plug assembly 1
G100 19-06 11224504 Housing assembly 1
Model/Kit
Part numbers continue to the next 2 pages.
©
Danfoss | February 2022 AX204686485509en-001001 | 69
G160
G165
G065
G085
G080
G150
*QG155
G025
G075
G070
G015
G055
G050
G145
G115
G140
G020
G045
G060
G010
G080
G085
G120
G130
G100
G040
G035
G030
Parts Manual
MP1 38 and 45cc
Porting type

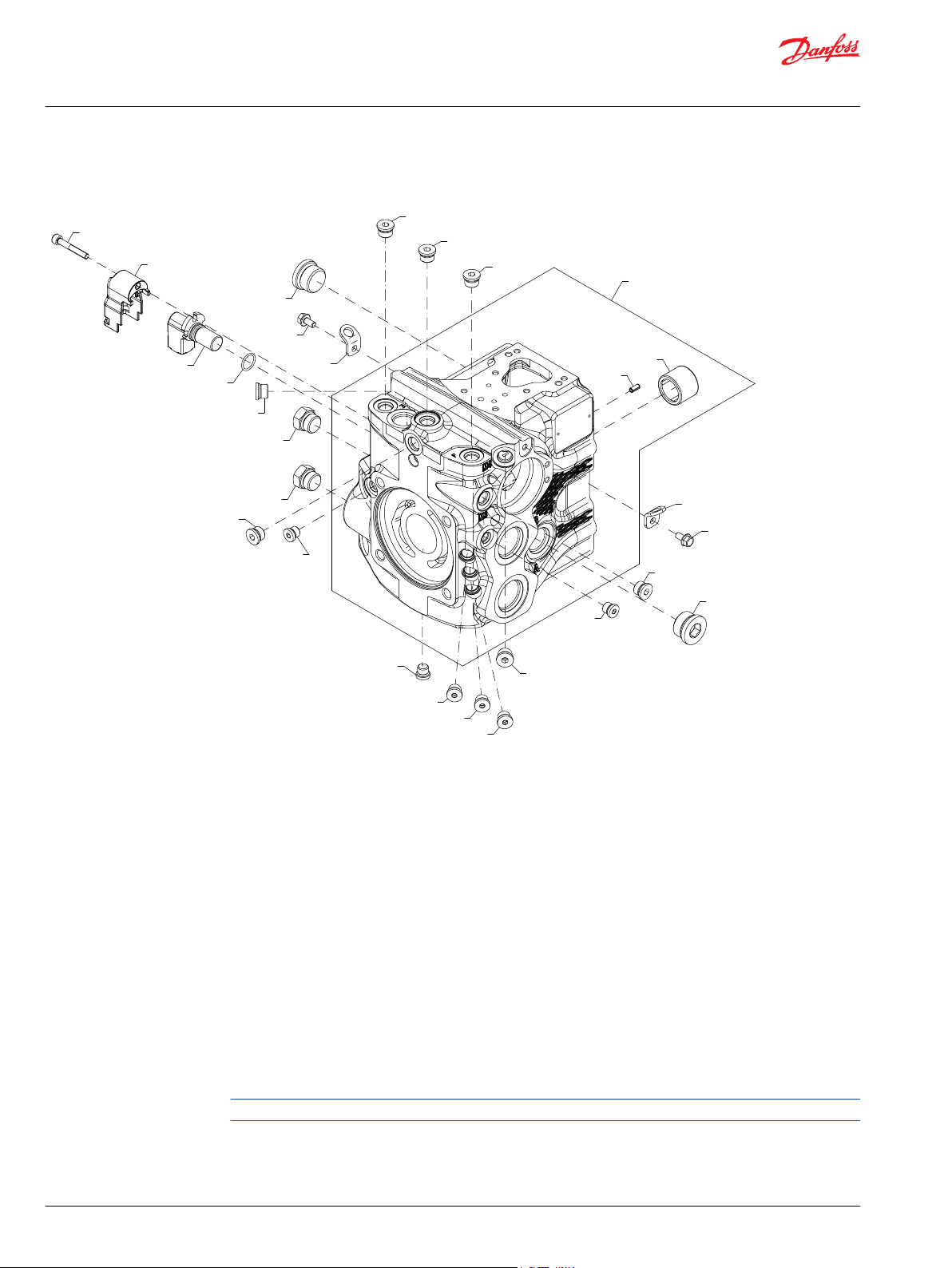

Parts configuration
* Included in overhaul seal kit Q210
Option A5 is for SAE configurations and C5 is for metric configurations. Please order accordingly.
70 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Porting type
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
G080 19-06 4800754 Lifting bracket 2
G085 19-06 508438 Hex screw 2
G115 19-06 9005110-5000 Plug assembly 1
G120 19-06 9001465-0015 Needle bearing 1
G130 19-06 9004700-1907 Slotted pin 1
G140 19-06 9005110-5000 Plug assembly 1
G145 19-06 9005110-5000 Plug assembly 1
G150 19-06 149055 Speed and temperature sensor 1
G160 19-06 11158928 Screw 1
G165 19-06 11187156 Speed sensor protective cover 1
QG155 19-06 11013397 O-ring 1
Order code: C5
G010 19-06 5000438 Plug assembly 1
G015 19-06 5000438 Plug assembly 1
G020 19-06 5000438 Plug assembly 1
G025 19-06 5000438 Plug assembly 1
G030 19-06 5000438 Plug assembly 1
G035 19-06 5000438 Plug assembly 1
G040 19-06 5000438 Plug assembly 1
G045 19-06 5000571 Plug assembly 1
G050 19-06 5000571 Plug assembly 1
G055 19-06 5000571 Plug assembly 1
G060 19-06 11134927 Plug assembly 1
G065 19-06 11134927 Plug assembly 1
G070 19-06 11164223 Hex plug assembly 1
G075 19-06 11164223 Hex plug assembly 1
G100 19-06 11224510 Housing assembly 1
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 71
G030
G035
G040
G065
G085
G080
G025
G075
G070
G055
G015
G050
G080
G085
G045
G060
G010
G020
G145
G140
G115
G120
G130
G100
Parts Manual
MP1 38 and 45cc
Porting type

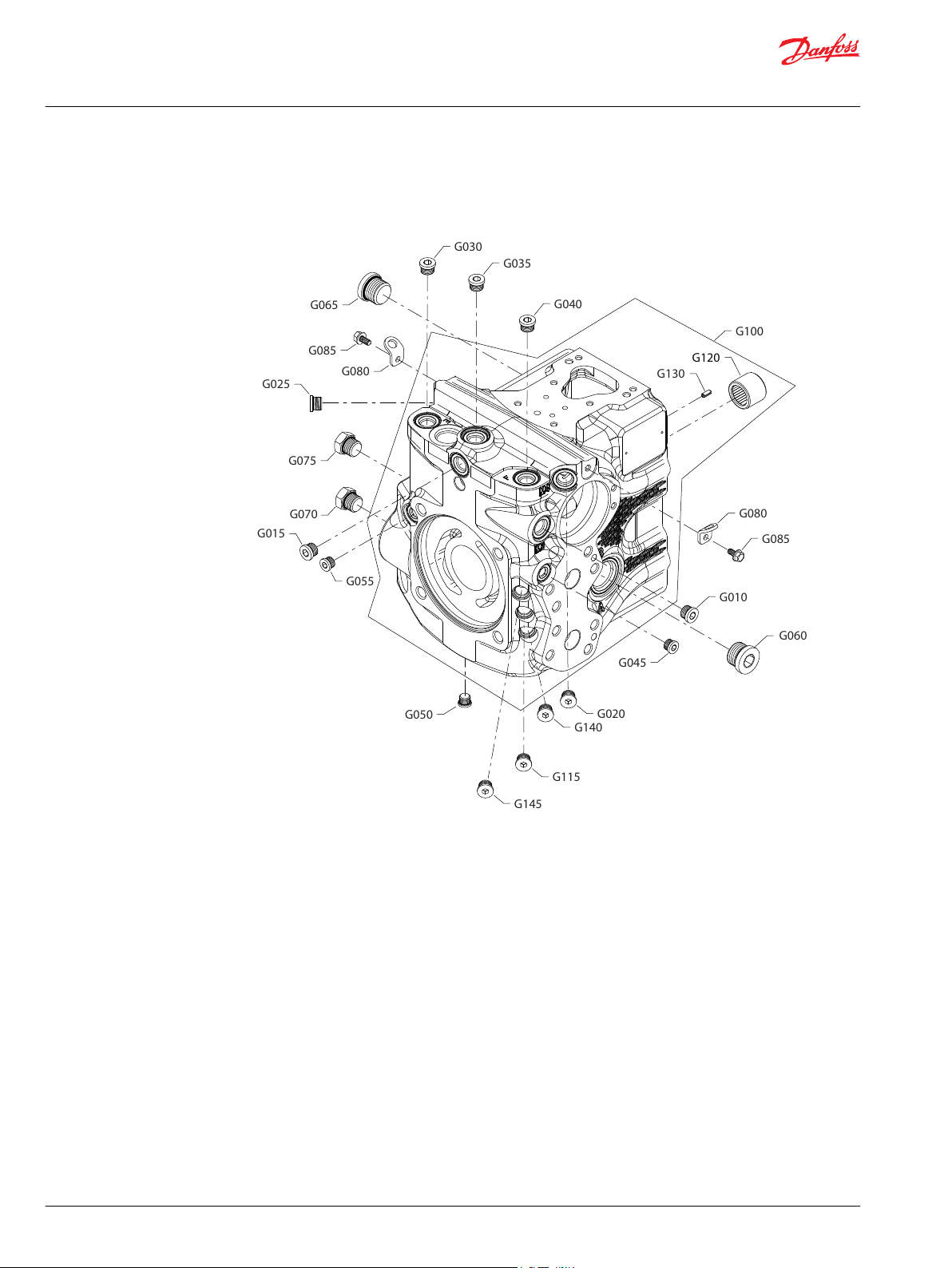

MP1 38/45 porting type B3, D3
Parts configuration
72 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Porting type
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
G080 19-03 4800754 Lifting bracket 2
G085 19-03 508438 Screw, M6 x 12 2
G115 19-03 500217 (9005110-5000) Plug assembly 1
G120 19-03 9001465-0015 Needle bearing 1
G130 19-03 9004700-1907 Slotted pin 1
G140 19-03 500217 (9005110-5000) Plug assembly 1
G145 19-03 500217 (9005110-5000) Plug assembly 1
Order code: B3
G010 19-03 140644 (9005110-5600) Plug assembly 1
G015 19-03 140644 (9005110-5600) Plug assembly 1
G020 19-03 140644 (9005110-5600) Plug assembly 1
G025 19-03 140644 (9005110-5600) Plug assembly 1
G030 19-03 140644 (9005110-5600) Plug assembly 1
G035 19-03 140644 (9005110-5600) Plug assembly 1
G040 19-03 140644 (9005110-5600) Plug assembly 1
G045 19-03 327007 (9005110-4400) Plug assembly 1
G050 19-03 327007 (9005110-4400) Plug assembly 1
G055 19-03 327007 (9005110-4400) Plug assembly 1
G060 19-03 664524 (9005110-9000) Plug assembly 1
G065 19-03 664524 (9005110-9000) Plug assembly 1
G070 19-03 001529 (9005100-7500) Plug assembly 1
G075 19-03 001529 (9005100-7500) Plug assembly 1
G100 19-03 11224505 Housing assembly 1
Model/Kit
Order code: D3
G010 19-03 5000438 Plug assembly, M14 1
G015 19-03 5000438 Plug assembly, M14 1
G020 19-03 5000438 Plug assembly, M14 1
G025 19-03 5000438 Plug assembly, M14 1
G030 19-03 5000438 Plug assembly, M14 1
G035 19-03 5000438 Plug assembly, M14 1
G040 19-03 5000438 Plug assembly, M14 1
G045 19-03 5000571 Plug assembly, M10 1
G050 19-03 5000571 Plug assembly, M10 1
G055 19-03 5000571 Plug assembly, M10 1
G060 19-03 11134927 Plug assembly, M27 1
G065 19-03 11134927 Plug assembly, M27 1
G070 19-03 11164223 Plug assembly, M18 1
G075 19-03 11164223 Plug assembly, M18 1
G100 19-03 11224511 Housing assembly 1
©
Danfoss | February 2022 AX204686485509en-001001 | 73
G100
G040
G035
G030
G065
G165
G160
G150
*QG155
G025
G075
G070
G015
G055
G050
G020
G045
G060
G010
G120
G130
Parts Manual
MP1 38 and 45cc
Porting type
MP1 38/45 porting type B4, D4
Parts configuration
* Included in overhaul seal kit Q210
74 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Porting type
Order code: B4
Item Date Begin Date End Part Number Part Name Qty. per
G010 19-12 140644 (9005110-5600) Plug assembly 1
G015 19-12 140644 (9005110-5600) Plug assembly 1
G020 19-12 140644 (9005110-5600) Plug assembly 1
G025 19-12 140644 (9005110-5600) Plug assembly 1
G030 19-12 140644 (9005110-5600) Plug assembly 1
G035 19-12 140644 (9005110-5600) Plug assembly 1
G040 19-12 140644 (9005110-5600) Plug assembly 1
G045 19-12 327007 (9005110-4400) Plug assembly 1
G050 19-12 327007 (9005110-4400) Plug assembly 1
G055 19-12 327007 (9005110-4400) Plug assembly 1
G060 19-12 664524 (9005110-9000) Plug assembly 1
G065 19-12 664524 (9005110-9000) Plug assembly 1
G070 19-12 001529 (9005100-7500) Plug assembly 1
G075 19-12 001529 (9005100-7500) Plug assembly 1
G100 19-12 11224506 Housing assembly 1
G120 19-12 9001465-0015 Needle bearing 1
G130 19-12 9004700-1907 Slotted pin 1
G150 19-12 149055 Speed sensor 1
G160 19-12 11158928 Screw, M6x 40 1
G165 19-12 11187156 Speed sensor cover 1
Model/Kit
Order code: D4 (metric)
G010 19-12 5000438 Plug assembly, M14 1
G015 19-12 5000438 Plug assembly, M14 1
G020 19-12 5000438 Plug assembly, M14 1
G025 19-12 5000438 Plug assembly, M14 1
G030 19-12 5000438 Plug assembly, M14 1
G035 19-12 5000438 Plug assembly, M14 1
G040 19-12 5000438 Plug assembly, M14 1
G045 19-12 5000571 Plug assembly, M10 1
G050 19-12 5000571 Plug assembly, M10 1
G055 19-12 5000571 Plug assembly, M10 1
G060 19-12 11134927 Plug assembly, M27 1
G065 19-12 11134927 Plug assembly, M27 1
G070 19-12 11164223 Plug assembly, M18 1
G075 19-12 11164223 Plug assembly, M18 1
G100 19-12 11224513 Housing assembly 1
G120 19-12 9001465-0015 Needle bearing 1
G130 19-12 9004700-1907 Slotted pin 1
G150 19-12 149055 Speed sensor 1
G160 19-12 11158928 Screw, M6x40 1
G165 19-12 11187156 Speed sensor cover 1
©
Danfoss | February 2022 AX204686485509en-001001 | 75
G100
G120
G130
G040
G035
G030
G065
G160
G165
G150
*QG155
G025
G075
G070
G015
G055
G050
G145
G115
G140
G020
G045
G060
G010
Parts Manual
MP1 38 and 45cc
Porting type
MP1 38/45 porting type B5, D5
Parts configuration
* Included in overhaul seal kit Q210
76 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Porting type
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
G115 19-12 500217 (9005110-5000) Plug assembly 1
G120 19-12 9001465-0015 Needle bearing 1
G130 19-12 9004700-1907 Slotted pin 1
G140 19-12 500217 (9005110-5000) Plug assembly 1
G145 19-12 500217 (9005110-5000) Plug assembly 1
G150 19-12 149055 Speed sensor 1
G160 19-12 11158928 Screw, M6x40 1
G165 19-12 11187156 Speed sensor cover 1
Order code: B5
G010 19-12 140644 (9005110-5600) Plug assembly 1
G015 19-12 140644 (9005110-5600) Plug assembly 1
G020 19-12 140644 (9005110-5600) Plug assembly 1
G025 19-12 140644 (9005110-5600) Plug assembly 1
G030 19-12 140644 (9005110-5600) Plug assembly 1
G035 19-12 140644 (9005110-5600) Plug assembly 1
G040 19-12 140644 (9005110-5600) Plug assembly 1
G045 19-12 327007 (9005110-4400) Plug assembly 1
G050 19-12 327007 (9005110-4400) Plug assembly 1
G055 19-12 327007 (9005110-4400) Plug assembly 1
G060 19-12 664524 (9005110-9000) Plug assembly 1
G065 19-12 664524 (9005110-9000) Plug assembly 1
G070 19-12 001529 (9005100-7500) Plug assembly 1
G075 19-12 001529 (9005100-7500) Plug assembly 1
G100 19-12 11224507 Housing assembly 1
Model/Kit
Order code: D5 (metric)
G010 19-12 5000438 Plug assembly, M14 1
G015 19-12 5000438 Plug assembly, M14 1
G020 19-12 5000438 Plug assembly, M14 1
G025 19-12 5000438 Plug assembly, M14 1
G030 19-12 5000438 Plug assembly, M14 1
G035 19-12 5000438 Plug assembly, M14 1
G040 19-12 5000438 Plug assembly, M14 1
G045 19-12 5000571 Plug assembly, M10 1
G050 19-12 5000571 Plug assembly, M10 1
G055 19-12 5000571 Plug assembly, M10 1
G060 19-12 11134927 Plug assembly, M27 1
G065 19-12 11134927 Plug assembly, M27 1
G070 19-12 11164223 Plug assembly, M18 1
G075 19-12 11164223 Plug assembly, M18 1
G100 19-12 11224514 Housing assembly 1
©
Danfoss | February 2022 AX204686485509en-001001 | 77
G030
G035
G040
G065
G085
G080
G025
G075
G070
G055
G015
G050
G080
G085
G045
G060
G010
G020
G145
G140
G115
G120
G130
G100
Parts Manual
MP1 38 and 45cc
Porting type
MP1 38/45 porting type A3, C3
Parts configuration
78 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Porting type
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
G080 19-03 4800754 Lifting bracket 2
G085 19-03 508438 Screw, M6 x 12 2
G115 19-03 500217 (9005110-5000) Plug assembly 1
G120 19-03 9001465-0015 Needle bearing 1
G130 19-03 9004700-1907 Slotted pin 1
G140 19-03 500217 (9005110-5000) Plug assembly 1
G145 19-03 500217 (9005110-5000) Plug assembly 1
Order code: A3
G010 19-03 140644 (9005110-5600) Plug assembly 1
G015 19-03 140644 (9005110-5600) Plug assembly 1
G020 19-03 140644 (9005110-5600) Plug assembly 1
G025 19-03 140644 (9005110-5600) Plug assembly 1
G030 19-03 140644 (9005110-5600) Plug assembly 1
G035 19-03 140644 (9005110-5600) Plug assembly 1
G040 19-03 140644 (9005110-5600) Plug assembly 1
G045 19-03 327007 (9005110-4400) Plug assembly 1
G050 19-03 327007 (9005110-4400) Plug assembly 1
G055 19-03 327007 (9005110-4400) Plug assembly 1
G060 19-03 664524 (9005110-9000) Plug assembly 1
G065 19-03 664524 (9005110-9000) Plug assembly 1
G070 19-03 001529 (9005100-7500) Plug assembly 1
G075 19-03 001529 (9005100-7500) Plug assembly 1
G100 19-03 11224502 Housing assembly 1
Model/Kit
Order code: C3
G010 19-03 5000438 Plug assembly, M14 1
G015 19-03 5000438 Plug assembly, M14 1
G020 19-03 5000438 Plug assembly, M14 1
G025 19-03 5000438 Plug assembly, M14 1
G030 19-03 5000438 Plug assembly, M14 1
G035 19-03 5000438 Plug assembly, M14 1
G040 19-03 5000438 Plug assembly, M14 1
G045 19-03 5000571 Plug assembly, M10 1
G050 19-03 5000571 Plug assembly, M10 1
G055 19-03 5000571 Plug assembly, M10 1
G060 19-03 11134927 Plug assembly, M27 1
G065 19-03 11134927 Plug assembly, M27 1
G070 19-03 11164223 Plug assembly, M18 1
G075 19-03 11164223 Plug assembly, M18 1
G100 19-03 11224508 Housing assembly 1
©
Danfoss | February 2022 AX204686485509en-001001 | 79

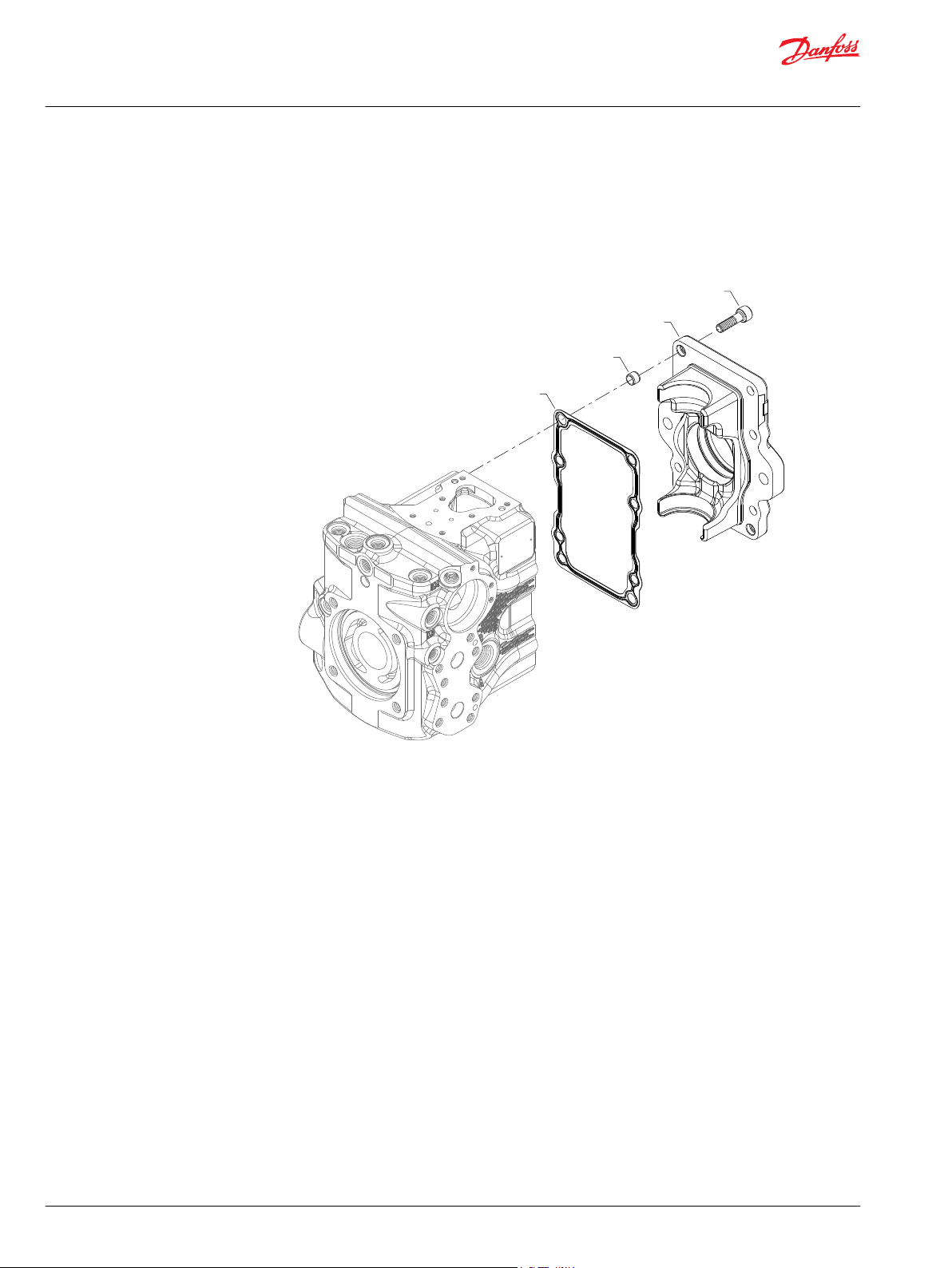

*H110
H120
H100
H130
E103 678
Parts Manual
MP1 38 and 45cc
Mounting flange
MP1 38/45 mounting flange F
Parts configuration
* Included in overhaul seal kit Q210
80 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Mounting flange
Order code: F
Item Date Begin Date End Part Number Part Name Qty. per
H100 16-32 11150146 Front cover 1
H110 16-32 11157168 Front cover gasket 1
H120 16-32 4400090 Hollow dowel locator 2
H130 16-32 11158929 Screw, M10 x 35 8
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 81
J150
J200
J300
*J250
J100
J200
J300
J300
*J250
J100
J150
J150
J150
(A6)(A6)
(A8)(A8)
(F3)(F3)
(F2)(F2)
J300
Parts Manual
MP1 38 and 45cc
Shaft

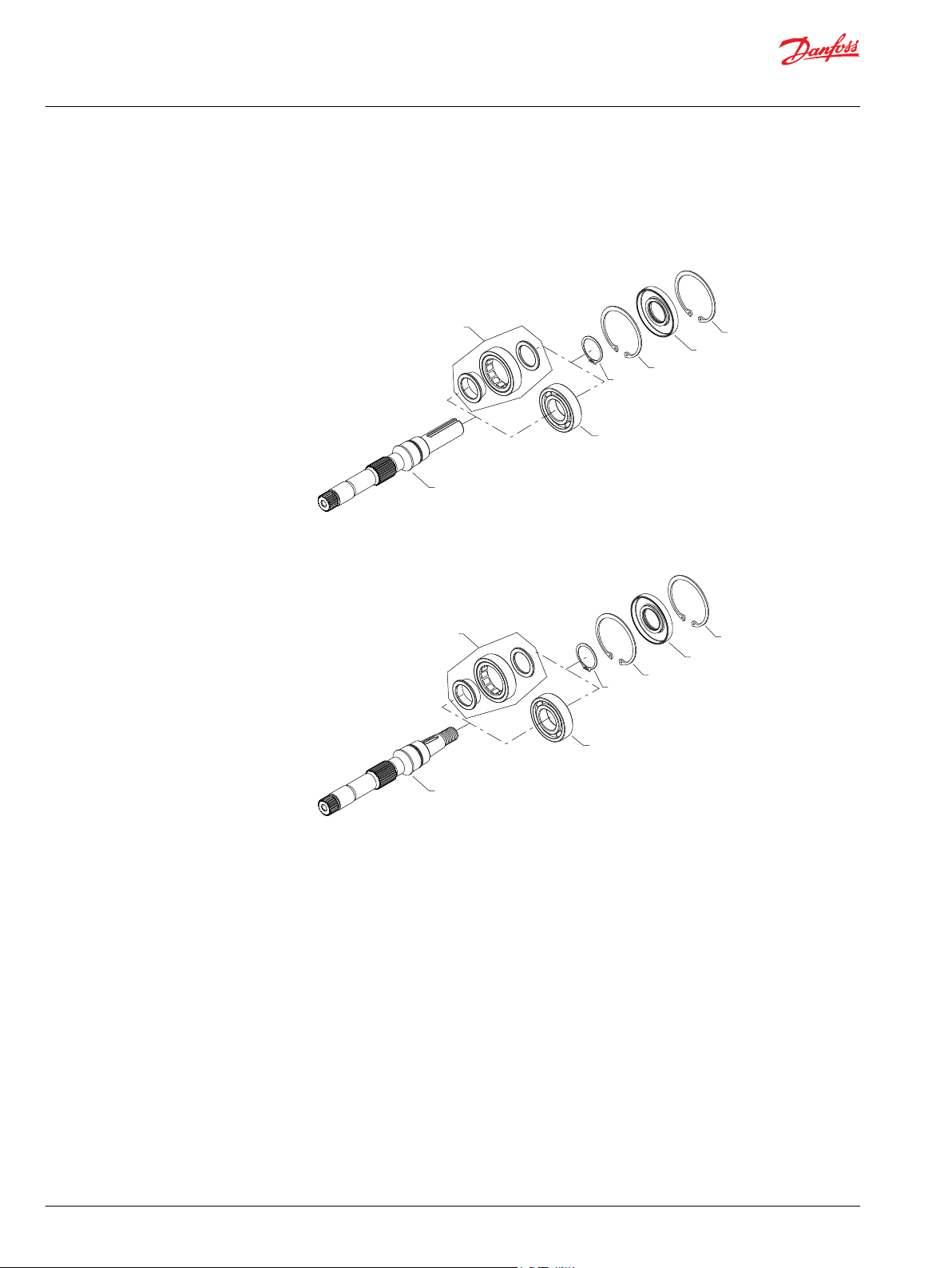

MP1 38/45 shaft A6-F2
Parts configuration
* Included in overhaul seal kit Q210
82 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Shaft
Order code: A6
Item Date Begin Date End Part Number Part Name Qty. per
J100 16-32 11150730 Shaft, straight key 1
J150 16-32 357616 Roller bearing 1
J200 16-32 9006300-0137 Retaining ring 1
J250 16-32 11103135 Lip seal 1
J300 16-32 9006200-0281 Retaining ring 2
Order code: A8
J100 16-32 11150730 Shaft, straight key 1
J150 16-32 11060400 Ball bearing 1
J200 16-32 9006300-0137 Retaining ring 1
J250 16-32 11103135 Lip seal 1
J300 16-32 9006200-0281 Retaining ring 2
Model/Kit
Order code: F2
J100 16-32 11169590 Shaft, tapered 1
J150 16-32 11060400 Ball bearing 1
J200 16-32 9006300-0137 Retaining ring 1
J250 16-32 11103135 Lip seal 1
J300 16-32 9006200-0281 Retaining ring 2
Order code: F3
J100 16-32 11169590 Shaft, tapered 1
J150 16-32 357616 Roller bearing 1
J200 16-32 9006300-0137 Retaining ring 1
J250 16-32 11103135 Lip seal 1
J300 16-32 9006200-0281 Retaining ring 2
©
Danfoss | February 2022 AX204686485509en-001001 | 83
J200
J300
J300
*J250
J100
J200
J300
J300
*J250
J200
J300
J300
*J250
J100
J100
J150
J150
J150
J150
J150
J150
(F1, F5)
(F6)(F6)
(G7)(G7)
(G1, G5)
(G4)(G4)
(G6)(G6)
Parts Manual
MP1 38 and 45cc
Shaft

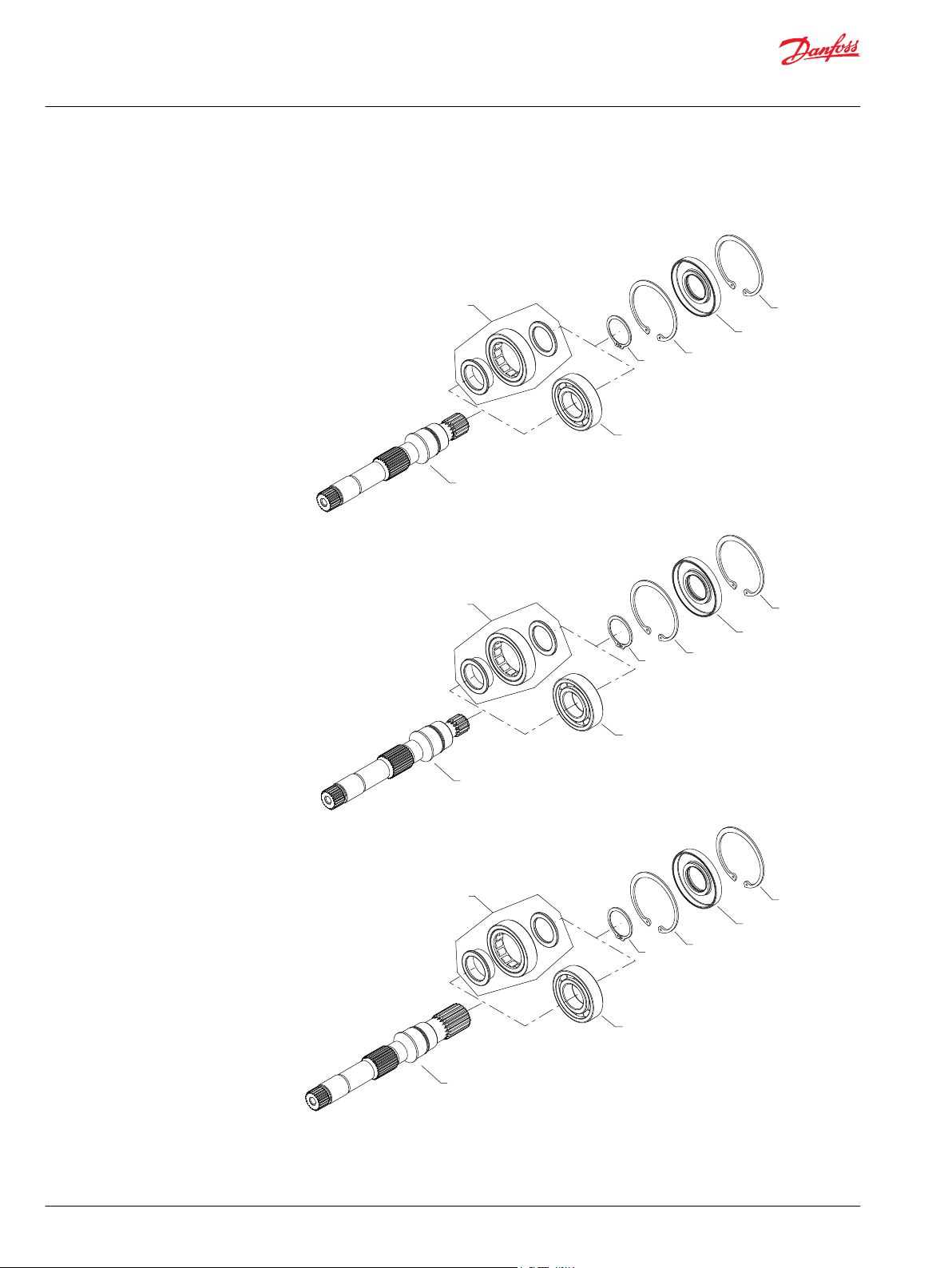

MP1 38/45 shaft F1-G7
Parts configuration
* Included in overhaul seal kit Q210
84 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Shaft
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
J200 16-32 9006300-0137 Retaining ring 1
J250 16-32 11103135 Lip seal 1
J300 16-32 9006200-0281 Retaining ring 2
Order code: F1
J100 18-12 11212924 Shaft, 14 teeth 1
J150 18-12 357616 Roller bearing 1
Order code: F5
J100 16-32 11150728 Shaft, 15 tooth 1
J150 16-32 357616 Roller bearing 1
Order code: F6
J100 16-32 11150727 Shaft, 13 tooth 1
J150 16-32 357616 Roller bearing 1
Model/Kit
Order code: G1
J100 18-12 11212924 Shaft, 14 teeth 1
J150 18-12 11060400 Ball bearing 1
Order code: G5
J100 16-32 11150728 Shaft, 15 tooth 1
J150 16-32 11060400 Ball bearing 1
Order code: G6
J100 16-32 11169483 Shaft, 19 tooth 1
J150 16-32 11060400 Ball bearing 1
Order code: G7
J100 16-32 11169483 Shaft, 19 tooth 1
J150 16-32 357616 Roller bearing 1
©
Danfoss | February 2022 AX204686485509en-001001 | 85
K100
K120
*K200
K450
K500
K400
K300
K100
K300
K500
K120
*K200
K400
K450
K120
K300
K100
*K200
K450
K500
K400
(A16 & A19)(A16 & A19)
(ANN)(ANN)
(A22 & A25)
Parts Manual
MP1 38 and 45cc
Auxiliary mounting

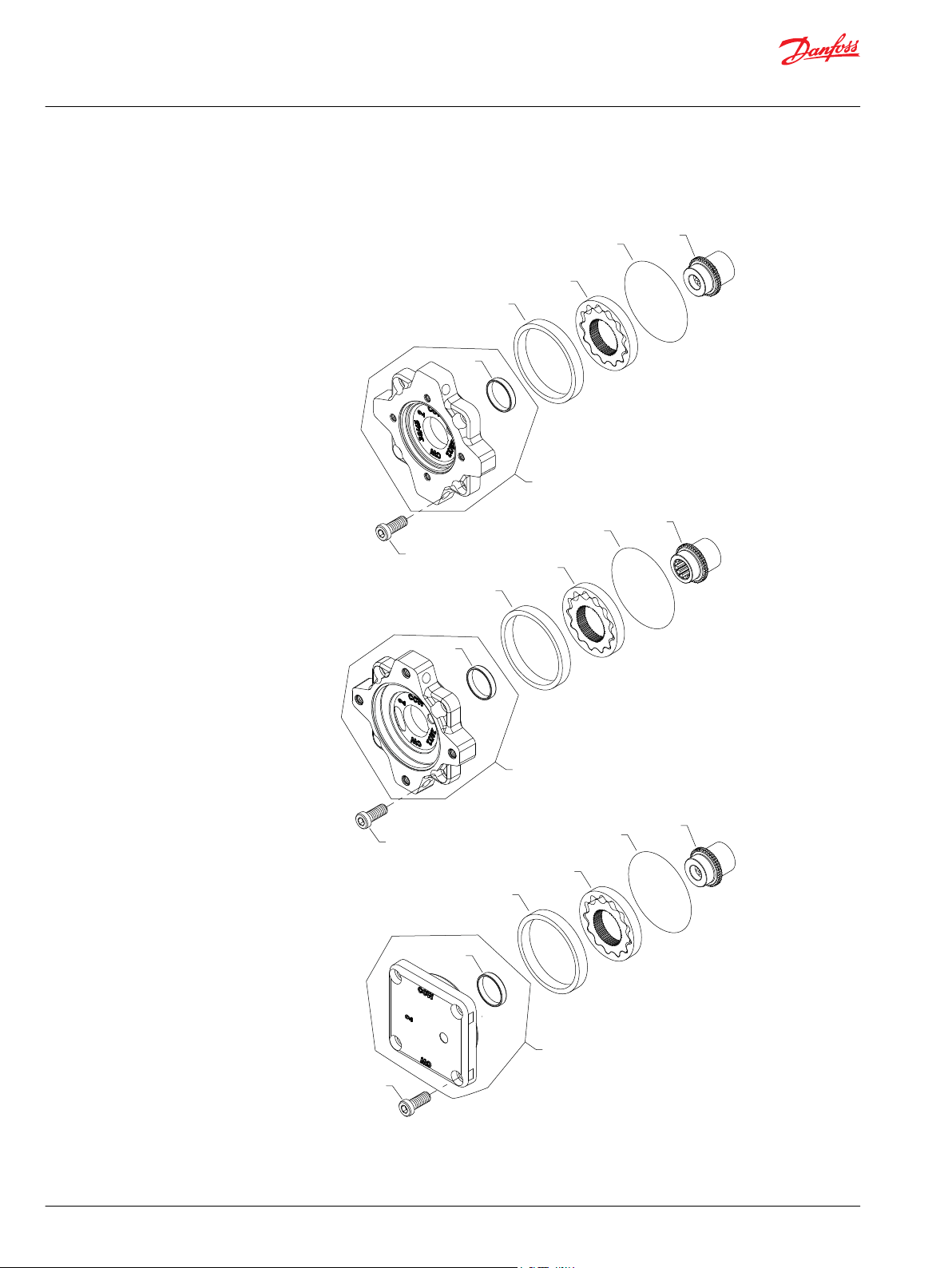

MP1 aux mounting A16-ANN
Parts configuration
* Included in overhaul seal kit Q210
86 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Auxiliary mounting
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
K120 16-32 11189476 Journal bearing 1
K200 16-32 11174741 O-ring 1
K300 16-32 11000819 Screw, M12 x 25 4
K400 16-32 11155777 Gerotor assembly, 9cc 1
K450 16-32 11171571 Gerotor ring, 9cc 1
Order code: A16
K100 16-32 11166265 Adaptor assembly, A pad, 9cc 1
K500 16-32 11151243 Coupling, 9 tooth 1
Order code: A19
K100 16-32 11166265 Adaptor assembly, A pad, 9cc 1
K500 16-32 11151244 Coupling, 11 tooth 1
Model/Kit
Order code: A22
K100 16-32 11166270 Adaptor assembly, B pad, 9cc 1
K500 16-32 11151245 Coupling, 13 tooth 1
Order code: A25
K100 16-32 11166270 Adaptor assembly, B pad, 9cc 1
K500 16-32 11151246 Coupling, 15 tooth 1
Order code: ANN
K100 16-32 11166271 Charge pump cover assembly, 9cc 1
K500 16-32 11151243 Coupling, 9 tooth 1
©
Danfoss | February 2022 AX204686485509en-001001 | 87
K100
K120
*K200
K450
K500
K400
K300
K100
K300
K500
K120
*K200
K400
K450
K120
K300
K100
*K200
K450
K500
K400
(B16 & B19)(B16 & B19)
(BNN)(BNN)
(B22 & B25)
Parts Manual
MP1 38 and 45cc
Auxiliary mounting

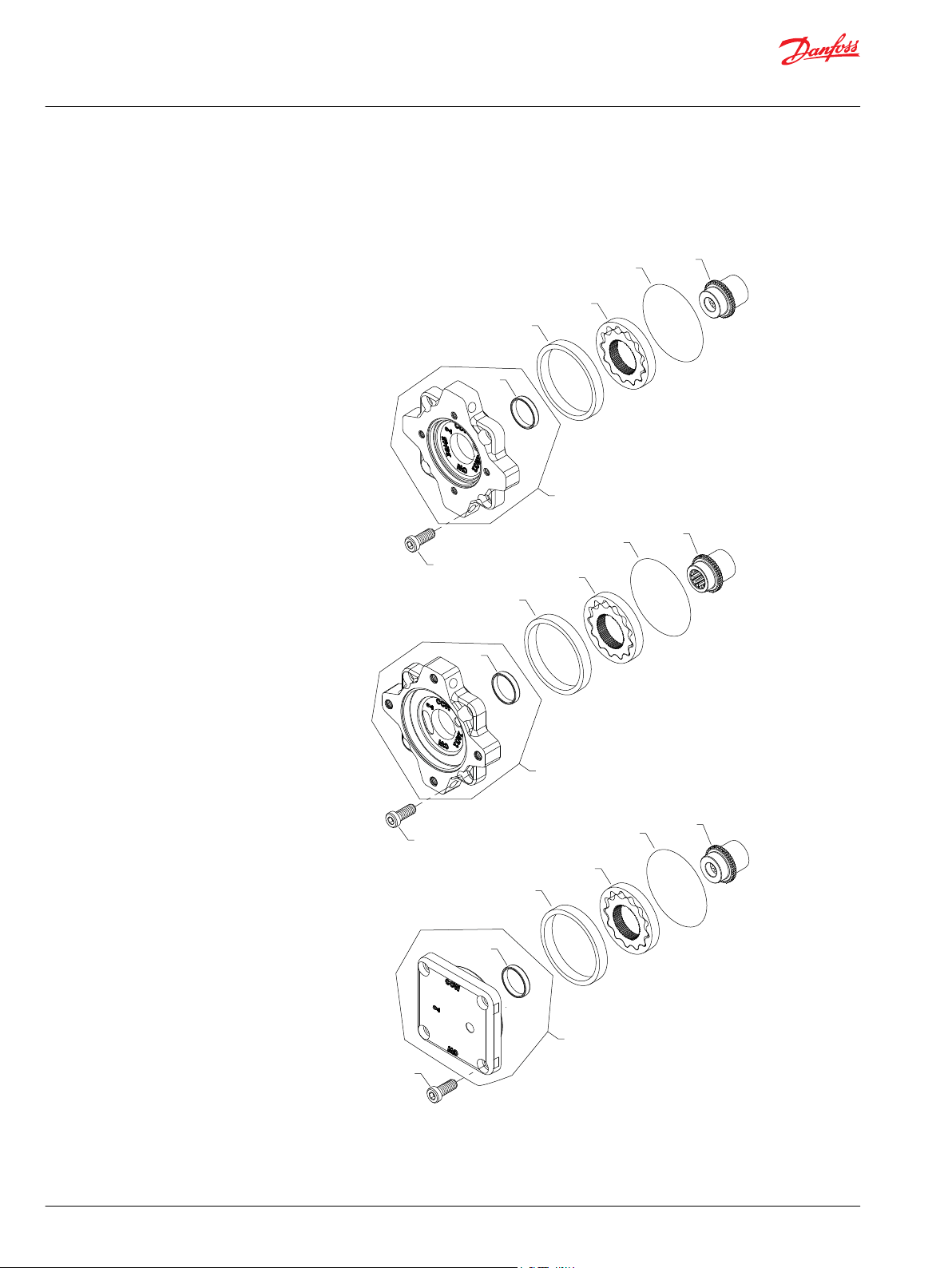

MP1 aux mounting B16-BNN
Parts configuration
* Included in overhaul seal kit Q210
88 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Auxiliary mounting
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
K120 16-32 11189476 Journal bearing 1
K200 16-32 11174741 O-ring 1
K300 16-32 11000819 Screw, M12 x 25 4
K400 16-32 11155777 Gerotor assembly, 9cc 1
K450 16-32 11171571 Gerotor ring, 9cc 1
Order code: B16
K100 16-32 11166265 Adaptor assembly, A pad, 9cc 1
K500 16-32 11151243 Coupling, 9 tooth 1
Order code: B19
K100 16-32 11166265 Adaptor assembly, A pad, 9cc 1
K500 16-32 11151244 Coupling, 11 tooth 1
Model/Kit
Order code: B22
K100 16-32 11166270 Adaptor assembly, B pad, 9cc 1
K500 16-32 11151245 Coupling, 13 tooth 1
Order code: B25
K100 16-32 11166270 Adaptor assembly, B pad, 9cc 1
K500 16-32 11151246 Coupling, 15 tooth 1
Order code: BNN
K100 16-32 11166271 Charge pump cover assembly, 9cc 1
K500 16-32 11151243 Coupling, 9 tooth 1
©
Danfoss | February 2022 AX204686485509en-001001 | 89
K100
K300
K120
K500
*K200
K400
K450
K100
K120
*K200
K500
K300
K400
K450
K120
K300
K100
*K200
K500
K400
K450
(C16 & C19)(C16 & C19)
(CNN)(CNN)
(C22 & C25)
Parts Manual
MP1 38 and 45cc
Auxiliary mounting
MP1 aux mounting C16-CNN
Parts configuration
* Included in overhaul seal kit Q210
90 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Auxiliary mounting
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
K120 16-32 11189476 Journal bearing 1
K200 16-32 11174741 O-ring 1
K300 16-32 11000819 Screw, M12 x 25 4
K400 16-32 11077232 Gerotor assembly, 12cc 1
K450 16-32 141595 Gerotor ring, 12cc 1
Order code: C16
K100 16-32 11166272 Adaptor assembly, A pad, 12cc 1
K500 16-32 11151243 Coupling, 9 tooth 1
Order code: C19
K100 16-32 11166272 Adaptor assembly, A pad, 12cc 1
K500 16-32 11151244 Coupling, 11 tooth 1
Model/Kit
Order code: C22
K100 16-32 11166273 Adaptor assembly, B pad, 12cc 1
K500 16-32 11151245 Coupling, 13 tooth 1
Order code: C25
K100 16-32 11166273 Adaptor assembly, B pad, 12cc 1
K500 16-32 11151246 Coupling, 15 tooth 1
Order code: CNN
K100 16-32 11166274 Charge pump cover assembly, 12cc 1
K500 16-32 11151243 Coupling, 9 tooth 1
©
Danfoss | February 2022 AX204686485509en-001001 | 91
K100
K300
K120
K500
*K200
K400
K450
K100
K120
*K200
K500
K300
K400
K450
K120
K300
K100
*K200
K500
K400
K450
(D16 & D19)(D16 & D19)
(DNN)(DNN)
(D22 & D25)
Parts Manual
MP1 38 and 45cc
Auxiliary mounting
MP1 aux mounting D16-DNN
Parts configuration
* Included in overhaul seal kit Q210
92 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Auxiliary mounting
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
K120 16-32 11189476 Journal bearing 1
K200 16-32 11174741 O-ring 1
K300 16-32 11000819 Screw, M12 x 25 4
K400 16-32 11077232 Gerotor assembly, 12cc 1
K450 16-32 141595 Gerotor ring, 12cc 1
Order code: D16
K100 16-32 11166272 Adaptor assembly, A pad, 12cc 1
K500 16-32 11151243 Coupling, 9 tooth 1
Order code: D19
K100 16-32 11166272 Adaptor assembly, A pad, 12cc 1
K500 16-32 11151244 Coupling, 11 tooth 1
Model/Kit
Order code: D22
K100 16-32 11166273 Adaptor assembly, B pad, 12cc 1
K500 16-32 11151245 Coupling, 13 tooth 1
Order code: D25
K100 16-32 11166273 Adaptor assembly, B pad, 12cc 1
K500 16-32 11151246 Coupling, 15 tooth 1
Order code: DNN
K100 16-32 11166274 Charge pump cover assembly, 12cc 1
K500 16-32 11151243 Coupling, 9 tooth 1
©
Danfoss | February 2022 AX204686485509en-001001 | 93
K100
K300
K500
K120
*K200
K120
K300
K100
K100
K300
K120
*K200
K500
*K200
K800
(E16 & E19)(E16 & E19)
(ENN)(ENN)
(E22 & E25)
Parts Manual
MP1 38 and 45cc
Auxiliary mounting
MP1 aux mounting E16-ENN
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
94 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Auxiliary mounting
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
K120 16-32 11189476 Journal bearing 1
K200 16-32 11174741 O-ring 1
K300 16-32 11000819 Screw, M12 x 25 4
K800 16-32 664524 (9005110-9000) Plug assembly 1
Order code: E16
K100 16-32 11166265 Adaptor assembly, A pad, 9cc 1
K500 16-32 11151243 Coupling, 9 tooth 1
Order code: E19
K100 16-32 11166265 Adaptor assembly, A pad, 9cc 1
K500 16-32 11151244 Coupling, 11 tooth 1
Model/Kit
Order code: E22
K100 16-32 11166270 Adaptor assembly, B pad, 9cc 1
K500 16-32 11151245 Coupling, 13 tooth 1
Order code: E25
K100 16-32 11166270 Adaptor assembly, B pad, 9cc 1
K500 16-32 11151246 Coupling, 15 tooth 1
Order code: ENN
K100 16-32 11166271 Charge pump cover assembly, 9cc 1
©
Danfoss | February 2022 AX204686485509en-001001 | 95
K100
K300
K500
K120
*K200
K120
K300
K100
K100
K300
K120
*K200
K500
*K200
K800
(F16 & F19)(F16 & F19)
(FNN)(FNN)
(F22 & F25)
Parts Manual
MP1 38 and 45cc
Auxiliary mounting

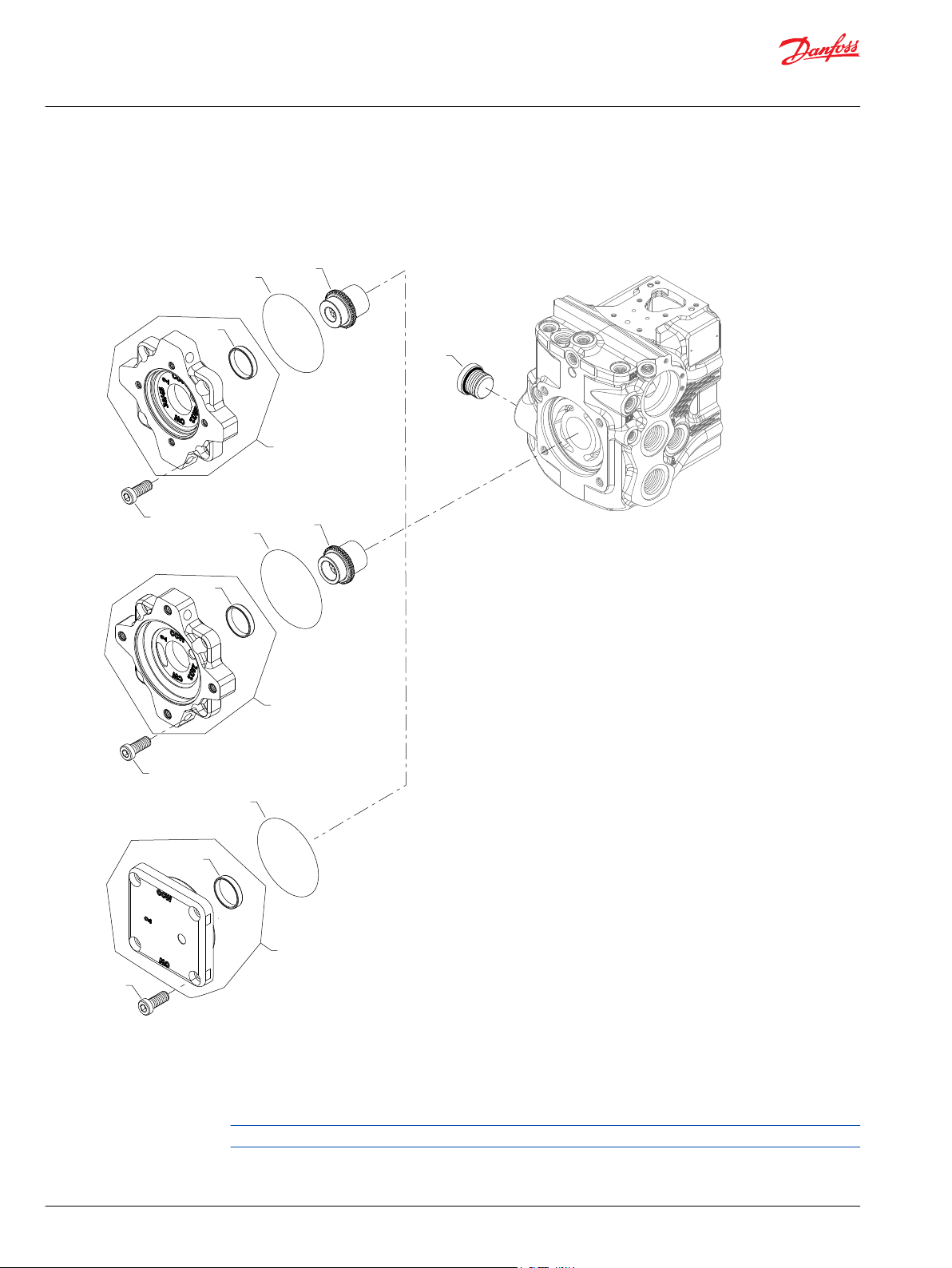

MP1 aux mounting F16-FNN
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
96 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Auxiliary mounting
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
K120 16-32 11189476 Journal bearing 1
K200 16-32 11174741 O-ring 1
K300 16-32 11000819 Screw, M12 x 25 4
K800 16-32 11134927 Plug assembly, M27 1
Order code: F16
K100 16-32 11166265 Adaptor assembly, A pad, 9cc 1
K500 16-32 11151243 Coupling, 9 tooth 1
Order code: F19
K100 16-32 11166265 Adaptor assembly, A pad, 9cc 1
K500 16-32 11151244 Coupling, 11 tooth 1
Model/Kit
Order code: F22
K100 16-32 11166270 Adaptor assembly, B pad, 9cc 1
K500 16-32 11151245 Coupling, 13 tooth 1
Order code: F25
K100 16-32 11166270 Adaptor assembly, B pad, 9cc 1
K500 16-32 11151246 Coupling, 15 tooth 1
Order code: FNN
K100 16-32 11166271 Charge pump cover assembly, 9cc 1
©
Danfoss | February 2022 AX204686485509en-001001 | 97
*9Q50A
L150
L100
L200
Parts Manual
MP1 38 and 45cc
Loop flushing

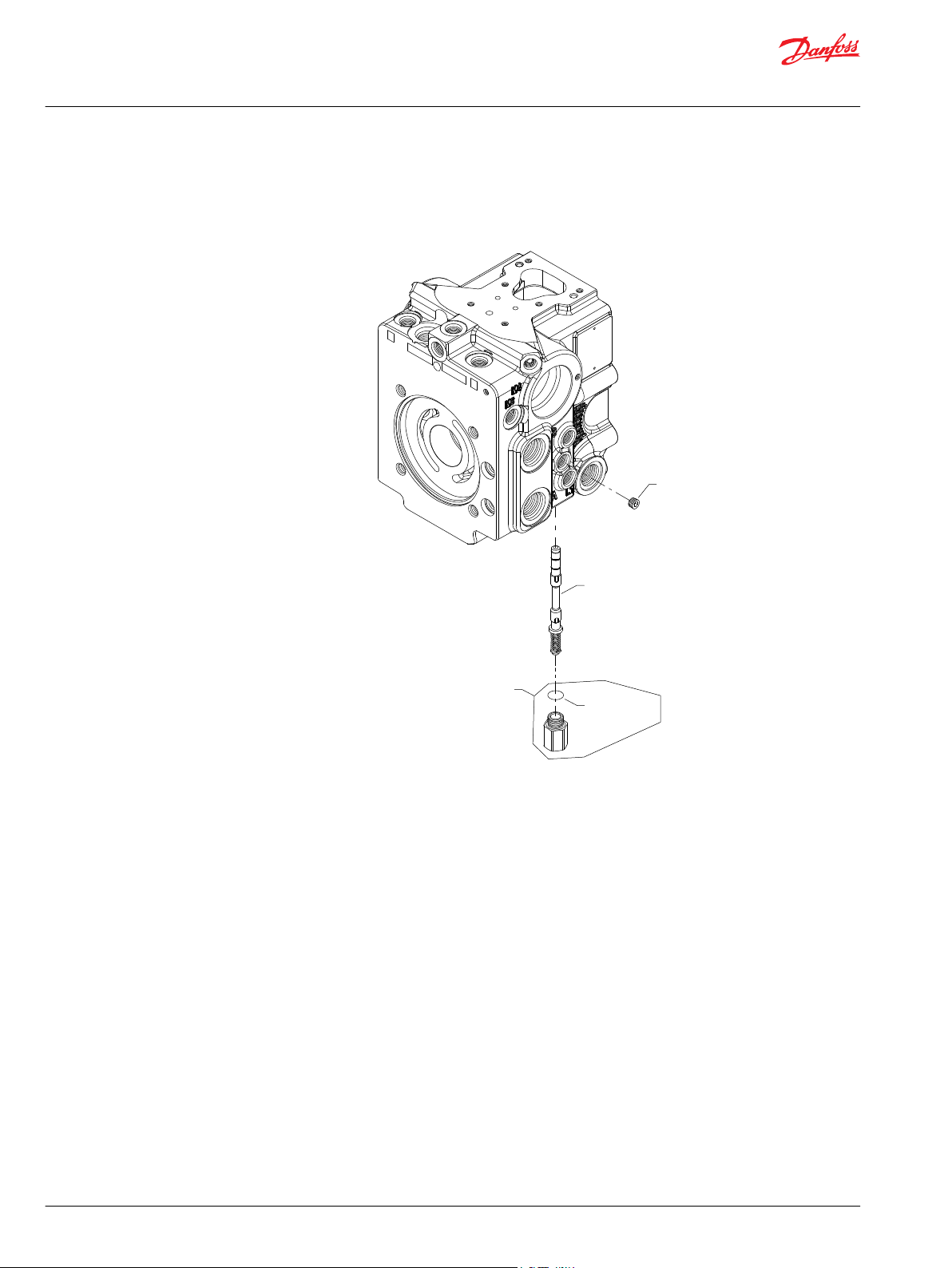

MP1 38/45 loop flushing B, C
Parts configuration
* Included in overhaul seal kit Q210
98 | © Danfoss | February 2022 AX204686485509en-001001
Parts Manual
MP1 38 and 45cc
Loop flushing
Order code: B
Item Date Begin Date End Part Number Part Name Qty. per
L100 19-05 11217740 Loop flushing spool assembly 1
L150 19-05 4800279 Plug assembly 1
L200 19-05 11182693 Orifice, 1.6mm 1
9Q50A 19-05 085043 (9004201-3700) O-ring 1
Order code: C
L100 19-05 11217740 Loop flushing spool assembly 1
L150 19-05 4800279 Plug assembly 1
L200 19-05 11182694 Orifice, 1.9mm 1
9Q50A 19-05 085043 (9004201-3700) O-ring 1
Model/Kit
©
Danfoss | February 2022 AX204686485509en-001001 | 99
*M023
*M022
M100
Parts Manual
MP1 38 and 45cc
System protection

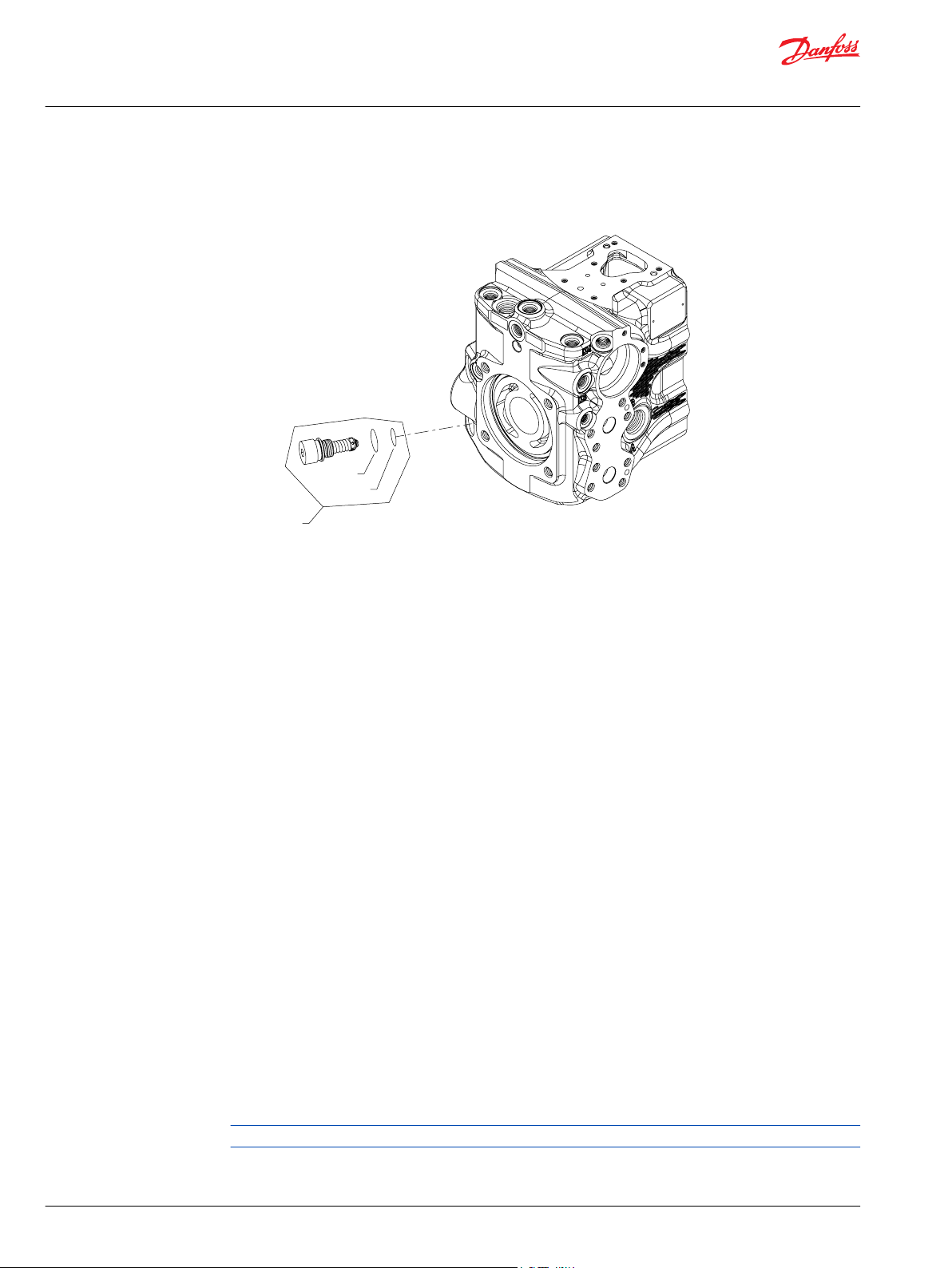

MP1 system protections port A (140-385)
Parts configuration
* Included in overhaul seal kit Q210
Generic housing used to show part location only.
100 | © Danfoss | February 2022 AX204686485509en-001001
Loading...
