Classic to Vector-Based Screen Editor SW Migration
Definitions and Area Pages
Open the DP project and remove all Definitions and Areas Pages from the code.
Opened DP project
Removed Definitions and Areas Pages
Compile, then close project.
Create new project
Create a new project with the appropriate DM HWD and template.
Route the I/O to the corresponding application signal, in this example, the DP naming convention will be
used.
Default names in template
4 | © Danfoss | March 2019 AQ299168027139en-000101
User Manual
PLUS+1® Mobile Machine Displays - Classic to Vector-Based Screen Editor
Classic to Vector-Based Screen Editor SW Migration
DP application software
View Logical Net
Go to View Logical Net > Change Port Names across Pages > Define new Name for <2> Ports and
change names from Btn_1 to Sw_Soft1 and so forth.
Change port names
Show Screen
After port name change
At this point the code should compile without errors.
Add a Show Screen component in the page where the Definitions and Areas Pages were removed.
Added Show Screen
©
Danfoss | March 2019 AQ299168027139en-000101 | 5
User Manual
PLUS+1® Mobile Machine Displays - Classic to Vector-Based Screen Editor
Classic to Vector-Based Screen Editor SW Migration
New Screen Definition
Query the Show Screen component and create a New Screen Definition
New Screen Definition
Add necessary bus inputs, which makes the signals available in the screen editor.
Add necessary bus inputs
In the DP code, the Define Areas for this page had a black background.
6 | © Danfoss | March 2019 AQ299168027139en-000101
User Manual
PLUS+1® Mobile Machine Displays - Classic to Vector-Based Screen Editor
Classic to Vector-Based Screen Editor SW Migration
Define Areas
Vector-Based Screen Editor
In the Vector-Based Screen Editor, you may either select a line and scale it appropriately or create and
import an image of appropriate scale. In the following example, a line element was used.
Vector-Based Screen Editor
©
Danfoss | March 2019 AQ299168027139en-000101 | 7
User Manual
PLUS+1® Mobile Machine Displays - Classic to Vector-Based Screen Editor
Classic to Vector-Based Screen Editor SW Migration
Import images
Import images from DP code (project must not be closed as P1P to access images).
Go to Project Library and right click and choose New > Image(s).

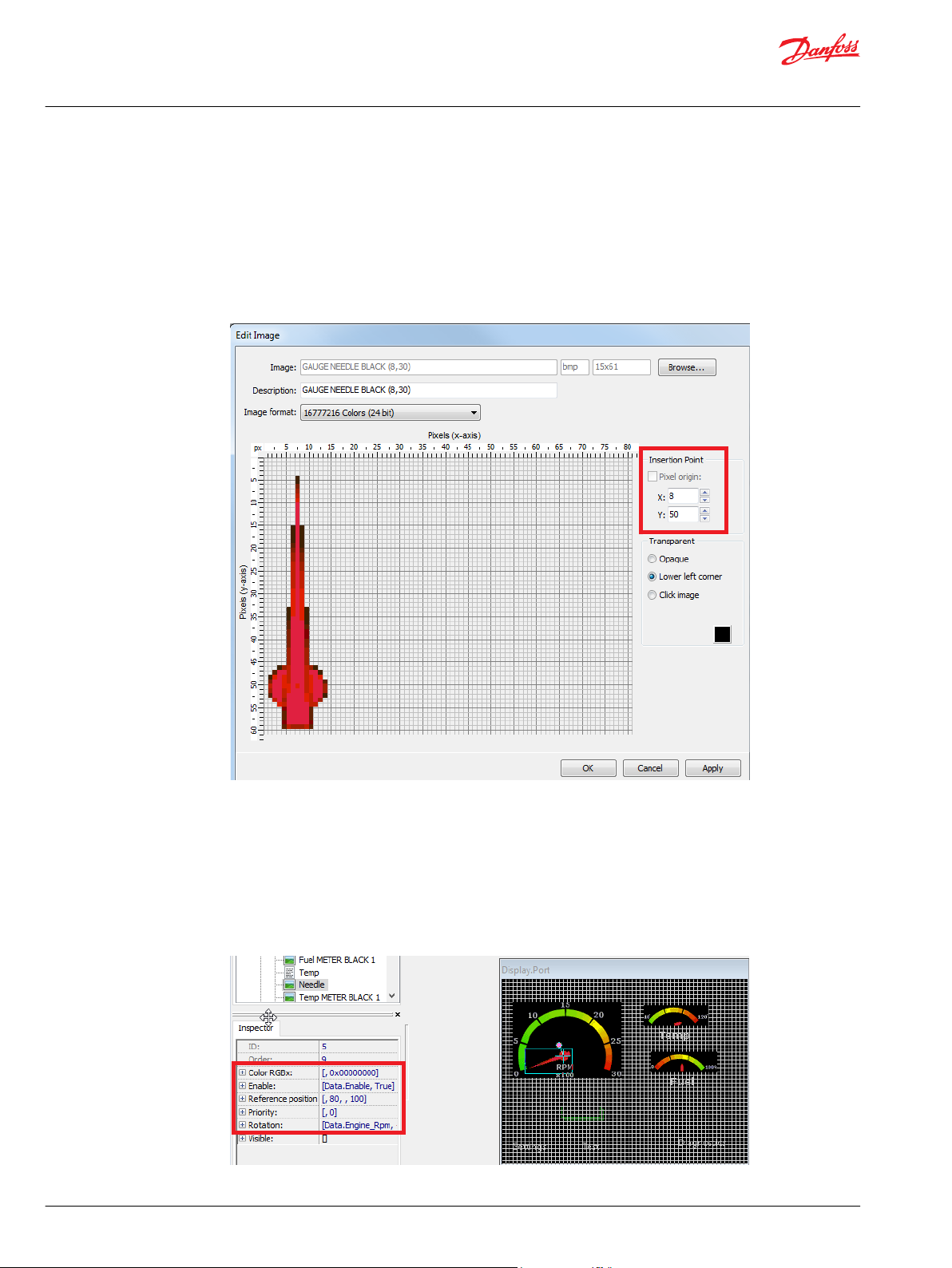

Insure that all imported images maintain the original code settings. Such as, gauge needles must have an
Insertion Point.
Gauge Needle Insertion Point
Additional signal inputs
Check if there are additional signal inputs to the component, such as an enable, rotation, or position
signal. Configure appropriately.
Classic Screen Editor signal inputs example
Signal inputs to the component
8 | © Danfoss | March 2019 AQ299168027139en-000101
User Manual
PLUS+1® Mobile Machine Displays - Classic to Vector-Based Screen Editor
Classic to Vector-Based Screen Editor SW Migration
Vector-Based Screen Editor signal inputs example
Signal inputs to the component
Data value formatting
There are differences between data value formatting of the Classic Screen Editor and the Vector-Based
Screen Editor.
Classic Screen Editor data value formatting
Data value formatting
©
Danfoss | March 2019 AQ299168027139en-000101 | 9
User Manual
PLUS+1® Mobile Machine Displays - Classic to Vector-Based Screen Editor
Classic to Vector-Based Screen Editor SW Migration

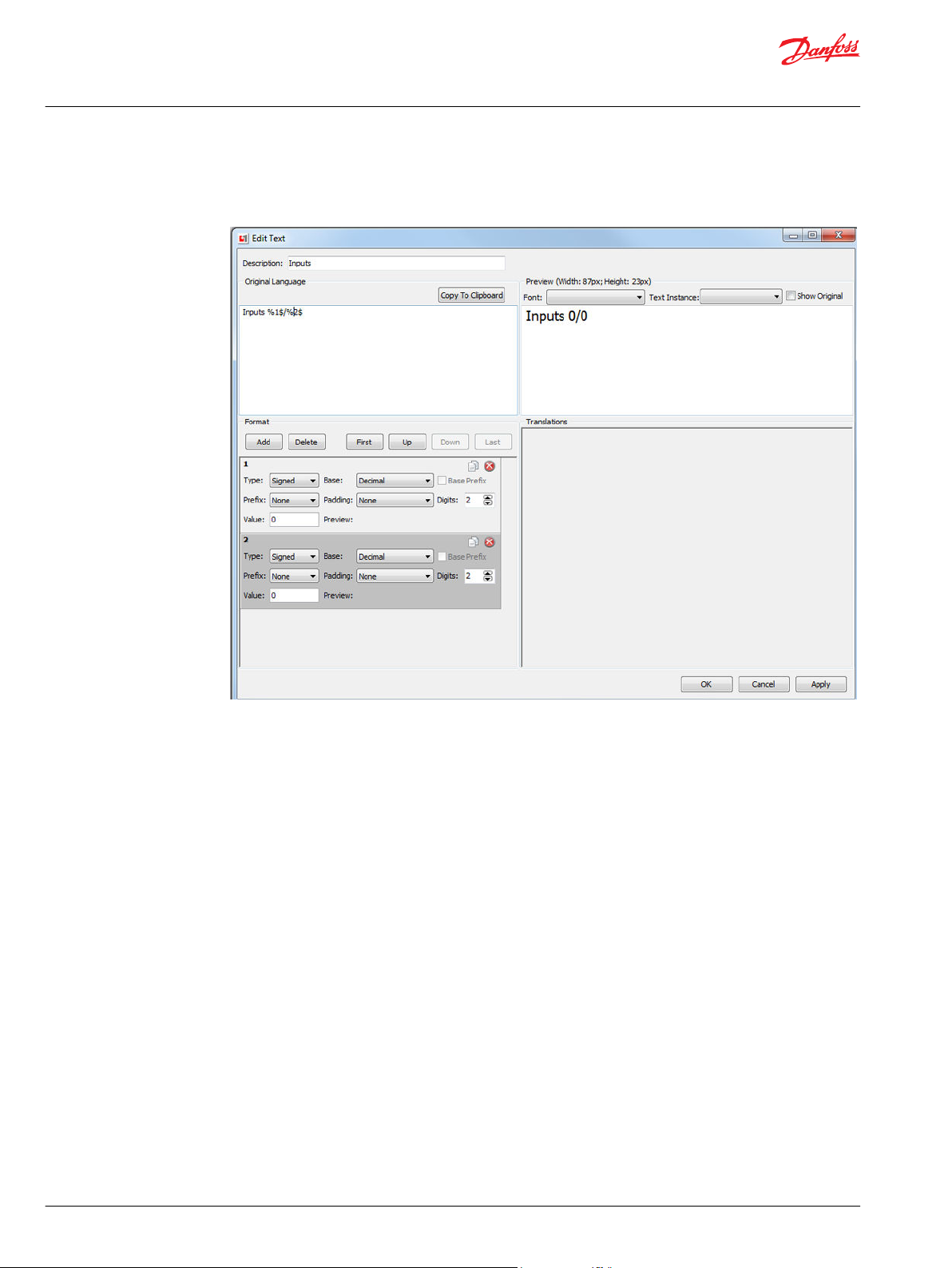

Vector-Based Screen Editor data value formatting
Data value formatting
10 | © Danfoss | March 2019 AQ299168027139en-000101
User Manual
PLUS+1® Mobile Machine Displays - Classic to Vector-Based Screen Editor
©
Danfoss | March 2019 AQ299168027139en-000101 | 11
