Parts Manual
Series 40 MMF035D and MMV035D
Axial Piston Motors
www.danfoss.com
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Revision history |
Table of revisions |
|
|
|
|
|
|
|
Date |
Changed |
Rev |
|
|
|
|
|
June 2019 |
Updated end cap part numbers |
0304 |
|
|
|
|
|
March 2018 |
Added shaft option B |
0303 |
|
|
|
|
|
March 2018 |
Corrected cover image |
0302 |
|
|
|
|
|
February 2018 |
Updated to Engineering Tomorrow design and added SB-2017-012 |
0301 |
|
|
|
|
2 | © Danfoss | June 2019 |
AX00000068en-000304 |
Parts Manual |
|
Series 40 MMF035D and MMV035D Axial Piston Motors |
|
Contents |
|
General information |
|
Service Parts Identification............................................................................................................................................................ |
4 |
Nameplate........................................................................................................................................................................................... |
4 |
Date code............................................................................................................................................................................................ |
5 |
About service bulletins................................................................................................................................................................... |
5 |
Procedure to identify a part.......................................................................................................................................................... |
6 |
Regional part numbers............................................................................................................................................................. |
6 |
Example of a part identification (MMF035D).................................................................................................................... |
6 |
Adobe Acrobat 2-page viewing.................................................................................................................................................. |
7 |
Order code, fixed displacement.................................................................................................................................................. |
8 |
Order code, variable displacement............................................................................................................................................ |
9 |
Fixed displacement |
|
Common parts and special hardware.................................................................................................................................... |
10 |
Common parts........................................................................................................................................................................... |
10 |
Special hardware NBC-NBY................................................................................................................................................... |
12 |
Special hardware NCD-NCJ................................................................................................................................................... |
14 |
Special hardware NCK-NYJ.................................................................................................................................................... |
18 |
Shaft and shaft seal....................................................................................................................................................................... |
22 |
Shaft seal...................................................................................................................................................................................... |
22 |
Shaft 6-L....................................................................................................................................................................................... |
24 |
Shaft N-X...................................................................................................................................................................................... |
26 |
End cap.............................................................................................................................................................................................. |
28 |
End cap 1, 2................................................................................................................................................................................. |
28 |
End cap 3, 4................................................................................................................................................................................. |
30 |
End cap A-G................................................................................................................................................................................ |
32 |
End cap H-K................................................................................................................................................................................. |
36 |
End cap M-Y................................................................................................................................................................................ |
38 |
Cylinder block kit A-D................................................................................................................................................................... |
40 |
Housing............................................................................................................................................................................................. |
42 |
Housing B-U................................................................................................................................................................................ |
42 |
Housing V.................................................................................................................................................................................... |
46 |
MMF035D seal kit........................................................................................................................................................................... |
47 |
Variable displacement |
|
Common parts and special hardware.................................................................................................................................... |
48 |
Shaft and shaft seal....................................................................................................................................................................... |
50 |
Swashplate, displacement and control features................................................................................................................ |
52 |
Housing and end cap.................................................................................................................................................................... |
54 |
MMV035D seal kit.......................................................................................................................................................................... |
55 |
Service bulletin |
|
SB-1998-008..................................................................................................................................................................................... |
56 |
SB-1998-092..................................................................................................................................................................................... |
57 |
SB-1999-058..................................................................................................................................................................................... |
59 |
SB-2000-026A.................................................................................................................................................................................. |
60 |
SB-2002-021..................................................................................................................................................................................... |
61 |
SB-2005-015..................................................................................................................................................................................... |
63 |
SB-2017-012..................................................................................................................................................................................... |
64 |
© Danfoss | June 2019 |
AX00000068en-000304 | 3 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
General information
Service Parts Identification
The following information and procedure is used to identify the module group, item number, manufacture date, part number, and part name of the parts included in the .
The parts listed include all parts which may be used when performing either “Minor Repairs”, “Major Repairs” or “Conversions” on the .
Nameplate
Each unit will have a nameplate affixed to the housing. The nameplate will include the following information:
Model Code
The Danfoss model code completely defines the specific unit and must be used when ordering parts to service this product.
Model Number
The Danfoss model number is used by the factory in manufacturing. On repeat orders, a complete unit can be ordered by the model number.
Serial Number
The Danfoss serial number is used to identify the manufacture date and the unit sequence in the build. The serial number is also used to identify the units warranty time period.
The letter code indicates the location of original manufacture (assembly).
The first number (2 digits) indicates the year of manufacture. The second number (2 digits) indicates the calendar week of manufacture.
The third number (5 digits) is a sequential number used to identify a specific unit.
Model Code |
Typ |
MMF-035-D-A- |
|
F-A-A-B-NNN |
|
Model No. |
Ident-Nr |
4353026 |
|
A-16-36-23456 |
|
Serial No. |
FabrNr |
MADE IN U.S.A.
4 | © Danfoss | June 2019 |
AX00000068en-000304 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
General information
Date code
The date code is defined as the year and week of manufacture. The same item number may list more than one part number. This indicates that there is more than one configuration for that item number. You will see that there are different date codes for the different part numbers. Find the date code of your unit from the nameplate to determine which service part number you need to order.
Example: The service part desired is item G30
Order Code |
Item |
Date Begin |
Date End |
Part Number |
Part Name |
Qty. per |
|
|
|
|
|
|
Model/Kit |
|
|
|
|
|
|
|
80 |
G30 |
89-17 |
|
8000243 |
End cap gasket |
1 |
|
|
|
|
|
|
|
|
G30 |
|
89-16 |
8000151 |
End cap gasket |
1 |
|
|
|
|
|
(SB-1995-006) |
|
|
|
|
|
|
|
|
All units using this order code with a date code prior to 89-17 must use part number “8000151.” All units with a date code of 89-17 and newer must use part number “8000243.”
About service bulletins
A Service Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you desire. You must read that Service Bulletin prior to ordering that part. The information contained in these Service Bulletins, as of the print date of this bulletin, are included at the end of this manual. Service Bulletins contain more detailed information such as interchangeability, what additional parts are involved, etc. It is suggested that you add additional Service Bulletins to this manual as you receive them.
© Danfoss | June 2019 |
AX00000068en-000304 | 5 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
General information
Procedure to identify a part
The modular design of this product results in a simplified service parts list and part number identification procedure.
The same item numbers are used for same part names on all units within a product type. A part number that has another number following it in parentheses is done to make this a world wide manual.
Regional part numbers
Some part numbers are region specific and should be ordered accordingly.
As an example, the part number (example: 314583 (9008000-0118) will be used. The first number is sold in Germany. The number in parentheses is sold in the United States. Customers would order 9008000-0118 if ordering the part in the United States.
Example of a part identification (MMF035D)
The nameplate on a Series 40 motor has an Order Code of MMF035D A F A A B NNN. Use the nameplate to determine the part number of the drive shaft used on this motor.
1.Referring to the input shaft module in the Order code, fixed displacement, the output shaft option for this motor is identified by the code "F." (MMF035D A FA A B NNN)
2.Referring to the Service Parts List, find the shaft group.
3.Find the order code that relates to this unit, which is "F."
The shaft is item D01 and the part number is 4350427.
6 | © Danfoss | June 2019 |
AX00000068en-000304 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
General information
Adobe Acrobat 2-page viewing
While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper page display.
1.Select “View” → “Page Display” → “Two Page View”
2.Select “View” → “Page Display” → “Show Cover Page in Two Page View”
|
|
|
|
|
|
© Danfoss | June 2019 |
AX00000068en-000304 | 7 |
|
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
General information
Order code
|
|
|
|
|
|
|
|
|
|
|
D A F M A B |
|
|
|
|
|
|
||||||||||||
|
M |
M |
F |
0 |
3 |
5 |
N |
N |
N |
||||||||||||||||||||
Product |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Special hardware |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Frame size |
|
|
|
Housing |
|
|
|
Type |
|
|
|
Cylinder block |
|
|
|
Seal group |
|
|
|
End cap |
|
|
|
Output shaft
8 | © Danfoss | June 2019 |
AX00000068en-000304 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
General information
Order code, variable displacement
|
|
|
|
|
|
|
|
|
|
|
|
D A A D L |
|
R |
|
|
|
|
|
|
|||||||||
|
M |
M |
V |
0 |
3 |
5 |
N |
N |
N |
||||||||||||||||||||
Product |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Special hardware |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Frame size |
|
|
|
Housing/end cap |
|
|
|
Type |
|
|
|
Control features |
|
|
|
Seal group |
|
|
|
Minimum displacement |
|
|
|
Output shaft
© Danfoss | June 2019 |
AX00000068en-000304 | 9 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement

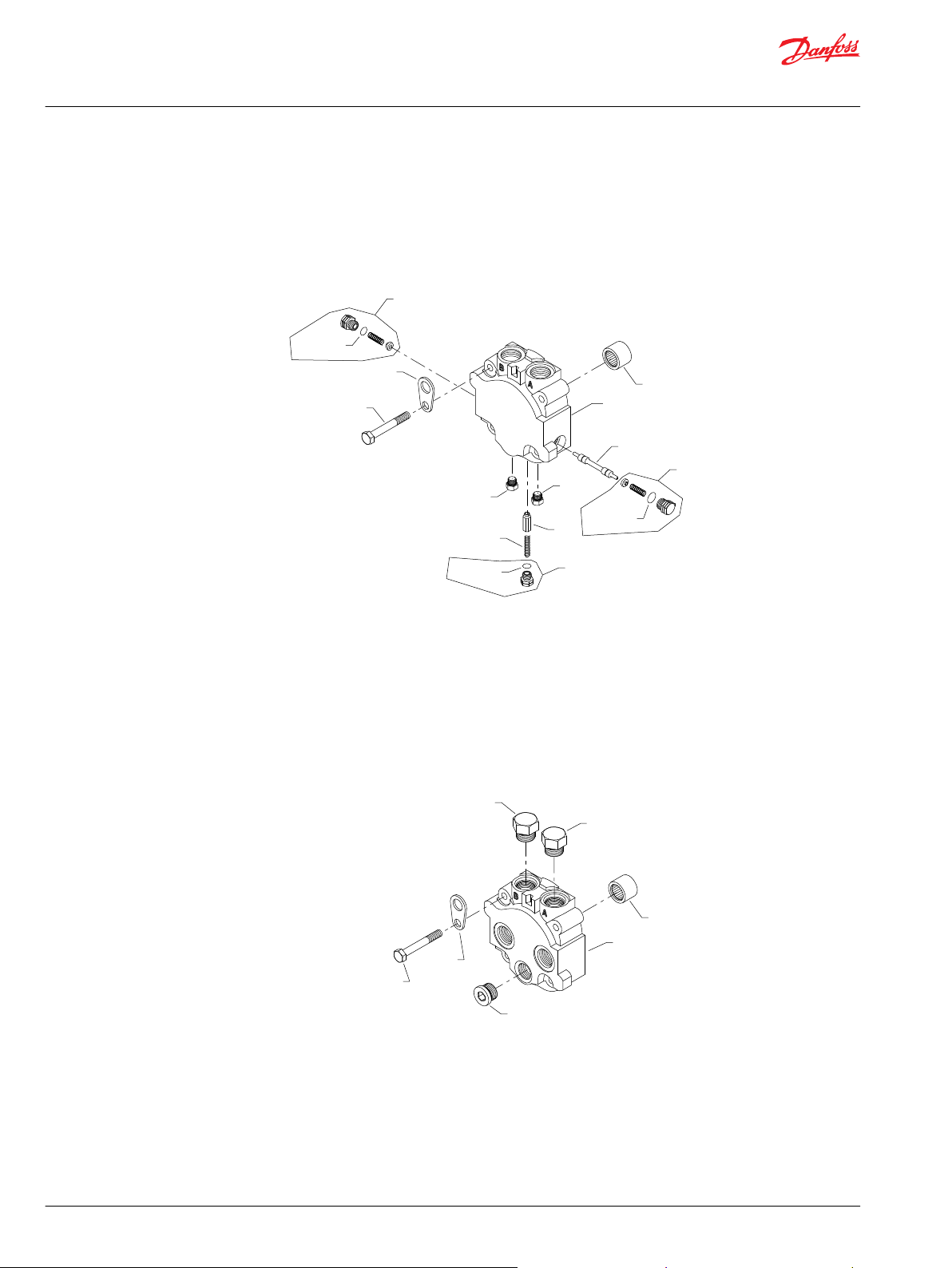

Common parts and special hardware
S40 MMF common parts
Parts configuration
B51
B40
B21
B45
T01 |
B40 |
|
*B37
T02
*Included in overhaul seal kit Q210
10 | © Danfoss | June 2019 |
AX00000068en-000304 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement
Common parts
Item |
Date Begin |
Date End |
Part Number |
Part Name |
Qty. per |
|
|
|
|
|
Model/Kit |
|
|
|
|
|
|
B21 |
95-42 |
|
4350148 |
Thrust plate |
1 |
|
|
|
|
|
|
B37 |
95-42 |
|
4350089 |
End cap gasket |
1 |
|
|
|
|
|
|
B40 |
95-42 |
|
9004875-0100 |
Spring pin |
2 |
|
|
|
|
|
|
B45 |
95-42 |
|
315325 (9005110-8700) |
Plug assembly |
1 |
|
|
|
|
|
|
B51 |
95-42 |
|
315325 (9005110-8700) |
Plug assembly |
1 |
|
|
|
|
|
|
T01 |
95-42 |
|
4350754 |
Motor valve plate (SB-1999-058 on page 59) |
1 |
|
|
|
|
|
|
T02 |
95-42 |
|
9004700-1910 |
Slotted pin |
1 |
|
|
|
|
|
|
© Danfoss | June 2019 |
AX00000068en-000304 | 11 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement
S40 MMF special hardware NBC-NBY
Parts configuration
(NBY) |
T03 |
T04
(NBC, NBJ, NBO)
T04
12 | © Danfoss | June 2019 |
AX00000068en-000304 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement
Order code: NBC
Item |
Date Begin |
Date End |
Part Number |
Part Name |
Qty. per |
|
|
|
|
|
Model/Kit |
|
|
|
|
|
|
T03 |
14-05 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
14-05 |
|
5000731 |
Ball bearing |
1 |
|
|
|
|
|
|
Order code: NBJ
T03 |
06-10 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
06-10 |
|
5000731 |
Ball bearing |
1 |
|
|
|
|
|
|
Order code: NBO
T03 |
12-13 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
12-13 |
|
5000731 |
Ball bearing |
1 |
|
|
|
|
|
|
Order code: NBY
T03 |
12-36 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
12-36 |
|
357616 |
Roller bearing |
1 |
|
|
|
|
|
|
© Danfoss | June 2019 |
AX00000068en-000304 | 13 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement
S40 MMF special hardware NCD-NCJ
Parts configuration
(NJC) T03
T04
T04
(NCD & NCF)
E26
*E063
E09
E07
E06
*E063
(NCH) T03
T04
T04
(NCE & NCG)
E26
E27
E29
*E063
E06
*E063
*Included in overhaul seal kit Q210
14 | © Danfoss | June 2019 |
AX00000068en-000304 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement
Order code: NCD
Item |
Date Begin |
Date End |
Part Number |
Part Name |
Qty. per |
|
|
|
|
|
Model/Kit |
|
|
|
|
|
|
E06 |
13-09 |
|
11126727 |
SCR plug assembly |
1 |
|
|
|
|
|
|
E07 |
13-09 |
|
4800661 |
Spring |
1 |
|
|
|
|
|
|
E09 |
13-09 |
|
3103375-0345 |
SCR valve, 345 bar |
1 |
|
|
|
|
|
|
E26 |
13-09 |
|
9005110-7500 |
Plug assembly |
1 |
|
|
|
|
|
|
E063 |
13-09 |
|
001131 (9004201-5000) |
O-ring |
2 |
|
|
|
|
|
|
T03 |
13-09 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
13-09 |
|
5000731 |
Ball bearing |
1 |
|
|
|
|
|
|
Order code: NCE
E06 |
13-09 |
|
9005110-7500 |
Plug assembly |
1 |
|
|
|
|
|
|
E26 |
13-09 |
|
11126727 |
SCR plug assembly |
1 |
|
|
|
|
|
|
E27 |
13-09 |
|
4800661 |
Spring |
1 |
|
|
|
|
|
|
E29 |
13-09 |
|
3103375-0345 |
SCR valve, 345 bar |
1 |
|
|
|
|
|
|
E063 |
13-09 |
|
001131 (9004201-5000) |
O-ring |
2 |
|
|
|
|
|
|
T03 |
13-09 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
13-09 |
|
5000731 |
Ball bearing |
1 |
|
|
|
|
|
|
Order code: NCF
E06 |
13-09 |
|
11126727 |
SCR plug assembly |
1 |
|
|
|
|
|
|
E07 |
13-09 |
|
4800661 |
Spring |
1 |
|
|
|
|
|
|
E09 |
13-09 |
|
3103375-0280 |
SCR valve, 280 bar |
1 |
|
|
|
|
|
|
E26 |
13-09 |
|
9005110-7500 |
Plug assembly |
1 |
|
|
|
|
|
|
E063 |
13-09 |
|
001131 (9004201-5000) |
O-ring |
2 |
|
|
|
|
|
|
T03 |
13-09 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
13-09 |
|
5000731 |
Ball bearing |
1 |
|
|
|
|
|
|
Order code: NCG
E06 |
13-09 |
|
|
9005110-7500 |
Plug assembly |
1 |
|
|
|
|
|
|
|
E26 |
13-09 |
|
|
11126727 |
SCR plug assembly |
1 |
|
|
|
|
|
|
|
E27 |
13-09 |
|
|
4800661 |
Spring |
1 |
|
|
|
|
|
|
|
E29 |
13-09 |
|
|
3103375-0280 |
SCR valve, 280 bar |
1 |
|
|
|
|
|
|
|
E063 |
13-09 |
|
|
001131 (9004201-5000) |
O-ring |
2 |
|
|
|
|
|
|
|
T03 |
13-09 |
|
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
|
T04 |
13-09 |
|
|
5000731 |
Ball bearing |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Parts continue to the next 2 pages.
© Danfoss | June 2019 |
AX00000068en-000304 | 15 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement
Parts configuration
(NJC) T03
T04
T04
(NCD & NCF)
E26
*E063
E09
E07
E06
*E063
(NCH) T03
T04
T04
(NCE & NCG)
E26
E27
E29
*E063
E06
*E063
*Included in overhaul seal kit Q210
16 | © Danfoss | June 2019 |
AX00000068en-000304 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement
Order code: NCH
Item |
Date Begin |
Date End |
Part Number |
Part Name |
Qty. per |
|
|
|
|
|
Model/Kit |
|
|
|
|
|
|
E06 |
14-15 |
|
9005110-7500 |
Plug assembly |
1 |
|
|
|
|
|
|
E26 |
14-15 |
|
11126727 |
SCR plug assembly |
1 |
|
|
|
|
|
|
E27 |
14-15 |
|
4800661 |
Spring |
1 |
|
|
|
|
|
|
E29 |
14-15 |
|
3103375-0280 |
SCR valve, 280 bar |
1 |
|
|
|
|
|
|
E063 |
14-15 |
|
001131 (9004201-5000) |
O-ring |
2 |
|
|
|
|
|
|
T03 |
14-15 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
13-09 |
|
357616 |
Roller bearing |
1 |
|
|
|
|
|
|
Order code: NCJ
E06 |
14-46 |
|
11126727 |
SCR plug assembly |
1 |
|
|
|
|
|
|
E07 |
14-46 |
|
4800661 |
Spring |
1 |
|
|
|
|
|
|
E09 |
14-46 |
|
3103375-0280 |
SCR valve, 280 bar |
1 |
|
|
|
|
|
|
E26 |
14-46 |
|
9005110-7500 |
Plug assembly |
1 |
|
|
|
|
|
|
E063 |
14-46 |
|
001131 (9004201-5000) |
O-ring |
2 |
|
|
|
|
|
|
T03 |
14-46 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
14-46 |
|
357616 |
Roller bearing |
1 |
|
|
|
|
|
|
© Danfoss | June 2019 |
AX00000068en-000304 | 17 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement
S40 MMF special hardware NCK-NYJ

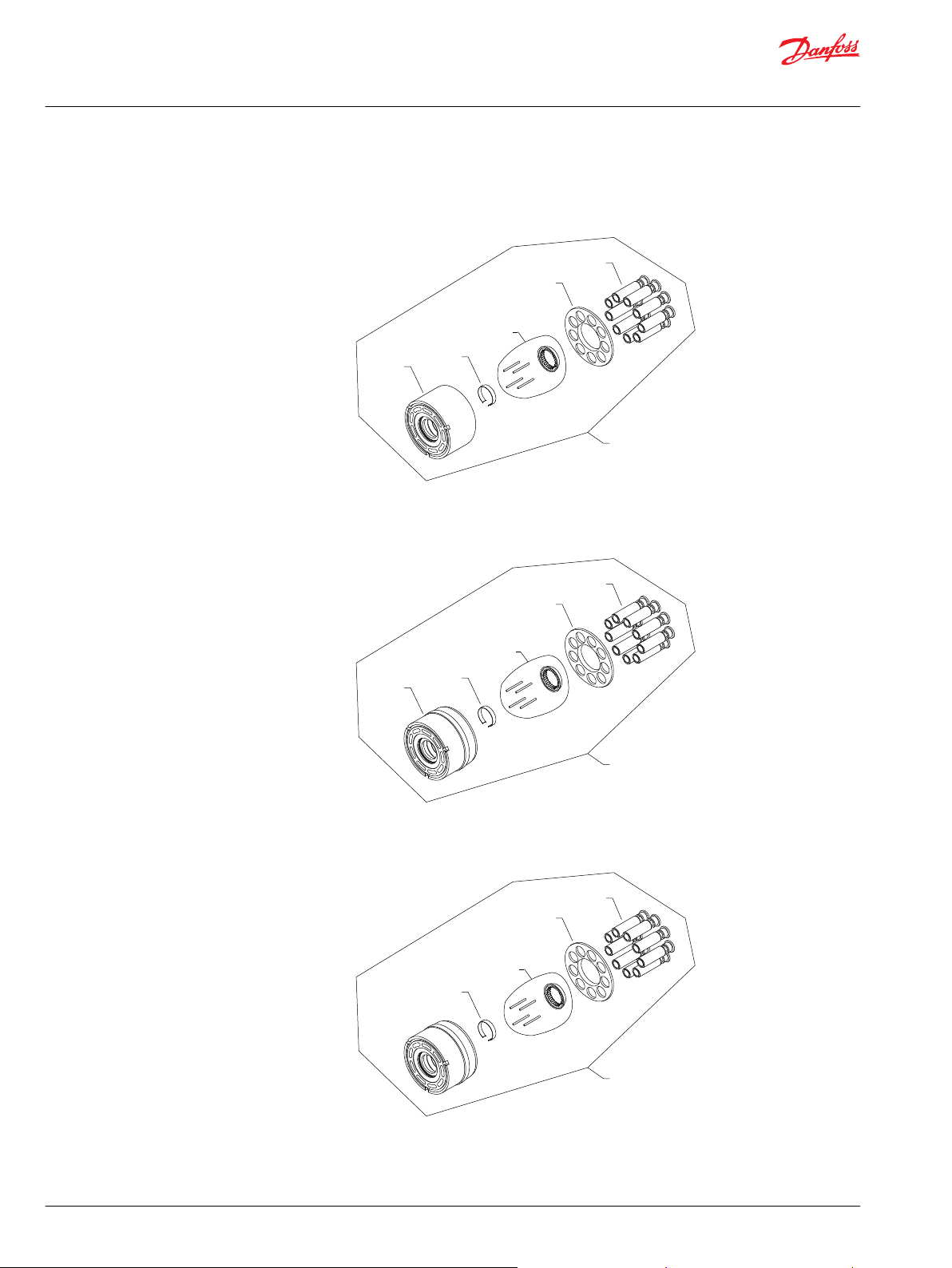

Parts configuration
T03
T04
(NCK)
E26
*E063
E09 |
E06 |
T03 |
E07 |
|
|
*E063 |
|
T04 |
|
|
(NCL)
E26
E27 E29 *E063
*E063 |
E06 |
|
T03 |
||
|
||
|
T04 |
(NNB, NNF, NNO, NNR |
|
NNV, NNX, NNY) |
(NDQ, NNN, NYJ) |
|
T04 |
*Included in overhaul seal kit Q210
18 | © Danfoss | June 2019 |
AX00000068en-000304 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement
Order code: NCK
Item |
Date Begin |
Date End |
Part Number |
Part Name |
Qty. per |
|
|
|
|
|
Model/Kit |
|
|
|
|
|
|
E06 |
14-46 |
|
11126727 |
SCR plug assembly |
1 |
|
|
|
|
|
|
E07 |
14-46 |
|
4800661 |
Spring |
1 |
|
|
|
|
|
|
E09 |
14-46 |
|
3103375-0345 |
SCR valve, 345 bar |
1 |
|
|
|
|
|
|
E26 |
14-46 |
|
9005110-7500 |
Plug assembly |
1 |
|
|
|
|
|
|
E063 |
14-46 |
|
001131 (9004201-5000) |
O-ring |
1 |
|
|
|
|
|
|
T03 |
14-46 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
14-46 |
|
357616 |
Roller bearing |
1 |
|
|
|
|
|
|
Order code: NCL
E06 |
14-46 |
|
9005110-7500 |
Plug assembly |
1 |
|
|
|
|
|
|
E26 |
14-46 |
|
11126727 |
SCR plug assembly |
1 |
|
|
|
|
|
|
E27 |
14-46 |
|
4800661 |
Spring |
1 |
|
|
|
|
|
|
E29 |
14-46 |
|
3103375-0345 |
SCR valve, 345 bar |
1 |
|
|
|
|
|
|
T03 |
14-46 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
14-46 |
|
357616 |
Roller bearing |
1 |
|
|
|
|
|
|
Order code: NDQ
T03 |
13-09 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
13-09 |
|
5000731 |
Ball bearing |
1 |
|
|
|
|
|
|
Order code: NNB
T03 |
06-10 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
06-10 |
|
357616 |
Roller bearing |
1 |
|
|
|
|
|
|
Order code: NNF
T03 |
10-24 |
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
T04 |
10-24 |
|
357616 |
Roller bearing |
1 |
|
|
|
|
|
|
Order code: NNN
T03 |
95-42 |
|
|
9006200-0281 |
Retaining ring |
1 |
|
|
|
|
|
|
|
T04 |
95-42 |
|
|
5000731 |
Ball bearing |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Parts continue to the next 2 pages.
© Danfoss | June 2019 |
AX00000068en-000304 | 19 |
Parts Manual
Series 40 MMF035D and MMV035D Axial Piston Motors
Fixed displacement
Parts configuration
T03
T04
(NCK)
E26
*E063
E09 |
E06 |
T03 |
E07 |
|
|
*E063 |
|
T04 |
|
|
(NCL)
E26
E27 E29 *E063
*E063 |
E06 |
|
T03 |
||
|
||
|
T04 |
(NNB, NNF, NNO, NNR |
|
NNV, NNX, NNY) |
(NDQ, NNN, NYJ) |
|
T04 |
*Included in overhaul seal kit Q210
20 | © Danfoss | June 2019 |
AX00000068en-000304 |
Loading...
