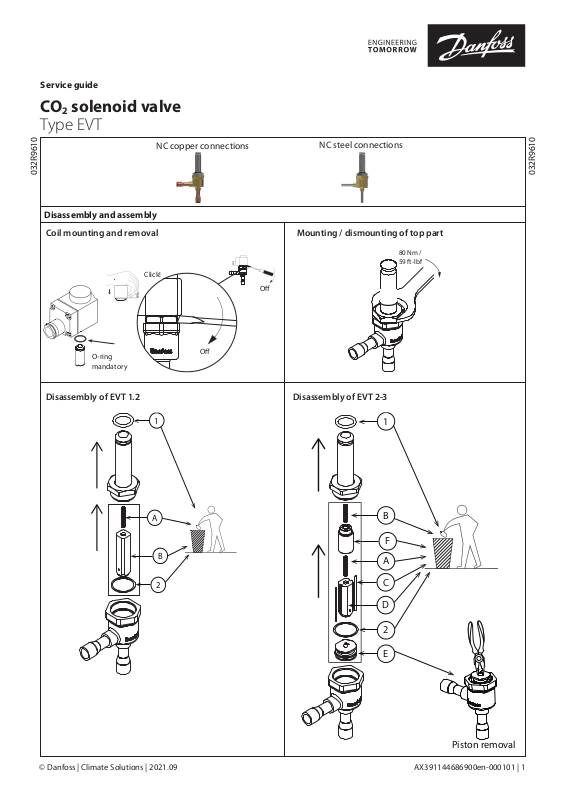

Danfoss EVT Service guide
Service guide
CO2 solenoid valve
Type EVT
<![endif]>032R9610
NC copper connections |
NC steel connections |
Disassembly and assembly
Coil mounting and removal |
Mounting / dismounting of top part |
|
80 Nm / |
|
59 ft-lbf |
Click! |
|
|
Off |
O-ring |
Off |
|
|
mandatory |
|
Disassembly of EVT 1.2 |
Disassembly of EVT 2-3 |
1 |
1 |
A |
B |
|
F |
B |
A |
|
|
2 |
C |
|
D |
|
2 |
|
E |
|
Piston removal |
© Danfoss | Climate Solutions | 2021.09 |
AX391144686900en-000101 | 1 |
<![endif]>032R9610
Assembly of EVT 1.2
1
A
B
2
Spare part kit for EVT 1.2
Seal kit contains:
1.Coil o-ring
2.Gasket
Service kit contains:
1.Coil o-ring
2.Gasket
A.Armature Spring
B.Armature
Warning! Insert parts carefully into armature tube. Ensure spring is correctly mounted.
Assembly of EVT 2 - 3
1
B
F
A
C
D
2 E
Spare part kit for EVT 2 - 3
Seal kit contains:
1.Coil o-ring
2.Gasket
Service kit contains:
1.Coil o-ring
2.Gasket
A.Armature spring (long)
B.Spring for armature top (short)
C.Guide pins
D.Armature
E.Piston
F.Armature top
Warning! Insert parts carefully into armature tube. Ensure springs are correctly mounted..
© Danfoss | Climate Solutions | 2021.09 |
AX391144686900en-000101 | 2 |
