Danfoss EKA 153 Data sheet

Data Sheet

Thermometer

Accessory

Type EKA 153
For monitoring with 3 temperature sensors

The EKA 153 is a thermometer used for
registering up to three temperatures in
connection with Refrigeration Appliance
Controls. The temperatures can be read from
the display and sent to a central system unit via
data communication.

Alarm limits for high and low temperatures can
be adjusted. If the alarm setting is activated,
the LED lights will ash and an alarm signal will
be sent to the system unit via data
communication.

Design, tting and operation are the same as
controllers in the Danfoss EKC 202 series.

AI000086415039en-000401

Features

Description

Supply voltage

12 V AC ±15%, 1 VA
12 V AC ±15%, 50 mA

Sensor connection

Up to 3 identical sensors of type either
Pt 1000 ohm at 0 °C
PTC 1000 ohm at 25 °C
Sensors with AMP plug has to be used

Sensor cable

Max. 10 m

Display

LED, 3 digits with 1 decimal

Measurement range

-60 – 120 °C

Degree of accuracy

Controller

±1 K below -35 °C
±0.5 K between -35 – 25 °C
±1 K above 25 °C

Pt 1000 sensor

±0.3 K at 0 °C
±0.005 K per degree

Data communication

MODBUS

Enclosure

IP 10
IP 65 from front
Buttons and gaskets are imbedded in the front

Environments
0 – 55 °C, during operation (-20 – 55 °C by placement in the return air to evaporator)

-40 – 70°C, during transport

20 – 80% Rh, not condensed

No shock inuence / vibrations

Approvals

EU Low Voltage Directive and EMC demands re CE-marking complied with
LVD tested acc. EN 60730-1 and EN 60730-2-9, A1, A2
EMC tested acc. EN 61000-6-3 and EN 61000-6-2

Thermometer, Accessory

Product specication

Technical data

Table 1: Technical data

Dimensions and Mounting

Table 2: Dimensions and Mounting

© Danfoss | Climate Solutions | 2021.03 AI000086415039en-000401 | 2

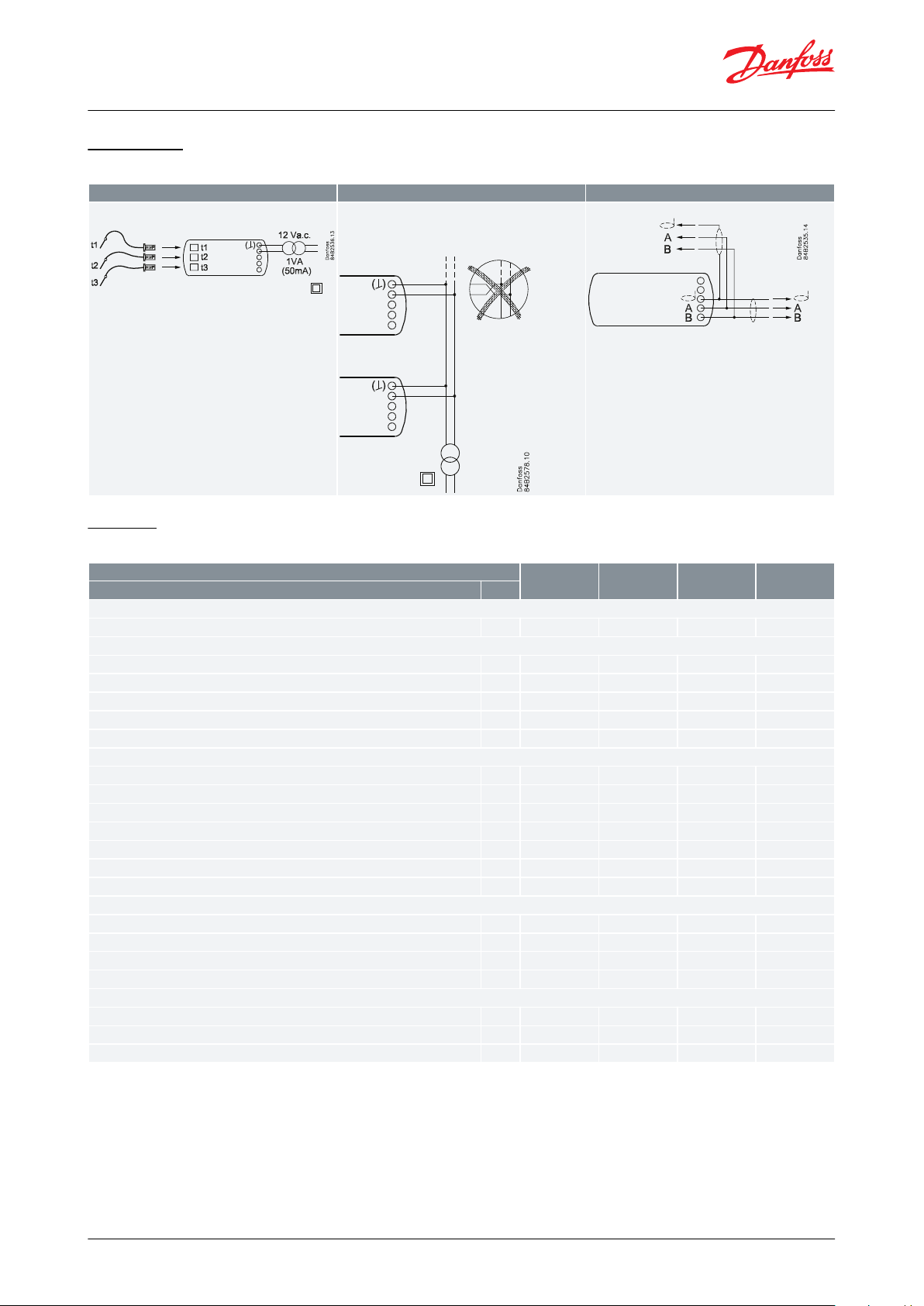

Sensor connection

Power supply

Data communication

Eg. AKS 12 The sensor must be with AMP plug.

Class II

If a number of EKA 153's are to be supplied from the
same transformer, the polarity must be kept. Ground
must be connected to ground.

Class II

MODBUS

Parameters

Min. value

Max. value

Factory setting

Actual setting

Functions

Codes

Normal operation

Display of the selected temperature sensor

---t1t3

t1

Thermostat

Adjustment of temperature indication (the setting applies to all measurements)

r04

-20 K

20 K

0.0 K

Temperature unit(°C/°F)

r05°C°F

°C

Correction of the signal from sensor 1 (t1)

r41

-10 K

10 K

0 K

Correction of the signal from sensor 2 (t2)

r42

-10 K

10 K

0 K

Correction of the signal from sensor 3 (t3)

r43

-10 K

10 K

0 K

Alarm

Delay for temperature alarm

A03

0 min

240 min

30 min

Alarm limit for t1- high temperature

A38

-50 °C

50 °C

50 °C

Alarm limit for t1- low temperature

A39

-50 °C

50 °C

-50 °C

Alarm limit for t2- high temperature

A40

-50 °C

50 °C

50 °C

Alarm limit for t2- low temperature

A41

-50 °C

50 °C

-50 °C

Alarm limit for t3- high temperature

A42

-50 °C

50 °C

50 °C

Alarm limit for t3- low temperature

A43

-50 °C

50 °C

-50 °C

Miscellaneous

Network address

o030240

0

Access code (all settings)

o050100

0

Used sensor type (Pt /PTC)

o06PtPTC

Pt

Display step = 0.5 (normal 0.1 at Pt sensor)

o15noyes

no

Service

Temperature measured with t1 sensor

u72

Temperature measured with t2 sensor

u73

Temperature measured with t3 sensor

u74

Thermometer, Accessory

Connection

Table 3: Connection

Settings

Table 4: Settings

© Danfoss | Climate Solutions | 2021.03 AI000086415039en-000401 | 3

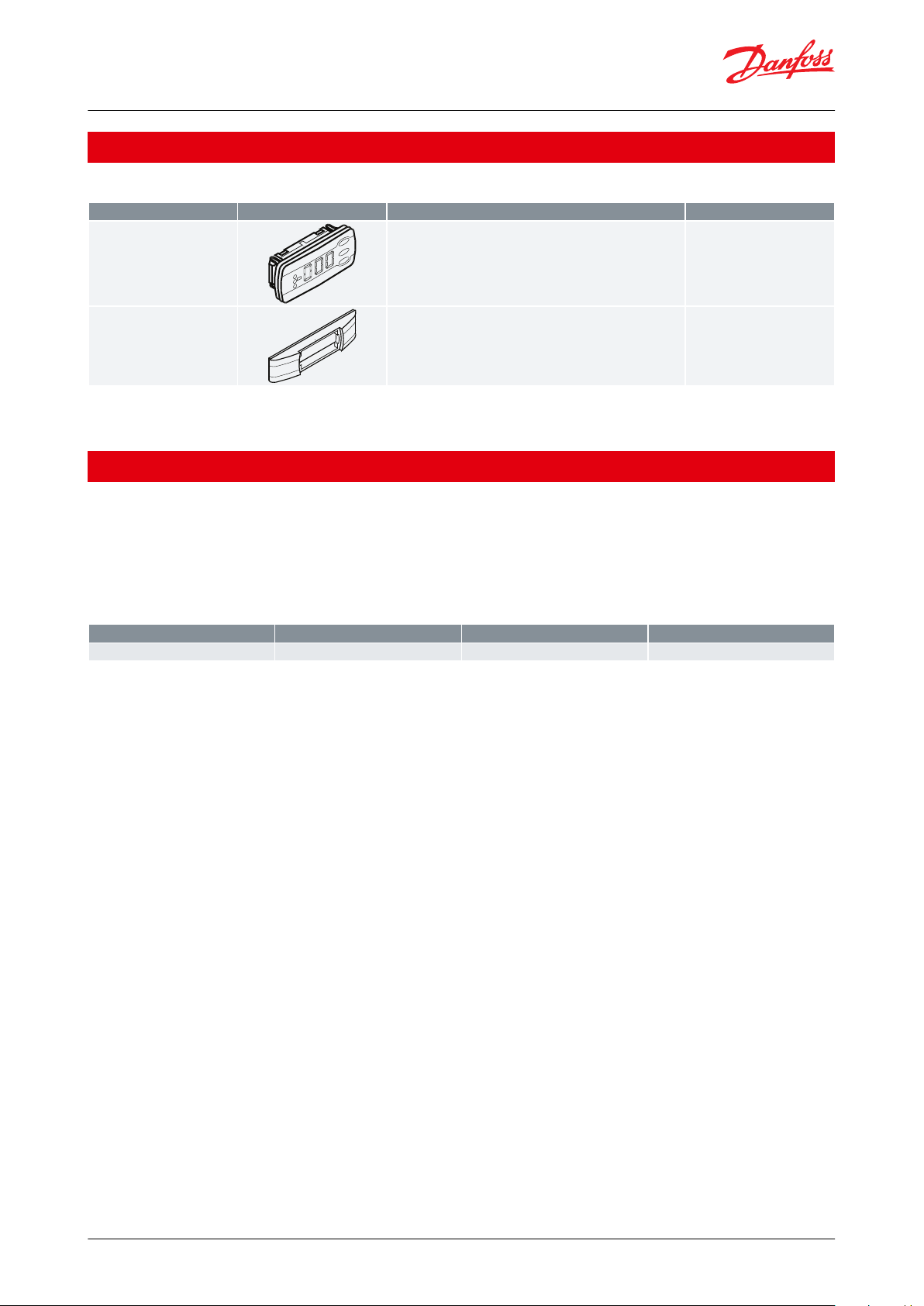

Type

Description

Code no.

EKA 153

Thermometer with MODBUS

084B8561

EKA mounting kit

Display consol (to be used only with forward mounting)

084B8584

File name

Document type

Document topic

Approval authority

080R1228.1

Manufacturers Declaration

RoHS

Danfoss

Thermometer, Accessory

Ordering

Table 5: Ordering

AKS 11 or AKS 12 temperature sensors are recommended when taking reading for the food safety log.
The sensor must have an AMP plug.

Certicates, declarations, and approvals

The list contains all certicates, declarations, and approvals for this product type. Individual code number may have
some or all of these approvals, and certain local approvals may not appear on the list.

Some approvals may change over time. You can check the most current status at danfoss.com or contact your local
Danfoss representative if you have any questions.

Table 6: Certicates, declarations, and approvals

© Danfoss | Climate Solutions | 2021.03 AI000086415039en-000401 | 4

Online support
