Installation Guide
Danfoss ECtemp™ Smart
Intelligent Electronic Timer Thermostat
with Wi-Fi connectivity and App control
heating.danfoss.com/new-solutions/ectemp-smart
Danfoss ECtemp™ Smart
Table of Contents
1 Introduction . . . . . . . . . . . . . . . . . . . 2
2 Technical Specifications . . . . . . . . . . . . 4
3 Safety Instructions . . . . . . . . . . . . . . . 6
4 Mounting Instructions . . . . . . . . . . . . . 8
5 Display Symbols. . . . . . . . . . . . . . . . 12
6 Configuring. . . . . . . . . . . . . . . . . . . 18
7 Settings . . . . . . . . . . . . . . . . . . . . . 19
8 Warranty. . . . . . . . . . . . . . . . . . . . . 22
9 Disposal Instruction . . . . . . . . . . . . . 22
1 Introduction
ECtemp™ Smart is an electronic programmable timer
thermostat used for controlling electrical floor heating
elements. The thermostat is designed for fixed installation
only and can be used for both direct heating of the entire
room and for comfort heating of the floor. Among others,
the thermostat has the following features:
Installation Guide2
Danfoss ECtemp™ Smart
• A touchscreen display with light.
• An easy-to-follow menu-driven programming and
operation.
• An installation wizard with room/floor type-specific
setup (requires an app).
• Support for multiple frame systems.
• Compatible with several 3rd party NTC sensors.
• Thermostat settings can be specified before installation and imported to the thermostat using a
web-generated code, or copied from a thermostat in
a similar installation.
• Smart access to thermostat settings after installation by using a web code interface, for easy setup or
remote troubleshooting.
Regarding Connectivity:
• 10 smart devices (like Smartphone or Tablet) can be
connected to 1 thermostat.
• 2 smart devices can be in contact with the thermostat at the same time.
ECtemp™ SMART REQUIRES WORKING WIFI
TO FUNCTION
3Installation Guide
Danfoss ECtemp™ Smart
More information on this product can also be found at:
http://heating.danfoss.com/new-solutions/ectemp-smart
2 Technical Specifications
Operation voltage 220-240 V~, 50/60 Hz
Standby power consumption Max. 0,40 W
Relay:
Resistive load
Inductive load
Sensing units NTC 6,8 kOhm at 25°C
Sensing values:
(Default NTC 15 K)
0°C
20°C
50°C
Control PWM (Pulse Wide Modulation)
Ambient temperature 0 ° to +30 °C
Max. 16 A / 3680 W @ 230 V
Max. 1 A cos φ= 0,3
NTC 10 kOhm at 25°C
NTC 12 kOhm at 25°C
NTC 15 kOhm at 25°C (Default)
NTC 33 kOhm at 25°C
NTC 47 kOhm at 25°C
42 kOhm
18 kOhm
6 kOhm
Installation Guide4
Danfoss ECtemp™ Smart
Frost protection
5 °C to +9 °C (default 5 °C)
temperature
Temperature range Room temperature: 5-35 °C.
Floor temperature: 5-45 °C.
Max. floor: 20-35 °C (if unrecoverable seal is broken then up
to 45 °C). Min. floor: 10-35 °C,
only with combination of room
and floor sensor.
Sensor failure monitoring The thermostat has a built-in
monitoring circuit, which will
switch off the heating if the
sensor is disconnected or
short-circuited
Cable specification max. 1x4 mm
2
Ball pressure test temperature 75 °C
Pollution degree 2 (domestic use)
Controller type 1C
Software class A
Storage temperature -20 °C to +65 °C
IP class 21
5Installation Guide
Danfoss ECtemp™ Smart
Protection class Class II -
Dimensions 85 x 85 x 20-24 mm
Weight 127 g
(in-wall depth: 22 mm)
Electrical safety and Electro-Magnetic Compatibility for
this product is covered by the compliance with the EN/IEC
Standard “Automatic electrical controls for household and
similar use”:
• EN/IEC 60730-1 (general)
• EN/IEC 60730-2-9 (thermostat)
3 Safety Instructions
Make sure the mains supply to the thermostat is turned
off before installation.
Important: When the thermostat is used to control a
floor heating element in connection with a wooden floor
or similar material, always use a floor sensor and never set
the maximum floor temperature to more than 35 °C.
Installation Guide6
Danfoss ECtemp™ Smart
Please also note the following:
• The installation of the thermostat must be done by an
authorized and qualified installer according to local
regulations.
• The thermostat must be connected to a power supply
via an all-pole disconnection switch.
• Always connect the thermostat to continuous power
supply.
• Do not expose the thermostat to moisture, water,
dust, and excessive heat.
• This thermostat can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge, if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved, by a
person responsible for their safety.
• Children should be supervised to ensure that they do
not play with the thermostat.
• Cleaning and user maintenance shall not be made by
children without supervision.
7Installation Guide
Danfoss ECtemp™ Smart
4 Mounting Instructions
Please observe the following placement guidelines:
Place the thermostat at a suitable height on the wall
(typically 80-170 cm.).
The thermostat should not be placed in wet rooms.
Thermostat must be placed outside zone 2. Place it
in an adjacent room and use floor sensor only.
Always place the thermostat according to local
regulation on IP classes.
Do not place the thermostat on the inner side of a
poorly insulated exterior wall.
Always install the thermostat at least 50 cm from
windows and doors, due to draft, when using regulation in: floor and room mode or room alone mode.
Do not place the thermostat in a way that it will be
exposed to direct sunlight.
Installation Guide8
Danfoss ECtemp™ Smart
12
≥
Note: A floor sensor is recommended in all floor
heating applications and mandatory to thin mats
under wooden floors to reduce the risk of
overheating the floor.
• Place the floor sensor in a protecting plastic conduit
in the floor construction in an appropriate place,
where the floor is not exposed to sunlight or draft
from door openings.
• Equally distant and >2 cm from the heating cables
on both sides.
• The conduit should
be flush with the floor
surface, countersink
the conduit if necessary and possible.
• Route the conduit to
the connection box.
• The bending radius of the conduit must be min 50
mm.
9Installation Guide
Danfoss ECtemp™ Smart
Follow the steps below to mount the thermostat:
1. Unpack thermostat

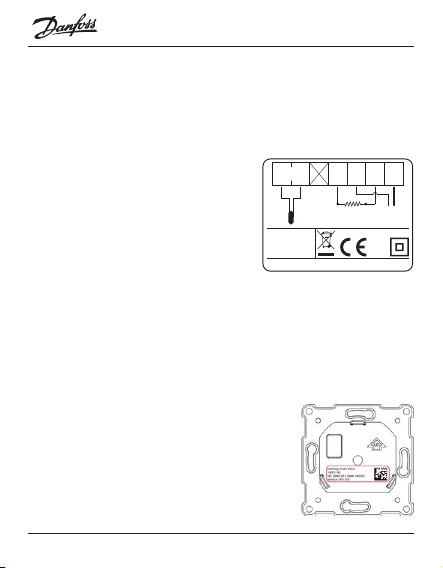

2. Connect the thermostat according to the connection
diagram.
The screen of the heating
cable must be connected to
the earth conductor of the
power supply cable by using
a separate connector.
NTC
Danfoss A/S
Nordborgvej 81
6430 Nordborg
Denmark
Standby maximum 0.4 Watt
Sensor
L
O
A
D
Maximum
Load 16 (1) A
N
Mains
220-240V~
50-60 Hz
IP21
T30
L
O
A
NLL
D
Note: Always install the floor sensor in a conduit in
the floor.
3. Fasten the thermostat firmly to a flush mounted wall
box or an exterior wall box by driving the screws
through the holes in each side of the thermostat.
4. Add the frame before assembling
of top part to the snap locks/bottom part.
5. Click the front part module in
place. Pay attention, in relation to
Installation Guide10
Danfoss ECtemp™ Smart
the female header, in not to bending the connectors.
Press carefully until the frame is fixed against the
rubber gasket.

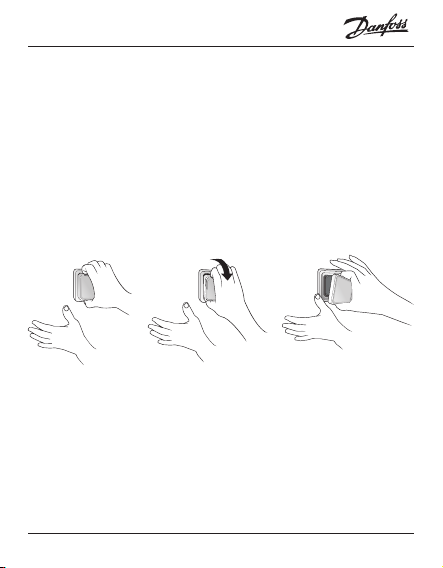

When mounting and reassembling the thermostat.
Important: Do NOT press in the center of the display screen.
Press your fingers under the side of the front part and pull
toward you until it releases from the snap lock:
To ensure that the batteries are fully charged, the thermostat shall be connected to main supply for minimum
15 hours. The current time and day is kept for 24 hours if
mains supply is off.
All other settings are stored permanently.
11Installation Guide
Danfoss ECtemp™ Smart
5 Display Symbols
Top part main functionalities are to support user interface
through display and hold all the controller logic.
Display main functionalities are to show the current status
of the Thermostat and recognize the user actions from the
buttons. Display consists of different buttons, numbers
and symbols.
1
2
4
3
Installation Guide12
Danfoss ECtemp™ Smart
Nr. Type Description
1 Button/Symbol Control button
2 Button/Symbol Arrow Up button
3 Button/Symbol Arrow Down button
4 Symbol 3 digit 7 segment numbers with
comma separator
Symbol indications
Indication Mode/State Description
Blue - blinking Access Point
Blue Access Point
Red - blinking Fault state Displays Error code
Red - slow
pulsing
Green -
constant
Mode
Mode
Active Mode Indicating heating the floor
Active Mode Thermostat active and con-
Thermostat ready for set-up
Smart phone connected
directly to thermostat for
set-up
(Relay on)
nected to WiFi(Relay off)
13Installation Guide
Danfoss ECtemp™ Smart
Green –
blinking
Arrows –
blinking rapidly
when touched
Active Mode
& Access
Point Mode
Active Mode Safety lock is on
Thermostat waiting for confirmation of action
Interaction directly on thermostat
Function Button Description
Turn thermostat on
Turn thermostat off
Adjust setpoint
1. Touch any
button
2. Touch control
button (1)
1. Touch any
button
2. Touch and hold
control button (1)
Up (2) Increases active mode/
Down (3) Decreases active mode/
Thermostat switch on
and display temperature
Thermostat display will
turn on
Thermostat count down
and switch off
temporary set point
temporary set point
Installation Guide14
Danfoss ECtemp™ Smart
Frost protection
Safety lock Touch and hold
Factory restore Touch and hold
Away mode Touch and hold
Touch and hold
Control (1) for
1 sec.
Up (2) + Down (3)
for 3 sec.
Control (1) + Up
(2) for 5 sec.
After that touch
Control (1) again
to confirm
Control (1) for 1
sec. to deactivate
Away mode
Deactivate frost protection
Activate/Deactivate
safety lock
Activates factory restore
state
Activate/Deactivate
Away/Vacation mode
Error codes
When the error occurs and is resolved the thermostat, in
some cases, will require a restart to start heating again.
15Installation Guide
Danfoss ECtemp™ Smart
Error
type
Floor
Sensor
disconnected
Floor
Sensor
shortcircuited
Thermostat
overheated
Unrecoverable
error
Nr. Description Solu-
tion
E1 Connection
to sensor is
Contact
service
lost
E2 Sensor
short-
Contact
service
circuited
E3 Thermostat
is overheated,
heating is
turned off
Wait
until
thermostat
cools
down
E4 Room
temperature
Contact
service
sensor value
too high or
too low
Need restart
The thermostat
requires a restart
to operate again.
The thermostat
requires a restart
to operate again.
The thermostat
requires no
restart, but will
start heating when the
temperature is
lowered
The thermostat
requires a restart
to operate again.
Installation Guide16
Danfoss ECtemp™ Smart
Communication Error Codes
Communication
error
Wrong SSID or
password
No IP address C2 STA - connection acquired, no IP
No internet connection
Nr. Description
C1 STA trying to connect to the AP
yet, waiting for configuration data.
C3 STA connected and has an IP from
DHCP server.
17Installation Guide
Danfoss ECtemp™ Smart
6 Configuring
Download App
Download the Danfoss Smart™ App from App
Store or Google Play or http://heating.danfoss.com/
new-solutions/ectemp-smart.
Find WiFi name and password for the WiFi
network, that you would like to connect your
thermostat to. If in doubt contact network
administrator or internet service provider.
Identify your floor sensor type ( in kOhm).
Identify your installed heating output (in W),
from label on the heating element.
Power on the thermostat, and it will show “-“
in the display. Then it is ready to be configured using your
iPhone and Android device.
Open the Danfoss Smart™ App and follow the instructions
and set-up flow in the App.
Danfoss ECtemp™ Smart indication
The Danfoss ECtemp™ Smart shows “–” indicating that power
is ON, but still need to be configured.
Installation Guide18
Danfoss ECtemp™ Smart
7 Settings
IMPORTANT DURING SET-UP
Select whether only a floor sensor
or a combination of room and floor
sensor should be used.
A “room only” option is also available, but requires that you have to
break the small plastic seal on the
back of the display module, e.g. using a screwdriver; it will be possible
to set the maximum floor temperature up to 45°. Furthermore, it will be
possible to use only a room sensor.
However, this option is not recommendable due to an increased risk
of overheating the floor.
19Installation Guide
Danfoss ECtemp™ Smart
IMPORTANT: When the thermostat is used to control a
floor heating element in connection with a wooden floor
or similar material, always use a floor sensor and never set
the maximum floor temperature to more than 35°C.
Note: Please contact the floor supplier before changing
the maximum floor temperature and be aware of the
following:
• The floor temperature is measured there, where the
sensor is placed.
• The temperature of the bottom of a wooden floor
can be up to 10˚C higher than the top.
• Floor manufactures often specify the max. temperature on the top surface of the floor.
Installation Guide20
Danfoss ECtemp™ Smart
Thermal
resistance
Examples of
flooring
[m2K/ W]
0,05 8 mm HDF based
laminate
0,10 14 mm beech
parquet
0,13 22 mm solid oak
plank
< 0,17 Max. carpet thick
ness suitable for
floor heating
0,18 22 mm solid fir
planks
Details
3
kg/m
> 800 28°C
650 – 800 31°C
> 800 32°C
-
acc. to EN
1307
450 – 650 35°C
Approximate
setting for 25°C
floor temperature
34°C
21Installation Guide
Danfoss ECtemp™ Smart
8 Warranty
The products will, in the event of a fault that can be
tracked back to a manufacturing defect in the Danfoss
product, be repaired or replaced free of charge. To apply
for this warranty the installation must be performed by an
authorized installer and the warranty certificate has to be
stamped, signed and provided. For more details read our
warranty terms and conditions.
9 Disposal Instruction
Installation Guide22
Danfoss ECtemp™ Smart
23Installation Guide
Danfoss ECtemp™ Smart
Danfoss A/S
DK-6430 Nordborg
Denmark
Tel.: +45 74 88 22 22
Telefax: +45 74 49 09 49
E-mail: danfoss@danfoss.com
danfoss.com
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss
reserves the right to alter its products without notice. This also applies to products already on order provided that
such alterations can be made without subsequential changes being necessary in specifications already agreed. All
trademarks in this material are property of the respective companies. DEVI and the DEVI logo-type are trademarks
of Danfoss A/S. All rights reserved
Produced by Danfoss © 01/201708096305 & VMIOA102
Loading...
