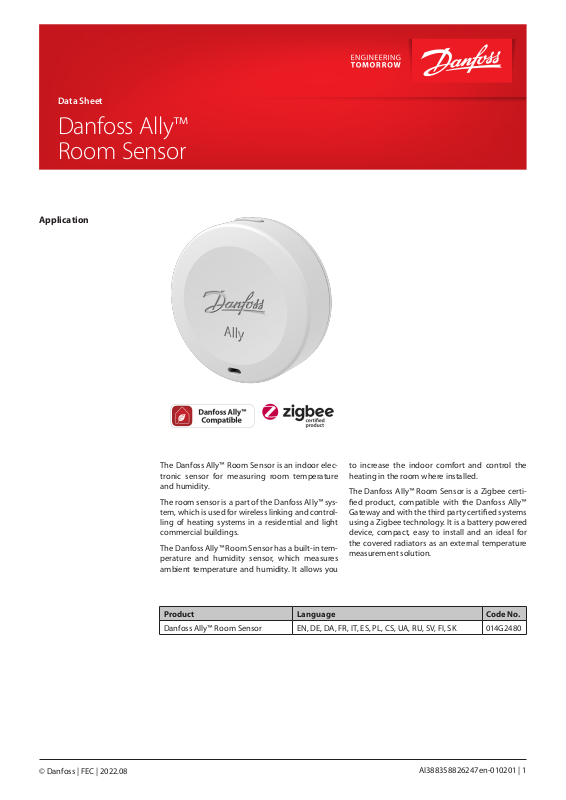

DANFOSS DANFOSS ALLY RS Datasheet

Data Sheet

Danfoss Ally™
Room Sensor

Application

The Danfoss Ally™ Room Sensor is an indoor elec­tronic sensor for measuring room temperature
and humidity.

The room sensor is a part of the Danfoss Ally™ sys­tem, which is used for wireless linking and control­ling of heating systems in a residential and light
commercial buildings.

The Danfoss Ally™ Room Sensor has a built-in tem­perature and humidity sensor, which measures
ambient temperature and humidity. It allows you

Product Language Code No.

Danfoss Ally™ Room Sensor EN, DE, DA, FR, IT, ES, PL, CS, UA, RU, SV, FI, SK 014G248 0

to increase the indoor comfort and control the
heating in the room where installed.

The Danfoss Ally™ Room Sensor is a Zigbee certi­fied product, compatible with the Danfoss Ally™
Gateway and with the third party certified systems
using a Zigbee technology. It is a battery powered
device, compact, easy to install and an ideal for
the covered radiators as an external temperature
measurement solution.

© Danfoss | FEC | 2022.08

AI388358826247en-010201 | 1

Data Sheet Danfoss Ally™ Room Sensor

∅

18

Specifications

Thermostat type Room Sensor

Recommended use Residential and light commercial buildings

Display LED indicator

Power supply CR2450 battery

Trasmission Frequency/Power 2,4 GHz/ <10 dBm EIRP (PSD)

Battery life Up to 5 years

Temperature detection range -20°C to 60°C

Color RAL 9016

Weight (incl. battery) 25 g

IP class 20

Integrations* Partner API, Google Assistant, Amazon Alexa

Approvals, markings etc.

* Requires Danfoss Ally™ Gateway

Dimensions

45

2 | © Danfoss | FEC | 2022.08

AI388358826247en-010201
