Danfoss BZ, BZ120C, BZ240C Data sheet

Data Sheet
Solenoid coil
Type BZ
For control in potentially explosive areas
BZ is a solenoid coil with ATEX / IECEx approval, applicable for zone 1 and 2 Ex environments. The coils are designed to be used with Danfoss solenoid valves.
Features
• Embedded coils with long lifetime, even under extreme conditions
• High reliability and long lifetime
• Covering voltage and frequency:
110 V 50 Hz, 120 V 60 Hz230 V 50 Hz, 240 V 60 Hz
AI246086497045en-000401
Features
Description
Mode of operation
Type 1 action (EN60730-1)
Proctection against electrical shock
Class I (EN60730-1)
Humidity
0 - 100% RH
Enclosure
IP65
Pollution degree
1+2+3 (EN 60730-1)
Max. altitude above sea level
2000 m
Permissible voltage variation
110 / 120 V AC: -10%, +6% 230 / 240 V AC: -10%, +6%
Rated impulse voltage
4 kV
Over voltage category
III (EN60730-1)
Nominal current
Power consumption holding
Inrush current
[W]
[VA]
[A]
[ms]
110 V AC 50 Hz
8.6160.46
0.034
120 V AC 60 Hz
9.0160.43
0.028
230 V AC 50 Hz
9.5180.26
0.034
240 V AC 60 Hz
9.0160.26
0.034
Duty rating
100%
Ambient temperature
-40 °C – 45 °C
Media temperature
-40 °C – 70 °C
Insulation of coil windings
CA 200-1
Connection
9 m 3-core exible cable 3 x 0.75 mm² (cable length maximum 15 m)
Outside diameter sheet
Ø 6.6 mm
Size of fuse in front of the coil
Thermal fuse 130 °C 110 /1 20 V AC: 250 mA 230 / 240 V AC: 150 mA
External earth core
Minimum area > 4 mm
2
Features
Description
Media
Gas, vapours and mists
Explosion proof area
Zone 2 and Zone 1
Product group
II
Product category
2G
Product niveau EPL
Gb
Explosion group
IIC
Temperature class
T4
Type of protection
mb
Exposed to SUN/UV light
No
Impact height
Max 0.4 m
Solenoid coil, Type BZ
1 Product specication
1.1 Technical data
Table 1: Technical data
Classication EN 60079
Table 2: Classication EN 60079
NOTE:
Always install a fuse in front of the coil.
• Medium Time Lag
• Size see product label.
Must be protected against ultraviolet sources. Moist-Clean only. The cable must be protected according to IEC 60079-14.
© Danfoss | Climate Solutions | 2021.02 AI246086497045en-000401 | 2
Danfoss
18F73.10
46 mm
49 mm
75 mm
25 mm
Solenoid coil, Type BZ
• Use only for system in compliance with ATEX. Ignition risk is evaluated in accordance to ATEX.
• Coil type BZ can be applied on systems with R290, R600, R600a and R1270 as the working uid.
• For countries where safety standards are not an indispensable part of the safety system Danfoss recommend the installer to get a third party approval of the system containing ammable refrigerant.
• Please follow specic selection criteria stated in the datasheet for these particular refrigerants.
1.2 Installation, operation and maintenance
• Protect the coil against external impact.
• Protect the coil against direct sunlight and other ultraviolet sources.
• Disconnect the power before dismounting the coil.
• Always install a fuse in front of the coil.
DIN 41571-2Rated breaking capacity 1500 AMedium Time lagMinimum voltage 250 V for AC and 24 V for DC.
• Install the coil and cable according to EN60079-14.
• The cable supplied with the solenoids must not be handled or exed, and shall be protected against impact if the ambient temperature is below 0 °C .
• Installation and handling of the cable shall be done at temperature above 0 °C.
• The cable is only for xed installation and the minimum bending diameter for xed installation: r ≥ 55 mm
• The cable jacket material is PVC.
• The cable operating temperature range is -40 - 90 °C.
• The product is provided with a yellow / green PE wire as well as an external earth terminal. These shall not be used simultaneously. If the external earth connection is connected to earth or bonding system, the Y / G earth wire must be cut o, isolated and not connected. If the Y / G wire is connected to earth, the external earth terminal must be left without any connection. For the external earth terminal the size of the earth core shall be minimum 4 mm² and the installer shall use a suitable method e.g. crimp terminal to ensure secureness of the external earth connection. The screw for external PE shall be mounted with 1.2 Nm ±0.2. The external earth conductors shall be physically secured close to the coil connection to ensure that the conductors cannot be readily loosened or twisted.
• The end user must ensure the earthing of the coil is maintained.
• Non-detachable cords method Z repairing not allowed. If the coil failed, it must be replaced by a new coil.
1.3 Dimensions and weights

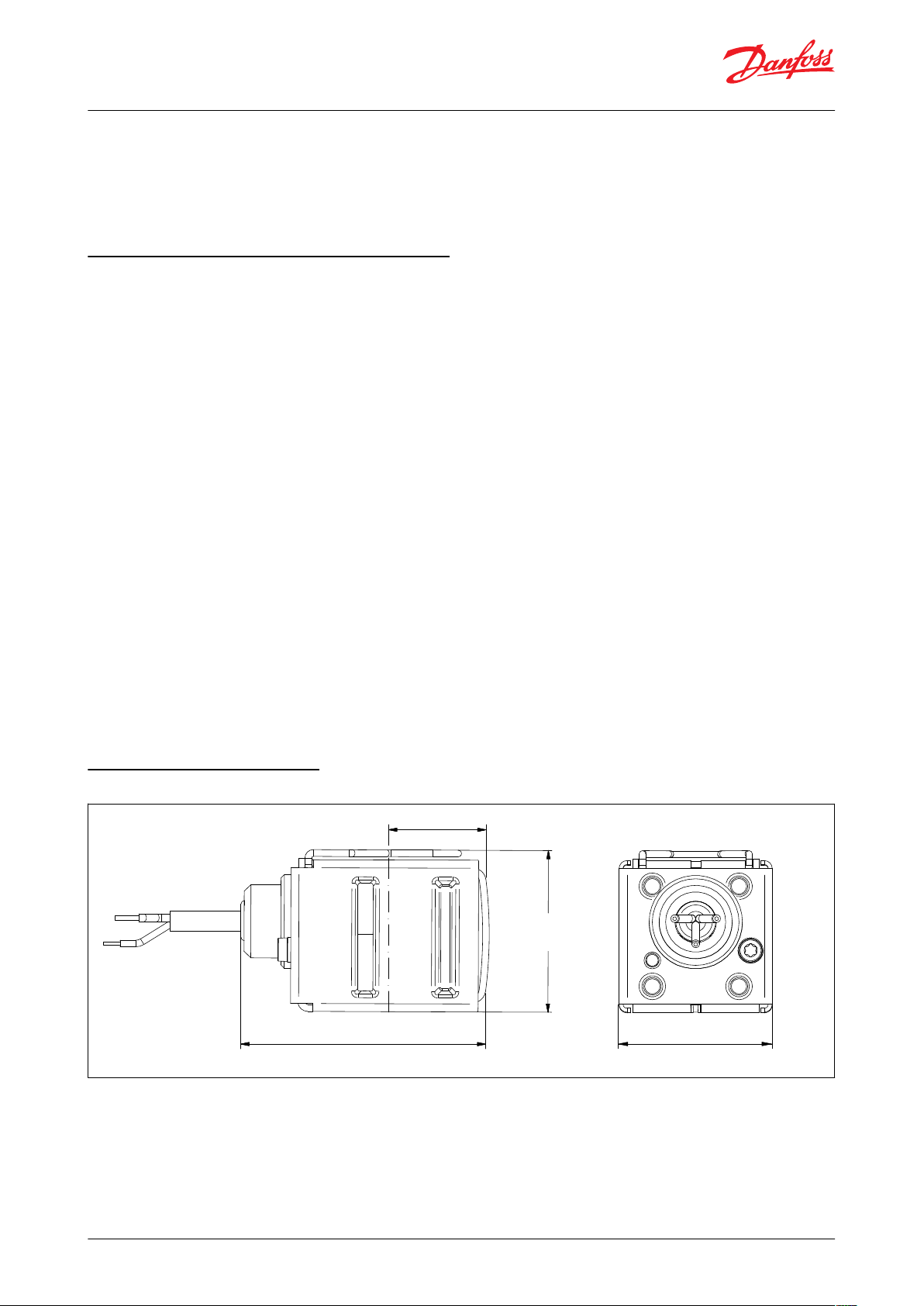

Figure 1: Dimensions
Weight 1.0 kg
© Danfoss | Climate Solutions | 2021.02 AI246086497045en-000401 | 3
Valve type
Coil type
Max. dierential pres‐
sure (MOPD)
Supply voltage
Frequency
Code no.
[bar]
[V]
[Hz]
EVR 2-25 NC
BZ120C
21
110 1205060
018F4703
BZ240C
230
208-2405060
018F4704
EVRA(T ) 3-25
BZ120C
21
110 1205060
018F4703
BZ240C
230
208-2405060
018F4704
EVRS(T ) 3-20
BZ120C
21
110 1205060
018F4703
BZ240C
230
208-2405060
018F4704
EVM NC and EVM NO
BZ120C
21
110 1205060
018F4703
BZ240C
230
208-2405060
018F4704
EV220B 6-10 NC
BZ120C
20
110 120
50 60
018F4703
BZ240C
230
208-2405060
018F4704
EV220B 12-22 NC
BZ120C
10
110 1205060
018F4703
BZ240C
230
208-2405060
018F4704
EV220B 6-10 NO
BZ120C
10
110 1205060
018F4703
BZ240C
230
208-2405060
018F4704
EV220B 15-50 NC
BZ120C
16
110 1205060
018F4703
BZ240C
230
208-2405060
018F4704
EV250B BZ120C
10
110 1205060
018F4703
BZ240C
230
208-2405060
018F4704
EV224B BZ120C
25
110 1205060
018F4703
BZ240C
230
208-2405060
018F4704
EV227B BZ120C
5
110 1205060
018F4703
BZ240C
230
208-2405060
018F4704
Solenoid coil, Type BZ
2 Ordering
2.1 Part program
Table 3: Ordering
© Danfoss | Climate Solutions | 2021.02 AI246086497045en-000401 | 4
