Operating Guide
AB-QM DN 125-250
AB-QM DN 125
Installation / Montering / Einbau / Installation / Installatie / Installation / Asennus / Montaż / Uzstādīšana / Beépítés / Montaj / Монтаж /Instalace / 安装 /
Vgradnja / Instalación / Montavimas
AB-QM DN 150
AB-QM DN 200/250
DN 125/150 DN 200/250
+
AME 55 QM
AME 85 QM
+
© Danfoss | 2016.02
Code No.: 003Z0696
Code No.: 003Z0697
VI.C6.C5.8Y | 1
AB-QM DN 125-250
Installation / Montering / Einbau / Installation / Installatie / Installation / Asennus / Montaż / Uzstādīšana / Beépítés / Montaj / Монтаж /Instalace / 安装 /
Vgradnja / Instalación / Montavimas
AB-QM DN 125/150 +
AME 55 QM
IP 54 IP 54
Temp. −10 ... 120 °C
AB-QM DN 200/250 +
AME 85 QM
Δp
max.
= 600 kPa*PN 16
*
In case AB- QM is used above 400 k Pa differential p ressure contact Da nfoss design center to as sure proper desig n.
2 | © Danfoss| 2016.02
VI.C6.C5.8Y
AB-QM DN 125-250
Setting / Indstilling / Einstellung / Réglage / Instelling / Inställning / Asettelu / Wykonywanie nastawy / Iestādījumi / Beállítás /Ayarlama / Настройка /
Nastavení / 设定 / Nastavitev / Ajuste / Nustatymas
+
Setting 60%
–
+
Note:
1 turn = 5.0 %

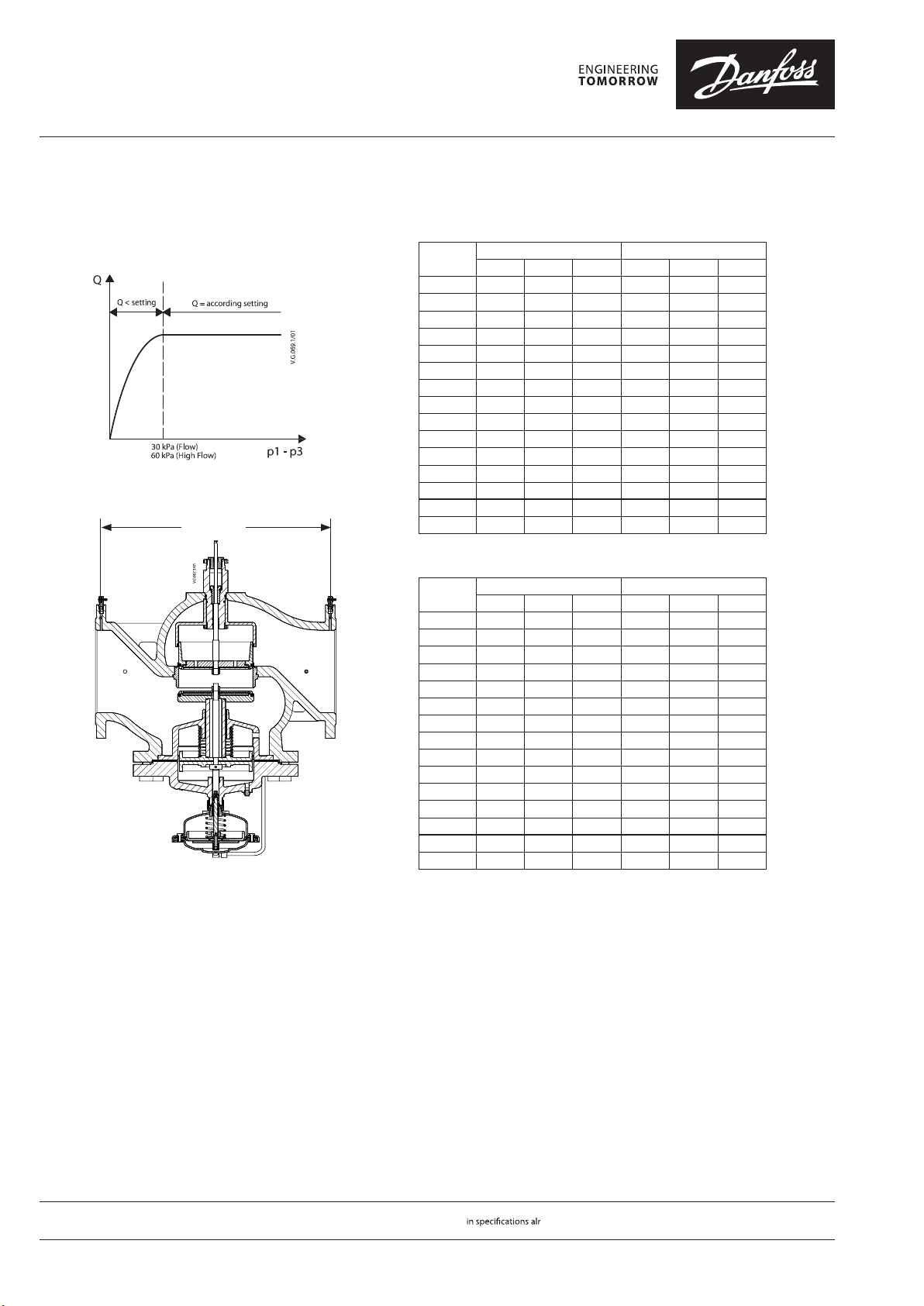

Measuring / Måling / Messung / Mesure / Meten / Mätning / Mittaaminen / Wykonywanie pomiarów / Mērīšana / Mérés / Ölçüm /Измерение / Měření /
测量 / Merjenje / Medida / Matavimas
p1−p3
AB-QM DN 125
DN 125
40% 36.000 10,00 158 44.000 12,22 194
45% 40.500 11,25 178 49.500 13,75 218
50% 45.000 22,50 188 55.000 15,28 242
55% 49.500 13,75 218 60.500 16,81 266
60% 54.000 15,00 238 66.000 18,33 290
65% 58.500 16,25 257 71.500 19,86 315
70% 63.000 17,50 277 77.000 21,39 339
75% 67.500 18,75 297 82.500 22,92 363
80% 72.000 20,00 317 88.000 24,44 387
85% 76.500 21,25 337 93.500 25,97 411
90% 81.000 22,50 356 99.000 27,50 436
95% 85.500 23,75 376 104.500 29,03 460
100% 90.000 25,00 396 110.000 30,56 484
105% 95.000 26,39 418 115.000 31,94 506
110% 100.000 27,78 440 120.000 33,33 528
Note: 1 turn = 5,0%
Flow High Flow
L/h L/s GPM L/h L/s GPM
–
VI.C6.C5.8Y
p1−p3
AB-QM DN 150
DN 150
40% 58.000 16,11 255 76.000 21,11 334
45% 65.250 18,13 287 85.500 23,75 376
50% 72.500 20,14 319 95.000 26,39 418
55% 79.750 22,15 351 104.500 29,03 460
60% 87.000 24,17 383 114.000 31,67 502
65% 94.250 26,18 415 123.500 34,31 543
70% 101.500 28,19 447 133.000 36,94 585
75% 108.750 30,21 479 142.500 39,58 627
80% 116.000 32,22 510 152.000 42,22 669
85% 123.250 34,24 542 161.500 44,86 711
90% 130.500 36,25 574 171.000 47,50 752
95% 137.750 38,26 606 180.500 50,14 794
100% 145.000 40,28 638 190.000 52,78 836
105% 152.500 42,36 671 209.500 58,19 922
110% 160.000 44,44 704 229.000 63,61 1.008
Note: 1 turn = 5,0%
Flow High Flow
L/h L/s GPM L/h L/s GPM
© Danfoss | 2016.02 | 3
Danf
already on order pro
All trademarks in this material are property of the respec
AB-QM DN 125-250
Measuring / Måling / Messung / Mesure / Meten / Mätning / Mittaaminen / Wykonywanie pomiarów / Mērīšana / Mérés / Ölçüm /Измерение / Měření /
测量 / Merjenje / Medida / Matavimas
p1−p3
AB-QM DN 200/250
DN200
40% 80.000 22,22 352 108.000 30,00 475
45% 90.000 25,00 39 6 121.500 33,75 535
50% 100.000 27,78 440 135.000 37, 50 594
55% 110.000 30,56 484 14 8.5 00 41, 25 653
60% 120.000 33,33 528 162.000 45,00 713
65% 130.000 36 ,11 572 175 .50 0 48,75 772
70% 140.000 38,89 616 189.000 52,50 832
75% 150.000 41, 67 660 202. 500 56,25 891
80% 160.000 44,44 704 216.000 60,00 950
85% 170.000 47, 22 748 229.500 63,75 1010
90% 180.000 50,00 792 243.000 67, 50 1069
95% 190.000 52,78 836 256.500 71,25 1129
100% 200.000 55,56 880 270.000 75, 00 118 8
105% 210.000 58, 33 924 285.00 0 79,17 125 4
110 % 220.000 61,11 968 300.000 83,33 132 0
Note: 1 turn = 5,0%
DN250
40% 120.000 33,33 528 148.000 4 1,11 651
45% 135.000 37, 50 594 166. 500 46,25 733
50% 150.000 41, 67 660 185.000 51,39 814
55% 165.000 45,83 726 203.500 56, 53 895
60% 180.000 50,00 792 222.000 61,67 977
65% 195.000 54 ,17 858 24 0.500 6 6,81 10 58
70% 210.000 58, 33 924 259.000 71, 94 114 0
75% 225.000 62,50 990 27 7.5 00 7 7,0 8 1221
80% 240.000 66,67 1056 296.000 82,22 13 02
85% 255.000 70,83 112 2 314. 500 87, 36 1384
90% 270.000 75,00 118 8 333.000 92,50 1465
95% 285.000 7 9,17 1254 351. 500 9 7,6 4 1547
100% 300.000 83,33 1320 370.000 102,78 162 8
105% 315.000 87, 50 1386 388.500 107, 92 1709
110 % 330.000 91,67 1452 407.000 113,06 1791
Note: 1 turn = 5,0%
L/h L/s GPM L/h L/s GPM
L/h L/s GPM L/h L/s GPM
Flow High Flow
Flow High Flow
